Product Overview

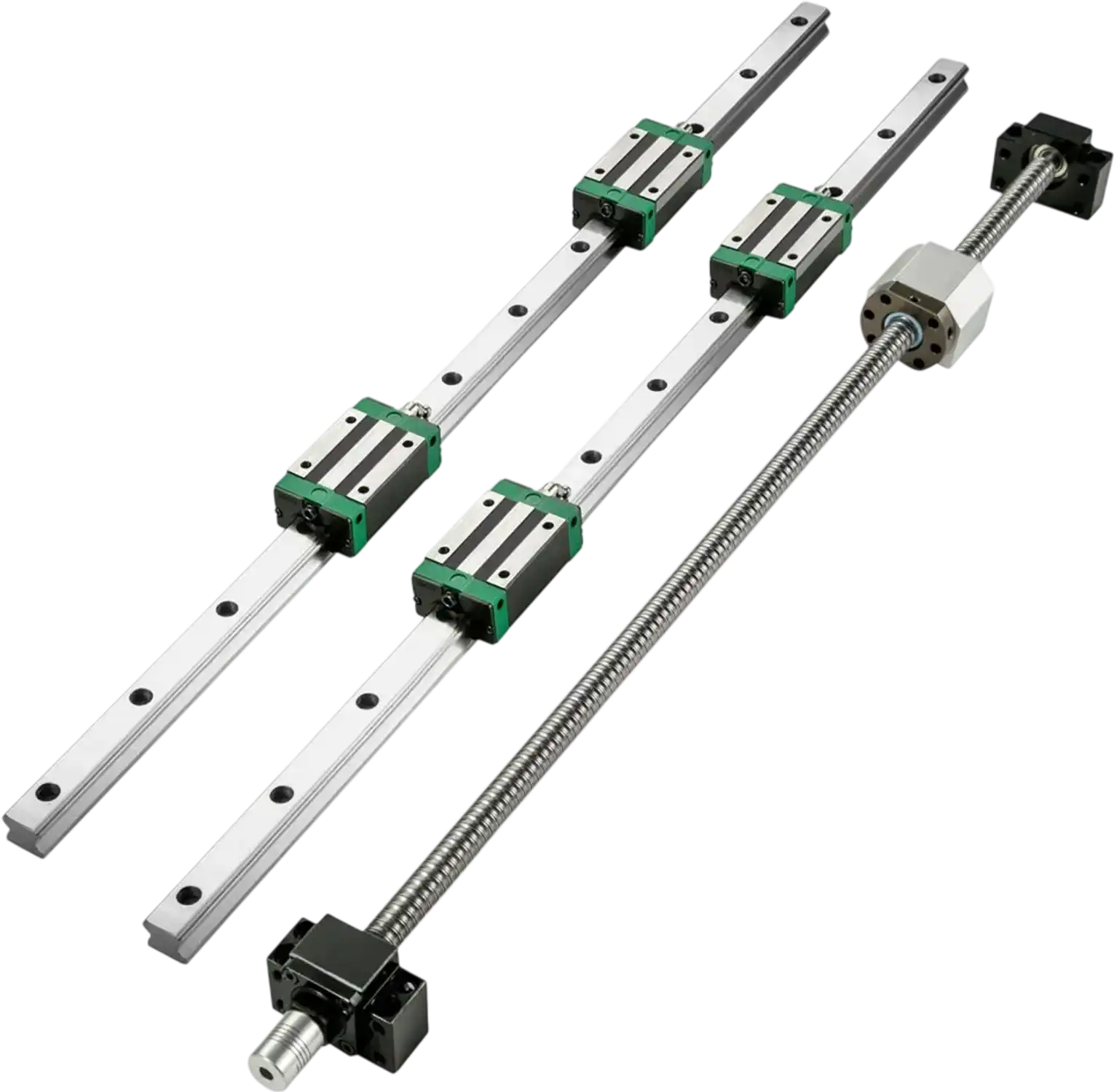

This Vevor linear guide rail kit is designed to provide precise, smooth linear motion for DIY CNC routers, lathes, mills, and other automation projects. The set includes two HGR20 39.3" rails, four slide blocks, an RM1605 ballscrew, BF12/BK12 end supports, and a plum coupling. Built with carbon steel and GCr15 bearing steel, it offers durable construction with a chrome-plated, rust-resistant surface. Pre-drilled mounting holes help simplify installation, while the low-friction design supports accurate movement and quiet operation.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- 1000 mm HGR20 Linear Guide Rail: This linear guide rail set includes 2 pieces of HGR20-1000 mm linear guide rail, 4 blocks, 1pcs RM1605-1000 mm ball screw with end machined, 1pcs RM1605 ball nut, 1 set BF12/BK12 end support, and 1pcs plum coupling.

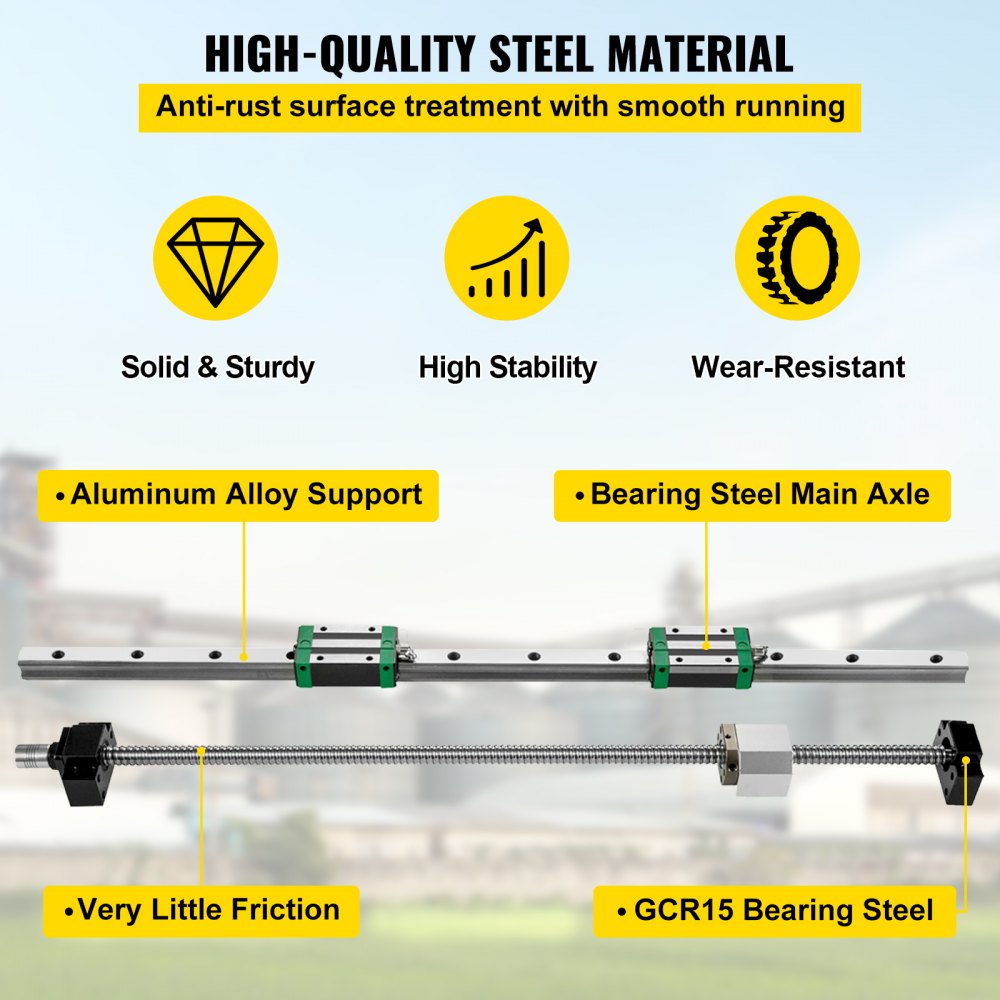

- High-Quality Steel Material: Linear guides are made of carbon steel, linear bearings are made of GCr15 bearing steel. Surface chrome plating treatment beautiful anti-rust, hardness can as high as HRC62, more durable.

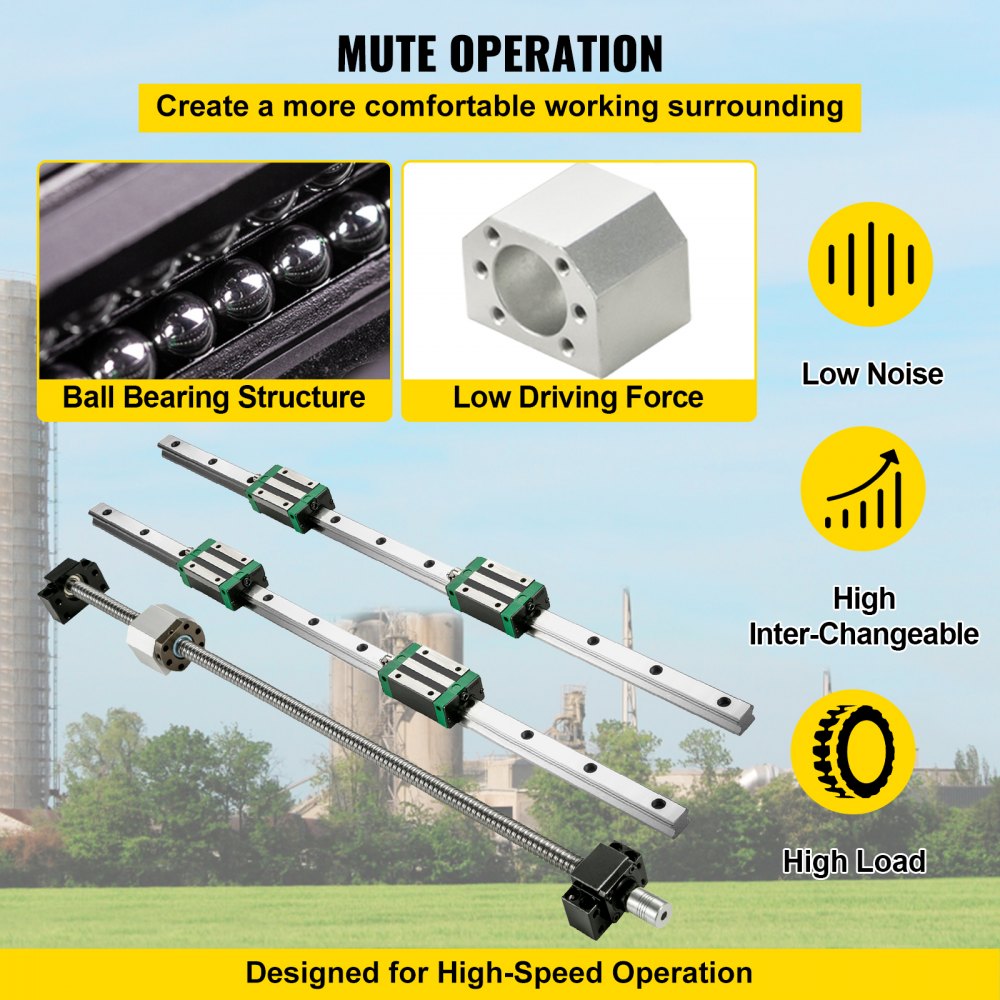

- Premier Linear Guiding System: Motor-driven guide rail achieves high precision linear motion. They are designed to achieve high precision linear motion and low friction coefficient.

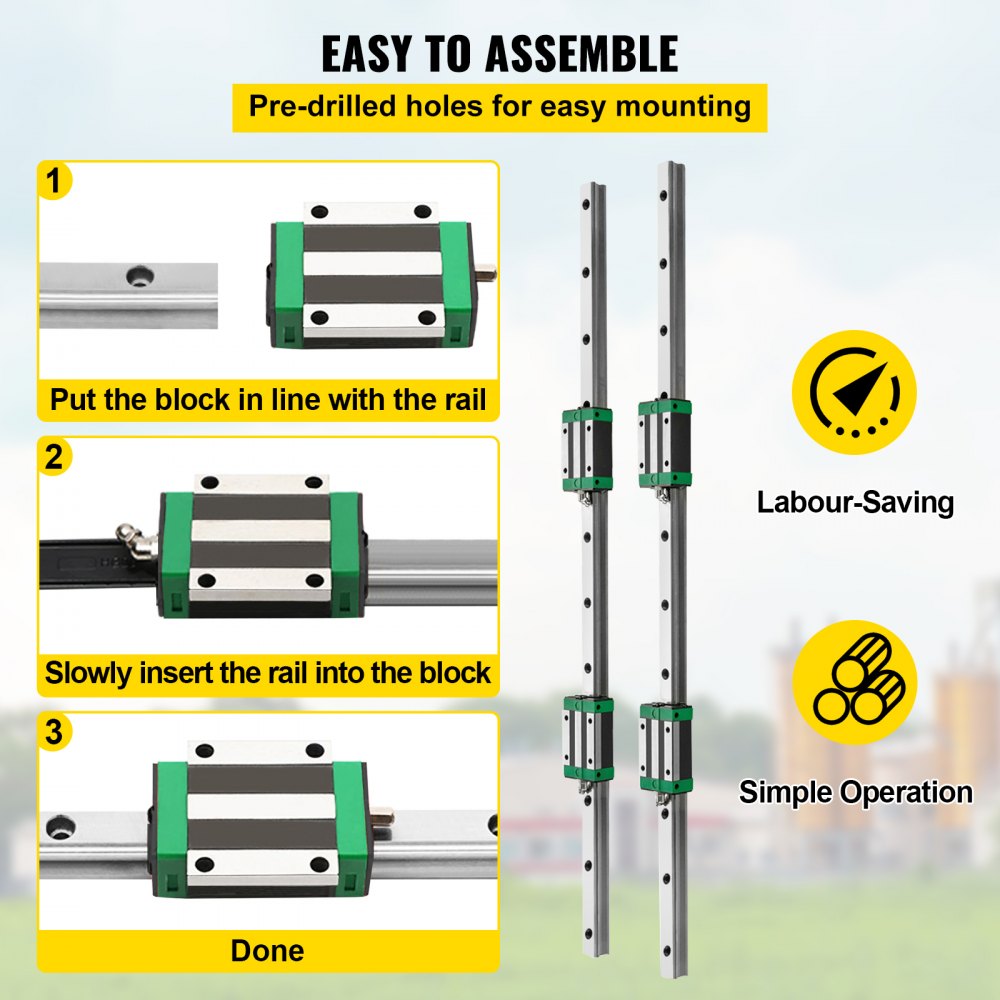

- Effortless to Install: Steel support rail with pre-drilled holes for ease of mounting. Stainless steel Linear optical axis guide bearings linear movement. Easy to install, no need for maintenance.

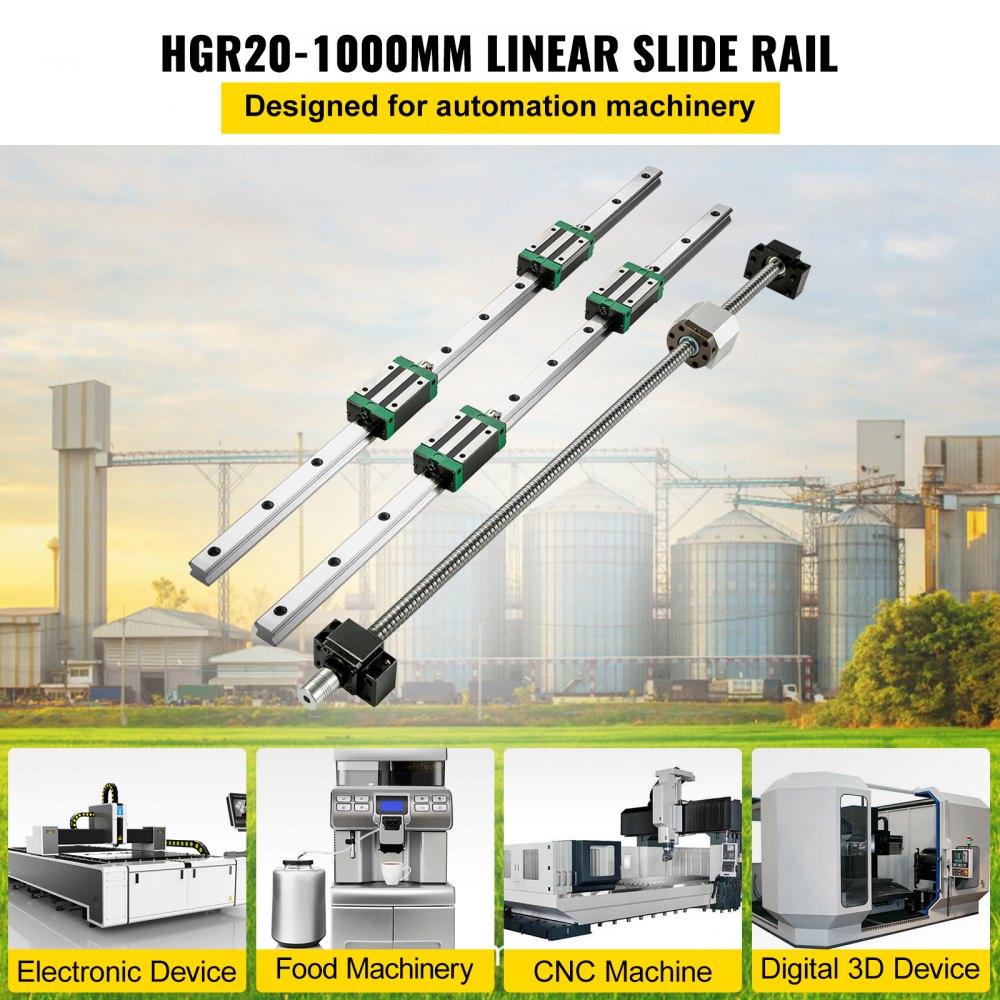

- Versatile Application: The CNC linear rail is widely used in automatic equipment, precision measuring equipment, and many other machines that need precision linear movement.

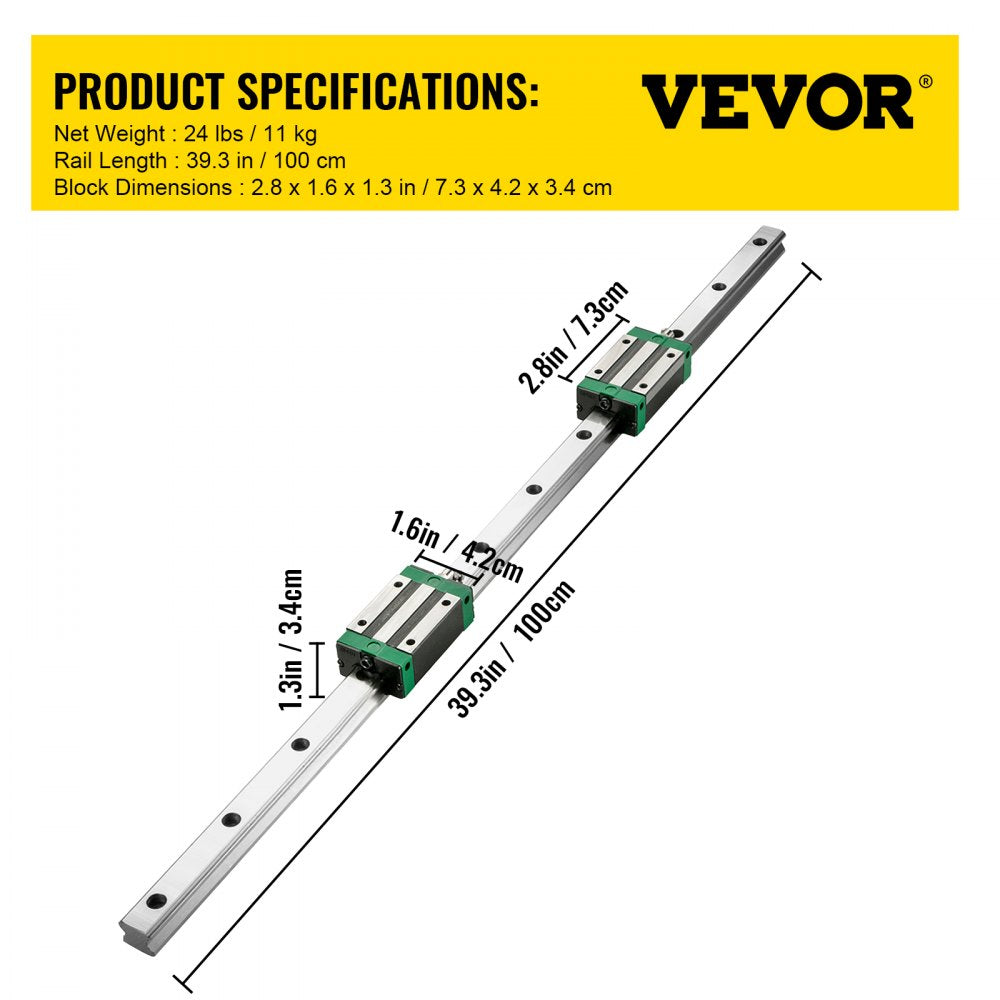

Specifications
| Type | HGR20 Slide Rail |
| Model | ZXDGTZHGR20-10001V0 |
| Material | GCr15 Steel |
| Rail Shaft Length | 39.3 in / 100 cm |
| Nuts | BF12 / BK12 Nuts |
| Fixing Screw Hole Size | M4 x 16 mm |
| Static Load Ratings | 25.31 |
| Allowable Static Torque | 0.17 KN.m |
| Performance | Smooth Motion, Low Noise |
| Net Weight | 24 lbs / 11 kg |
| Block Dimensions | 2.8 x 1.6 x 1.3 in / 7.3 x 4.2 x 3.4 cm |
| Rail Specifications | 2 x HG20-1000 |
| Lead Pitch | 5 mm |
| Dynamic Load | 52 kg |
| Static Load | 112 kg |

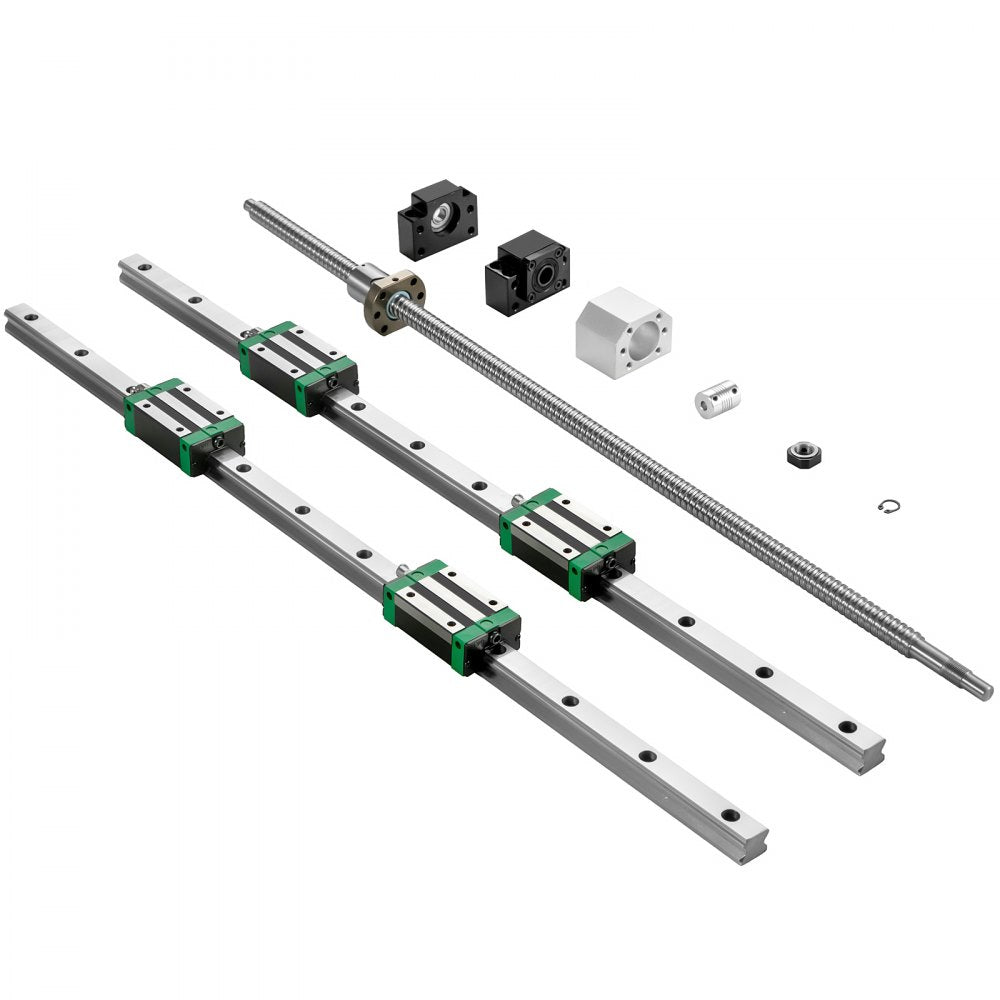

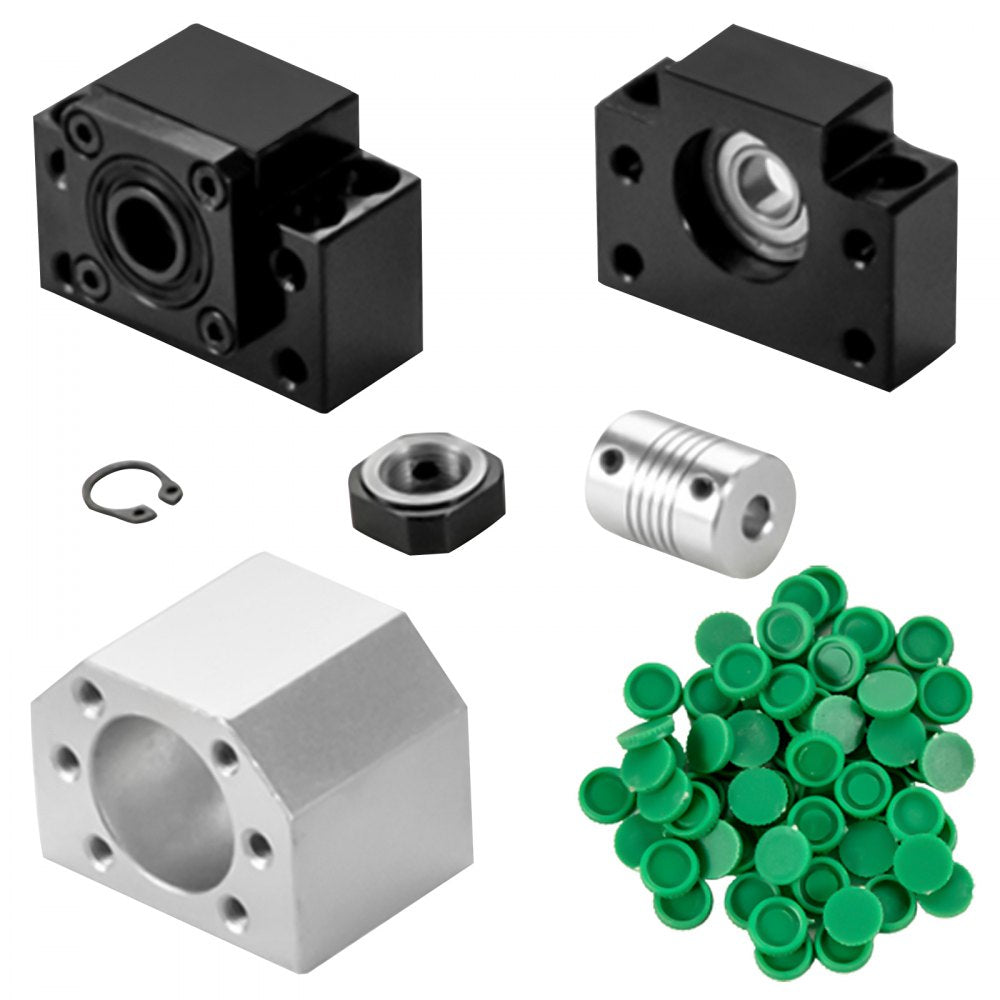

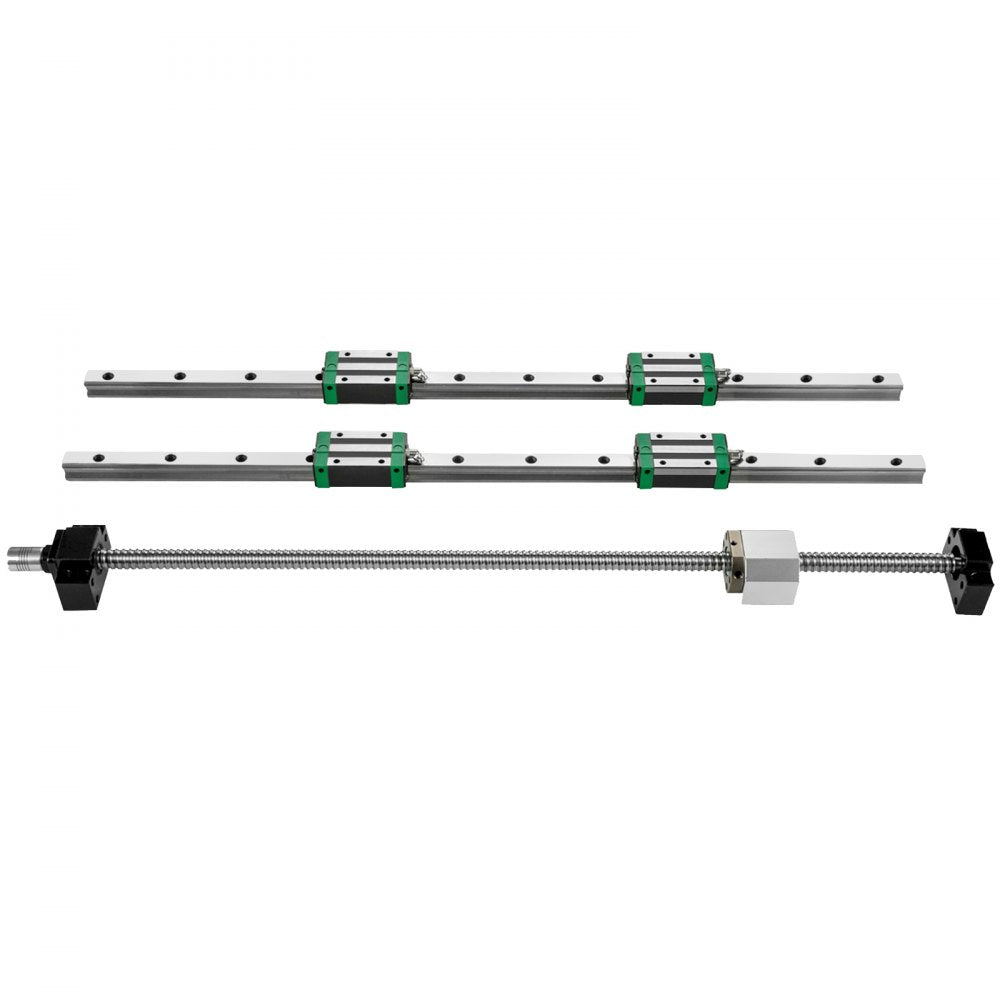

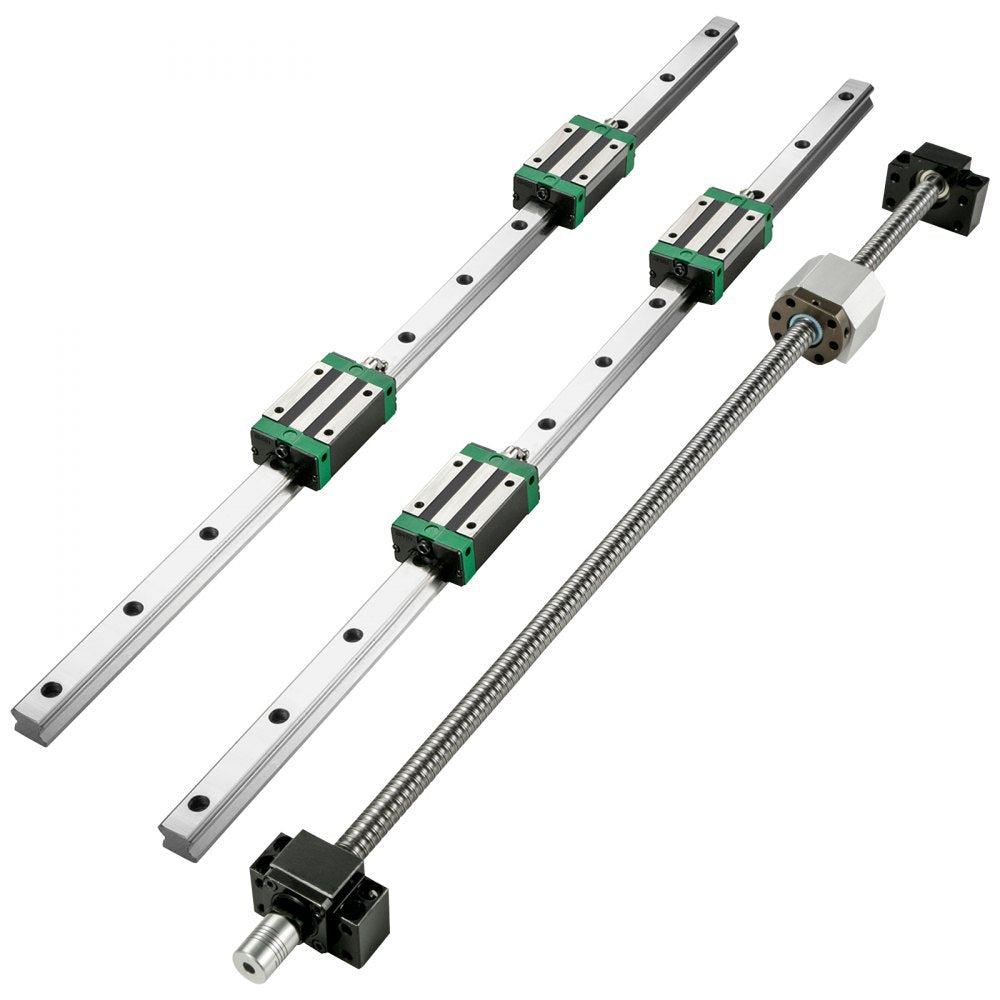

Package Contents
2 x HGR20-1000 mm linear guide rails
4 x slide blocks
1 x RM1605-1000 mm ball screw with end machined
1 x RM1605 ball nut
1 x BF12/BK12 end support set
1 x plum coupling
Warranty
This item comes with a 1 year factory warranty.
