Vevor Linear Actuator 4" 12V IP65 Waterproof 675 lbs New
Manufacturer: Vevor
SKU: FHXXXZXQ4INC7LZD0001V9
Extended Itinerary Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$76.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor 20' x 10' x 7' Tunnel Greenhouse Steel Hoops with PE Waterproof Cover New
-
Vevor Linear Actuator 12V 16" Heavy Duty 1320 lbs Linear Motion Actuator New
-
Vevor Walk-In Tunnel Greenhouse 27.38' x 9.5' x 7.38' with Galvanized Frame and PE Cover New
-
Vevor Linear Actuator 12V 20" High-Speed 220 lbs Linear Motion Actuator New
-
Vevor Linear Actuator 12V 18" 330 lbs High Load with Mounting Bracket New
-
Vevor Linear Actuator 12V 4" 330 lbs High Load with Mounting Bracket New
-
Vevor Walk-In Tunnel Greenhouse 19.36' x 9.68' x 7.4' with Galvanized Frame and PE Cover New
Vevor Linear Actuator 4" 12V IP65 Waterproof 675 lbs New

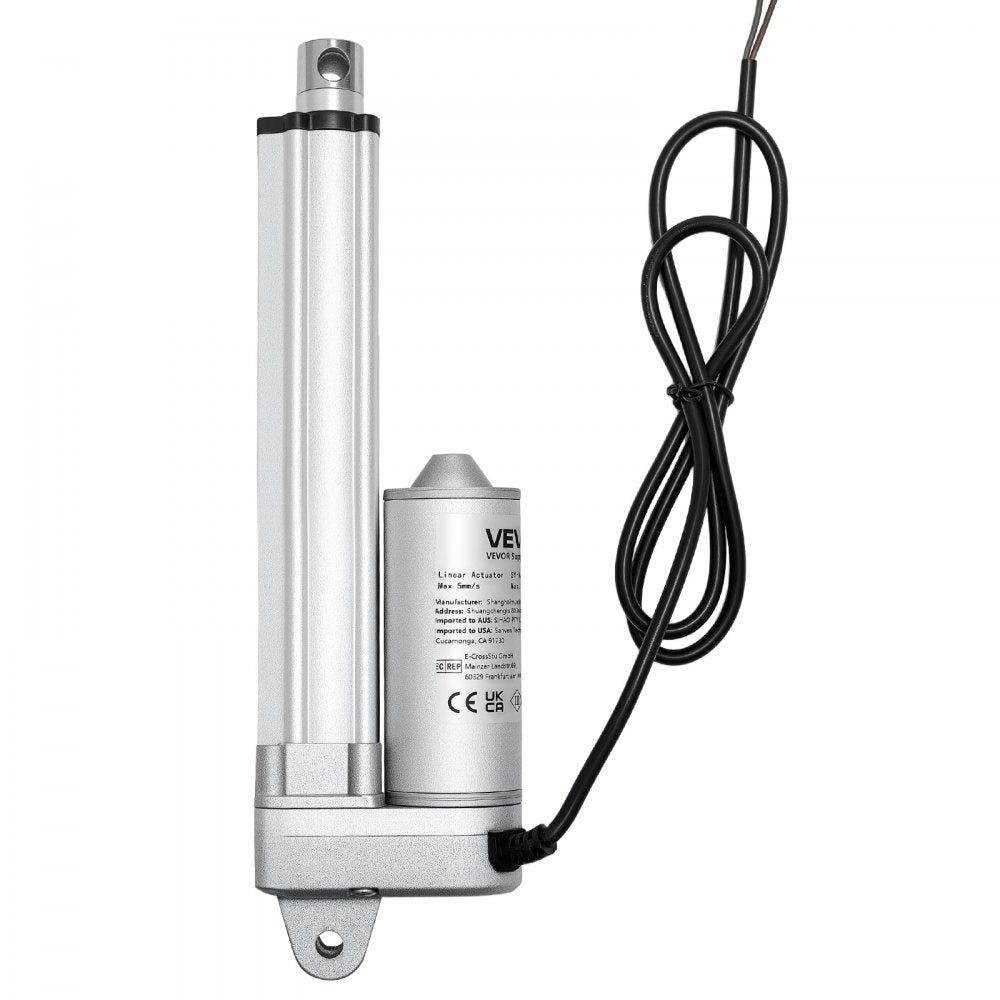

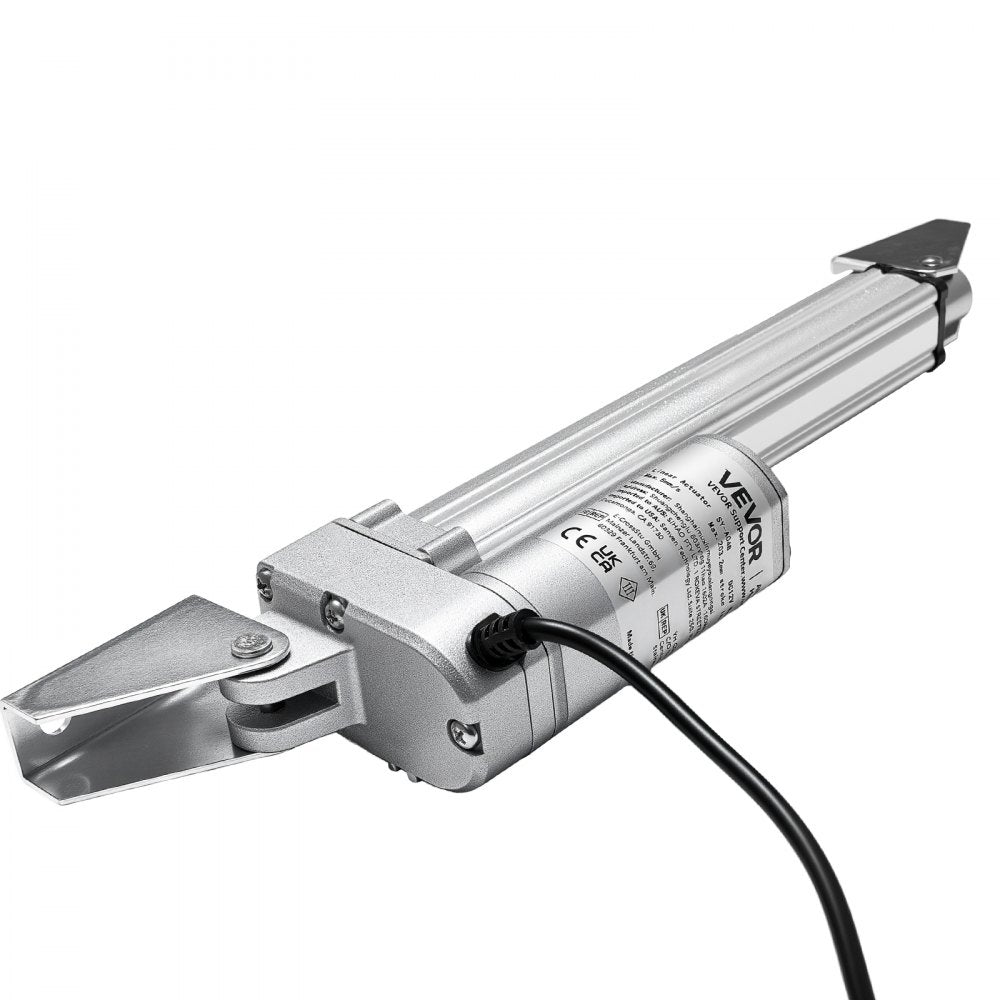

Product Overview
The Vevor 12V linear actuator is built for smooth, reliable motion control in outdoor and medium-load applications. It features a 4 inch stroke, 675 lbs maximum thrust, and IP65-rated dust and water resistance for dependable performance in demanding environments. The aluminum alloy housing and precision screw drive help provide durable, stable operation. This actuator is suitable for uses such as door openers, lawn mowers, solar tracking systems, irrigation systems, furniture, and industrial automation.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

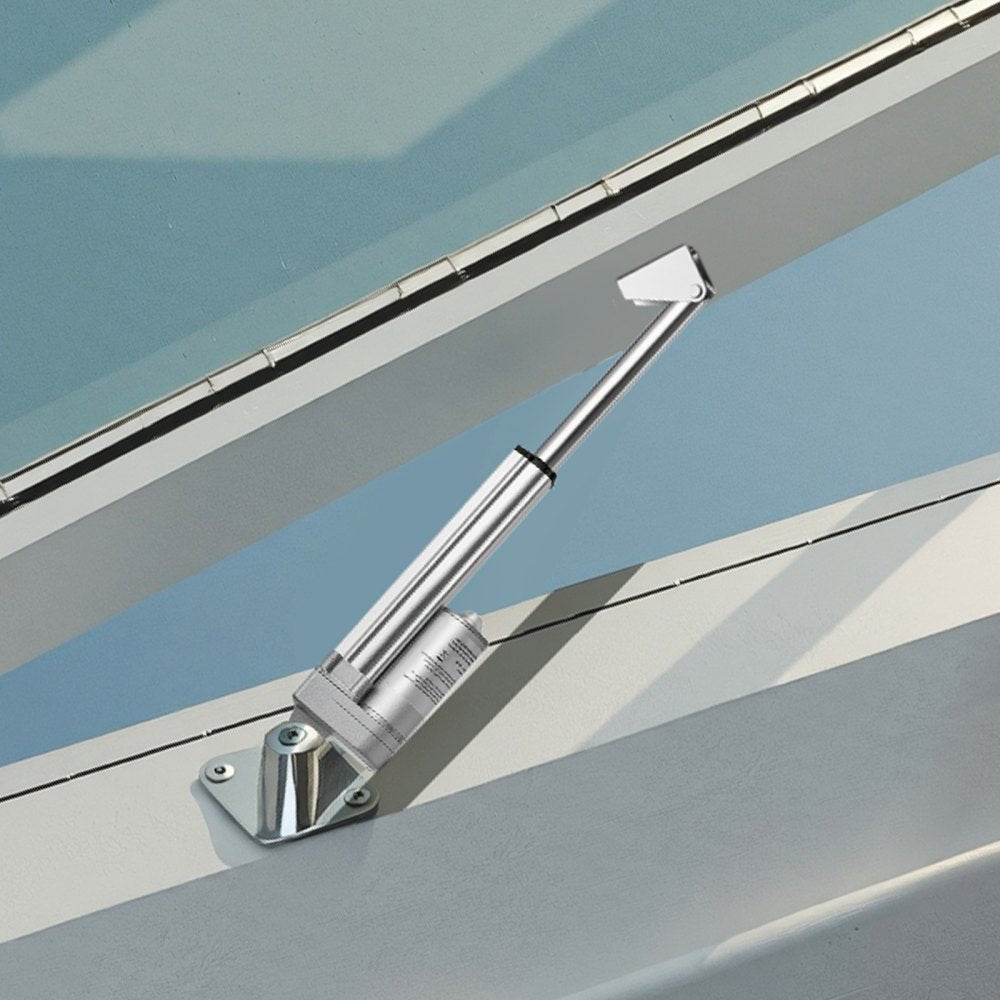

- IP65 Superior Protection: Rated IP65 for excellent dust and water resistance, VEVOR 12V linear actuator delivers dependable performance in outdoor environments. Suitable for door openers, lawn mowers, solar panel tracking systems, irrigation systems, etc
- Strong Torque Output: 675lbs (3000N) powerful torque output excels in various demanding tasks like agricultural machinery, construction equipment, and industrial automation, ensuring reliable performance in medium-load applications
- Durable and Sturdy: Featuring an aluminum alloy housing and precision screw drive, the 12V linear actuator offers enhanced wear resistance and long-lasting stability. Operating under 65 dB (no-load noise) to reduce vibration and jamming during frequent cycles
- Versatile Applications: Our linear motion actuator integrates across a wide range of applications, from furniture and home automation to industrial systems, mechanical equipment, transportation, and beyond. Empower automation at every step
- Key Specifications: Travel Speed: 0.2"/s (5 mm/s); Stroke Length: 4" (101.6 mm); Extended Length: 13" (330.2 mm); Retracted Length: 9" (228.6 mm); Current Draw: 6 Amps; Input Voltage: DC 12V; Duty Cycle: 25%

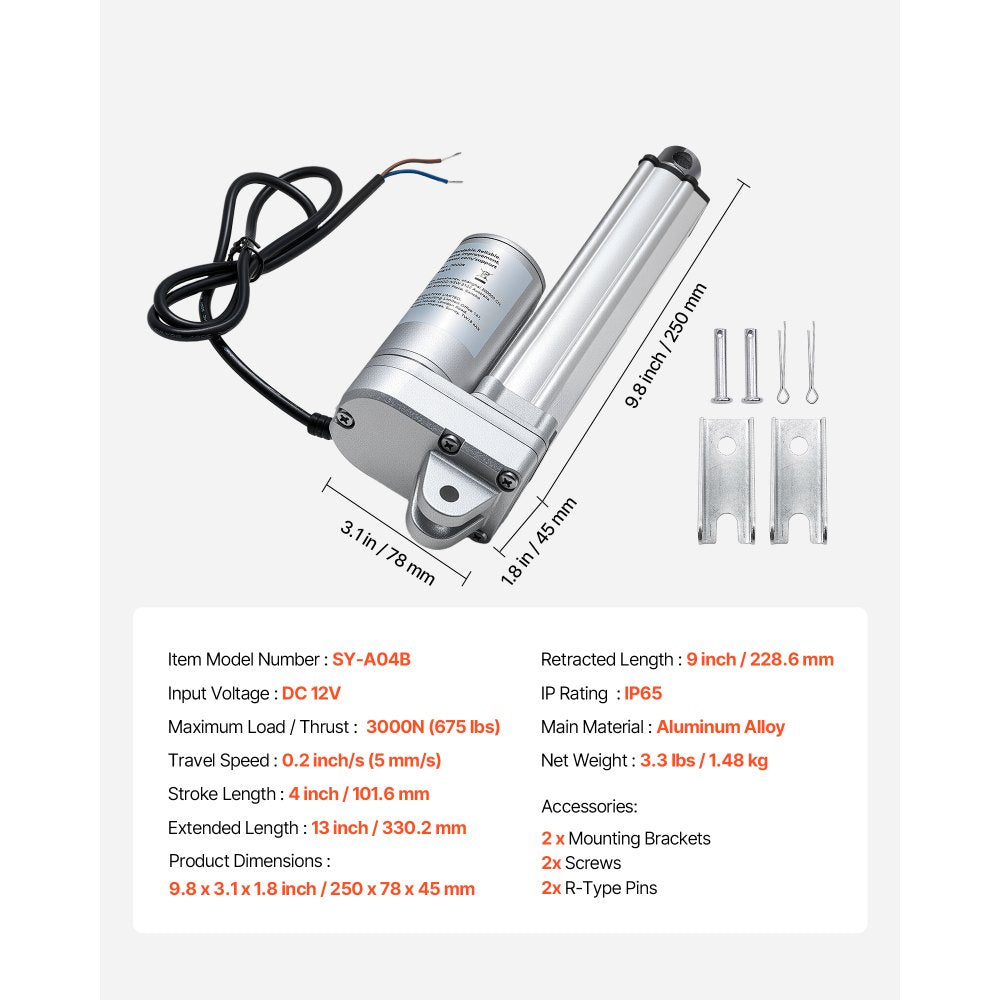

Specifications
| Item Model Number | SY-A04B |
| Rated Voltage | DC 12V |
| Maximum Load / Thrust | 3000N (675 lbs) |
| Travel Speed | 0.2 in/s (5 mm/s) |
| Stroke Length | 4 in (101.6 mm) |
| Extended Length | 13 in (330.2 mm) |
| Retracted Length | 9 in (228.6 mm) |
| IP Rating | IP65 |
| Main Material | Aluminum Alloy |
| Duty Cycle | 25% |
| Noise Level | Under 65 dB |
| Net Weight | 3.3 lbs (1.48 kg) |
| Product Dimensions | 9.8 x 3.1 x 1.8 in (250 x 78 x 45 mm) |

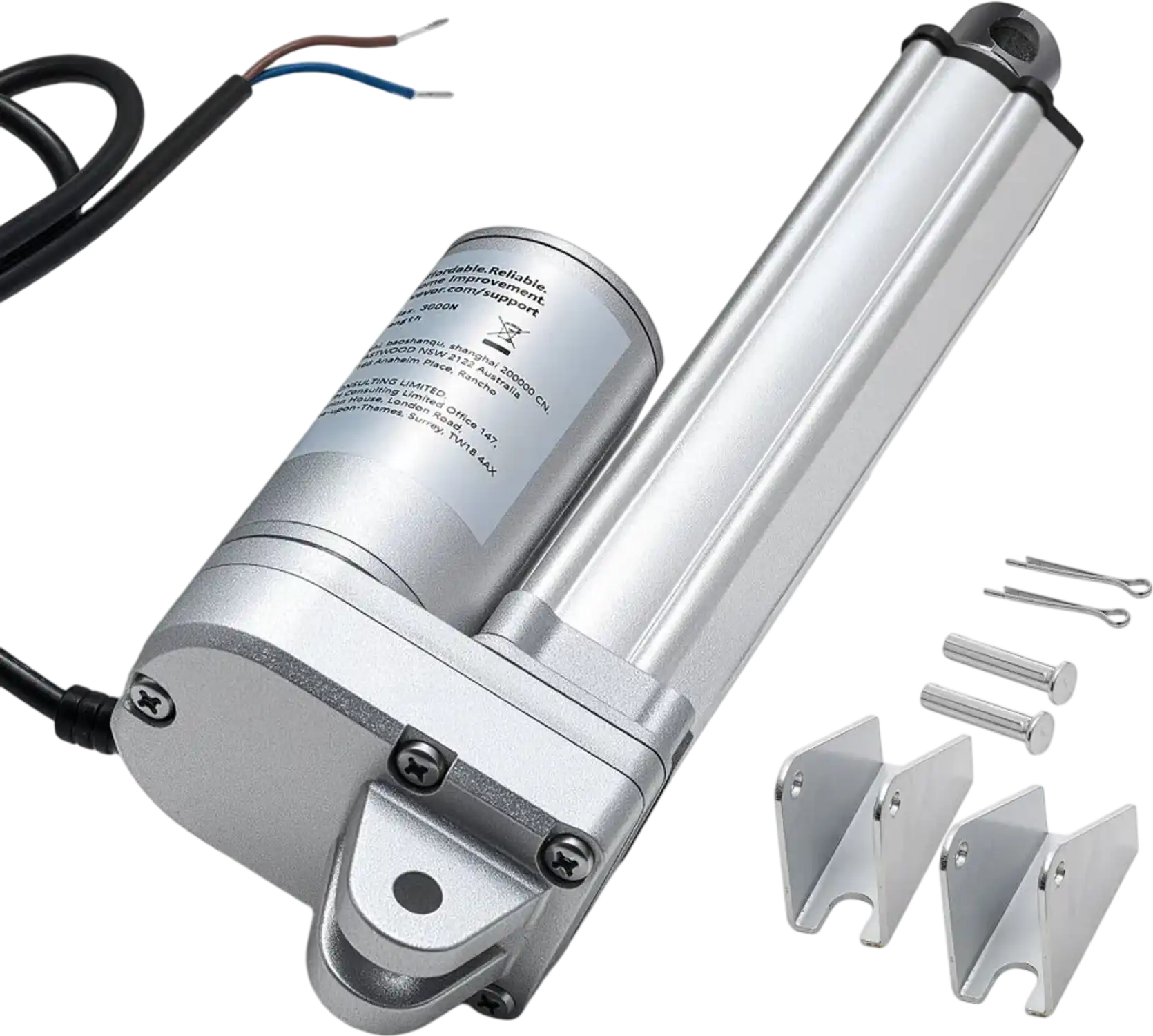

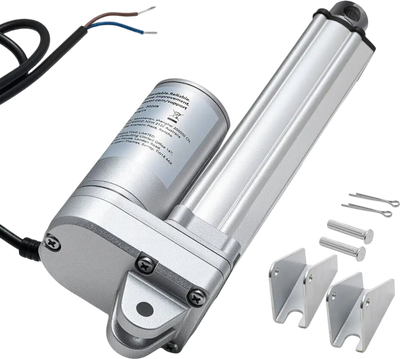

Package Contents
Linear actuator
Mounting brackets
Warranty
This item comes with a 1 year factory warranty.
