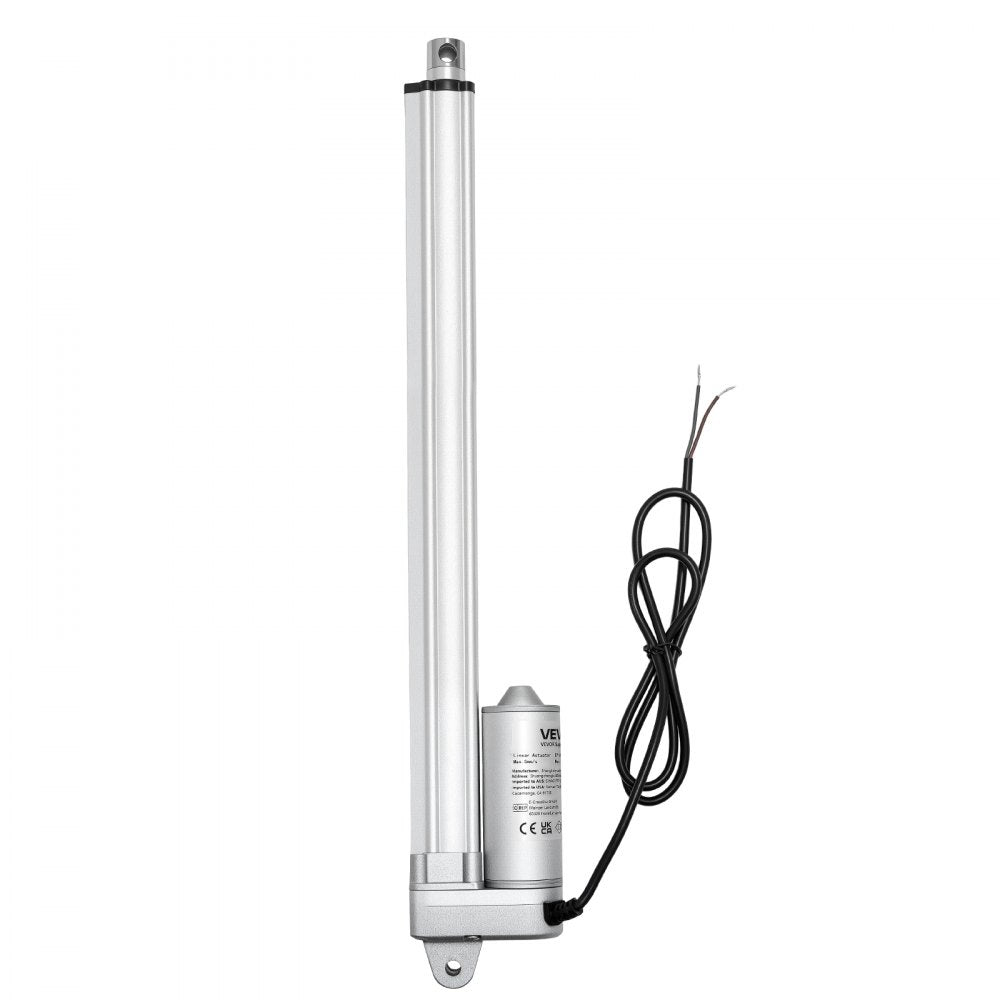

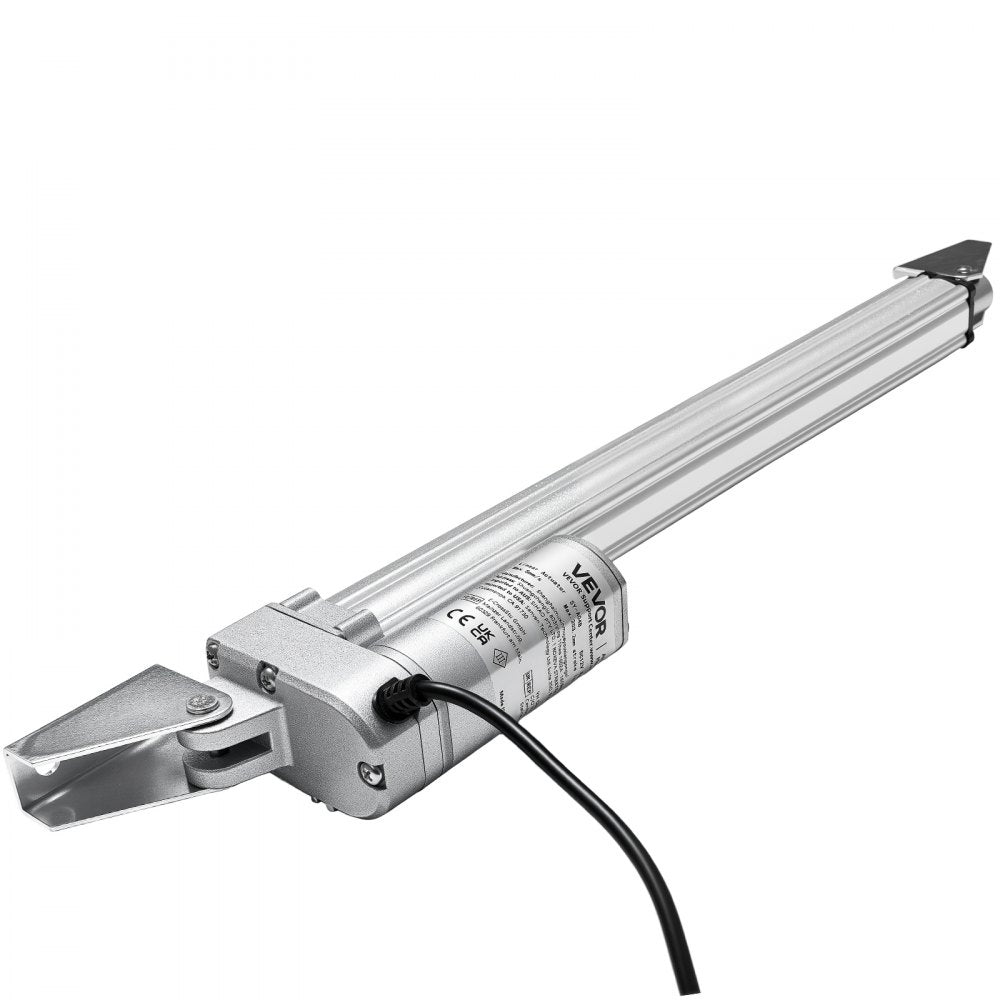

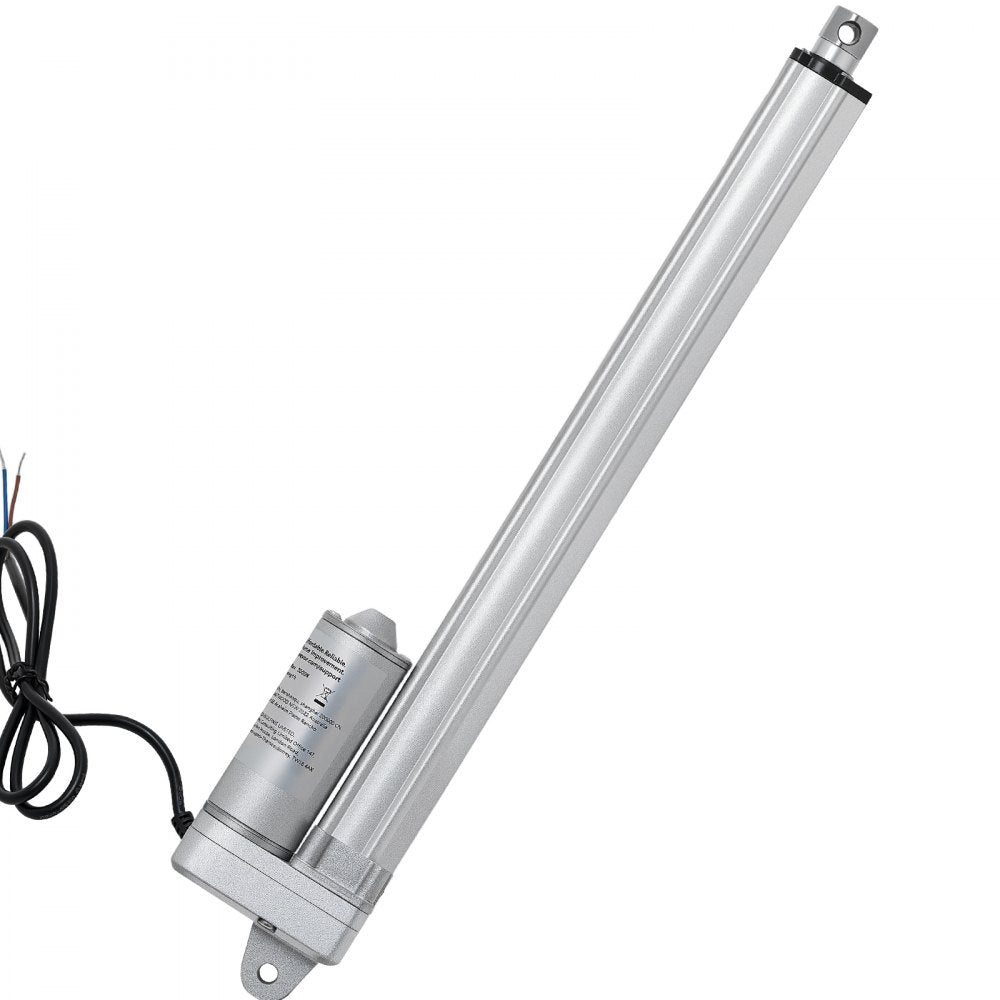

Vevor Linear Actuator 12V Waterproof 12" 675 lbs IP65 New
Manufacturer: Vevor
SKU: FHXXXZXQ12INHKP03001V9
Extended Itinerary Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$86.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor Linear Actuator 12V 16" Heavy Duty 1320 lbs Linear Motion Actuator New
-
Vevor Concession Window 60" x 36" with 4 Sliding Windows and Awning Door New
-
Vevor Linear Actuator 12V 20" High-Speed 220 lbs Linear Motion Actuator New
-
Vevor Linear Actuator 12V 18" 330 lbs High Load with Mounting Bracket New
-
Vevor Linear Actuator 12V 12" 330 lbs Linear Motion Actuator New
-
Vevor Linear Actuator 12V 16" 330 lbs Linear Motion Actuator with Mounting Bracket New
-
Vevor Linear Actuator 12V 10" Heavy Duty 1320 lbs 6000N New
-
Vevor Linear Actuator 12V 8" Heavy Duty 1320 lbs 6000N IP44 New
Vevor Linear Actuator 12V Waterproof 12" 675 lbs IP65 New

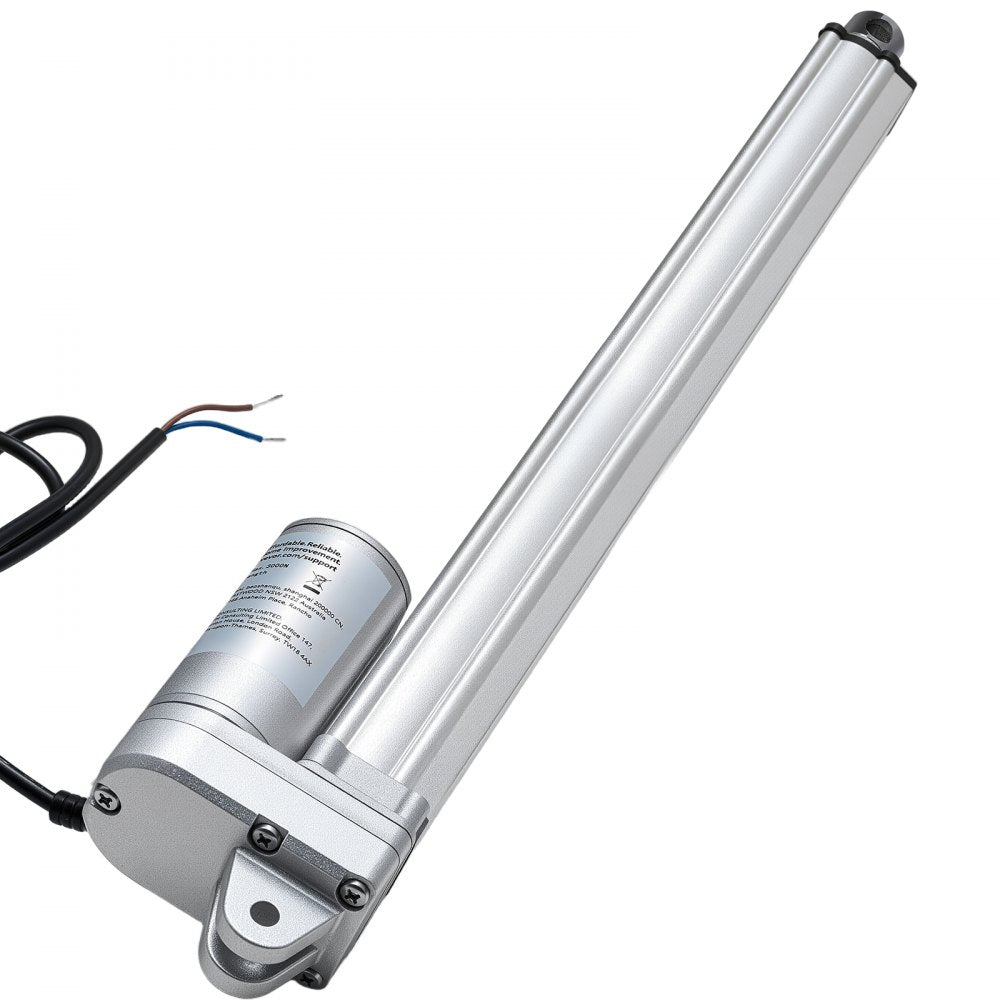

Product Overview
The Vevor 12V linear actuator is designed for smooth, reliable motion control in outdoor and medium-load automation applications. It delivers up to 675 lbs of force with a 12" stroke and a travel speed of 0.2" per second. Its aluminum alloy housing and IP65 rating help protect against dust and water exposure. Built-in limit switches support automatic stop at full extension and retraction. This actuator is suited for uses such as door openers, lawn mowers, solar tracking systems, irrigation systems, and other automated equipment.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

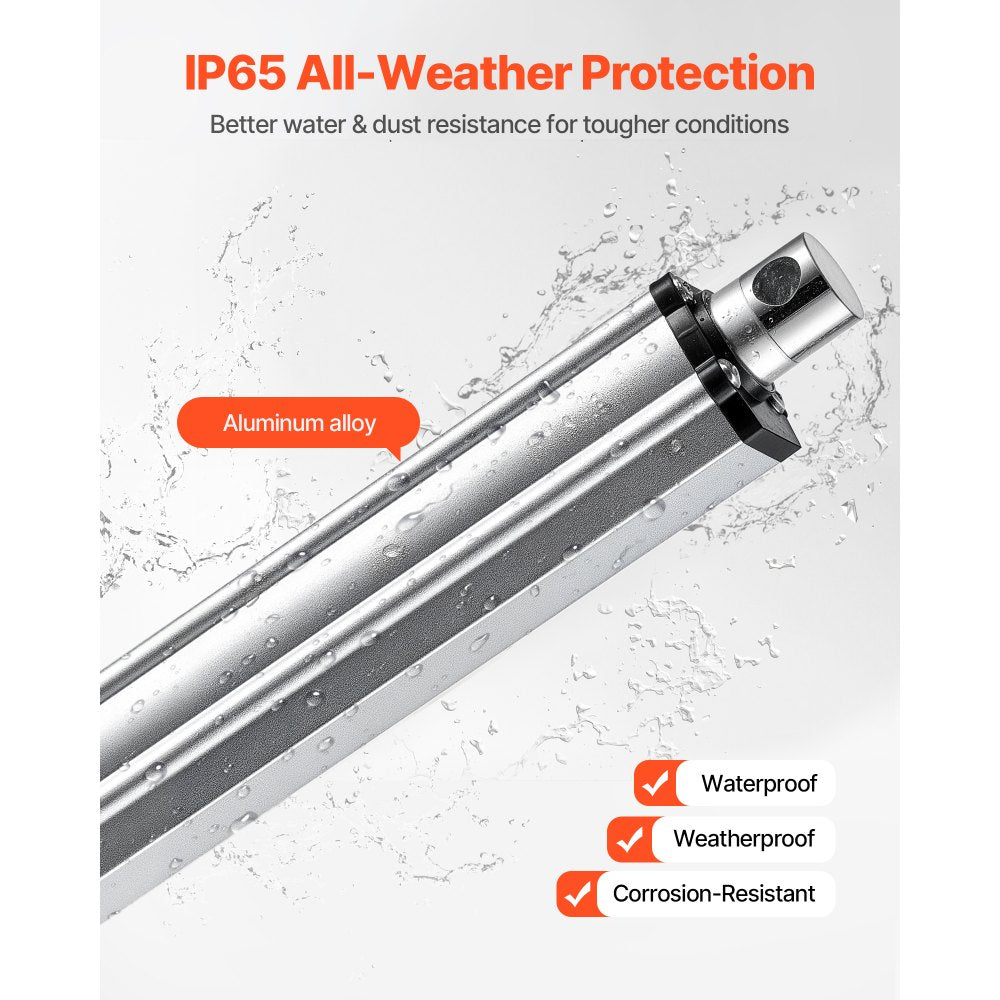

- IP65 Superior Protection: Rated IP65 for excellent dust and water resistance, VEVOR 12V linear actuator delivers dependable performance in outdoor environments. Suitable for door openers, lawn mowers, solar panel tracking systems, irrigation systems, etc

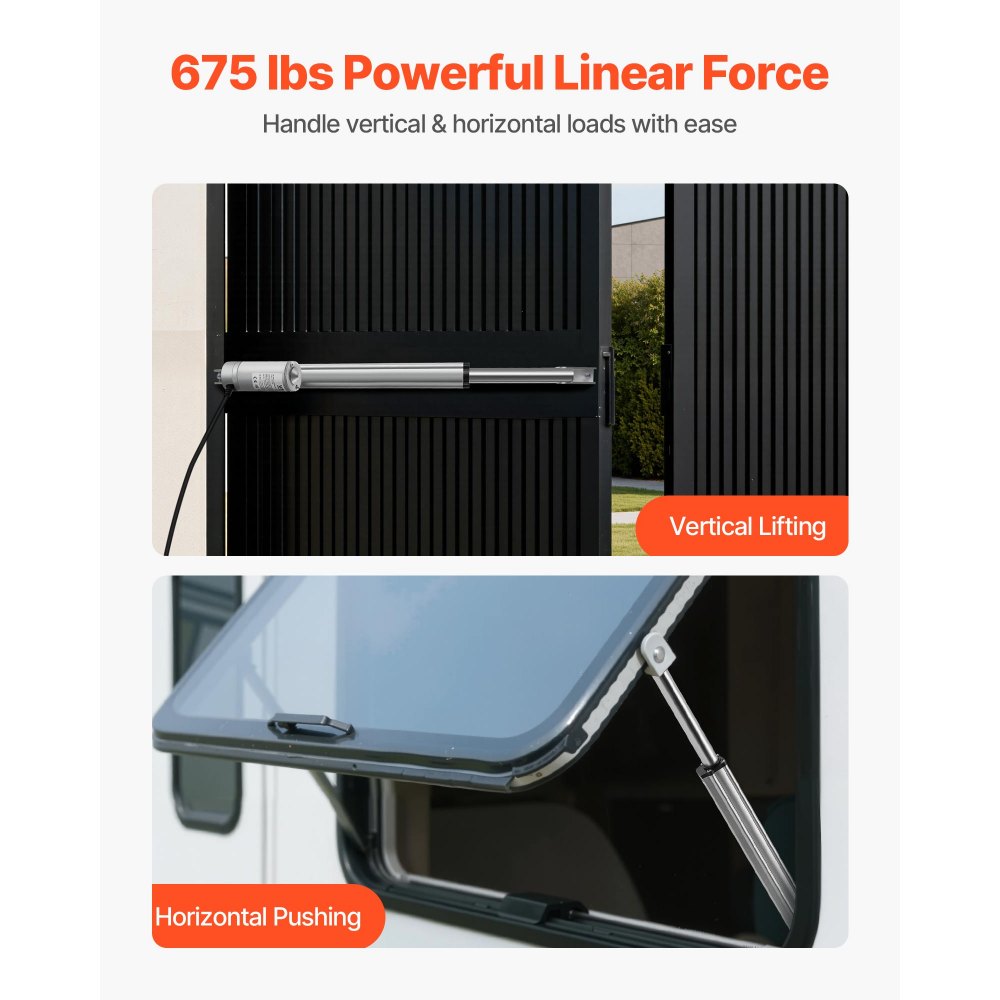

- Strong Torque Output: 675lbs (3000N) powerful torque output excels in various demanding tasks like agricultural machinery, construction equipment, and industrial automation, ensuring reliable performance in medium-load applications

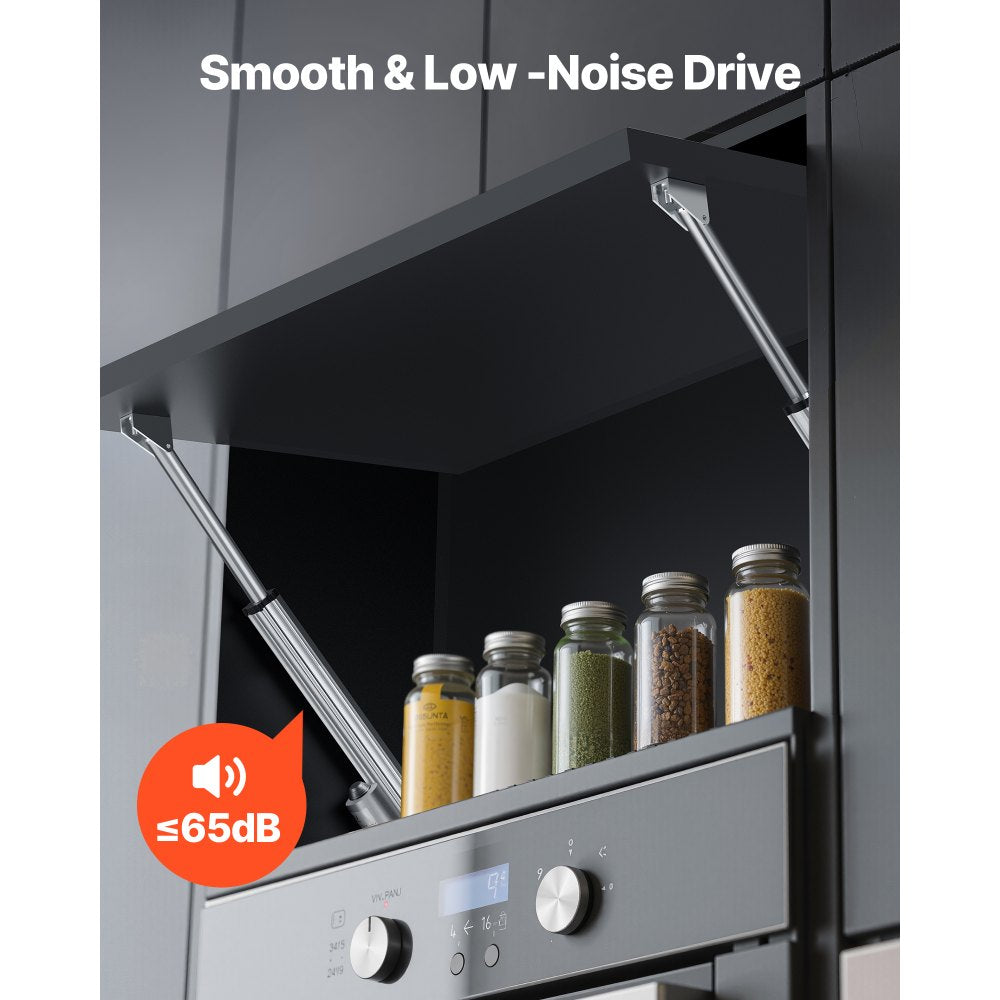

- Durable and Sturdy: Featuring an aluminum alloy housing and precision screw drive, the 12V linear actuator offers enhanced wear resistance and long-lasting stability. Operating under 65 dB (no-load noise) to reduce vibration and jamming during frequent cycles

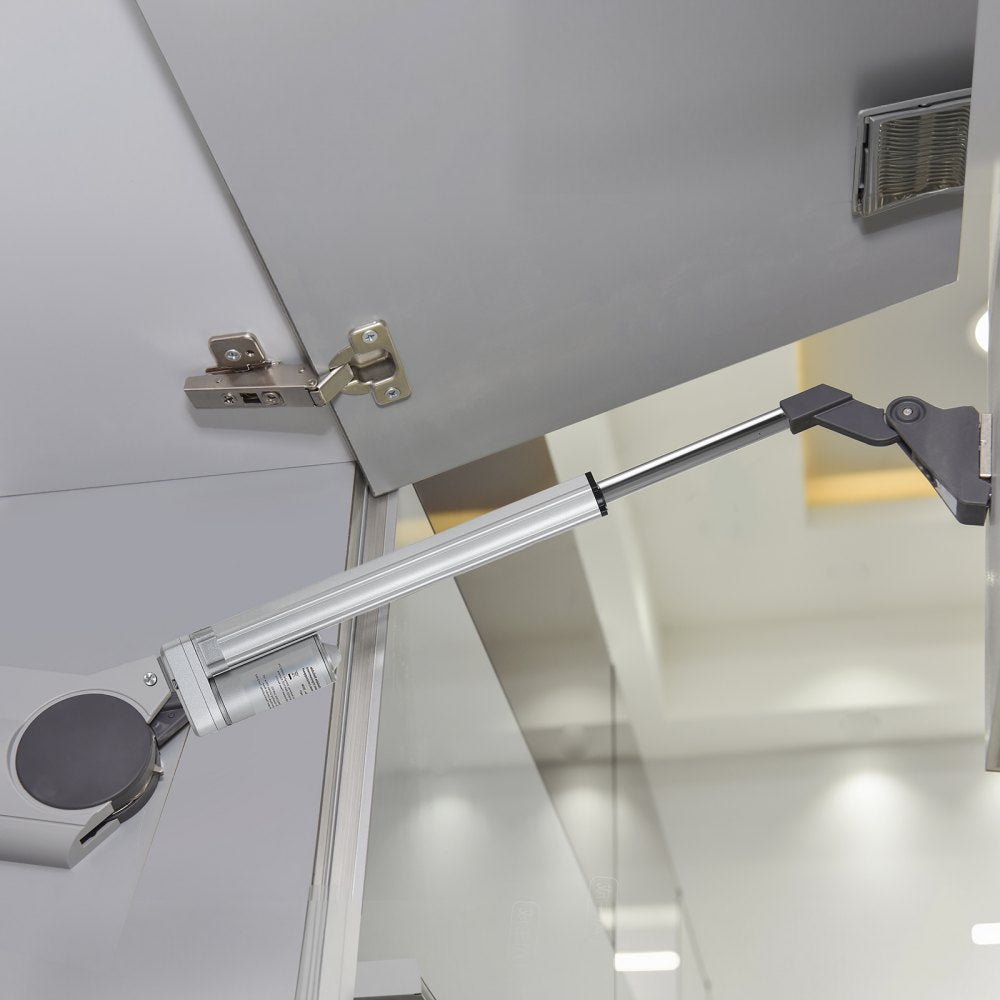

- Versatile Applications: Our linear motion actuator integrates across a wide range of applications, from furniture and home automation to industrial systems, mechanical equipment, transportation, and beyond. Empower automation at every step
- Key Specifications: Travel Speed: 0.2"/s (5 mm/s); Stroke Length: 12" (304.8 mm); Extended Length: 29" (736.6 mm); Retracted Length: 17" (431.8 mm); Current Draw: 6 Amps; Input Voltage: DC 12V; Duty Cycle: 25%

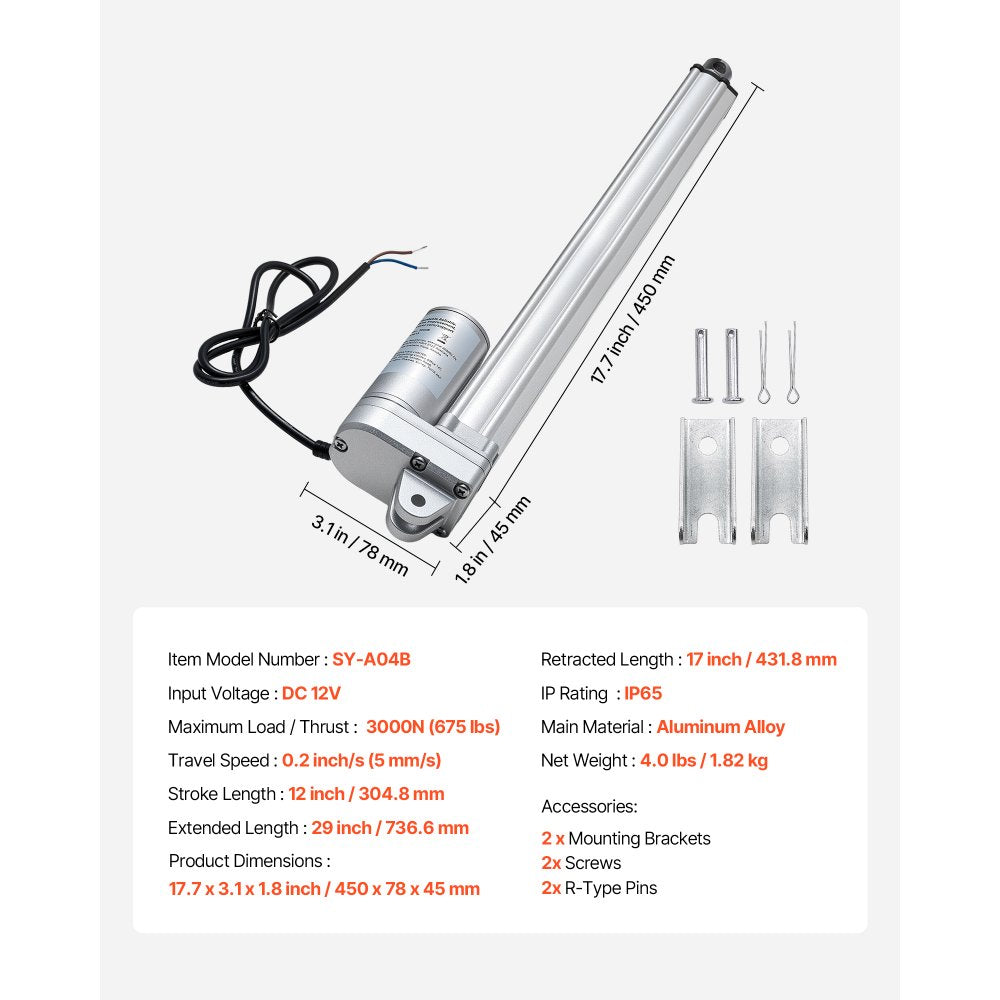

Specifications
| Item Model Number | SY-A04B |
| Input Voltage | DC 12V |
| Maximum Load / Thrust | 3000N 675 lbs |
| Travel Speed | 0.2"/s 5 mm/s |
| Stroke Length | 12" 304.8 mm |
| Extended Length | 29" 736.6 mm |
| Retracted Length | 17" 431.8 mm |
| IP Rating | IP65 |
| Main Material | Aluminum Alloy |
| Duty Cycle | 25% |
| Net Weight | 4.0 lbs 1.82 kg |
| Product Dimensions | 17.7 x 3.1 x 1.8" 450 x 78 x 45 mm |

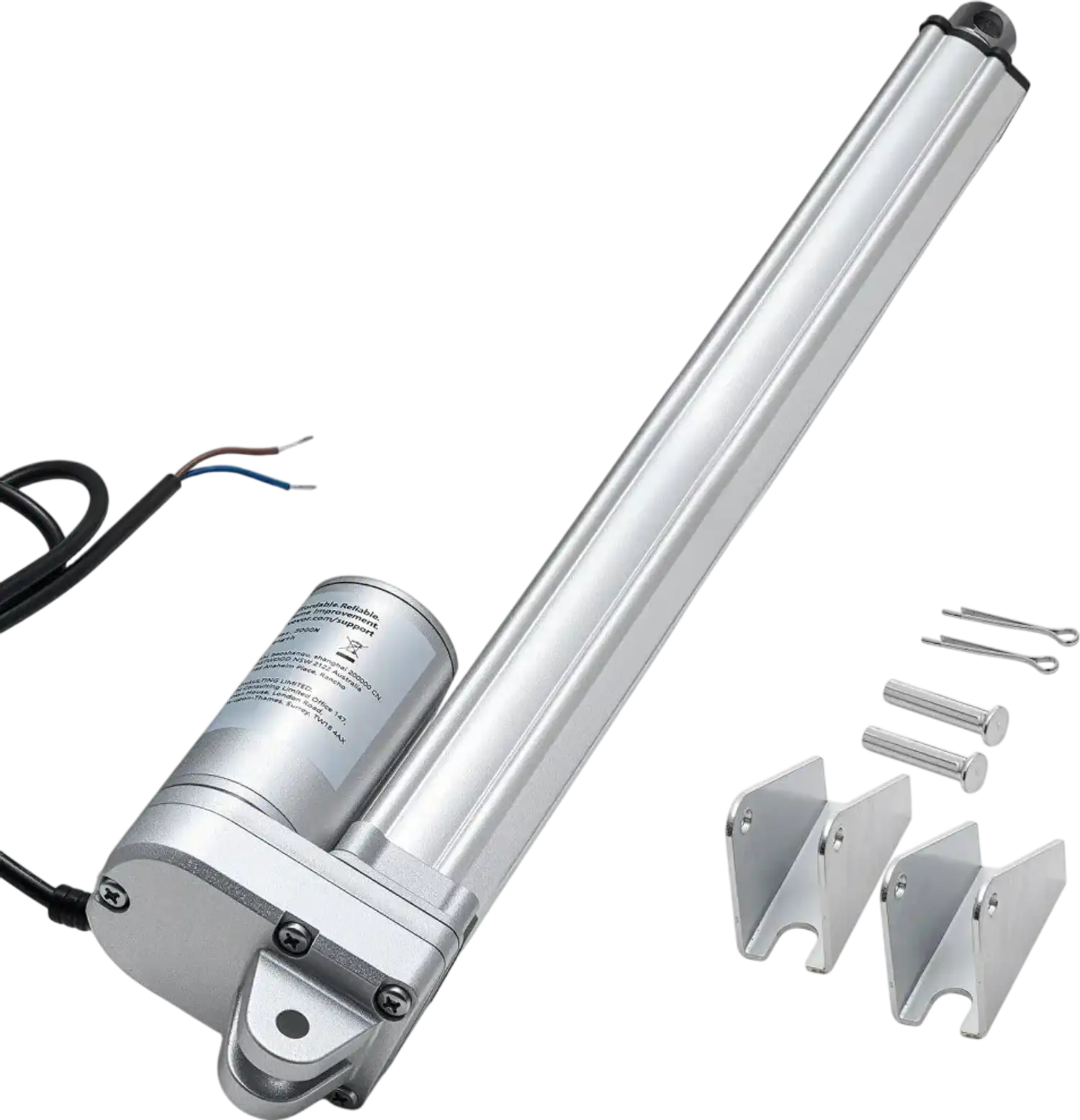

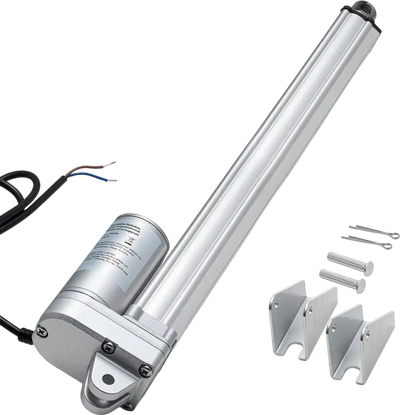

Package Contents
1 x Linear Actuator
1 x Mounting Bracket
Warranty
This item comes with a 1 year factory warranty.
