Vevor Linear Actuator 12V 18" 330 lbs High Load with Mounting Bracket New
Manufacturer: Vevor
SKU: JQXXXZXQ18INN6V9SV9
Extended Itinerary Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$49.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor Linear Actuator 12V 16" Heavy Duty 1320 lbs Linear Motion Actuator New
-
Vevor Linear Actuator 12V 20" High-Speed 220 lbs Linear Motion Actuator New
-
Vevor Linear Actuator 12V 12" 330 lbs Linear Motion Actuator New
-
Vevor Linear Actuator 12V 16" 330 lbs Linear Motion Actuator with Mounting Bracket New
-

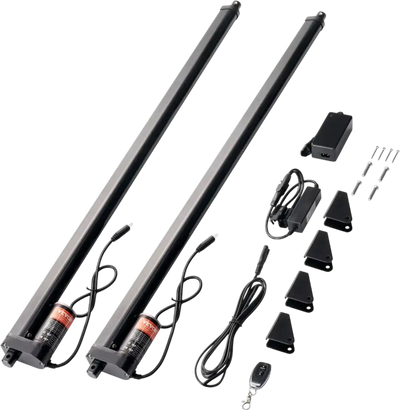

Vevor Linear Actuator Kit 30" High Speed 12V 220 lbs 1000N Wireless Remote New
-
Vevor Linear Actuator 12V 4" 330 lbs High Load with Mounting Bracket New
Vevor Linear Actuator 12V 18" 330 lbs High Load with Mounting Bracket New

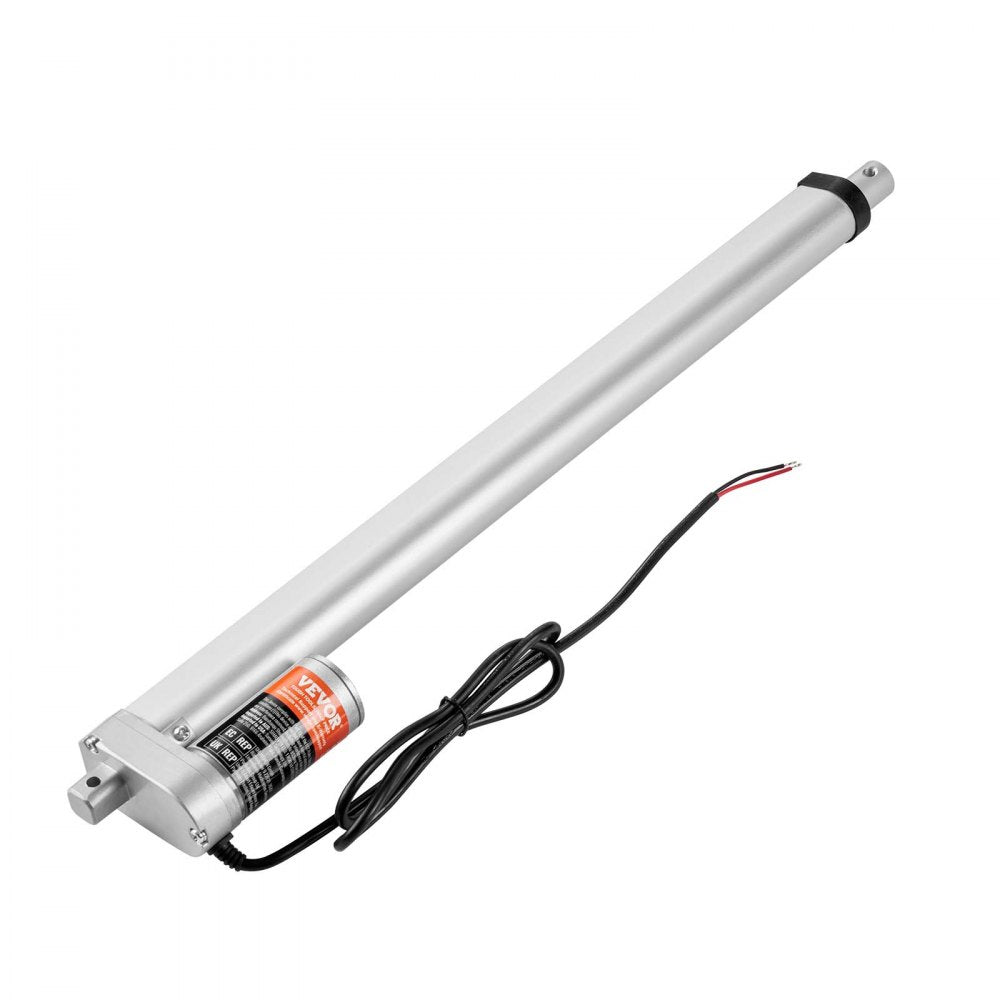

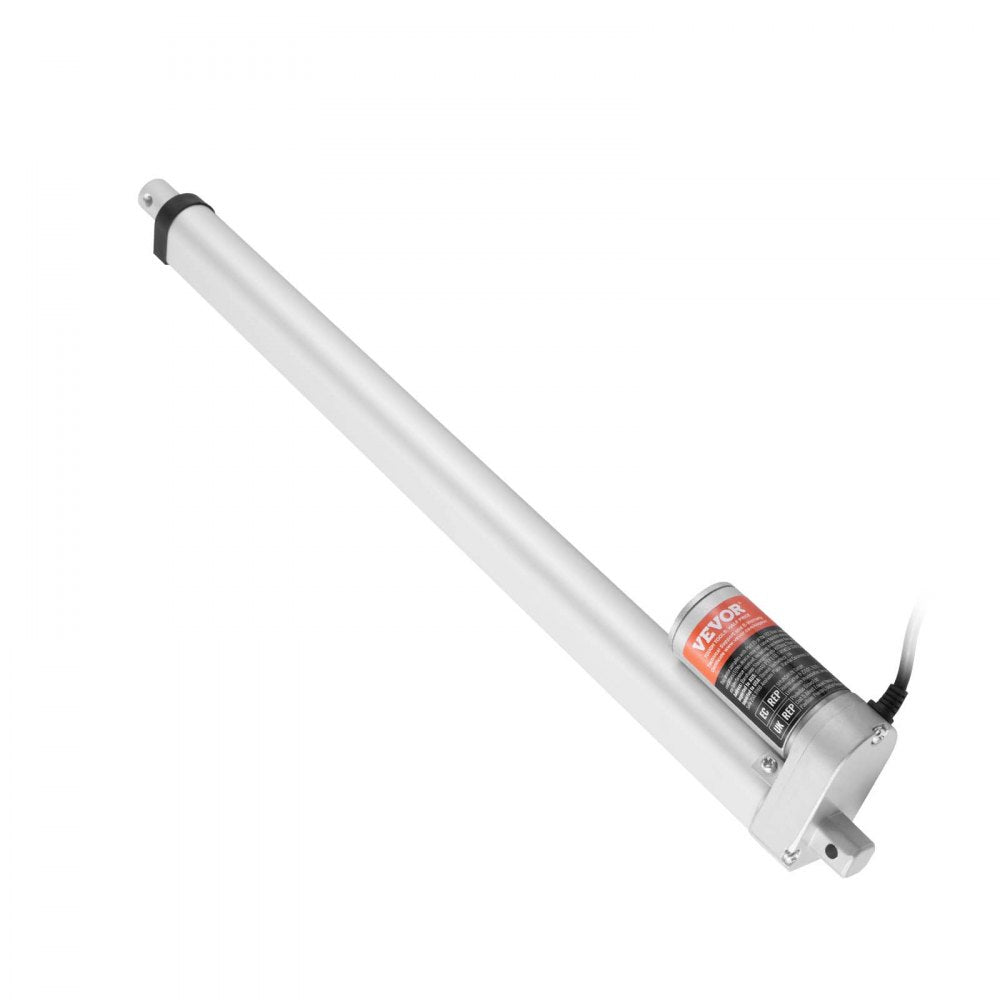

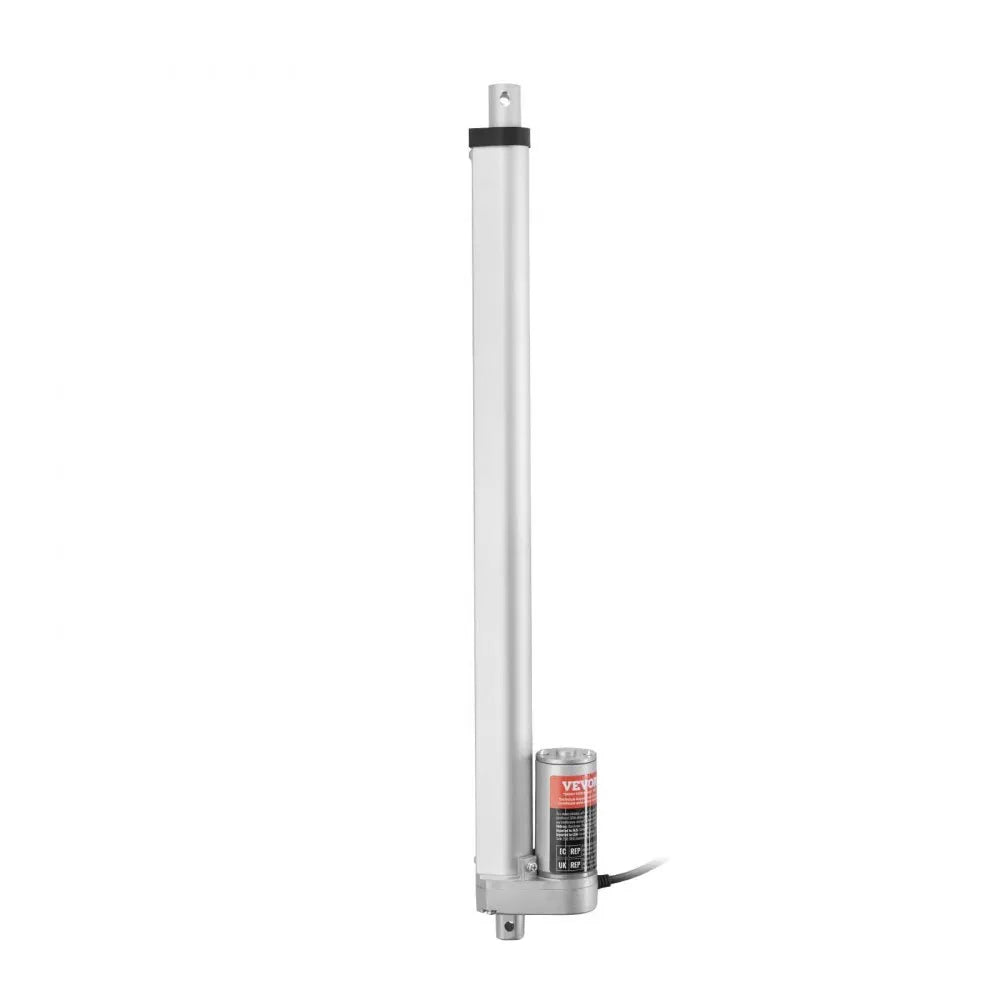

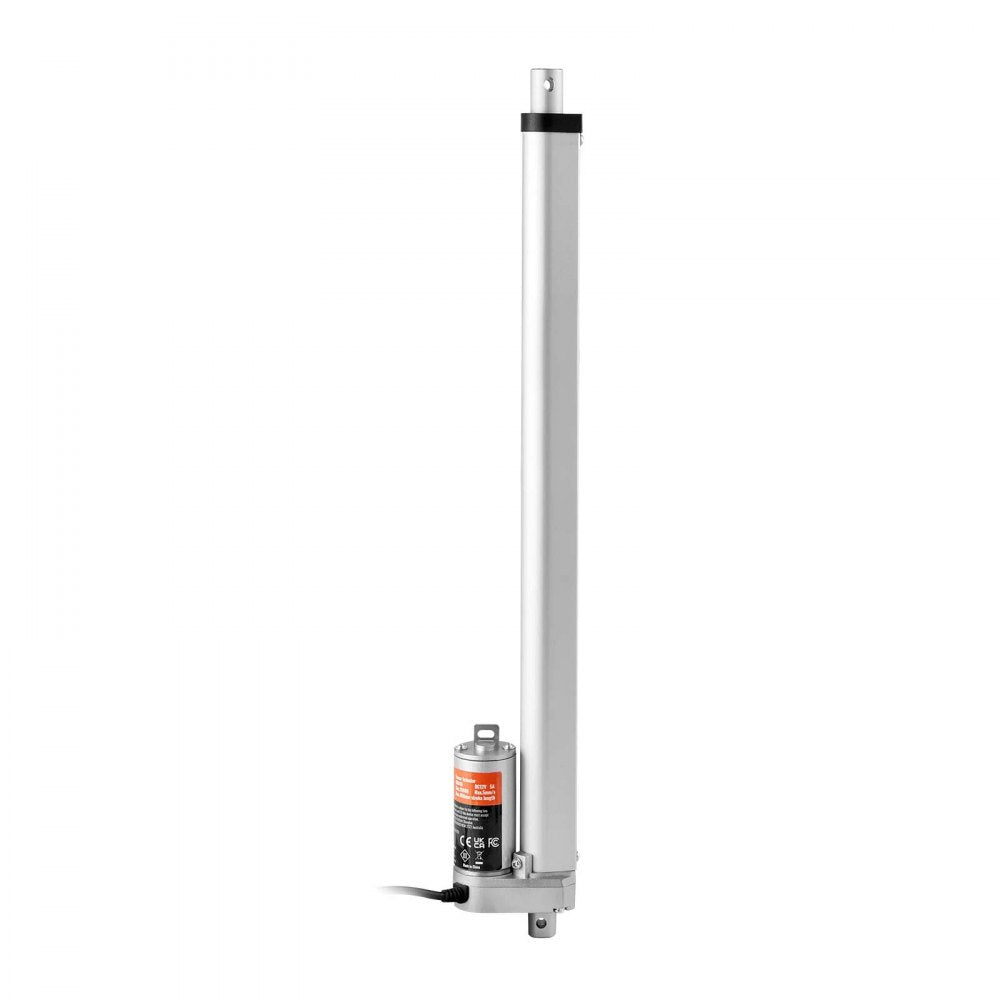

Product Overview
The Vevor 12V linear actuator is designed for precise linear motion in automation, furniture, and mechanical equipment applications. It delivers up to 330 lbs of force with a stable travel speed of 0.19" per second for controlled positioning. Its reinforced all-metal transmission mechanism and aluminum alloy construction support reliable long-term performance. The IP54 protection rating helps guard against dust and light water exposure, while the included mounting bracket supports easier installation.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Precision Motion Control: VEVOR linear actuator offers precise position control with 0.19"/s stable speed and 330lbs high torque output. Perfect for tasks requiring exact positioning, such as robotic arms or electric beds that demand precision.

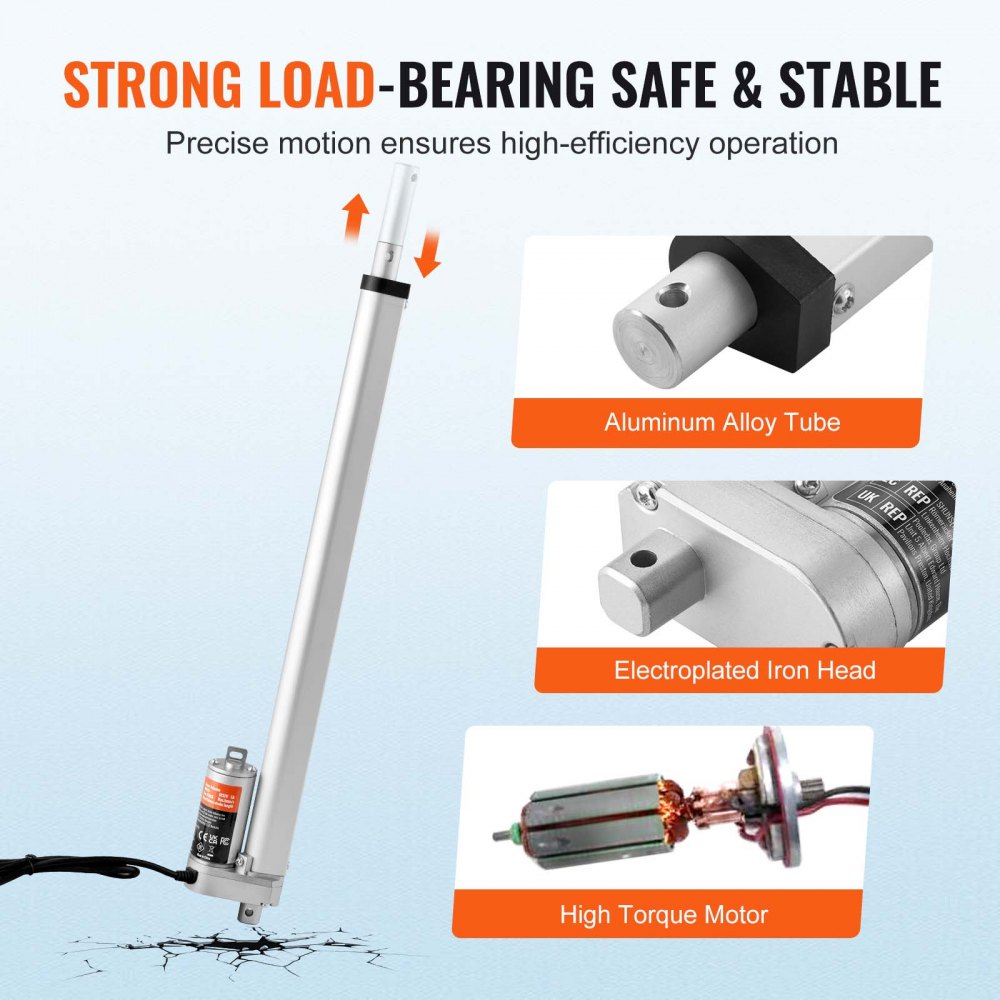

- Durable and Sturdy: With reinforced structure and all-metal transmission mechanism, our 12V linear actuator motor ensures reliability under high loads. Suitable for various industrial automation and laboratory equipment, it withstands the rigors of long-term use.

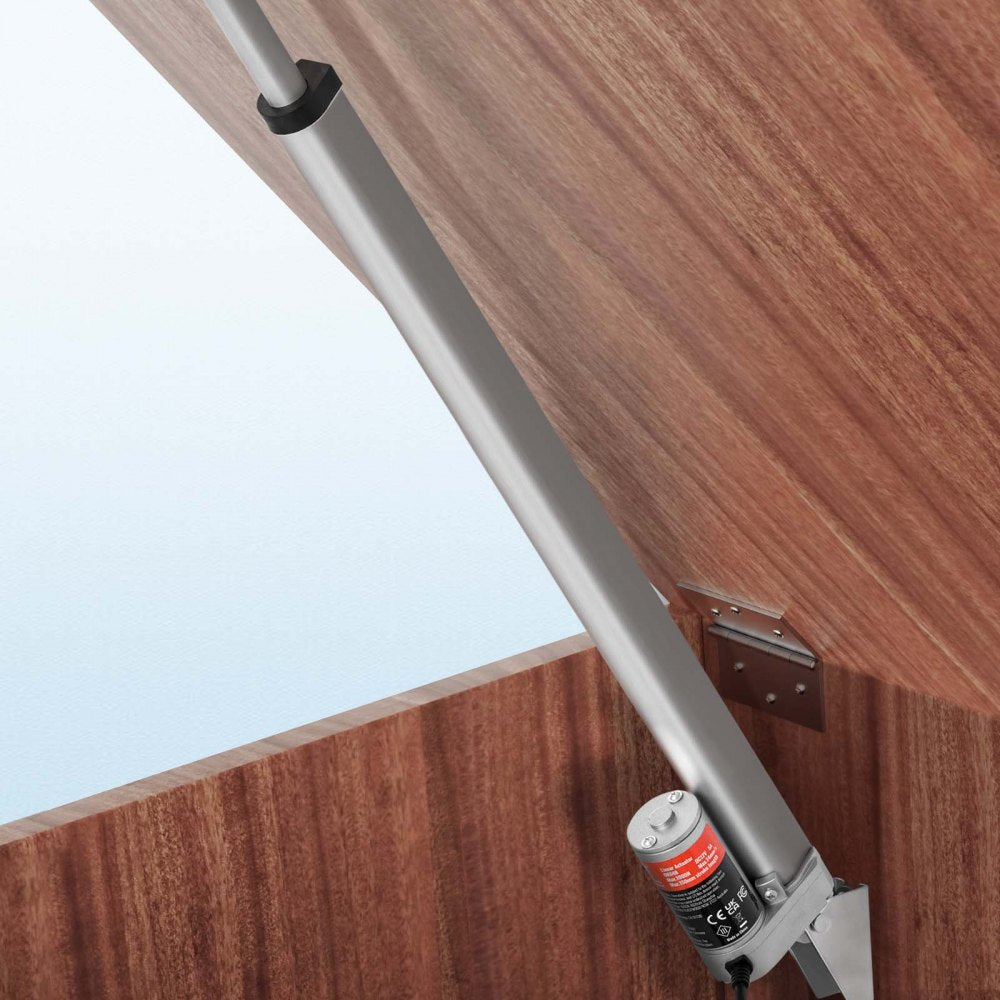

- Versatile Applications: With a noise level below 60db, our linear motion actuator seamlessly fits into various applications, from furniture to automation systems, mechanical equipment, transportation, and more. Enjoy versatile functionality wherever you need it!

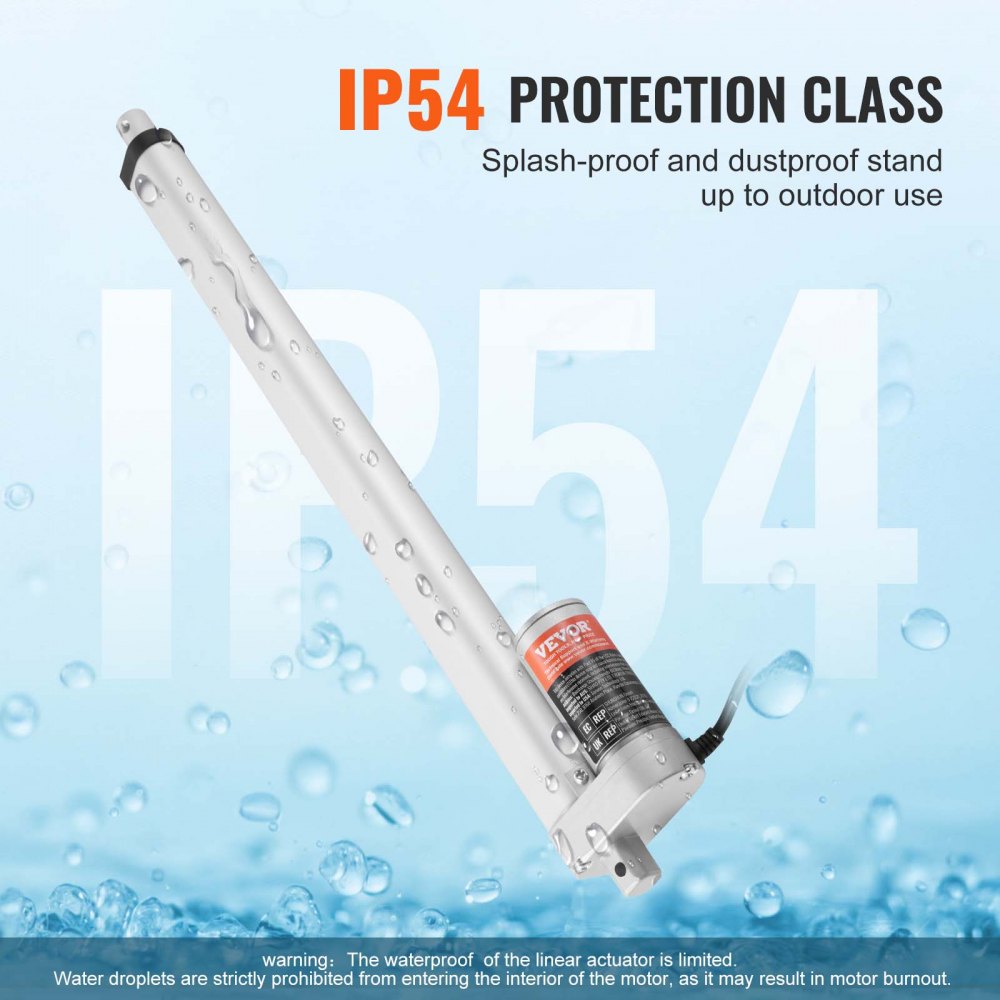

- IP54 Protection Rating: With an IP54 protection rating, VEVOR 12V linear actuator excels in harsh environmental conditions like dust, splashing water, and light humidity. Whether for outdoor or industrial use, it provides exceptional protection. (Caution: Water should not penetrate the interior of the motor)
- Key Specifications: Stroke Length: 18 inch (450mm); Travel Speed: 0.19 in/s (5mm/s); Retracted Length: 22.63" (575mm); Extended Length: 40.63" (1025mm); Current Draw: 5amps; Rated Voltage: DC12V; Duty Cycle: 25%.

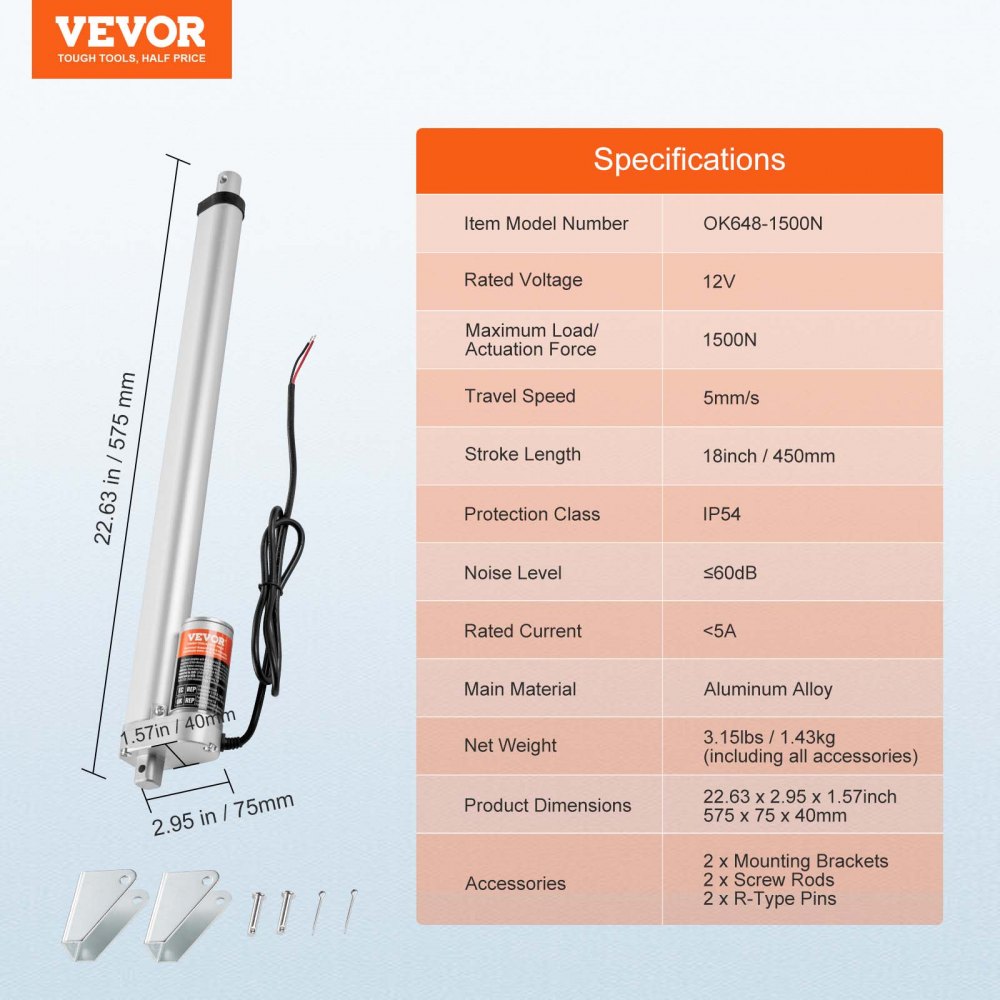

Specifications
| Item Model Number | OK648-1500N |
| Rated Voltage | DC12V |
| Maximum Load/Actuation Force | 1500N |
| Maximum Load Capacity | 330 lbs |
| Travel Speed | 0.19 inch/s / 5 mm/s |
| Stroke Length | 18 inch / 450 mm |
| Protection Class | IP54 |
| Noise Level | ≤60dB |
| Main Material | Aluminum Alloy |
| Current Draw | 5 amps |
| Duty Cycle | 25% |
| Net Weight | 3.15 lbs / 1.43 kg including all accessories |
| Retracted Length | 22.63" / 575 mm |
| Extended Length | 40.63" / 1025 mm |
| Product Dimensions | 22.63 x 2.95 x 1.57" / 575 x 75 x 40 mm |

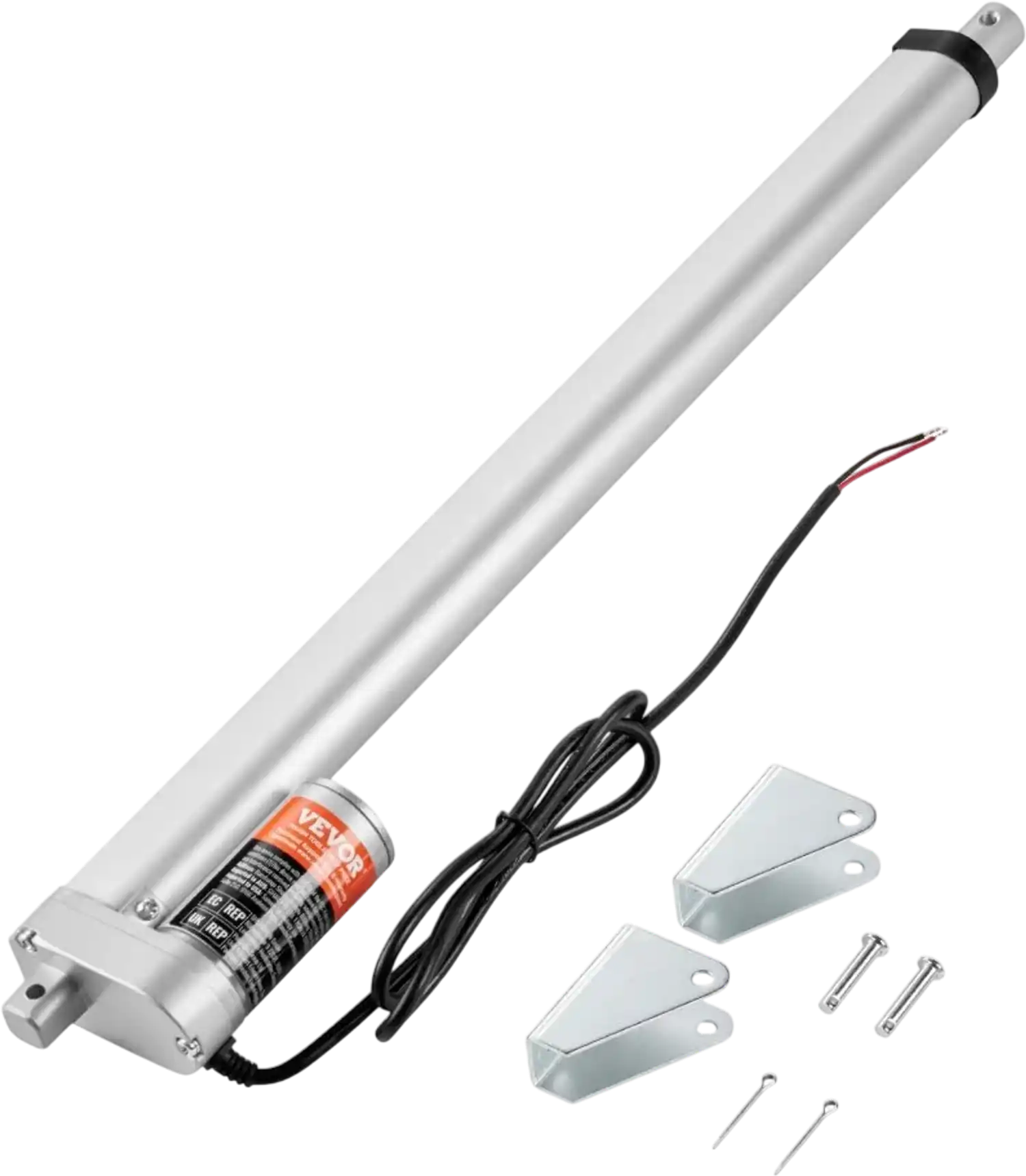

Package Contents
Linear actuator
Mounting bracket
Accessories
Warranty
This item comes with a 1 year factory warranty.
