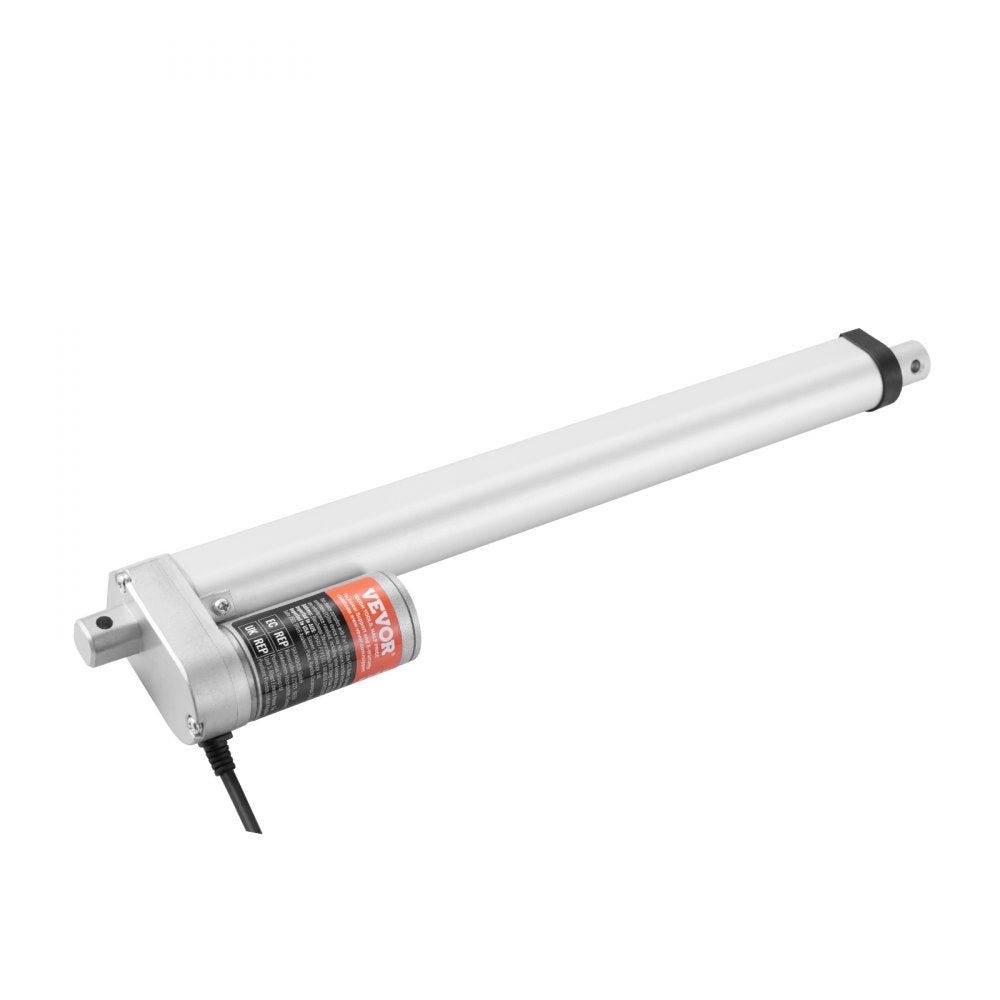

Vevor Linear Actuator 12" 12V High-Speed 220 lbs 1000N IP54 New
Product Overview

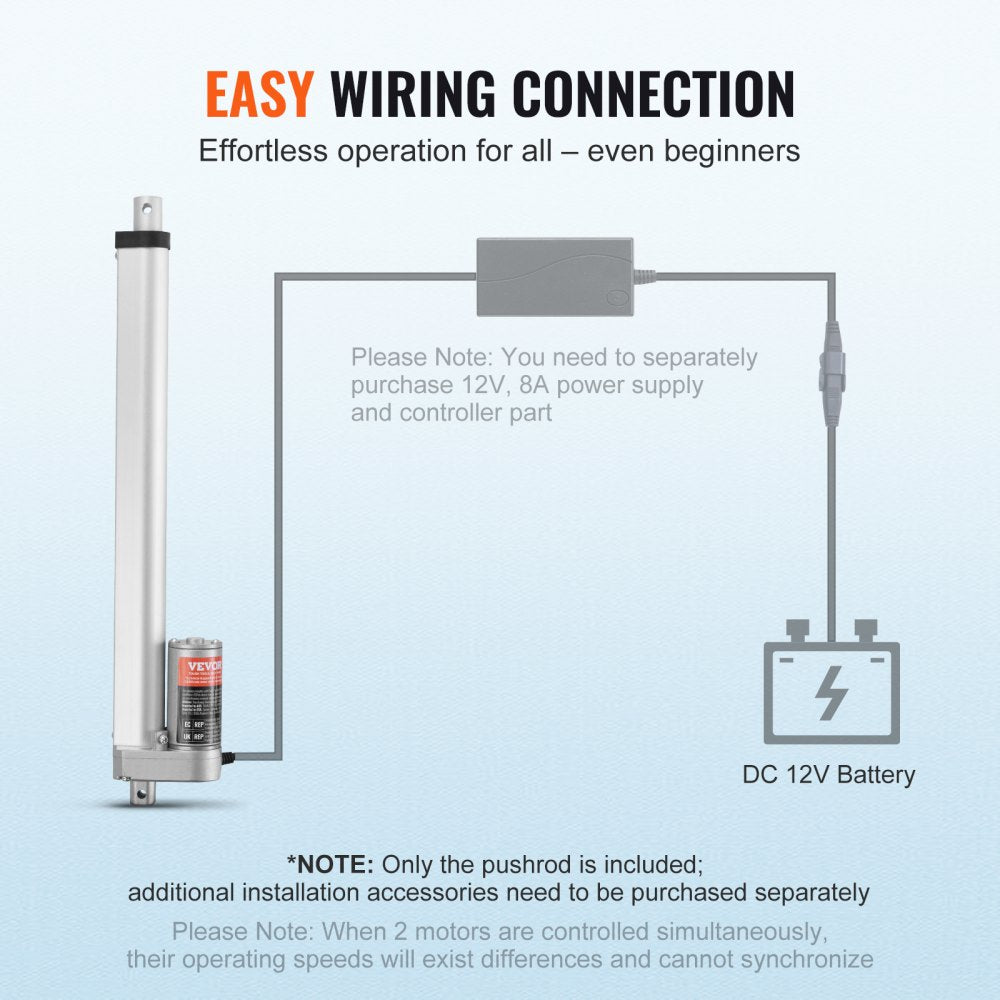

The Vevor 12V linear actuator is designed for fast, efficient stroke adjustment in furniture, automation systems, mechanical equipment, and transport applications. It delivers up to 220 lbs of actuation force with a 12" stroke and travel speed greater than 0.55" per second. Its aluminum alloy construction and IP54 protection help it perform reliably in dusty or lightly humid environments. The actuator operates at a noise level of 50 dB or less for quieter use. For optimal performance, Vevor recommends using it with a controller for more precise movement control.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Fast & Efficient Stroke Adjustment: Lift or lower effortlessly with VEVOR linear actuator, moving at a swift 0.55"/s. Perfect for applications requiring frequent height adjustments, whether it's altering furniture heights or raising and lowering office desks and chairs.

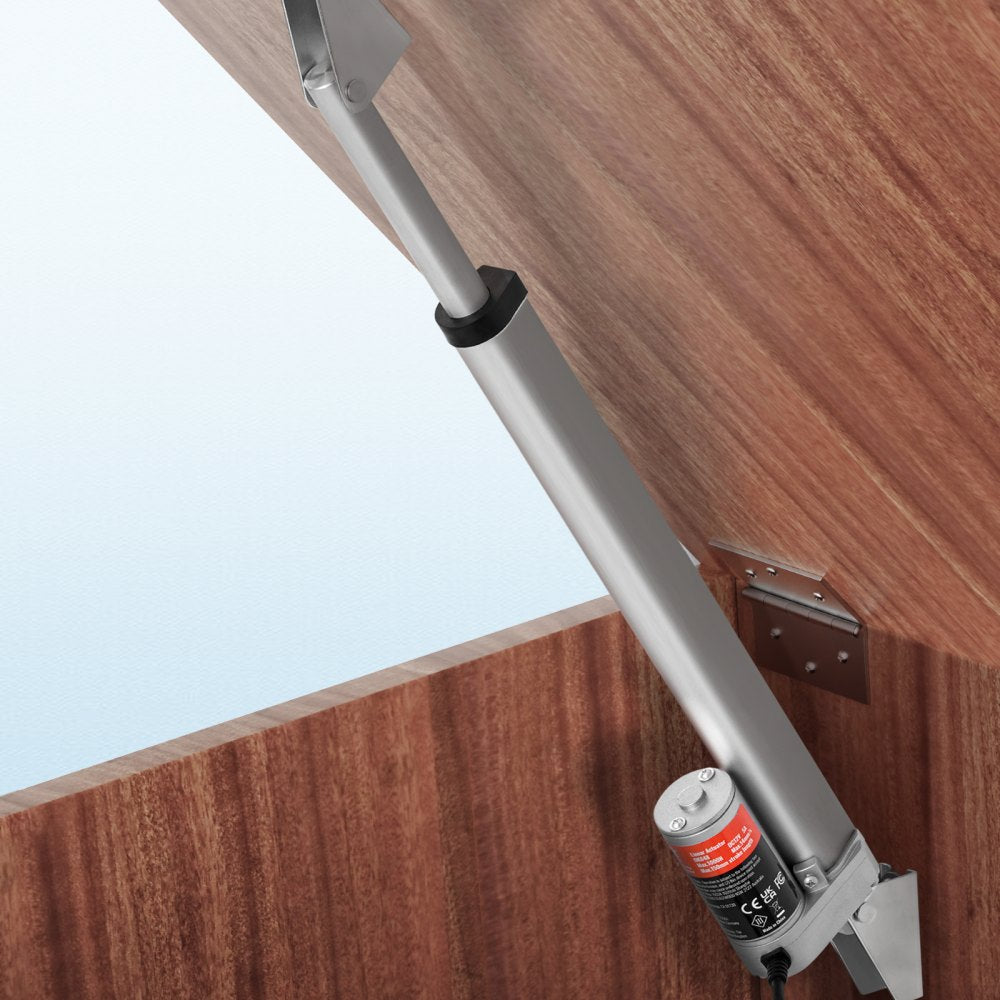

- Reliable Torque Output: 220lbs robust torque output ensure stable thrust for medium-duty tasks like lifting platforms and motorized doors and windows. Versatile for both home and industrial use, it delivers exceptional performance.
- Versatility Unleashed: VEVOR's 12V linear actuator motor, with a noise level below 50db, are your go-to for furniture adjustment, automation systems, mechanical equipment, transportation and more. Enjoy seamless functionality wherever you need it!

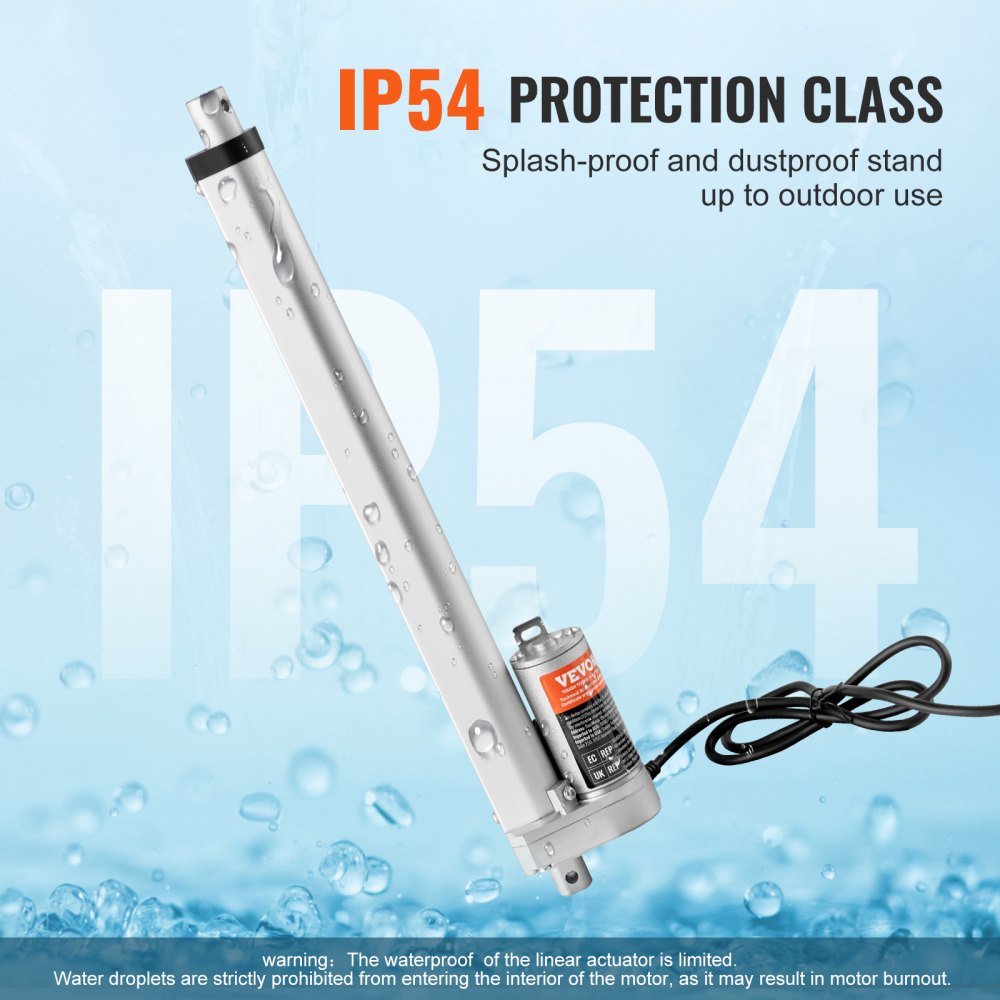

- IP54 Protection Rating: Dust, splashing water, or light humidity? No problem. VEVOR 12V linear actuator boasts an IP54 protection rating, ensuring reliable performance and protection whether in outdoor or industrial settings. (Caution: Water should not penetrate the interior of the motor)

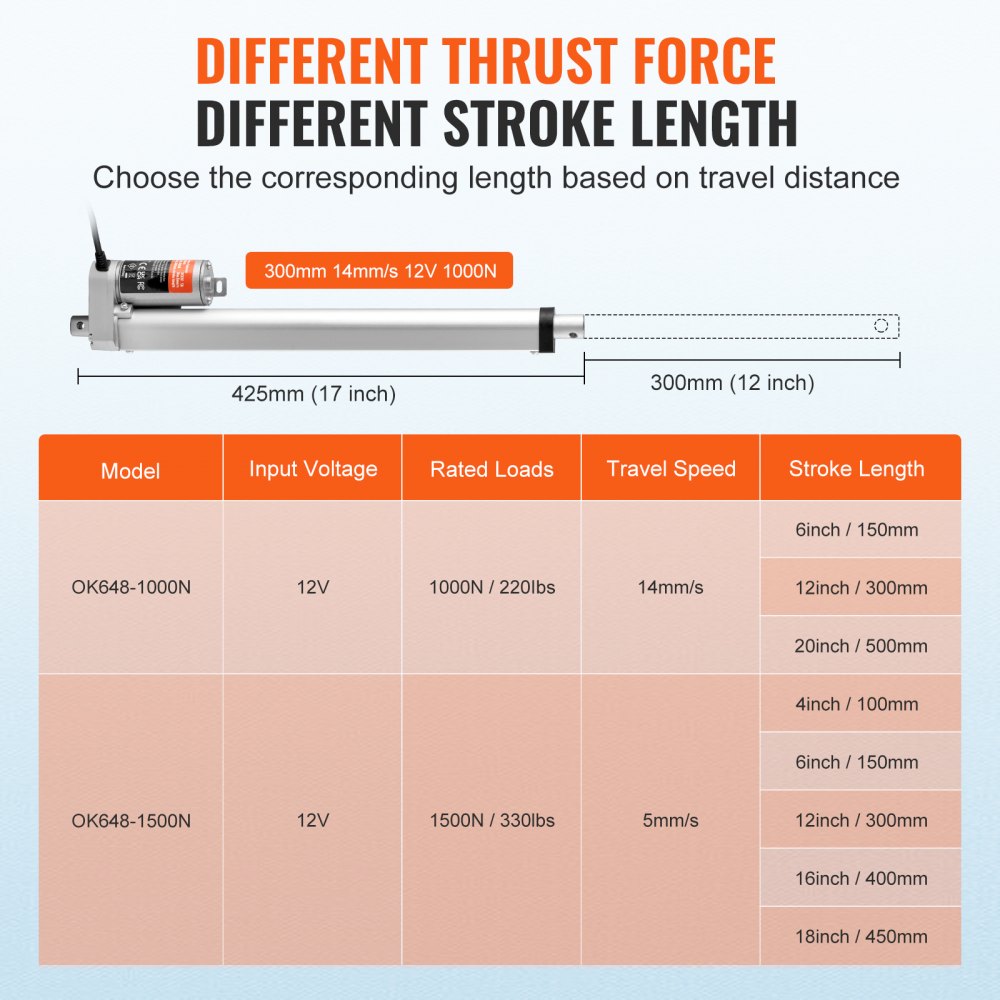

- Key Specifications: Stroke Length: 12 inch (300mm); Travel Speed: 0.55 in/s (14mm/s); Retracted Length: 16.73" (425mm); Extended Length: 28.73" (725mm); Current Draw: 5amps; Rated Voltage: DC12V; Duty Cycle: 25%.

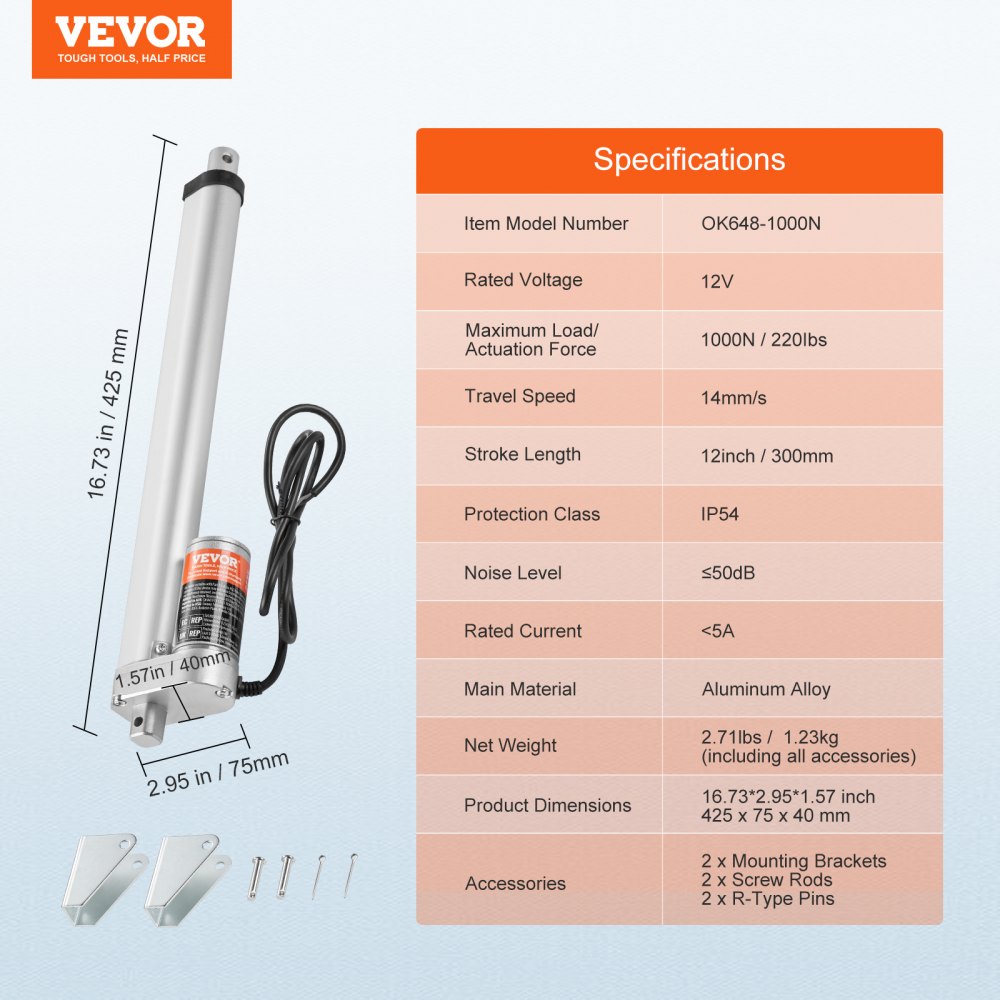

Specifications
| Item Model Number | OK648-1000N |
|---|---|
| Rated Voltage | DC12V |
| Maximum Load/Actuation Force | 1000N |
| Travel Speed | >0.55 inch/s / >14 mm/s |
| Stroke Length | 12 inch / 300 mm |
| Protection Class | IP54 |
| Noise Level | ≤50 dB |

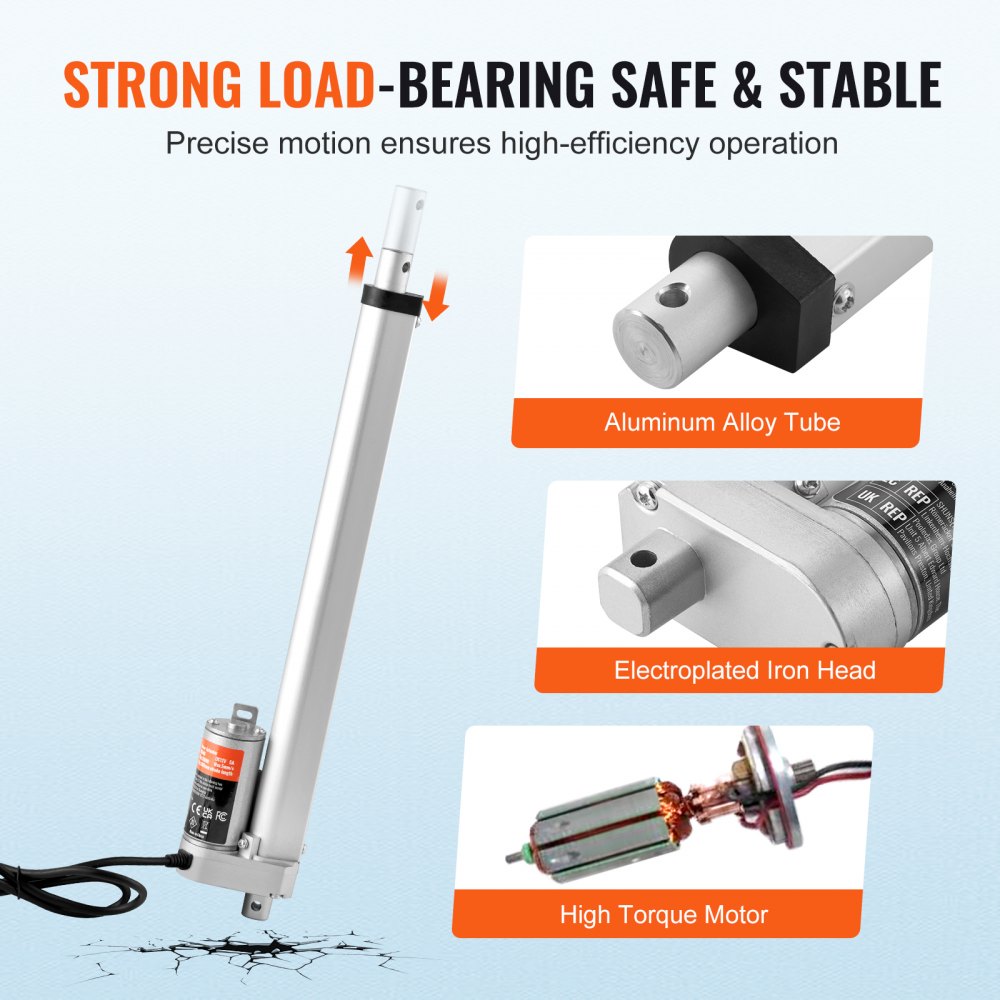

| Main Material | Aluminum Alloy |
| Net Weight | 2.71 lbs / 1.23 kg including all accessories |
| Product Dimensions | 16.73 x 2.95 x 1.57 inch / 425 x 75 x 40 mm |
|---|---|
| Retracted Length | 16.73" / 425 mm |
| Extended Length | 28.73" / 725 mm |
| Current Draw | 5 amps |
| Duty Cycle | 25% |

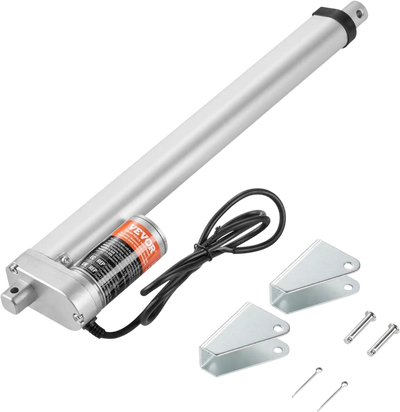

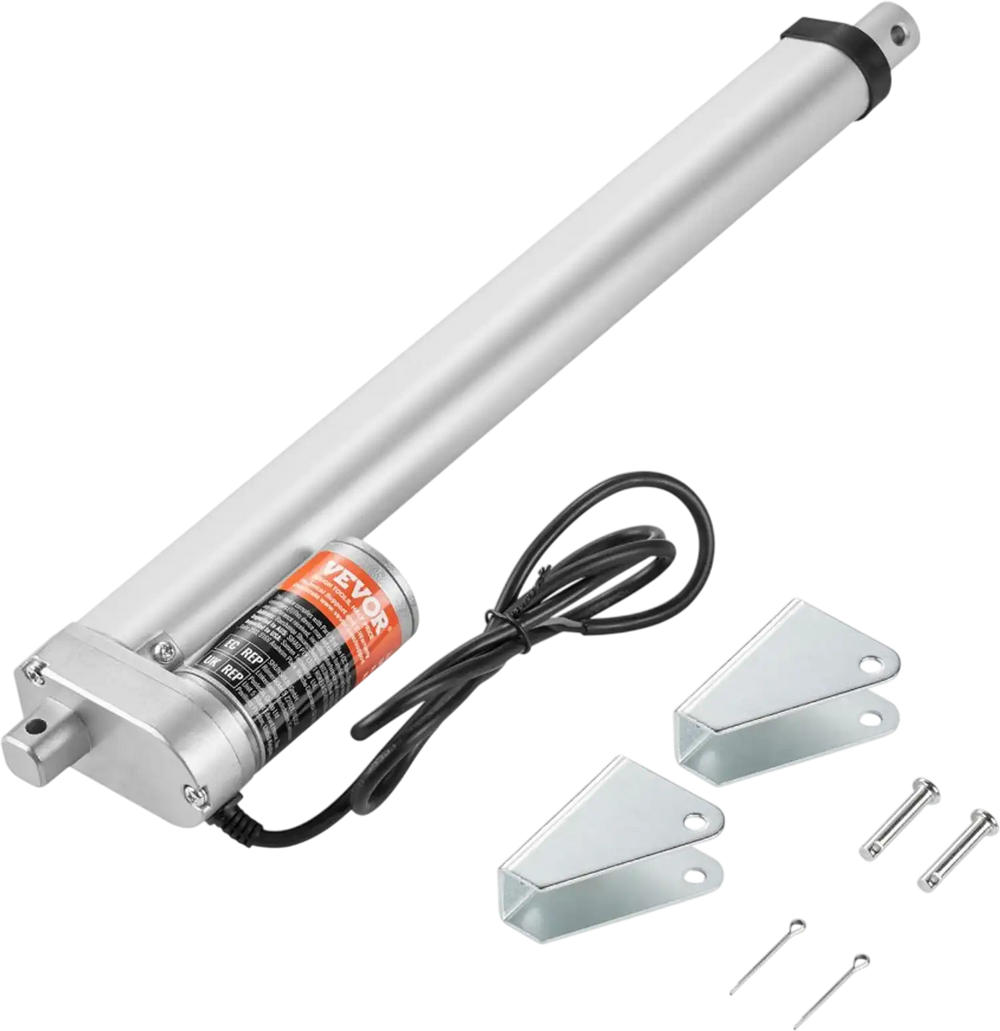

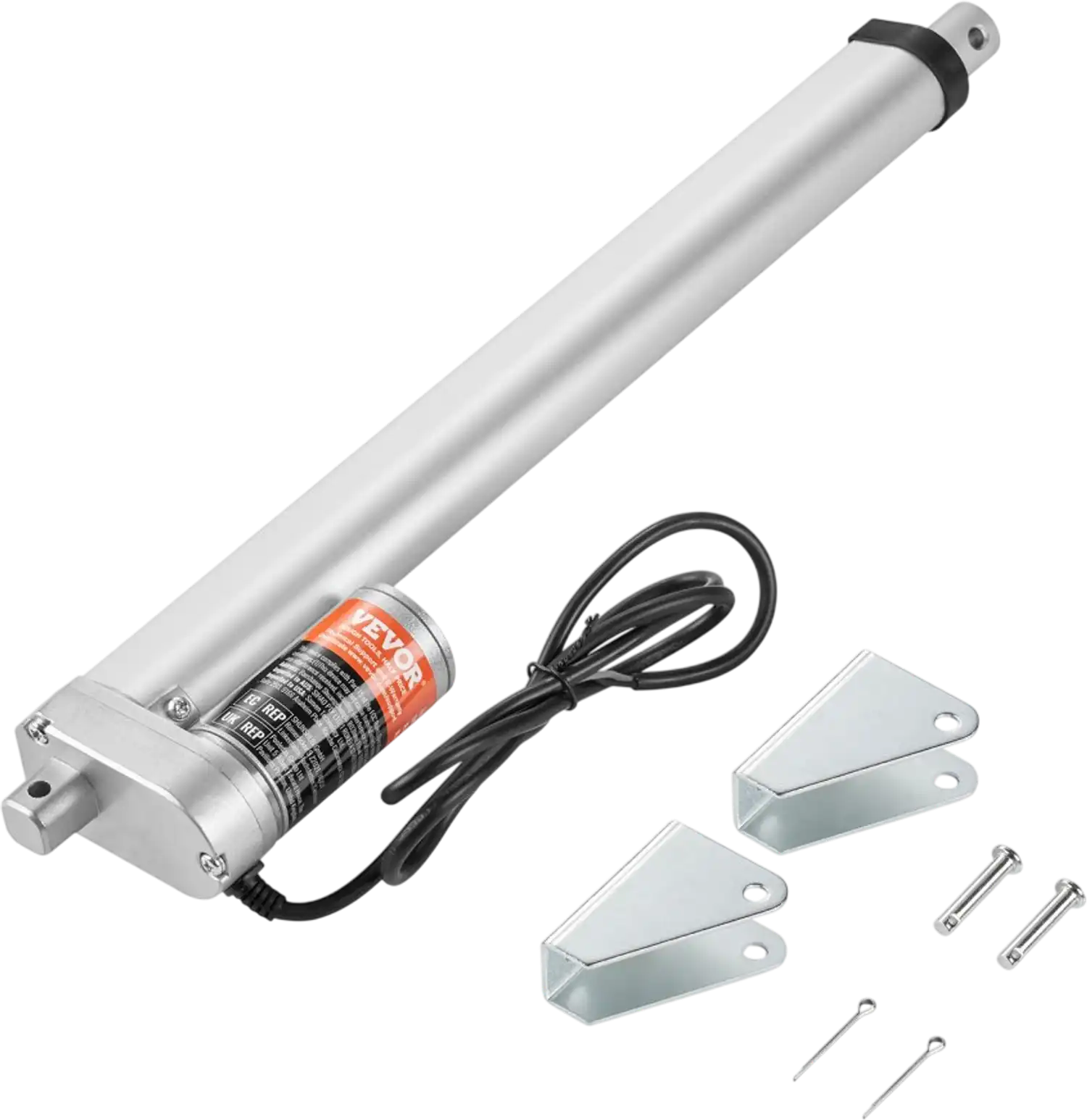

Package Contents
Linear actuator push rod
Warranty
This item comes with a 1 year factory warranty.
