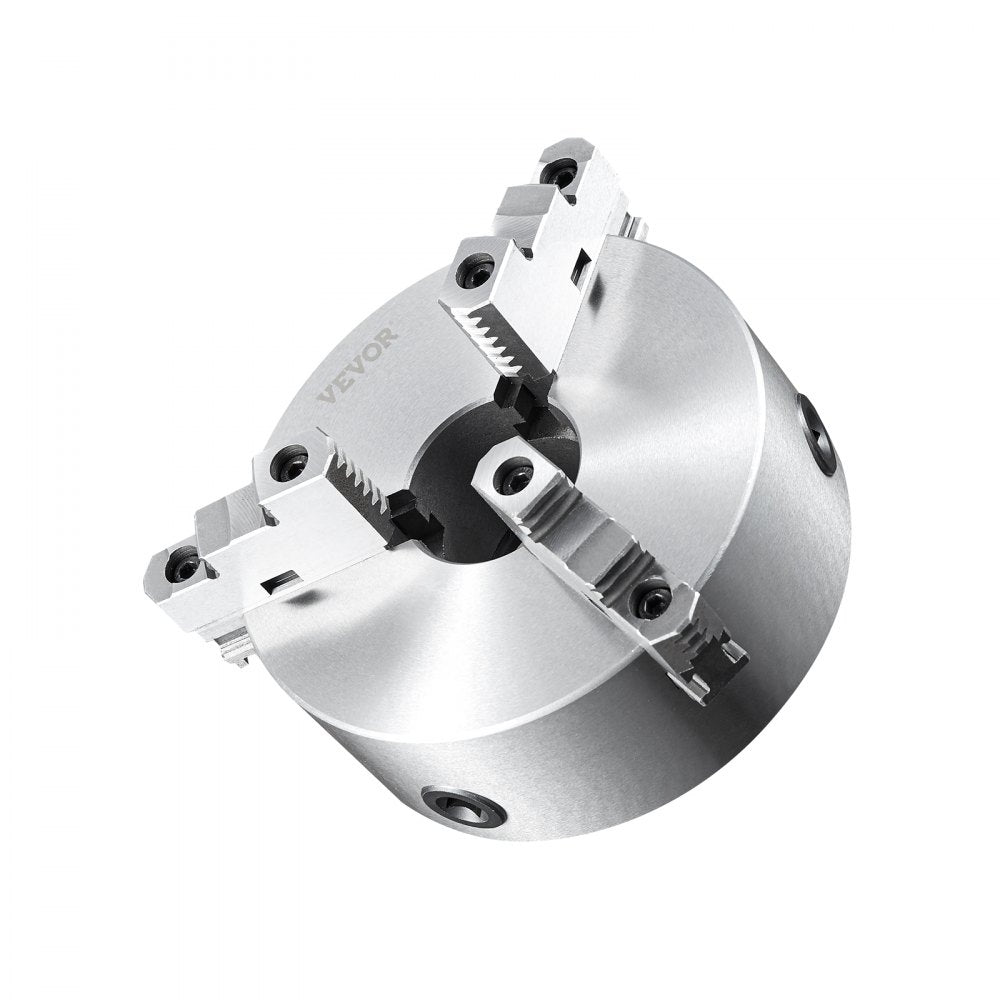

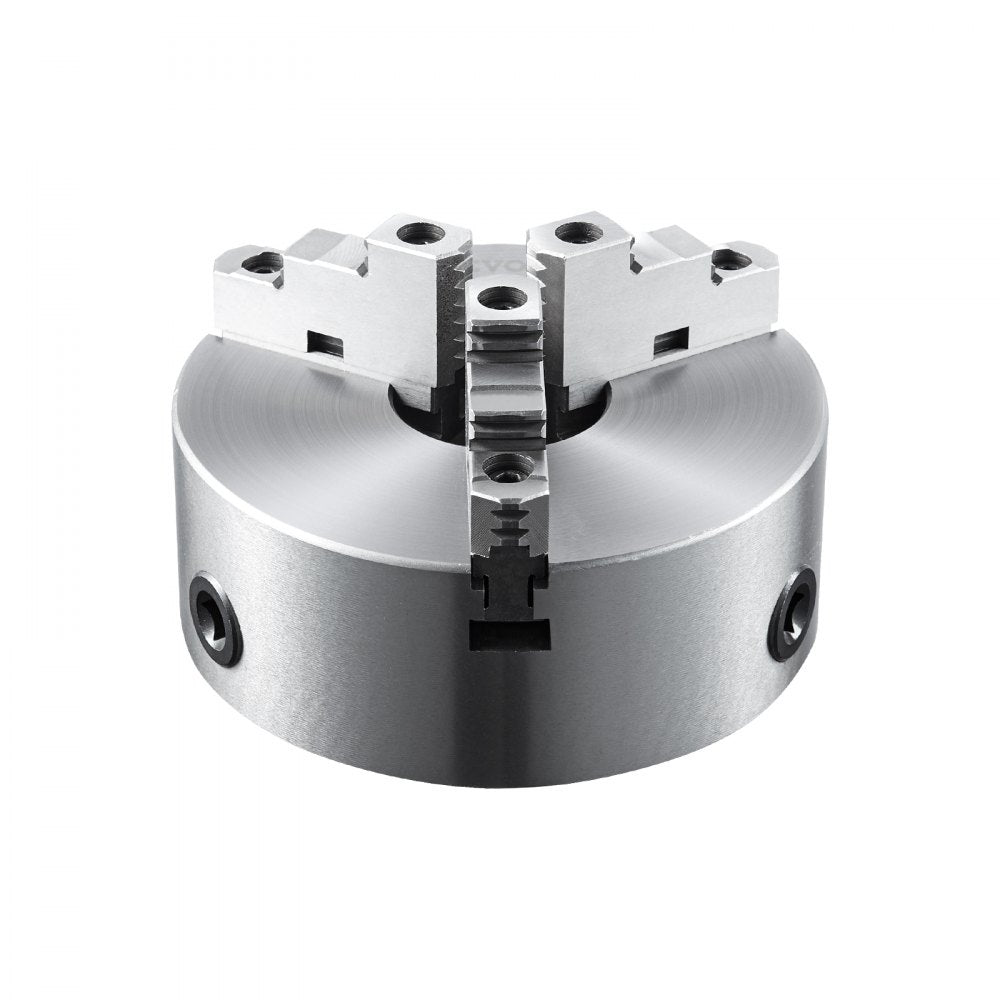

Vevor Lathe Chuck 8" 3-Jaw Self-Centering New
Manufacturer: Vevor
SKU: SZKP8YC3G000VDWGDV0
Chuck Size Options
Jaw Count Options
QTY
(888) 999-1522
C
$150.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Most orders ship out the same or next business day
If ordered by 12 PM ET
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
$57.00
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$86.00
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$129.00
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Vevor Hydraulic Shop Press 6-Ton H-Frame Adjustable Floor Press New
-
Vevor Spindle Motor Air Cooled with ER20 Collet for CNC Router 2.2kW 24000 RPM 220V New
-
Vevor Dividing Head BS-0 5-Inch 3 Jaw Chuck for Milling Machine Rotary Table New
-
Vevor Milling Working Table 17.7" x 6.7" 2-Axis Cross Slide New
-
Vevor Dividing Head K11-100mm 3-Jaw Chuck CNC Router Indexing Head 2.6" Center Height New
-
Vevor Lathe Chuck 4-Jaw 3.75" Self-Centering with 5 Jaw Sets New
-
Vevor Rotary Table 4" Horizontal Vertical Milling Machine Rotary Table with 3.1" 3-Jaw Chuck New
-
Vevor Quick Change Tool Post Set 8 Pieces for 10-15 in. Lathes New
-
Vevor Lathe Chuck 4-Jaw Self-Centering 3.75" New
Vevor Lathe Chuck 8" 3-Jaw Self-Centering New
Product Overview
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

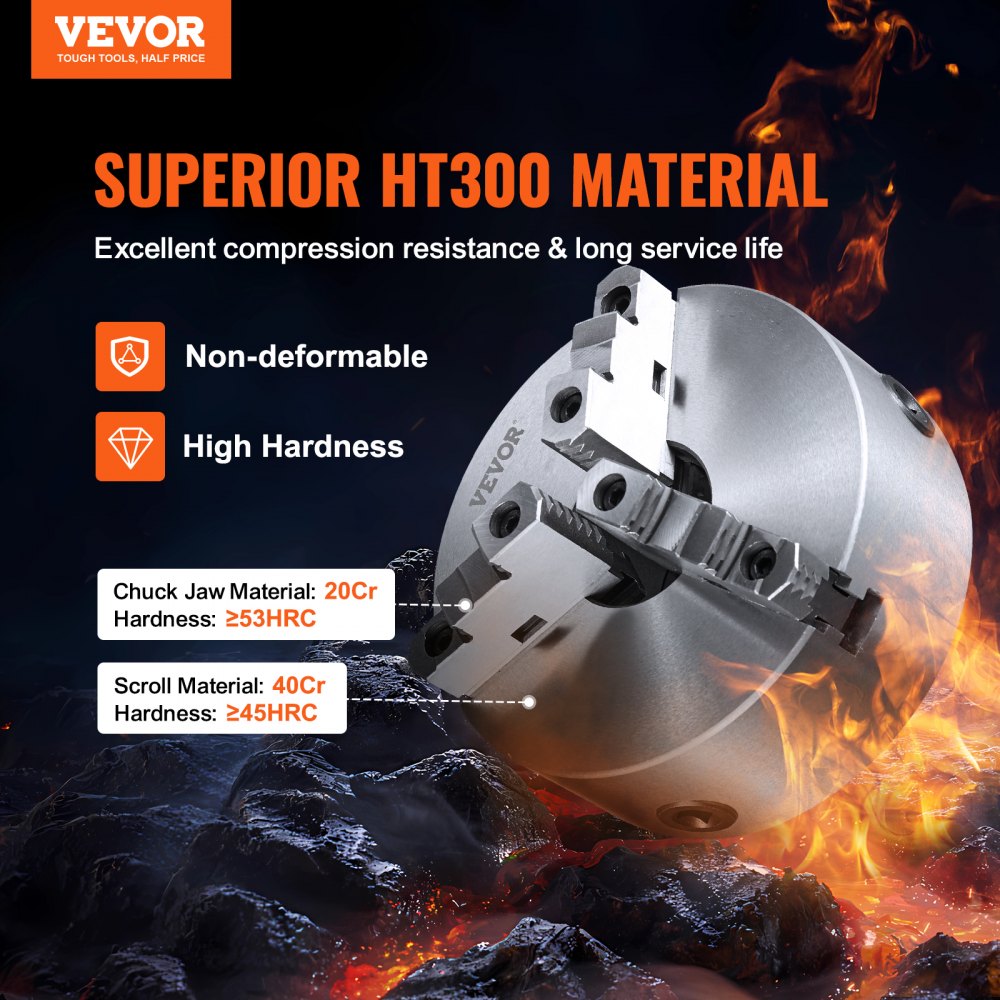

- Superior HT300 Material: Our 3-jaw lathe chuck is constructed from HT300 material, 20Cr steel chuck jaw with 53HRC hardness, and 40Cr steel scroll with 45HRC hardness. The lathe chuck is quenching hardened for superior hardness and rust resistance, providing outstanding working performance and reliability for both small and large workpieces.

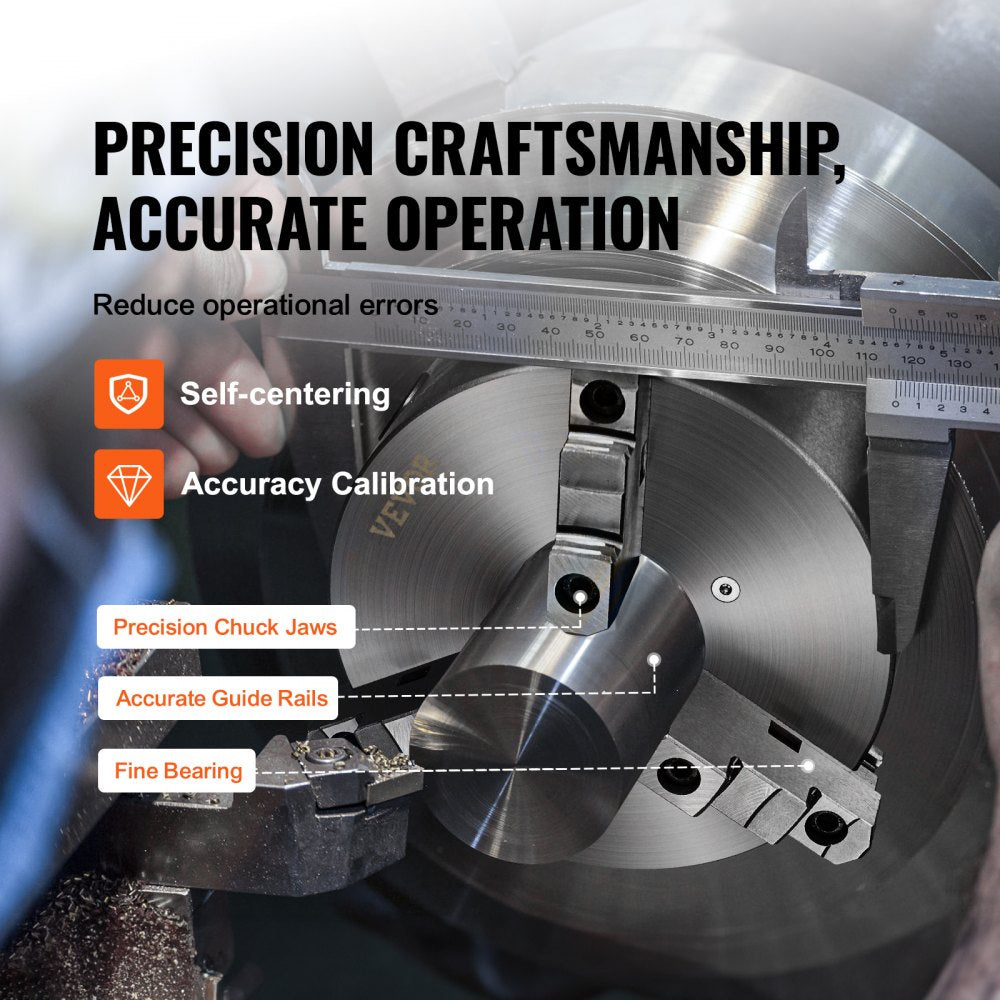

- High Precision: A high-precision machining process is adopted to ensure the structural stability and machining accuracy of the 3-jaw chuck. The self-centering lathe part contains a delicate bevel gear and three pinion gears, which help to achieve precise machining progress. Bearing tolerance is ≤0.05 mm / 0.002 in.

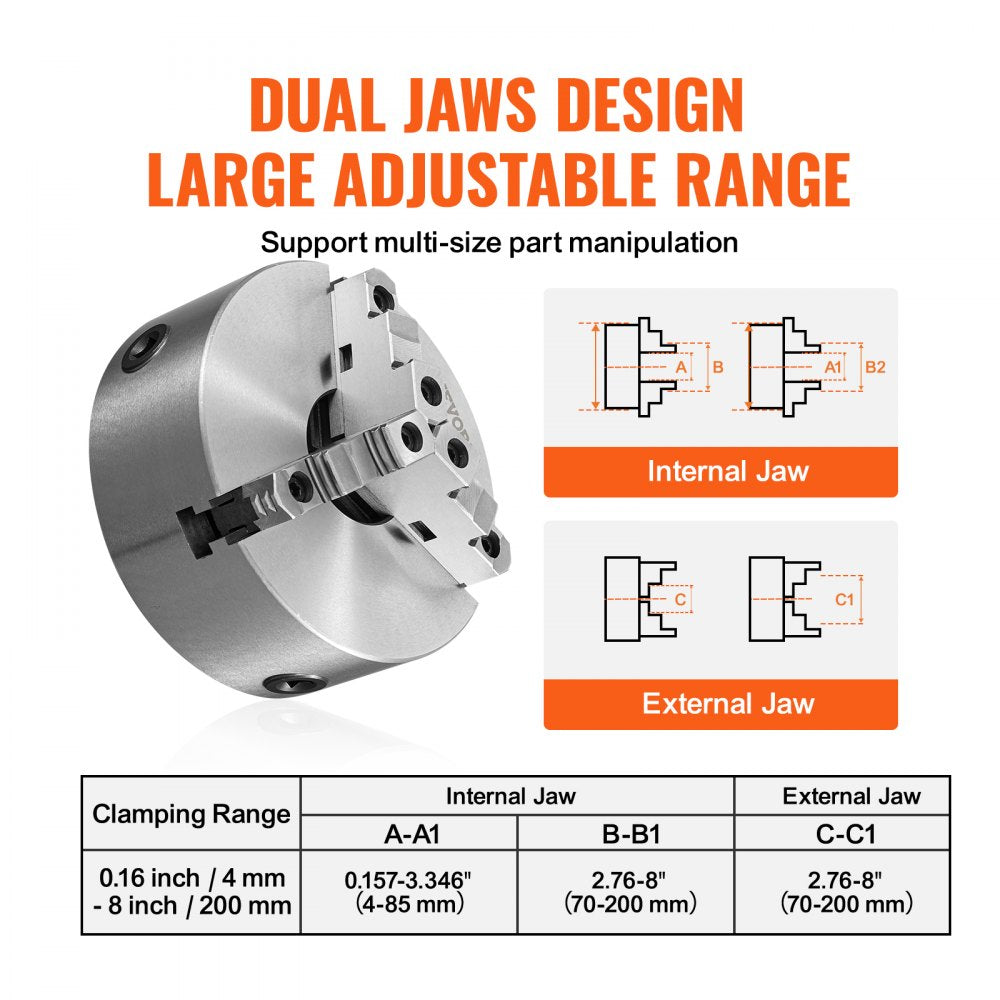

- Dual-Use Jaw: The chuck jaws can be used as both internal jaw and external jaw. The external jaws are capable of clamping larger-sized industrial parts. 0.16-8 in/4-200 mm clamping range provides precise clamping and securing of various industrial components.

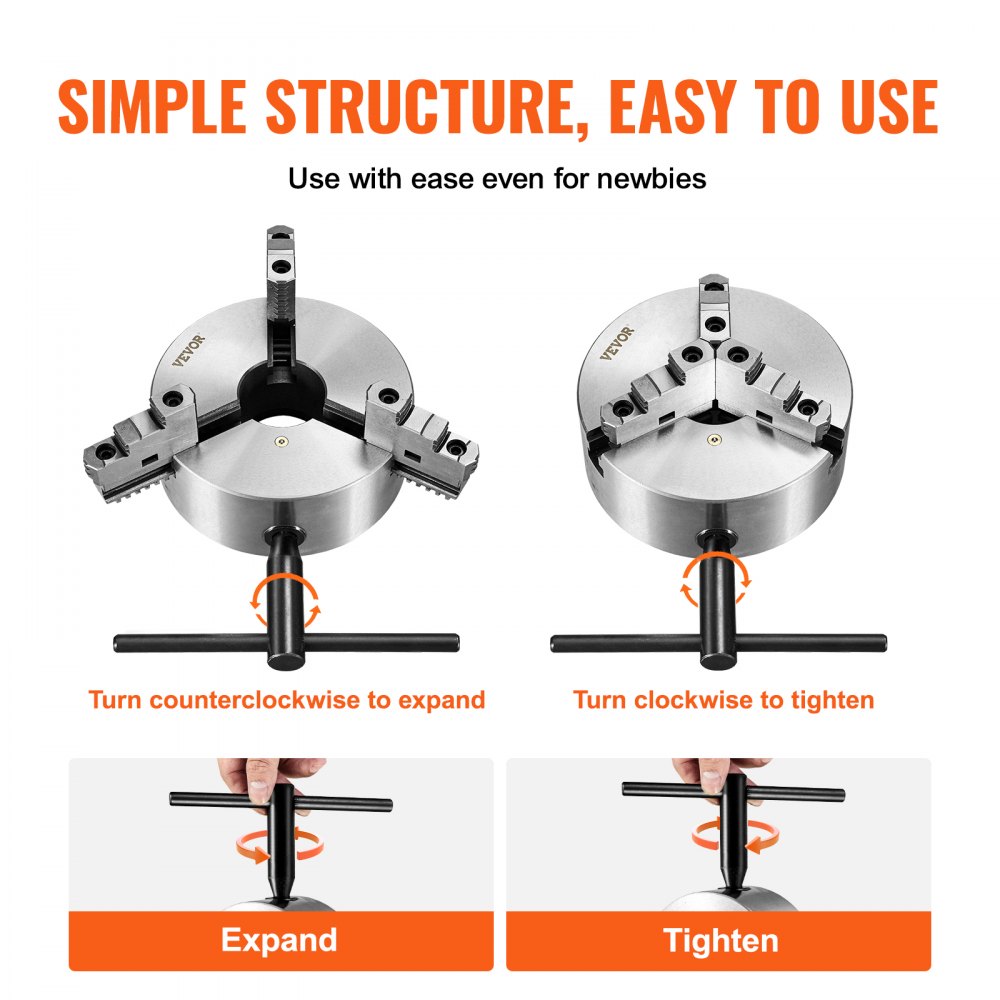

- Simple & Easy Operation: The 3-jaw lathe chuck features a simple and compact structure, pursuing the best balance of function and reliability. The built-in self-centering function allows you to use it without repeated calibration. All you need to do is install it in the right order and use it with peace of mind.

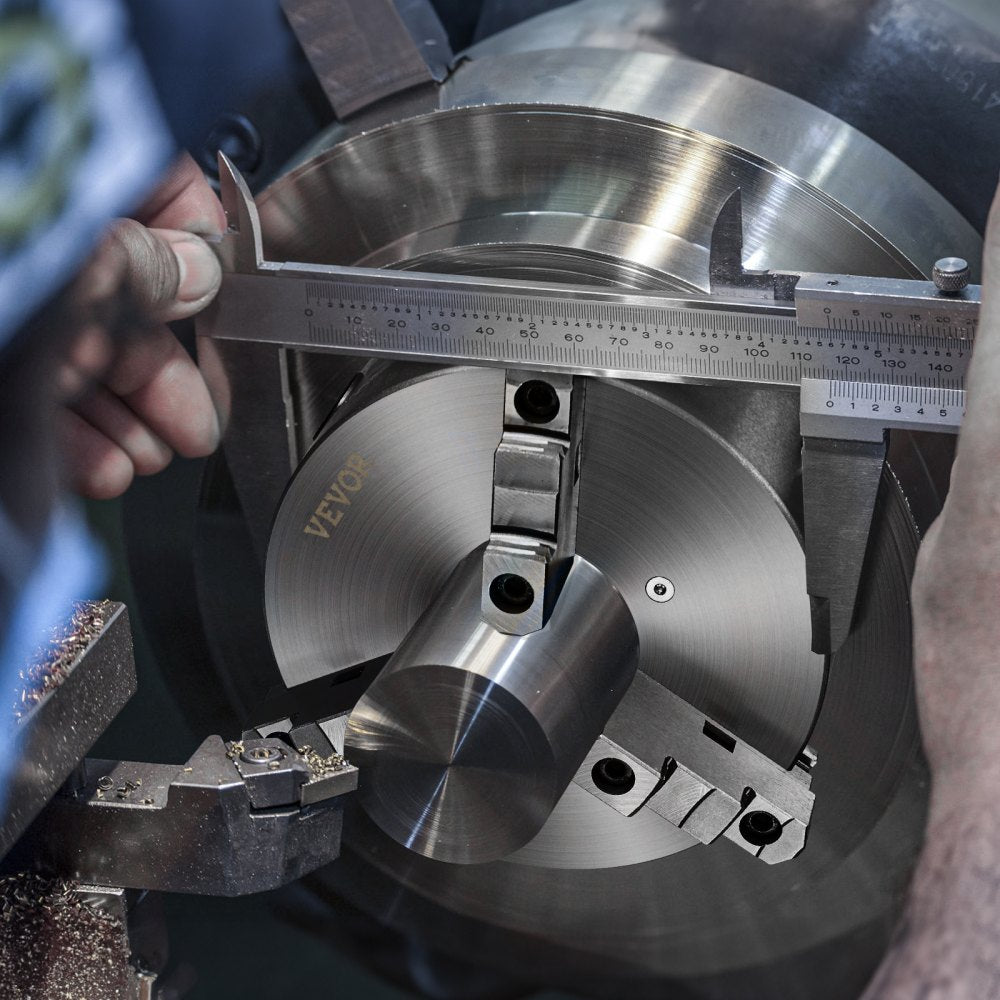

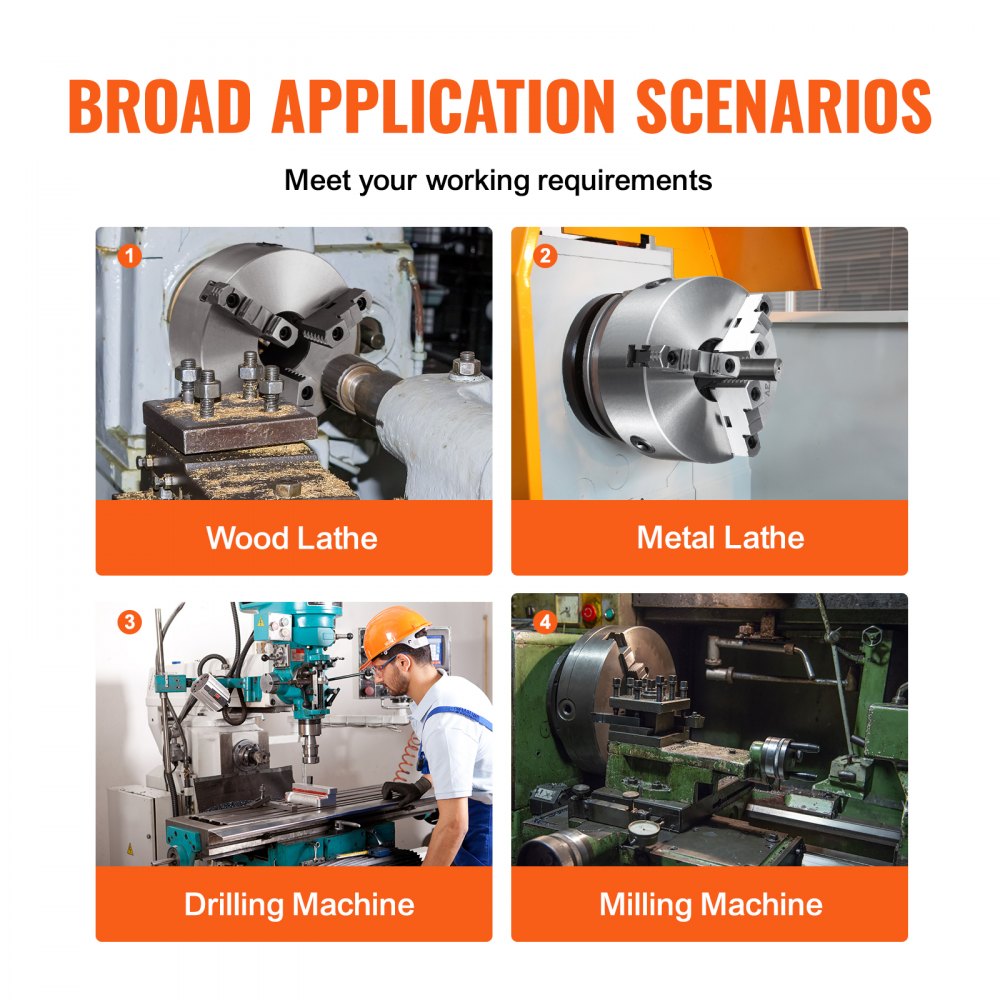

- Applicable to Various Lathes: Our self-centering lathe chuck is highly adaptable to meet your usage requirements, whether you are working in metal machining, drilling, or milling. By using our lathe chuck, you can improve machining efficiency and operational flexibility, achieving accurate and consistent results.

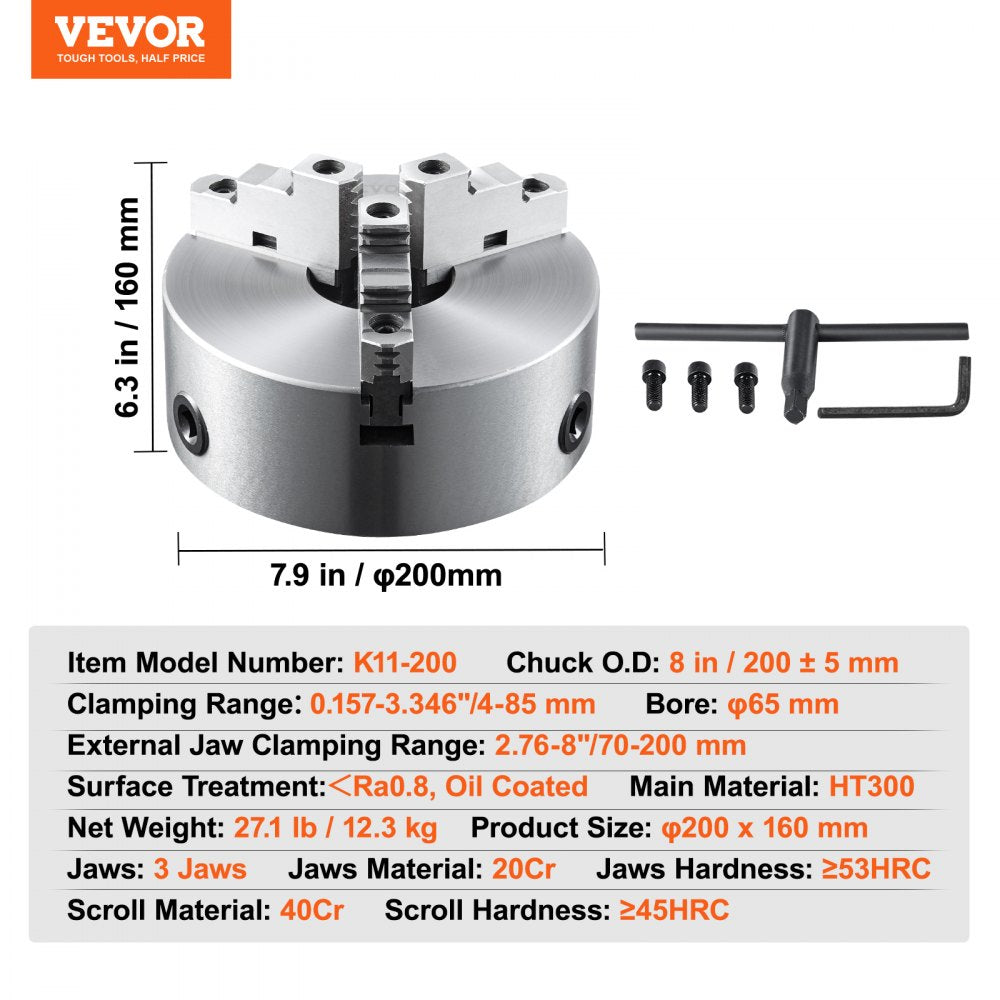

Specifications
| Item Model Number | K11-200 |
| Chuck O.D | 8 in / 200 ± 5 mm |
| Clamping Range | 0.157-3.346" / 4-85 mm |
| External Jaw Clamping Range | 2.76-8" / 70-200 mm |
| Fixed Thread | 3-M10 |
| Bore | φ65 mm |
| Surface Treatment | |
| Main Material | HT300 |
| Net Weight | 27.1 lbs / 12.3 kg |
| Dimensions | φ200 x 160 mm |
| Jaw | 3-Jaw, 20Cr, ≥53HRC |
| Scroll | 40Cr, ≥45HRC |
| Bearing Tolerance | ≤0.05 mm / 0.002 in |

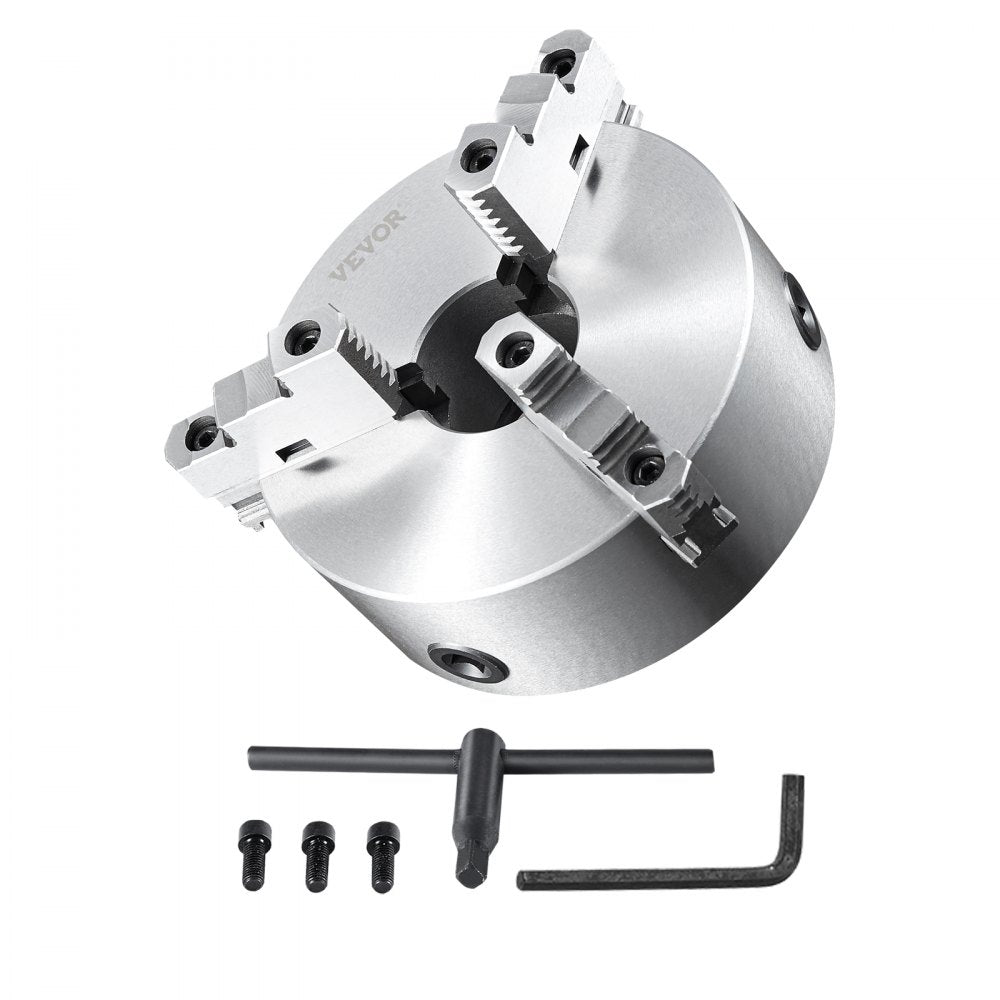

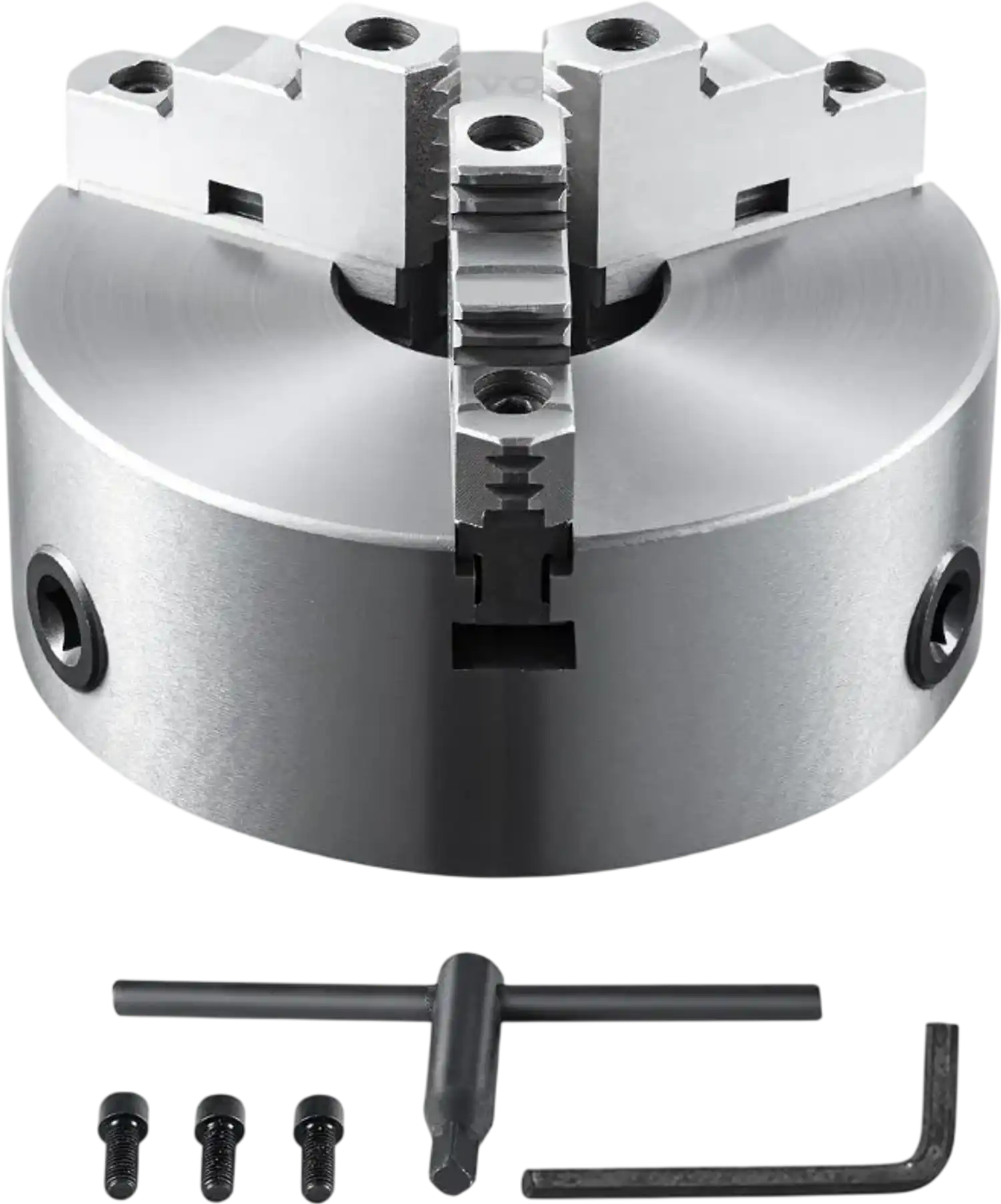

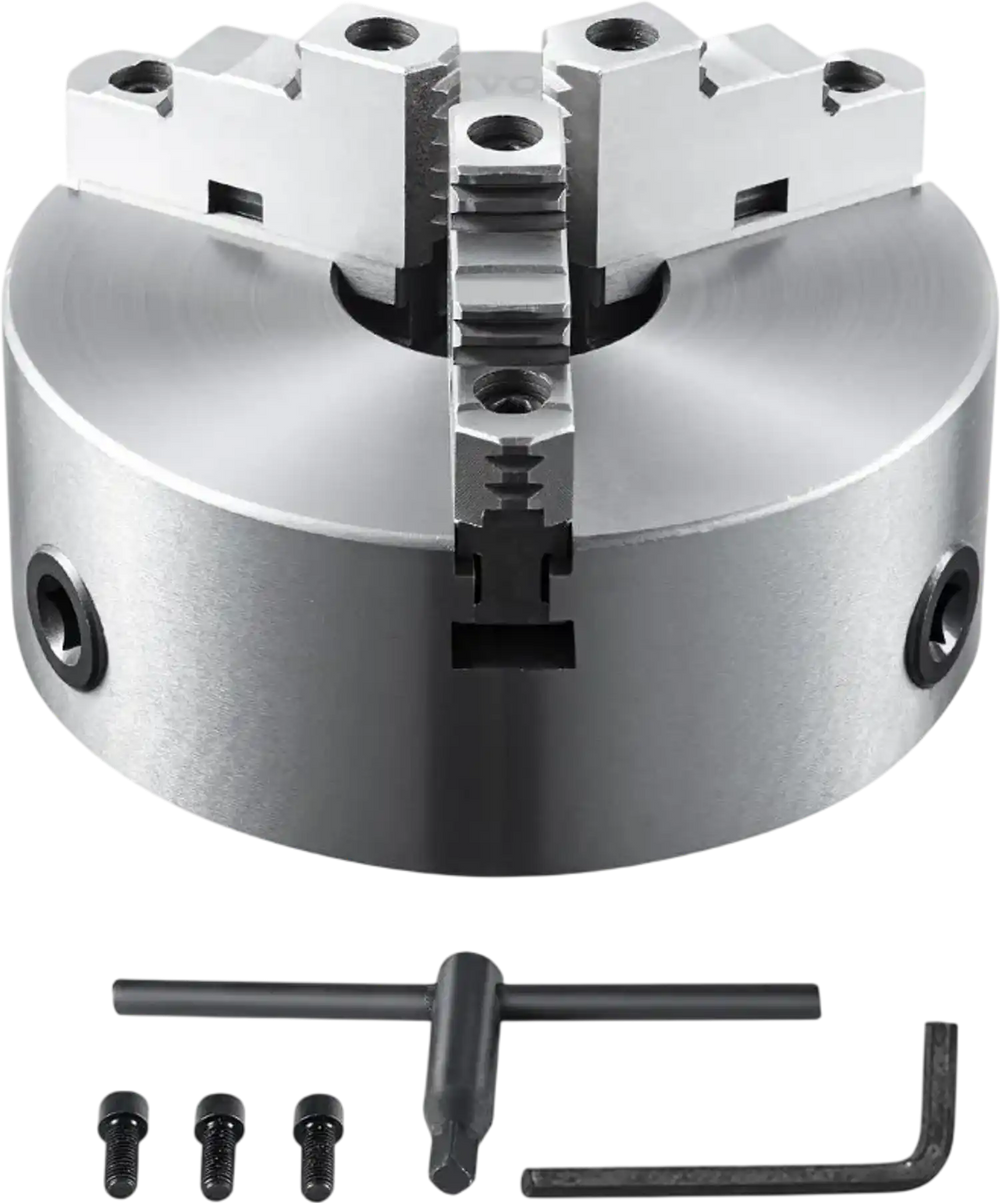

Package Contents
3-jaw lathe chuck
T-key
Fixing screws
Hexagon wrench
Warranty
This item comes with a 1 year factory warranty.
