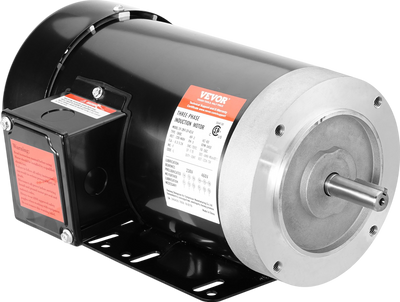

Vevor Induction Motor 2HP 3-Phase 3450 RPM AC 230V/460V CW/CCW Rotation New
Product Overview
Inject powerful performance into your equipment with Vevor's 2HP 3-phase electric motor. Operating at 230V/460V voltage with 6.3/3.2A current, it features 3450 RPM high speed, 56C frame, 1.88" shaft length, and CW/CCW dual rotation direction. Its robust power output ensures efficient operation, making it ideal for agricultural machinery and industrial equipment while saving energy and boosting productivity. Constructed with a heavy-duty rolled steel shell, the general purpose motor is resistant to rust and corrosion, ensuring long-lasting durability.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- Dual Rotation Direction: The electric motor offers reversible CW/CCW rotation, simplifying wiring installation and providing quick, versatile connections for various applications.
- Durable and Safe: Tested to CSA standards. This air compressor motor features a heavy-duty rolled steel shell that resists rust and corrosion, ensuring a longer service life and reliable performance.
- Powerful Performance: 2HP, 3-Phase, Full Load Current: 6.3/3.2A, AC 230V/460V 60Hz, 3450 RPM High Speed, SF: 1.15.
- Wide Range of Applications: VEVOR 2HP general purpose motor is universally applicable, ideal for water pumps, agricultural machinery, and general equipment. It's perfect for DIY projects and repair replacements, providing versatile and powerful functionality for various needs.
- Sturdy Frame Type: 56C Frame, 5/8" Keyed shaft, Shaft length: 1.88", Keyway size: 0.188".
Specifications
| Item Model # | SY-2HP-2P-B34 |
| Voltage | AC 230V/460V 3-Phase |
| Frequency | 60 Hz |
| Horsepower | 2HP |
| Current | 6.3/3.2A |
| Frame Size | 56C |
| Shaft Diameter | 5/8" |
| Shaft Length | 1.88" |
| Keyway Size | 0.188" |
| Rotation Speed | 3450 RPM |
| Rotation Direction | CW/CCW |
| Product Dimensions | 14.4" x 9.1" x 7.1" |
| Net Weight | 31.9 lbs / 14.5 kg |
Package Contents
Vevor 2HP Three-Phase Induction Motor
Warranty
This item comes with a 1 year factory warranty.
