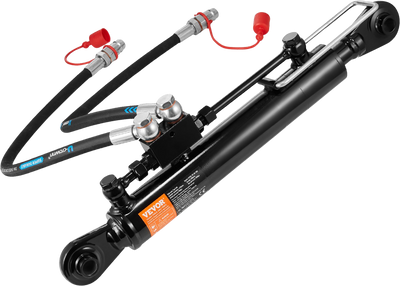

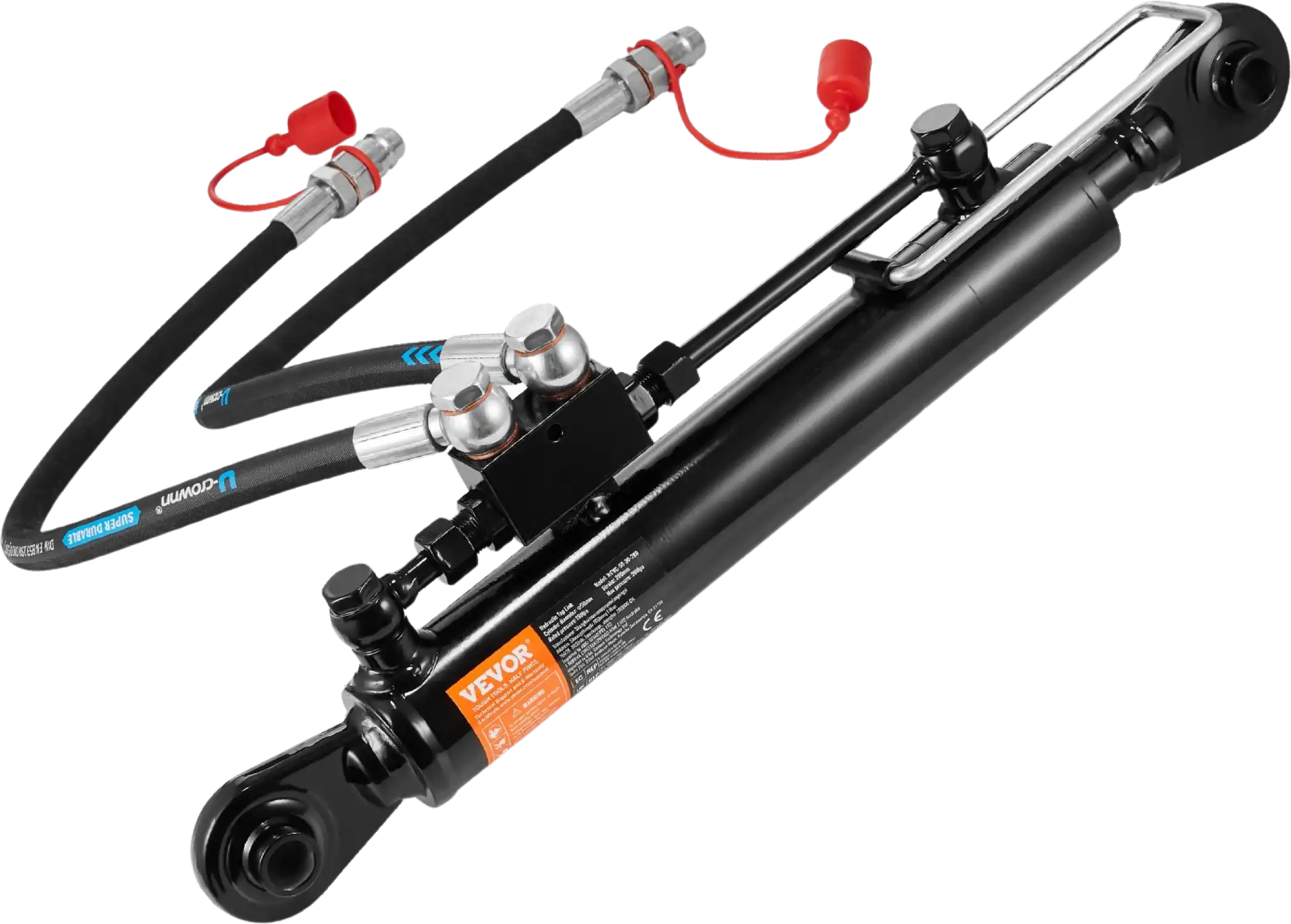

Vevor Hydraulic Top Link Cat. 1-1 20-7/8" to 31-7/8" with 2 Hoses and G3/8" Check Valve New
Product Overview
The Vevor Hydraulic Top Link Cat. 1-1, with a maximum working pressure range of 20/18 MPa, generates 3.5 tons (7716 lbs.) of pushing force and 2.3 tons (5070 lbs.) of pulling force without mechanical gears or levers. Featuring bidirectional check valves with locking blocks, it ensures enhanced sealing and precision control, ensuring minimal hydraulic oil backflow and maintaining piston rod stability even after the pump stops. Made entirely of robust 45# steel with a corrosion-resistant paint coating, it withstands harsh environments like muddy terrain and high temperatures. The rotating piston rod allows flexible installation on various tools. With a 0.8 in. (Φ19.4 mm) connection hole diameter, this double-acting hydraulic cylinder is compatible with Cat. 1-1 tractors, enhancing operational efficiency. Note: Securely tighten hydraulic hose fittings to prevent oil leakage.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- Adaptation for Cat. 1-1 Tractors: The hydraulic top link cat. 1-1's rod inlet/outlet diameter: 3/8 in; Min retracted length: 20-7/8 in. (530 mm); Stroke length: 11 in. (280 mm); Hydraulic hose length: 30.1 in. (765 mm). It can be directly installed on Cat. 1-1 tractors and is widely used in heavy-duty agricultural plowing, waste recycling, transportation, and other tasks.
- High-Sealing Check Valve: The hydraulic cylinder is upgraded with a high-sealing bidirectional check valve structure, ensuring minimal hydraulic oil leakage and precise control of pushing and pulling operations. Even after the pump stops working, the position of the hydraulic cylinder piston rod remains stable under force. The hydraulic cylinder can only perform pushing and pulling actions when there is a certain oil pressure.
- Enhanced Hydraulic Power: The hydraulic top link is capable of providing 3.5 tons (7716 lbs.) of pushing force and 2.3 (5070 lbs.) tons of pulling force, and it can deliver stronger performance within a max working pressure range of 20/18 MPa (2900/2610 psi), helping you easily tackle heavy-duty tasks.
- Heavy-Duty Construction: Top Link mainly constructed with thick 45# steel material, with a surface paint coating that effectively enhances rust resistance, wear resistance, and corrosion resistance. It is durable and can withstand harsh conditions such as mud, rain, and high temperatures, making it long-lasting and reliable.
- Easy Installation: The rotatable piston rod of tractor loader hydraulic cylinders can meet different installation requirements, equipped with high-pressure-resistant and sturdy hydraulic hoses. You can assemble and use the product by yourself without the need to separately acquire hoses, making assembly hassle-free.
Specifications
| Item Model # | WCVC-50-30-280 |
| Minimum Retracted Length | 20-7/8 in. (530 mm) |
| Stroke | 11 in. (280 mm) |
| Cylinder Diameter (I.D.) | 2.0 in. (Φ50 mm) |
| Outer Diameter | 2-3/8 in. (Φ60 mm) |
| Piston Rod Diameter | 1.2 in. (Φ30 mm) |
| Connection Hole Diameter | 0.8 in. (Φ19.4 mm) |
| Connection Hole Width | 1.7 in. (44 mm) |
| Thrust Force | 3.5 Tons (7716 lbs.) |
| Pull Force | 2.3 Tons (5070 lbs.) |
| Check Valve Inlet/Outlet Port | G3/8 in. |
| Rotatable Piston Rod | Ball Joint Linkage Structure |
| Maximum/Rated Working Pressure | 20/18 MPa (2900/2610 psi) |
| Compatible Equipment | Class Ⅰ Tractors |
| Hydraulic Hose | (I.D.&L.) |
| Fitting Type | G1/2 |
| Color and Surface Treatment | Black Paint |
| Main Material | 45# |
| Net Weight | 20.1 lbs. (9.1 kg) |
| Product Dimensions | 23.4 × 4.7 × 2.4 in. (595 × 120 × 60 mm) |
Package Contents
Vevor Hydraulic Top Link Cat. 1-1 20-7/8 in. to 31-7/8 in. with 2 Hoses
(2) Hydraulic Hose
(2) Installation Articulated 3/8 Screw
(4) Copper Washer
User Manual
Warranty
This item comes with a 1 year factory warranty.
