Vevor Hydraulic Shop Press 30 Ton with Press Plate New
Manufacturer: Vevor
SKU: YYYBSQCJYLJL3EDGXV0
Loading Pressure Options
Operating Mode Options
QTY
or
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$1,008.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor Pipe Reamer Kit 8-Piece 1/2"-4" Socket Saver Set New
-
Vevor Box and Pan Brake 48" 0-135° Sheet Metal Bender for 20-Gauge Low Carbon Steel and 14-Gauge ...
-
Vevor Linear Guide Rail HSR15-1500 mm w/ Square Block New
-
Vevor Power Feed X-Axis Milling Machine 450 in-lb 120V New
-
Vevor Linear Guide Rail Set 86.6" w/ 4 Slide Blocks New
-
Vevor Lathe Chuck 8" 3-Jaw Self-Centering New
-
Vevor Sheet Metal Shear Multi-Purpose Throatless Benchtop Manual Hand Cutter New
-
Vevor Drill Press 10" Benchtop 5-Speed Cast Iron with Work Light New
-
Vevor Linear Guide Rail Set SBR20 59" 1500 mm with 4 Slide Blocks New
-
Vevor Drill Press Table 24" x 12" Adjustable Fence T-Slot Worktable New
-
Vevor Tool Post Quick Change 8-Pc Lathe Holder Set for 6"-12" Swing New
-
Vevor Arbor Press 1 Ton Manual Desktop Cast Iron Press New
-
Vevor 3-Jaw Lathe Chuck 10" Self-Centering 6-250mm Clamping Range New
-
Vevor Box and Pan Brake 24" 0-130 Degrees Sheet Metal Bender 5 Adjustable Fingers New
-
Vevor Power Feed Z-Axis Milling Machine Table Feed 450 in-lb 0-200 RPM 120V New
-
Vevor PVC Pipe Reamer Kit 7-Piece Socket Saver for 1/2" to 4" Pipes New
-
Vevor Hydraulic Shop Press 10 Ton Manual with Press Plate Pressure Gauge New
-
Vevor PVC Pipe Reamer Kit 4-Piece 1-1/2" to 4" Socket Saver Tool Set New
-
Vevor Benchtop Drill Press 12" with 0-45° Tilting Worktable Variable Speed 120V New
-
Vevor Three-Station Edge Roller 0-90° Sheet Metal Brake Adjustable 0.63"-5.7" Bends for 30-19 Gau...
-
Vevor Benchtop Drill Press 12 in. 1 HP Variable Speed 0-45° Tilting Worktable New
-
Vevor Plate Shear 12" Manual Hand Benchtop Metal Sheet Cutter New
-
Vevor Pipe Reamer Kit 7-Piece PVC Pipe Fitting Socket Saver New
-
Vevor PVC Pipe Reamer Kit 5-Piece Socket Saver for 1-1/4" to 4" Pipes New
-
Vevor PVC Pipe Reamer Kit Socket Saver for PVC CPVC ABS Fittings New
Vevor Hydraulic Shop Press 30 Ton with Press Plate New
Product Overview
This hydraulic shop press boasts a massive 30 ton load capacity, helping you easily disassemble and install automotive bushings, ball joints, and more. It features a pneumatic assist pump that connects to an air compressor for easier operation. The automotive press is made from high-quality heavy-duty steel, significantly enhancing the stability of the base.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

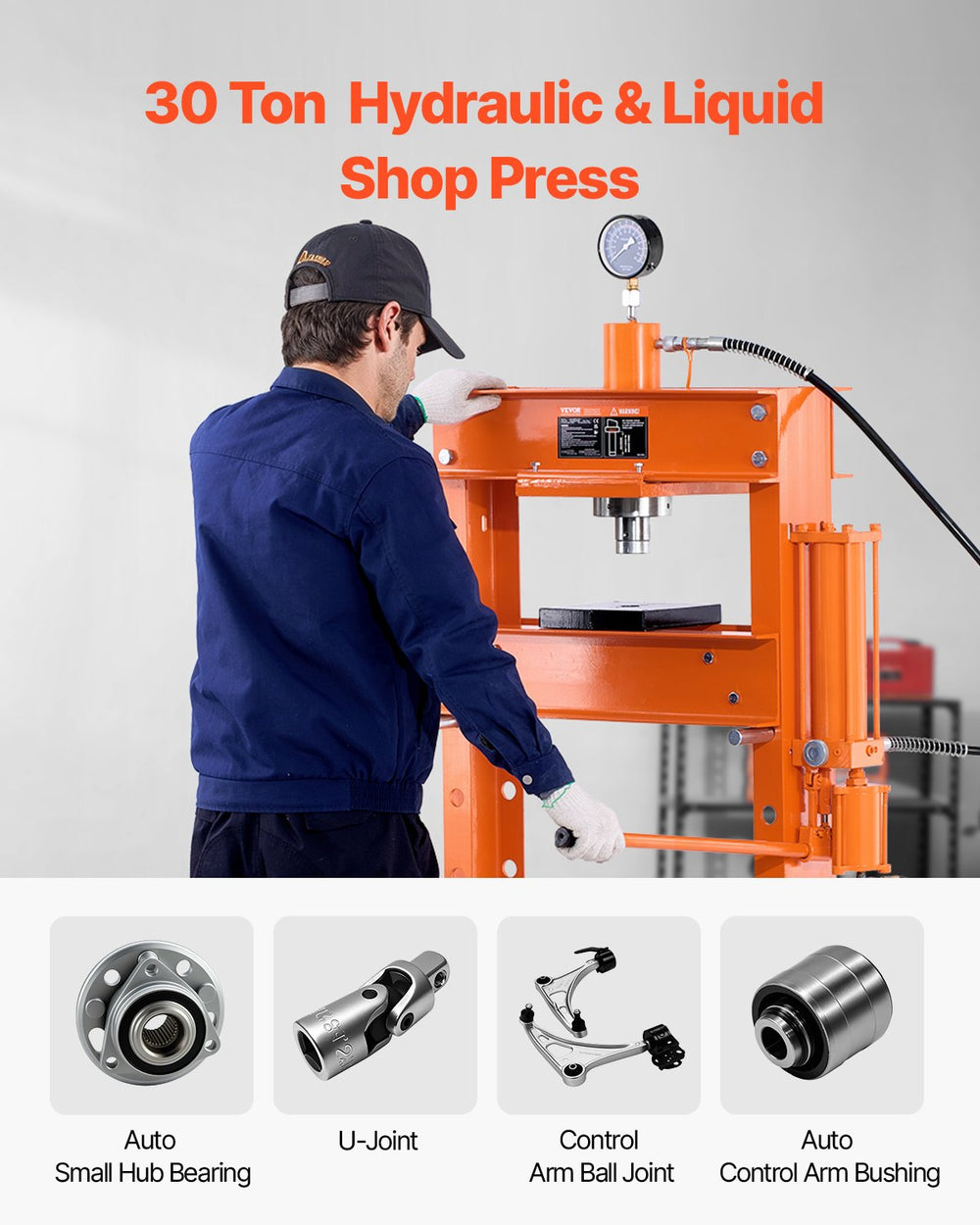

- 30 Ton Strong Load Capacity: Our hydraulic press helps you easily disassemble and install automotive bushings, ball joints, U-joints, and more, as well as straighten, bend, and stamp metal parts. Whether you're a professional or a DIY car repair enthusiast, it allows for quick and simple operation.

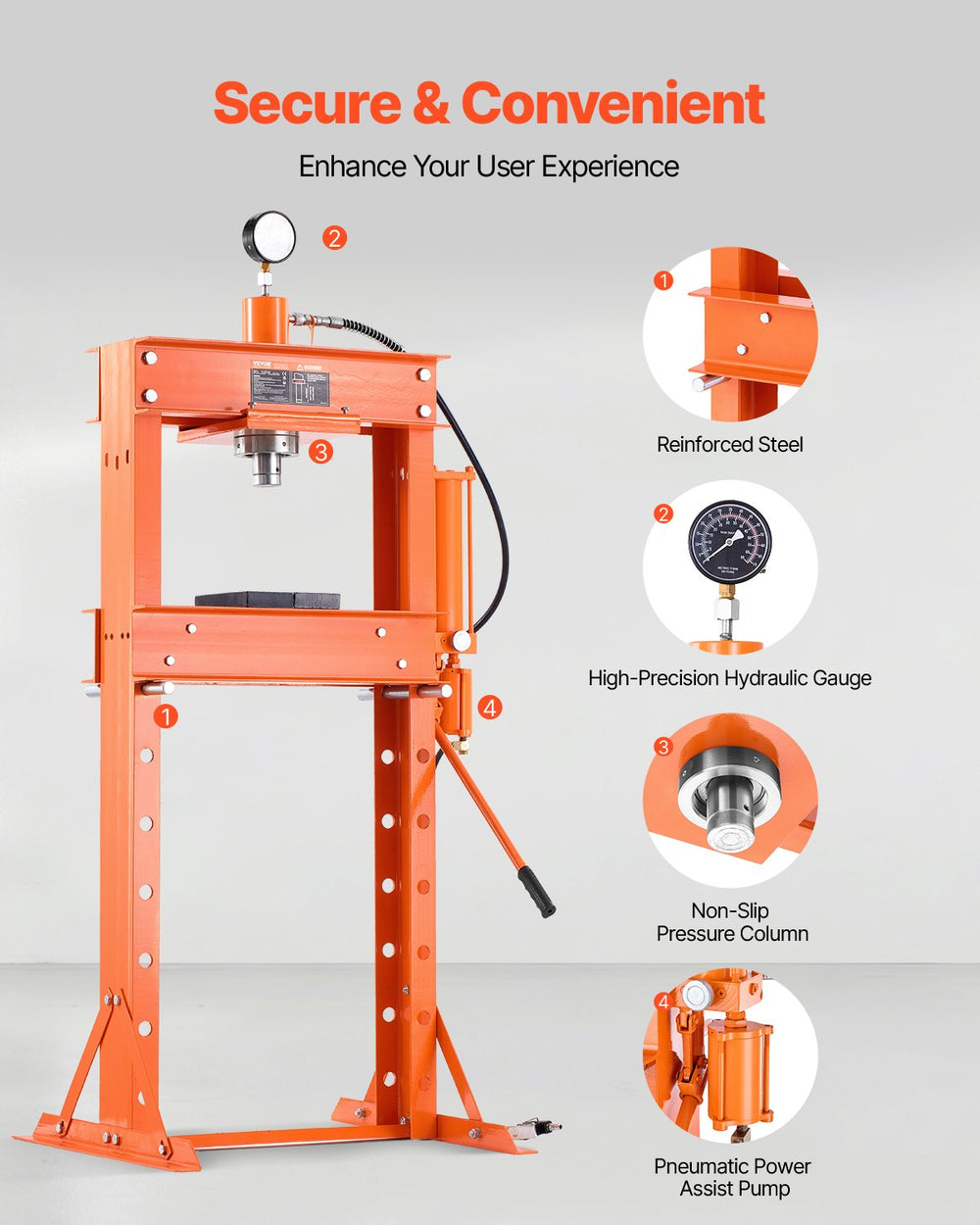

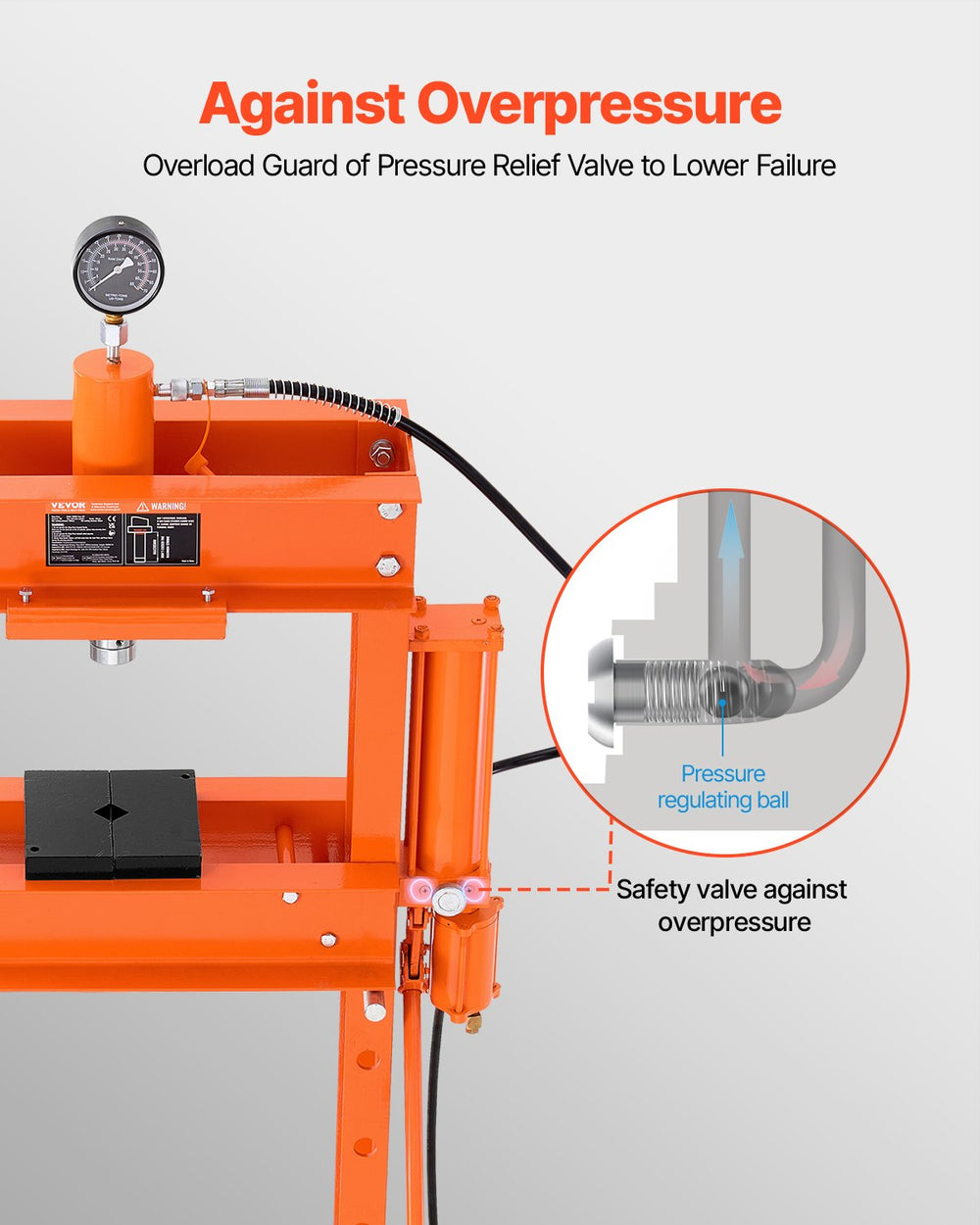

- Hydraulic and Pneumatic: This hydraulic shop press features a pneumatic assist pump that connects quickly to an air compressor for easier operation. Includes a security regulator valve to avoid overloading and safeguard against bending or damage.

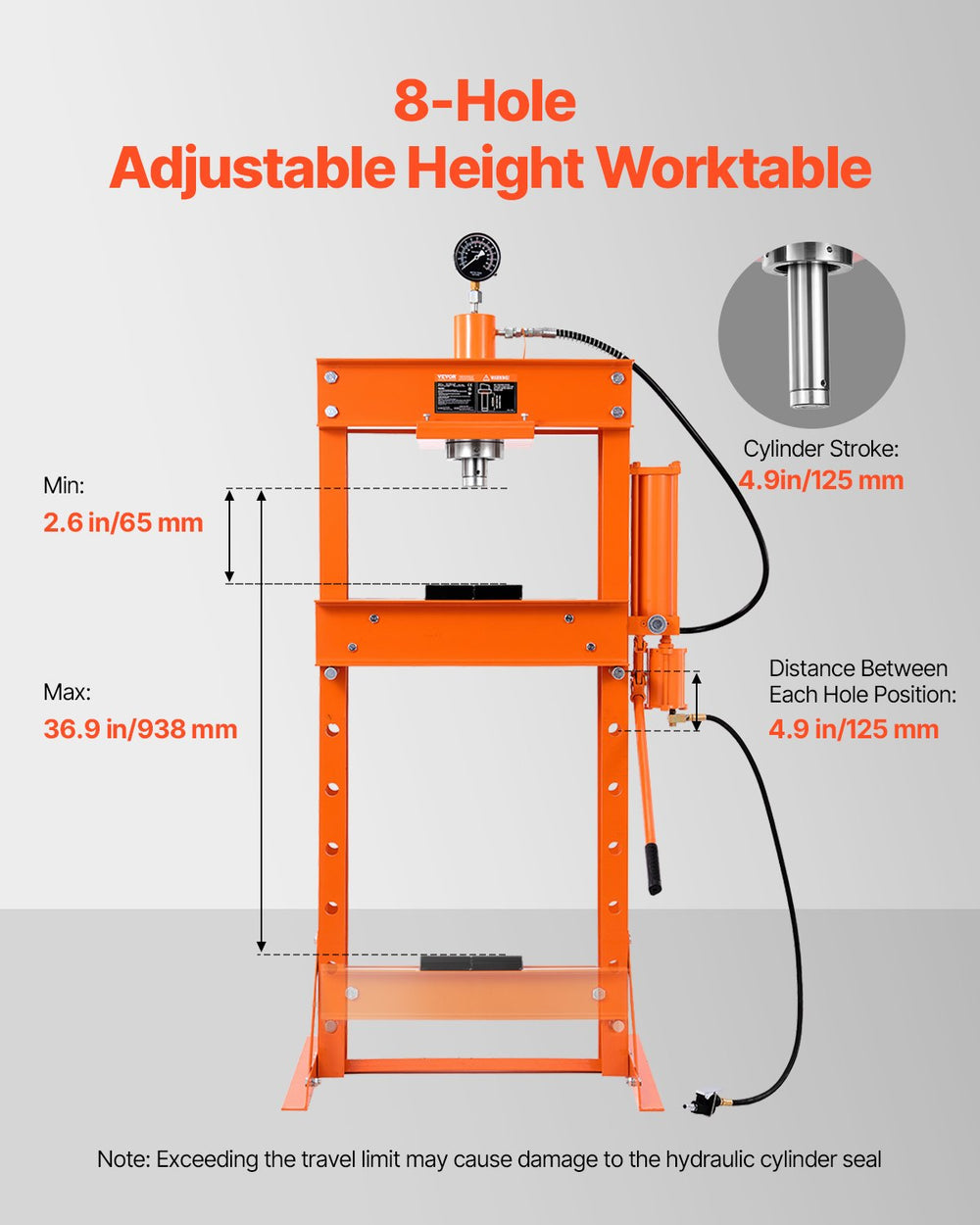

- Adjustable Height: The hydraulic shop press’s worktable features a quick-adjust pin system with 8 height settings, ranging from 2.6 to 36.9 inches (65-938 mm), providing flexible working positions. The cylinder stroke is 4.9 inches (125 mm). Note: Exceeding the cylinder stroke range may cause damage to the cylinder seals.

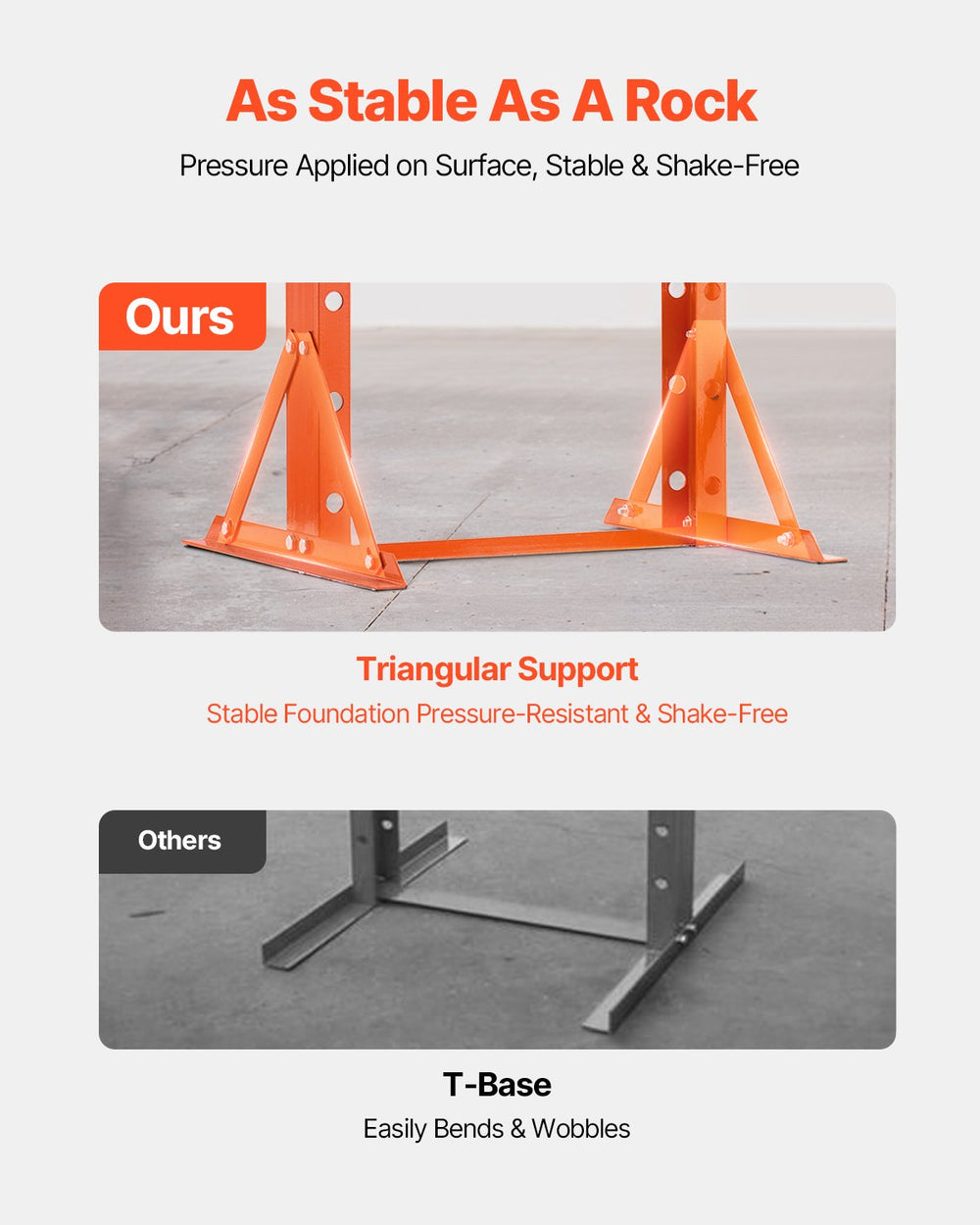

- Triangular Base Reinforcement: Upgraded with a triangular brace, the hydraulic shop press’s triangular structure significantly enhances base stability. Combined with the H-shaped frame, the press remains steady and wobbling-resistant during the operation of fastening components.
- Heavy-Duty Construction: Built with thickened steel, this structure offers enhanced weight-bearing capacity and durability. The large-diameter pressure column is designed to minimize slipping, ensuring sturdiness and long-lasting performance, even under heavy use.

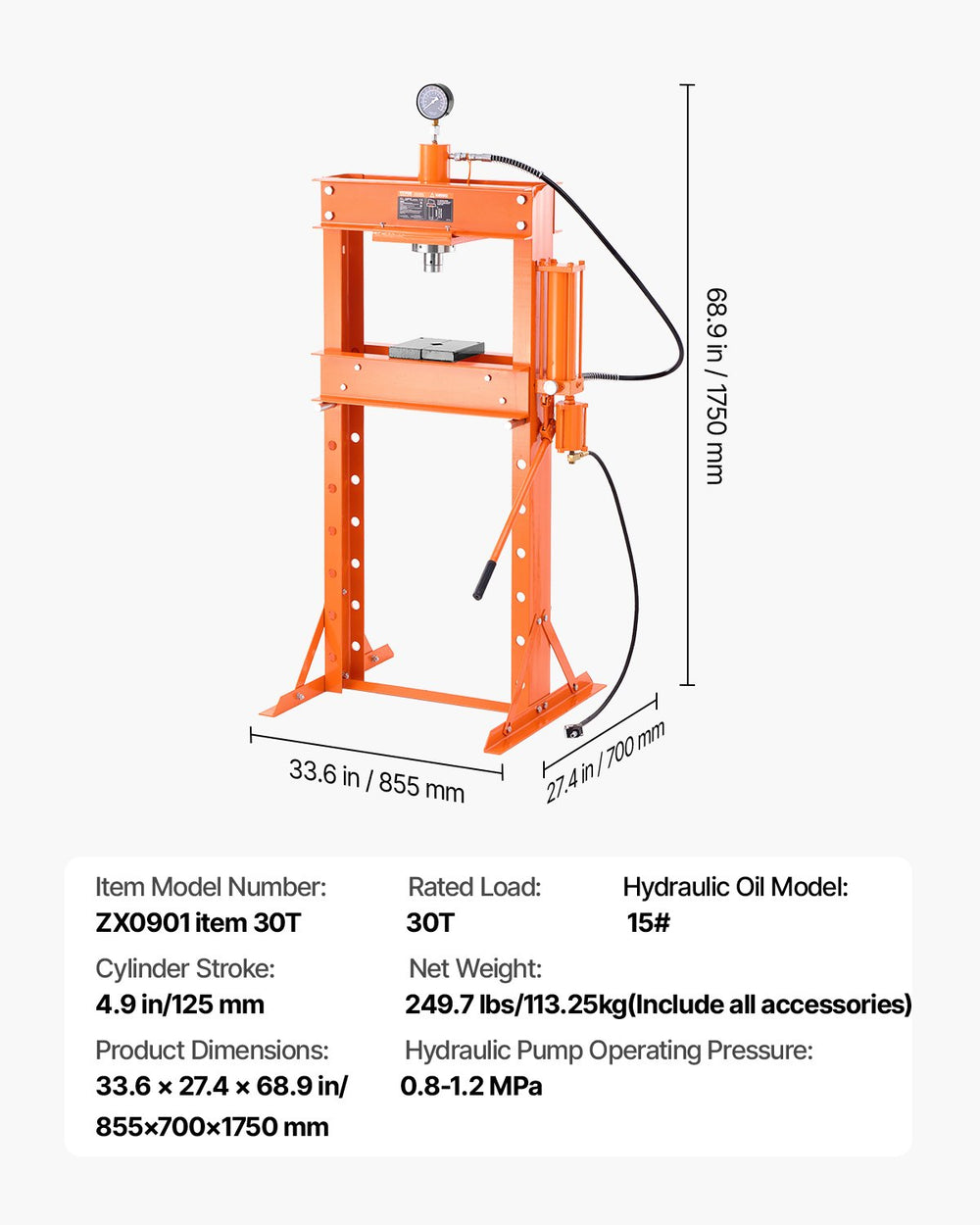

Specifications
| Item Model # | ZX0901 item 30T |
| Rated Load | 30 Tons |
| Cylinder Stroke | 4.9" |
| Hydraulic Pump Operating Pressure | 0.8 - 1.2 MPa |
| Hydraulic Oil Model | 15# |
| Product Dimensions | 33.6" x 27.4" x 68.9" |
| Net Weight | 249.7 lbs |
Package Contents
Vevor 30T Hydraulic Shop Press
User Manual
Warranty
This item comes with a 1 year factory warranty.
