Vevor Hydraulic Pump 6 Quart Single Acting Power Unit 12V New
Manufacturer: Vevor
SKU: 6LCZYYBSLDZY00001V0
QTY
(888) 999-1522
C
$293.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer

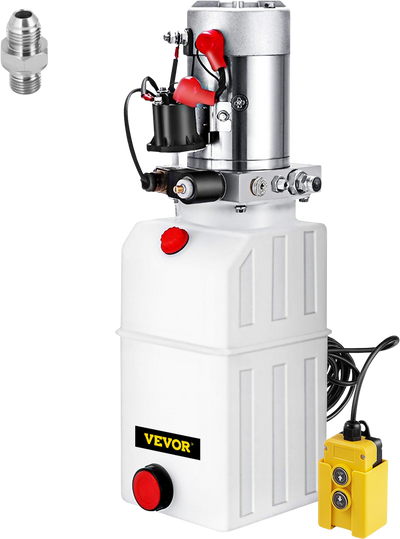

Vevor Hydraulic Pump 6 Quart Single Acting Power Unit 12V New
Product Overview
This hydraulic pump is a single-acting power unit for power up and gravity down. It has a 6-quart sturdy plastic reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc. It comes with a handheld remote control and an additional SAE#6 connector for replacement.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- Product Details: This hydraulic pump is designed with a 12V DC motor (Power: 1.6-3kW) and a 6-quart reservoir. The max relief pressure on A port is 3200 psi, and on B port is 1500 psi. The flow rate is 2 GPM, and it is a single-acting pump for power up and gravity down.
- Easy to Use: This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple and comes with operating instructions. One additional SAE#6 connector and a 15 ft. remote control are included in the package.
- Reliable Quality: The dump trailer pump is made of sturdy plastic, making the oil tank sturdy and not easily cracked or damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with an overflow valve, it automatically releases when overpressure, safer and reliable.
- Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil. It can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.
- Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.
Specifications
| Tank Material | Plastic |
| Pressure Relief Valve | 22MPa |
| Rated Speed | 2850 RPM |
| Motor Power | 1.6-3.0kW |
| Motor Voltage | DC 12V |
| Fuel Tank | 6 Quart |
| Action | Single-Acting Power Up/Gravity Down |
| Product Dimensions | 6.1" x 6.1" x 21" |
| Weight | 26.9 lbs (12.2 kg) |
Package Contents
Vevor Hydraulic Pump 6QT Single Acting
SAE#6 Connector
User Manual
Warranty
This item comes with a 1 year factory warranty.
