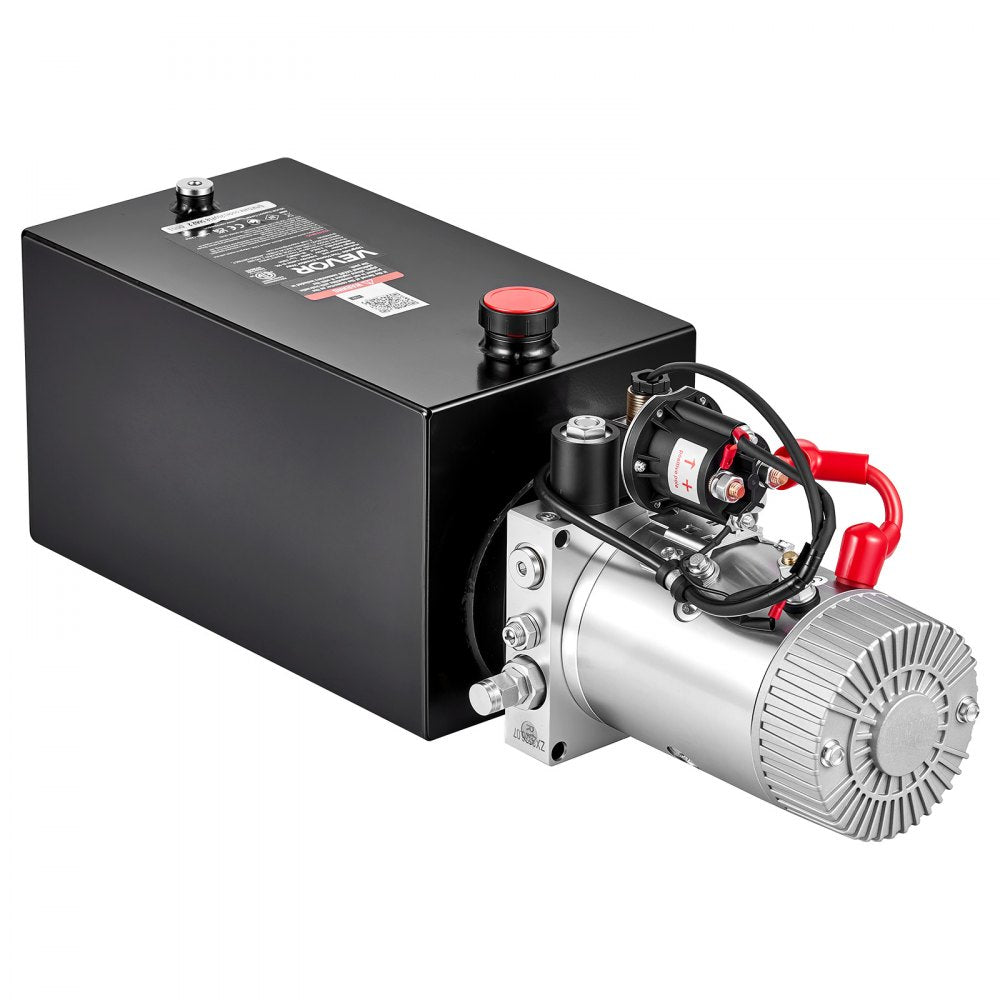

Vevor Hydraulic Pump 10-Quart Single-Acting Dump Trailer Power Unit New
Product Overview
The Vevor hydraulic pump is a single-acting 12V power unit designed for dump trailers, car lifting, and other lifting applications. It features a 10-quart reservoir, 1.6 kW motor, 0.91 GPM flow rate, and up to 3200 PSI max relief pressure for dependable lifting performance. The pre-assembled design helps simplify setup and operation. Its tightly sealed construction and steel reservoir are built for long-term durability. This unit is intended for horizontal installation only.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Powerful Performance: This DC 12V 1.6 KW hydraulic pump delivers a 0.91 GPM flow rate and 16–20 MPa working pressure, with a maximum relief pressure of 3200 PSI. The 10-quart reservoir provides steady hydraulic power for demanding lifting applications
- Faster Lifting, Smooth Lowering: The single-acting hydraulic pump delivers reliable powered lifting and smooth gravity-assisted lowering. Built-in relief valve automatically releases excess pressure for stable, dependable operation
- Easy Installation & Use: This dump trailer pump comes pre-assembled for quick setup. Simply add hydraulic oil, connect the power cables and hoses, power it on, and use the controller for convenient and easy control
- Built to Last: This hydraulic pump features a robust, tightly sealed structure that helps minimize oil leakage. Its sturdy, rust-resistant steel reservoir ensures reliable long-term performance
- Multi-Application: This electric hydraulic pump powers dump trailers, liftgates, scissor lifts, lift tables, small presses, and bucket conveyors, providing reliable lifting power for shops and jobsites. Designed for horizontal installation only, not for vertical mounting
Specifications
| Item Model Number | ZXDC12V-1.6KW-D-10L |
|---|---|
| Voltage | DC12V |
| Function | Single Acting |
| Reservoir Capacity | 10 Quart |
| Power | 1.6 kW |
| Flow Rate | 0.91 GPM |
| Working Pressure | 16-20 MPa |
| Max Relief Pressure | 3200 PSI |
| Speed | 2600 r/min |
| Net Weight | 30.2 lbs / 13.7 kg |
|---|---|
| Dimensions | 23.4 x 7.0 x 8.5 in / 595 x 177 x 215 mm |
| Installation | Horizontal |
Package Contents
Hydraulic pump power unit
Accessories
Warranty
This item comes with a 1 year factory warranty.
