Vevor Hydraulic Power Unit 6 QT Double Acting Pump 12V 3200 PSI New
Manufacturer: Vevor
SKU: 12VSZYSLXCZYG6WIF001V9
Capacity Options
Operation Mode Options
QTY
(888) 999-1522
C
$347.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer

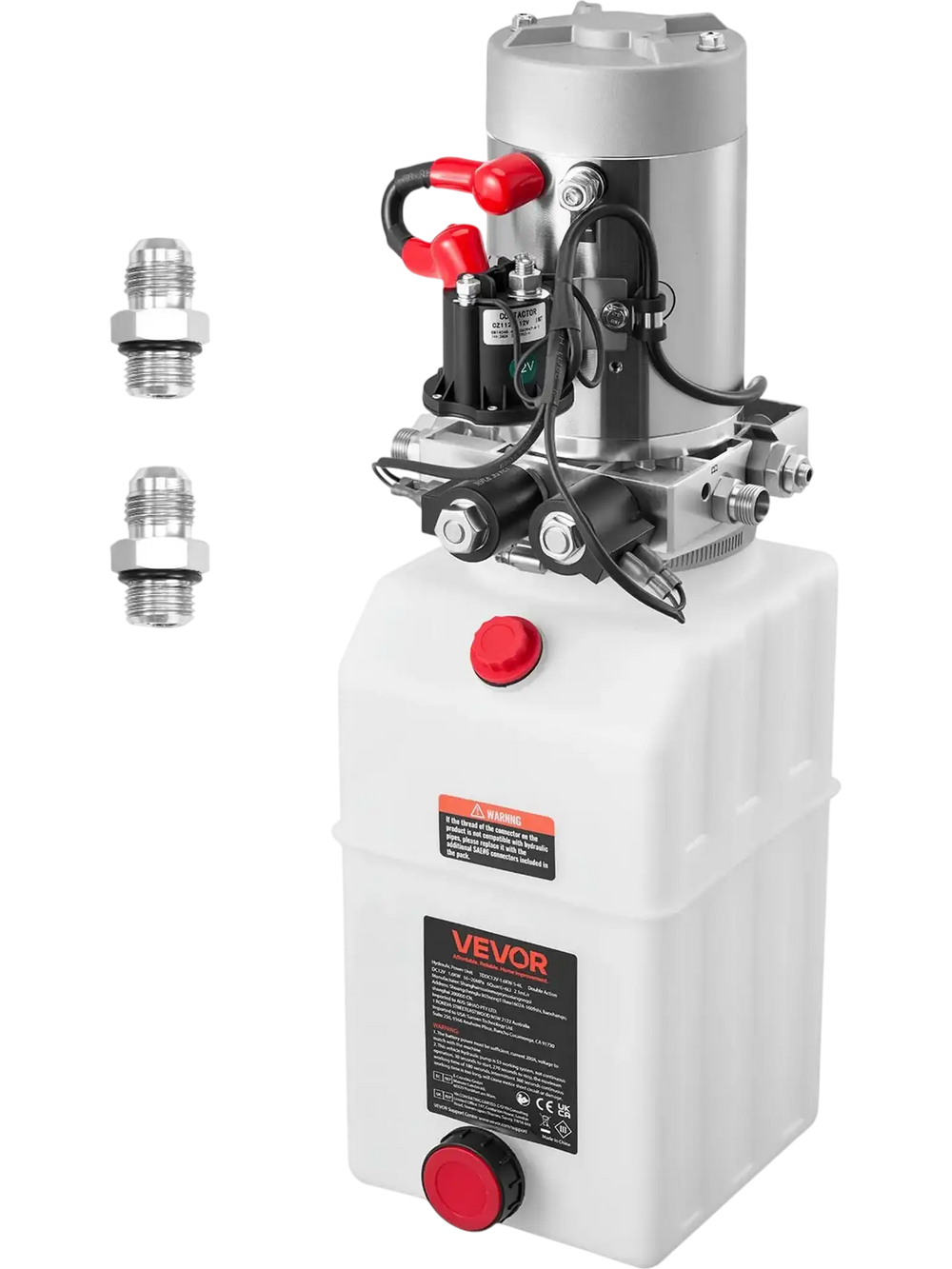

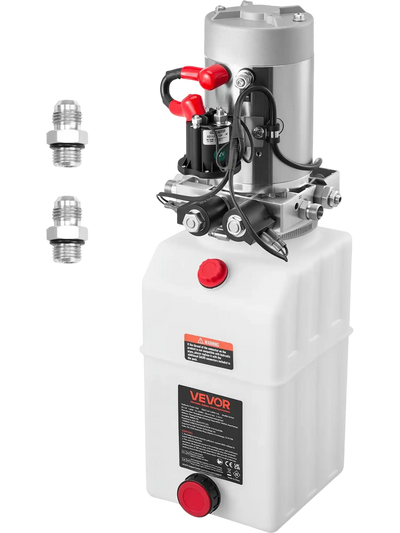

Vevor Hydraulic Power Unit 6 QT Double Acting Pump 12V 3200 PSI New
Product Overview

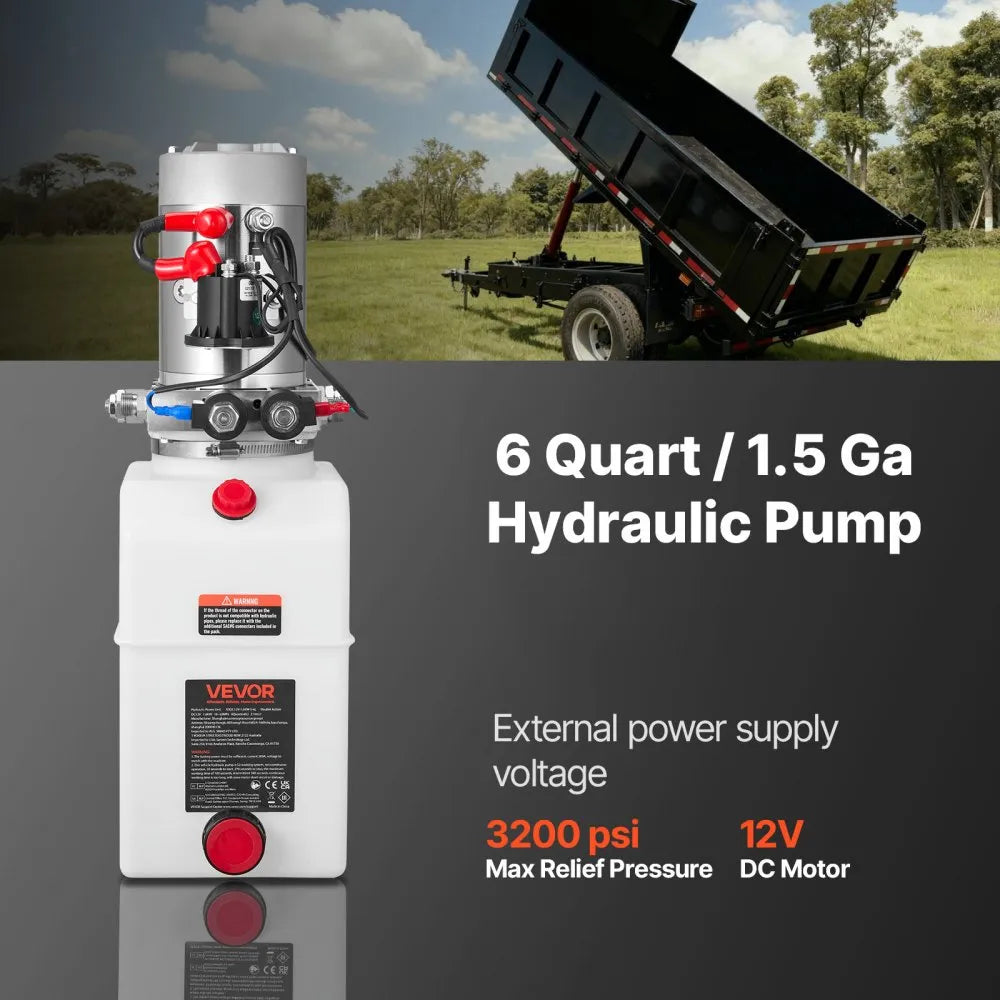

This Vevor hydraulic power unit is a 12V double-acting dump trailer pump designed for reliable lifting and lowering performance in demanding applications. Its 1.6 kW motor delivers up to 3,200 psi max relief pressure with a 0.91 GPM flow rate for steady hydraulic operation. The pre-assembled design helps simplify installation, while the built-in relief valve supports safer operation. With a 6-quart reservoir and SAE #6 fittings, it is well suited for dump trailers, liftgates, scissor lifts, lift tables, and similar equipment.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Power You Can Feel: This DC 12V, 1.6 kW hydraulic power unit moves 0.91 GPM with a 6-quart tank, 16–20 MPa working pressure, and up to 3,200 psi, so heavy-lift gear runs with steady, confident force
- Double-Acting Precision: This hydraulic pump controls both raise and lower for pinpoint moves while using less hydraulic oil. The built-in relief valve auto-vents over-pressure, so failures drop and security steps up

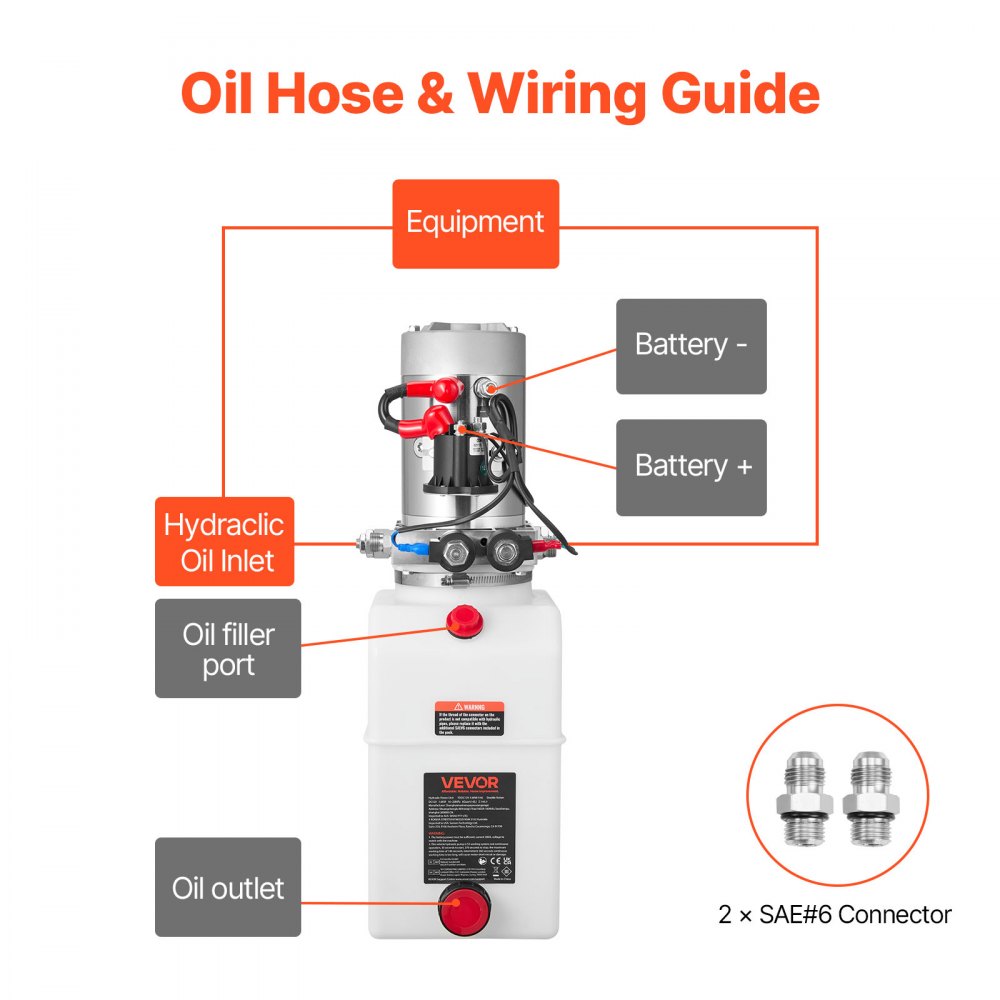

- Easy to Install: This dump trailer pump arrives pre-assembled. You add hydraulic oil, connect power leads and hoses, and go. The SAE #6 fittings help you hook up standard hydraulic lines fast
- Heavy-Duty & Reliable: This dump trailer hydraulic pump seals tight to resist leaks, and the durable plastic tank shrugs off daily bumps, so your hydraulic system stays tough and ready for long-term use
- Built for Many Jobs: This electric hydraulic pump powers dump trailers, liftgates, scissor lifts, lift tables, small presses, and bucket conveyors, so you get versatile power for shop and jobsite
Specifications
| Item Model Number | TDDC12V-1.6KW-S-3L |
| Voltage | DC12V |
| Function | Dual Acting |
| Reservoir Capacity | 6 Quart/1.5 Gal |
| Power | 1.6 kW |
| Flow Rate | 0.91 GPM (3.4 L/min) |
| Speed | 2600 r/min |
| Traffic | 2.1 mL/r |
| Max Relief Pressure | 3200 psi |
| Working Pressure | 16-20 MPa |
| Net Weight | 25.4 lbs / 11.5 kg |
| Dimensions | 21.5 x 7.5 x 8.3 in / 545 x 190 x 210 mm |
| Fitting Size | SAE #6 |
Package Contents
Hydraulic Power Unit
(2) SAE#6 Connectors
User Manual
Warranty
This item comes with a 1 year factory warranty.
