Product Overview

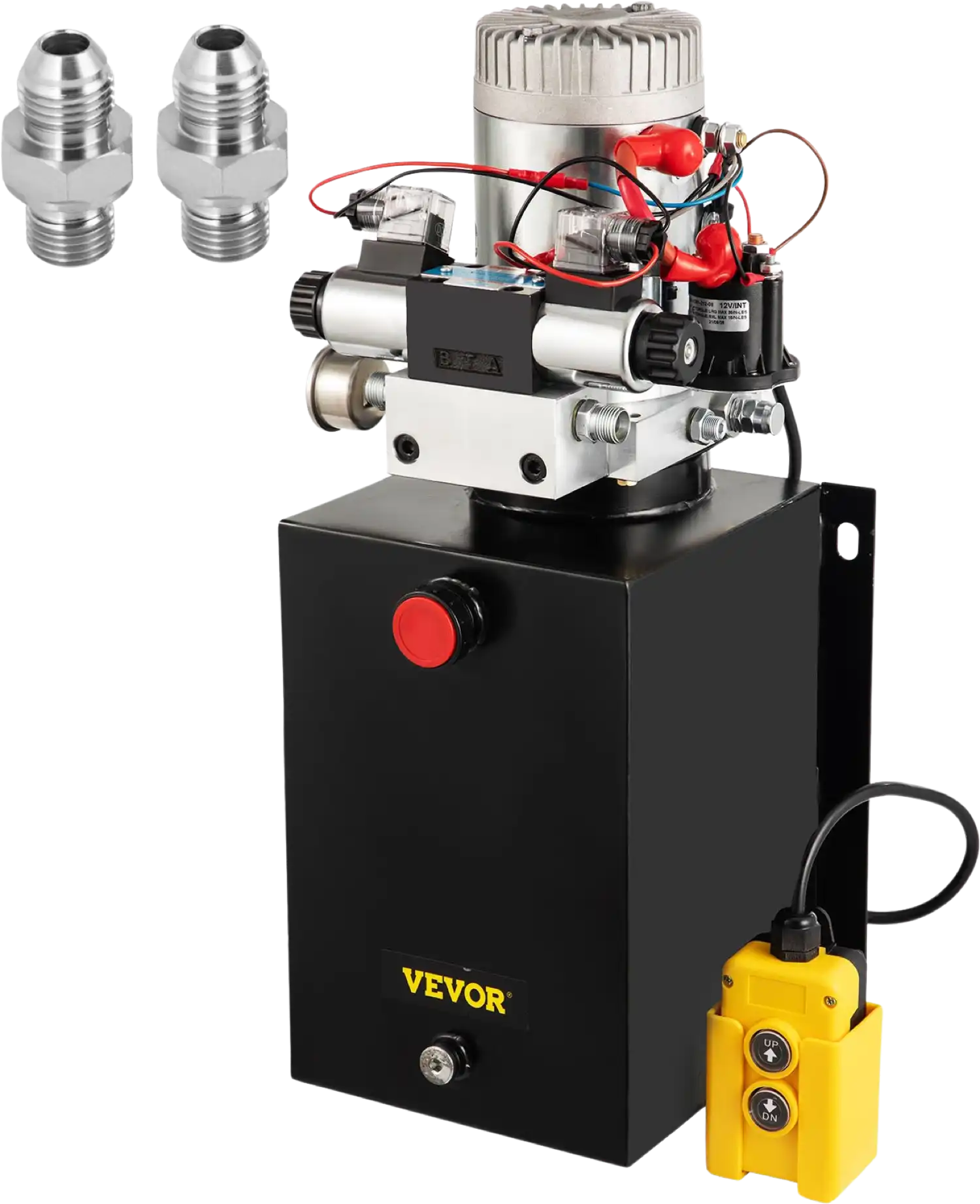

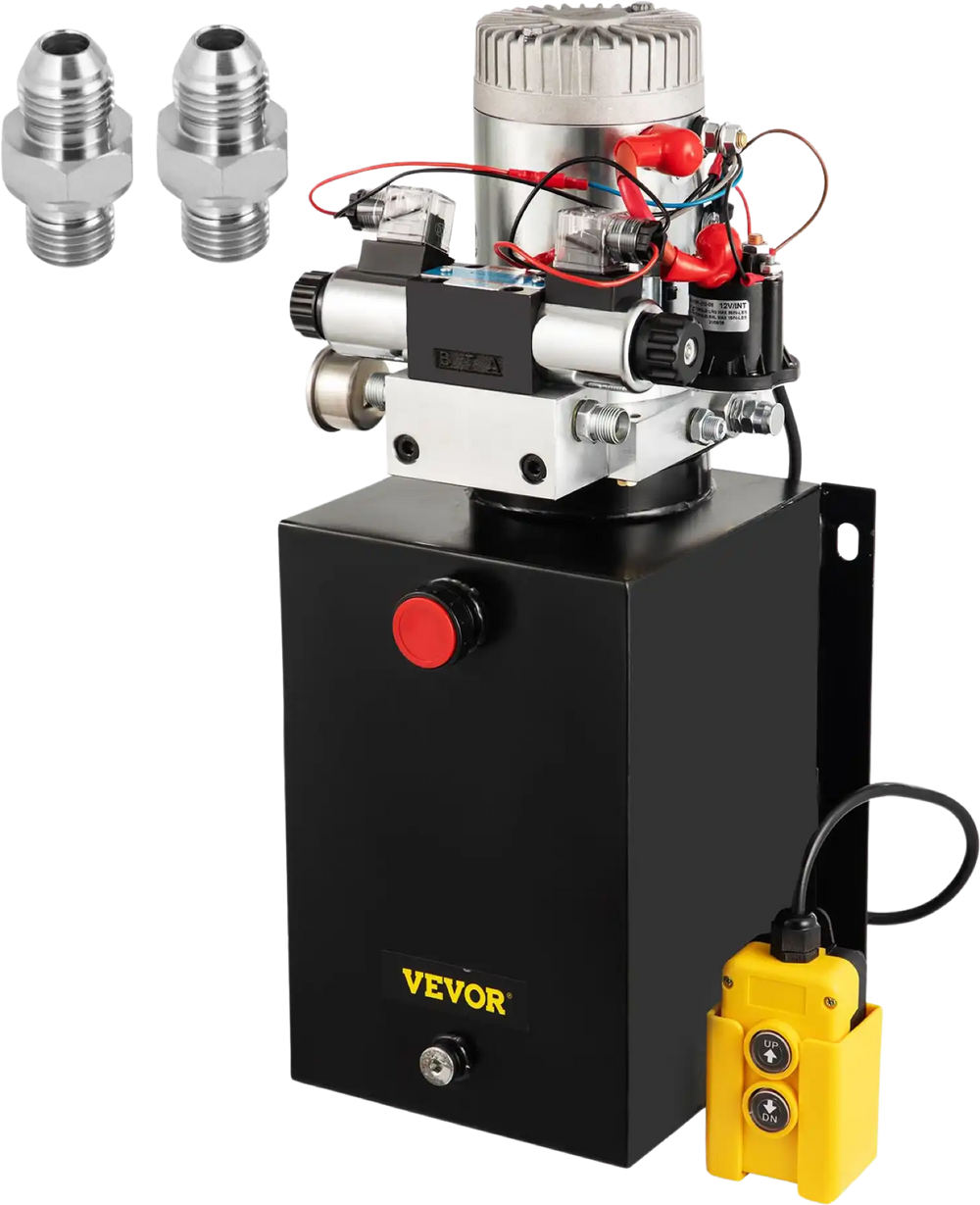

This Vevor Hydraulic Power Unit is a double-acting power unit for both lifting and lowering. It has a 12 quart metal reservoir, a pressure gauge, and a start solenoid. This hydraulic pump is designed with a 12V DC motor that provides strong power for hydraulic systems like dump trailers, forklifts, listing platforms, and more. The power unit comes fully assembled and the remote is connected via a 15 ft. cable.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Product Details: This hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw), a 12-quart reservoir and a start solenoid. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; it is a double-acting pump for both power up and power down.
- Easy to Use: Our hydraulic power unit has been fully assembled. The wiring is simple with operating instructions. The hydraulic gauge gives clear value of the pressure and the 15ft remote allows you to control in a long distance. In addition, we offer you 2 additional SAE#6 connectors for replacement.
- Reliable Quality: The dump trailer pump is made of sturdy metal; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with a relief valve, it can avoid overpressure, safer and reliable.
- Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.
- Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.
Specifications
| Quart Capacity | 12 Quart |
| Reservoir | Metal Reservoir |
| Motor Voltage | DC 12V |
| Acting | Double-Acting (Raise & Lower) |
| Connector | SAE#6 (9/16") |
| Mounting | Horizontal Mount |
| Max Relief Pressure Port A | 3200 PSI |
| Max Relief Pressure Port B | 1500 PSI |
| Control | Hand Held Remote w/ 15 ft. Cord |
Package Contents
Vevor Hydraulic Power Unit 12V 12-Quart
SAE#6 Connectors (2)
Seal Ring & Gasket
User Manual
Warranty
This item comes with a 1 year factory warranty.
