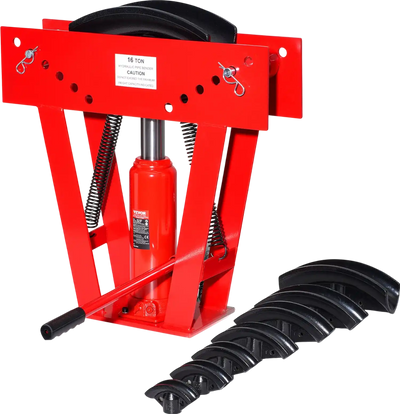

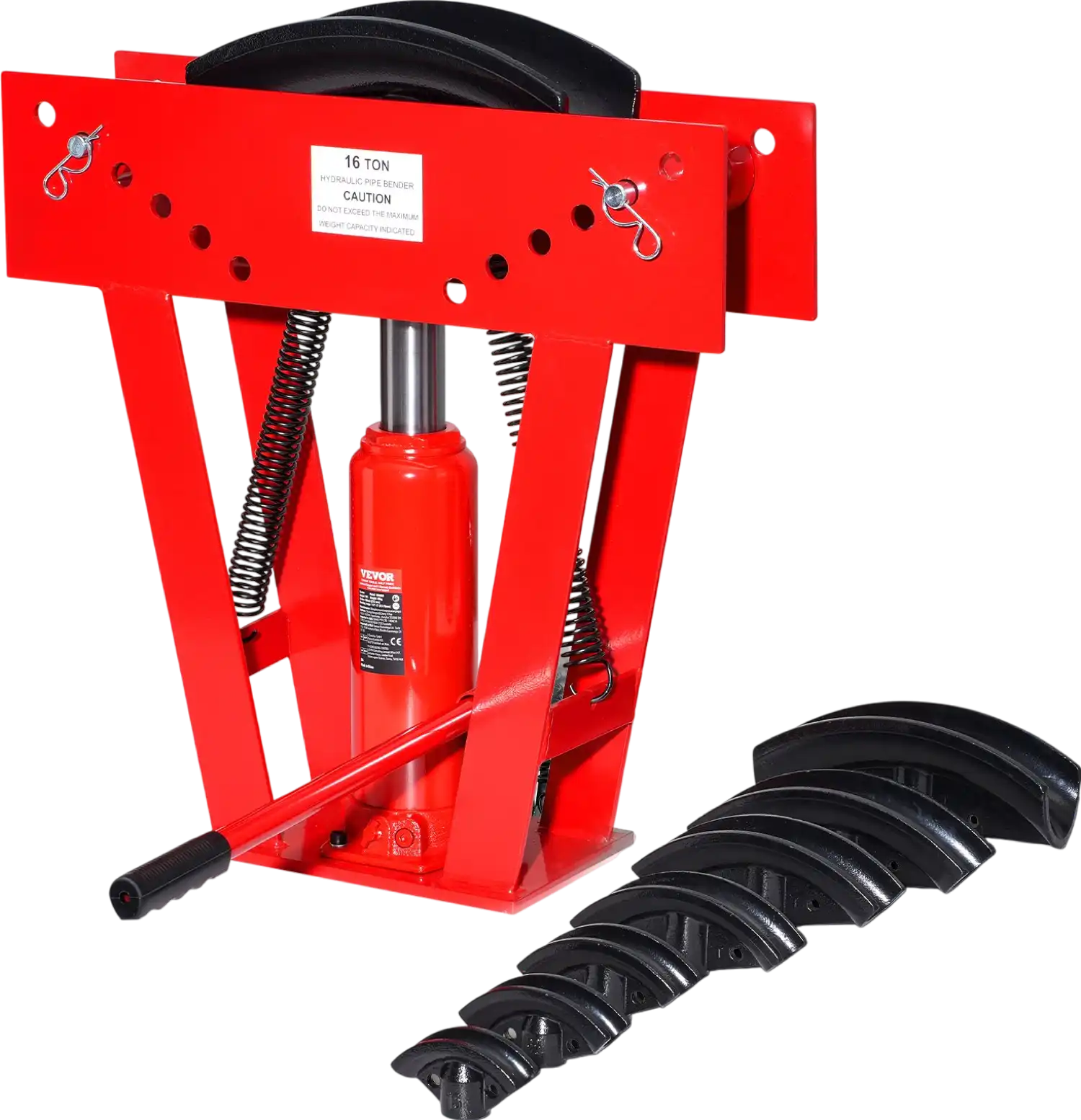

Vevor Hydraulic Pipe Bender 16 Ton Manual Tool with 8 Dies New
Product Overview

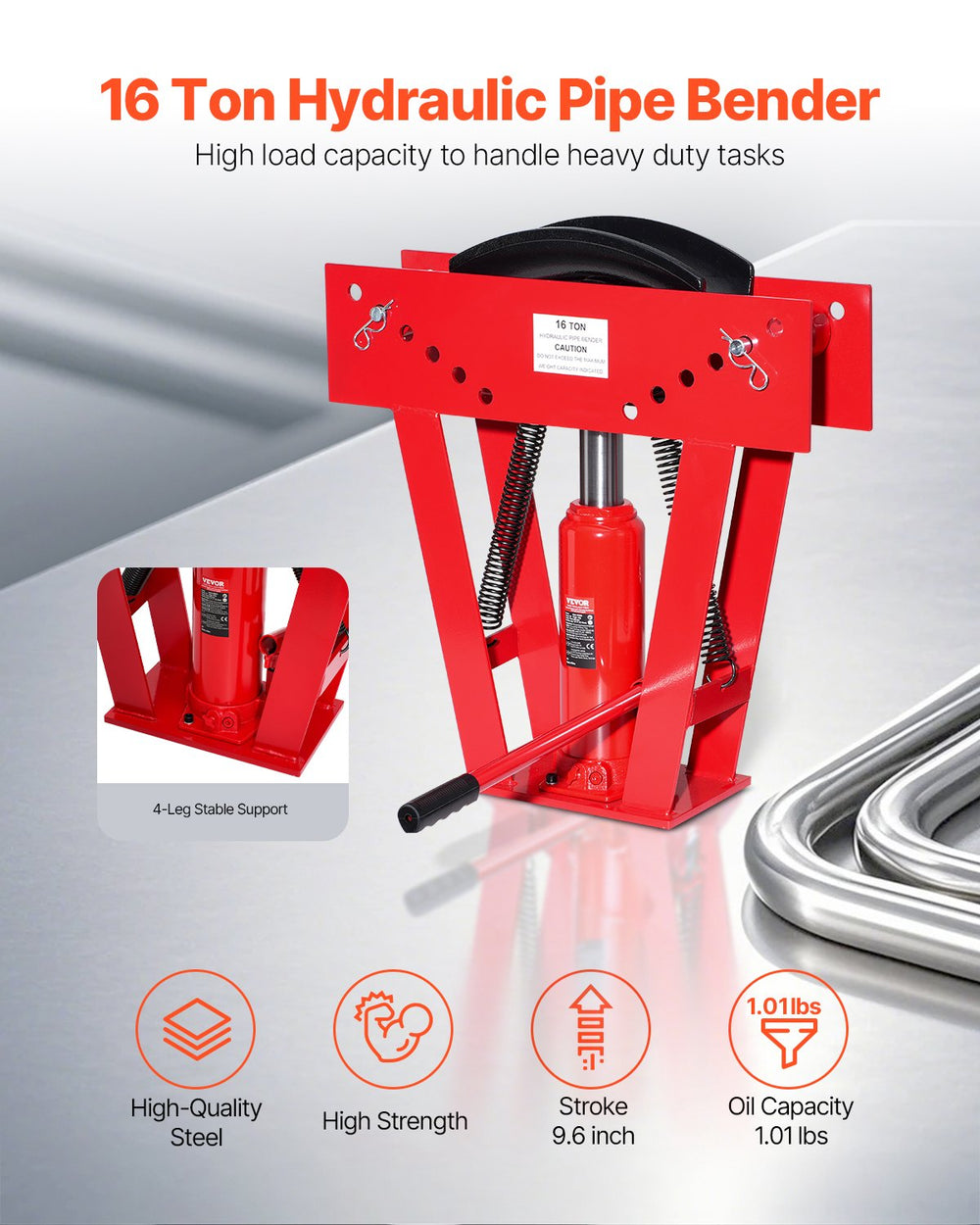

Elevate your bending tasks with this 16-ton hydraulic pipe bender. This heavy-duty pipe bending tool comes with 8 precision-cast dies in sizes of 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2.5" and 3". Additionally, the rollers are adjustable in 6 levels to accommodate different pipe bending angles. The pipe bender is suitable for most types of metal pipe and can be used in construction, oil, mining, and other industries.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- PLEASE NOTE: The pipes cannot be bent to 90° all at once, and need to be bent to 90° gradually in sections.
- Specifications: Dead Load -16 Ton, Stroke: 10-inch (253mm), Adjustable Height: 13.5-23.4 inch, Bending Range: 1/2-3 (13 - 76 mm), Oil Capacity: 1.01 lbs (460g).

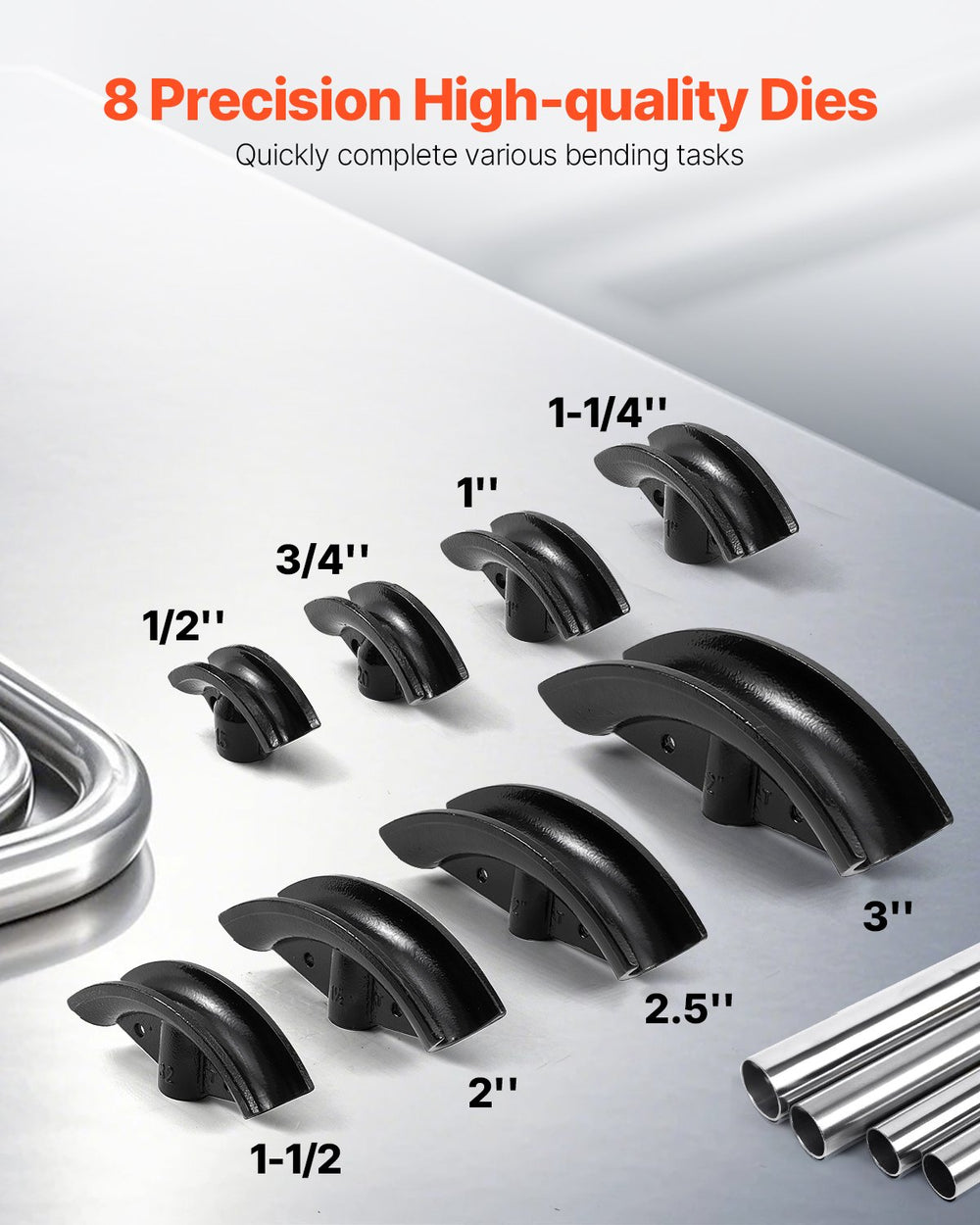

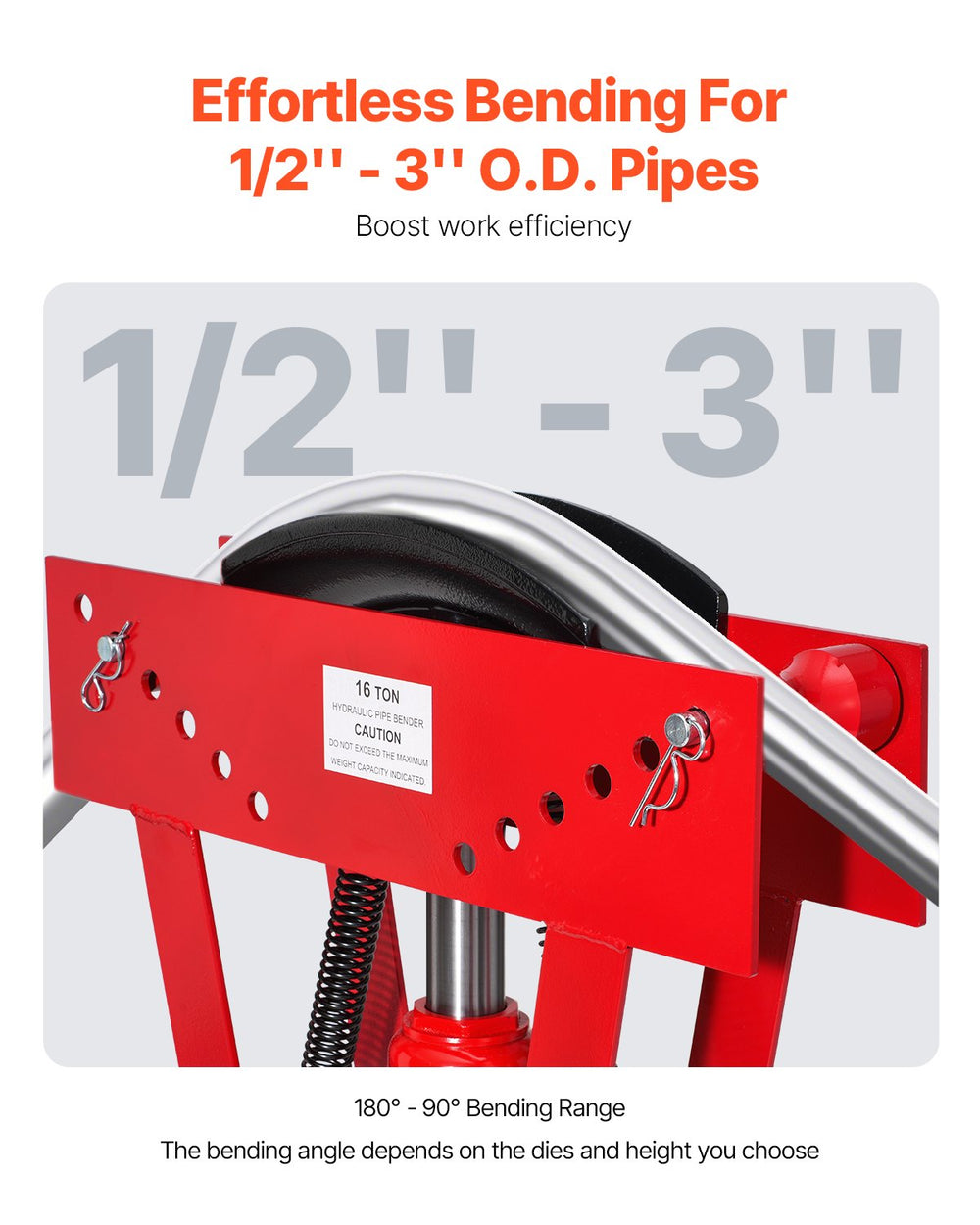

- High-Quality Dies & 90°-180° Bending: Our 16-ton hydraulic pipe bender comes with 8 precision casting dies (1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2.5'', 3'') to accommodate various pipe sizes. With 6 slots on both sides, the rollers feature 6 adjustable positions to meet 90°-180° different bending angles.
- Durable and Sturdy: This exhaust pipe bender is made from high-quality steel with solid structure and excellent wear resistance. Equipped with a hydraulic and return spring system, this tube bending tool helps you efficiently complete pipe bending tasks.

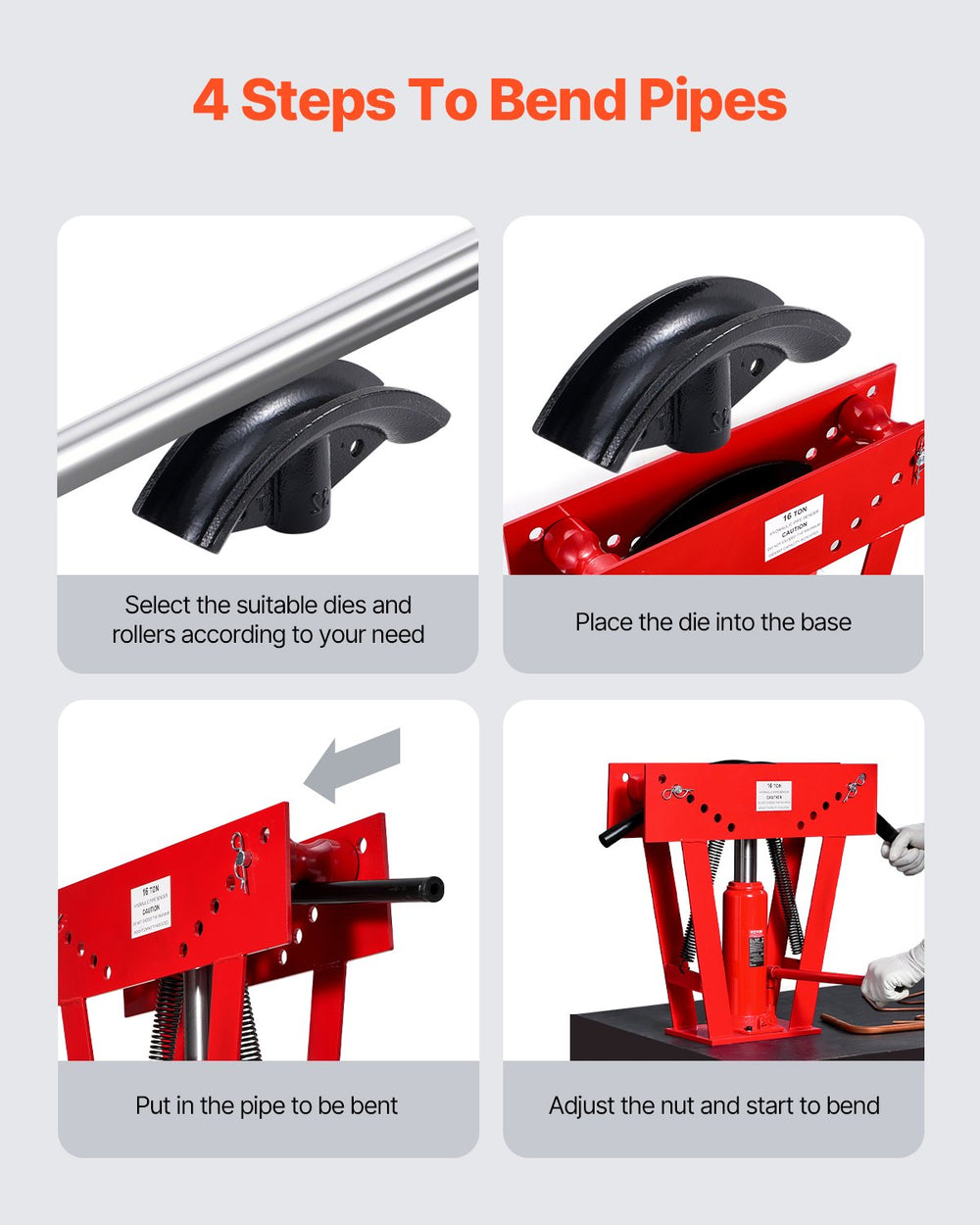

- Easy to Use: Select and install the appropriate die, place the pipe on the die, and adjust the rollers to the desired position. Use the lever on the pipe bender to easily achieve the targeted bending with minimal effort.

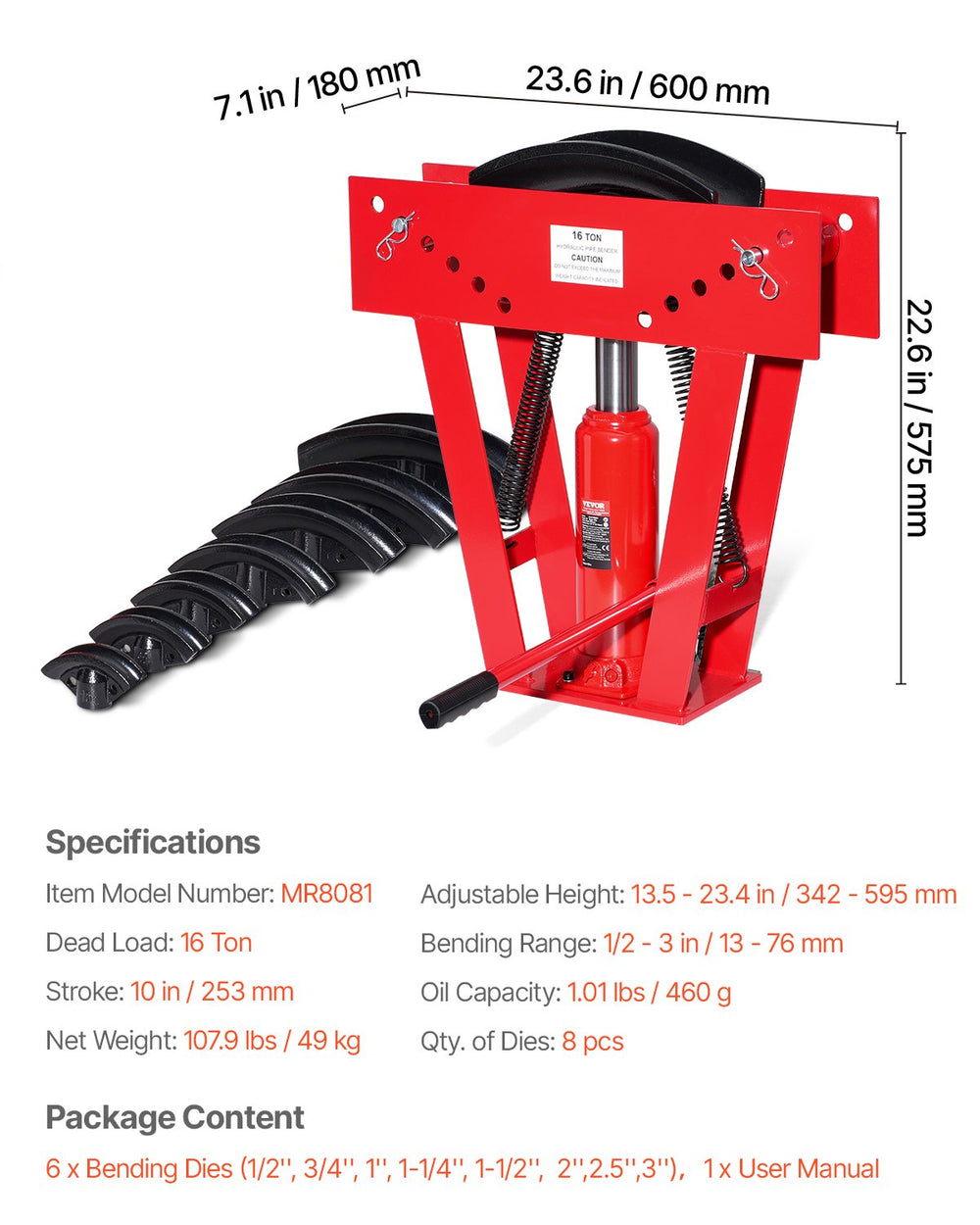

Specifications
| Item Model # | MR8081 |
| Dead Load | 16 Ton |
| Stroke | 10" |

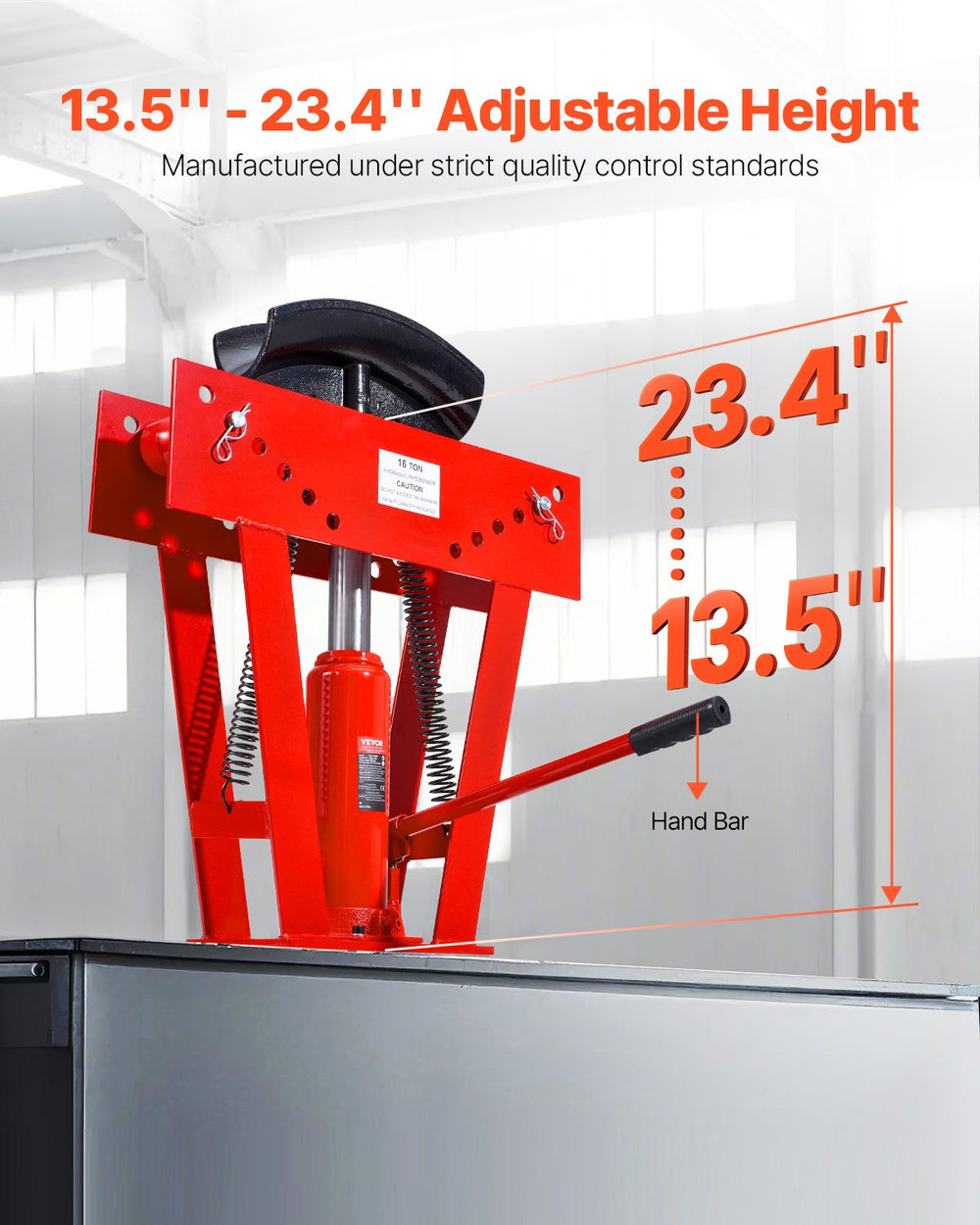

| Adjustable Height | 13.5" - 23.4" |
| Bending Range | 1/2" - 3" |
| Quantity of Dies | 8 pcs |
| Product Dimensions | 23.6" x 7.1" x 22.6" |
| Net Weight | 107.9 lbs |
Package Contents
Vevor 16 Ton Hydraulic Pipe Bender
(8) Bending Dies
User Manual
Warranty
This item comes with a 1 year factory warranty.
