Product Overview

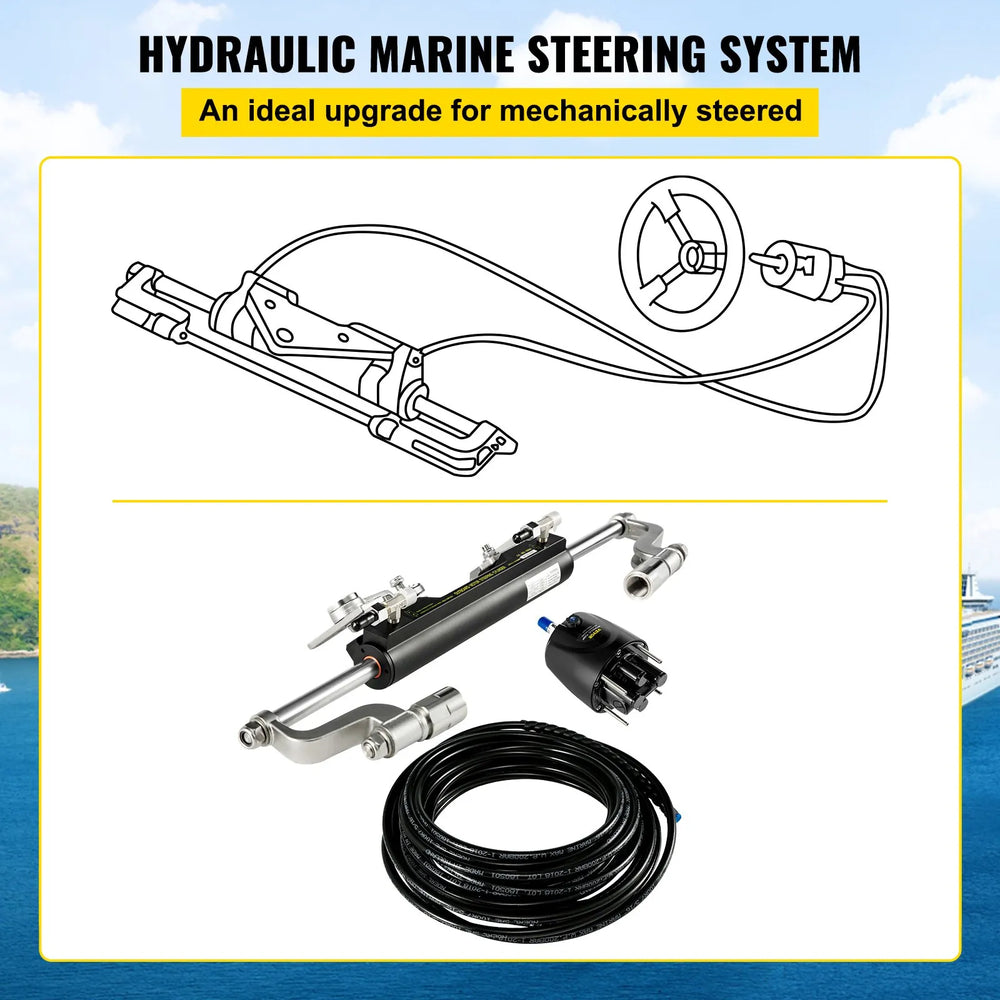

This Vevor Hydraulic Steering kit assists you in installing hydraulic steering onto 300 HP or less outboard-powered boats. The kit consists of a low friction helm for smooth and comfortable steering, a compact cylinder, and 20 ft. hoses which can be cut to size. The helm max. working pressure is 6.9 Mpa/1000psi. This kit comes complete with everything needed for installation; it fits most outboard powered pontoon boats, deck boats, and fishing boats.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

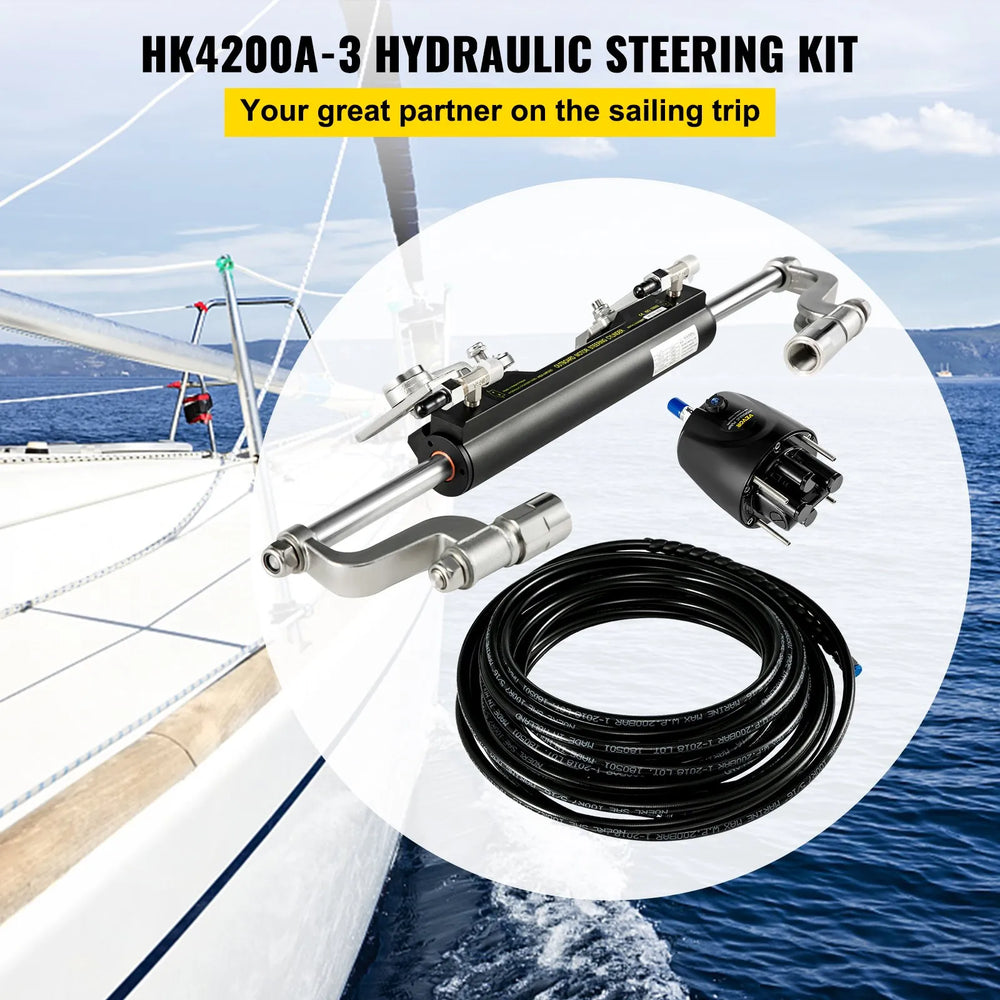

- 300 HP Hydraulic Steering Kit: The hydraulic outboard boat steering kit includes a balanced steering cylinder, a low-friction helm, two lengths of 20ft hose, and a fill kit. It will perfectly replace your aging or broken equipment. Note: It's compatible with Yamaha, Honda, Suzuki below 300HP, not for Mercury.

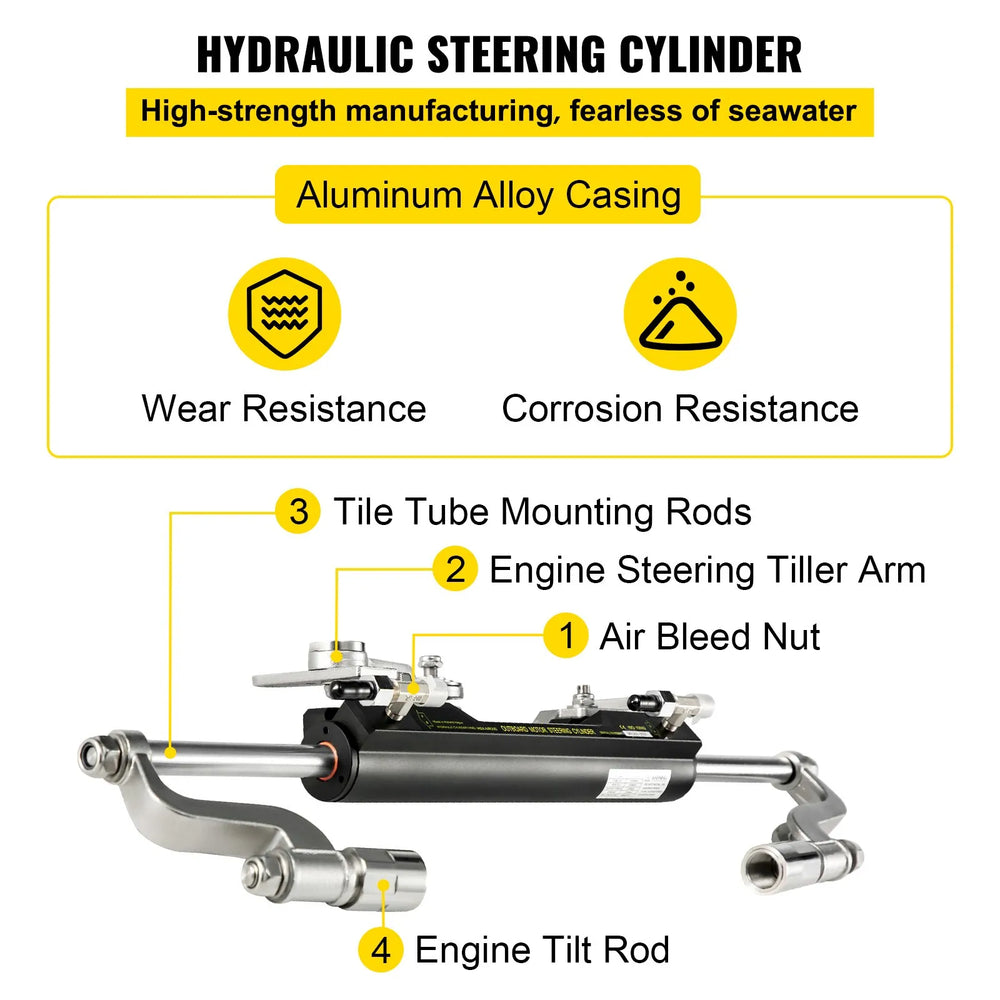

- Built-in Two-way Lock Cylinder: Output force: 470 kgf. The cylinder has a built-in two-way locking valve, which eliminates rebound torque during torsion. With robust barrel design and efficient sealing, the system can withstand the harsh environment.

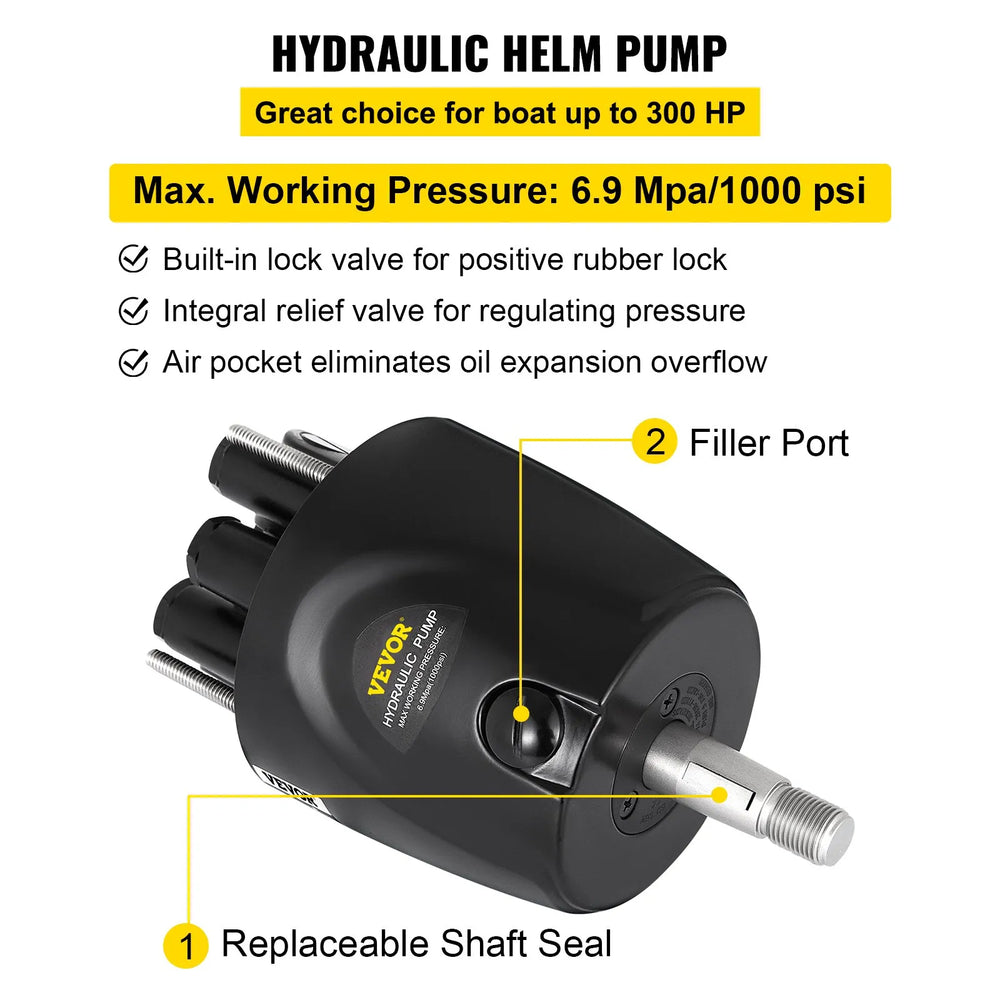

- Max. 300HP Helm Pump: Max. Working pressure: 6.9 Mpa/1000 psi. The low friction helm ensures smooth and comfortable steering. And it has a replaceable shaft seal that can be easily replaced.

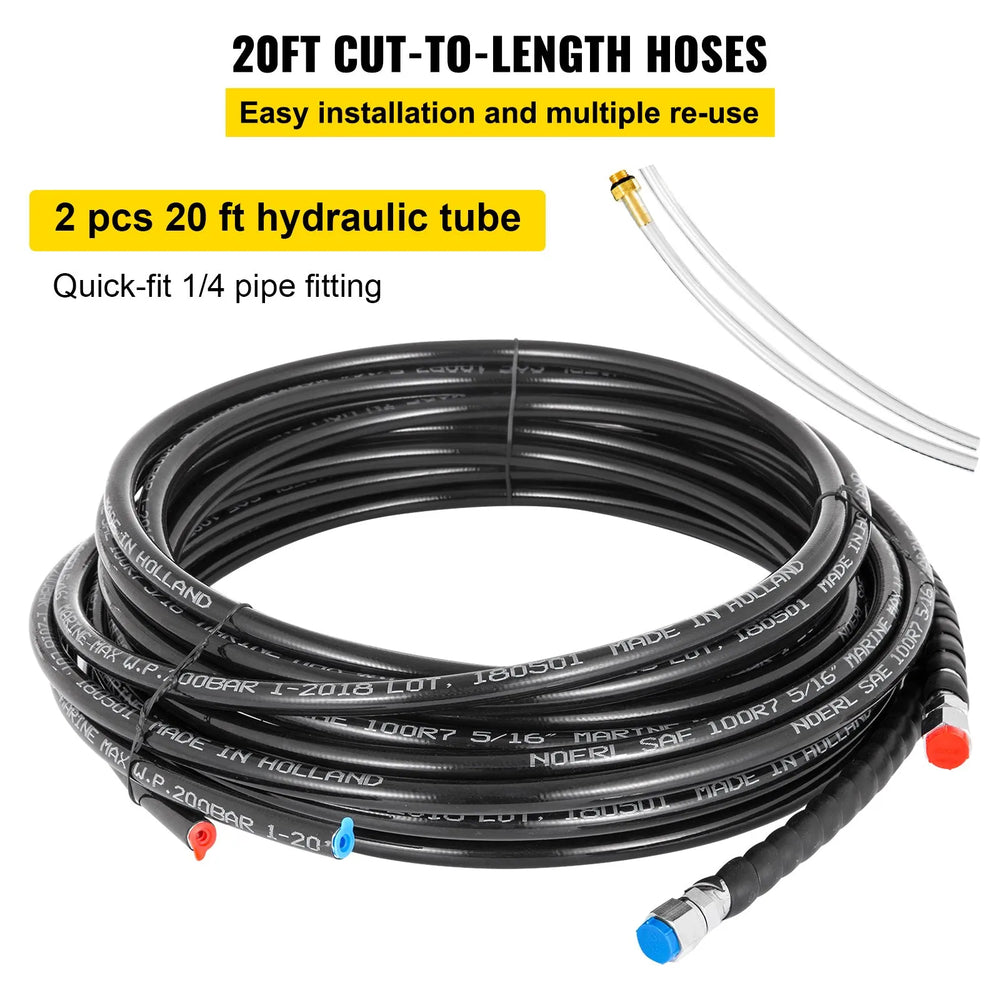

- Cut-to-length Hoses: Our high-strength nylon hose is equipped with quick-fit 1/4'' pipe fitting for easy and fast installation and multiple re-uses. Each hose is 20' long and can be cut for your specific installation, accommodating most boats.
- Great Partner for Your Boat: Our hydraulic steering kit is for single-outboard powered boats rated up to 300 HP, including runabouts and inflatables — and outboard engines with ABYC standard engine tilt tubes up to 300 HP (total). For single station, single-engine use only.
Specifications
| Item Model # | HK4200A-3 |
| Output Force | 470 (KGF) |
| Application | Up to 300HP |
| Max. Pressure | 6.9 Mpa/1000psi |
| Volume | 141cc |
| Tube I.D. | 35 mm |
| Rod I.D. | 18 mm |
| Stroke | 200 mm |

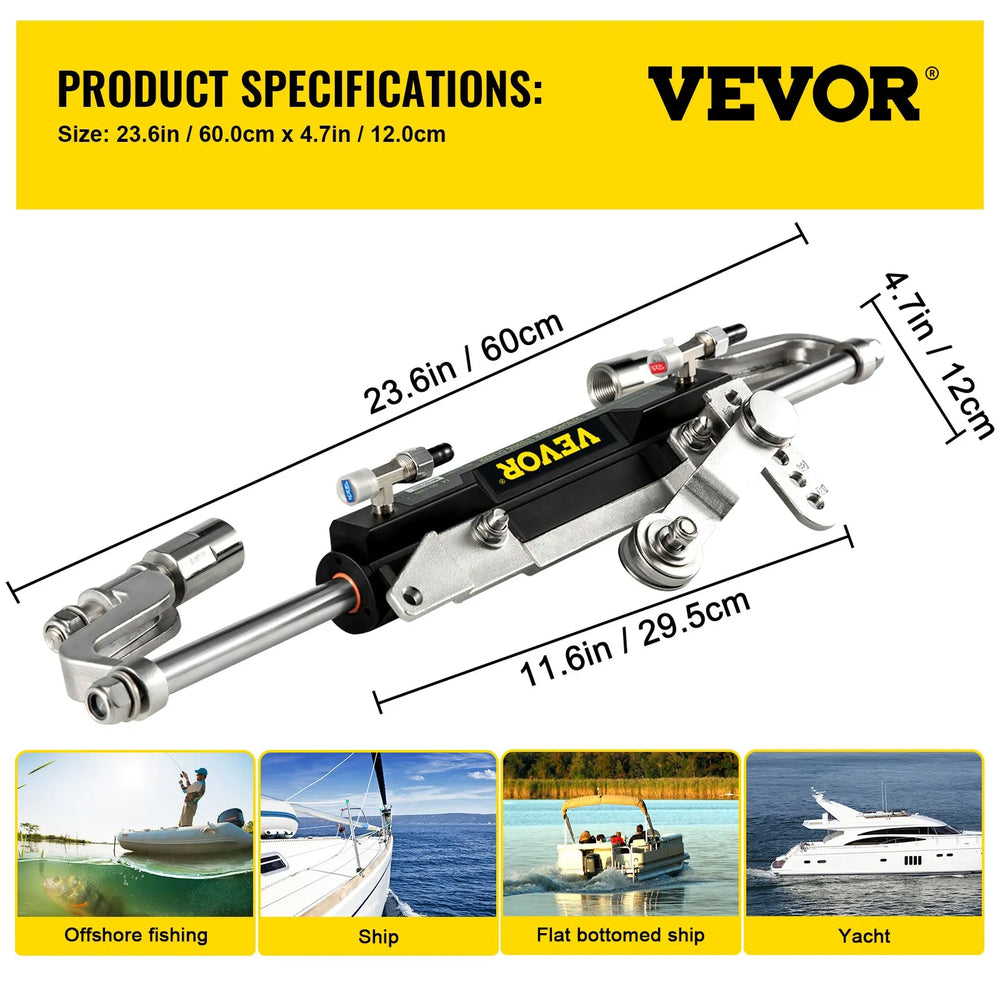

| Dimensions | 23.6" x 4.7" |

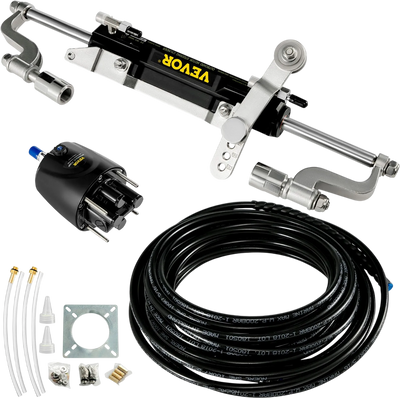

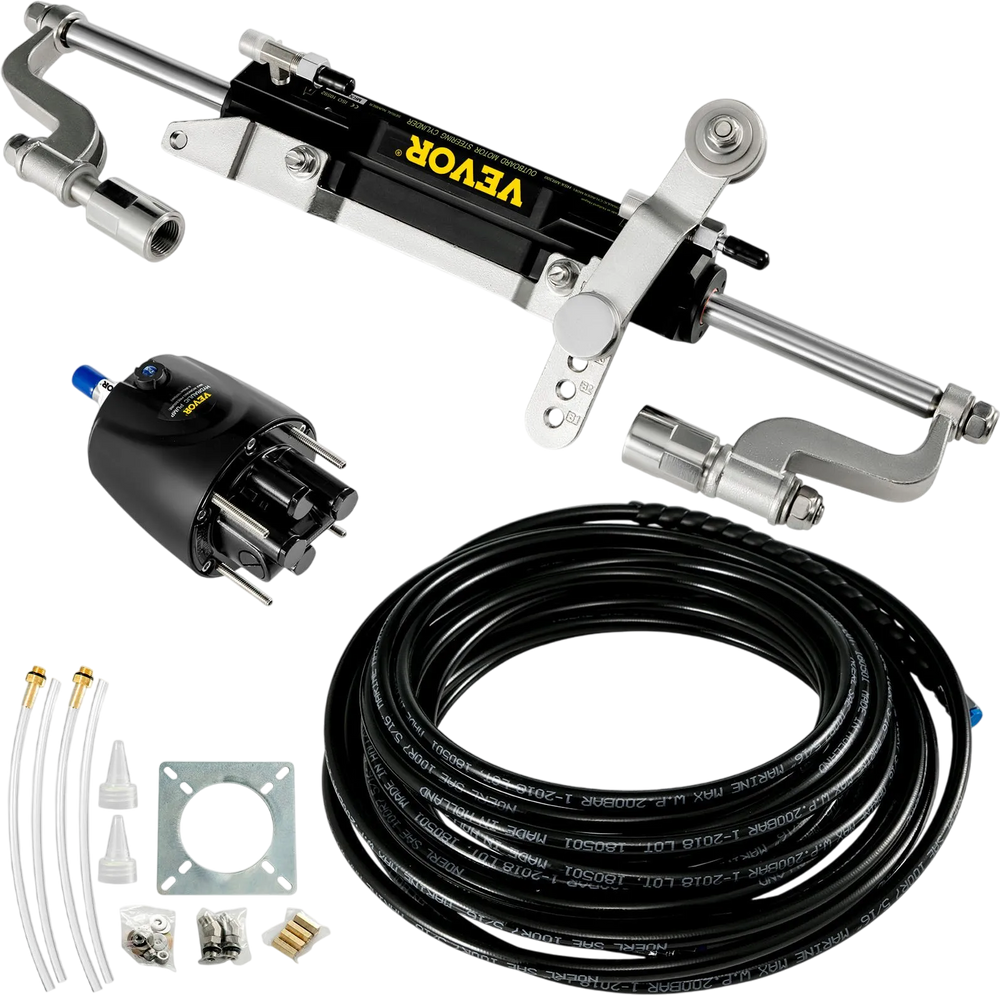

Package Contents
Vevor Hydraulic Outboard Steering Kit 300 HP
Cylinder
Helm Pump
(2) 20ft Hose
Accessory Kit
User Manual
Warranty
This item comes with a 1 year factory warranty.
