Vevor Hydraulic Outboard Steering Kit 150 HP with 13.5" Wheel Helm Pump and Hoses New
Product Overview

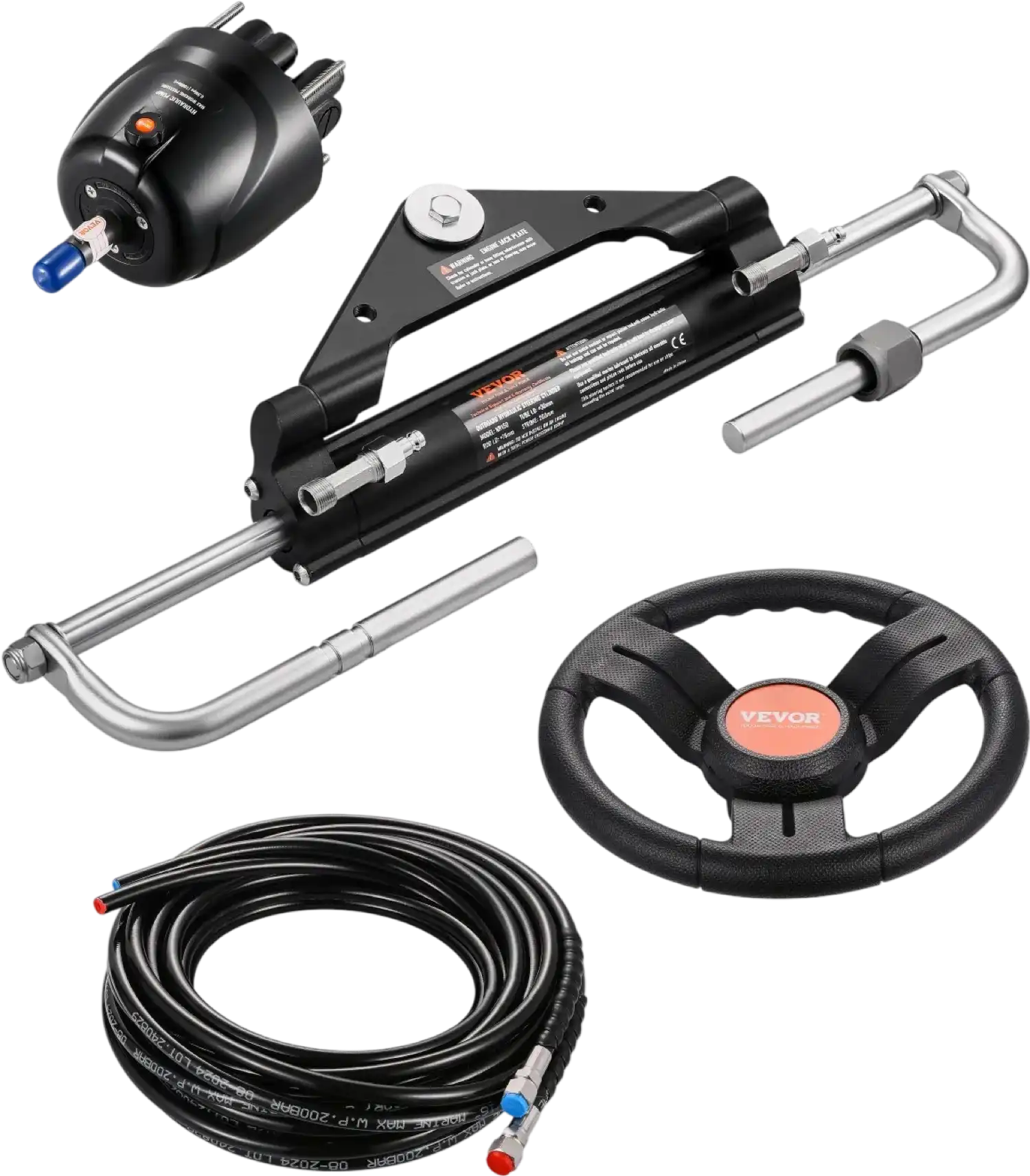

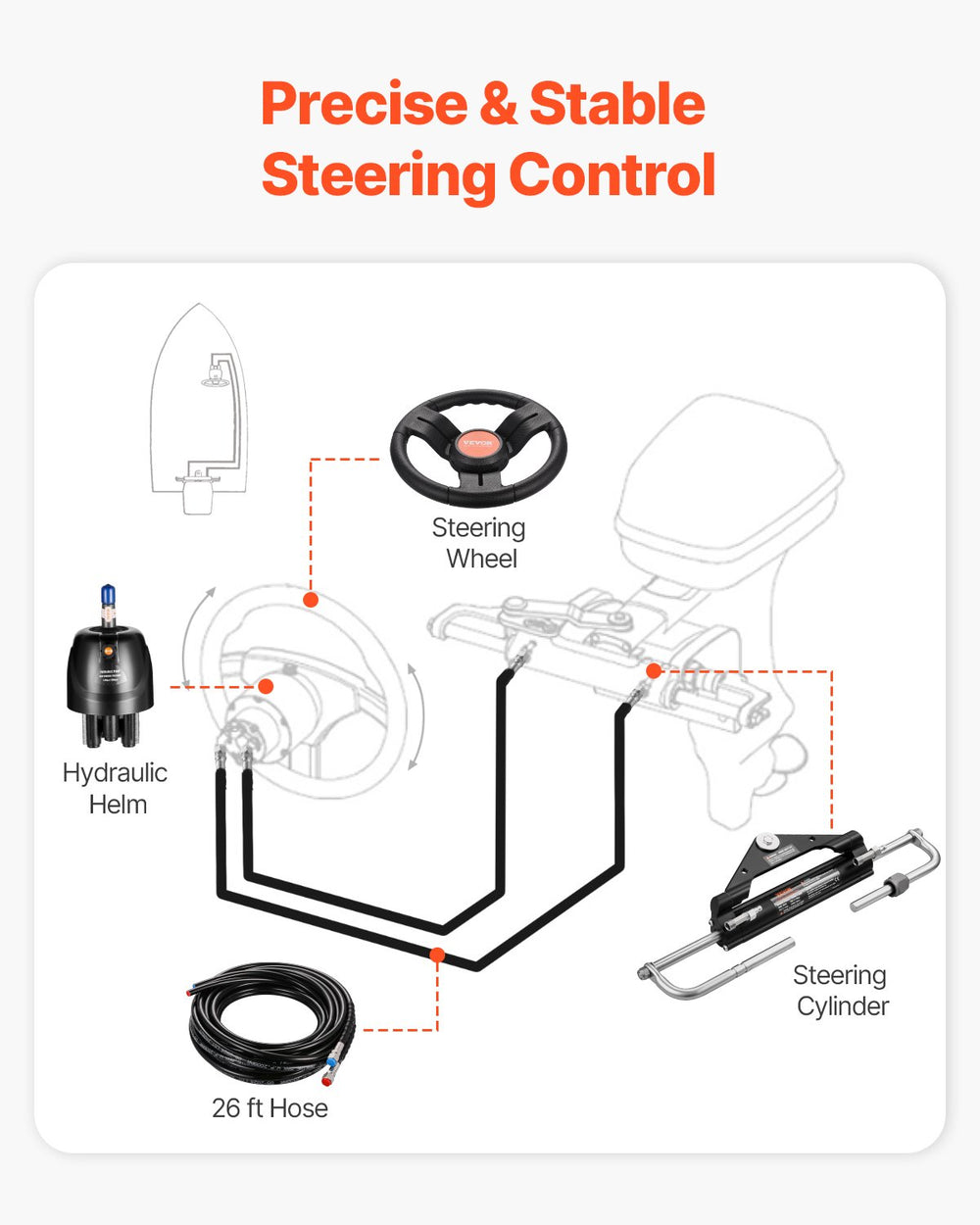

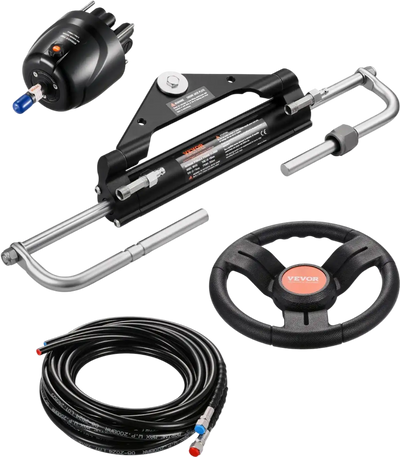

This 150 HP outboard hydraulic steering kit is designed to restore responsive, smooth steering control for single-station, single-engine boats. The kit includes a helm pump, hydraulic cylinder, a 13.5-inch steering wheel, and two 26 ft hydraulic hoses, plus a complete set of accessories. Built for marine environments with corrosion-resistant materials and engineered for stable hydraulic oil transmission and precise steering response. Suitable for motors up to 150 HP, the perfect replacement for aging or damaged hydraulic steering systems.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features

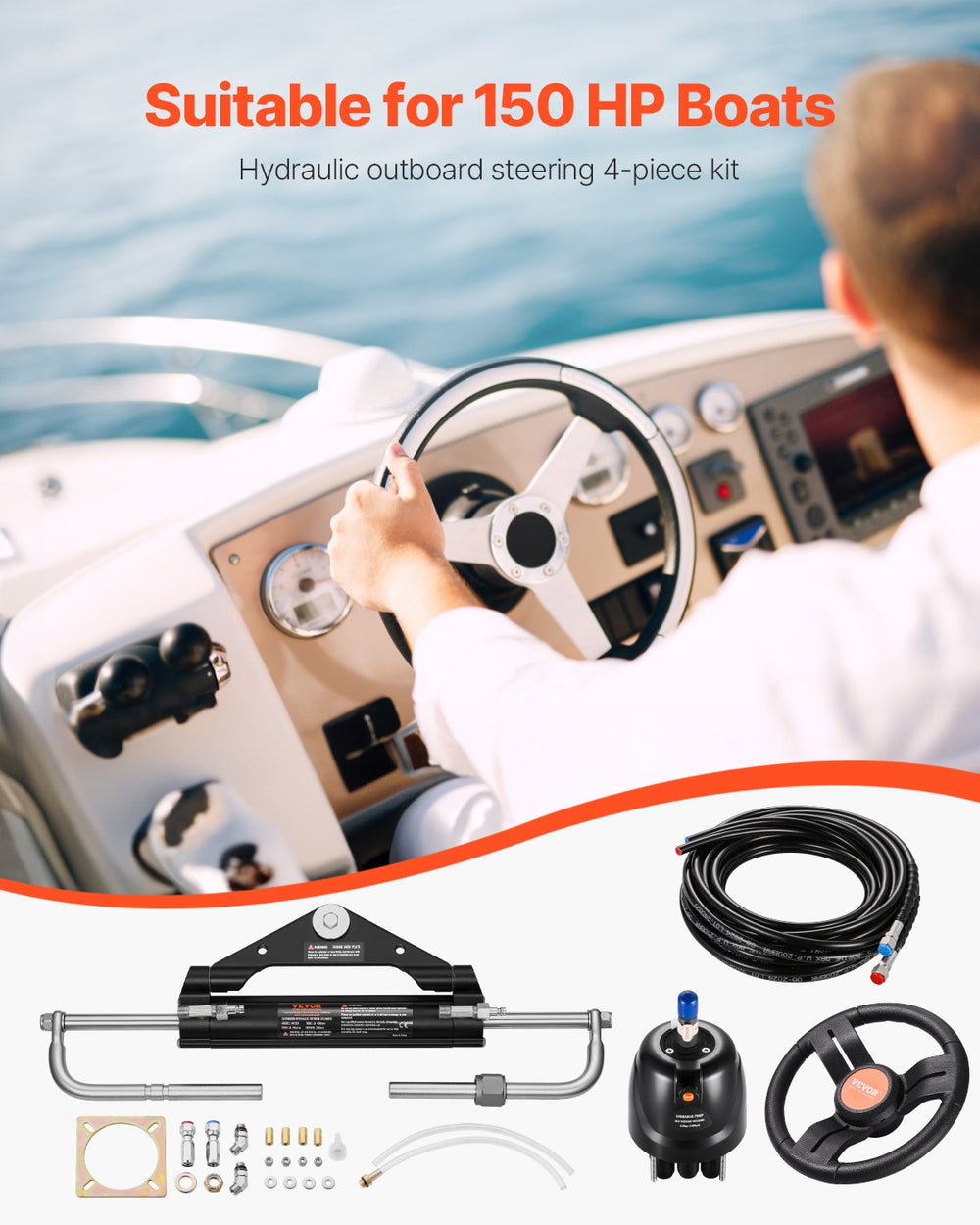

- 150 HP Hydraulic Steering Kit: This 150 HP hydraulic outboard steering kit includes a hydraulic helm, a hydraulic steering cylinder, a 13.5-inch steering wheel, two 26 ft hydraulic hoses, and a complete set of accessories. It is the perfect replacement for aging or damaged hydraulic steering systems, restoring responsive steering to your boat.

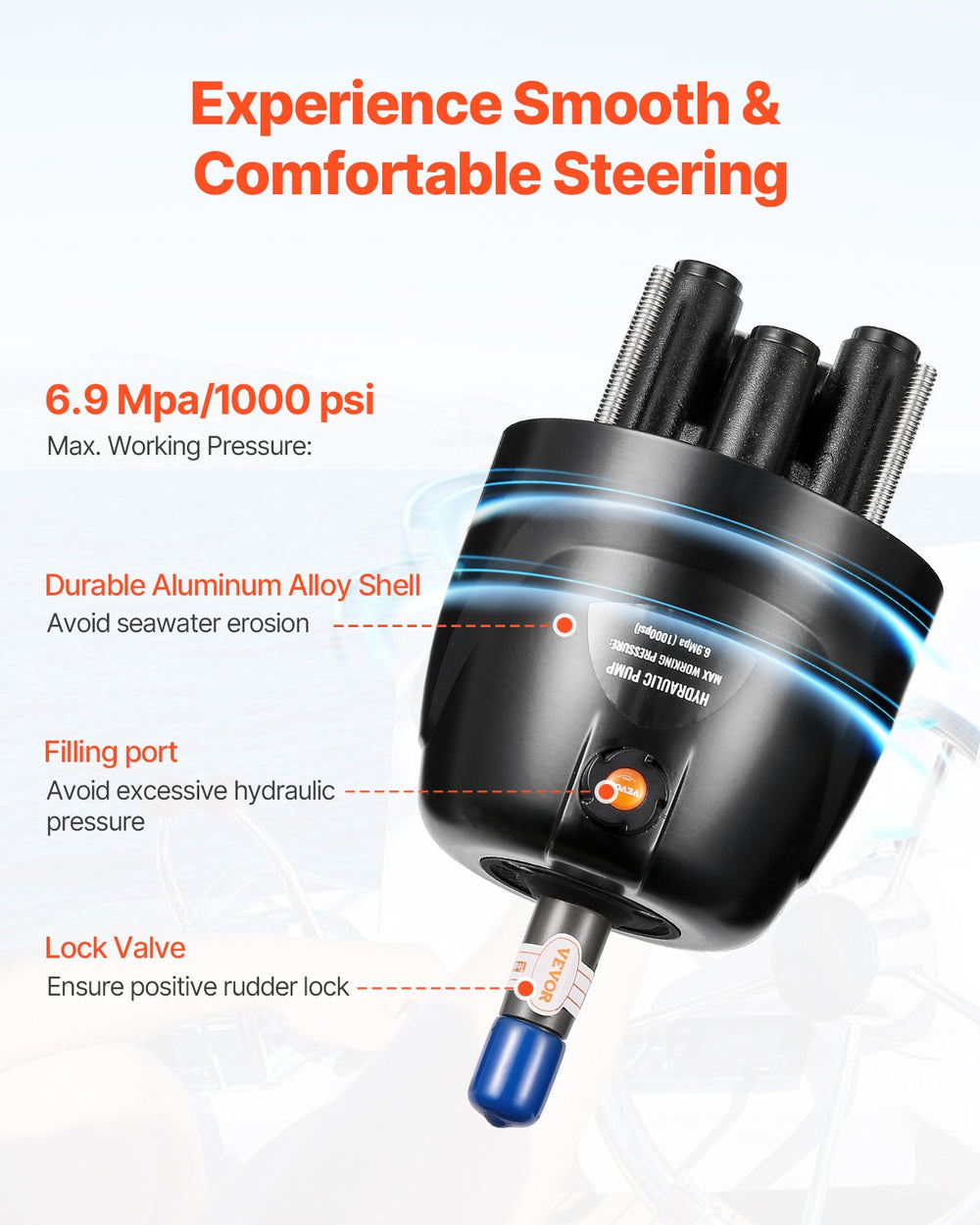

- Durable Hydraulic Helm: The hydraulic helm has a maximum working pressure of 6.9MPa/1000PSI and features a built-in check valve and filling port. Made from corrosion-resistant aluminum alloy, it enhances reliability, safety, and durability, avoiding seawater erosion and ensuring long-lasting performance.

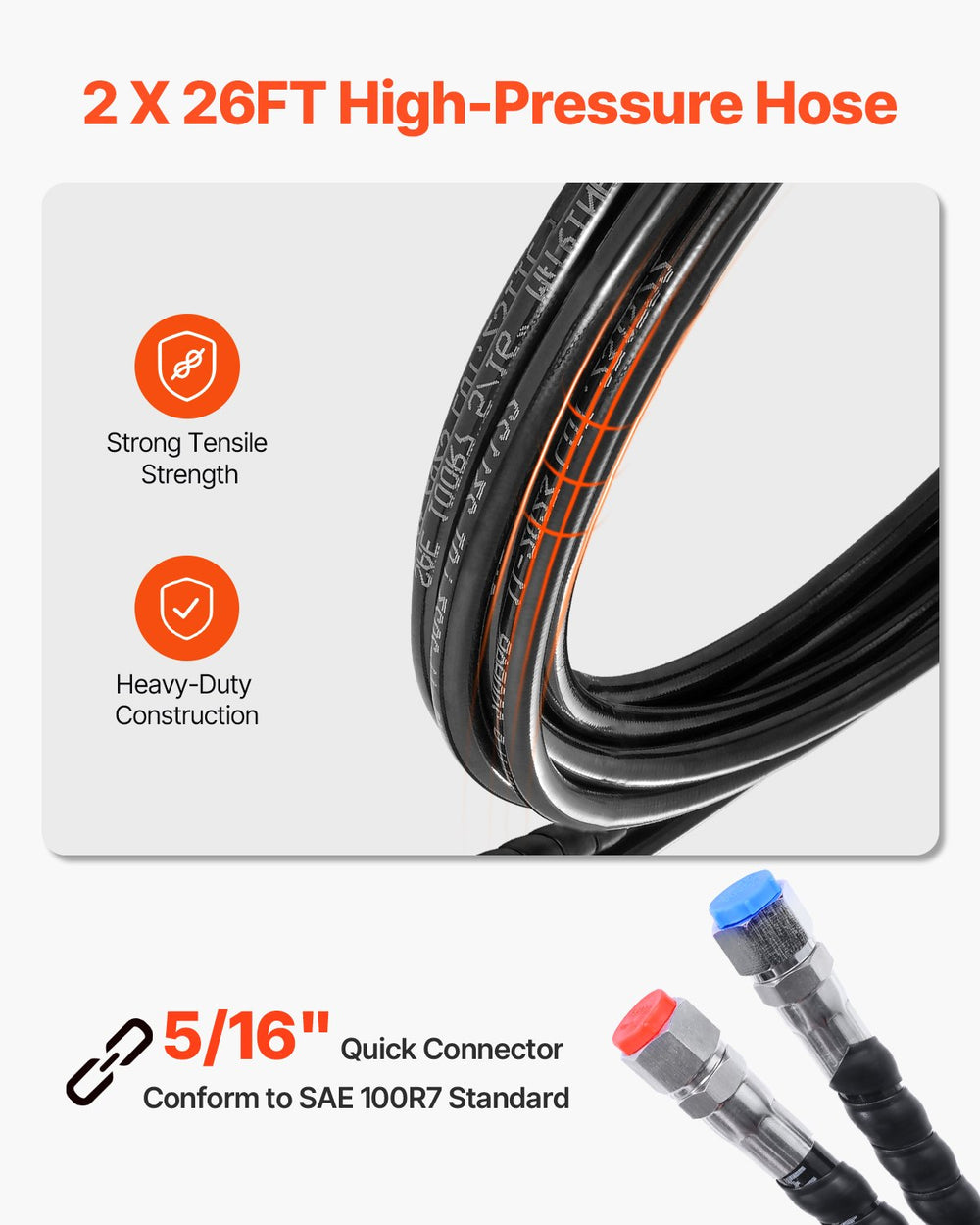

- 2PCS x 26FT Hoses: Equipped with quick-fit 5/16" fittings and compliant with SAE 100R7 standards, the hydraulic steering hoses are designed to handle heavy loads without the risk of rupture or leakage. They provide long-lasting, efficient, and stable hydraulic oil transmission, ensuring a quick and reliable response to steering maneuvers.

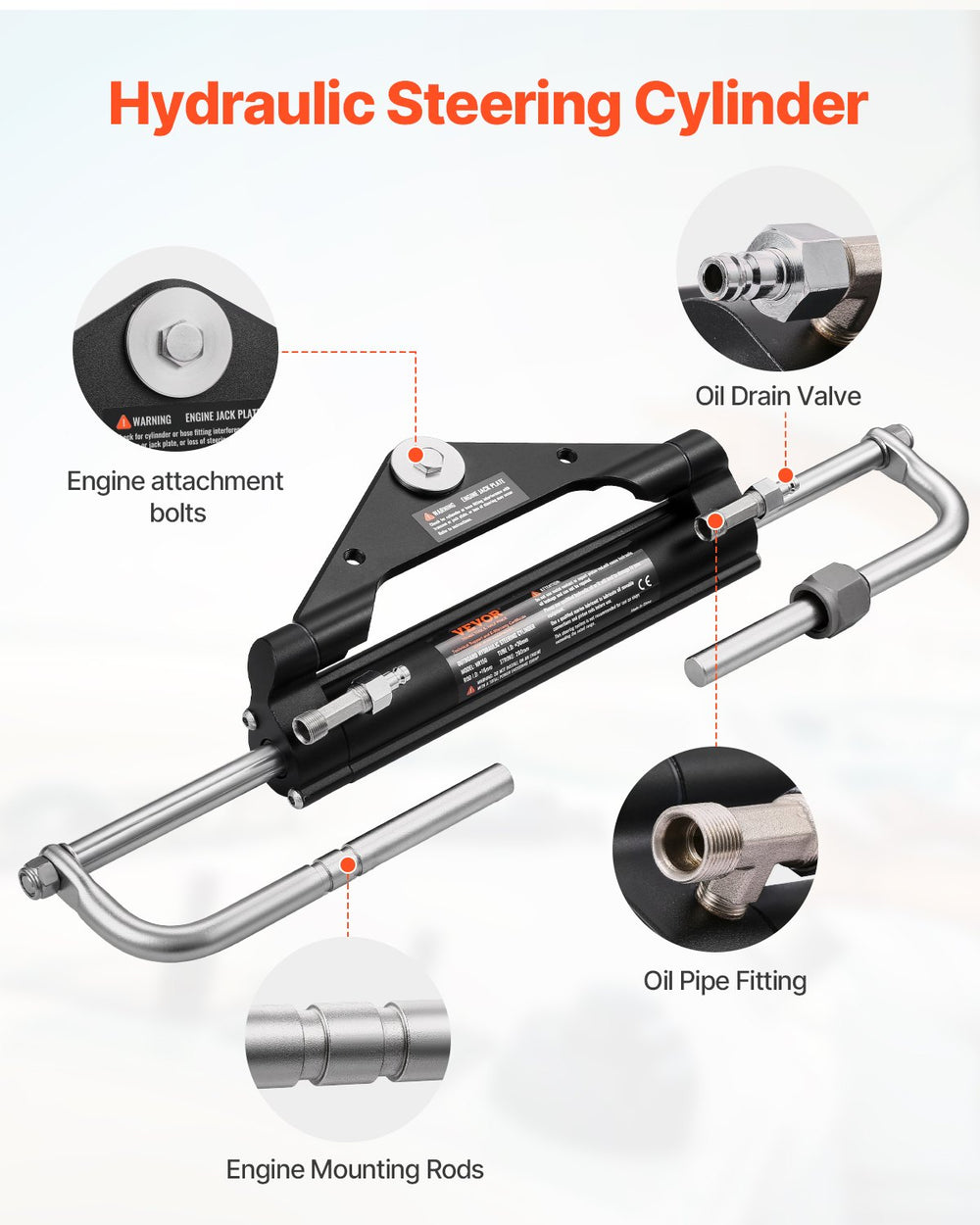

- High-Performance Steering Cylinder: The boat steering kit includes a compact hydraulic cylinder to fit most splash wells, ensuring optimal engine operation without space constraints. Built tough with a sturdy structure and efficient seals, it withstands various harsh marine conditions with ease.

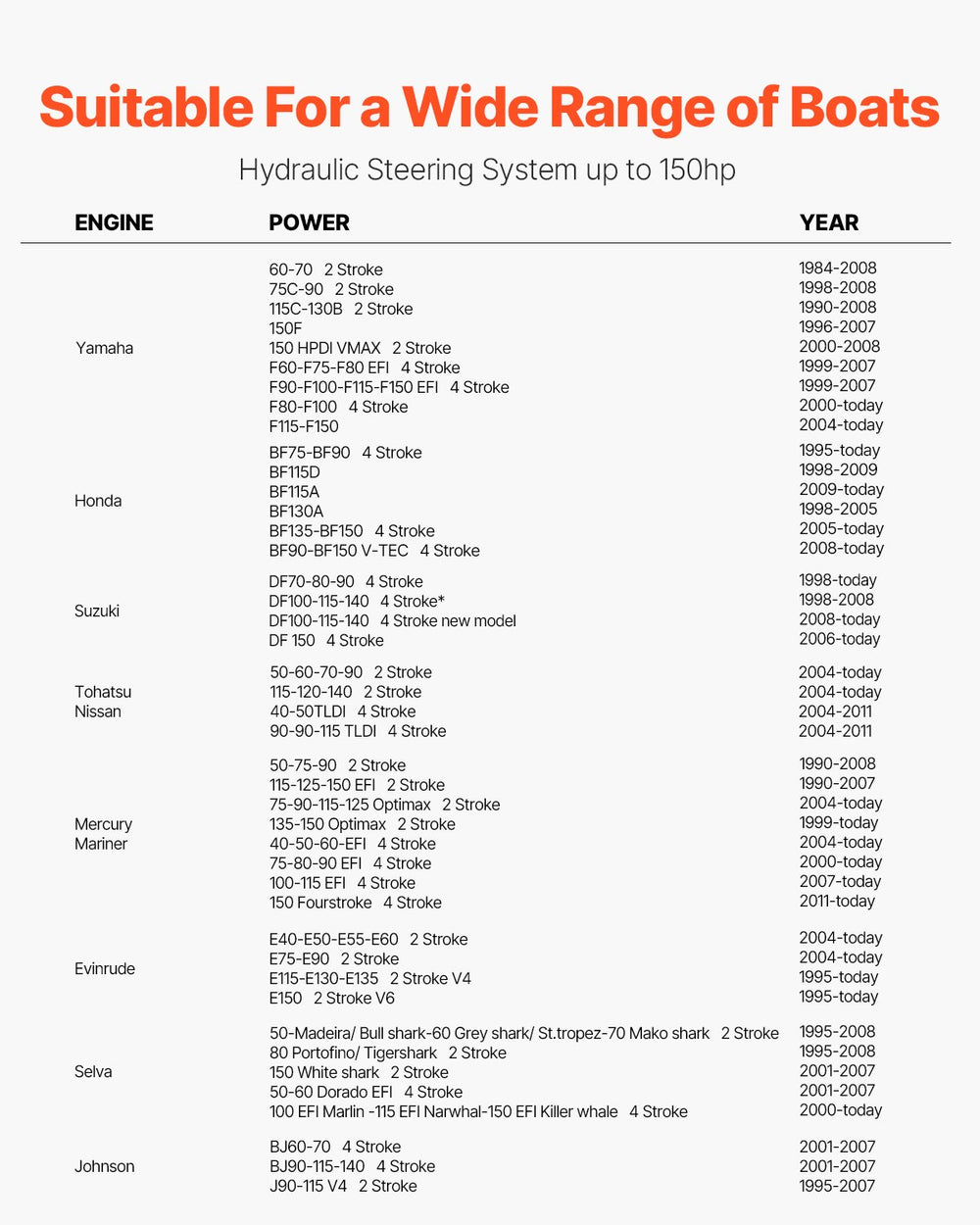

- Wide Compatibility: The hydraulic steering system is suitable for outboard motors up to 150 HP and compatible with a range of top brands, ensuring smooth and precise steering control for an exceptional boating experience.
Specifications
| Item Model Number | NR150 |
| Applicable Engine Horsepower | ≤150 HP |
| Steering Wheel Diameter | 13.5" |
| Hose Fitting Size | 5/16" quick-fit |
| Hose Standard | SAE 100R7 |
| Hydraulic Helm Max Working Pressure | 6.9 MPa (1000 PSI) |
| Hydraulic Hose Max Working Pressure | 20 MPa |
| Hydraulic Cylinder Dimensions | 21.7 x 5.7 x 2.4 in |
| Net Weight | 21.2 lbs |
Package Contents
Vevor Hydraulic Outboard Steering Kit 150 HP
Hydraulic Helm Pump
Hydraulic Steering Cylinder
Steering Wheel
(2) Hydraulic Hose 26 ft
Accessory Kit
Warranty
This item comes with a 1 year factory warranty.
