Vevor Hydraulic Dump Lift Kit for Trailers 8T Scissor Hoist New
Product Overview
This Hydraulic Dump Lift Kit is designed for 10-14 ft dump trucks and trailers, ideal for replacing the hydraulic lift of large scissor dump trailers. It supports up to 8 tons (17,600 lbs), including cargo and bed, offering a cost-effective way to upgrade old trailers. This kit features a double-acting hydraulic pump, allowing both lifting and lowering to be motor-controlled. Powered by a 12V DC motor for quick start-up and rapid oil output.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features

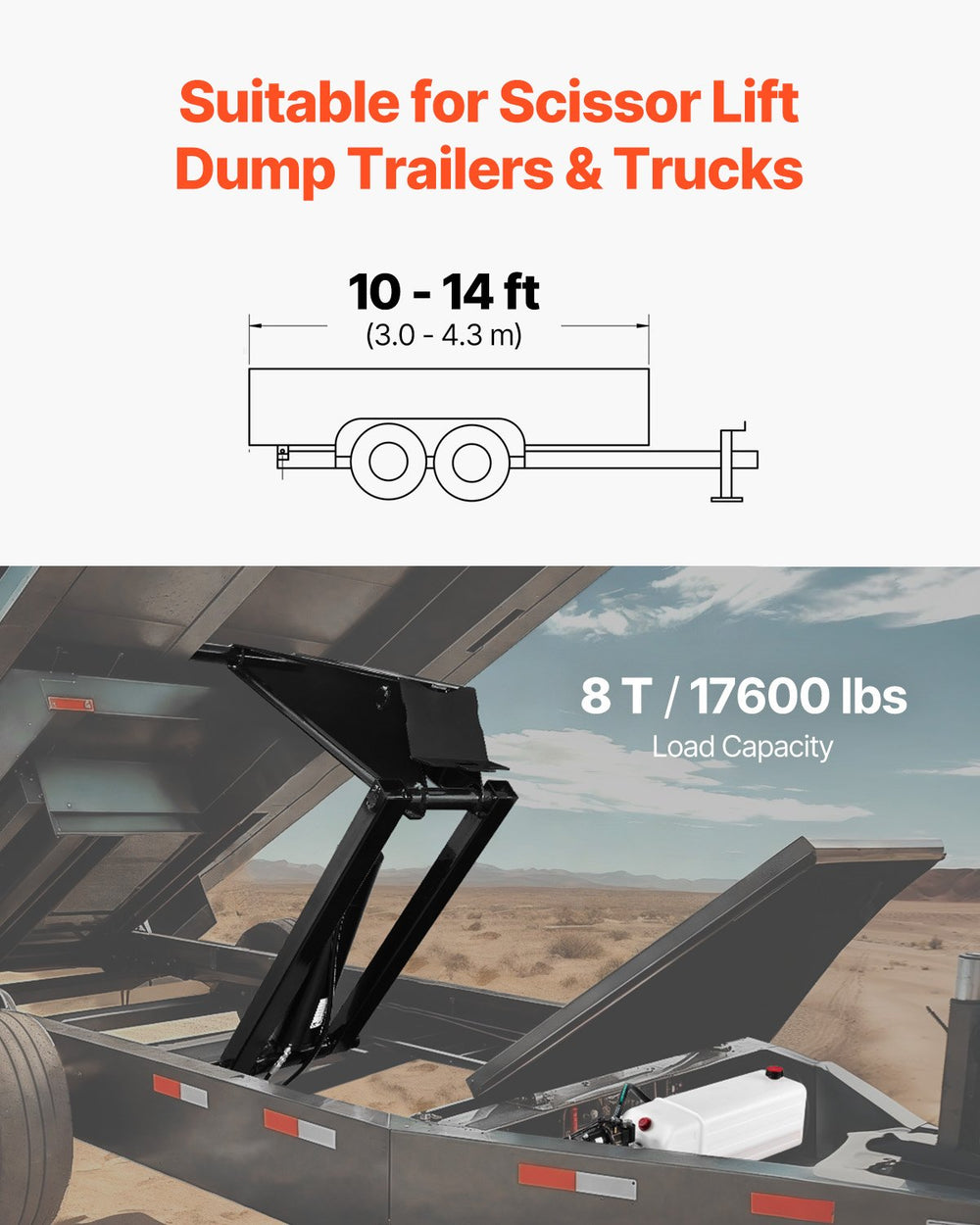

- Heavy-Duty Lifting: This truck dump bed kit is specifically designed for hydraulic scissor lifts, suitable for 10-14 ft dump trailers and trucks. It supports a total weight of 8 t/17,600 lbs, including cargo and the bed. It is ideal for various heavy-lifting applications, such as agricultural transport, construction machinery, and vehicle hauling.

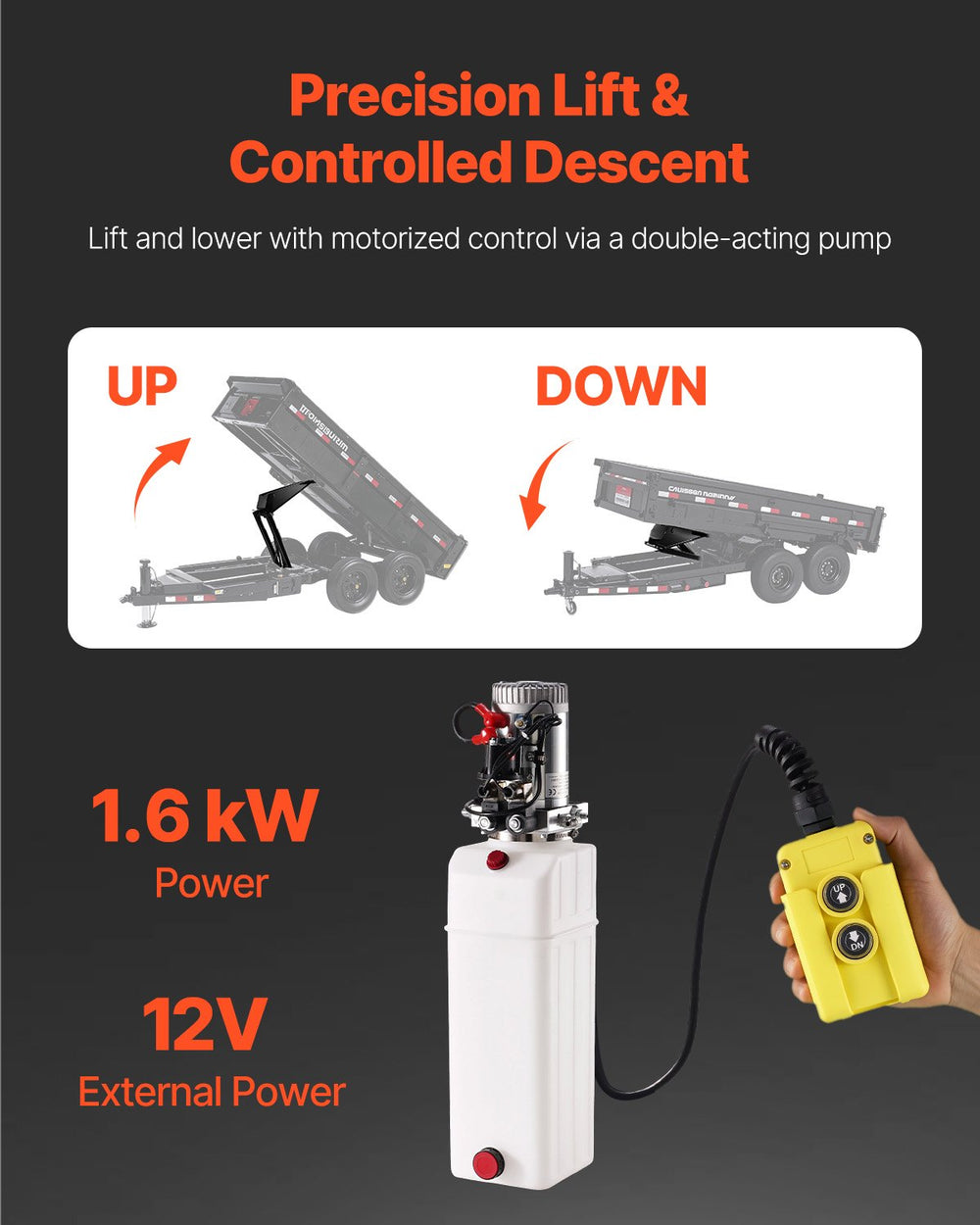

- Efficient and Smooth: The 8 QT/7.6 L hydraulic pump in this dump bed kit features a double-acting system, allowing remote control of both lifting and lowering the bed. This ensures smooth and fast operation, reducing work time and labor. It is more efficient than single-acting pumps that rely on weight for slow descent. It is easily powered by a 12V vehicle source.

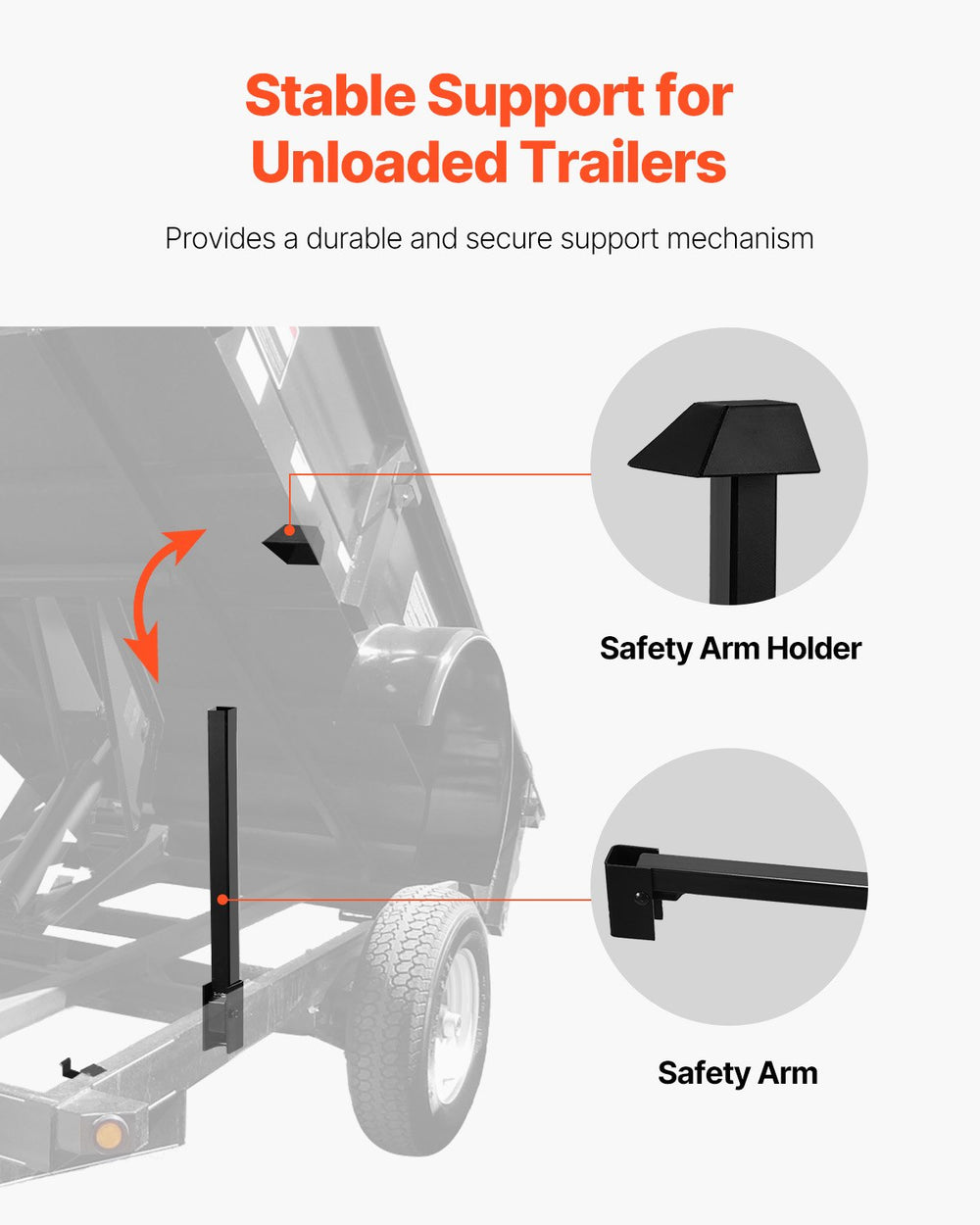

- Security First: This hydraulic dump lift kit ensures secure operation with a safety arm that provides stable support when the trailer is unloaded, avoiding the risk of accidental lowering and minimizing operational risks.

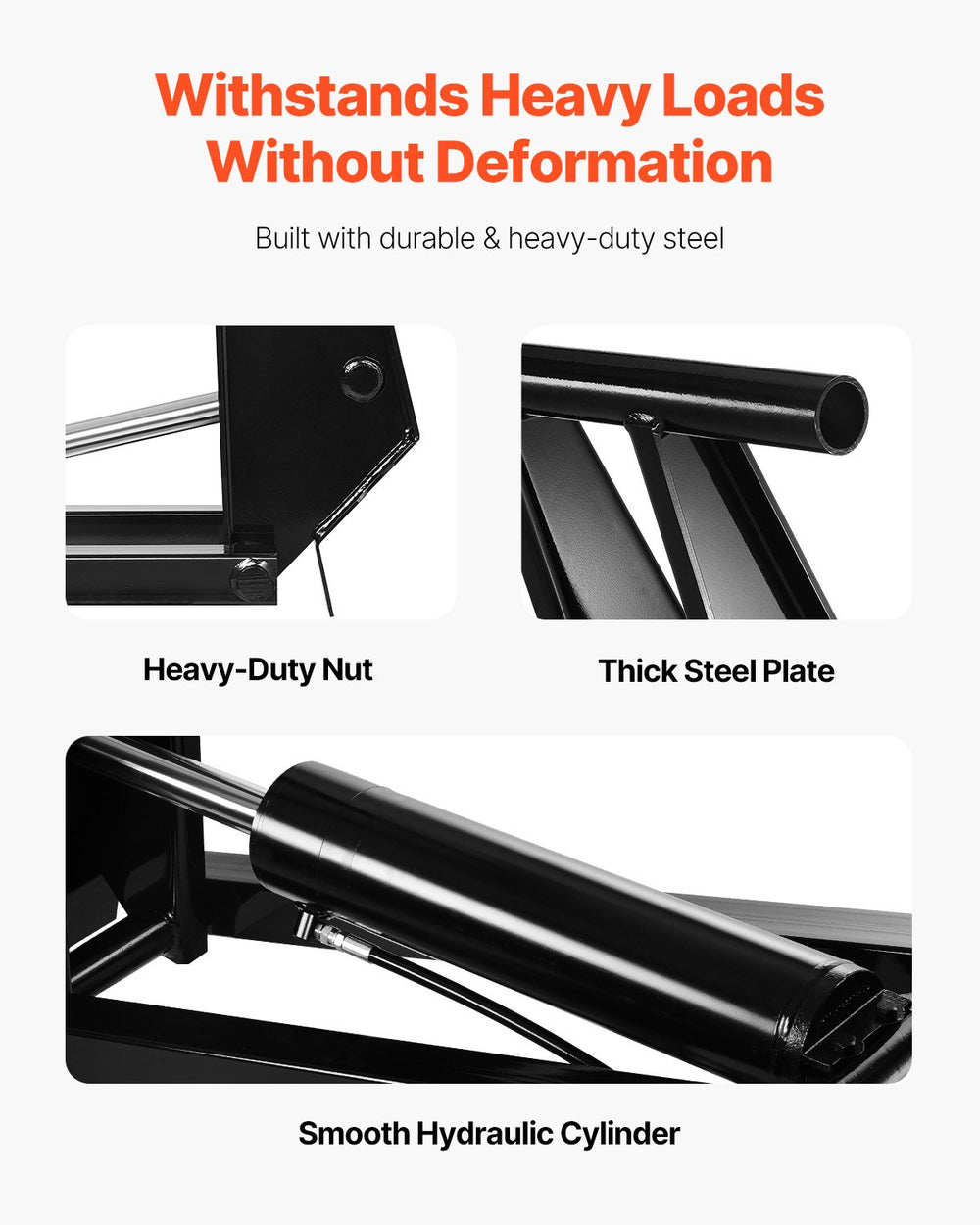

- Durable and Long-Lasting: This dump trailer hydraulic scissor hoist kit is made from high-quality materials. The lifting components use high-strength steel to withstand heavy loads and impacts, resisting deformation and weather erosion. The plastic oil tank ensures stability in all conditions.
- Easy to Maintain: To maintain sufficient lifting power and reduce failures, this hydraulic dump bed kit is recommended to perform maintenance every six months. This includes replacing the hydraulic oil and lubricating the lift connections. Installation requires welding and lifting.

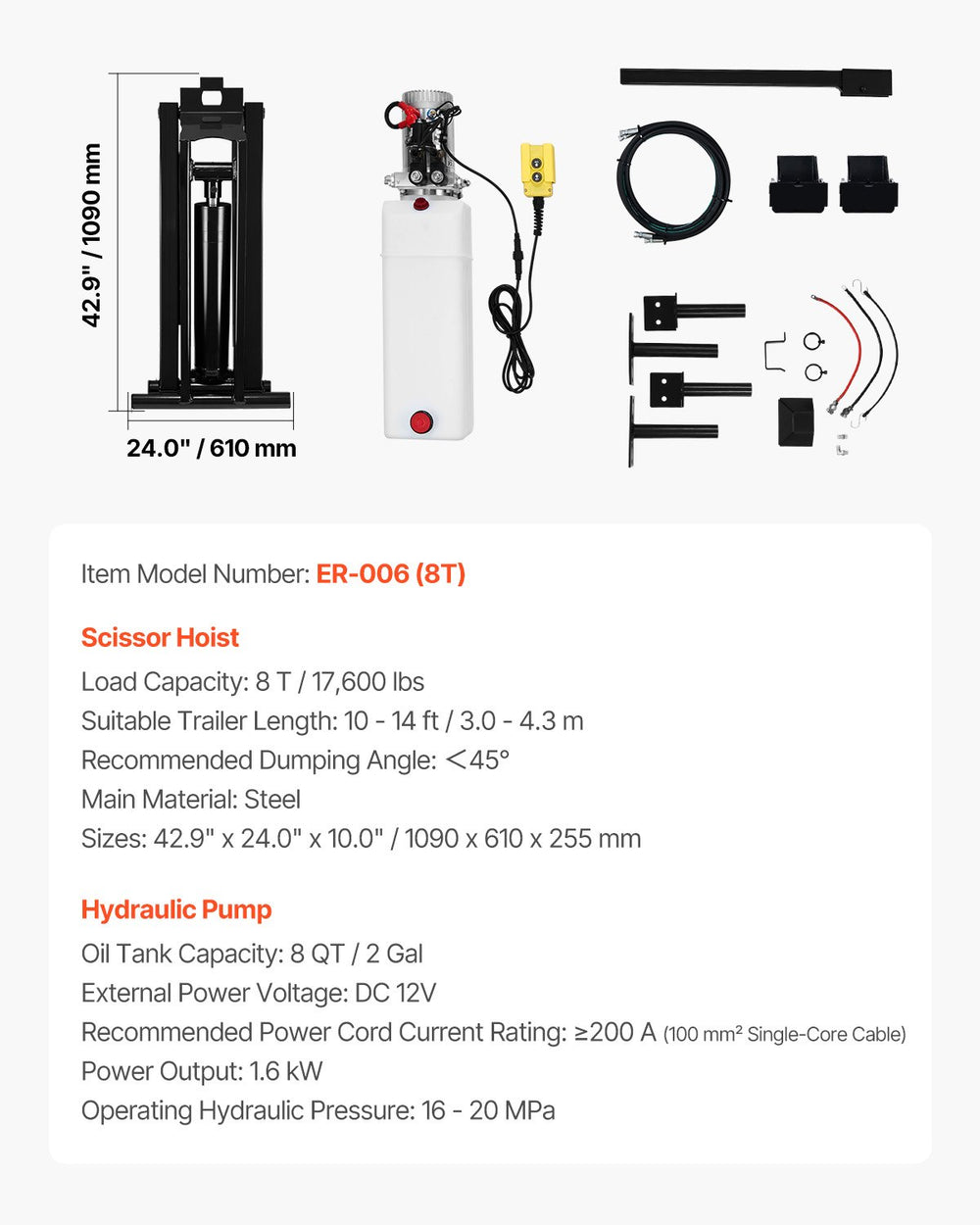

Specifications
| Item Model # | ER-006 (8T) |
| Load Capacity | 8T / 17,600 lbs |
| External Power Voltage | DC 12V |
| Suitable Trailer Length | 10 - 14 ft. |
| User-Provided Power Cable Capacity | ≥200 A (Single-core Cable of 100 mm²) |
| Hydraulic Oil Tank Capacity | 8 QT/7.6 L |
| Power Output | 1.6 kW |
| Operating Hydraulic Pressure | 16 - 20 MPa |
| Flow Rate | 1.45 GPM |
| Max Release Pressure | 3200 PSI |
| Oil Tank Material | PP Plastic |
| Max Body Tilt Angle | 120° |
| Recommended Dumping Angle | < 45° |
| Product Dimensions | 42.9" x 24" x 10" |
| Net Weight | 335.1 lbs |

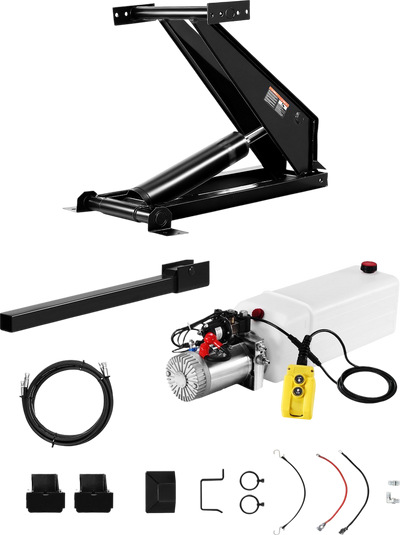

Package Contents
Vevor Hydraulic Dump Lift Kit
Hoist Assembly
Hydraulic Power Unit
(4) Hydraulic Fittings

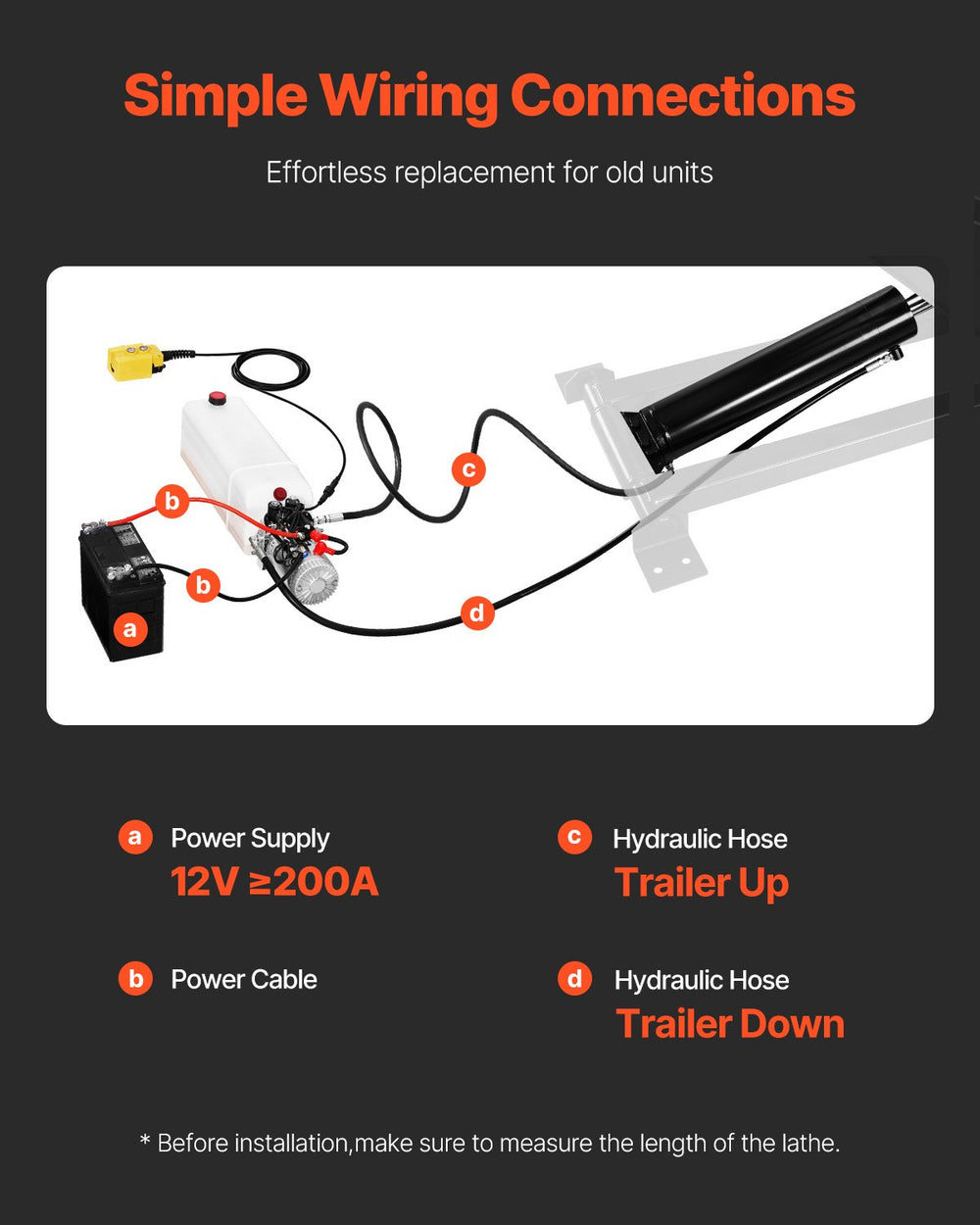

Battery Cables
(2) Hydraulic Hose
User Manual
Warranty
This item comes with a 1 year factory warranty.
