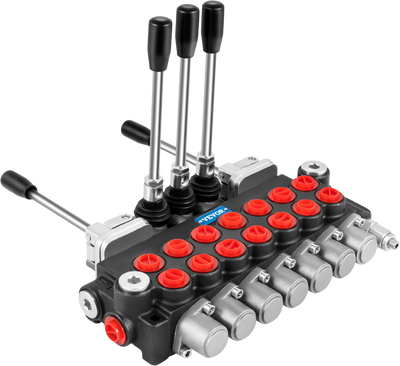

Vevor Hydraulic Directional Control Valve 7-Spool 11 GPM 4500PSI New

Manufacturer: Vevor

SKU: KZFCZGFX2711GMCKUV0

us_KZFCZGFX2711GMCKUV0_original_img-v4_hydraulic-spool-valve-m100-1
Vevor Hydraulic Directional Control Valve 7-Spool 11 GPM 4500PSI New
Vevor Hydraulic Directional Control Valve 7-Spool 11 GPM 4500PSI New
Vevor Hydraulic Directional Control Valve 7-Spool 11 GPM 4500PSI New
Vevor Hydraulic Directional Control Valve 7-Spool 11 GPM 4500PSI New
Vevor Hydraulic Directional Control Valve 7-Spool 11 GPM 4500PSI New
Vevor Hydraulic Directional Control Valve 7-Spool 11 GPM 4500PSI New
us_KZFCZGFX2711GMCKUV0_original_img-v4_hydraulic-spool-valve-m100-1
Vevor Hydraulic Directional Control Valve 7-Spool 11 GPM 4500PSI New
Vevor Hydraulic Directional Control Valve 7-Spool 11 GPM 4500PSI New
Vevor Hydraulic Directional Control Valve 7-Spool 11 GPM 4500PSI New
Vevor Hydraulic Directional Control Valve 7-Spool 11 GPM 4500PSI New
Vevor Hydraulic Directional Control Valve 7-Spool 11 GPM 4500PSI New
Vevor Hydraulic Directional Control Valve 7-Spool 11 GPM 4500PSI New

QTY

(888) 999-1522

C

$218.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

Sign up for restock notifications!

Notify Me
headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+
Vevor Hydraulic Directional Control Valve 7-Spool 11 GPM 4500PSI New

Vevor Hydraulic Directional Control Valve 7-Spool 11 GPM 4500PSI New

Product Overview

This hydraulic spool control valve has been specifically designed for use in mobile hydraulic applications. It is compact and has a flow capacity of 11 GPM at 4500psi. This valve is an alternative to currently available monoblocks. It is equipped with an adjustable relief valve and levers as standard. In addition, the valve comes with a double-acting cylinder spool.

vendor logo
divider
authorized dealer
checkmark

Brand new in box

checkmark

1 year factory warranty

checkmark

Manufacturer direct shipping from CA & TX

checkmark

Authorized Vevor dealer

Features

  • Hydraulic Spool Valve: Equipped with 7 spools and 1/2" BSPP type ring inlet/outlet port. Max pressure of this hydraulic is 4500psi, and maximum flow rate can reach 11 GPM. The opening and disconnection of hydraulic oil are controlled by connecting the valve to the oil line.
  • Double-Acting Cylinders: Hydraulic control valve used to operate double-acting cylinders. All standard spools are spring-returned and can be reset to the neutral position. There are springs at the bottom of the handles that make the joysticks easy to control.
  • Great Inner Valve: The check valve in the valve body ensures that the hydraulic oil does not return, and the overflow valve in the valve body can adjust the working pressure of the hydraulic system.
  • Compact Structure: 7 spool hydraulic valve is made of aluminum and iron, and the solid structure can provide long-term service. The compact design allows it to install in narrow areas and maximizes its control capabilities.
  • Widely Used: It is used in hydraulic systems in agriculture, horticulture, forestry, and construction. The distributor can be adapted to different types of machines including tractors, sprayers, construction machines, loaders, excavators, sweepers, industrial machines, and for other applications hydraulically controlled.

Specifications

Item Model # 7Spool114500
Max Operating Pressure 4500psi
Flow Rate 11 GPM
Relief Valve Adjustable
Center System Open
Spool Count 7-Spool
Valve Operation Manual
A, B Ports: BSPP 1/2" P1, P2 Port: BSPP 1/2"
T1, T2 Port: BSPP 1/2" Product Dimensions
15.2" x 9.4" x 4.7" Weight

Package Contents

Vevor 7-Spool Hydraulic Directional Control Valve

Warranty

vendor logo
divider
authorized dealer

This item comes with a 1 year factory warranty.
