Product Overview

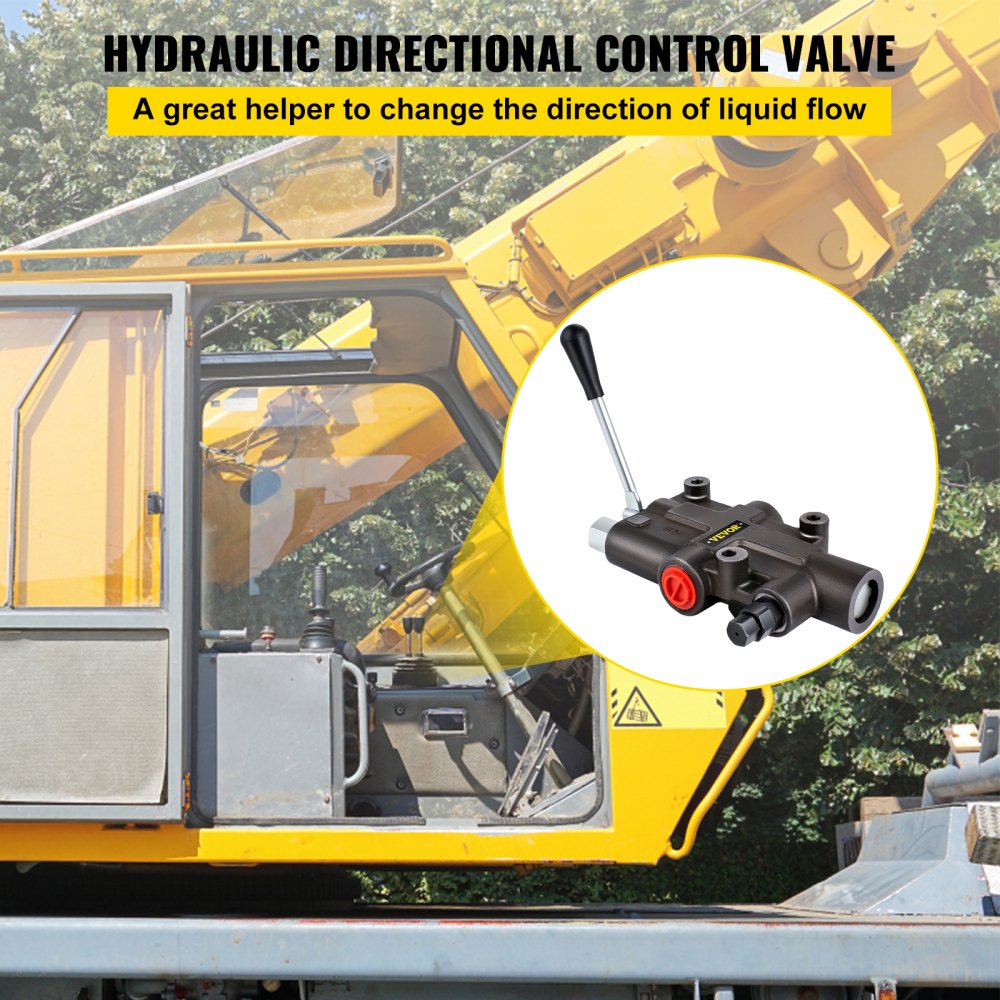

This hydraulic directional control valve is designed for mobile hydraulic applications and provides a 21 GPM flow capacity at up to 4300 PSI. It features a 1-spool manual operation with spring return to neutral for controlled handling. The valve includes an adjustable relief valve and an open center system for reliable hydraulic performance. Its compact construction helps it fit into tighter installation spaces. It is suitable for tractors, loaders, tanks, and other hydraulic equipment.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

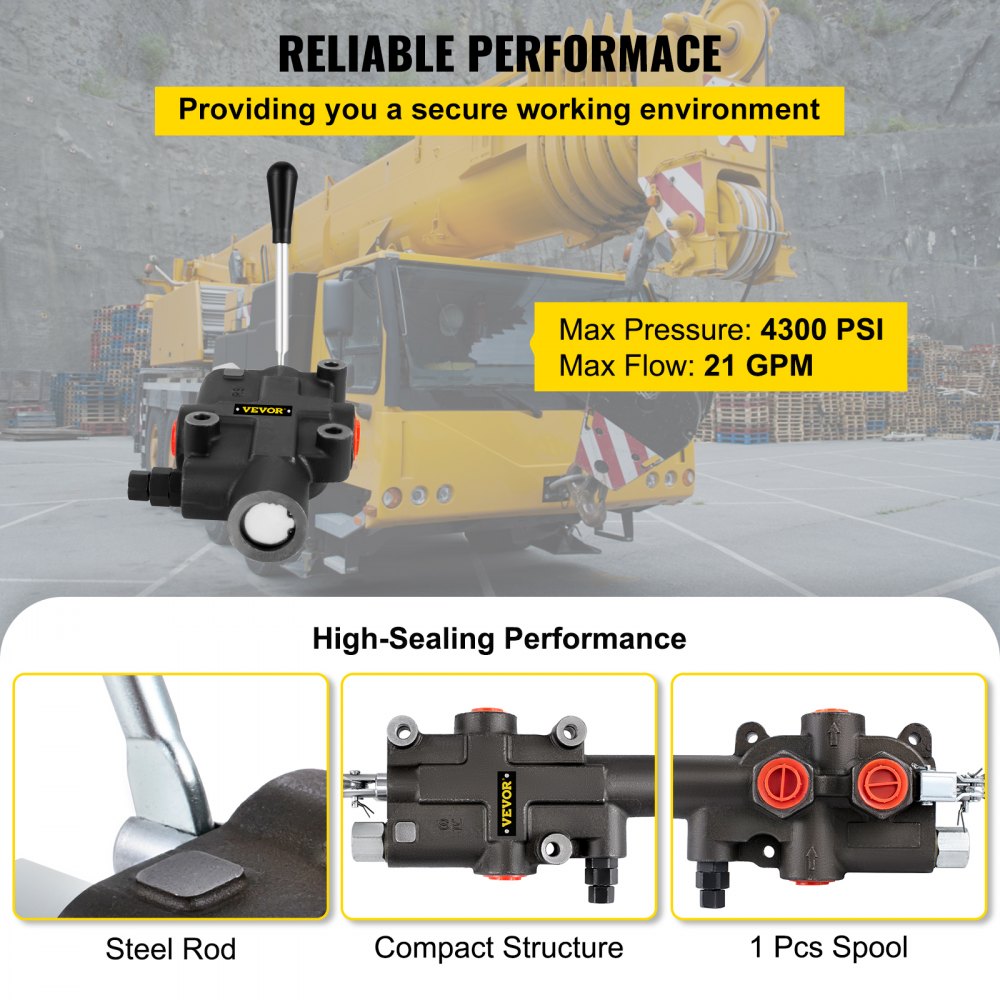

- Hydraulic Spool Valve: Equipped with 1 spool . The maximum pressure of this hydraulic is 4300 PSI, and the maximum flow can reach 21 GPM. The opening and disconnection of hydraulic oil are controlled by connecting the valve to the oil line.

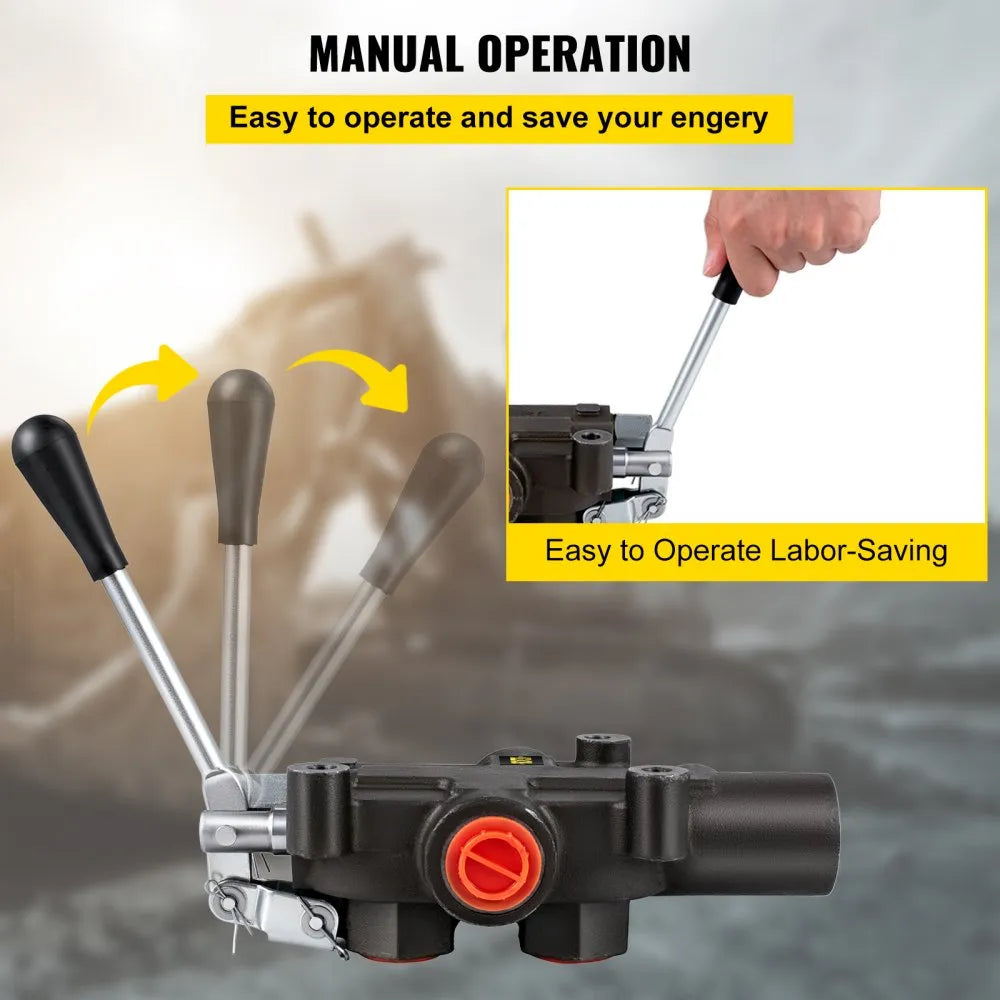

- Automatically Reset: The standard spool is spring-returned and can be reset to the neutral position. In addition, there is a spring at the bottom of the handle that makes the joystick easy to control.

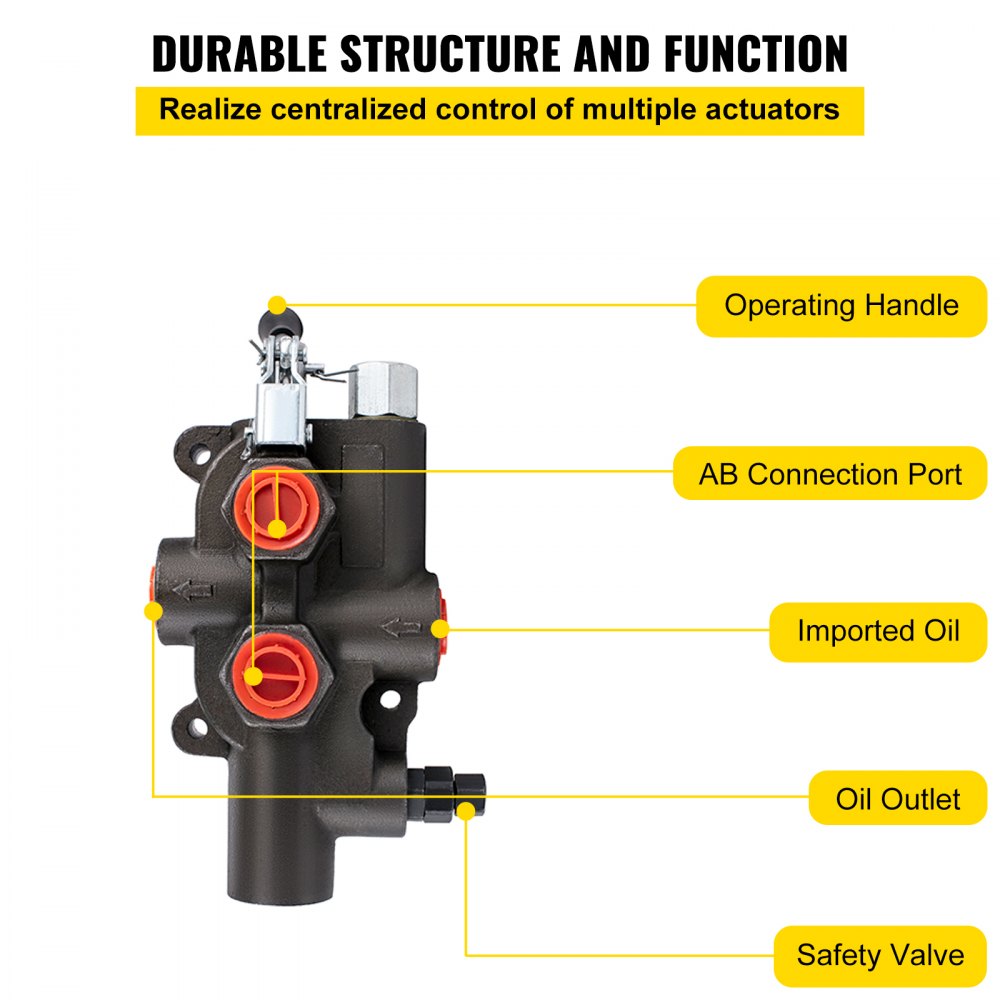

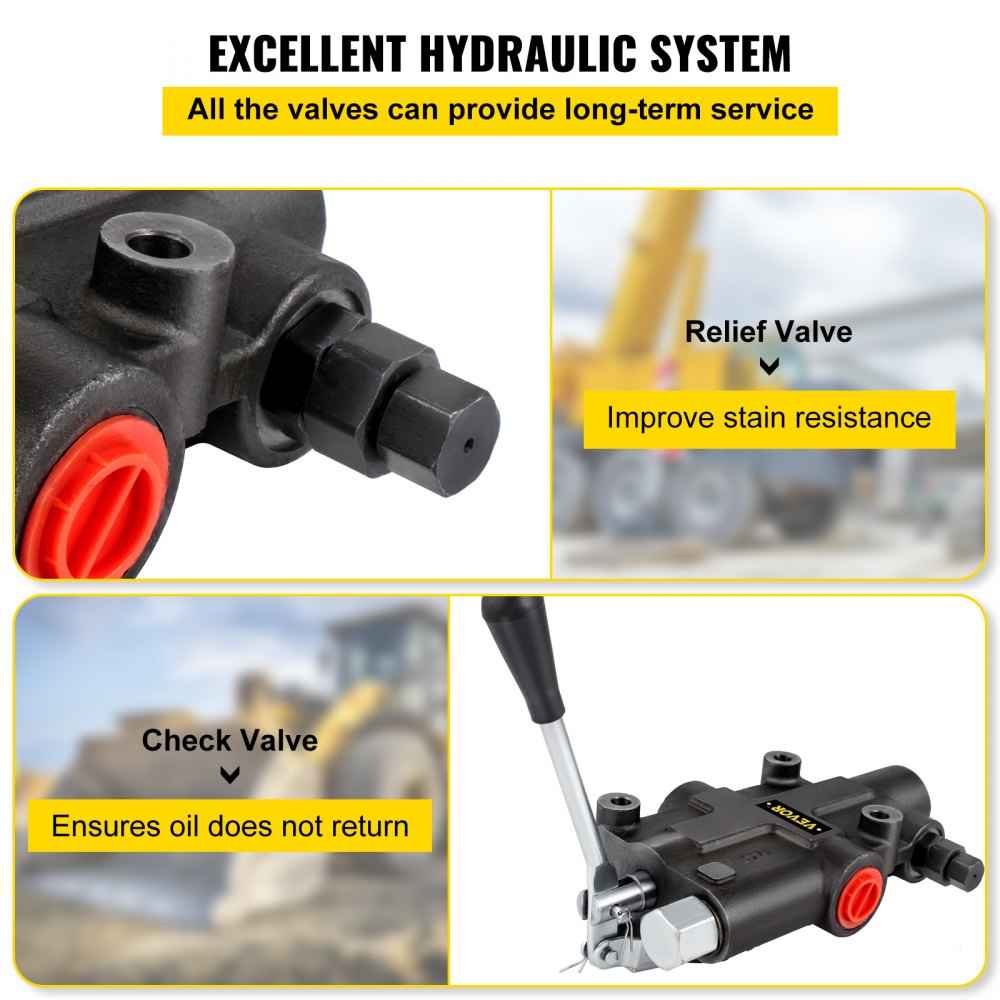

- Great Inner Valve: The check valve in the valve body ensures that the hydraulic oil does not return, and the overflow valve in the valve body can adjust the working pressure of the hydraulic system.
- Compact Structure: 1 spool hydraulic valve is made of aluminum and iron, and the solid structure can provide long-term service. The compact design allows it to install in narrow areas and maximizes its control capabilities.
- Widely Used: It is used in hydraulic systems in agriculture, horticulture, forestry, construction, and industry. The distributor is adapted to different types of machines: agricultural machines, tractors, sprayers, construction machines, loaders, excavators, sweepers, industrial machines, and for other applications hydraulically controlled.
Specifications
| Model | 121GPM4300 |
| Max Operating Pressure | 4300 PSI |
| Flow Rating | 21 GPM |
| Relief Valve | Adjustable |
| Center System | Open |
| Spool Count | 1-Spool |
| Valve Operation | Manual |
| A, B Ports | 1/2-12" NPTF |
| P, T, N Port | 3/4-14" NPTF |

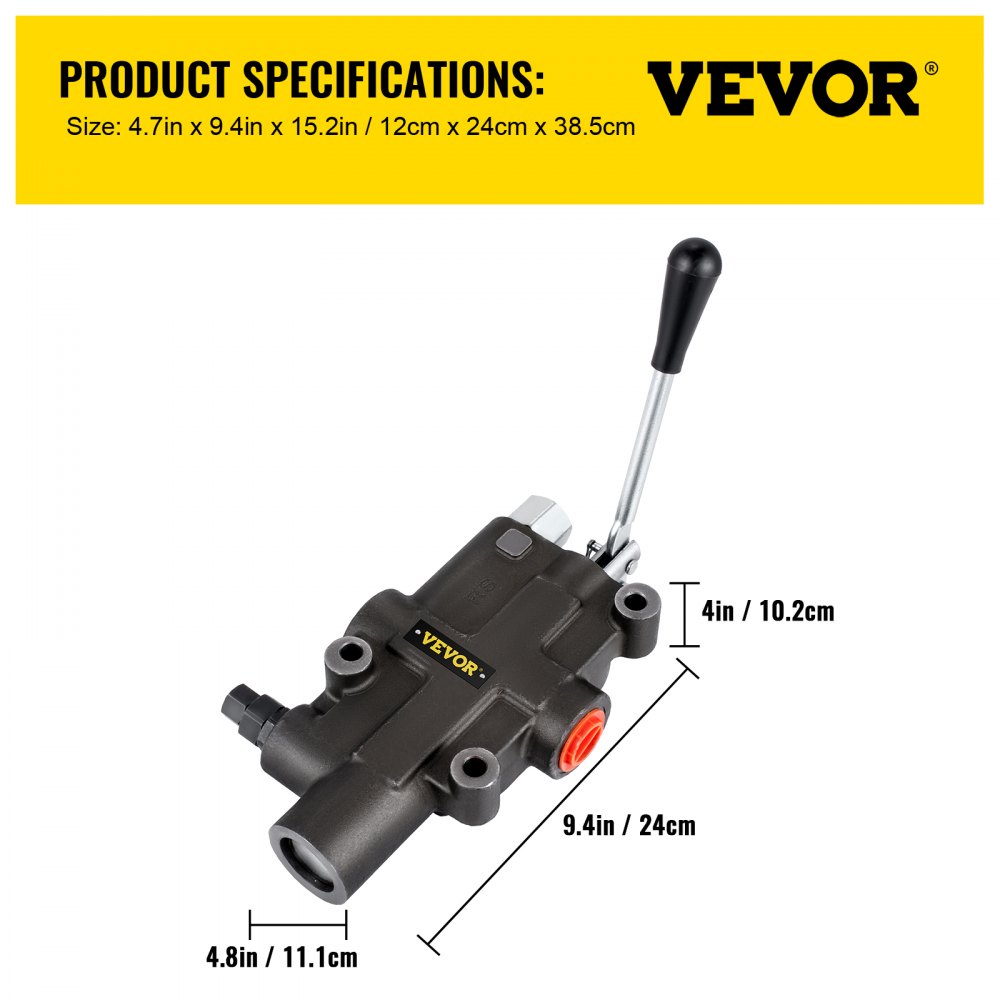

| Dimensions | 9.4 x 4.8 x 4" |
Package Contents
1 x 1 Spool Hydraulic Directional Control Valve
Warranty
This item comes with a 1 year factory warranty.
