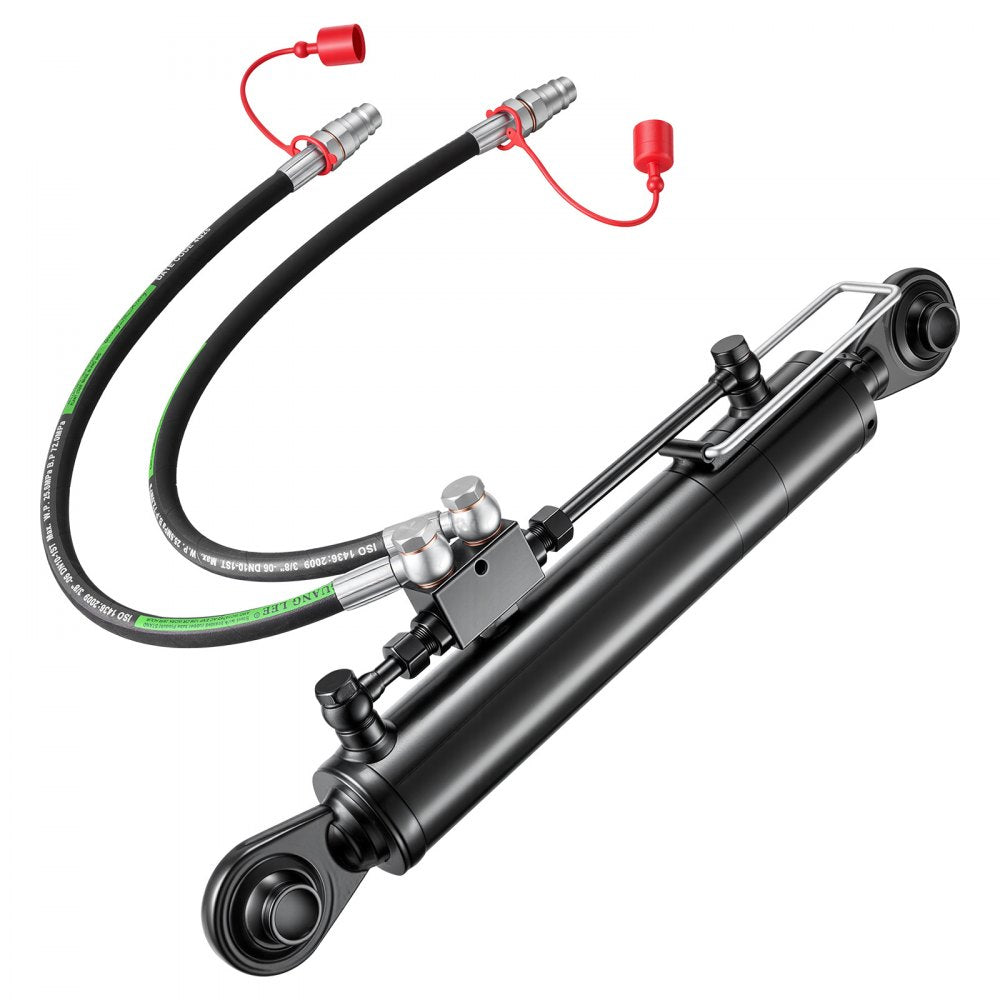

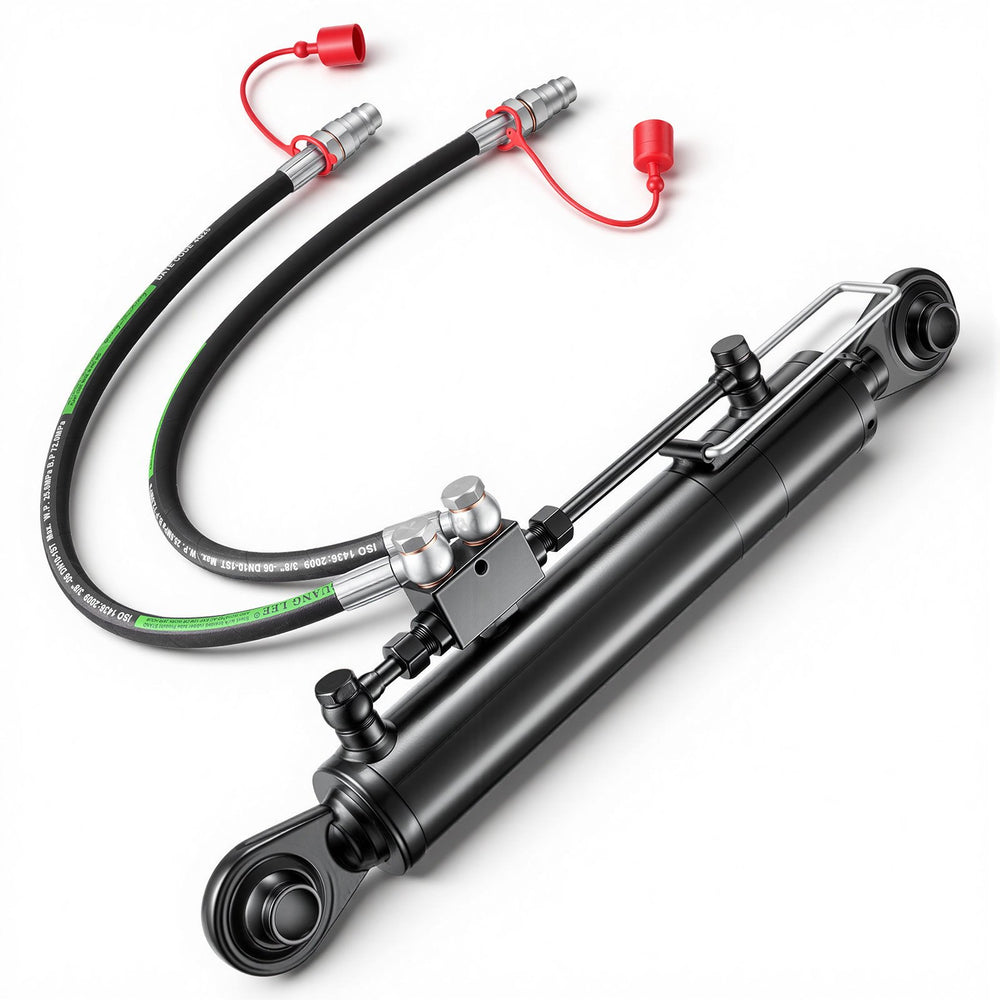

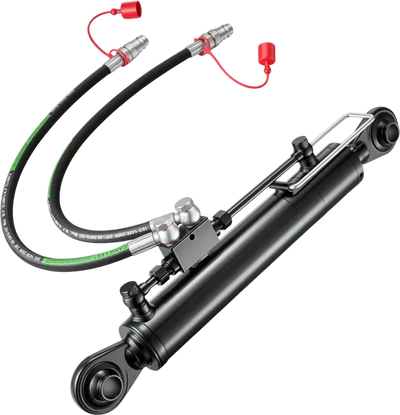

Vevor Hydraulic Cylinder Hydraulic Top Link Cat. 2-2 11" Stroke for Tractors New
Manufacturer: Vevor
SKU: DLGYYGL22383BCMN6001V0
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$311.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer

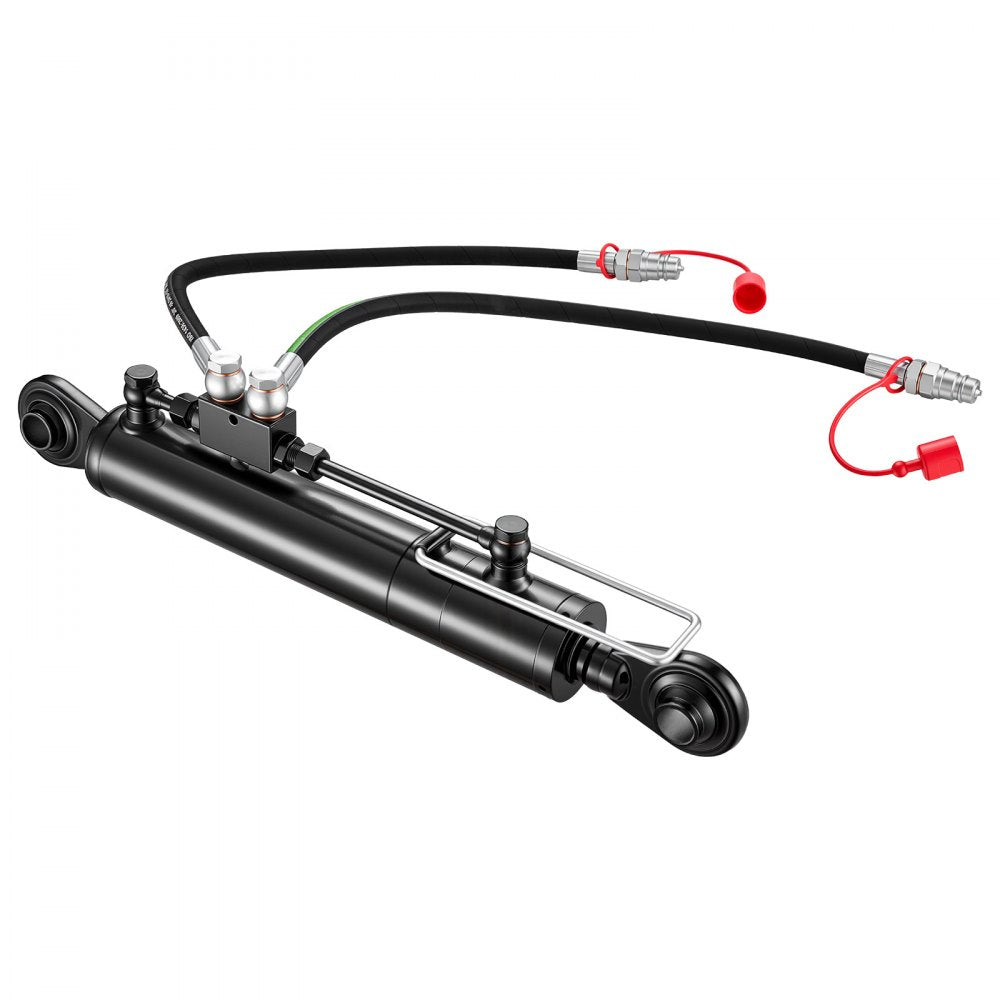

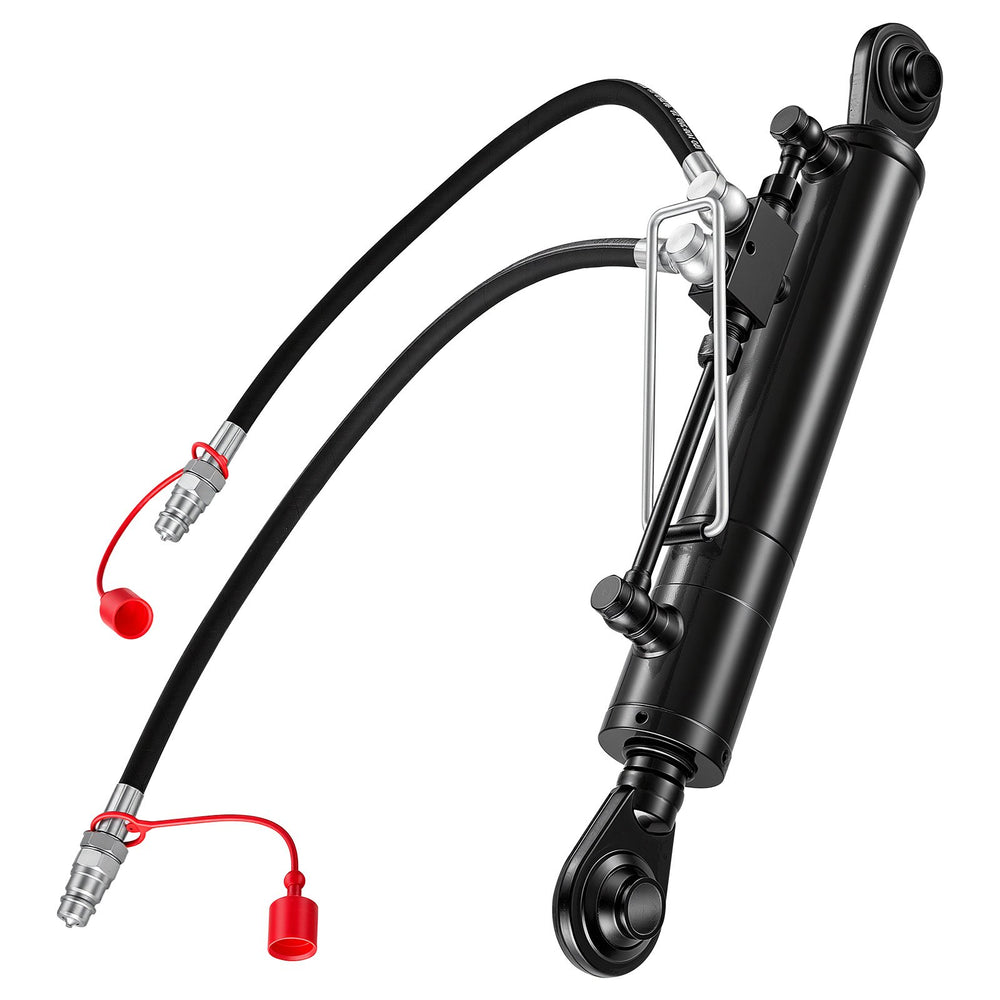

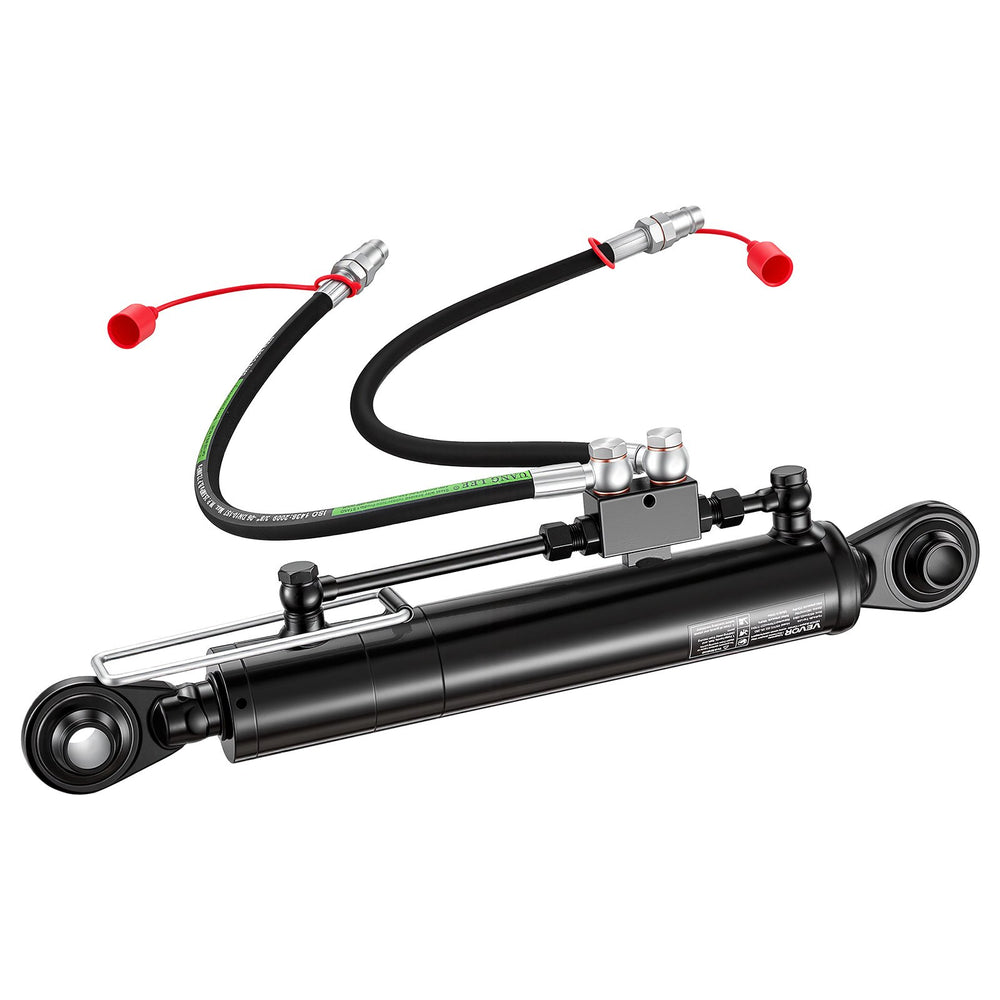

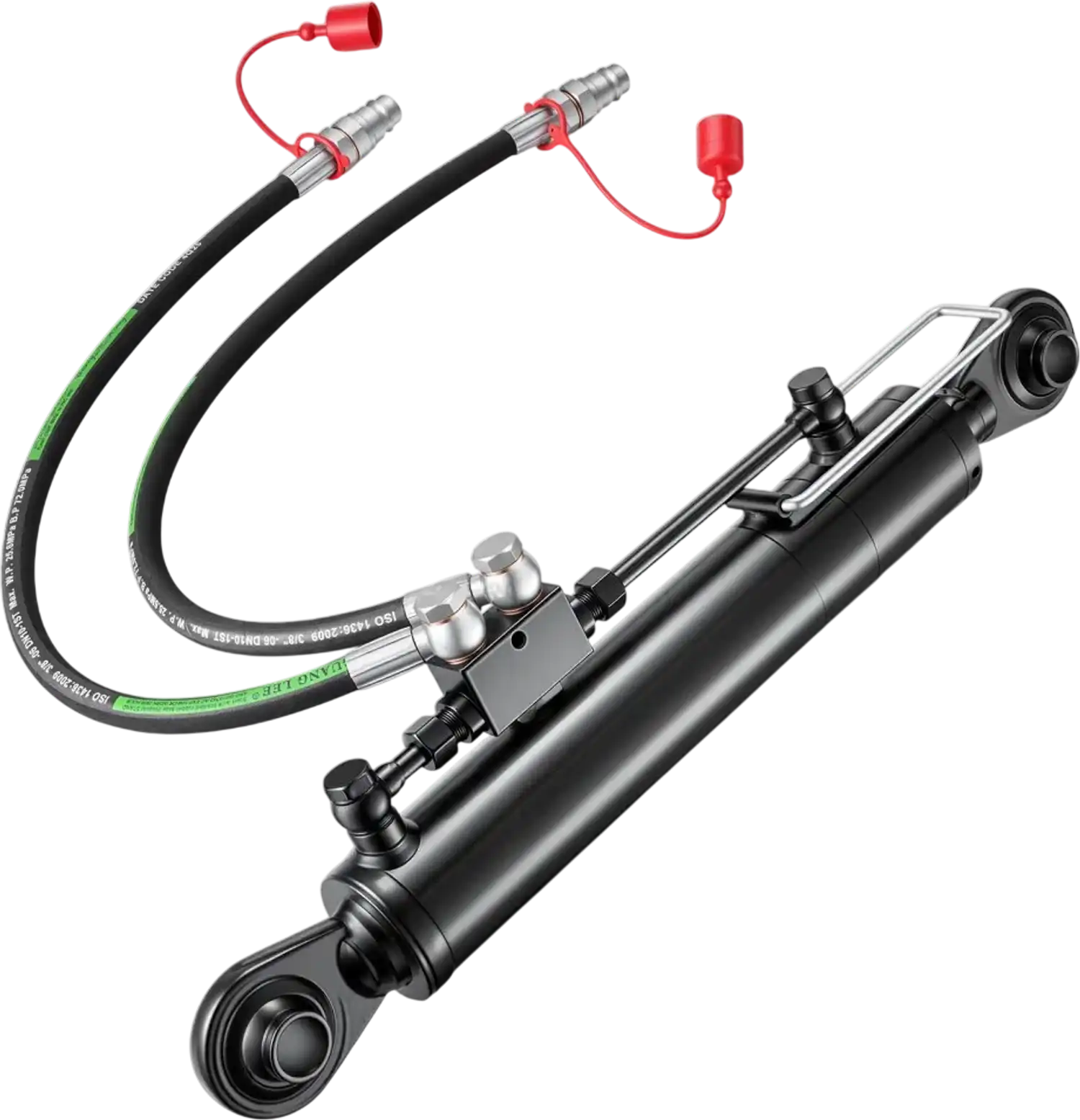

Vevor Hydraulic Cylinder Hydraulic Top Link Cat. 2-2 11" Stroke for Tractors New
Product Overview
This hydraulic top link is designed for category 2-2 tractors and three-point hitch systems, allowing implement angle adjustment directly from the driver’s seat. It delivers 2320 PSI rated pressure and up to 2900 PSI maximum pressure for demanding hydraulic applications. The cylinder provides strong push and pull performance with a heavy-duty steel build and G3/8" check valves for precise control. Its sealing system is designed to help reduce hydraulic fluid leakage during operation.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorize Vevor Dealer
Features
- Key Specifications: Bore: 2.48 in (63 mm), Stroke: 11 in (280 mm), Retracted Length: 22-7/16 in (570 mm), Extended Length: 33-7/16 in (850 mm), Check Valve: G3/8", Pin Hole Diameter: 1 in

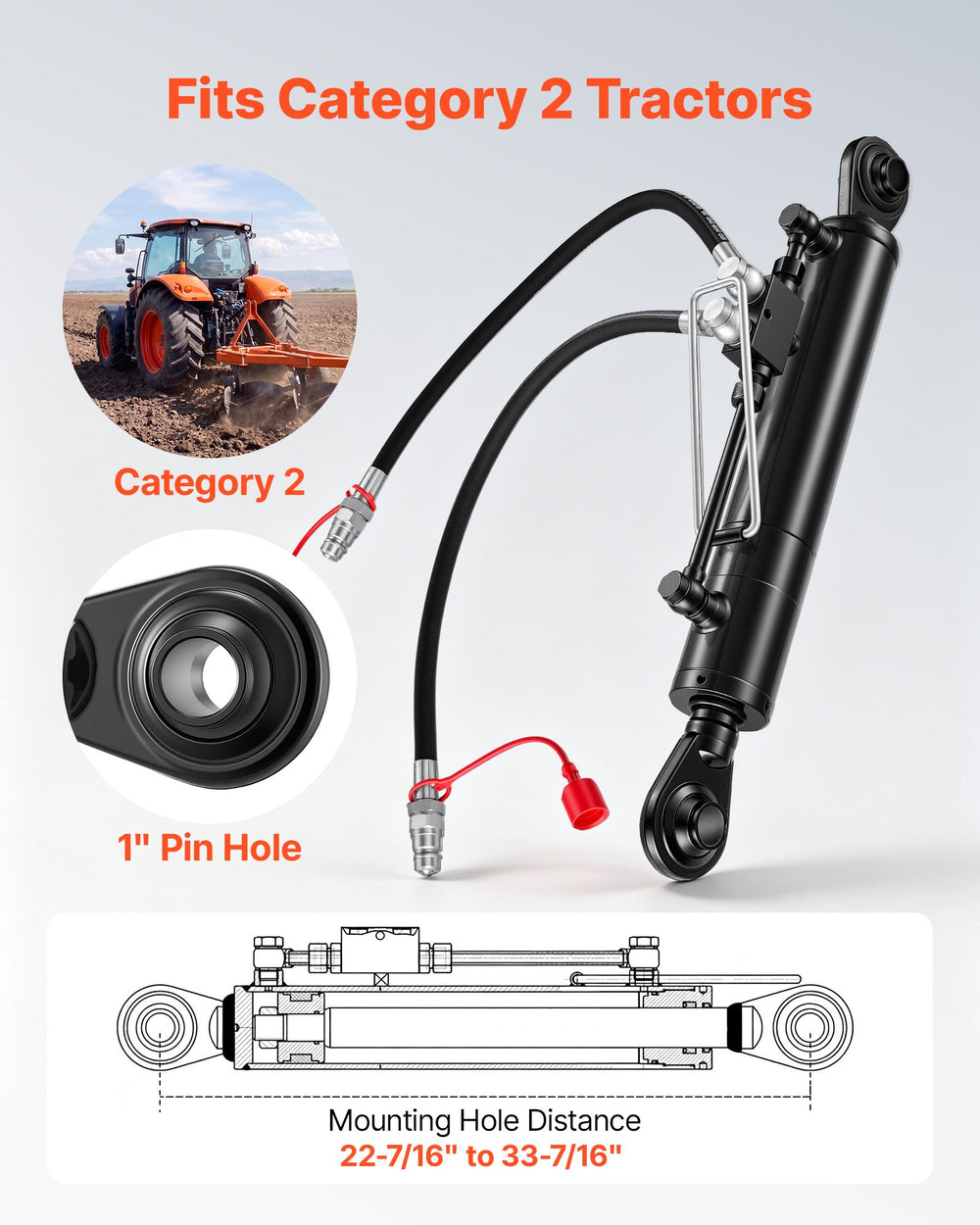

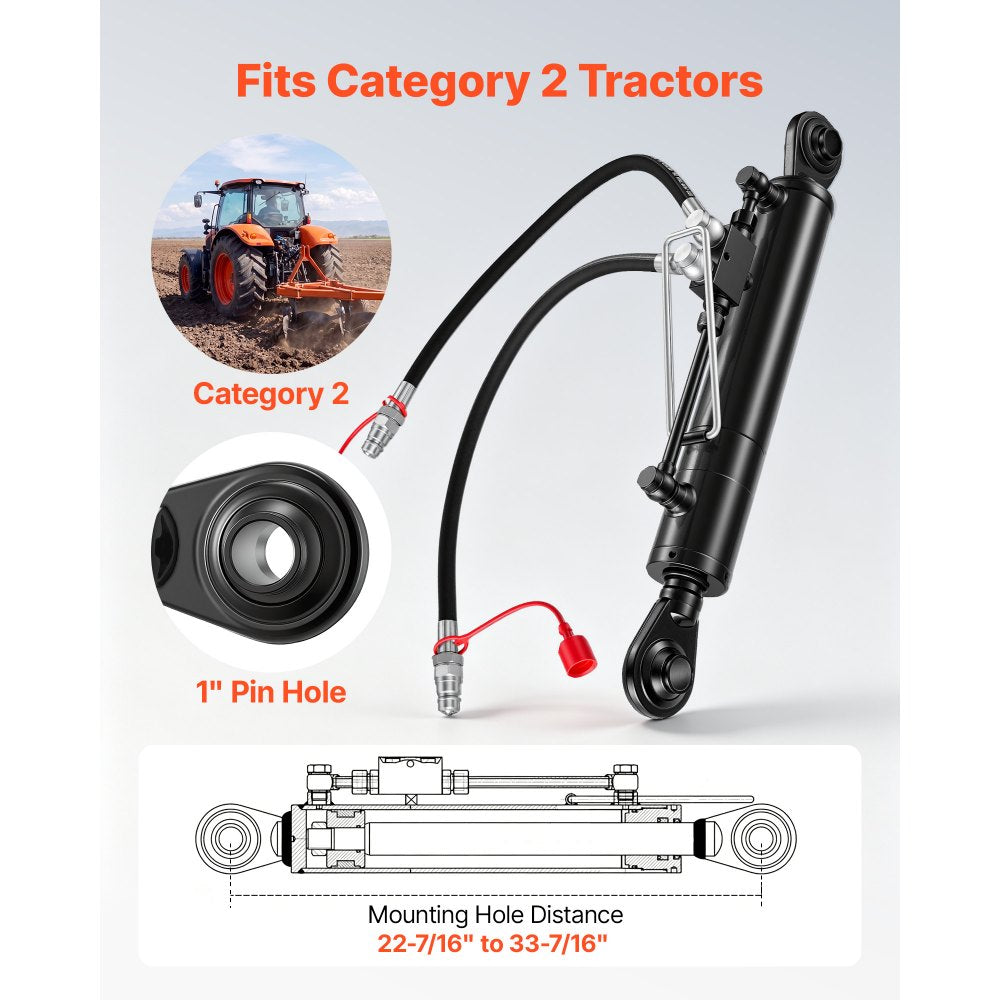

- Fits Category 2-2 Tractors: This hydraulic top link is designed for tractor three-point hitch systems. Operators can adjust implement angles directly from the driver’s seat, improving fieldwork efficiency and operating convenience

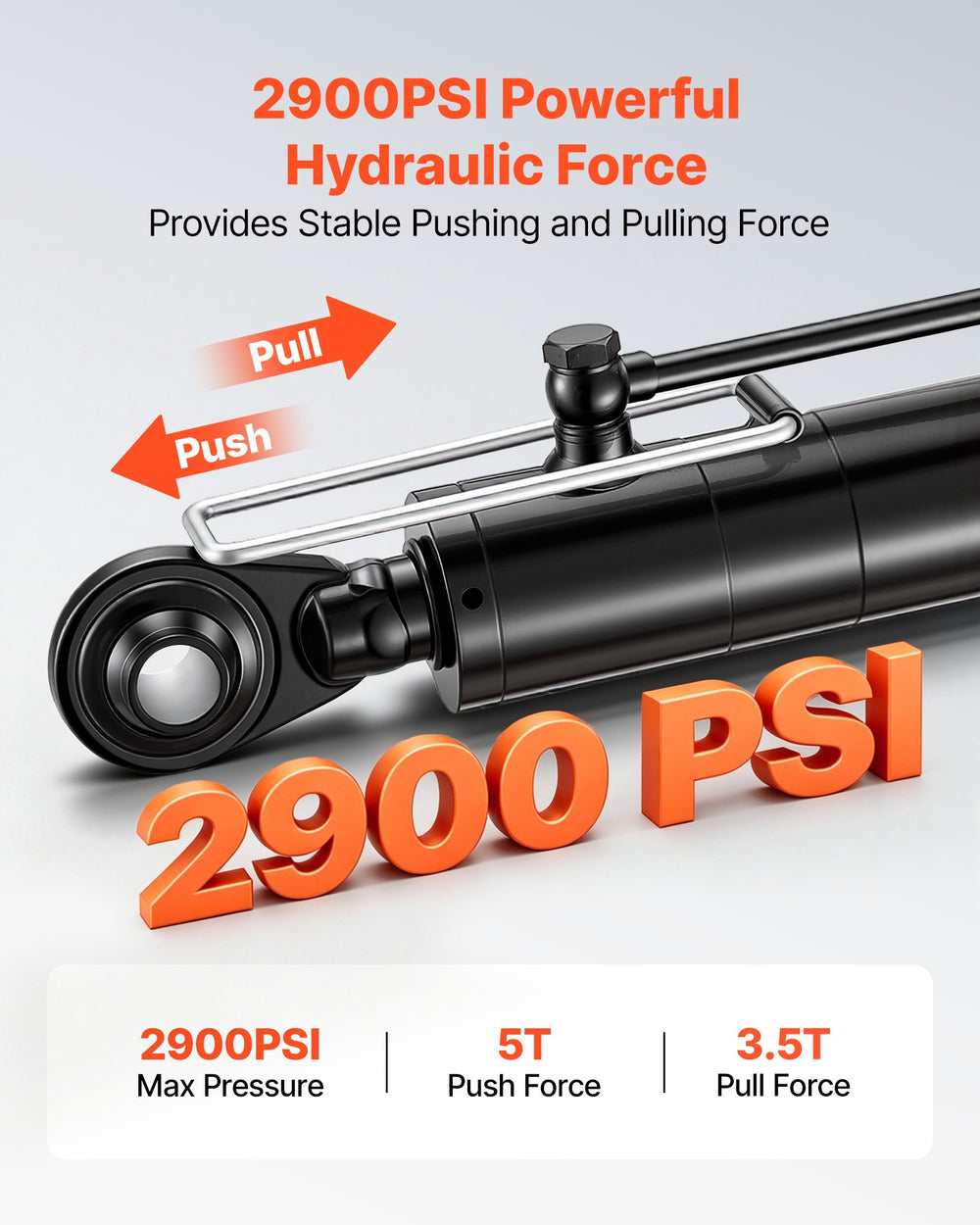

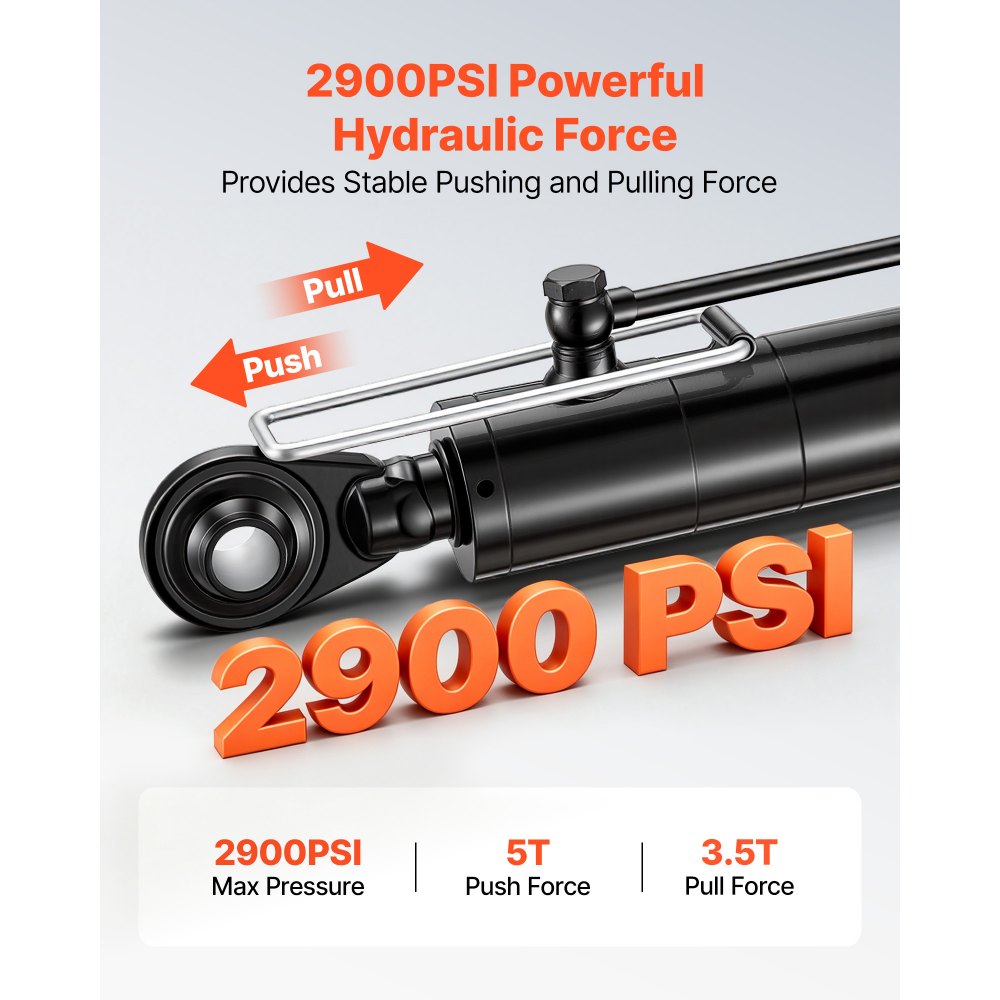

- High-Pressure Hydraulic Power: Built for demanding workloads, this hydraulic cylinder supports 2320 PSI rated pressure and up to 2900 PSI max pressure, delivering steady hydraulic force to improve tractor operating efficiency
- Powerful Hydraulic Force: This hydraulic top link supports up to 9420 lbs (4.27 Ton) column load capacity while delivering 5 Ton push force and 3.5 Ton pull force (at 16 MPa), providing reliable power for pushing and pulling applications

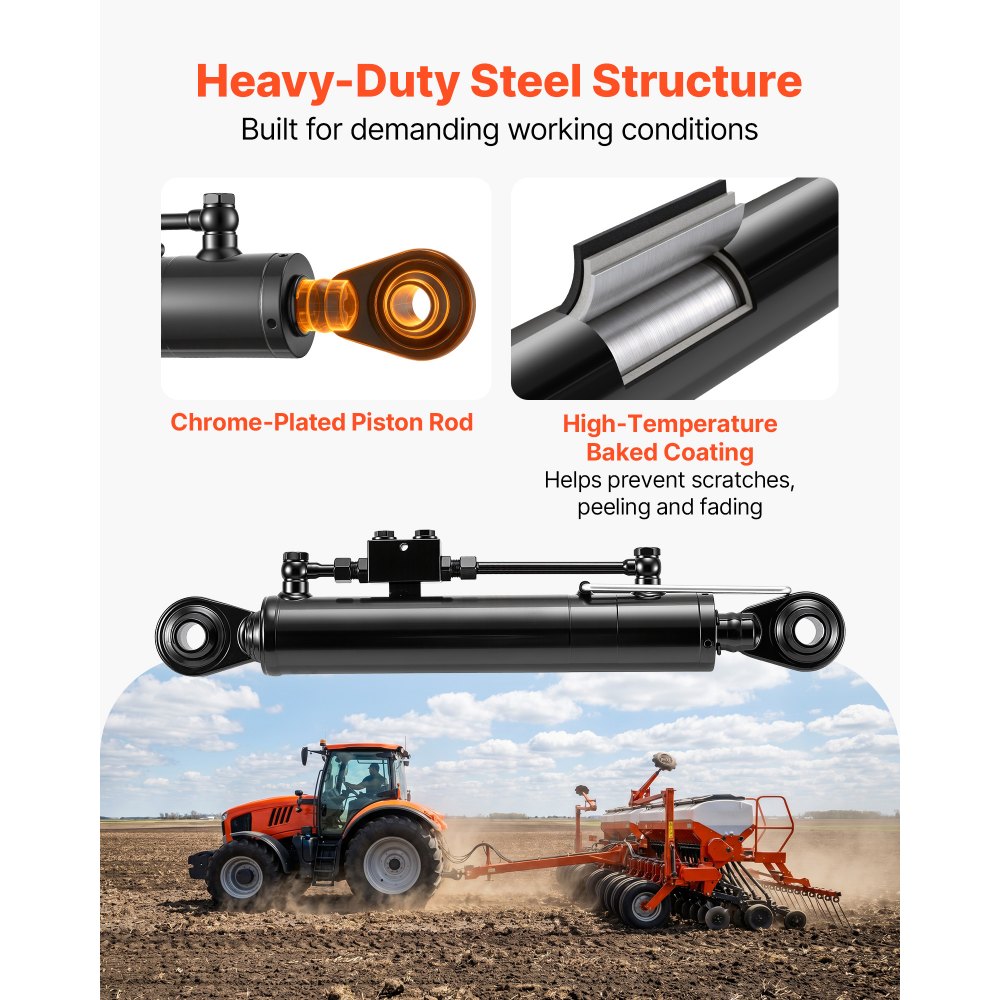

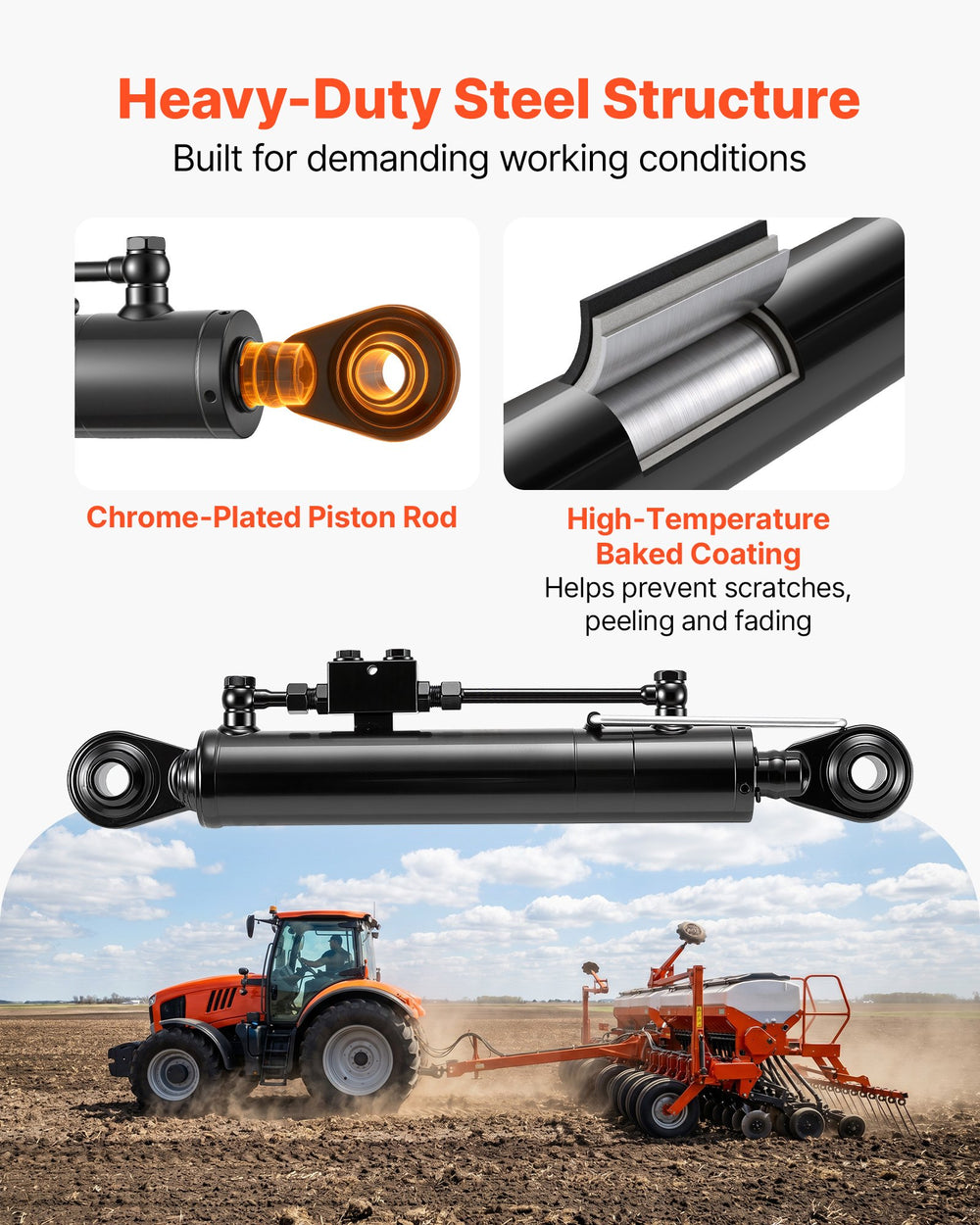

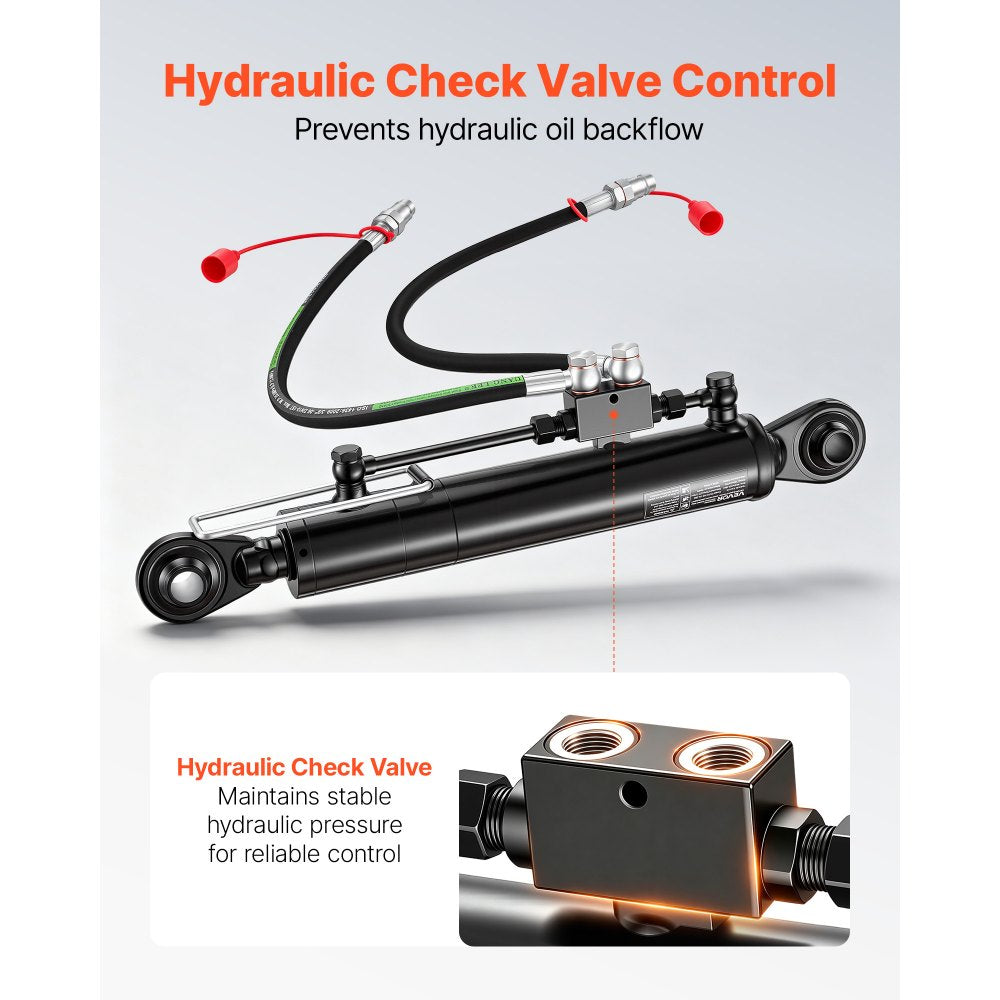

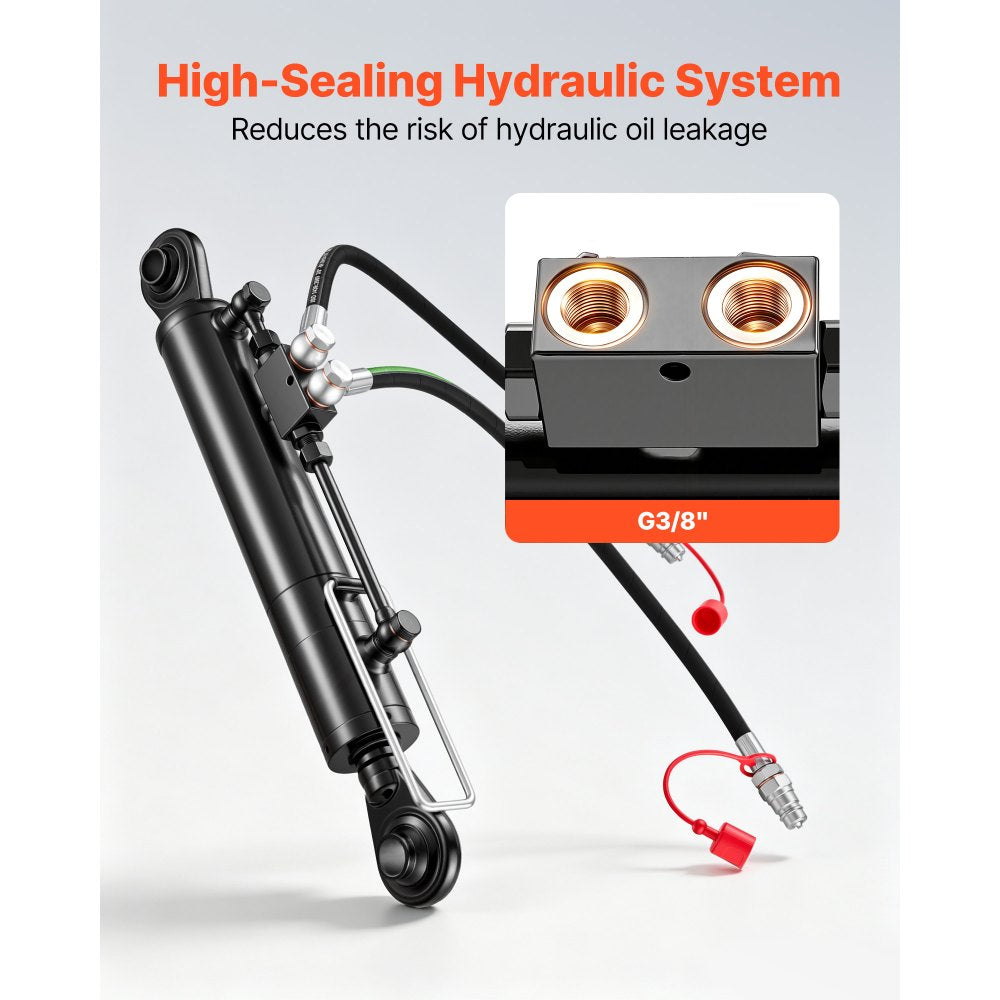

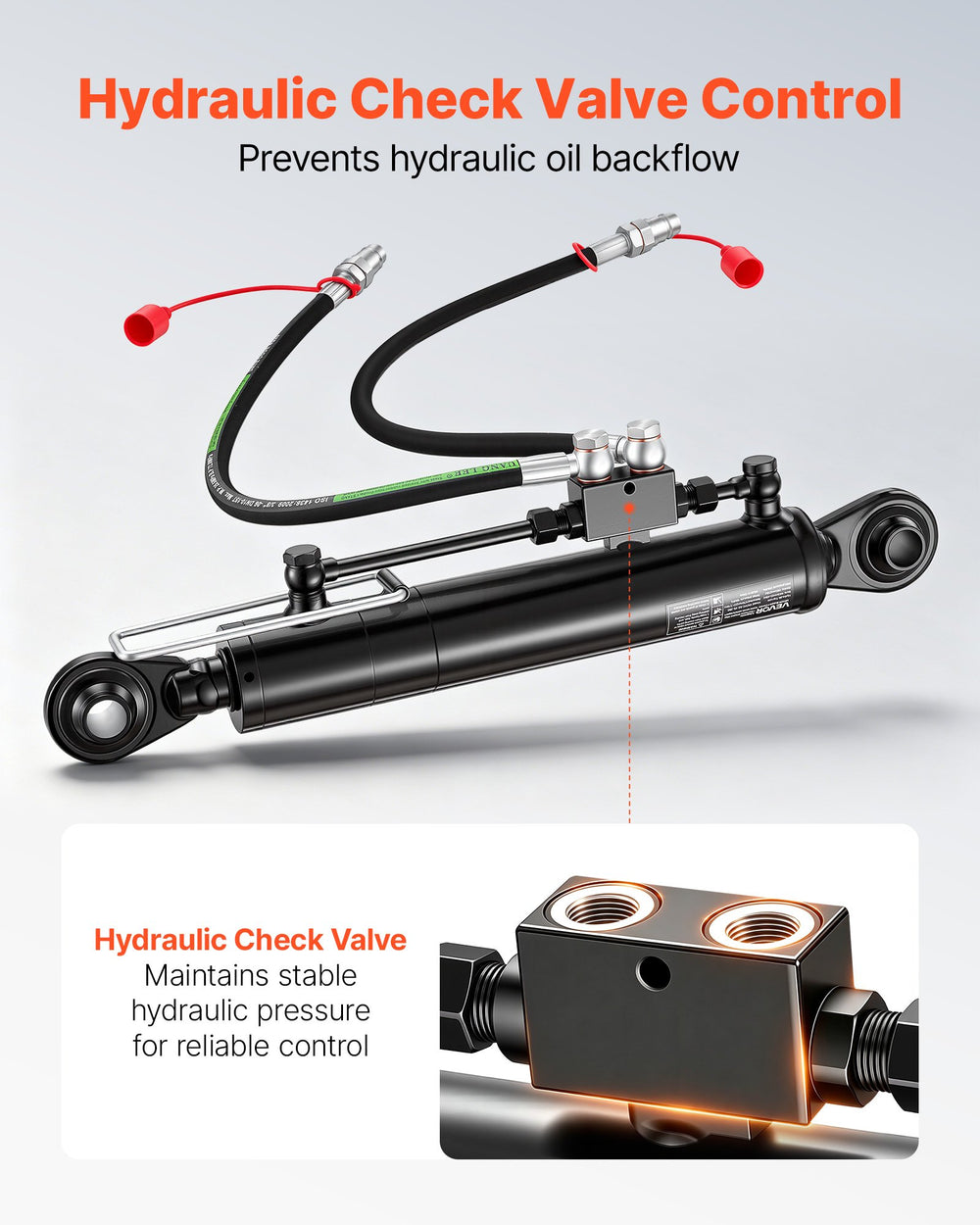

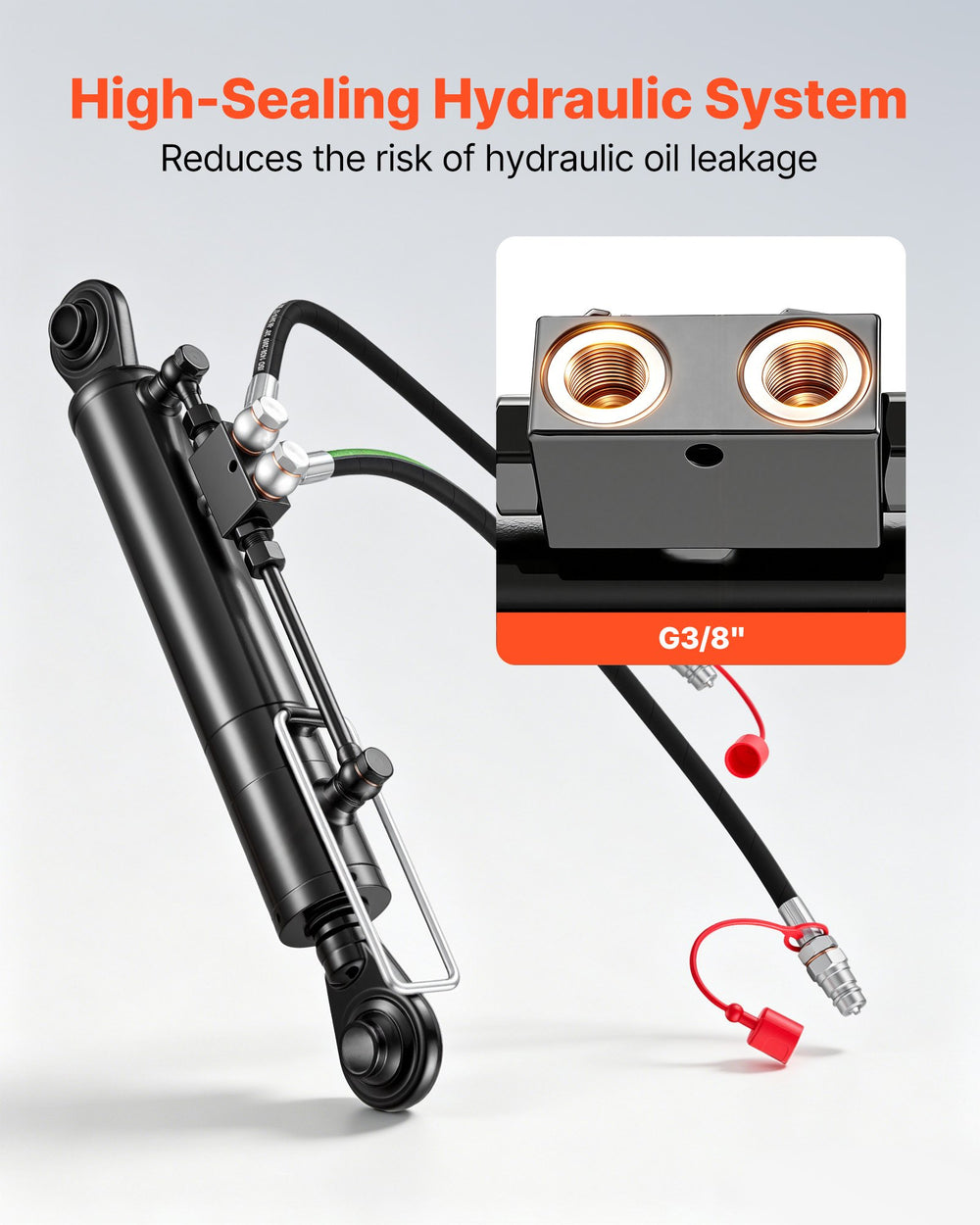

- High-Sealing Check Valve: Equipped with G3/8" check valves and heavy-duty painted steel construction, this hydraulic cylinder helps minimize oil leakage and ensures precise control during push and pull operations

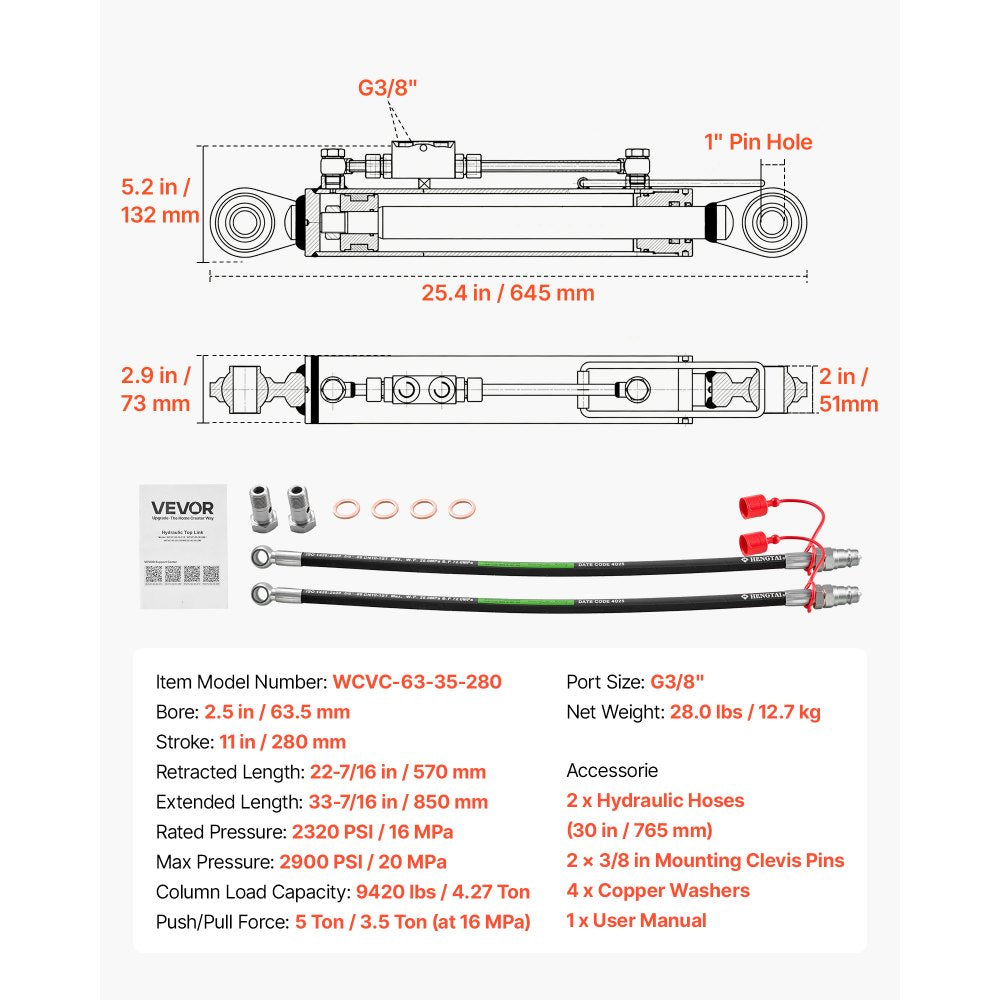

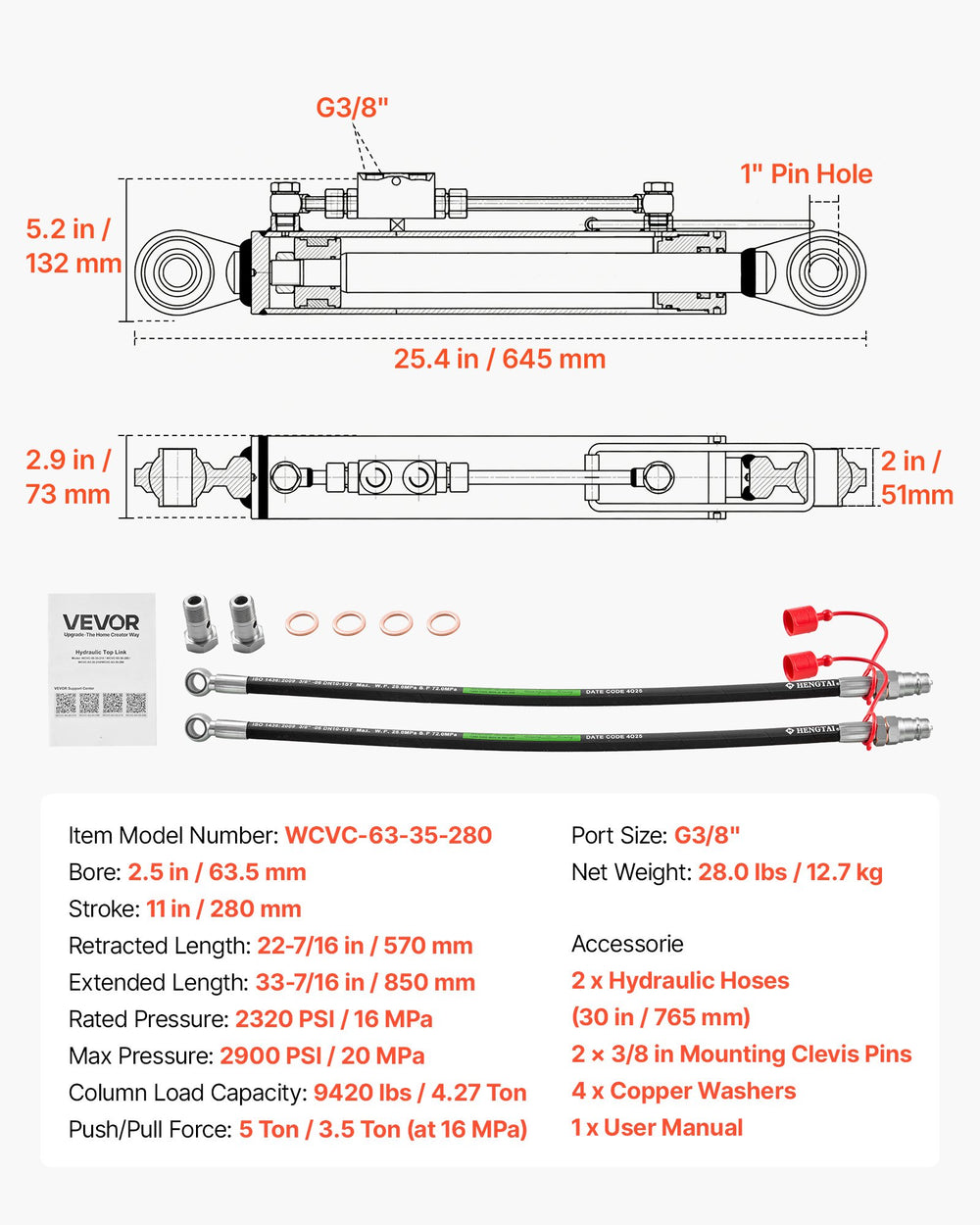

Specifications
| Item Model Number | WCVC-63-35-280 |
| Bore | 2.5 in / 63.5 mm |
| Stroke | 11 in / 280 mm |
| Rated Pressure | 2320 PSI / 16 MPa |
| Max Pressure | 2900 PSI / 20 MPa |
| Column Load Capacity | 9420 lbs / 4.27 Ton |
| Push/Pull Force | 5 Ton / 3.5 Ton at 16 MPa |
| Port Size | G3/8" |
| Pin Hole Diameter | 1" |
| Retracted Length | 22-7/16" / 570 mm |
| Extended Length | 33-7/16" / 850 mm |
| Net Weight | 28.0 lbs / 12.7 kg |
| Dimensions | 22-7/16" to 33-7/16" length range with 11" stroke |
Package Contents
Hydraulic top link cylinder
2 hoses
G3/8" check valves
Warranty
This item comes with a 1 year factory warranty.
