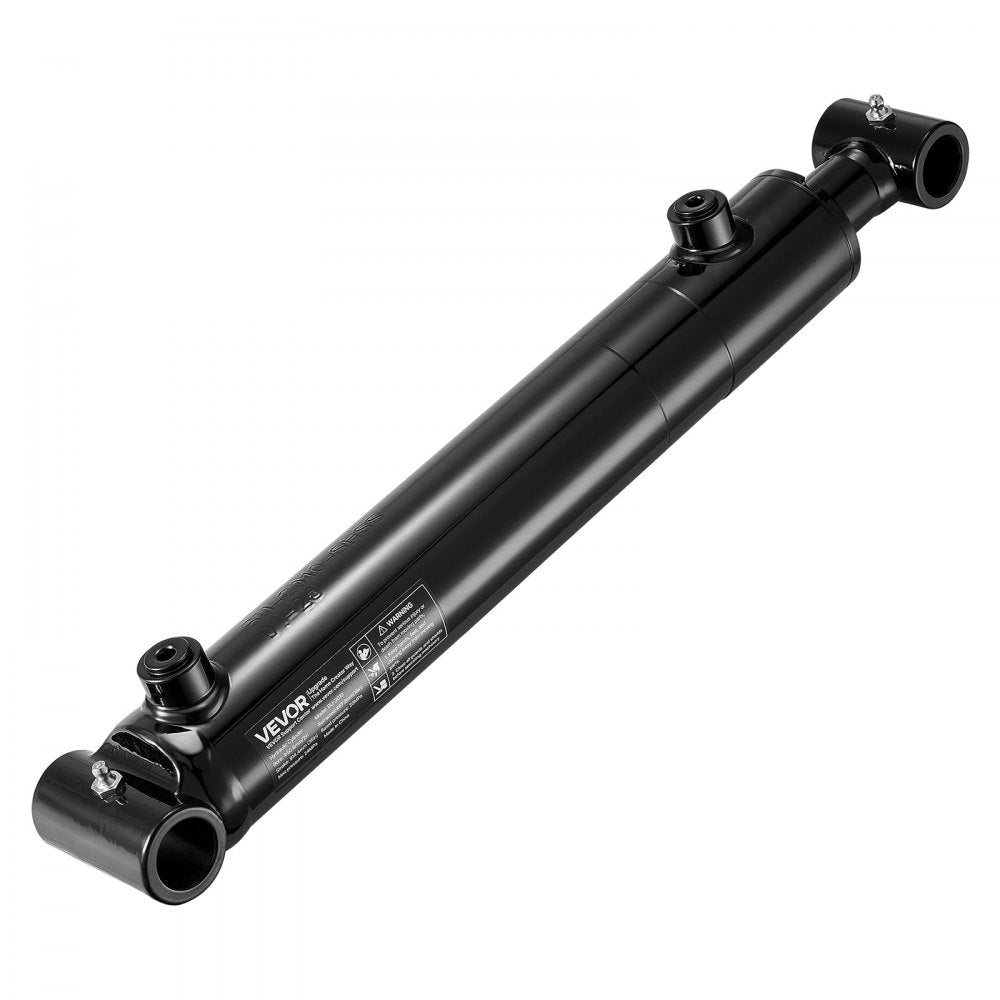

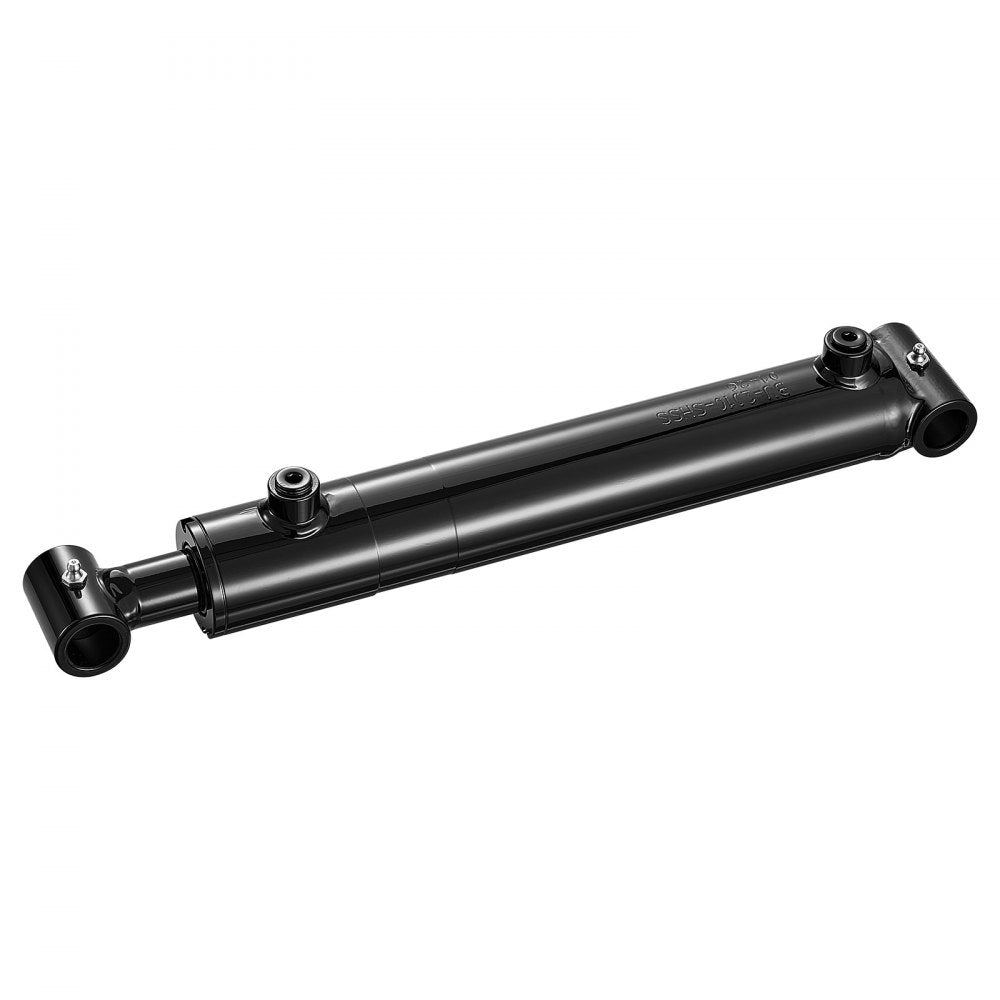

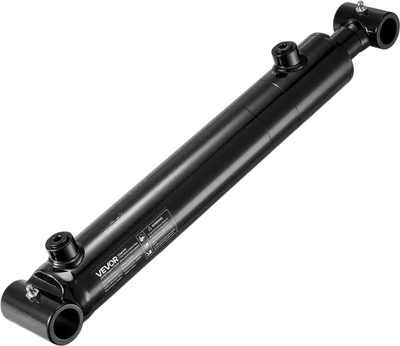

Vevor Hydraulic Cylinder Double Acting 2" Bore x 10" Stroke 3500 PSI Welded Cross Tube New
Manufacturer: Vevor
SKU: CGSZYYYG2INCLIZN9001V0
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$140.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer

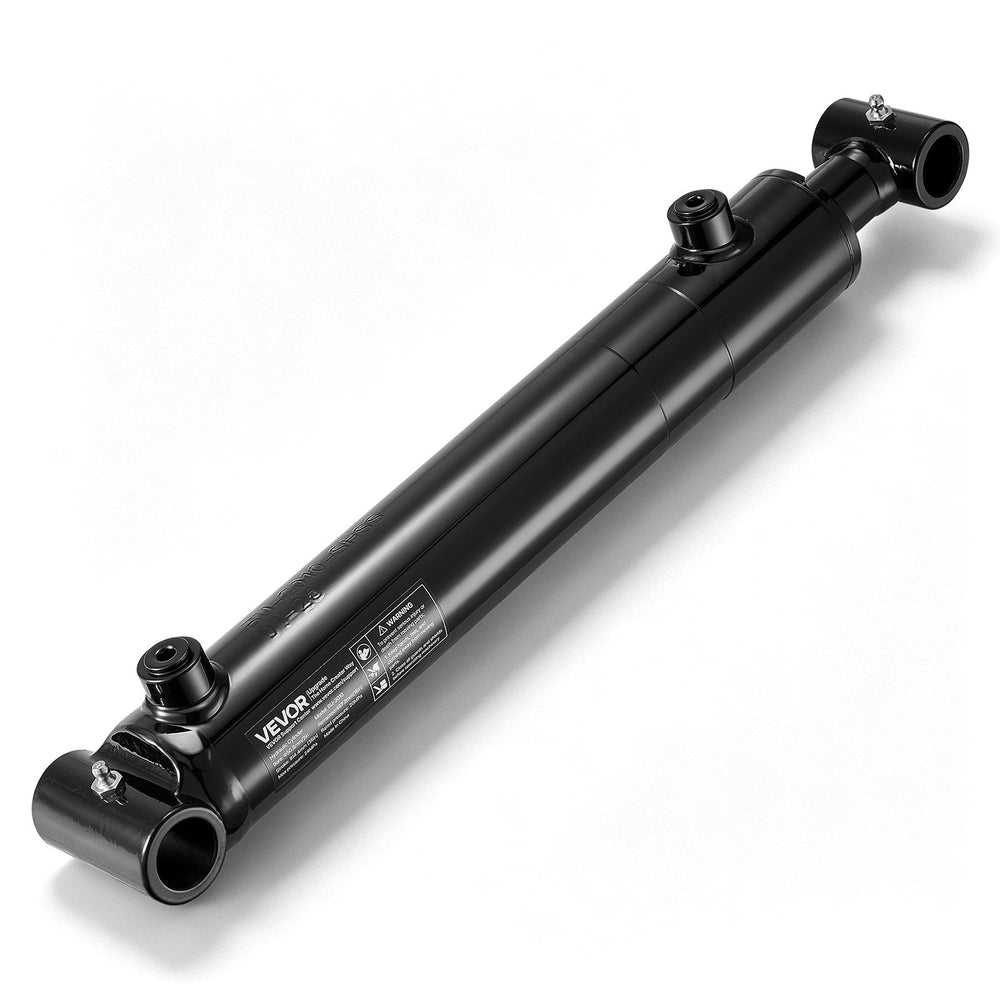

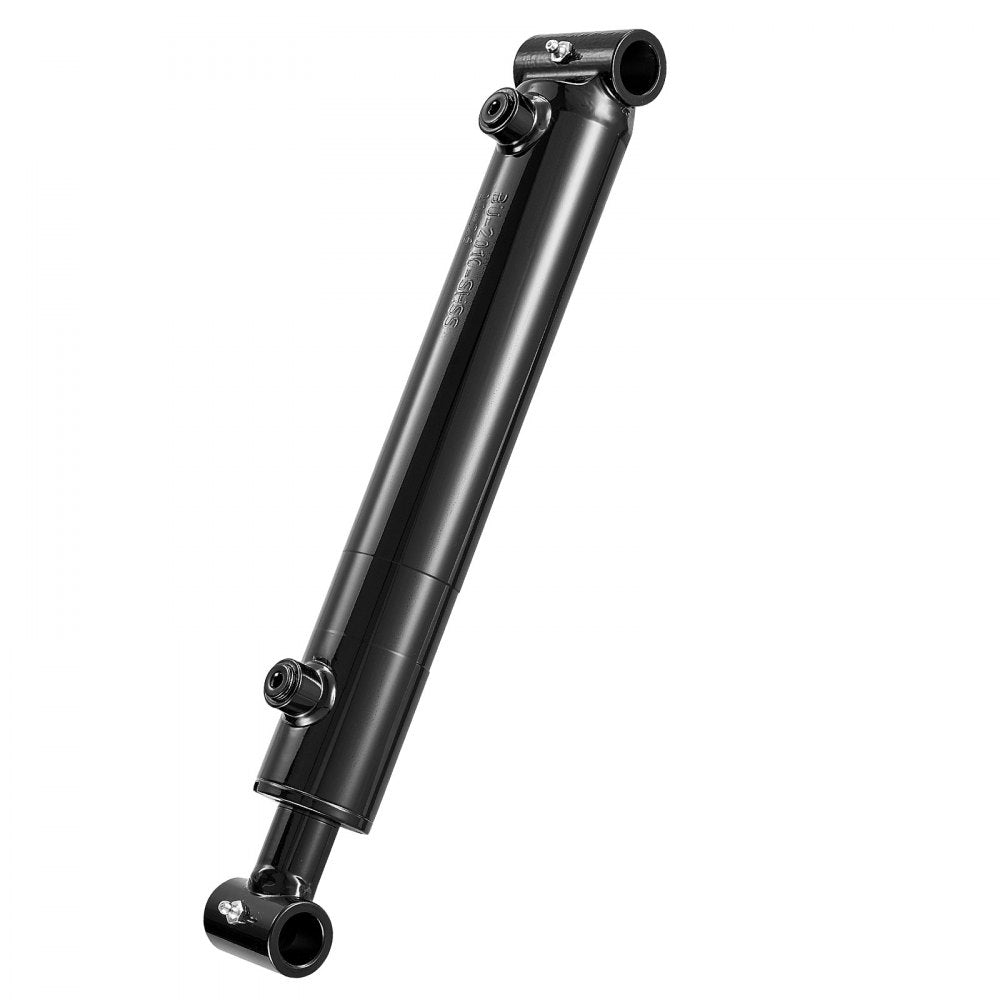

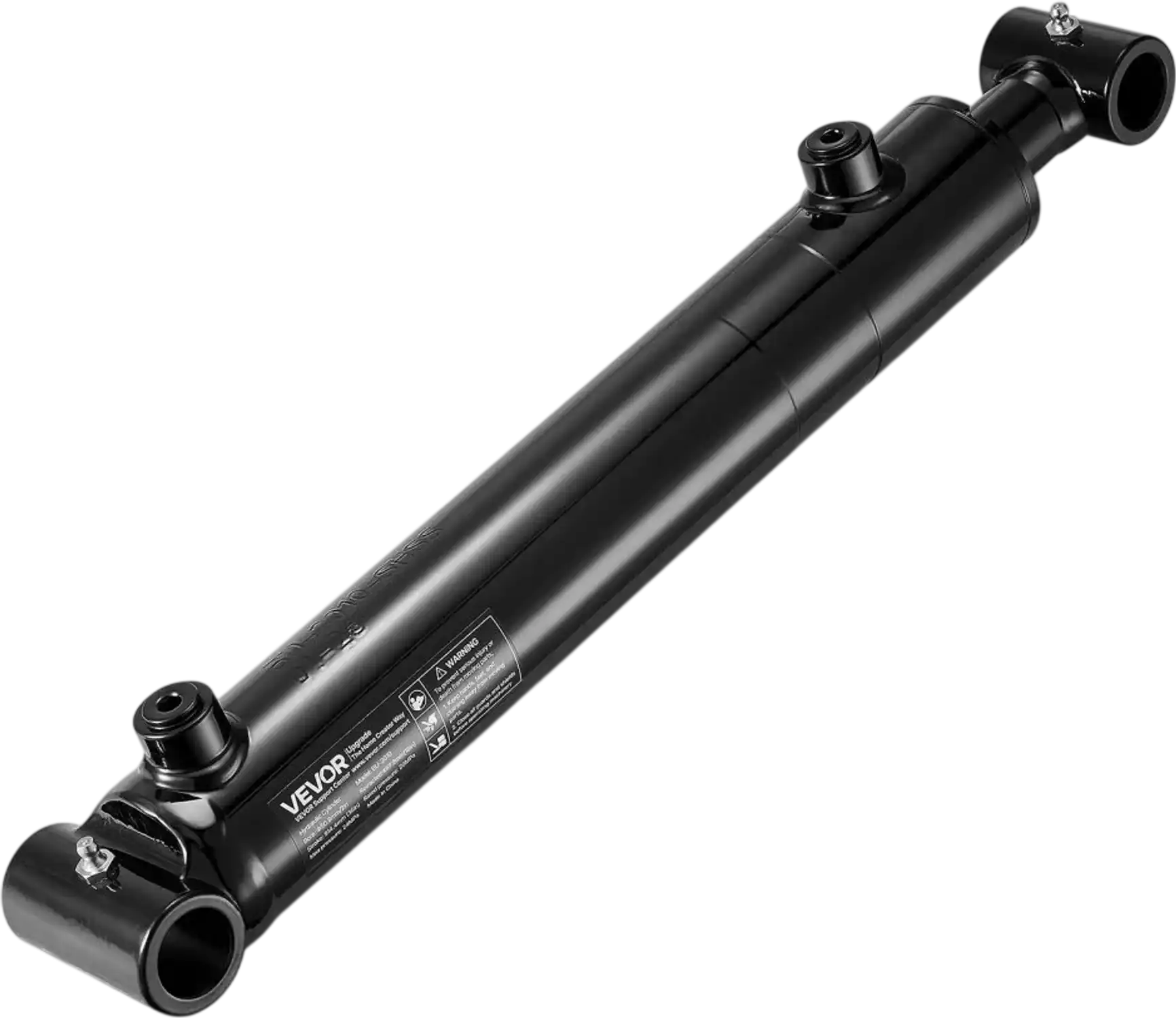

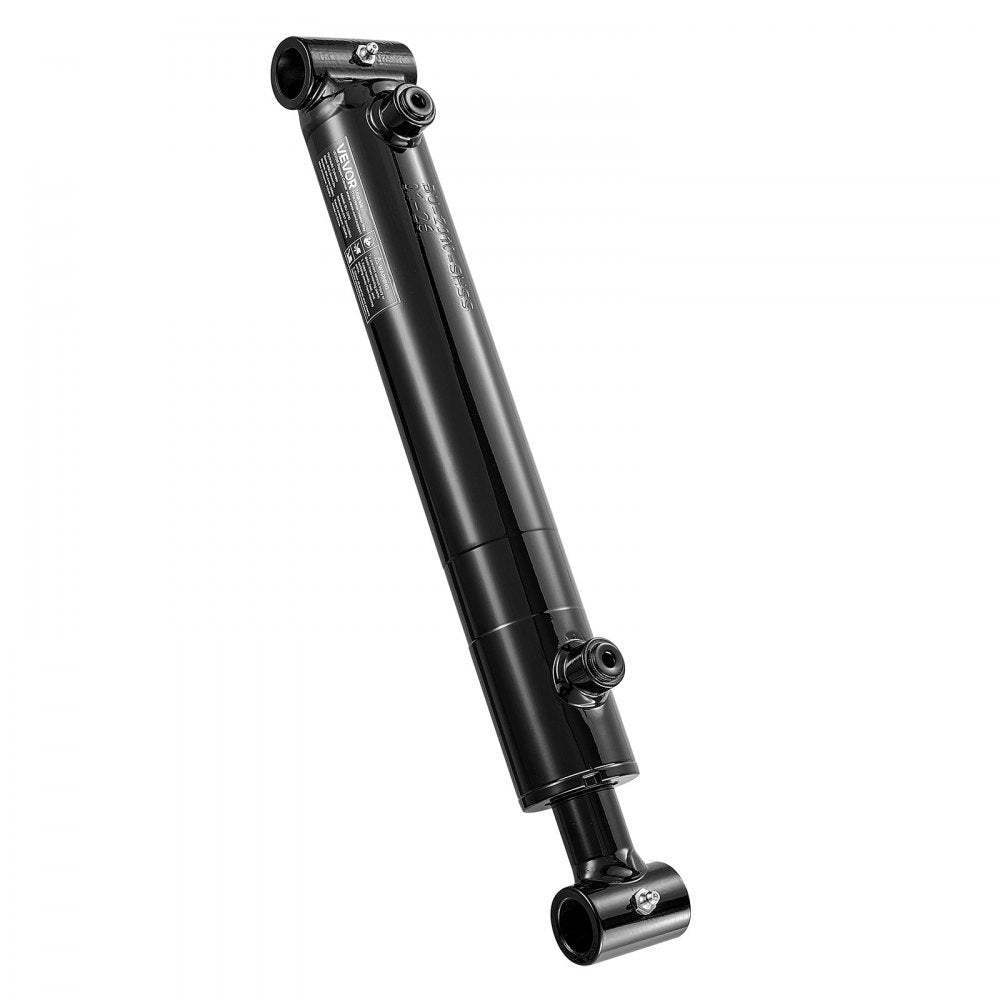

Vevor Hydraulic Cylinder Double Acting 2" Bore x 10" Stroke 3500 PSI Welded Cross Tube New
Product Overview

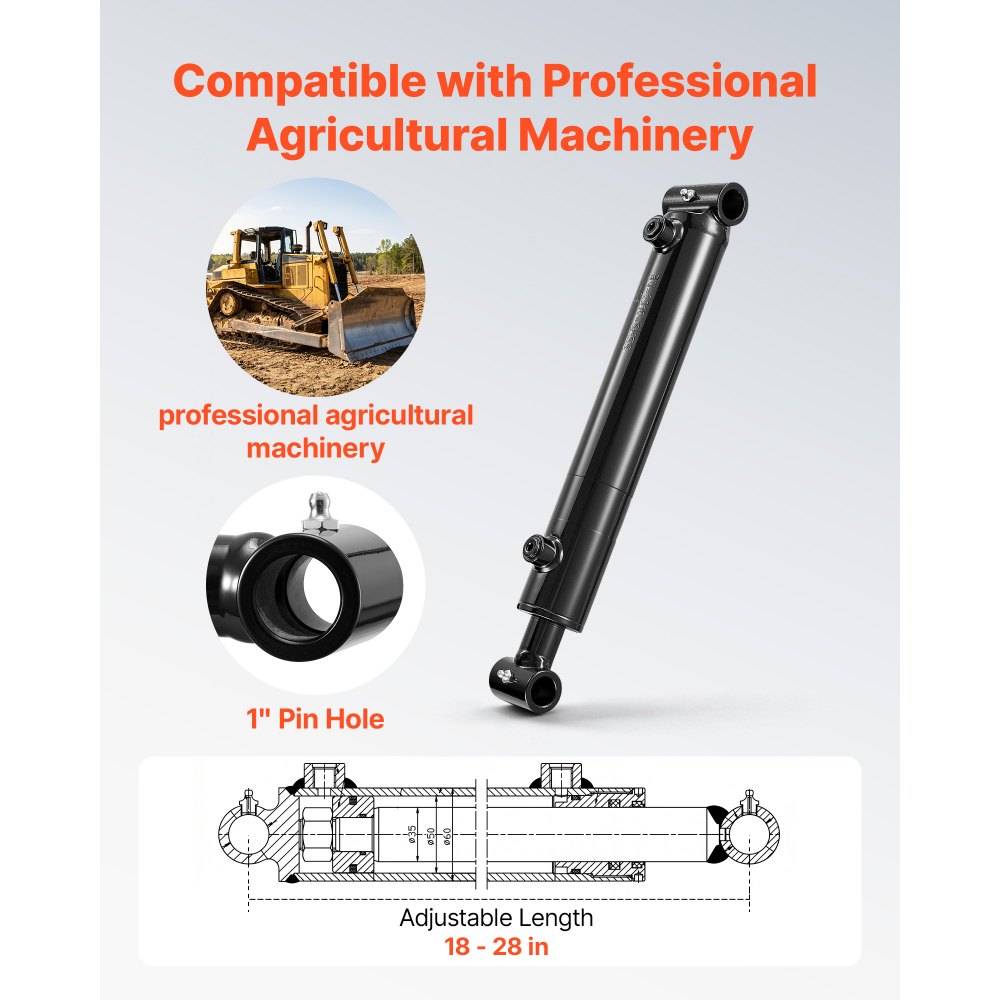

This double-acting hydraulic cylinder is designed to deliver smooth, controlled push-and-pull motion for agricultural machinery and tractors. It features a heavy-duty welded cross tube design with a chrome-plated piston rod and high-performance sealing system for dependable operation. Built for demanding workloads, it supports 2900 PSI rated pressure and up to 3500 PSI max pressure. Its durable steel construction helps resist wear, corrosion, and leakage in tough working conditions.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorize Vevor Dealer
Features

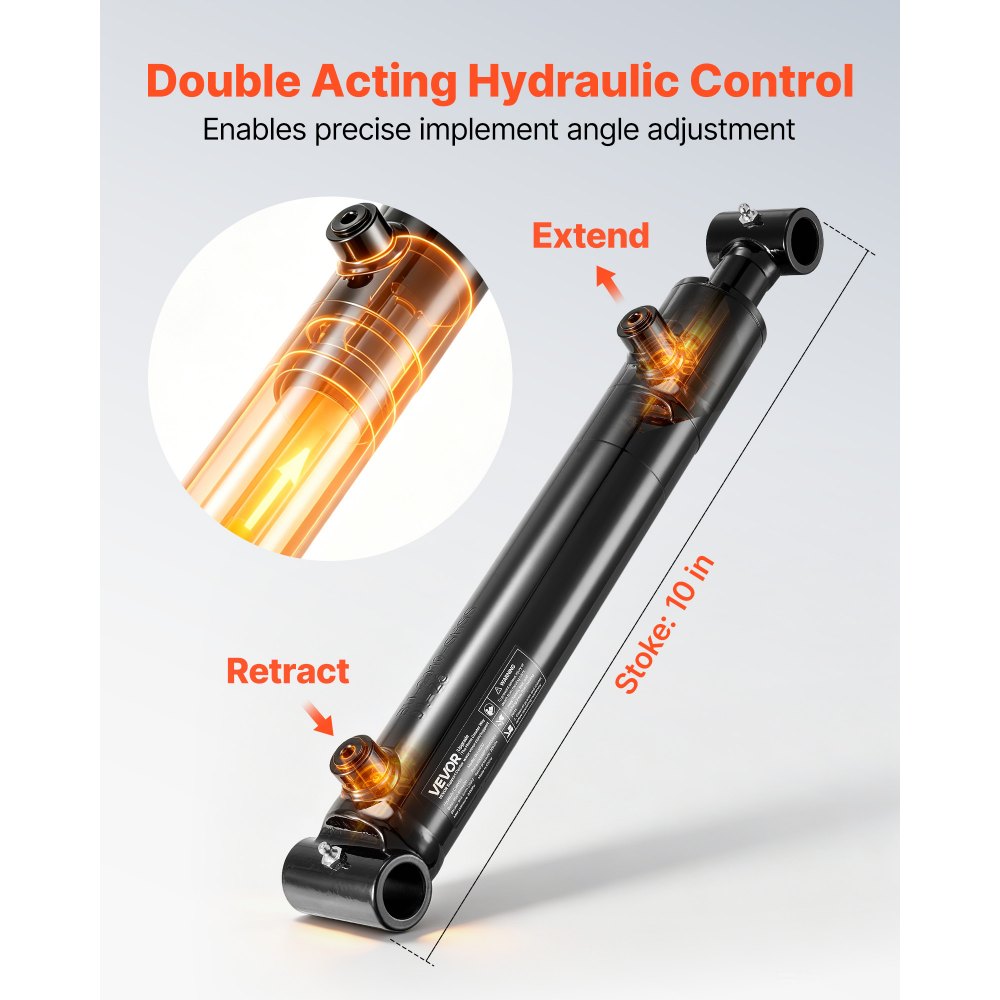

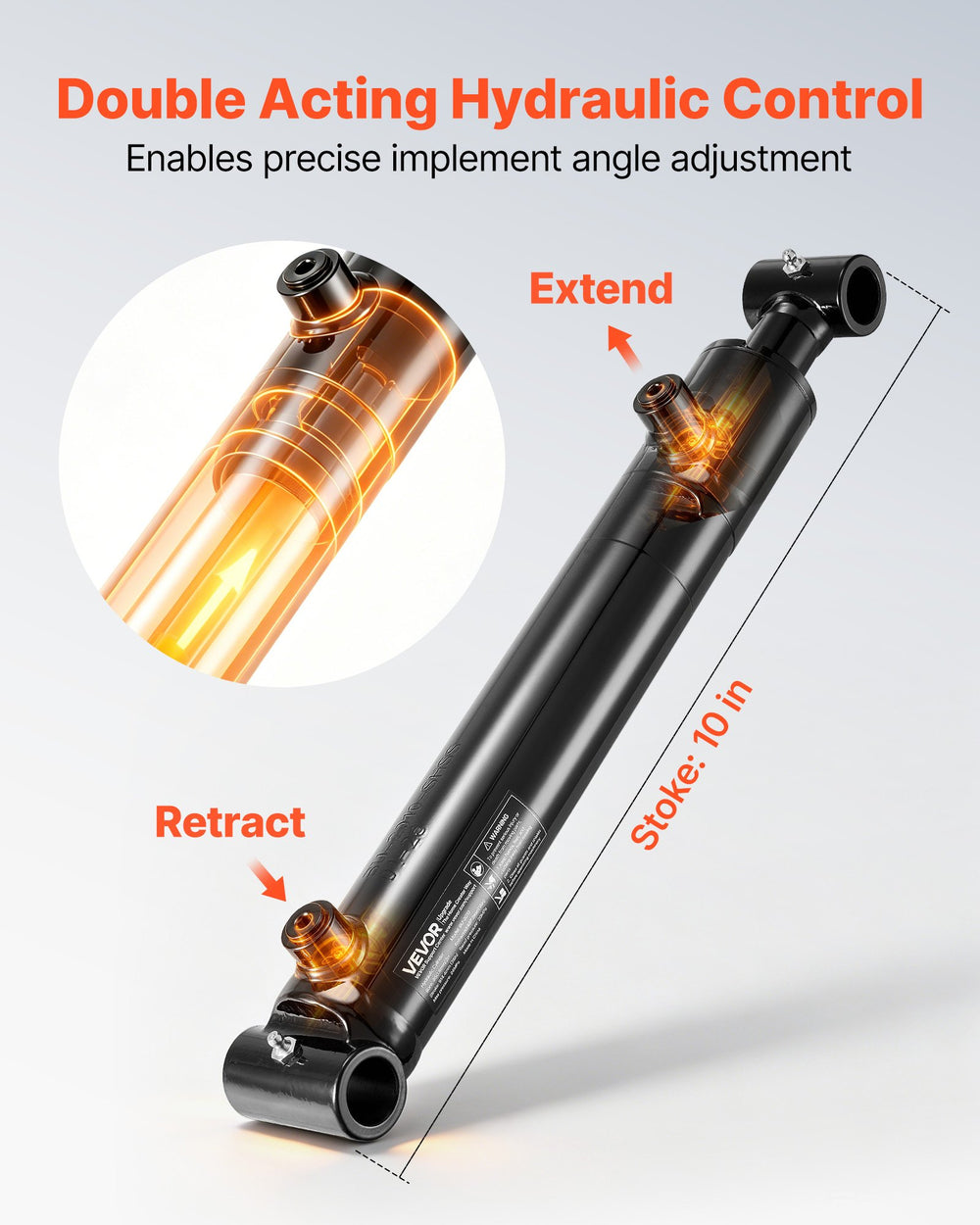

- Efficient Hydraulic Control: Driven by hydraulic pressure on both sides of the piston, this double-acting hydraulic cylinder delivers stable, controlled push-and-pull motion for smoother agricultural machinery operation

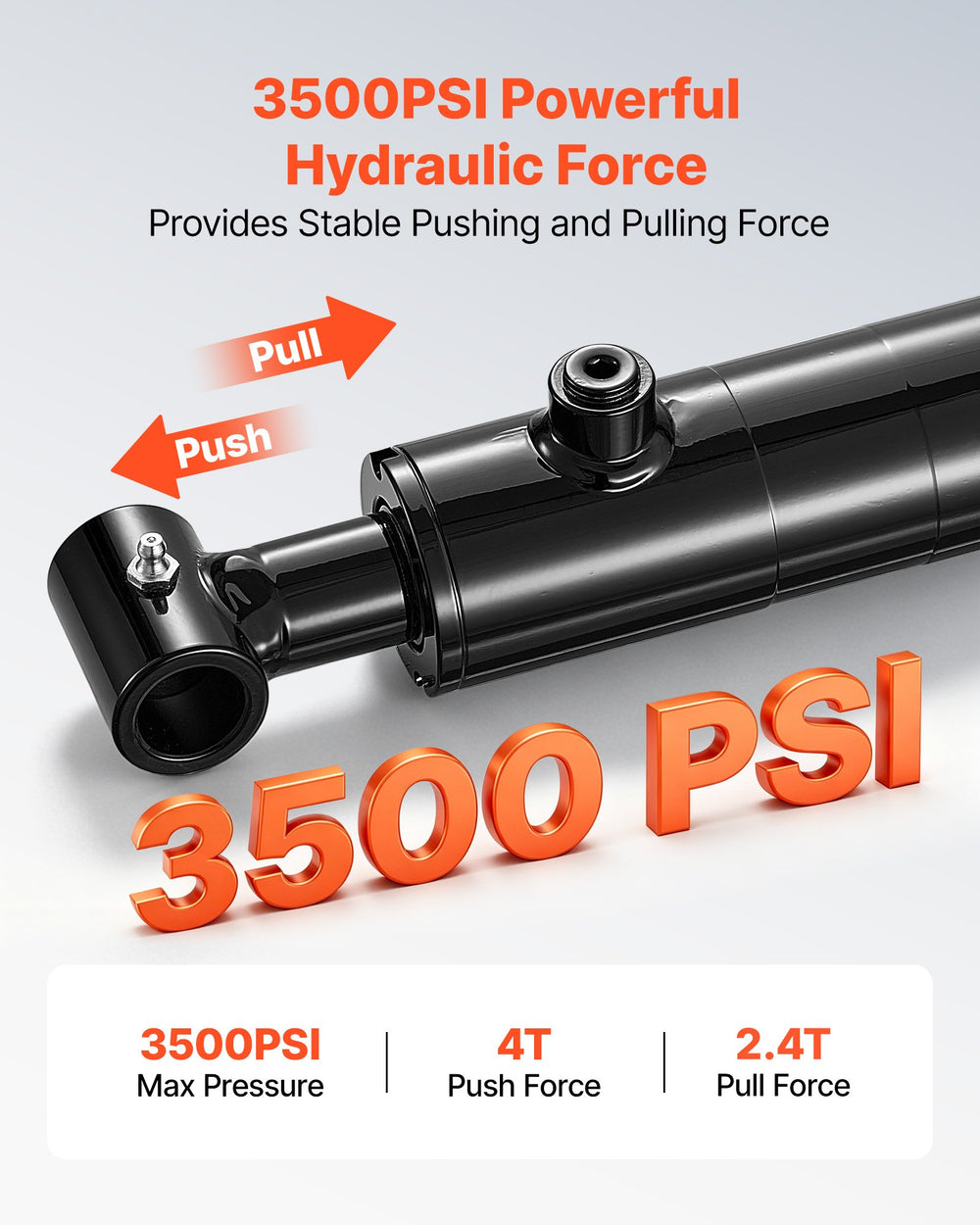

- High-Pressure Hydraulic Power: Built for demanding workloads, this hydraulic cylinder supports 2900 PSI rated pressure and up to 3500 PSI max pressure, delivering steady hydraulic force to improve equipment operating efficiency

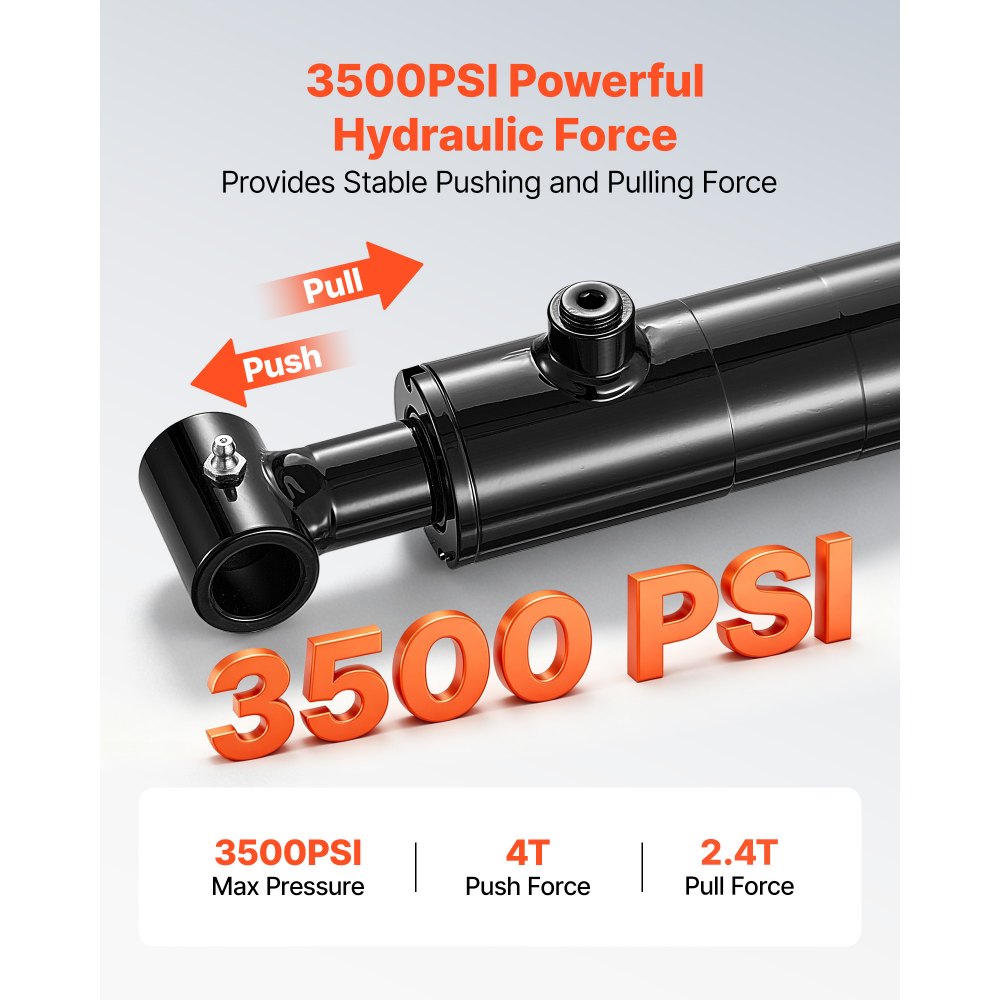

- Powerful Hydraulic Force: This cross tube hydraulic cylinder supports up to 8928 lbs (4 Ton) column load capacity while delivering 4 Ton push force and 2.4 Ton pull force (at 20 MPa), providing reliable power for pushing and pulling applications

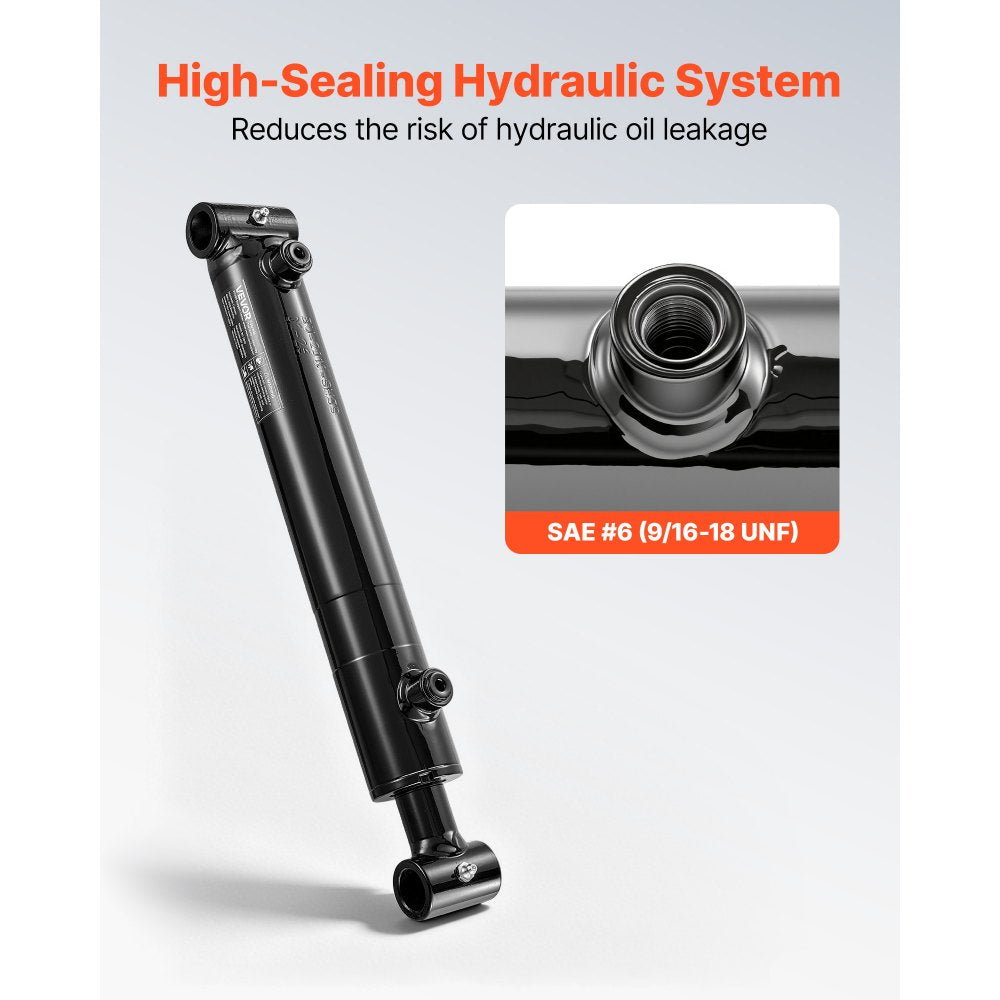

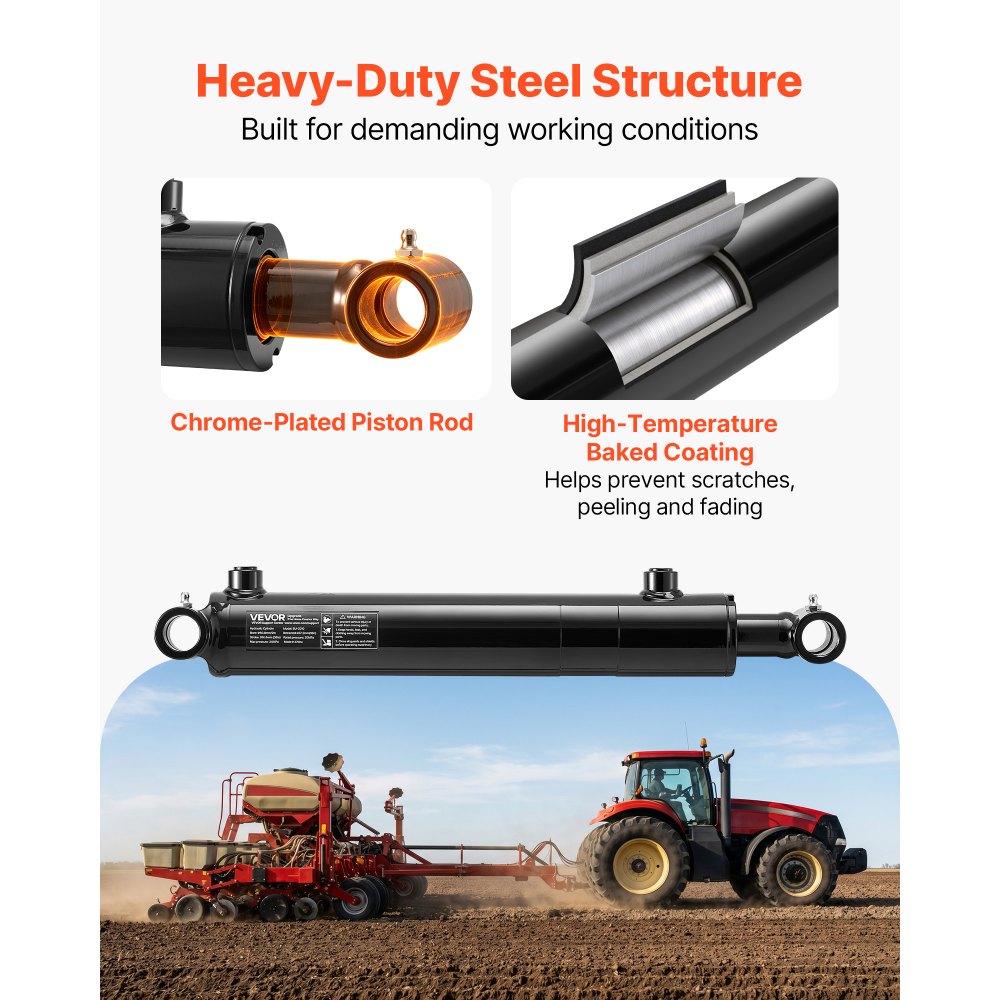

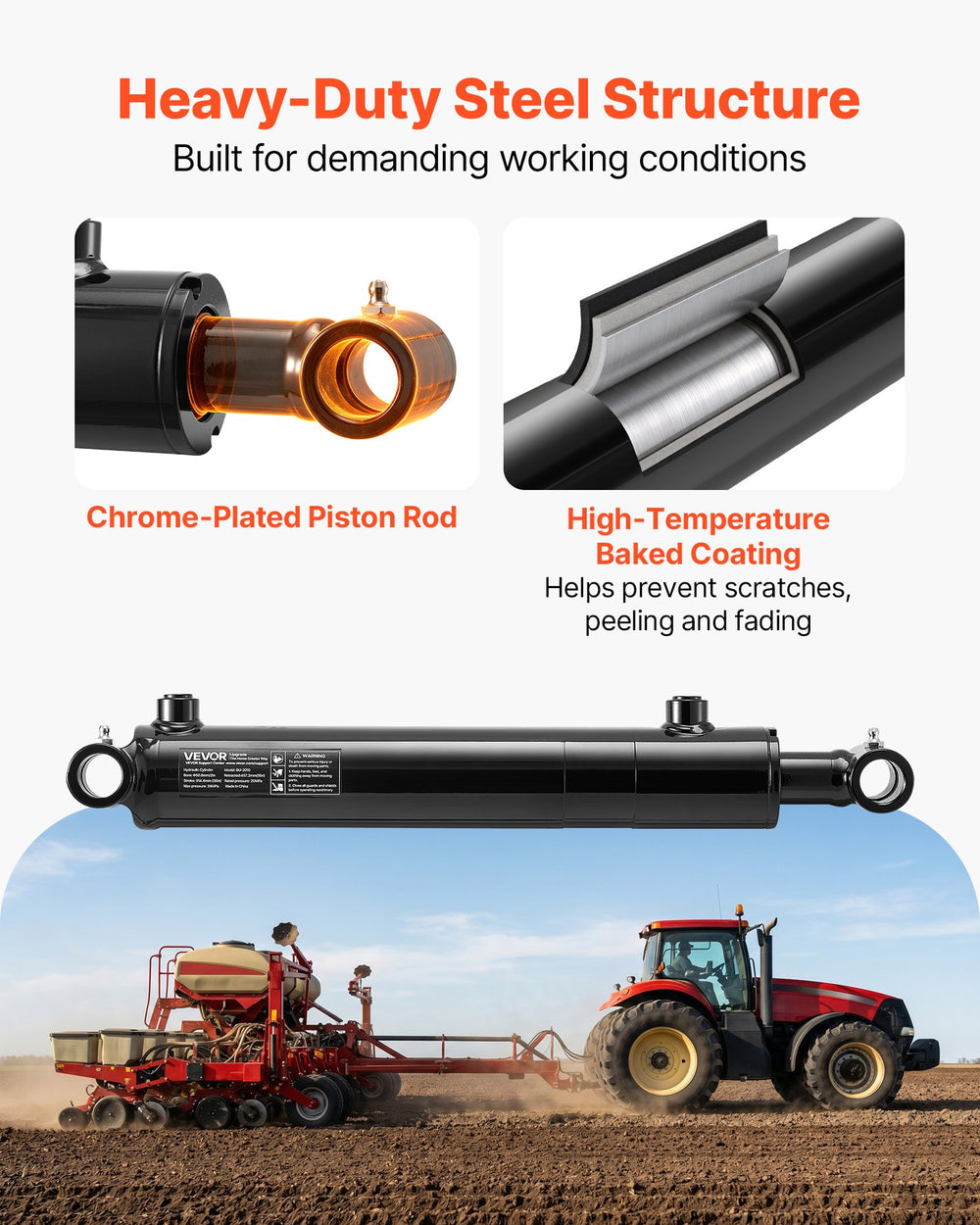

- Heavy-Duty Steel Construction: Built with a high-seal hydraulic structure, chrome-plated piston rod, and high-temperature baked coating to reduce leakage, resist wear and corrosion, and ensure stable performance in demanding work conditions

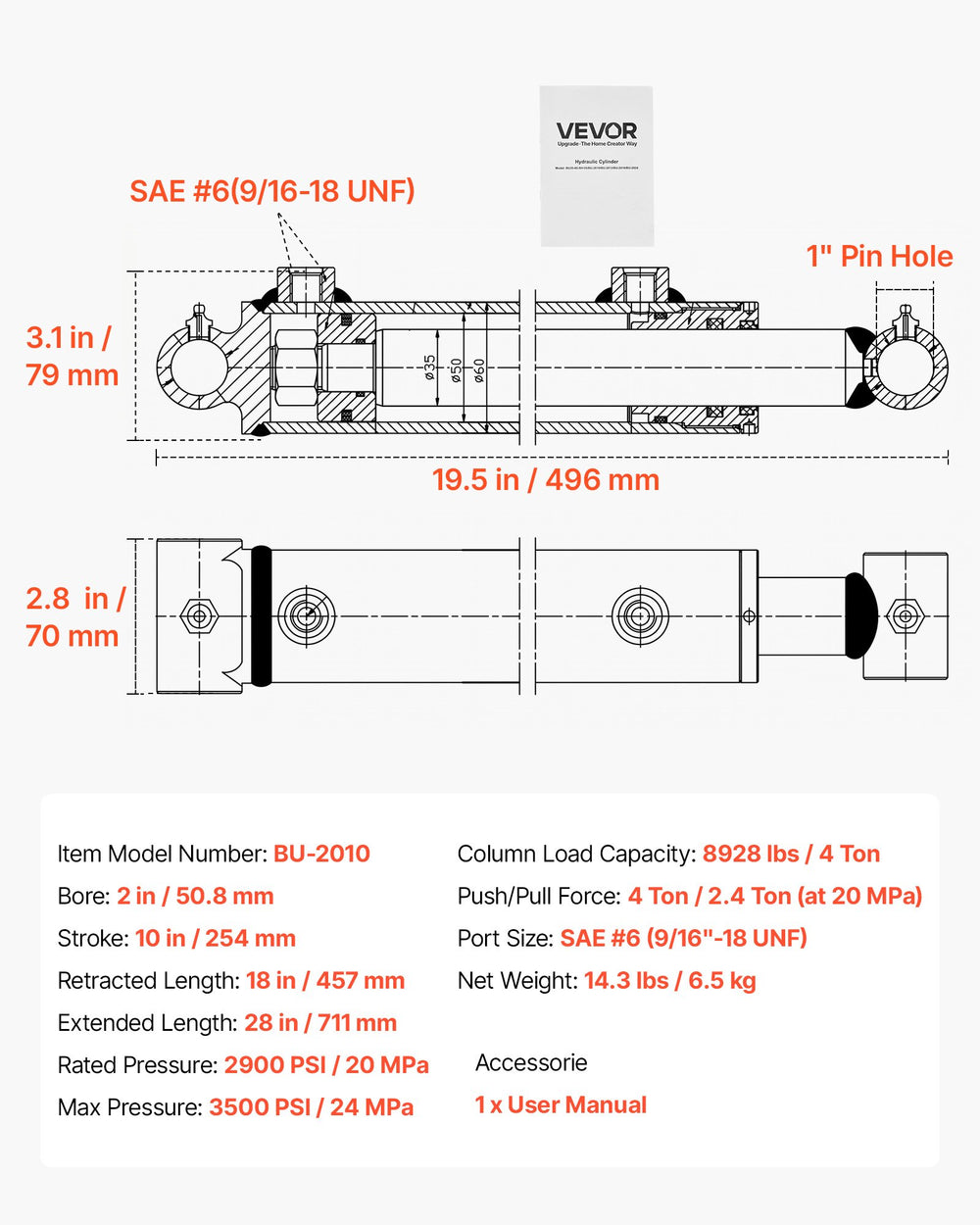

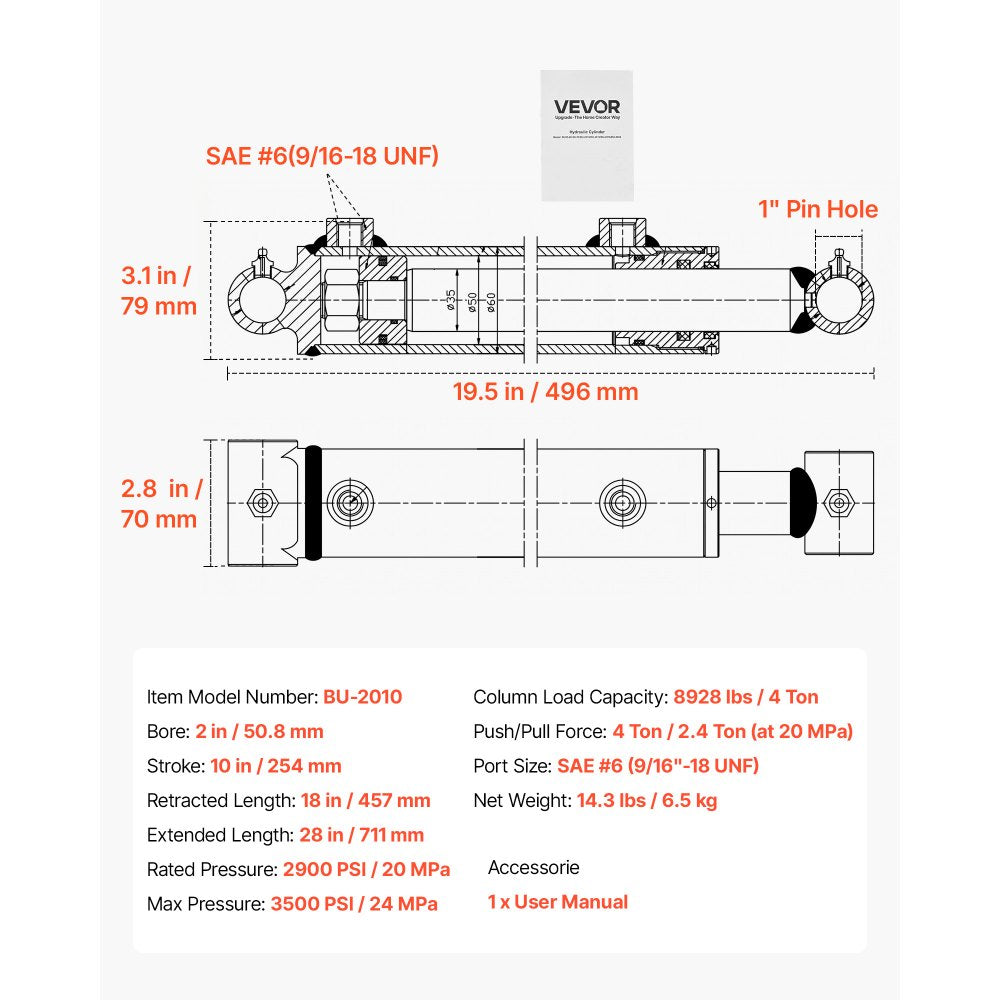

Specifications
| Item Model Number | BU-2010 |
| Bore | 2 in / 50.8 mm |
| Stroke | 10 in / 254 mm |
| Retracted Length | 18 in / 457 mm |
| Extended Length | 28 in / 711 mm |
| Rated Pressure | 2900 PSI / 20 MPa |
| Max Pressure | 3500 PSI / 24 MPa |
| Column Load Capacity | 8928 lbs / 4 Ton |
| Push/Pull Force | 4 Ton / 2.4 Ton at 20 MPa |

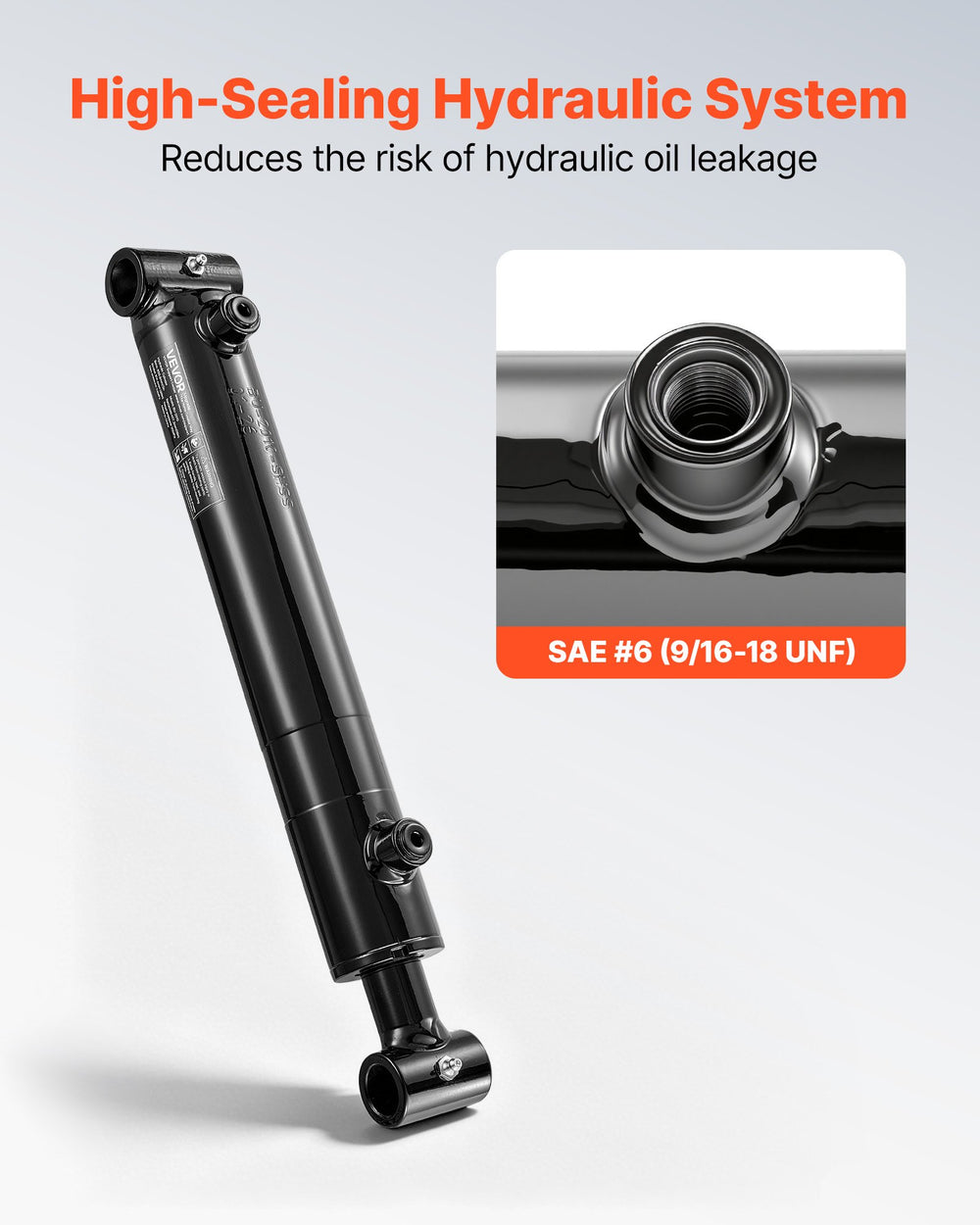

| Port Size | SAE #6 (9/16"-18 UNF) |

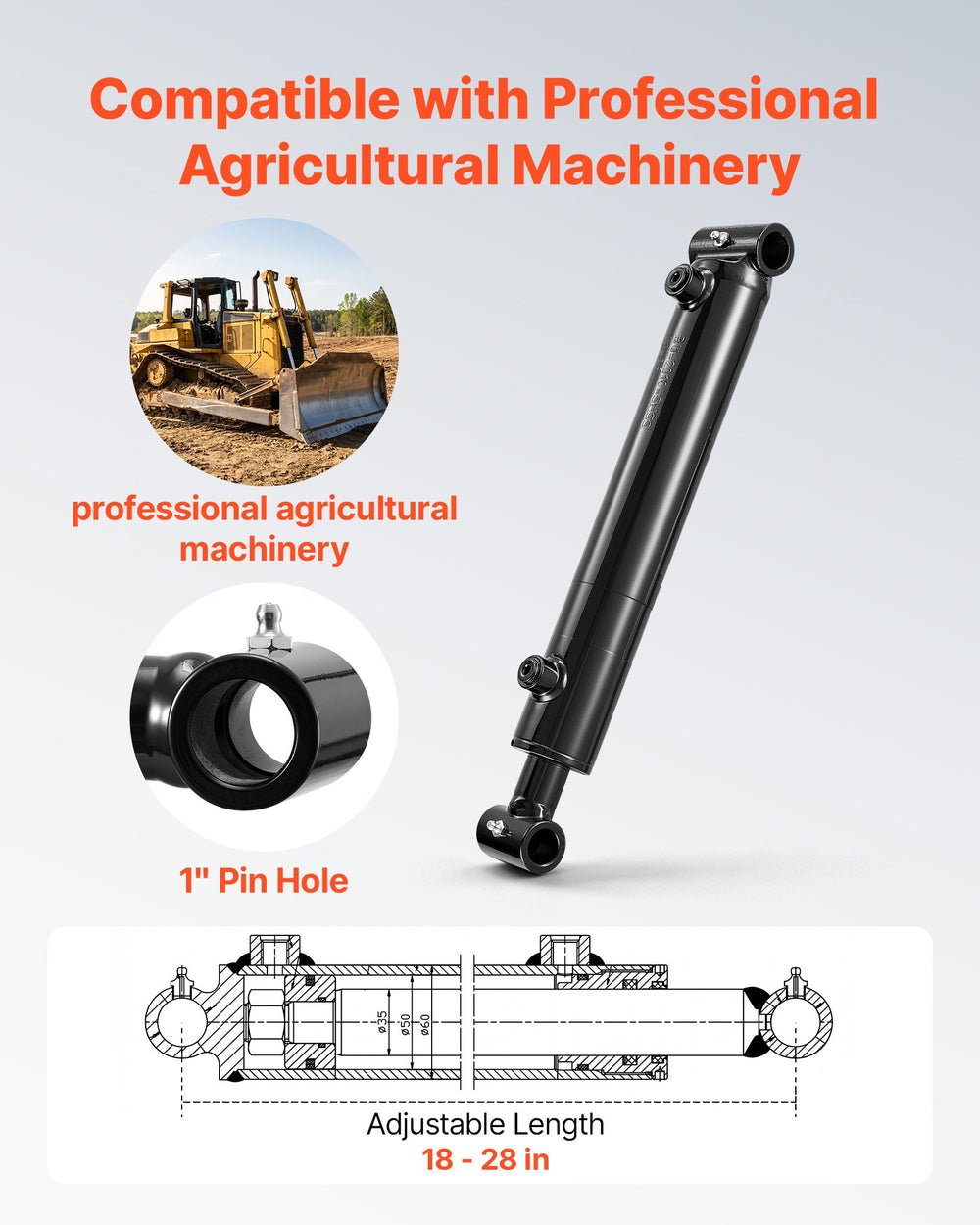

| Pin Hole Diameter | 1 in |
| Net Weight | 14.3 lbs / 6.5 kg |
| Dimensions | 28 in extended length; 18 in retracted length |
Warranty
This item comes with a 1 year factory warranty.
