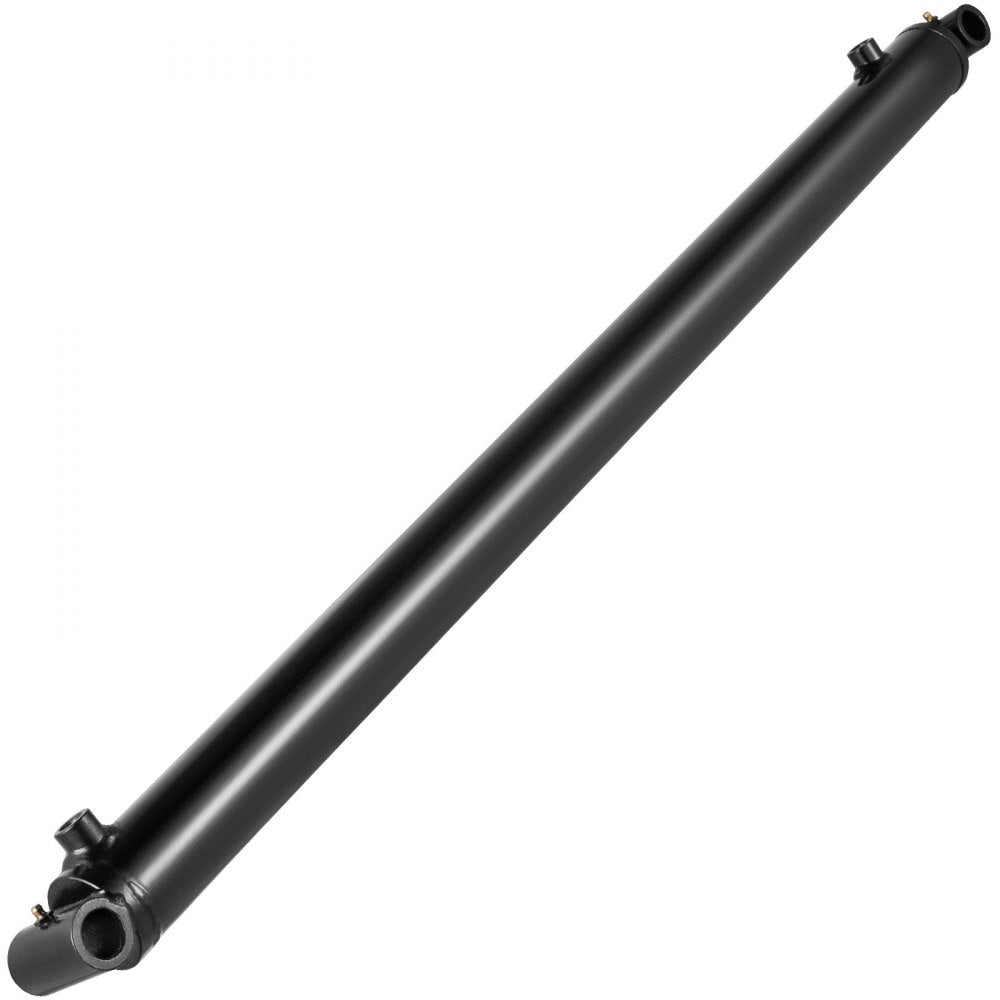

Vevor Hydraulic Cylinder 2" Bore 36" Stroke Double Acting Cross Tube New
Product Overview

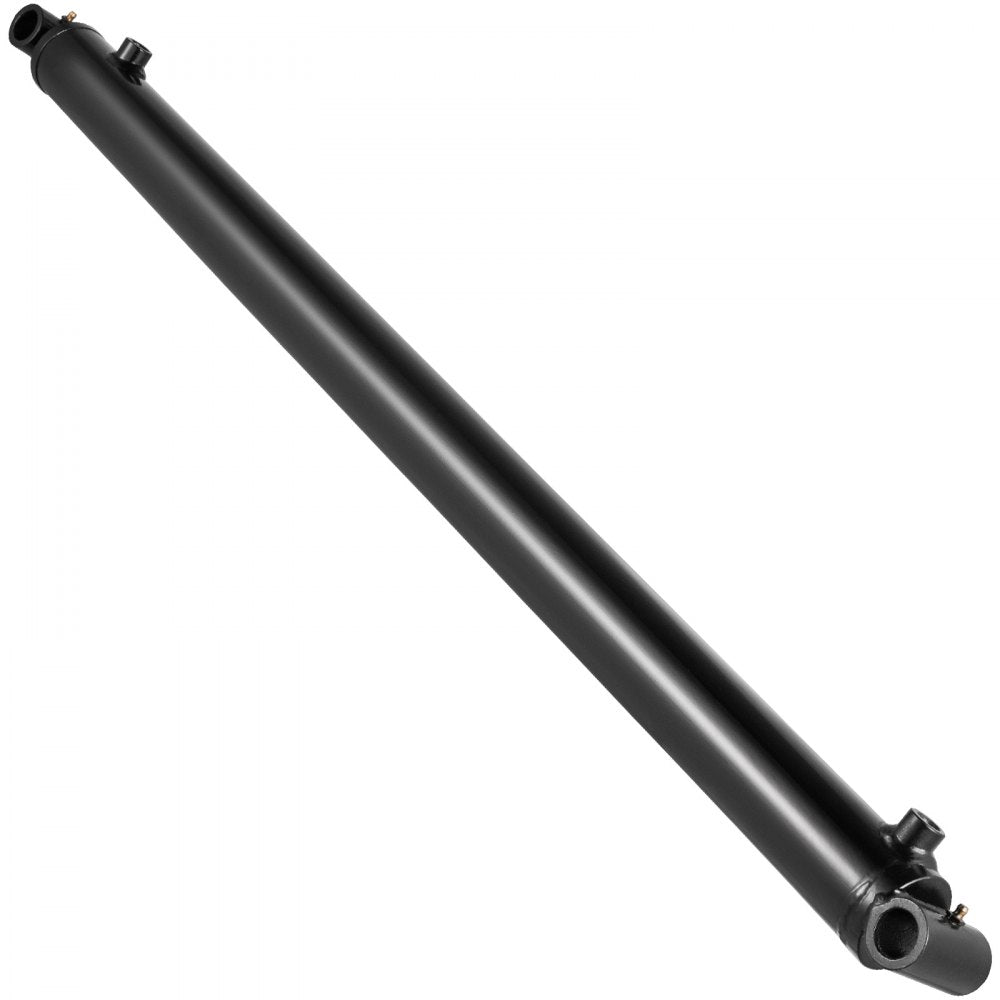

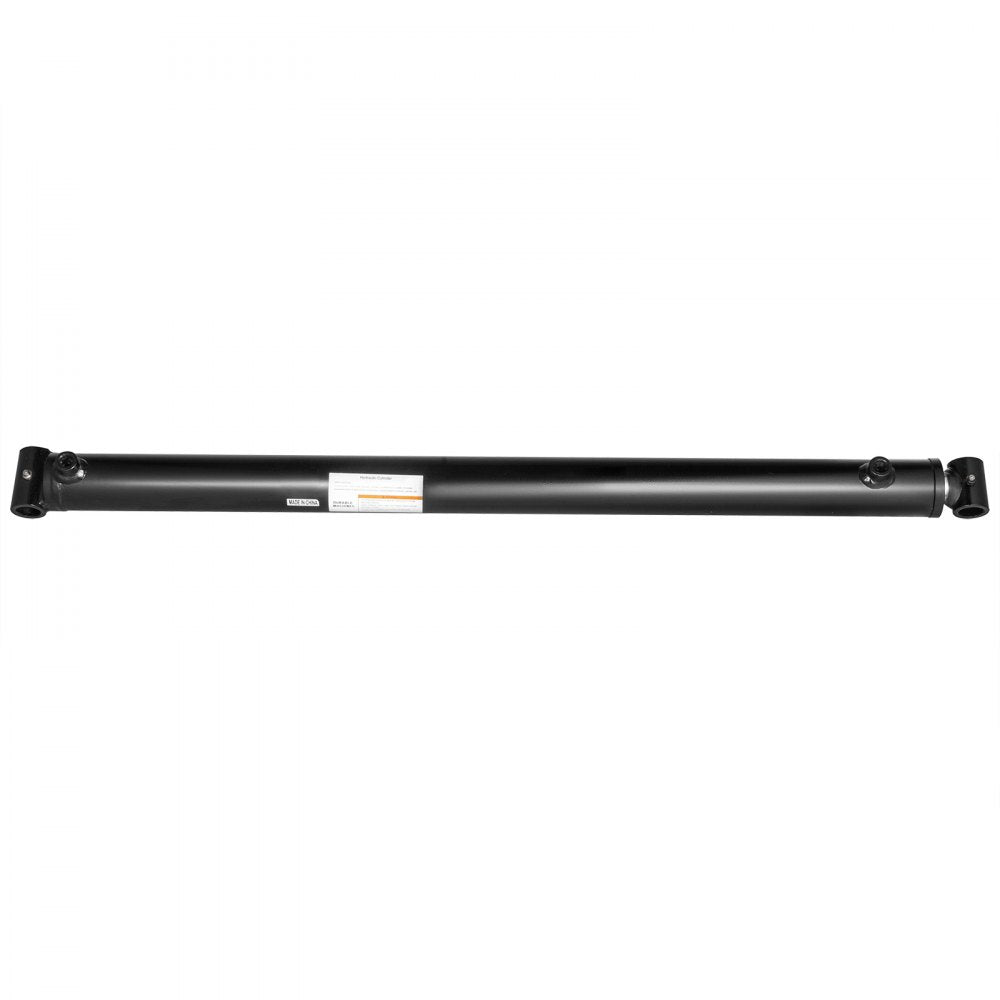

The Vevor hydraulic cylinder is a double-acting welded cross tube cylinder built for heavy-duty lifting and mobile equipment applications. It features a 2" bore, 36" stroke, SAE6 port size, and a maximum load-bearing capacity of 4100 lbs. Its rigid welded construction and quality seal components are designed for reliable operation in demanding conditions. The cylinder is maintainable and repairable, making it a practical choice for construction, agriculture, transportation, recycling, and material handling use.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

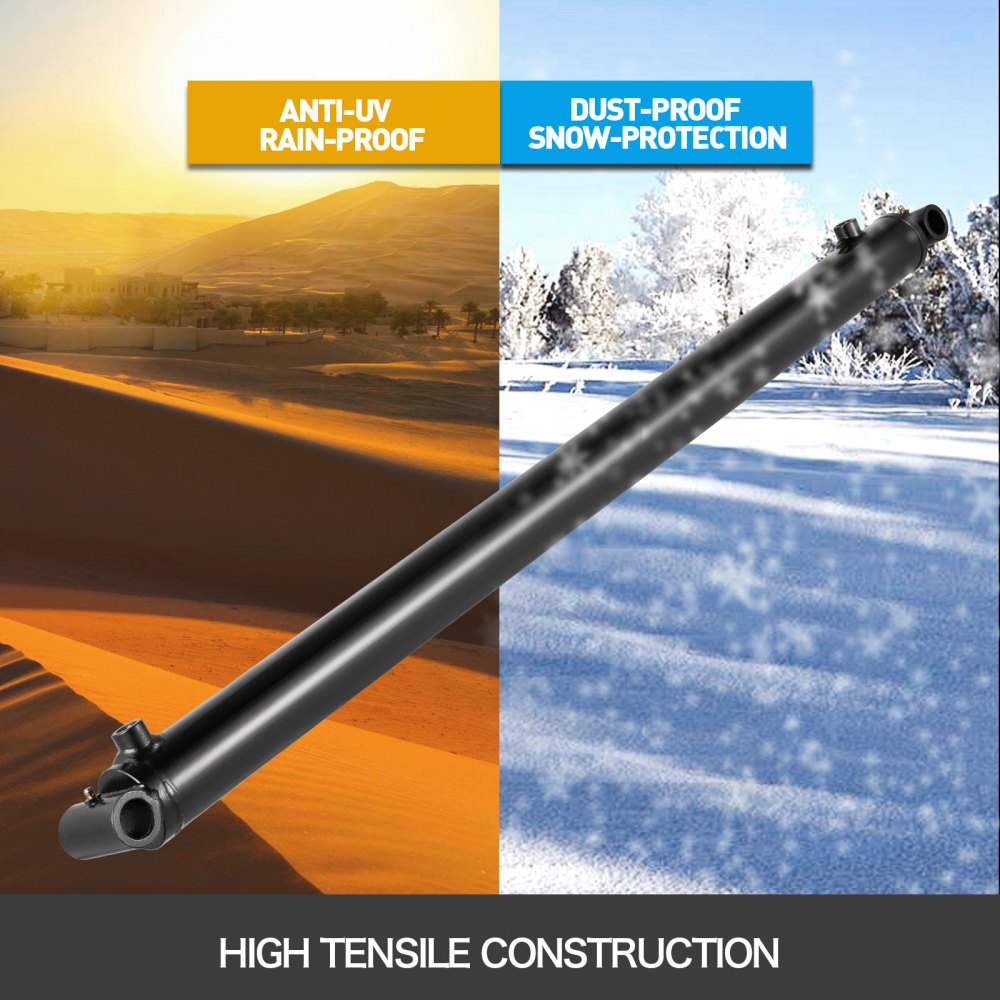

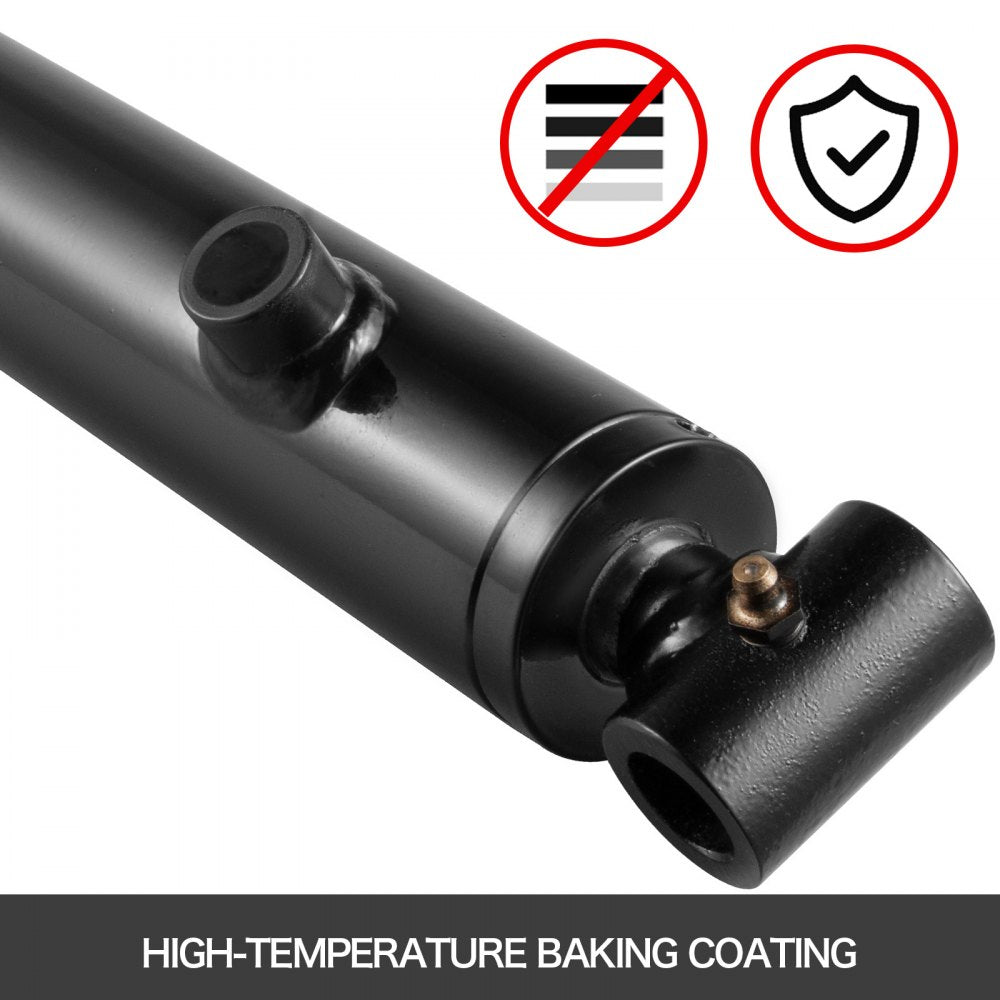

- RIGID WELDED CONSTRUCTION: - Rigid welded construction, high tensile welded steel end mounts, threaded gland and top quality seal components allow cylinders to work in harsh conditions.

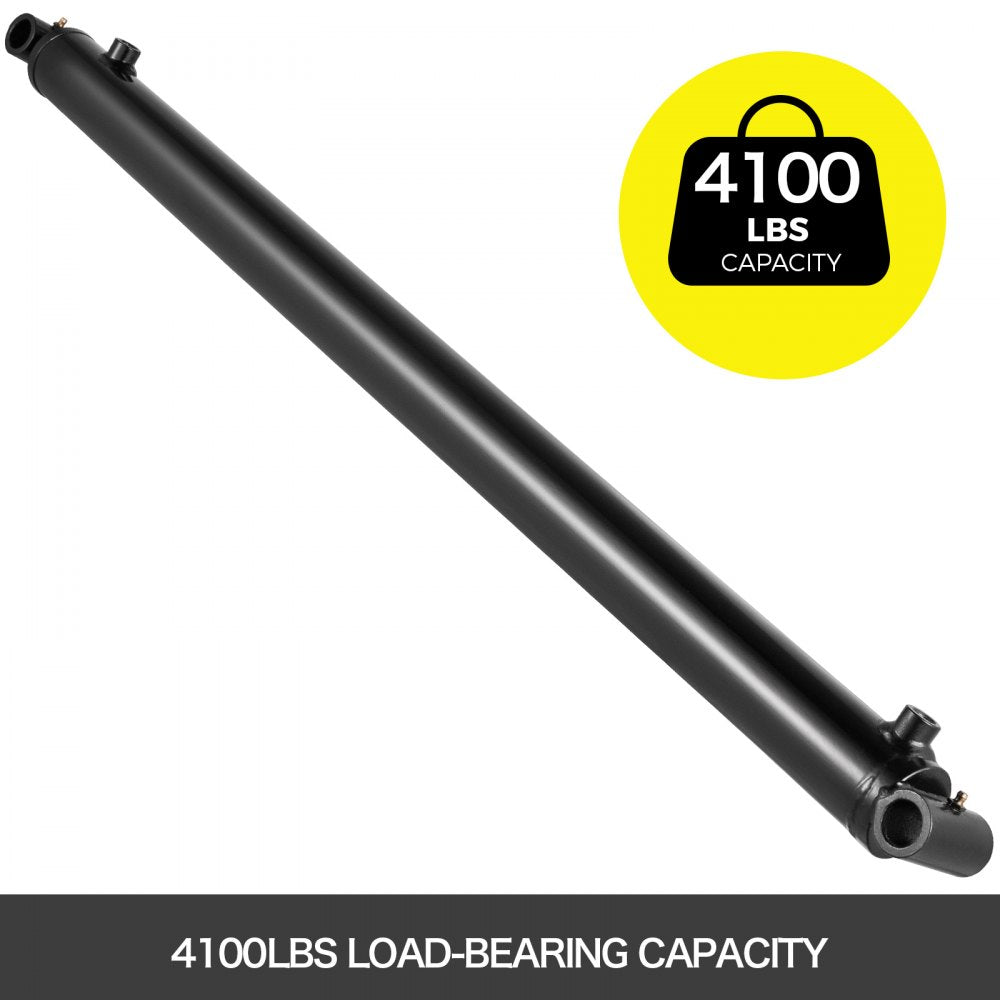

- MAX LOAD-BEARING CAPACITY: - This hydraulic cylinder bore is 50mm/2inch, the longest Length is 2032mm/80inch, and the max load-bearing capacity is 4100 LBS.
- STABLE SEALING PERFORMANCE: - All cylinders are fully and easily maintainable and repairable. Each cylinder is pressure tested at 150% of its working pressure before packing and shipping.

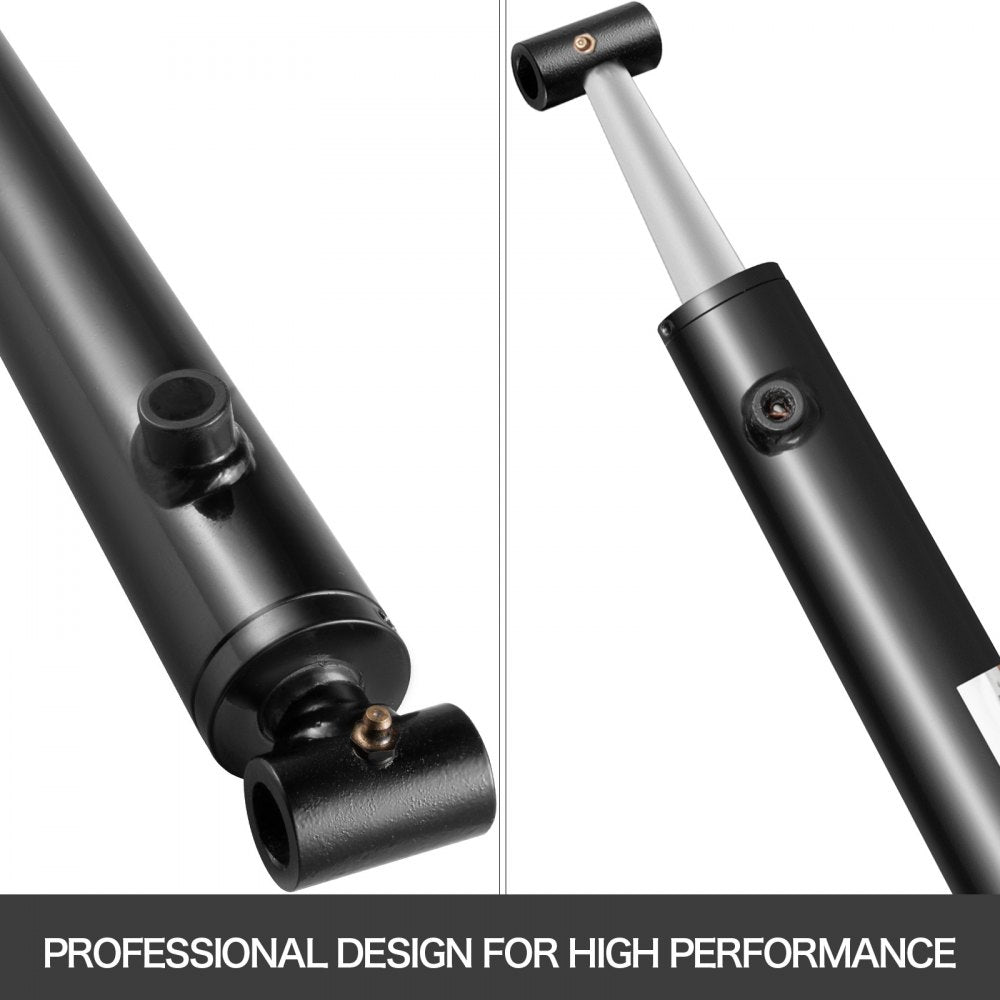

- CONVENIENT TO ASSEMBLE: - All the components of this hydraulic cylinder are fully tested, well-designed, very sturdy and compact, easily to install and to disassemble.

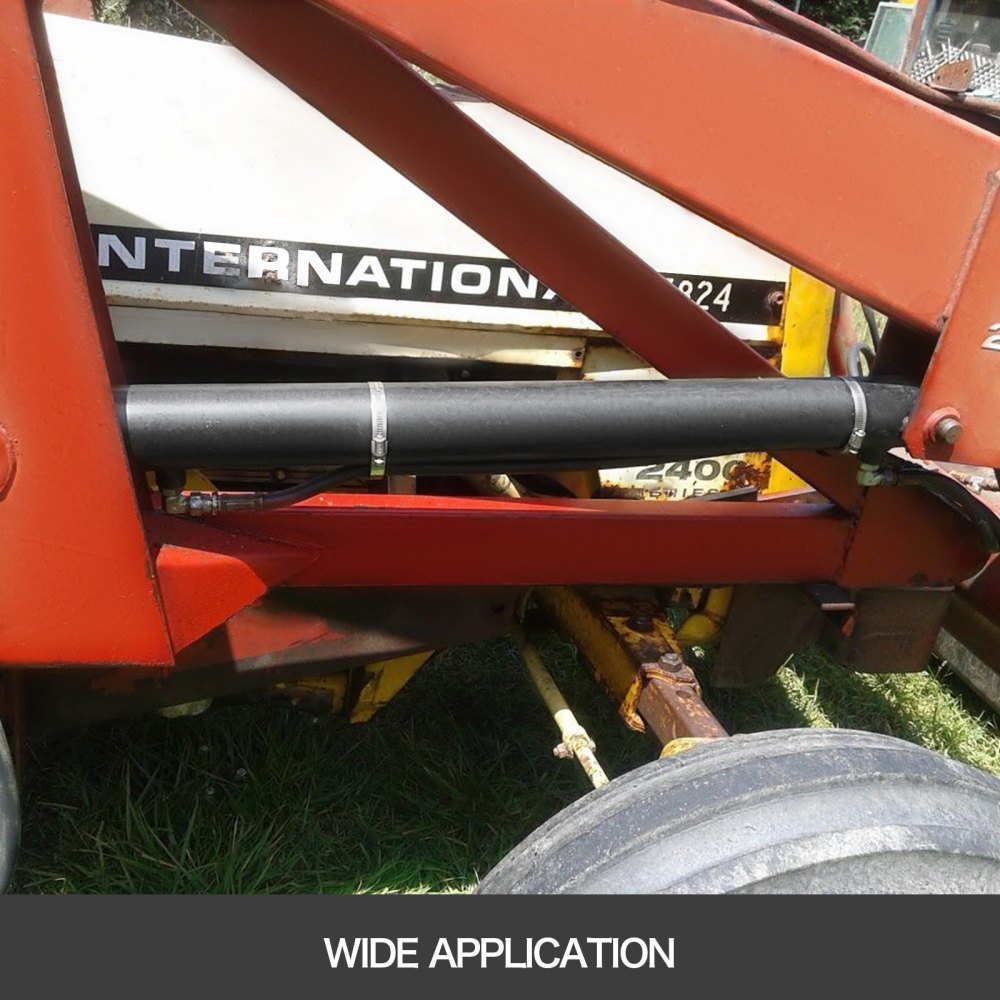

- WIDE APPLICATION: - The product created for use in various types of mobile equipment such as waste, recycling, construction, transportation, agriculture, material handling, etc.

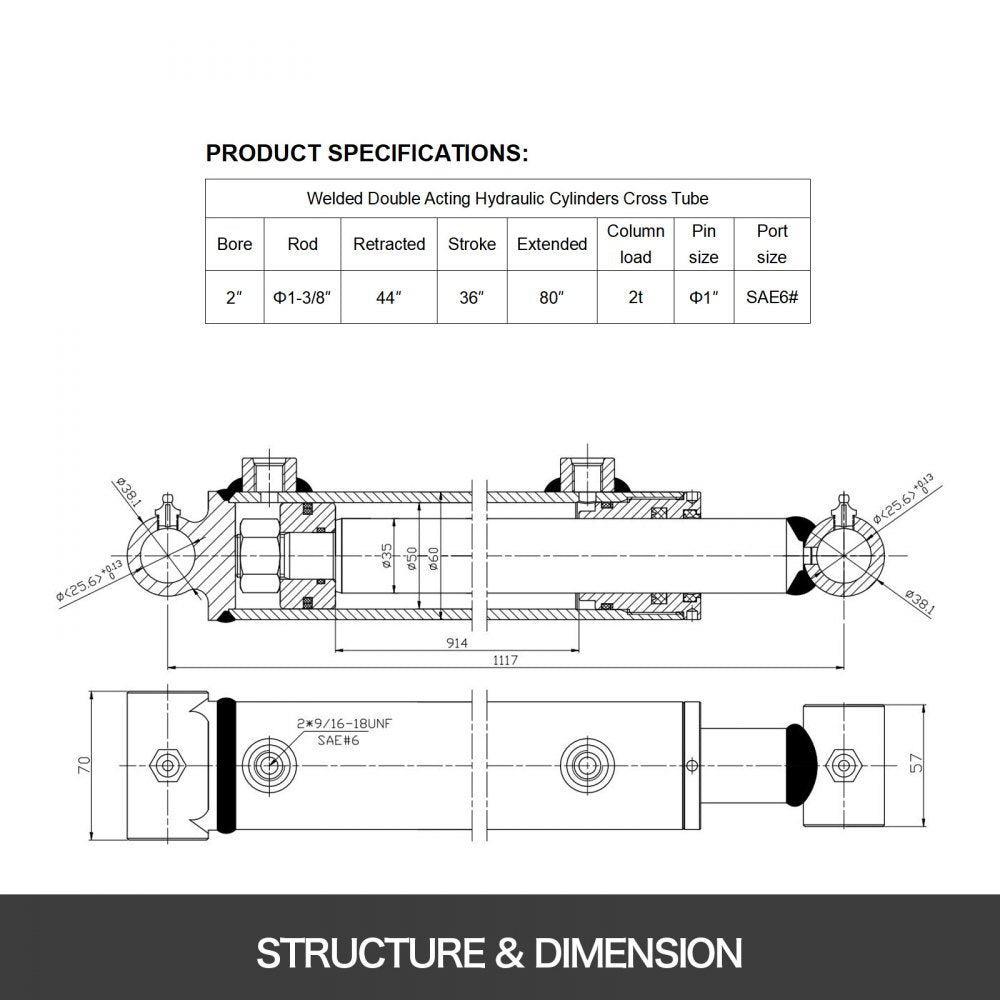

Specifications
| Cylinder Bore | 50mm / 2" |
| Stroke | 914mm / 36" |
| Pin | 26mm / 1.0" |
| Diameter Of Piston Rod | 35mm / 1.3" |

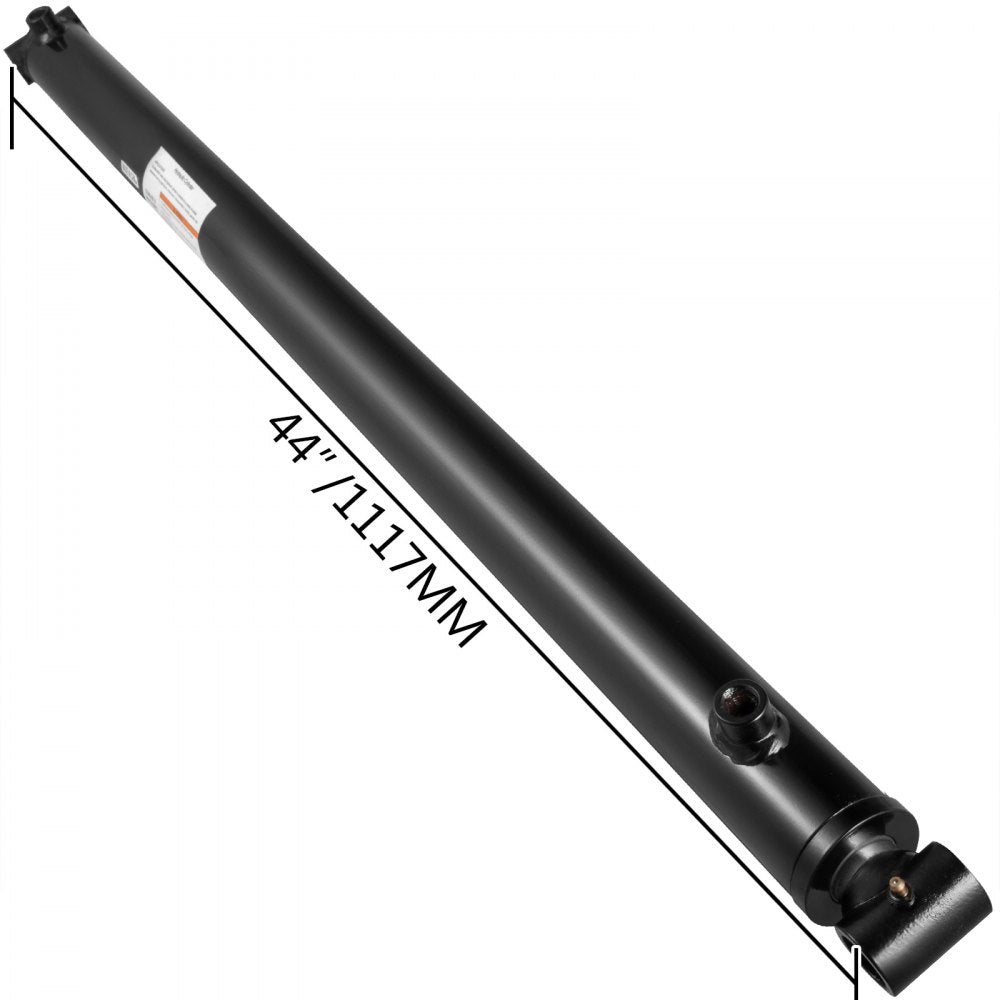

| Minimum Length | 1117mm / 43.9" |
| Max Length | 2032mm / 80.0" |
| Max Load-Bearing Capacity | 4100 lbs |
| Port Size | SAE6 |
| Work Pressure | 3500 PSI |
| Weight | 33 lbs / 15 kg |
| Packing Size | 1160mm x 85mm x 85mm / 45.6" x 3.3" x 3.3" |

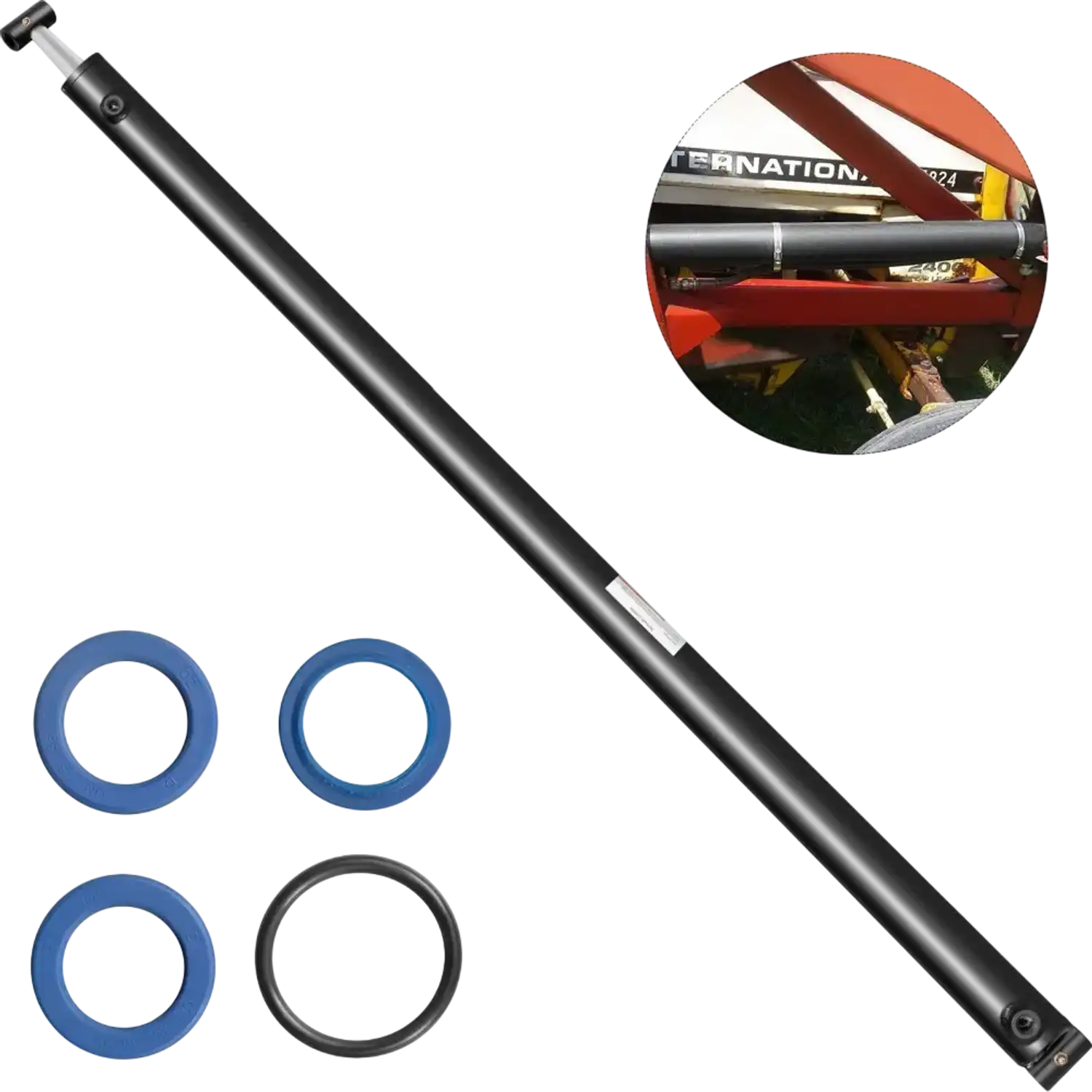

Package Contents
1 x Hydraulic Cylinder

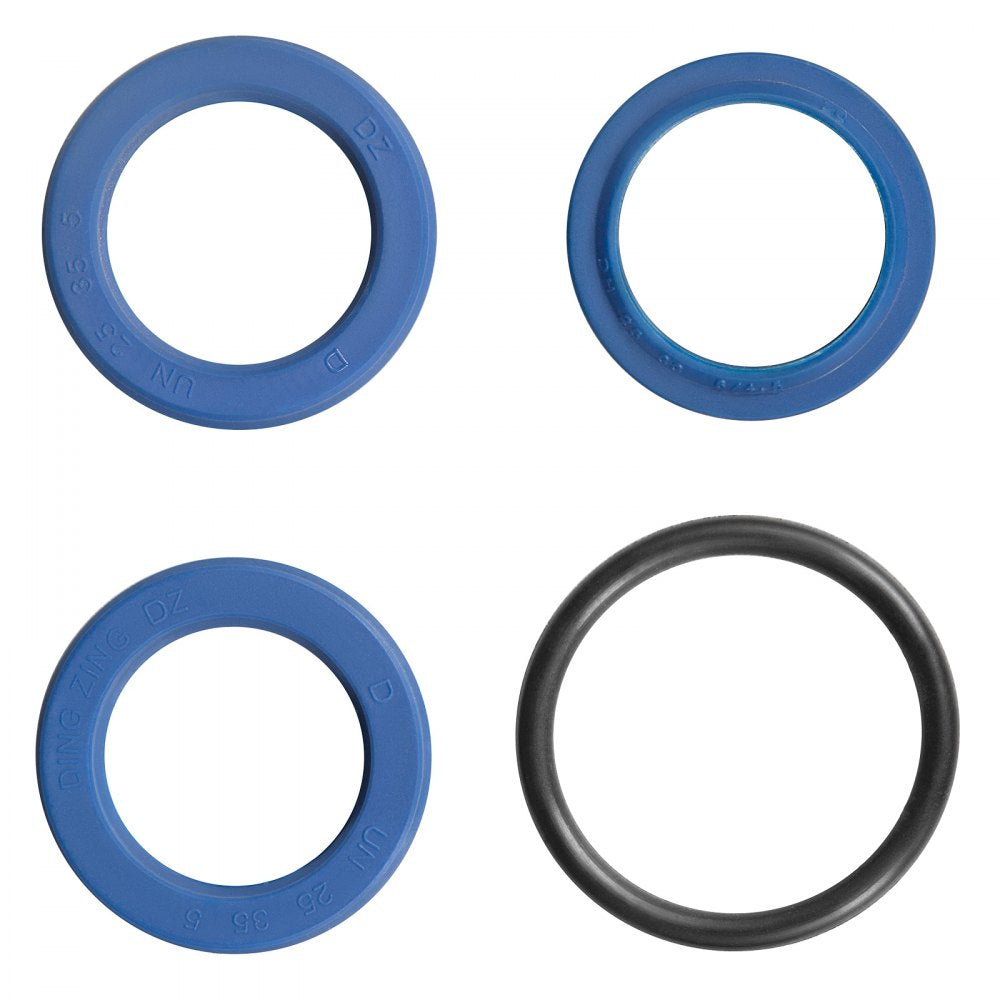

1 x Seal Ring Set
Warranty
This item comes with a 1 year factory warranty.
