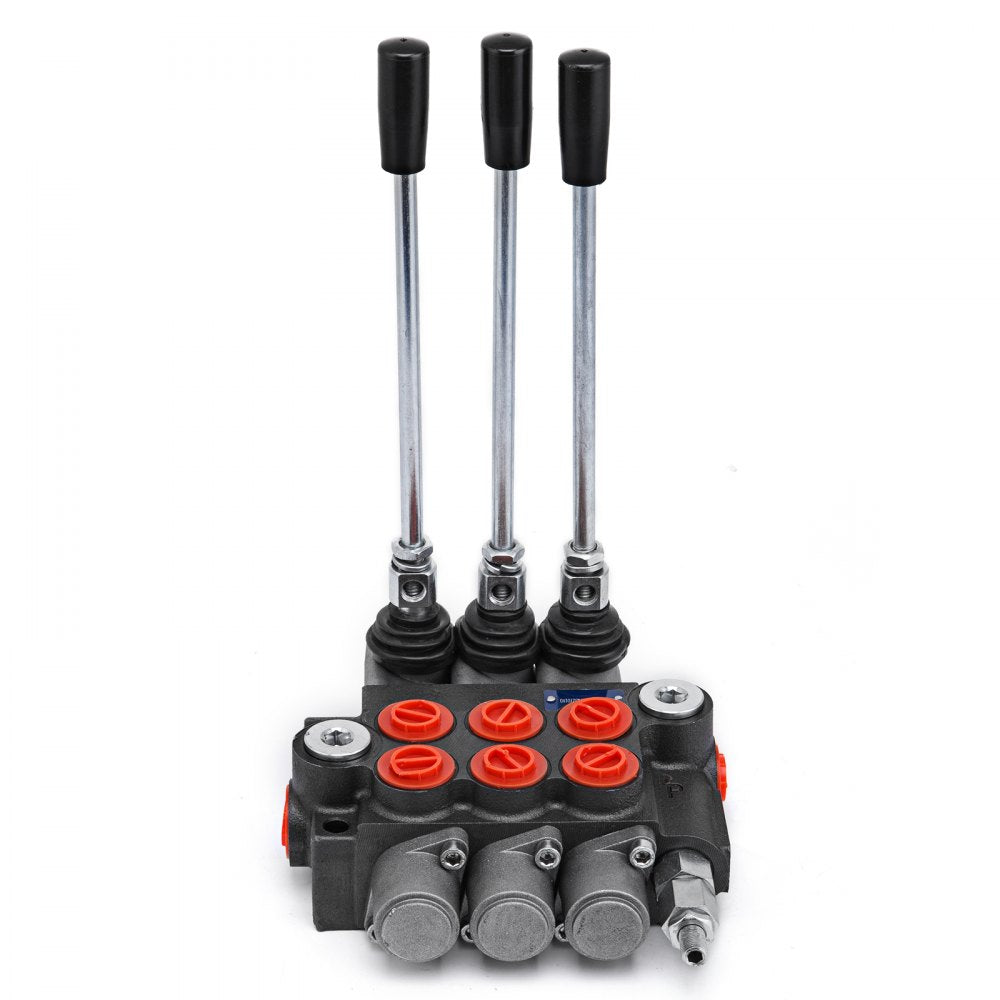

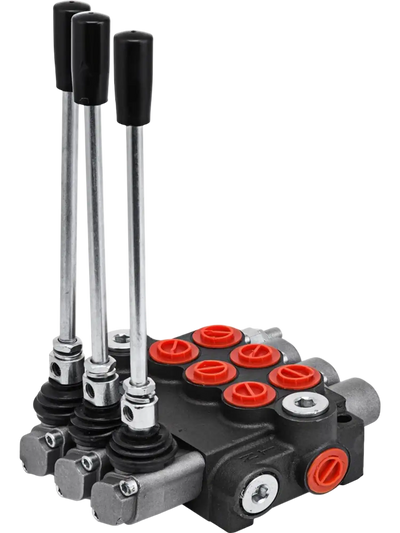

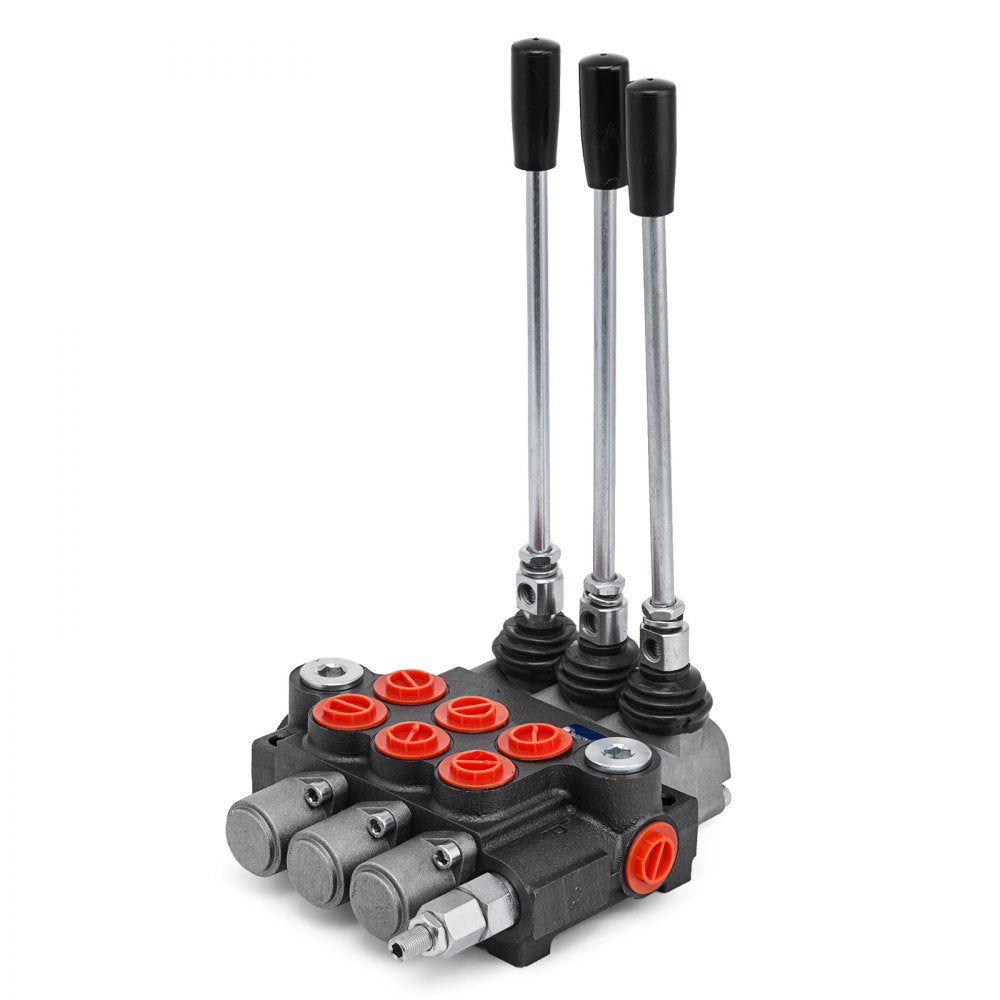

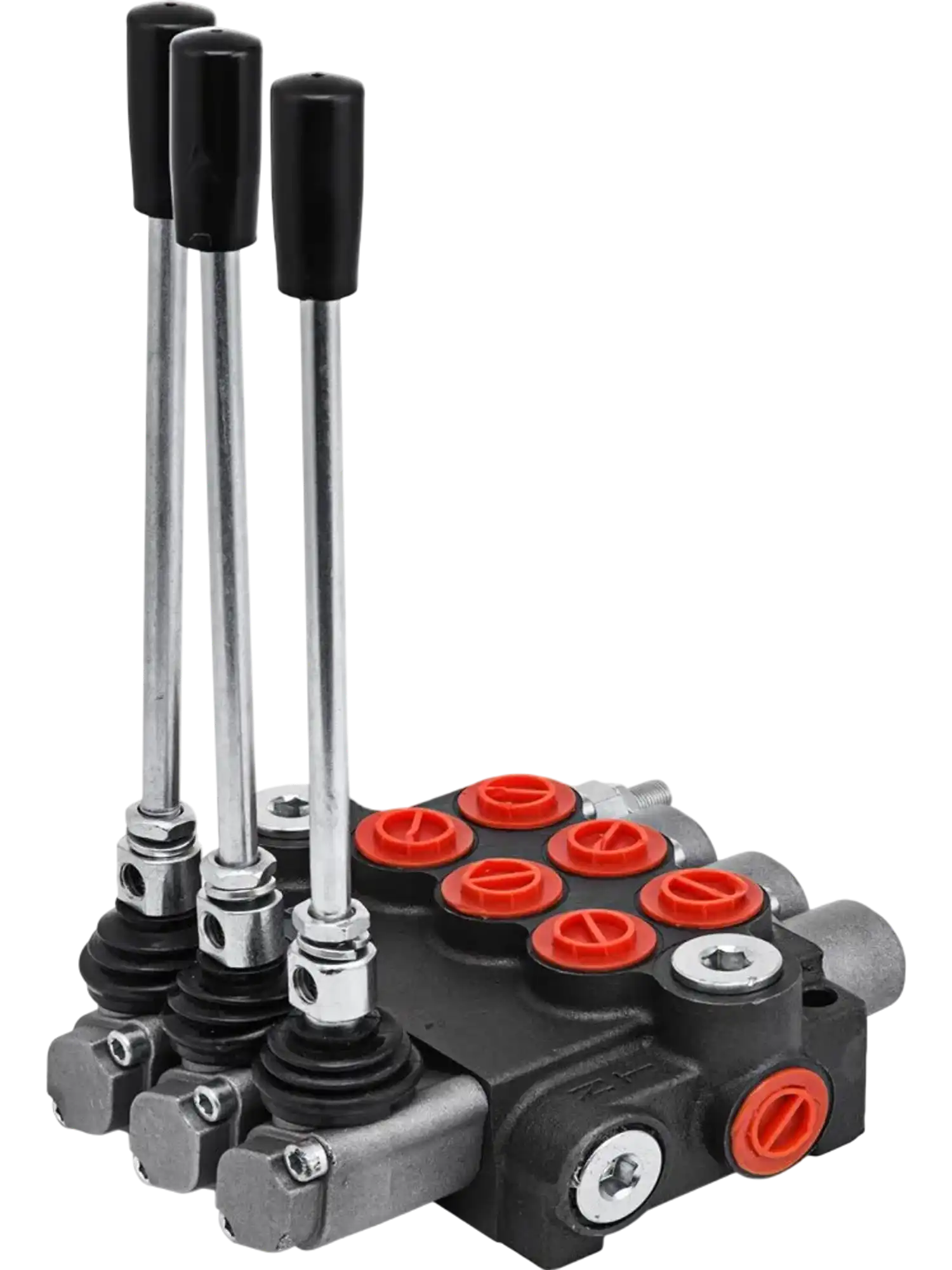

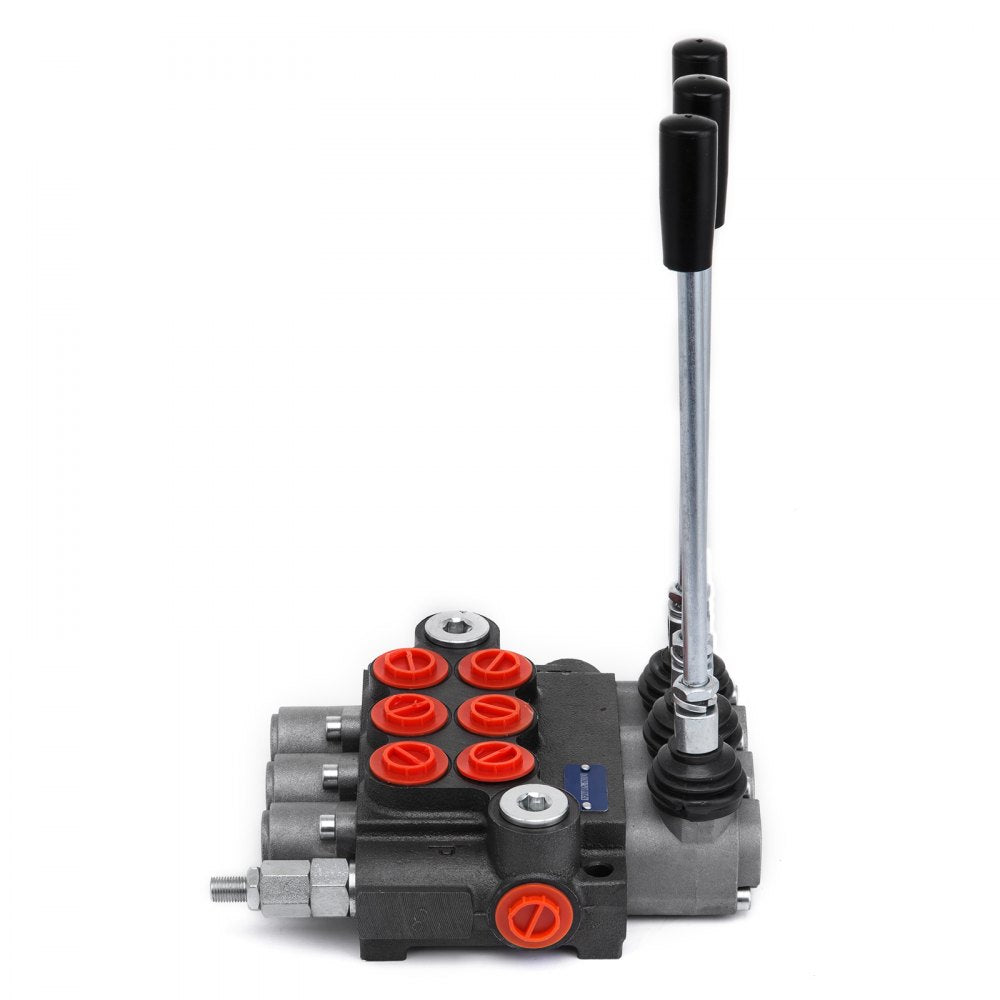

Vevor Hydraulic Control Valve 3 Spool Double Acting 11 GPM New
Manufacturer: Vevor
SKU: KZF3ZYY11GPMSZY01V0
Interface Options
Flow Rate Options
Number of Slide Valves Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$88.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor Hydraulic Coupler 1/2" NPT Flat Face Quick Connect 4 Pairs New
-
Vevor Hydraulic Top Link Cat. 1-1 20-7/8" to 31-7/8" with 2 Hoses and G3/8" Check Valve New
-
Vevor Hydraulic PTO Pump 21.2 GPM 2250PSI 540 RPM New
-

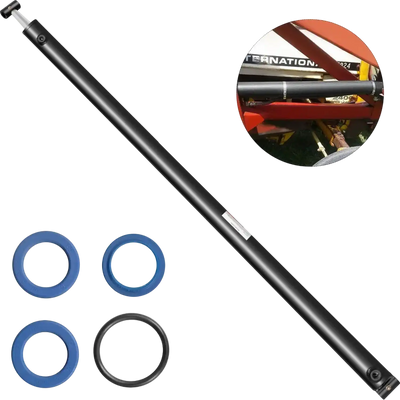

Vevor Hydraulic Cylinder 2" Bore 36" Stroke Double Acting Cross Tube New
-
Vevor 18" Hydraulic Backhoe Excavator Thumb Weld On Attachment 1/2" Thick Plate New
-
Vevor Hydraulic Top Link Cat. 1-1 18-1/8" to 26-3/8" with 2 Hoses and G3/8" Check Valve New
-
Vevor Hydraulic Coupler Set Quick Connect 1/2" Body 1/2" NPT 8 Pairs New
-
Vevor Universal Forklift Tractor Seat Suspension 3 Level Shock Absorption Micro Switch Seatbelt B...
-
Vevor Hydraulic Wood Log Splitter Pump Kit 16 GPM 2-Stage 4000 PSI New
-
Vevor Hydraulic Pump 16 GPM 2-Stage 4000 PSI Log Splitter Gear Pump New
-
Vevor Hydraulic Pump 16.6 GPM 540 RPM 2500PSI SAE 16 and SAE 12 Port for Log Splitters or Tractor...
-
Vevor Reverse Gearbox Go Kart Forward Reverse Gear Box New
-
Vevor Hydraulic Log Splitter Pump 13 GPM 2-Stage 3000 PSI New
-
Vevor Hydraulic Hose Crimper Manual with 8 Dies .24" - 1.1" New
Vevor Hydraulic Control Valve 3 Spool Double Acting 11 GPM New
Product Overview

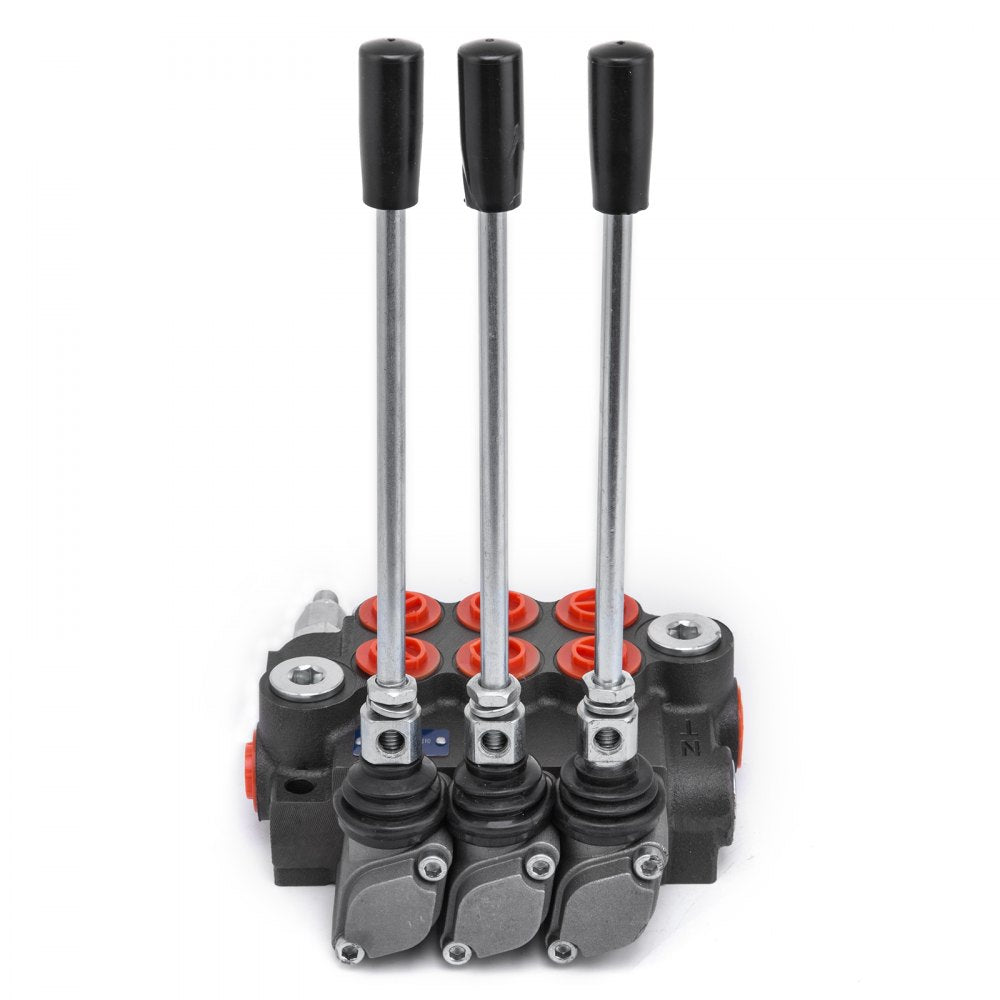

The Vevor 3 spool hydraulic directional control valve is designed for operating double-acting cylinders in tractors, loaders, log splitters, and other hydraulic equipment. It features a durable cast iron body with spring-return spools that automatically return to neutral for easier operation. The valve delivers a nominal flow of 11 GPM and an adjustable relief valve with pressure up to 3600 PSI. Its open center system and compact design make it a practical choice for a range of small machinery applications.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- DOUBLE ACTING: - Our hydraulic control valve is made for operating double-acting cylinders.

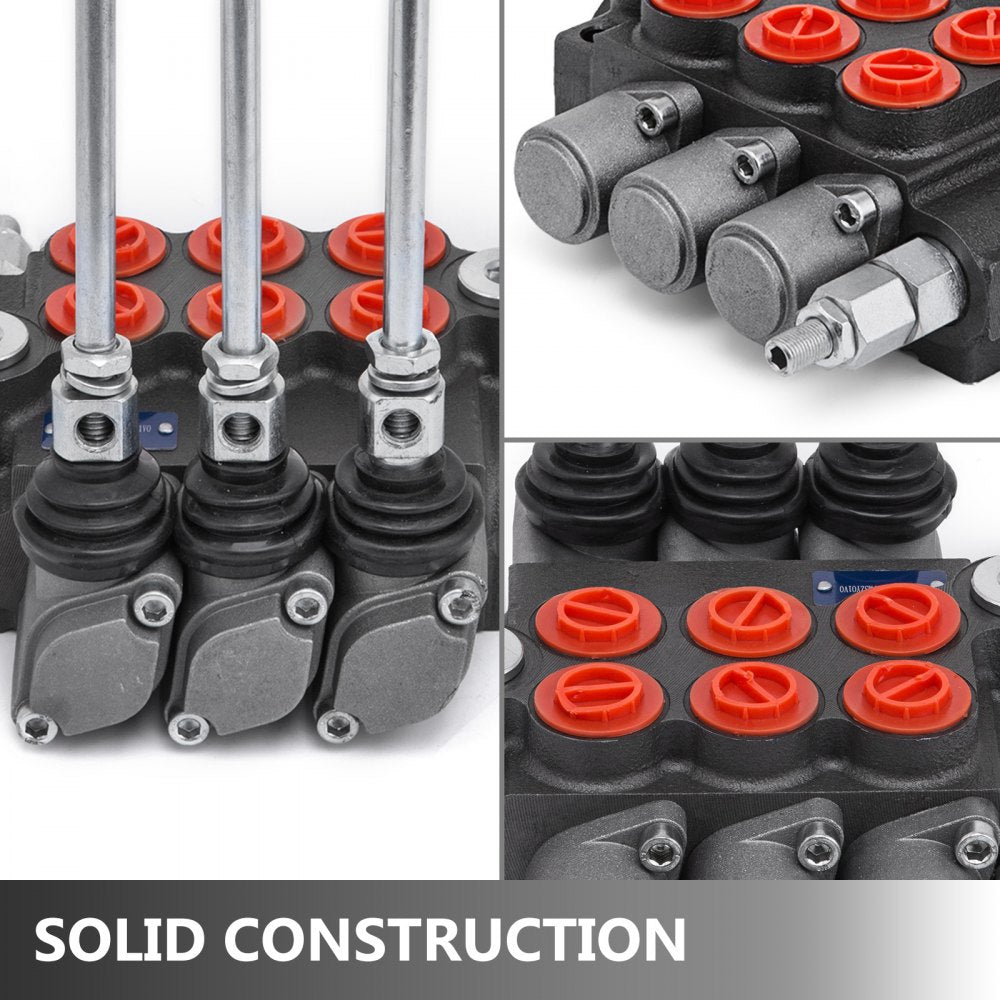

- DURABLE QUALITY: - This control valve comes with 3 spools and 1/2 " Unthreaded sealed cylindrical pipe threads O-ring in/out ports, with cast iron construction for long-time use.

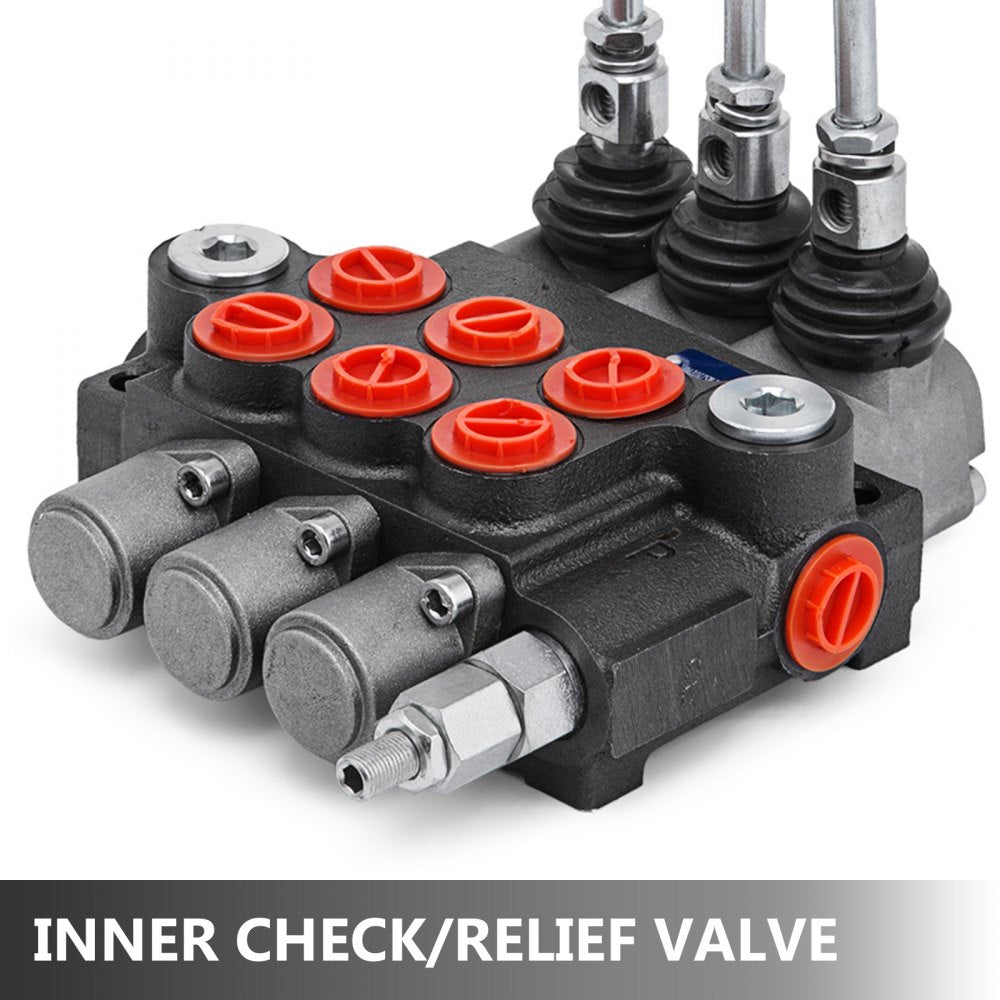

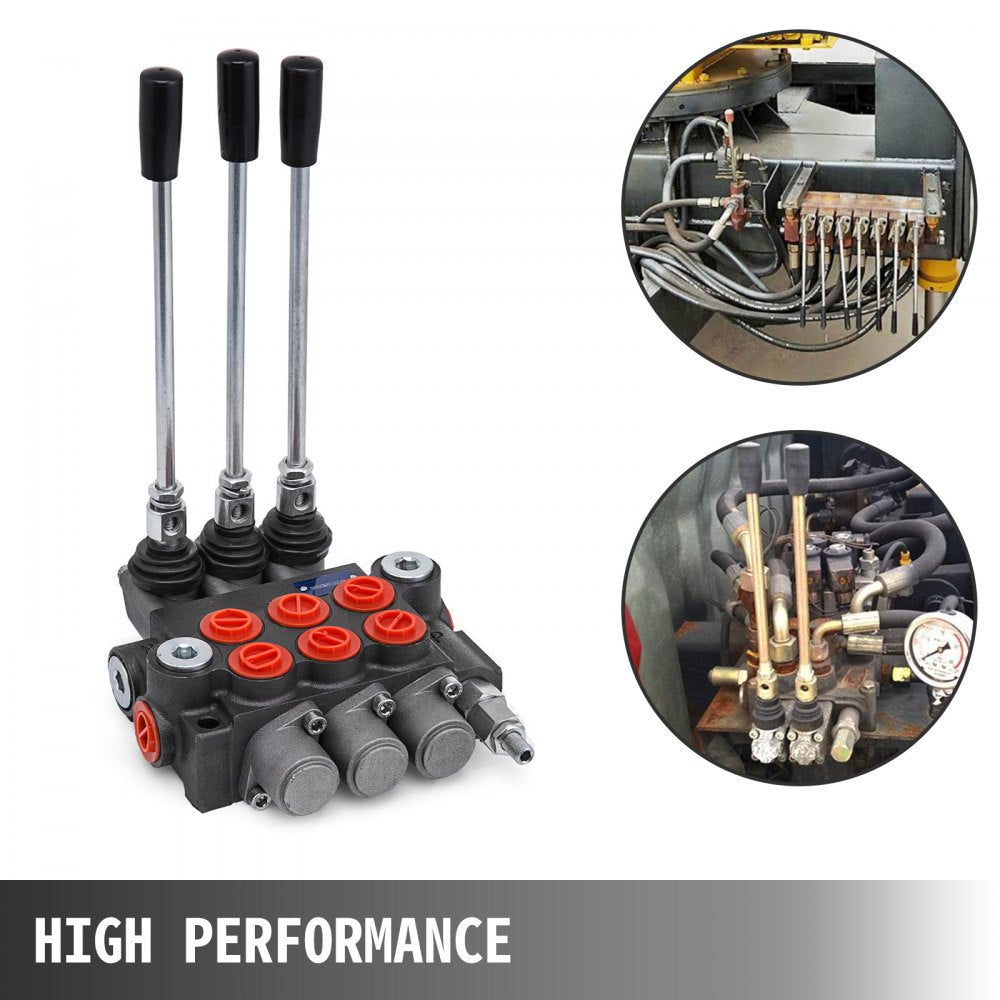

- HIGH PERFORMANCE: - This hydraulic relief valve range can reach up to 3600 PSI and the maximum flow is up to 11 GPM.

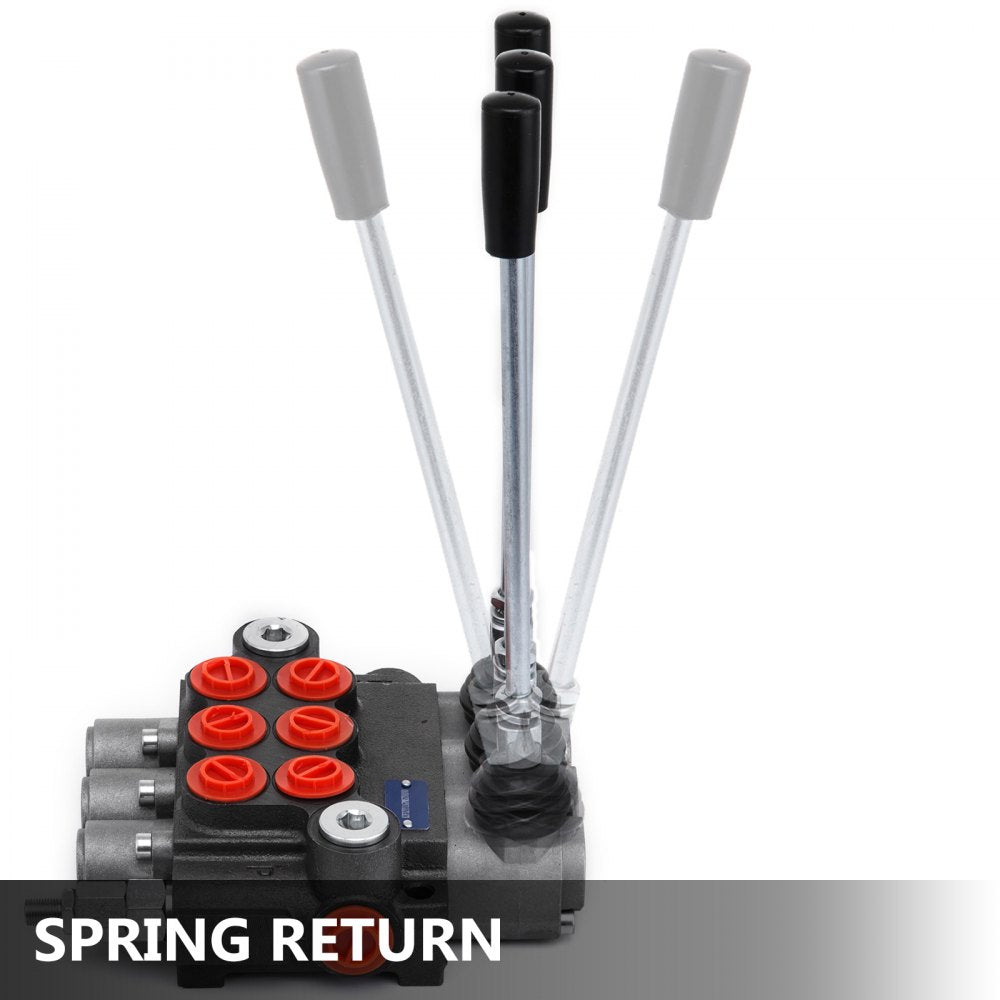

- SPRING RETURN: - All spool valves come with spring return, which can return to the neutral position.
- WIDELY USED: - This hydraulic directional valve is suitable for small tractors, tractors loaders, log splitters, etc.
Specifications
| Model | KZF3ZYY11GPMSZY01V0 |
| Product Type | Hydraulic Control Valve |
| Nominal Flow | 11 GPM (40 L/min) |
| Spool Count | 3 Spool |
| Interface | NPT |
| Number of Slide Valves | 3 Sliding Valves |
| PABTN | 1/2" Unthreaded sealed cylindrical pipe threads |
| PTN | 1/2" |
| AB | G3/8 |
| Thread Size | 7/8-14UNF; 3/4-16UNF |
| Relief Valve | Adjustable |
| Center System | Open |
| Max Pressure | 3600 PSI |
| Factory Pressure Setting | 20 MPa |
| Weight | 14.6 lbs (6.6 kg) |

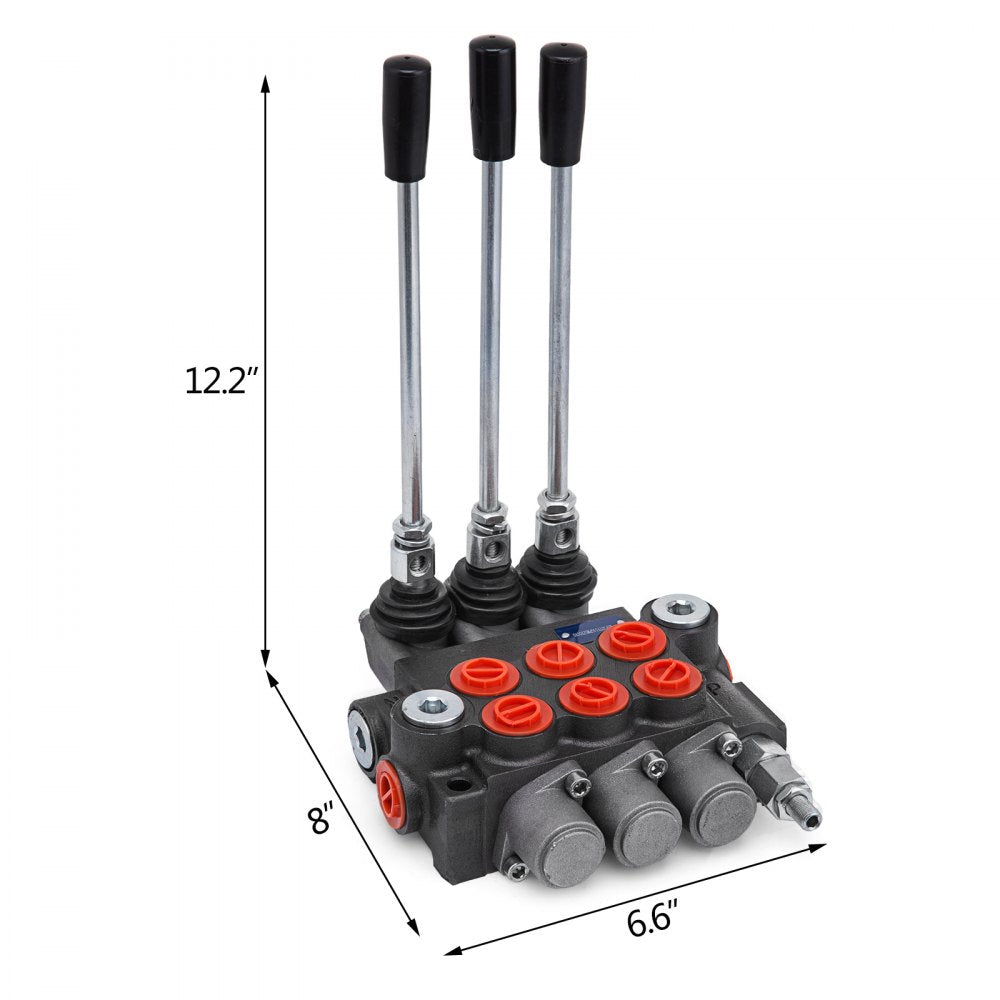

| Dimensions | 12.2" x 8" x 6.6" (31 x 20 x 16.8 cm) |
Package Contents
1 x 3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM
Warranty
This item comes with a 1 year factory warranty.
