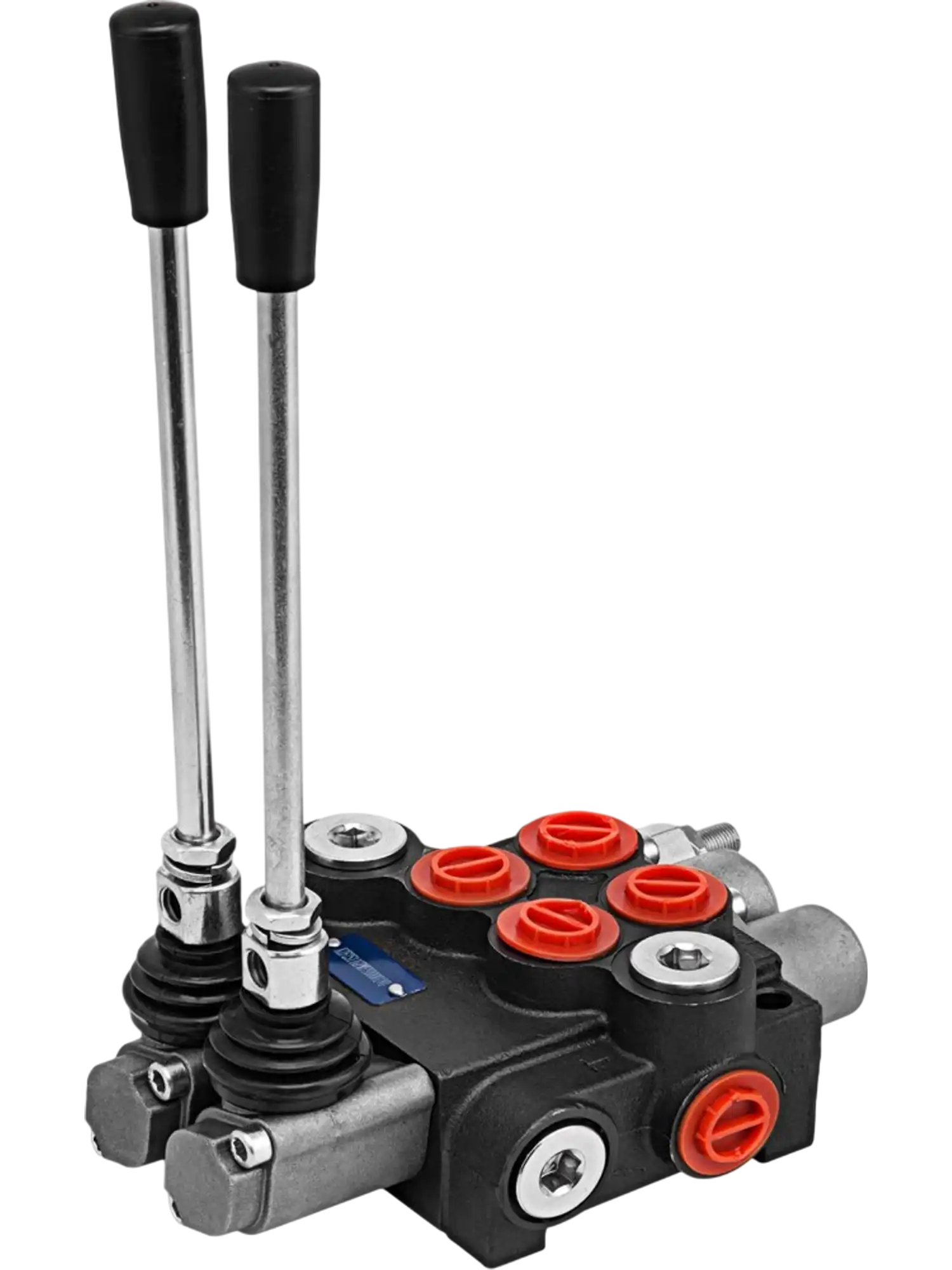

Vevor Hydraulic Control Valve 2 Spool Directional Double Acting 11 GPM New
Manufacturer: Vevor
SKU: KZF2S11GPMYY00001V0
Interface Options
Flow Rate Options
Number of Slide Valves Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$86.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor Hydraulic Shop Press 6-Ton H-Frame Adjustable Floor Press New
-
Vevor Hydraulic Coupler 1/2" NPT Flat Face Quick Connect 4 Pairs New
-
Vevor TC4268 ATV Dump Trailer Tow Behind Cart 1500 lbs 15 cu. ft. Capacity Removable Sides Heavy ...
-
Vevor Hydraulic Top Link Cat. 1-1 20-7/8" to 31-7/8" with 2 Hoses and G3/8" Check Valve New
-
Vevor Hydraulic Pump 16 GPM 2-Stage 4000 PSI Log Splitter Gear Pump New
-
Vevor Wind Turbine Generator Kit 3-Blade with MPPT Controller 800W 12V New
-
Vevor Universal Forklift Tractor Seat Suspension 3 Level Shock Absorption Micro Switch Seatbelt B...
-
Vevor Hydraulic PTO Pump 21.2 GPM 2250PSI 540 RPM New
-
Vevor Forklift Safety Cage 36" x 36" Work Platform 1200 lbs Capacity Foldable With Lockable Swive...
-
Vevor Hydraulic Pump 16.6 GPM 540 RPM 2500PSI SAE 16 and SAE 12 Port for Log Splitters or Tractor...
-
Vevor Hydraulic Wood Log Splitter Pump Kit 16 GPM 2-Stage 4000 PSI New
-
Vevor Hydraulic Pump Double Solenoid Double-Acting 4.5 Quart Reservoir 12V DC New
-
Vevor Hydraulic Reservoir 10 Gal Steel Oil Tank with Filter & Temp Gauge New
-
Vevor Hydraulic Log Splitter Pump 13 GPM 2-Stage 3000 PSI New
-
Vevor 18" Hydraulic Backhoe Excavator Thumb Weld On Attachment 1/2" Thick Plate New
-
Vevor Hydraulic Top Link Cat. 1-1 18-1/8" to 26-3/8" with 2 Hoses and G3/8" Check Valve New
Vevor Hydraulic Control Valve 2 Spool Directional Double Acting 11 GPM New

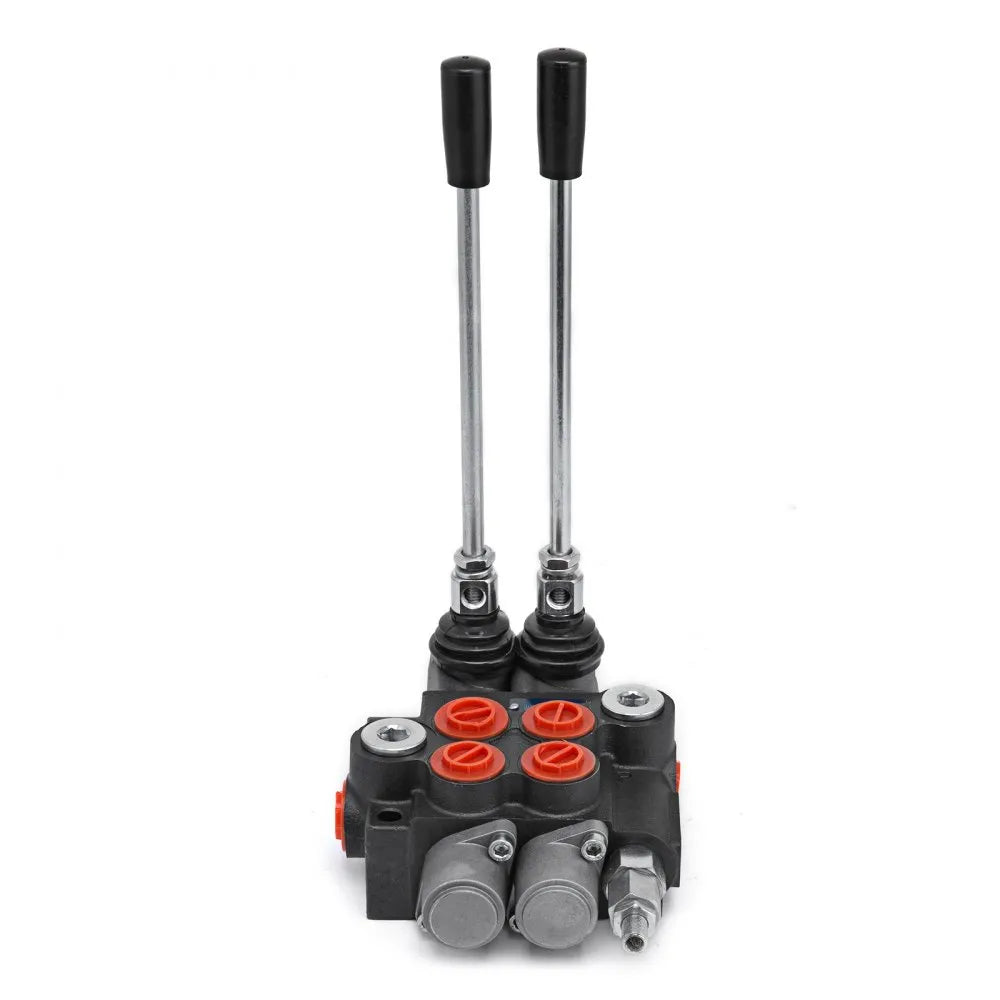

Product Overview

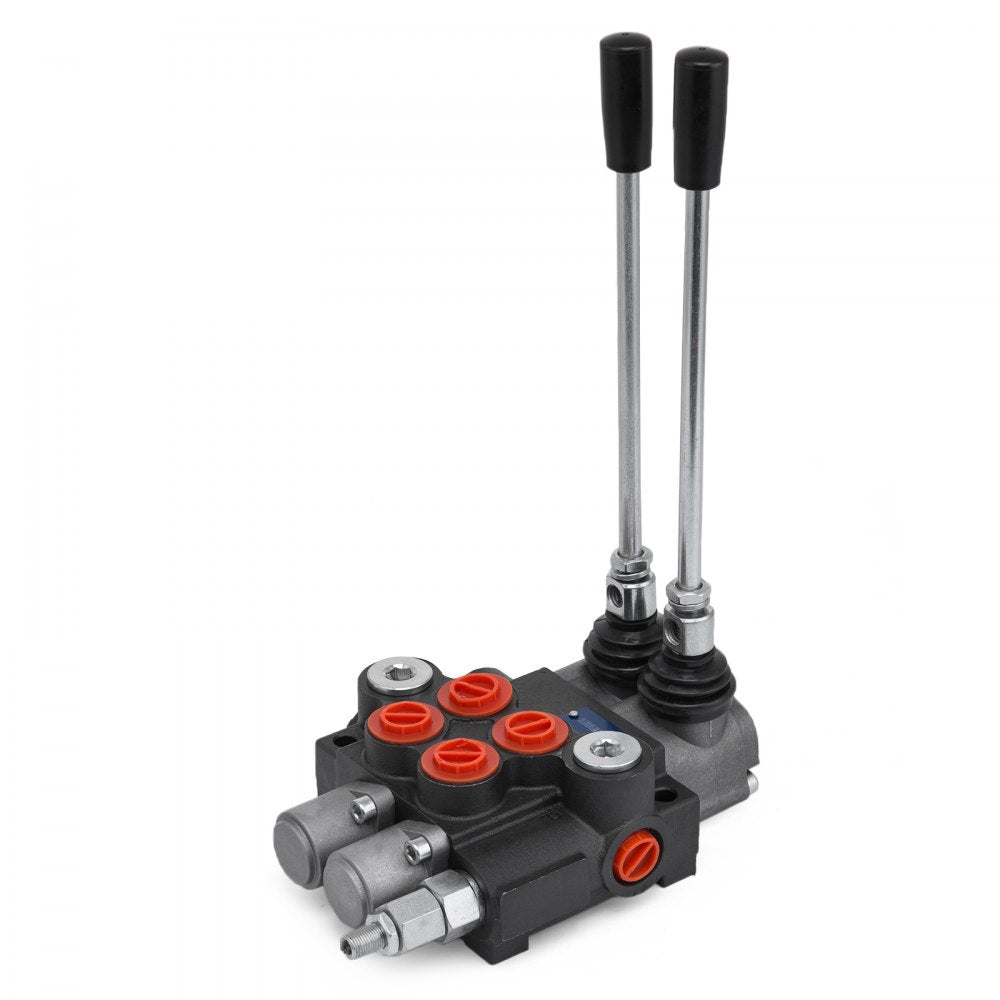

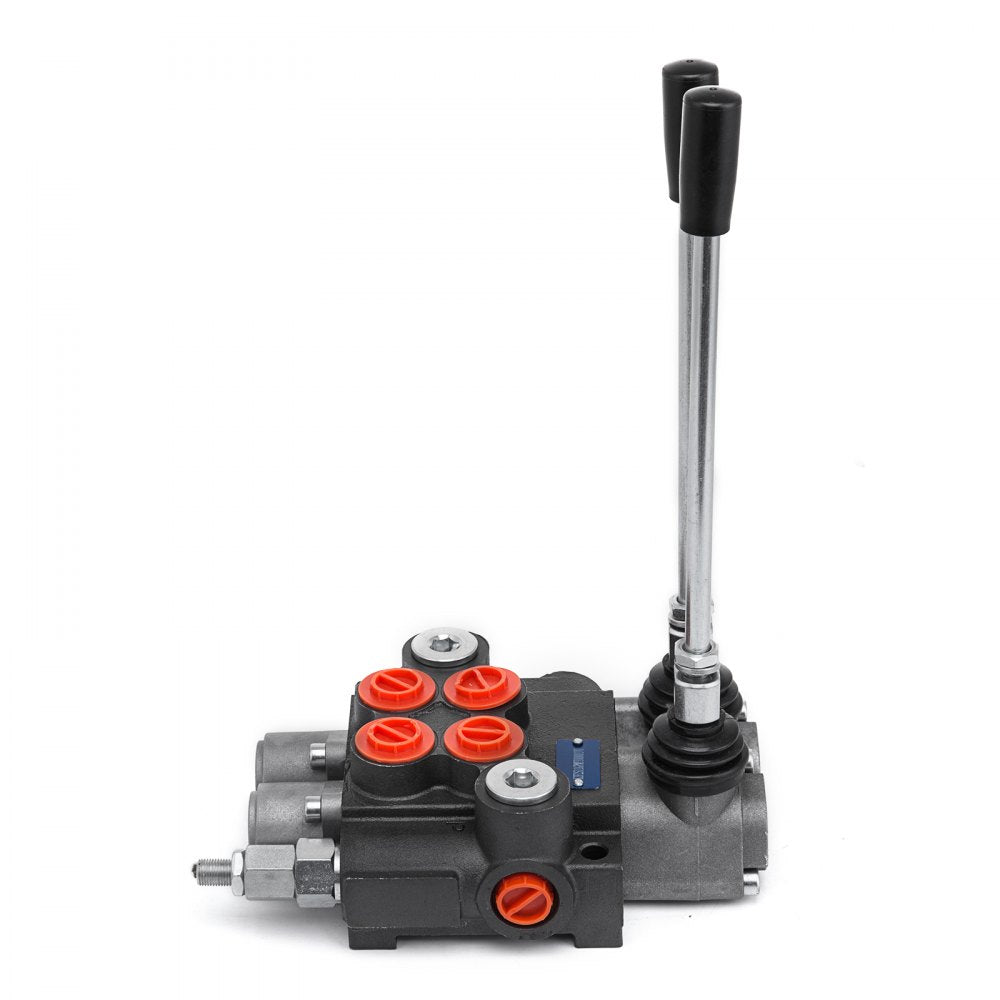

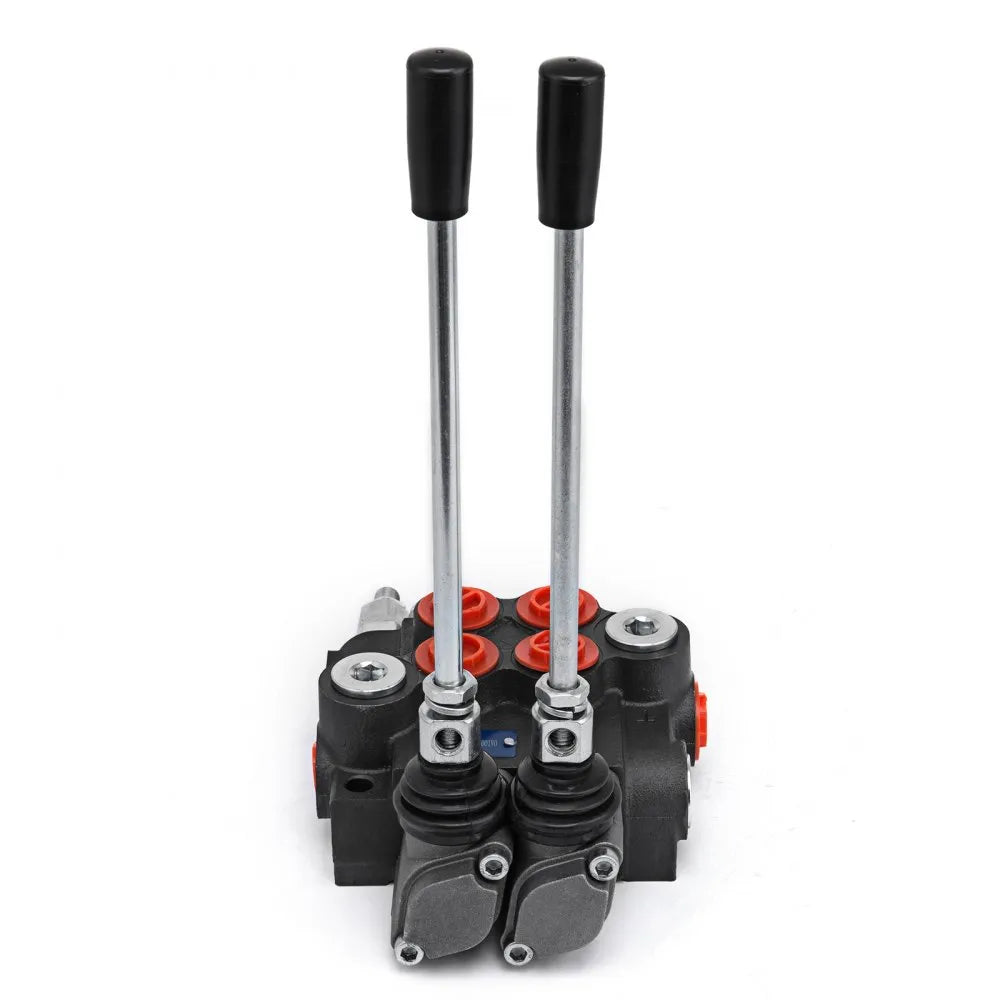

The Vevor 2 spool directional hydraulic control valve is designed to manage and direct hydraulic oil flow between pumps, cylinders, motors, and tanks. Its compact cast iron construction is built for long-term use in demanding applications. This open-center valve features double-acting spools with spring return to neutral for reliable operation. It offers adjustable relief valve control and up to 11 GPM flow for small tractors, loaders, log splitters, and similar equipment.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- DOUBLE ACTING: - Our hydraulic control valve is made for operating double-acting cylinders.

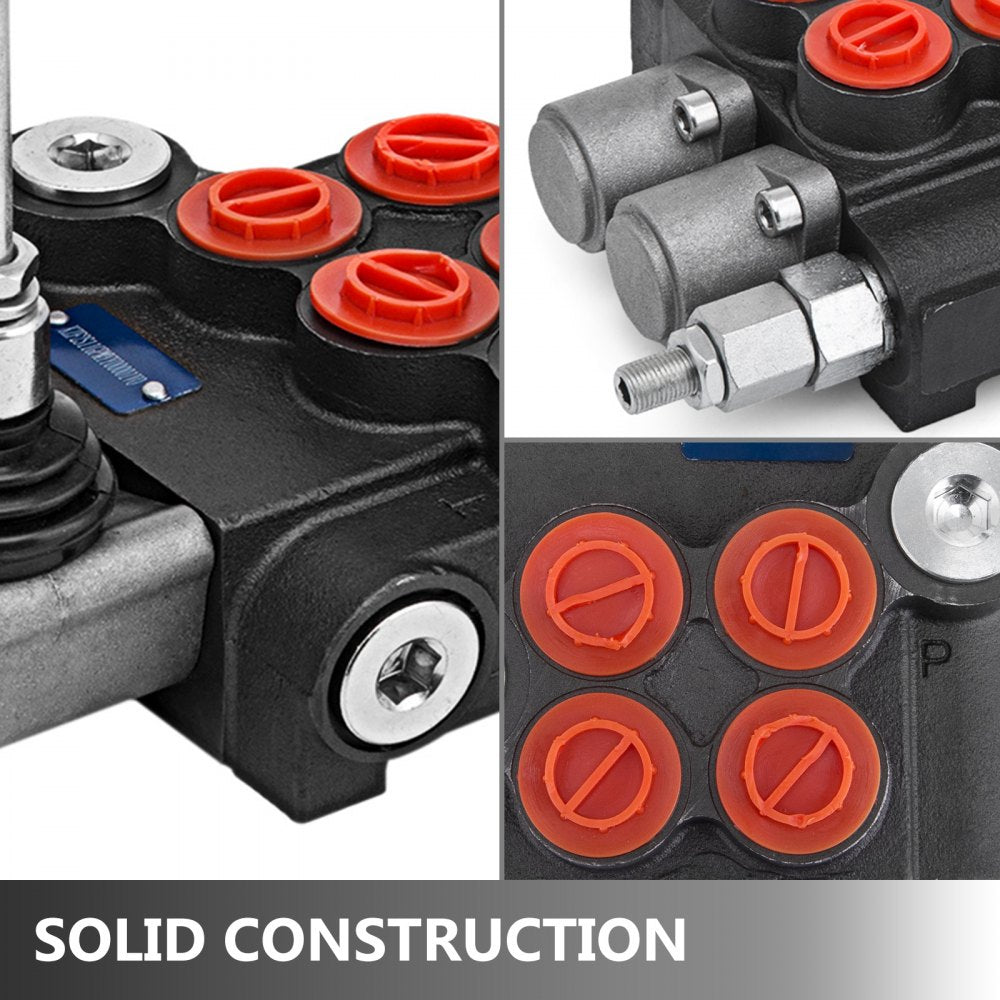

- DURABLE QUALITY: - This hydraulic directional control valve comes with 2 spools and 1/2 BSPP O-ring in/out ports, with cast iron construction for long-time use.

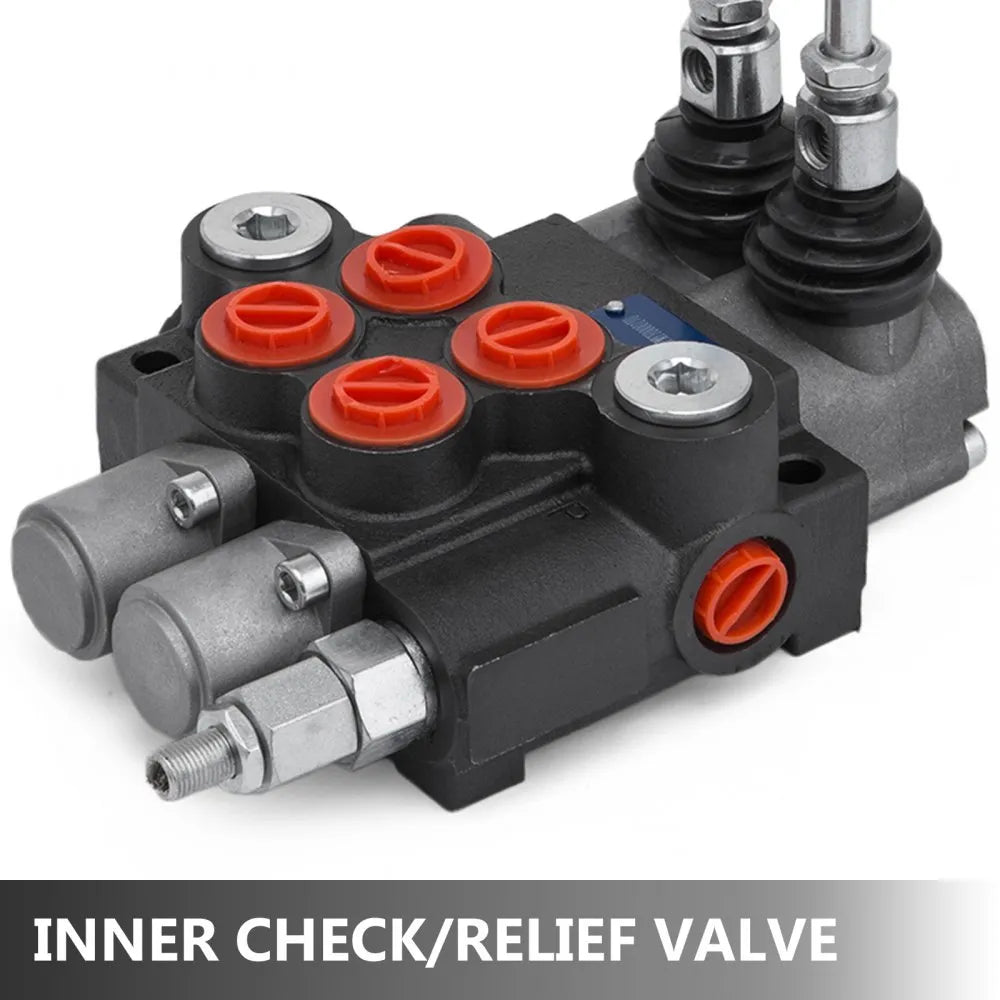

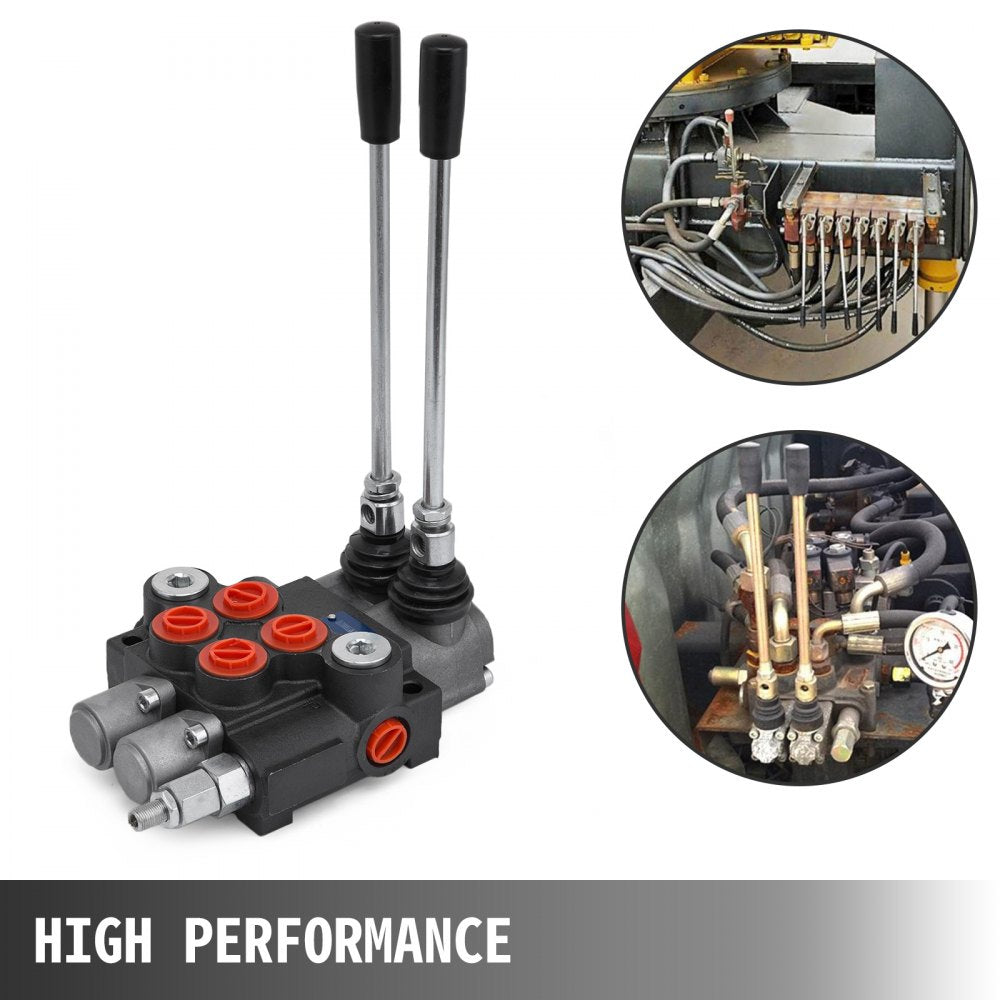

- HIGH PERFORMANCE: - This hydraulic relief valve range can reach up to 3600 PSI and the maximum flow is up to 11 GPM.

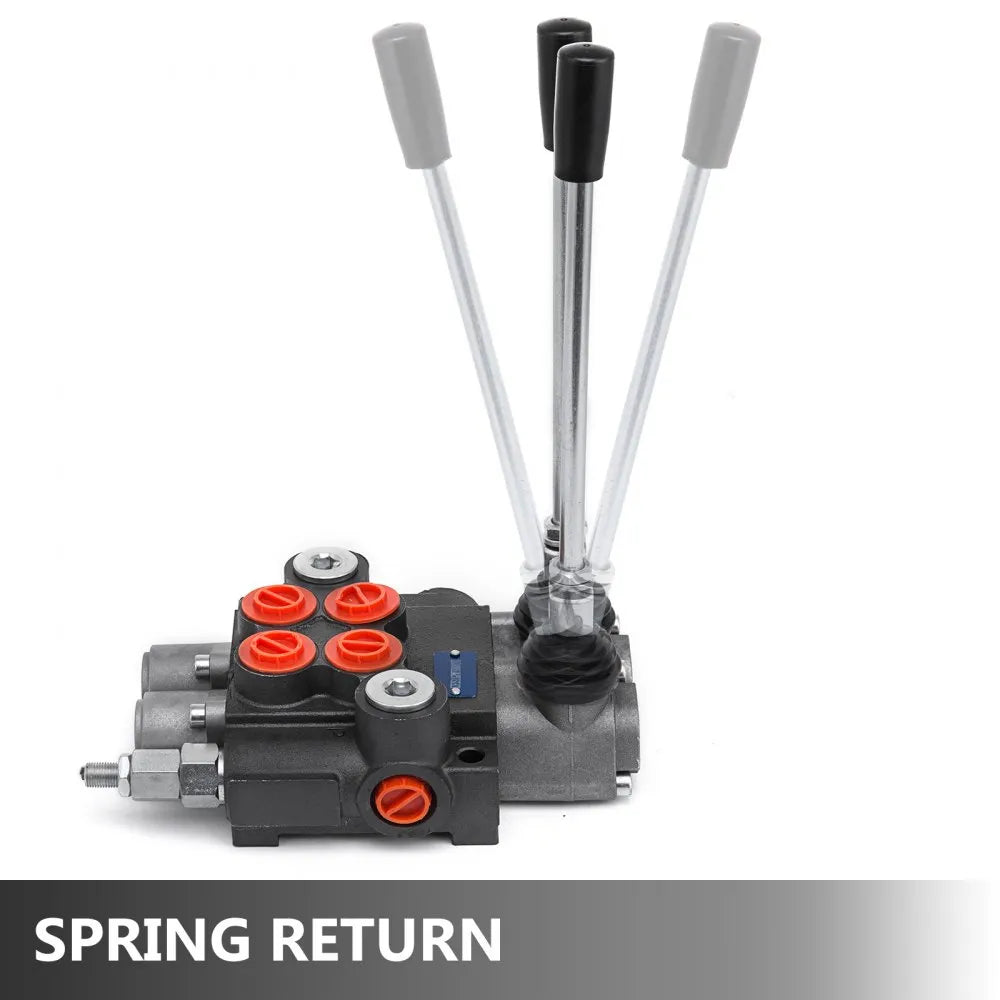

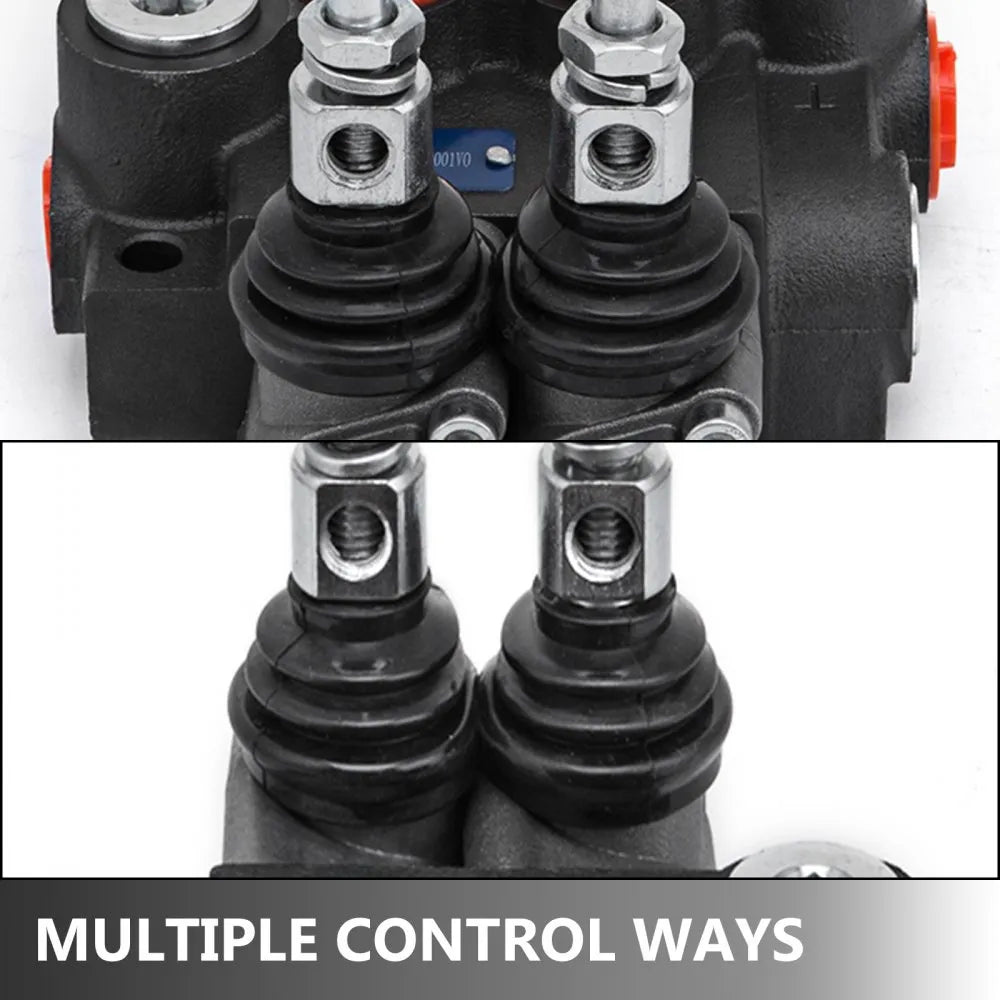

- SPRING RETURN: - All spool valves come with spring return, which can return to the neutral position.
- WIDELY USED: - This hydraulic directional valve is suitable for small tractors, tractors loaders, log splitters, etc.
Specifications
| Model | KZF2S11GPMYY00001V0 |
| Product Type | Hydraulic Control Valve |
| Spool Count | 2 |
| Valve Action | Double Acting |
| Max Operating Pressure | 3600 PSI |
| Nominal Flow | 11 GPM (40 L/min) |
| Relief Valve | Adjustable |
| Center System | Open |
| A, B Ports | 3/8" BSPP |
| P, T, N Port | 1/2" BSPP |
| Weight | 14 lbs (6.3 kg) |

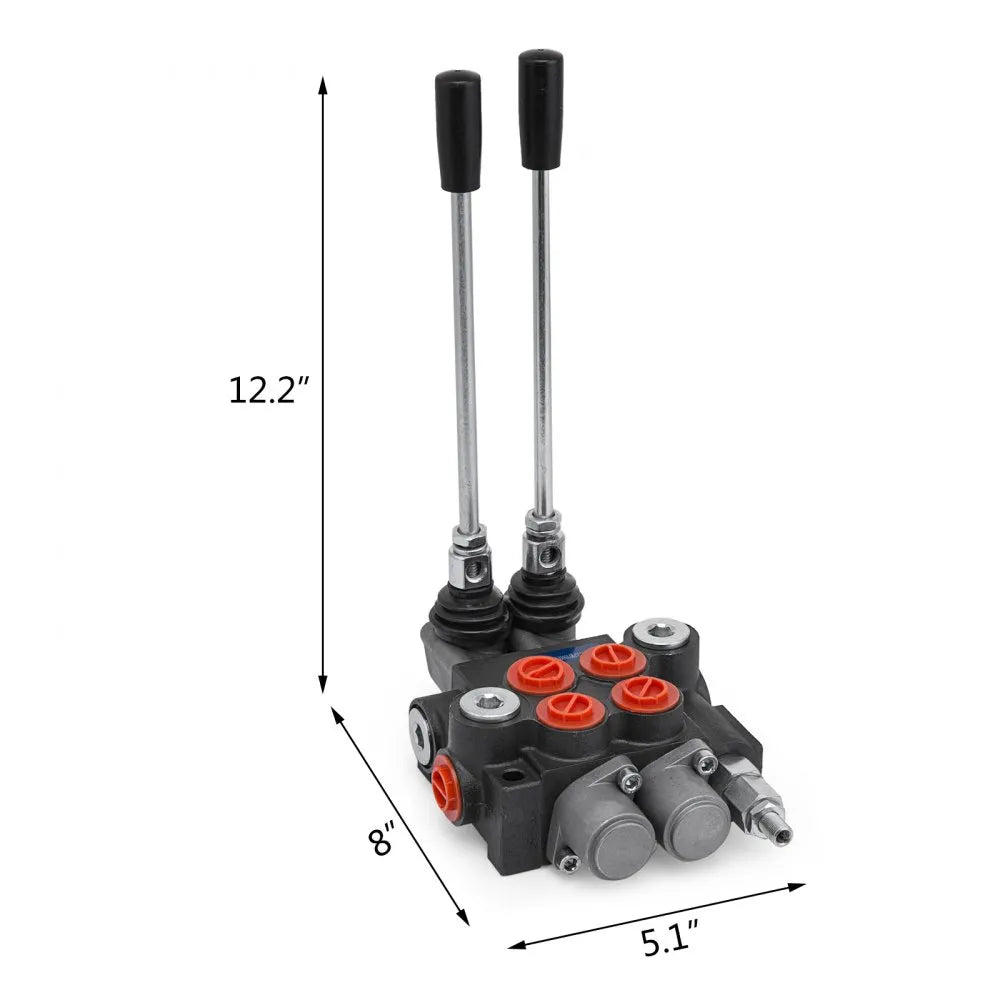

| Dimensions | 12.2" x 8" x 5.1" (31 x 20.3 x 12.95 cm) |
| Interface | SAE |
| Number of Slide Valves | 2 Slide Valves |
Warranty
This item comes with a 1 year factory warranty.
