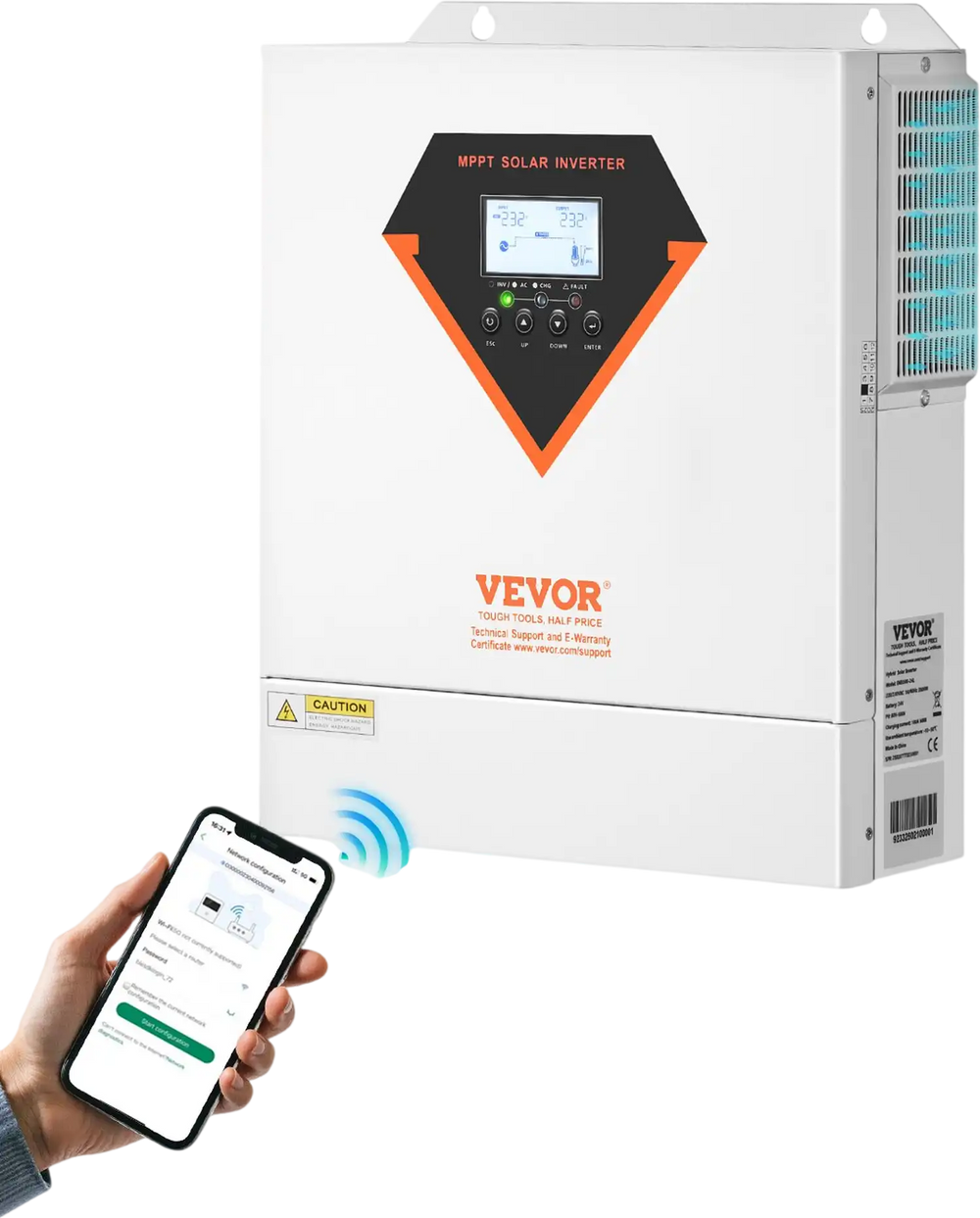

Vevor Hybrid Solar Inverter 3500W 1 Phase 24V DC to 220/230V AC with MPPT Solar Controller New
Manufacturer: Vevor
SKU: LWGPNKYTJ230DIY24V7
Power Options
Battery Voltage Options
QTY
(888) 999-1522
C
$367.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Vevor Hose Reel Retractable Garden 100' x 5/8" Wall Mounted with 9-Pattern Nozzle New
-
Vevor Mechanics Tool Set 1/4", 3/8", 1/2" Drive 450-Pc SAE and Metric Socket Set with Storage Cas...
-
Vevor Ceiling Fan 96" 8 Blade No Light 6-Speed Remote Control Reversible Flush Mount New
-
Vevor Solar Battery Charger Maintainer 20W 12V Trickle Charging Kit New
-
Vevor Portable EV Charger Level 1+2 16A 120V/240V with 28' Cable for SAE J1772 EVs New
-
Vevor Solar Panel Mounting Brackets 30°-60° Adjustable Ground Mount Stand New
-
Vevor Wind Turbine Generator Kit 3-Blade with MPPT Controller 800W 12V New
-
Vevor EV Charger Level 2 Portable 32A 240V 25' J1772 New
-
Vevor Solar Panel Mount Brackets 50" Adjustable Tilt Mounting Brackets New
-
Vevor EV Charger Extension Cable 48A 21' J1772 Level 1/Level 2 New
-
Vevor Solar Panel Extension Cable 30' 10 AWG MC4 Black Red New
-
Vevor Wind Turbine Generator 500W 12V 3-Blade Kit with Anemometer New
-
Vevor DC to DC Battery Charger 12V 40A 500W Smart Multi-Stage On-Board New
-
Vevor DC to DC Charger 520W 40A MPPT On-Board Battery Charger New
-
Vevor MPPT Solar Charge Controller 50A 12V/24V Bluetooth Solar Panel Regulator Charger New
-
Vevor Hybrid Solar Inverter 6400W 48V Split Phase Pure Sine Wave New
-
Vevor DC to DC Battery Charger 520W 40A Alternator Charger New
-
Vevor DC to DC Charger 650W 50A On-Board Battery Charger with MPPT for RV Home Backup New
Vevor Hybrid Solar Inverter 3500W 1 Phase 24V DC to 220/230V AC with MPPT Solar Controller New
Product Overview
This all-in-one hybrid solar inverter combines an inverter and MPPT solar controller in one unit for off-grid solar power systems. It delivers 3500W pure sine wave output at 220/230V AC (50/60Hz) from a 24V battery system and supports up to 100A charging with high conversion efficiency. The unit supports multiple battery types including lead-acid and lithium (including LiFePO4) and includes lithium activation for improved compatibility. Built-in WiFi enables remote monitoring and system control through an app, while multiple protection features help safeguard your power system. It’s designed for stable home or office backup and off-grid applications requiring reliable AC output.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

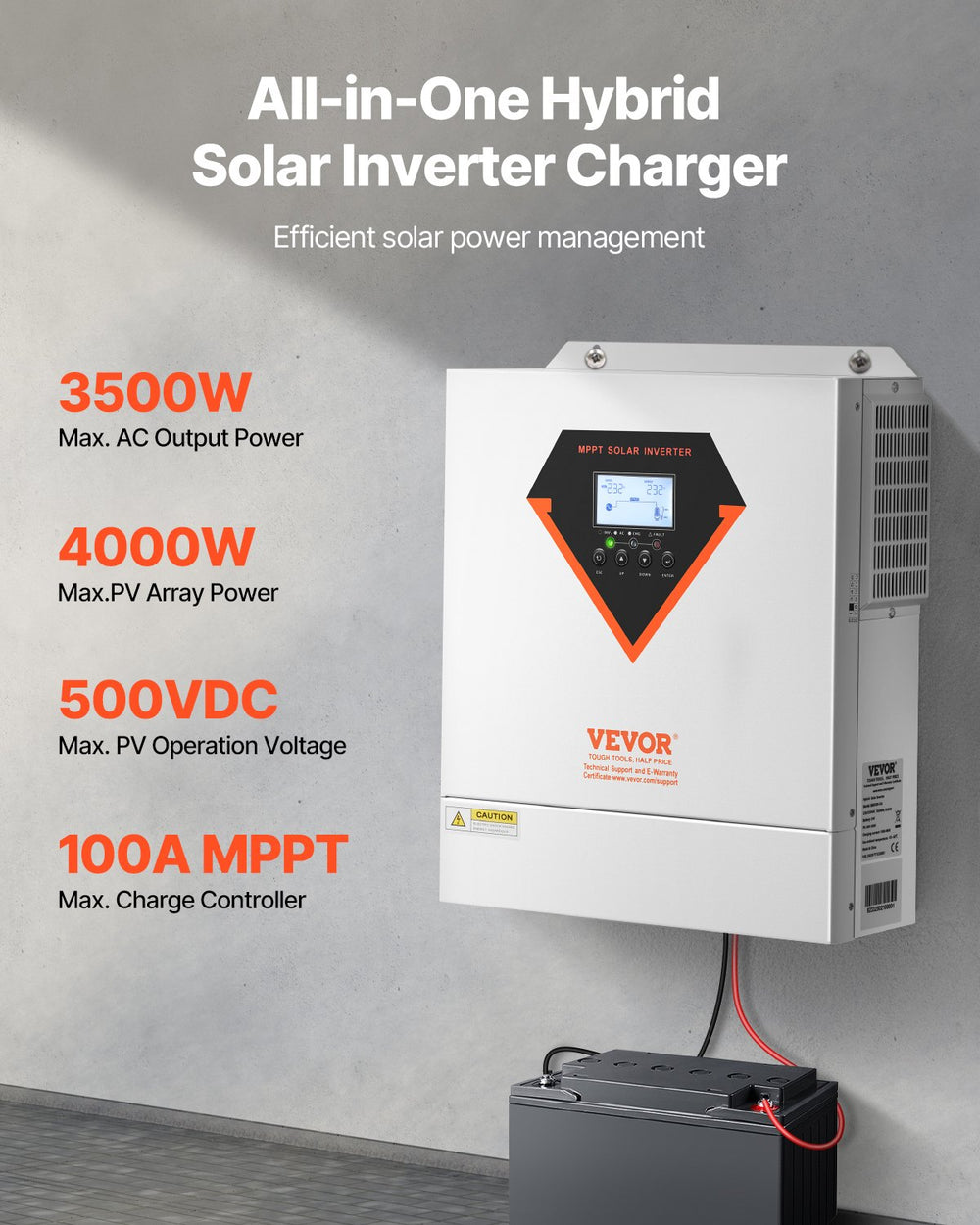

- 2-in-1 Hybrid Solar Inverter: Our 2-in-1 hybrid solar inverter combines an inverter and controller in one efficient unit. With a powerful 3500W pure sine wave output at 220/230V AC, it meets high-energy demands. It is ideal for off-grid solar photovoltaic systems, providing efficient power solutions for various applications

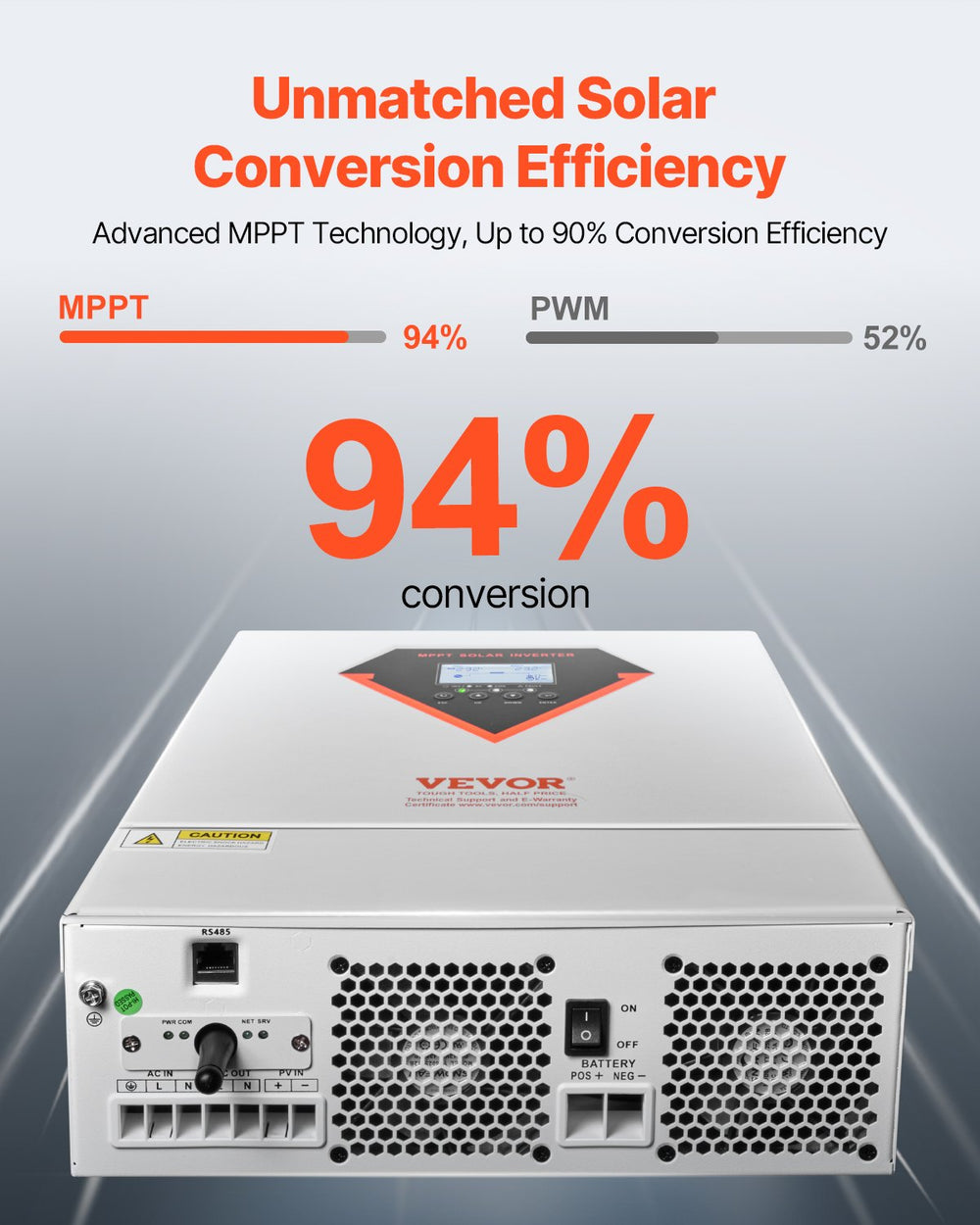

- Efficient MPPT Charging Technology: Equipped with an advanced MPPT solar charge controller, this hybrid solar power inverter supports up to 100A battery charging, boosting solar energy conversion efficiency to 94%. It supports a maximum power of 4000W and a voltage range from 60V to 500V DC, making it highly compatible with a wide range of solar systems

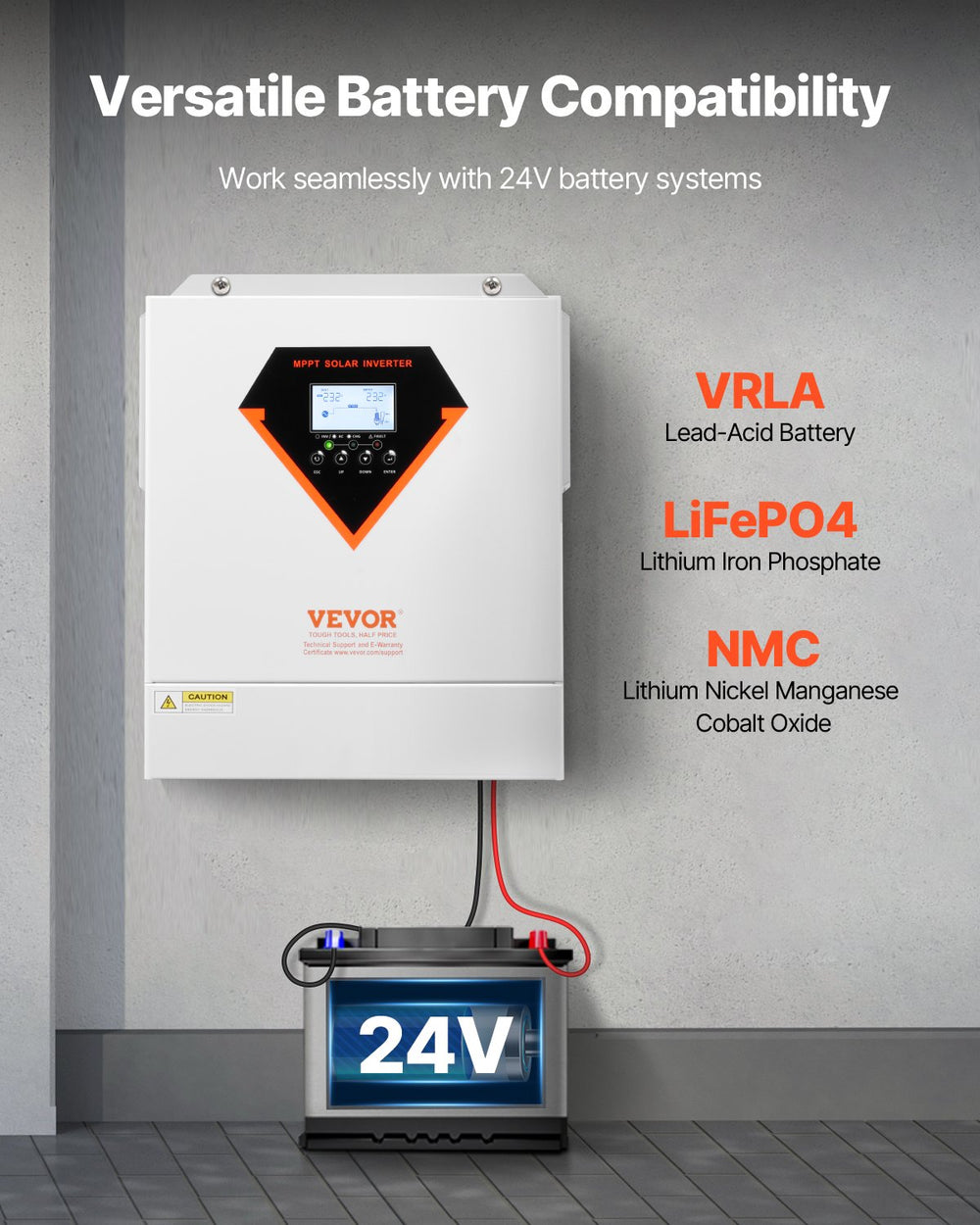

- Compatible with Various Battery Types: Designed for 24V battery systems, our hybrid inverter charger supports a range of battery types, including lithium, lead-acid, and custom batteries. Specially optimized for lithium battery systems, it has an activation function to enhance battery performance

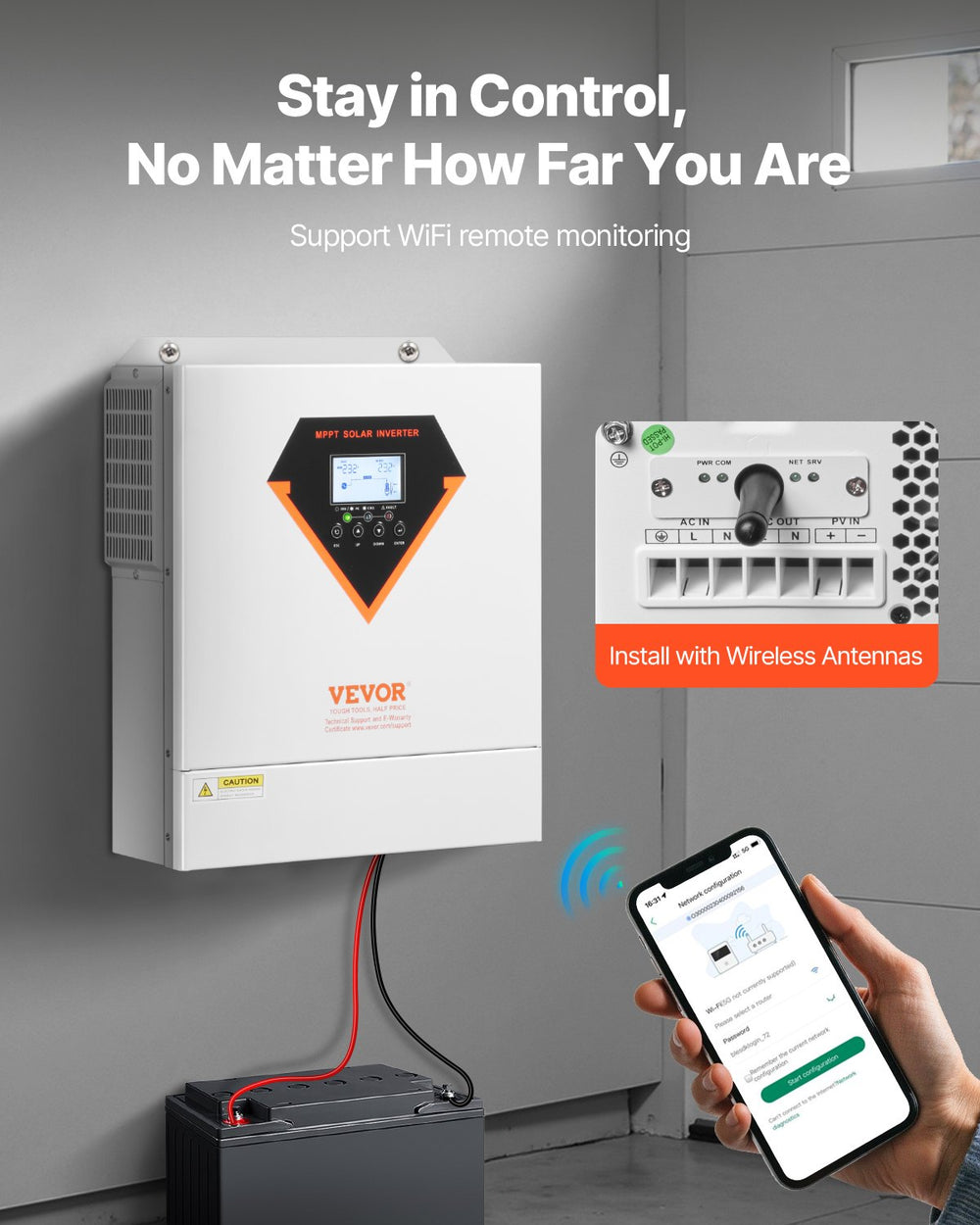

- Smart Monitoring, Stay In Control: With a built-in WiFi module, this solar power inverter allows for remote monitoring via WiFi, so you can track your system's status. (Note: The APP collects system data every 5 minutes, not in real time.) Additionally, you can easily adjust different charging modes (Solar Only, Mains Only, or Solar & Mains hybrid charging) and output modes (UTL, SOL, SBU, and SUB) using the on-device buttons. Fit for powering most devices in your home or office

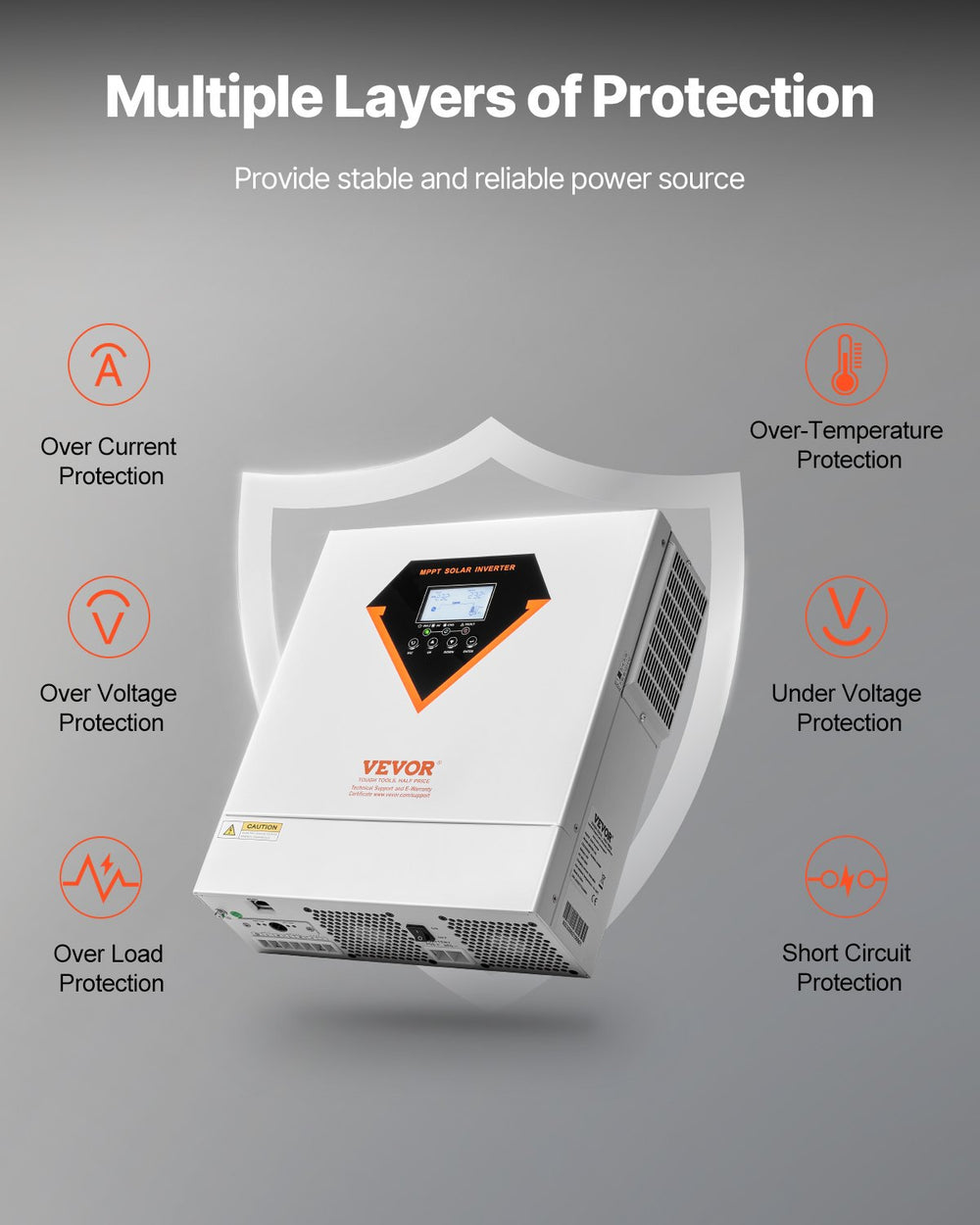

- Comprehensive Protection Features: Your system's security is our priority. This off grid hybrid solar inverter features multiple protection, including over-temperature, over current, over voltage, under voltage, short circuit, and overload protection, giving peace of mind to your circuit and power source

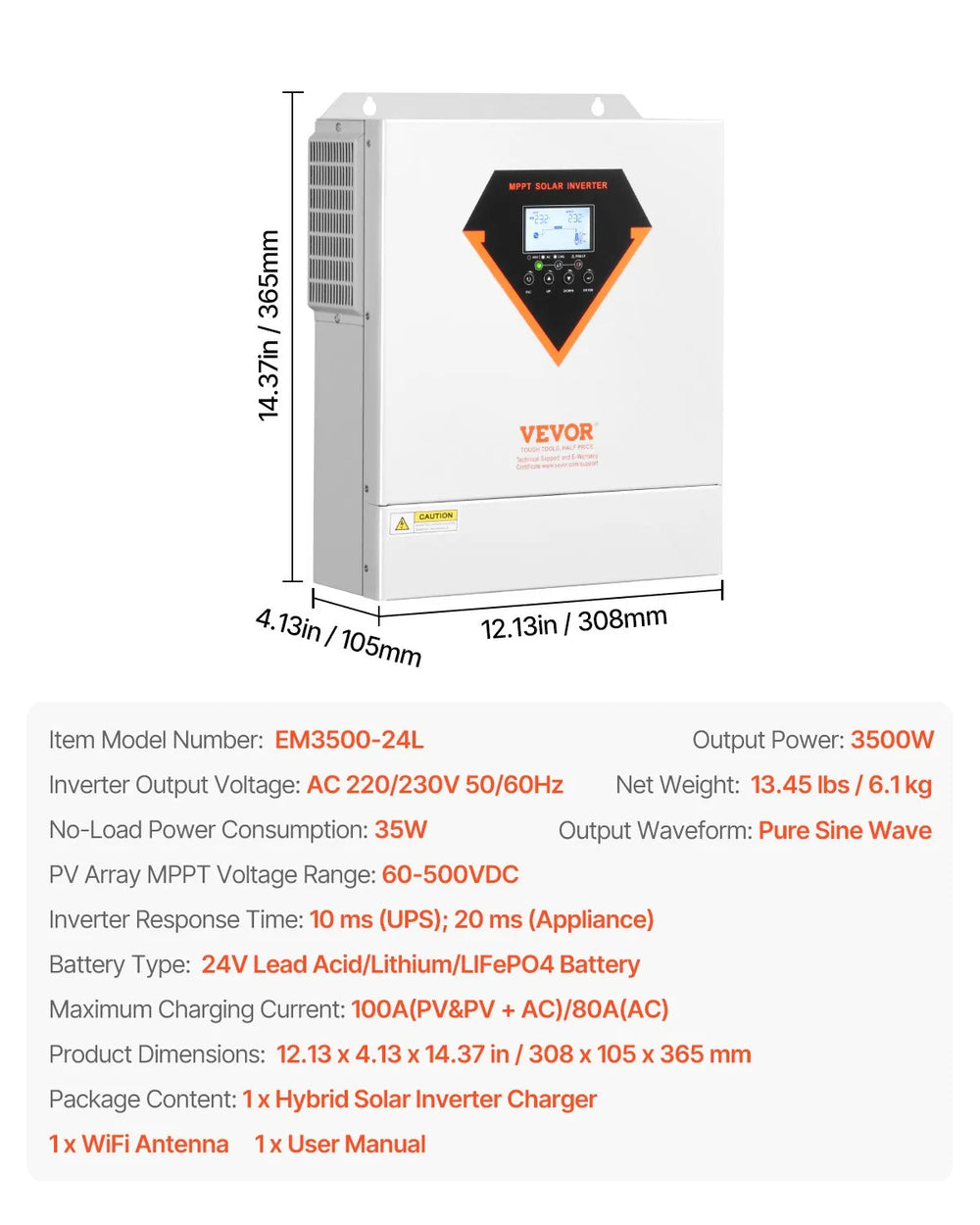

Specifications
| Item Model Number | EM3500-24L |
| Inverter Output Voltage | AC 220/230V 50/60Hz |
| Inverter Response Time | 10 ms (UPS); 20 ms (Appliance) |
| Output Waveform | Pure Sine Wave |
| Battery Type | 24V Lead Acid/Lithium/LIFePO4 Battery |
| Output Power | 3500W |
| Maximum Charging Current | 100A (PV & PV + AC) / 80A (AC) |
| PV Array MPPT Voltage Range | 60-500VDC |
| No-Load Power Consumption | 35W |
| Product Dimensions | 12.13 x 4.13 x 14.37 in |
| Net Weight | 13.45 lbs |
Package Contents
Vevor Hybrid Solar Inverter Charger 3500W
Wi-Fi Antenna
User Manual
Warranty
This item comes with a 1 year factory warranty.
