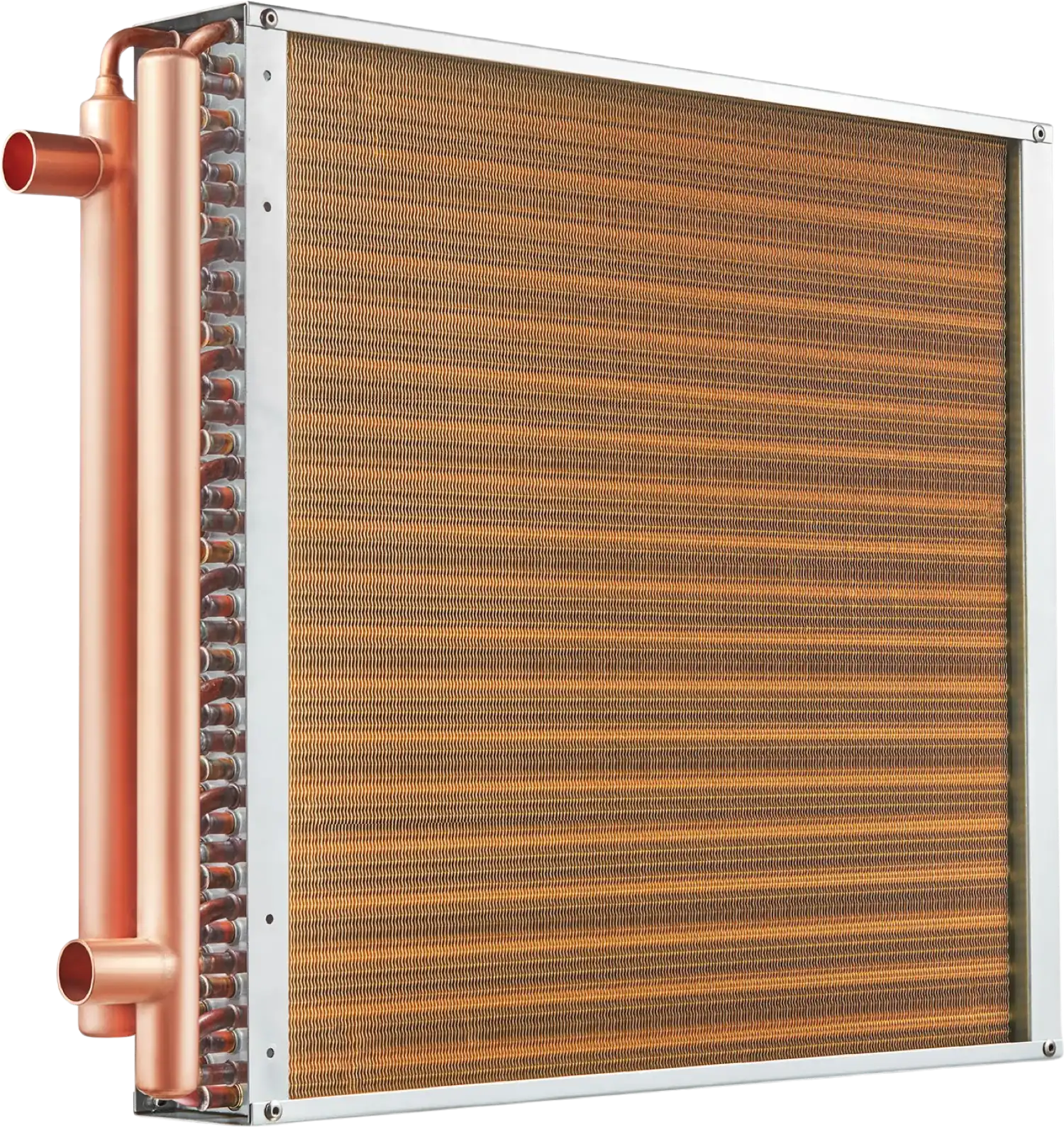

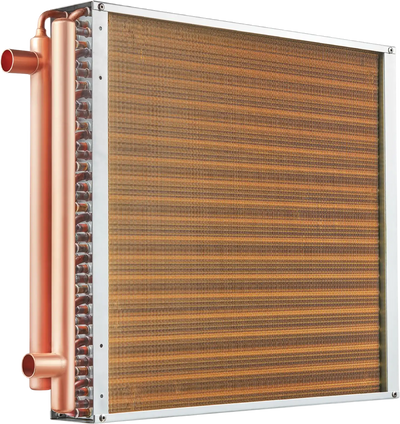

Vevor Heat Exchanger Water to Air 20" x 20" with 3-Row 3/8" Copper Ports New
Product Overview
Vevor's heat exchanger is compact and lightweight, offering excellent thermal performance. Made with 316L stainless steel and 99% copper brazing for durability, it is perfect for solar heating, oil heat recovery, engine cooling, and condensation. It features a thickened interface with smooth threads for easy and convenient connection.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- High-Quality Materials: The entire unit is copper brazed at edges and contact points, forming a durable and leak-resistant piece that withstands high pressure and temperature. UL and CE certified for reliable quality.
- Durable and Corrosion-Resistant: Features epoxy-coated fins, providing high hardness, wear resistance, and corrosion protection. This reduces internal water vapor scaling, promoting maximum heat exchange between air and fins. Suitable for operating temperatures from -40°F to 356°F.
- Efficient Heat Transfer: The heat exchanger generates up to 160k BTU per hour, with 12 aluminum fins per inch and 3 rows of 3/8" seamless copper tubes. The threaded copper tubes increase the contact area and capacity of the fluid medium, significantly enhancing the heat exchanger's performance.
- Large Heat Exchange Area: With an effective heat exchange area of 20" x 20" and 242 fins, this heat exchanger provides excellent heat transfer performance to meet various needs.
- Tight and Leak-Proof: To eliminate the possibility of micro-leaks, the heat exchanger uses high-pressure vacuum brazing and undergoes rigorous leak testing, ensuring long life and high reliability.
Specifications
| Item Model # | C20×20 |
| Material | Copper |
| Heat Capacity | 160k BTU |
| Plate Area | 20" x 20" |
| Port | 1" ID |
| Copper Tube Diameter | 3/8" |
| Copper Tubes | 3-Row |
| Number of Aluminum Fins | 242 pcs |
| Max Working Pressure | 2.5MPa |
| Operating Temperature | -40°F to 356°F |
| Product Dimensions | 25.2" x 20" x 3.6" |
| Net Weight | 19.14 lbs. (8.7 kg) |
Package Contents
Vevor Heat Exchanger 20" x 20"
Warranty
This item comes with a 1 year factory warranty.
