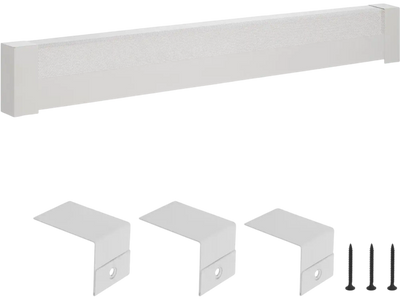

Vevor Baseboard Heater Cover Basic Series 6' White New
-

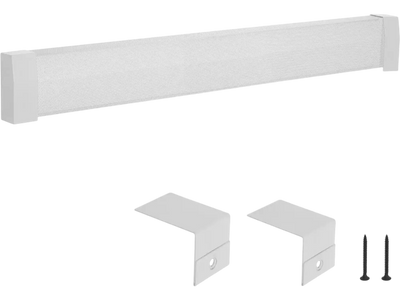

Vevor Baseboard Heater Cover Premium Series 5' White New
-
Vevor Diesel Heater Glow Plug Kit with Removal Fitting Tool for 2KW 5KW 8KW Heaters New
-
Vevor Diesel Heater Muffler 0.94" Noise Reducer with Clamps and Screws New
-

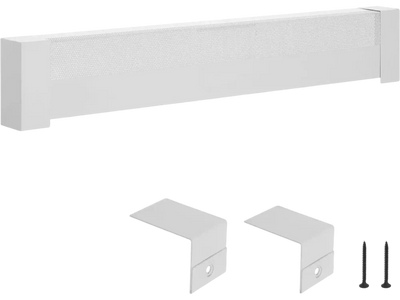

Vevor Baseboard Heater Cover Basic Series 4' White New
-

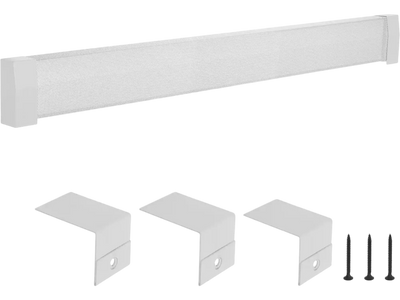

Vevor Baseboard Heater Cover Premium Series 6' White New
-

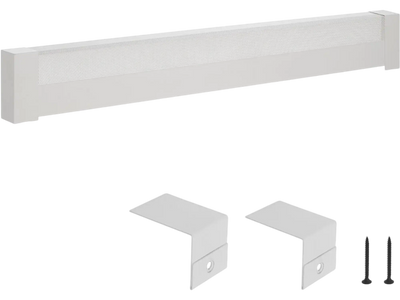

Vevor Baseboard Heater Cover Basic Series 5' White New
-
Vevor Fuel Pump Diesel Heater Quiet 12/24V DC Parking Heater Pump New
-

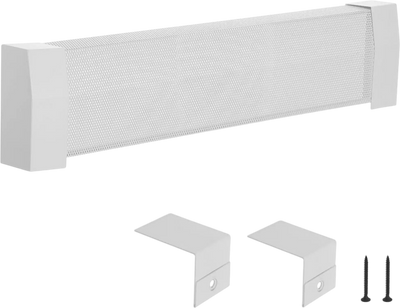

Vevor Baseboard Heater Cover Premium Series 3' White New
-
Vevor Baseboard Heater Cover Replacement 4' Premium White New
Vevor Heat Exchanger 5" x 12" 30-Plate Brazed Water-to-Water Heat Exchanger New
Product Overview

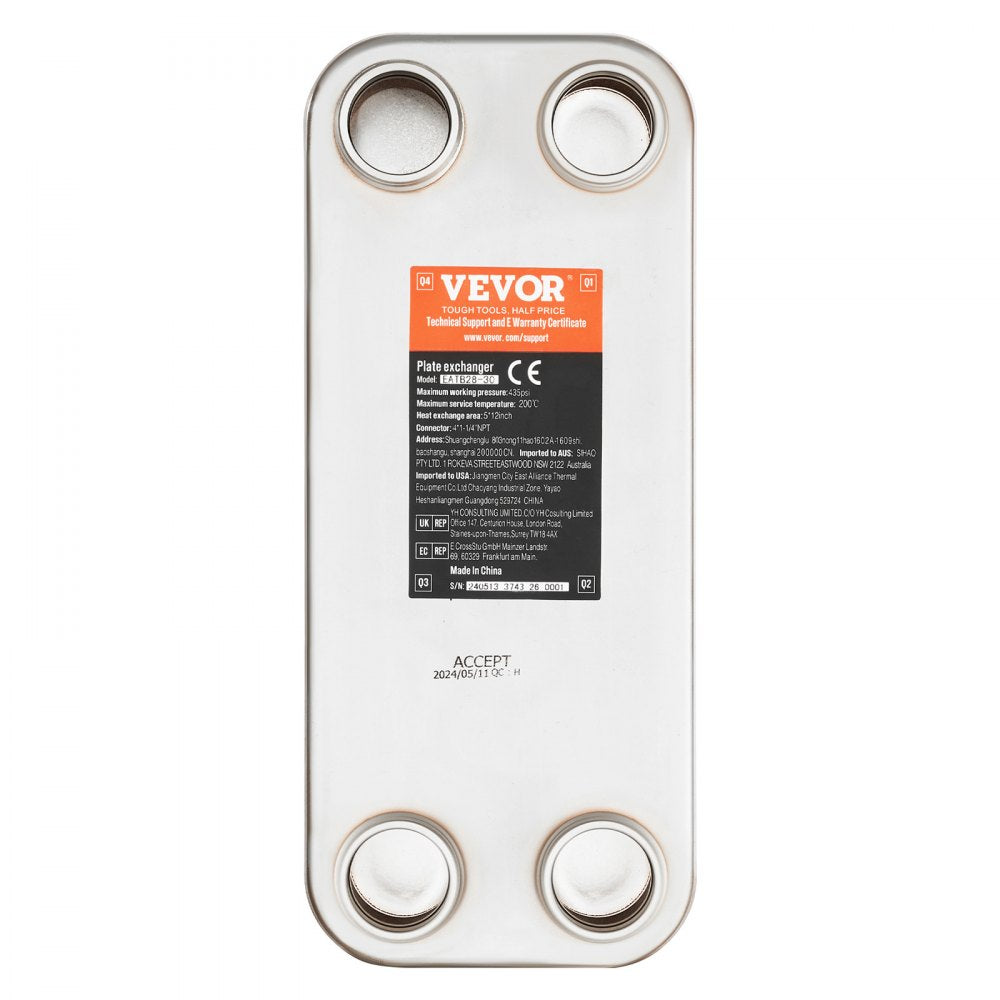

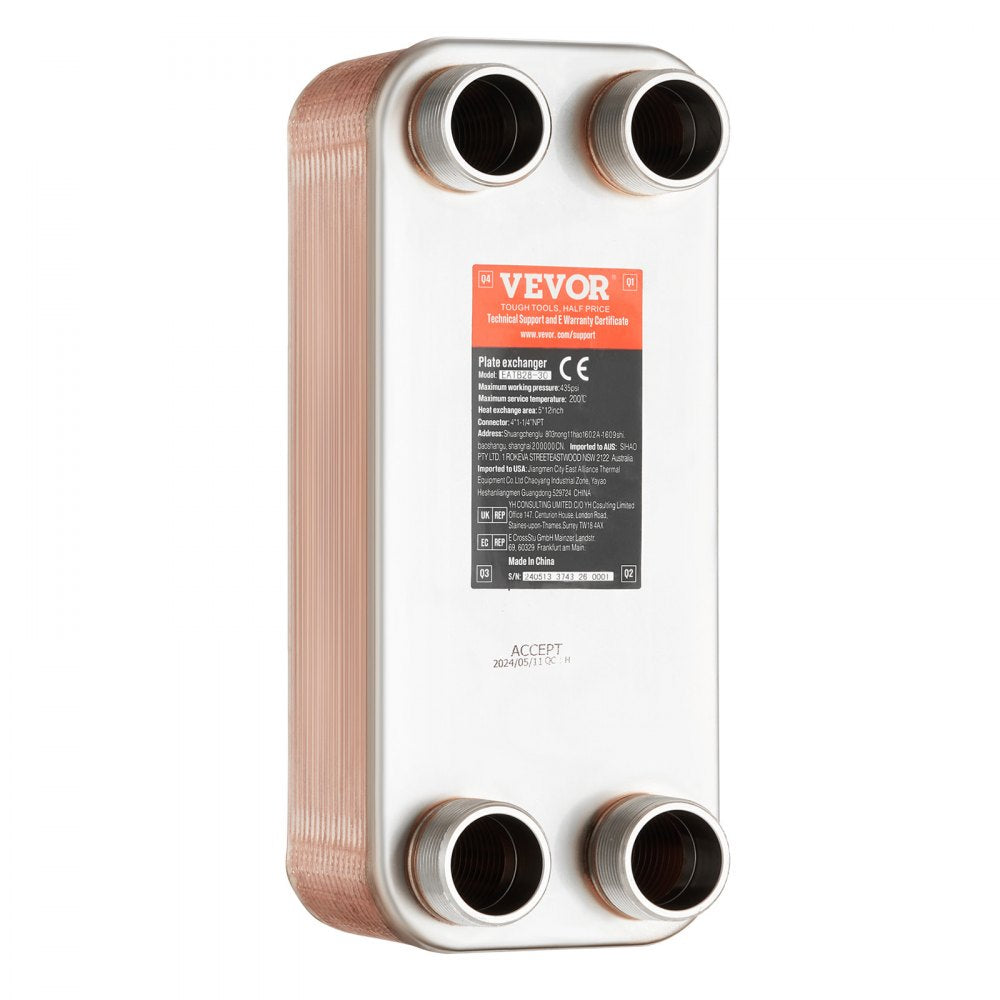

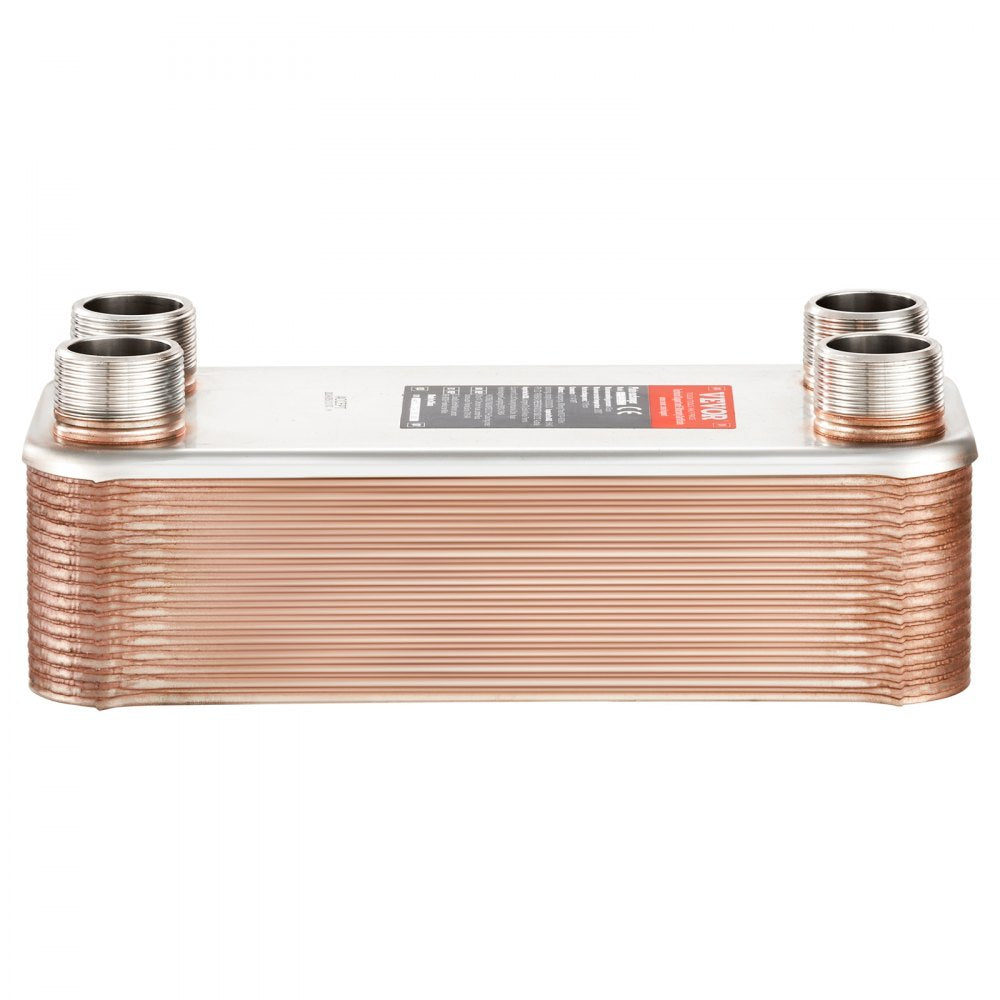

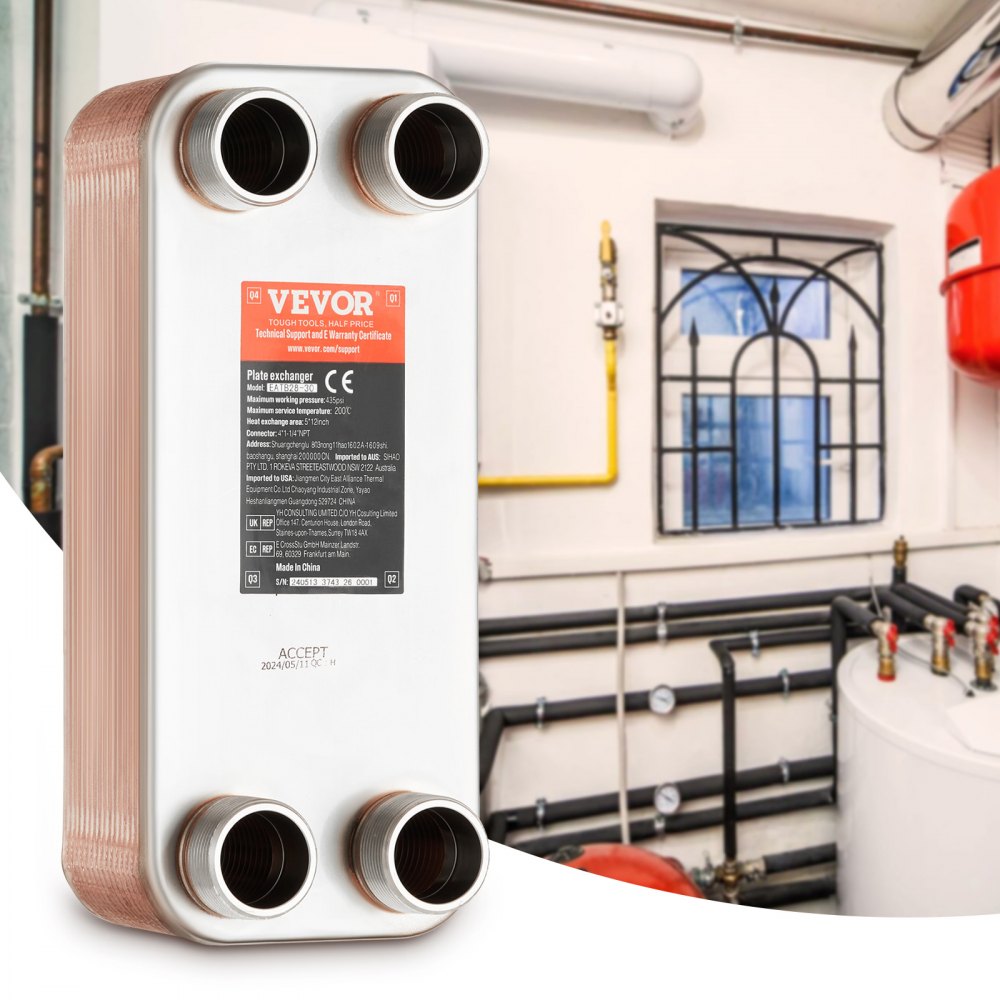

The Vevor 5" x 12" brazed plate heat exchanger is designed for efficient water-to-water heat transfer in heating and cooling systems. Built with stainless steel plates and copper brazing, it delivers strong thermal performance in a compact form. It is suitable for applications such as floor heating, water heating, snow melting, and beer cooling. The unit includes mounting brackets for stable installation and is engineered for reliable, leak-resistant operation.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- High-Quality Materials: Made of 316L stainless steel with 99% copper brazing at edges and contact points, forming a robust and leak-resistant unit that withstands high pressure and temperature. CE certified for reliable quality.

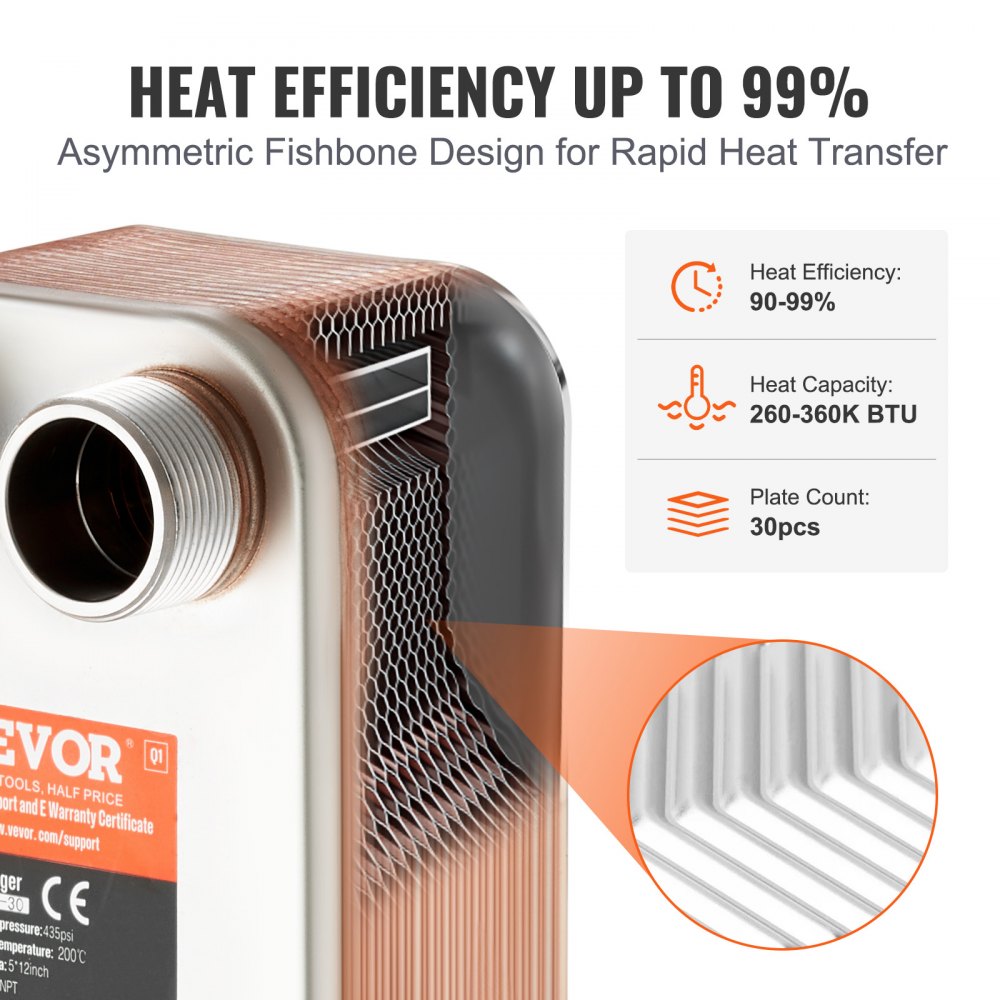

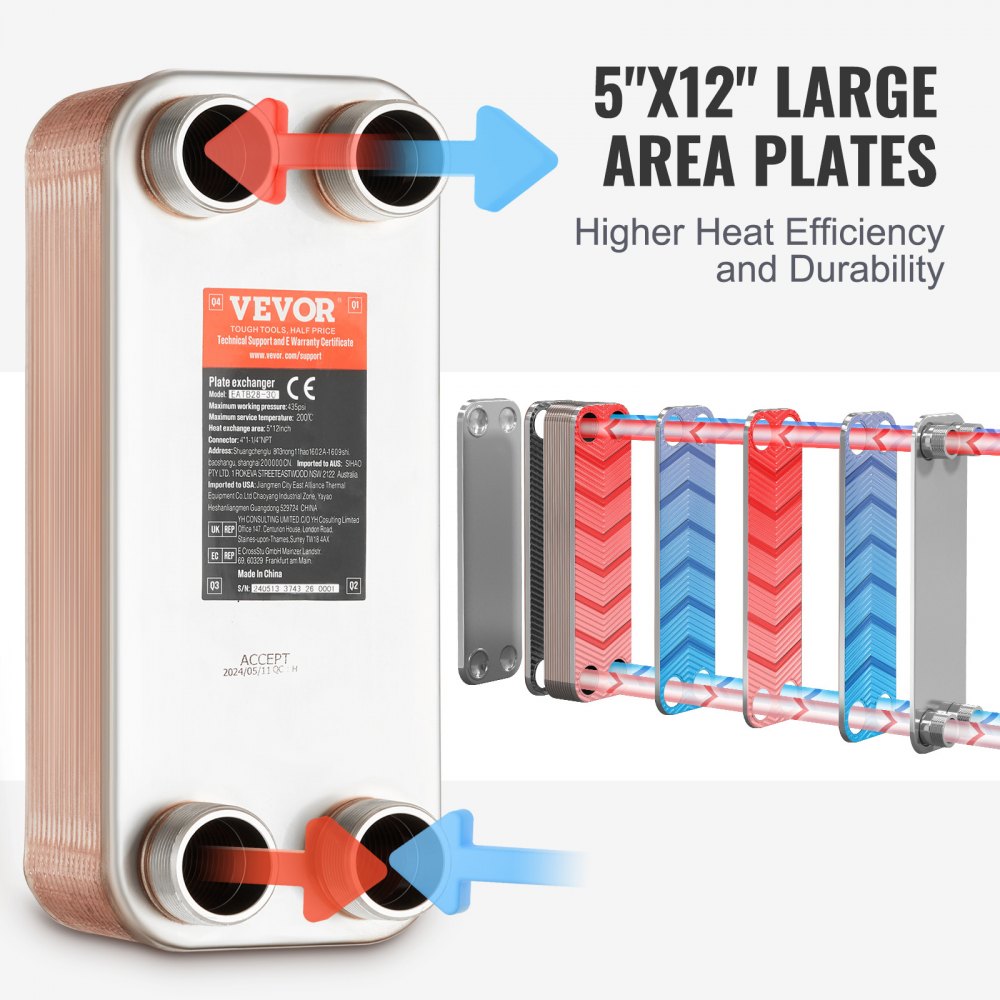

- Efficient Heat Transfer: The high-conductivity stainless steel plates feature an asymmetrical herringbone pattern, creating intense pressure turbulence for efficient heating/cooling. With up to 99% heat efficiency, it generates 260-360K BTU per hour, saving pump power and electricity, reducing overall application costs.
- Large Heat Exchange Area: The heat exchanger features 5”x12” plates with up to 30 plates, providing excellent heat transfer performance for maximum efficiency. Suitable for operating temperatures from -292℉ to 392℉.

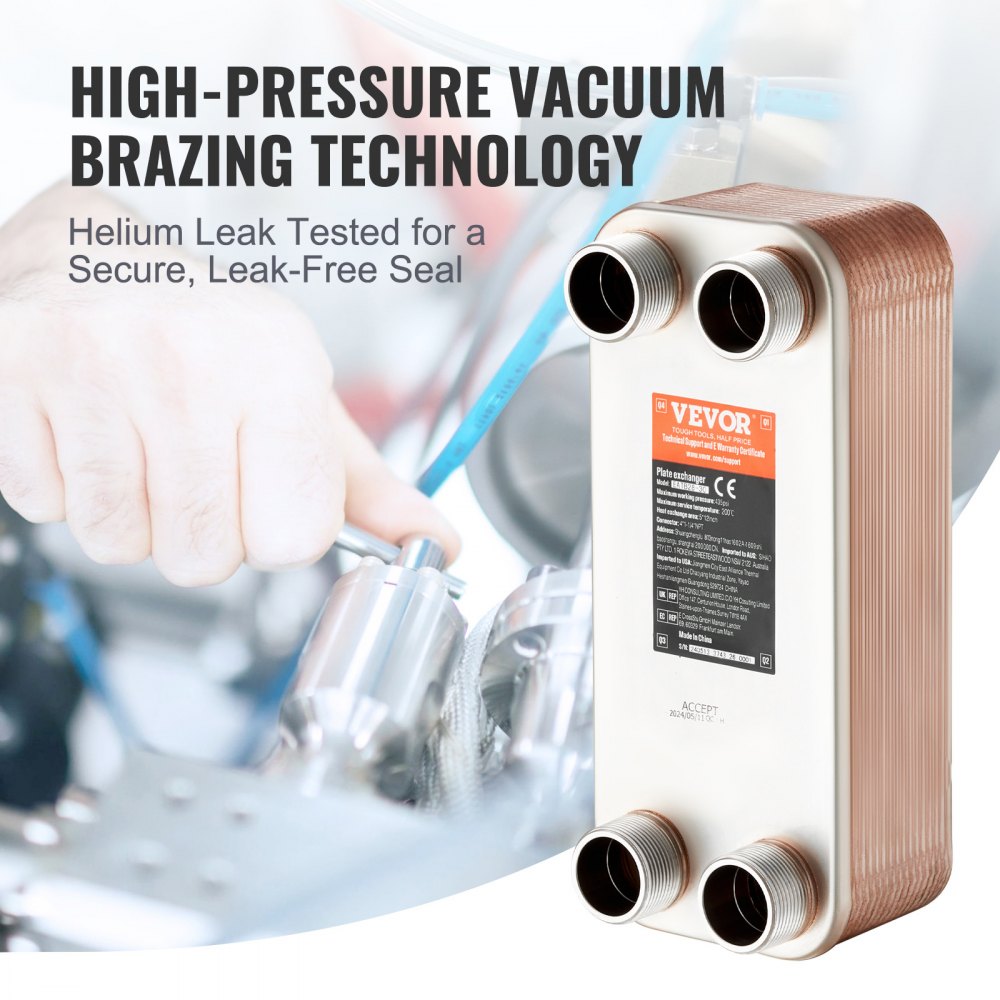

- Tight and Leak-Proof: To eliminate the possibility of micro-leaks, the heat exchanger uses high-pressure vacuum brazing and undergoes helium leak testing, ensuring long life and high reliability.

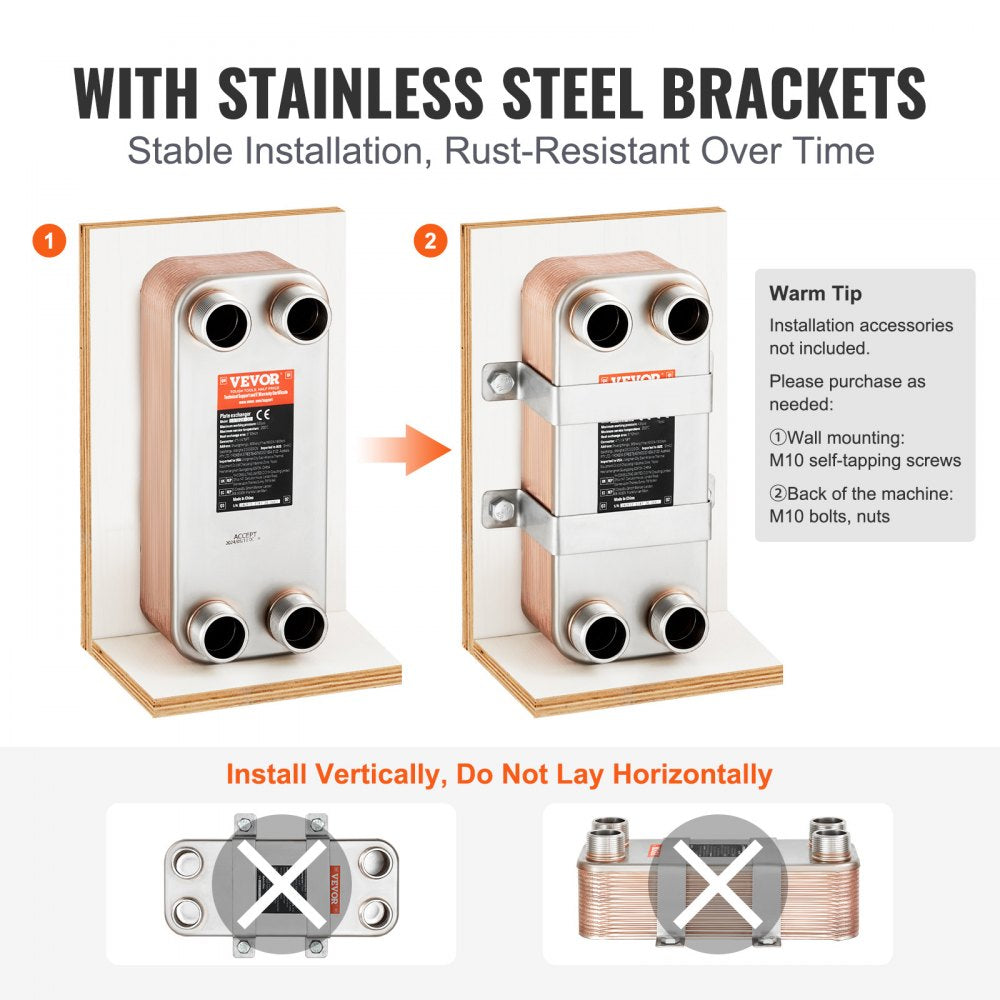

- Stable Installation: Includes two stainless steel brackets made of 304 stainless steel, offering excellent rust resistance and stability for easy and secure mounting of the heat exchanger.

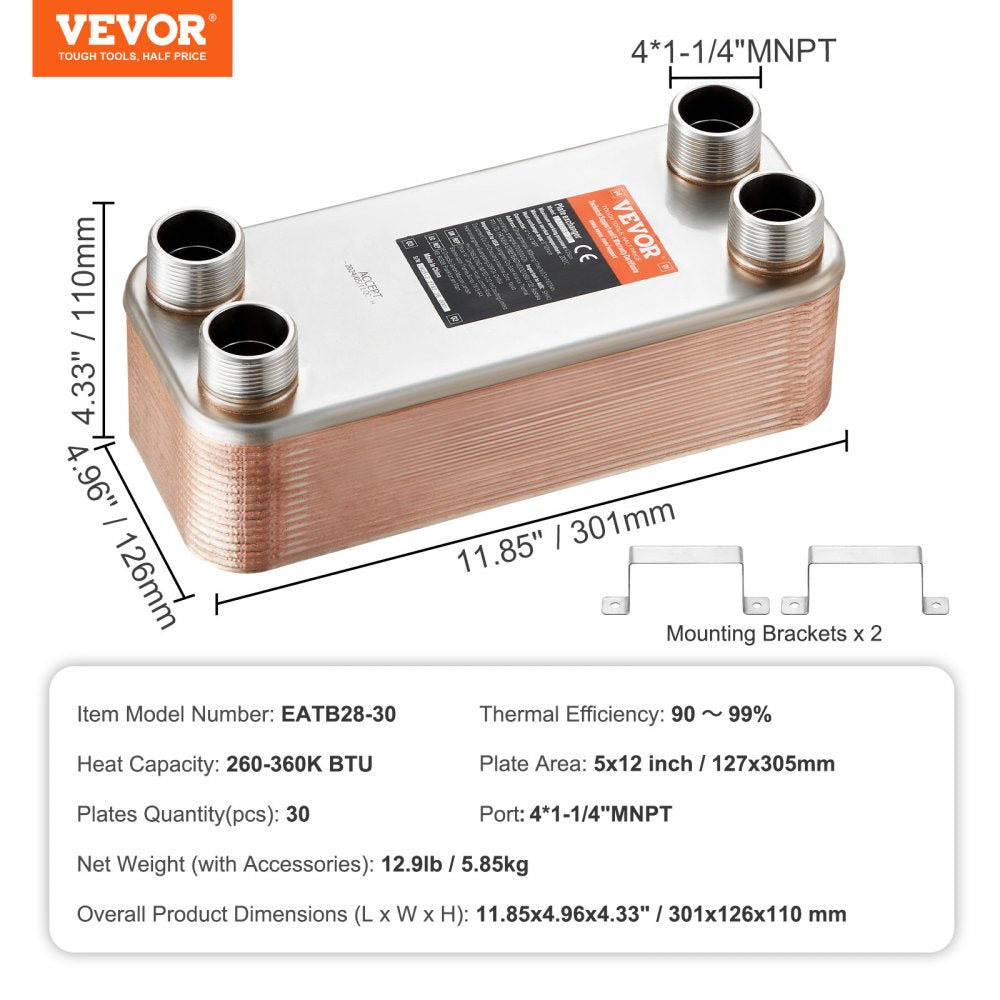

Specifications
| Model | EATB28-30 |
| Thermal Efficiency | 90-99% |
| Heat Capacity | 260-360K BTU |
| Plate Area | 5 x 12 in / 127 x 305 mm |
| Plates Quantity | 30 |
| Port | 4 x 1-1/4" MNPT external thread |
| Color | Stainless Steel and Copper |
| Material | 304/316 stainless steel, solder |
| Net Weight With Accessories | 12.9 lbs / 5.85 kg |
| Dimensions | 11.85 x 4.96 x 4.33 in / 301 x 126 x 110 mm |

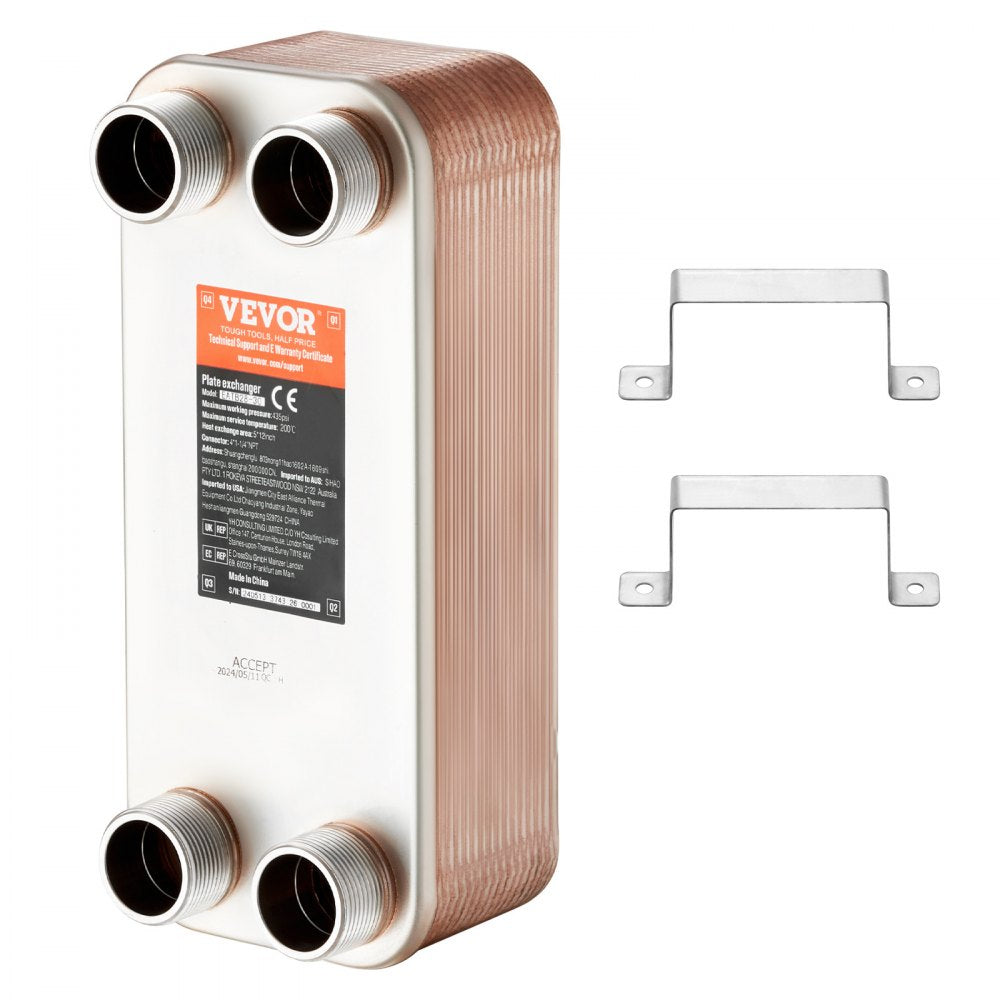

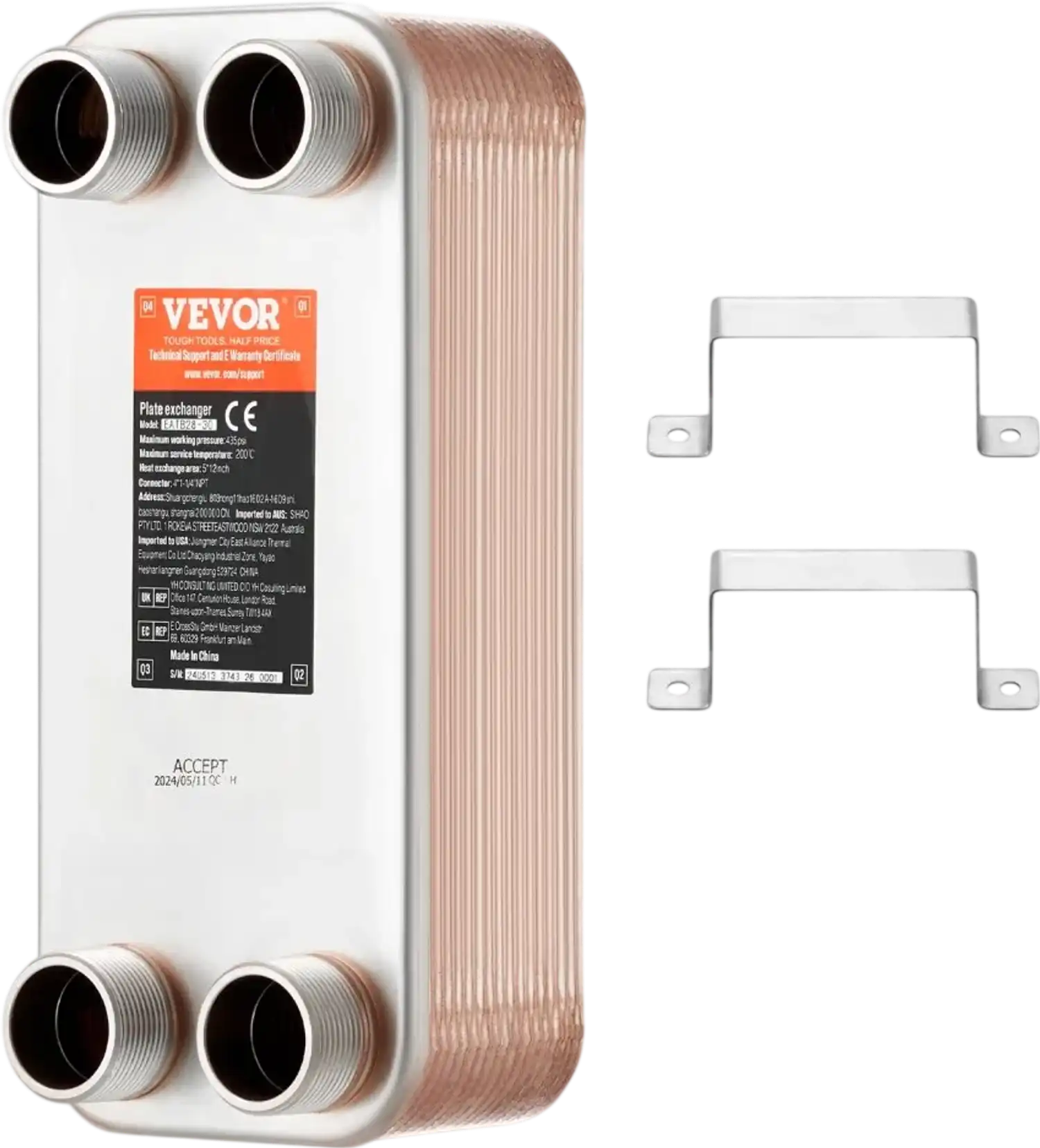

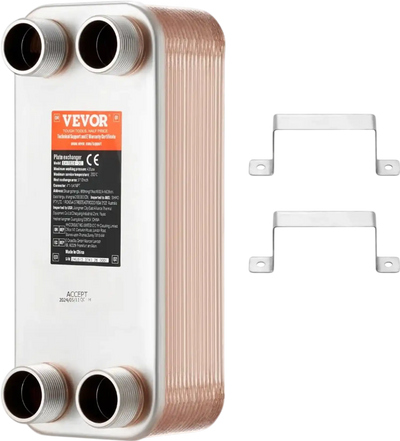

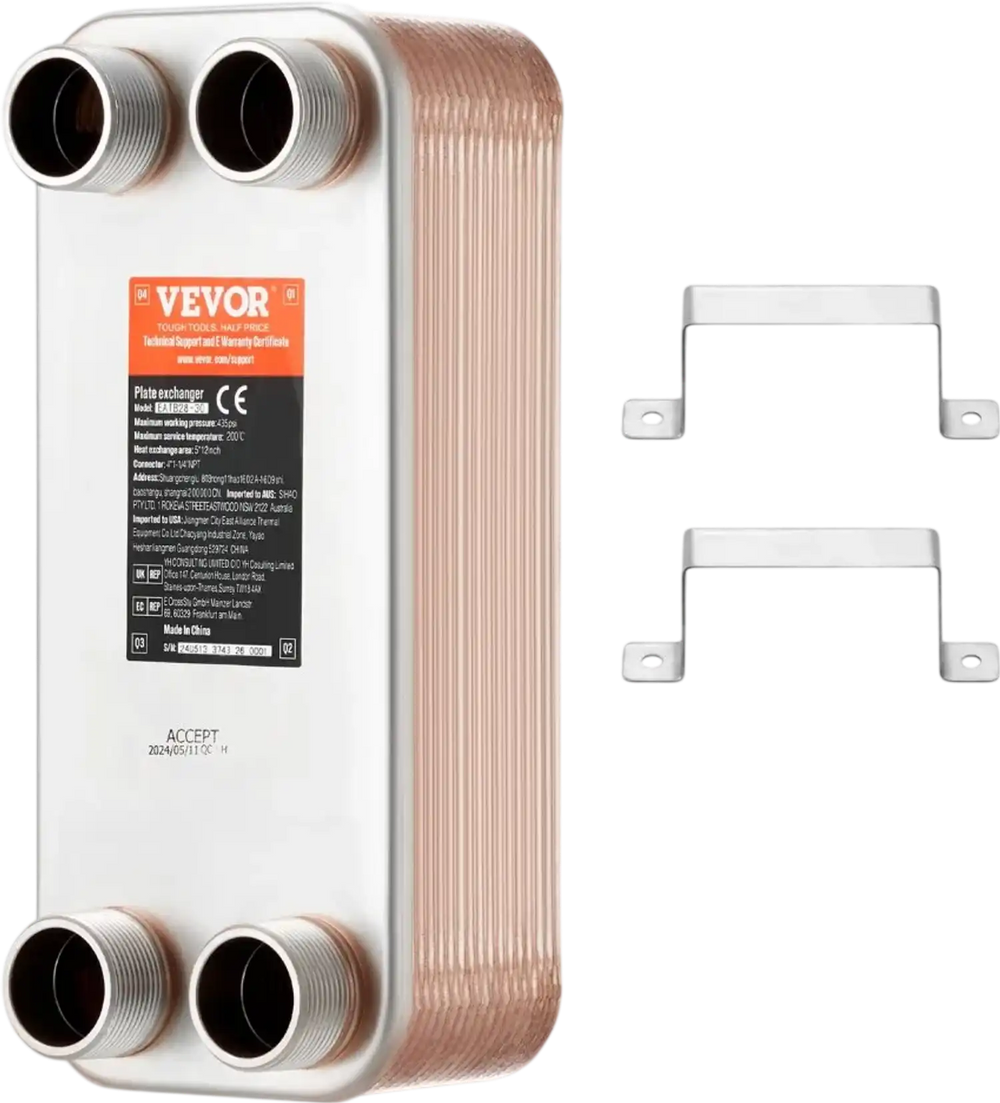

Package Contents
Heat exchanger
2 stainless steel brackets
Warranty
This item comes with a 1 year factory warranty.
