Vevor Heat Exchanger 3" x 7.5" 40-Plate Brazed Plate Heat Exchanger New
Manufacturer: Vevor
SKU: BSHRQ1240MN34G601V0
Number of Plates Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$74.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Most orders ship out the same or next business day
If ordered by 12 PM ET
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor AC Manifold Gauge Set 4-Way Refrigerant Freon Charging Kit with 5' Hoses New
-
Vevor Hydraulic Shop Press 6-Ton H-Frame Adjustable Floor Press New
-
Vevor Refrigerant Recovery Tank Float Switch 30 lbs New
-
Vevor Wind Turbine Generator Kit 3-Blade with MPPT Controller 800W 12V New
-
Vevor Wind Turbine Generator 500W 12V 5-Blade Kit with MPPT Controller New
-
Vevor Hybrid Solar Inverter 6000W Pure Sine Wave Charger 48V DC to 220/230V AC Single Phase New
-
Vevor Wind Turbine Generator 500W 12V 3-Blade Kit with Anemometer New
-
Vevor Diesel Air Heater Bluetooth App Control All-in-One 12V 8KW New
-
Vevor Variable Frequency Drive 3HP 2.2KW 3-Phase Motor Speed Control New
-
Vevor Diesel Heater Bluetooth App Control 12V 8KW Parking Heater New
-
Vevor Fermentor 8 Gallon Stainless Steel Brew Bucket New
-
Vevor Exhaust Pipe Kit Diesel Heater Pipe Ducting Set New
Vevor Heat Exchanger 3" x 7.5" 40-Plate Brazed Plate Heat Exchanger New
Product Overview

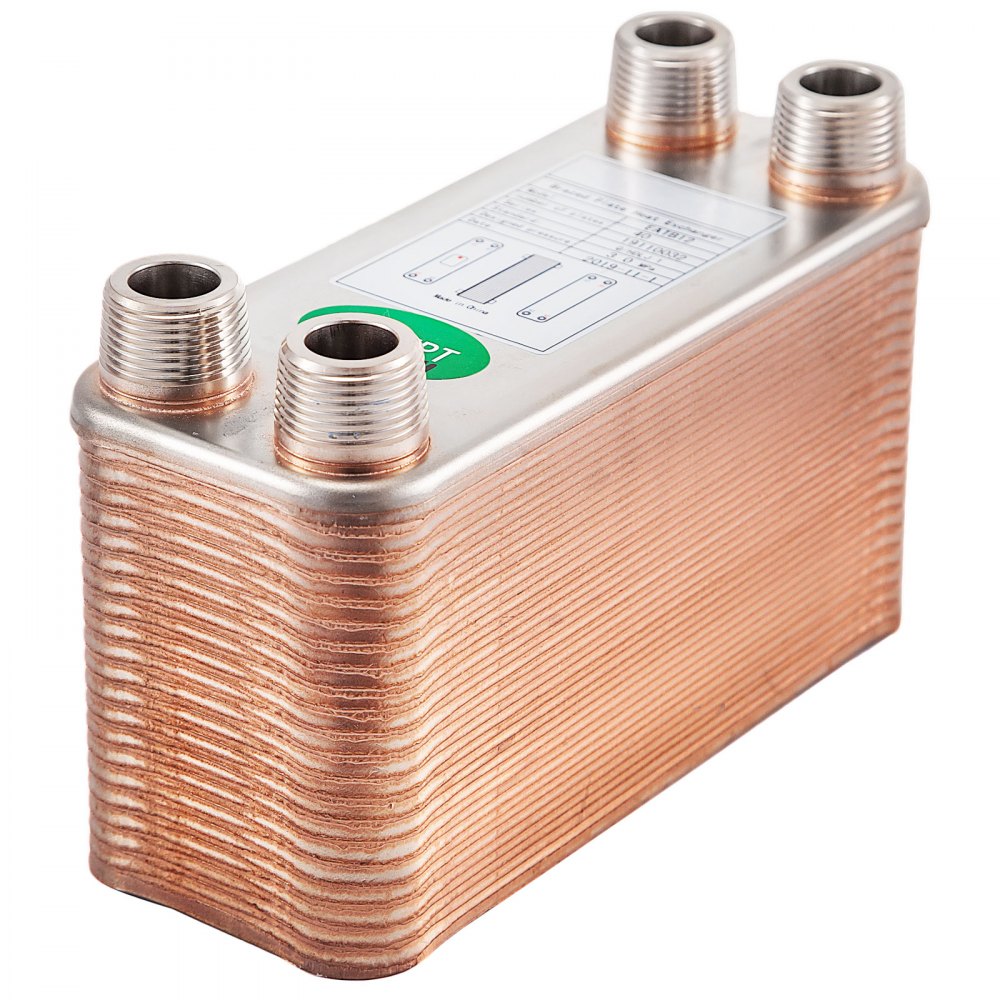

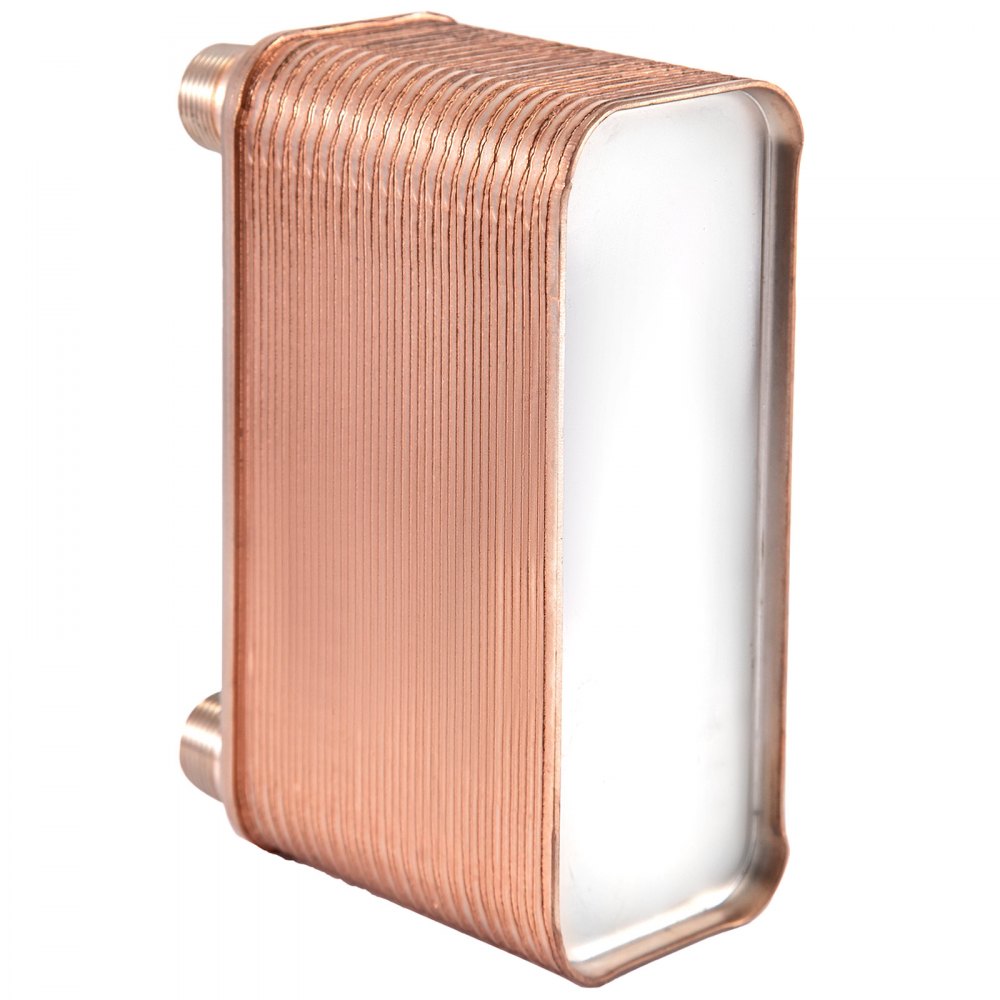

The Vevor brazed plate heat exchanger features a compact, lightweight design built for efficient heat transfer in hydronic heating, solar heating, oil heat recovery, engine cooling, evaporation, and condensing applications. It is made from 316L stainless steel with 99.9% copper brazing for durability and long service life. The turbulent-flow plate design helps improve thermal efficiency while maintaining a small footprint. Four 3/4" MNPT ports support straightforward installation in a range of heating and cooling systems.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

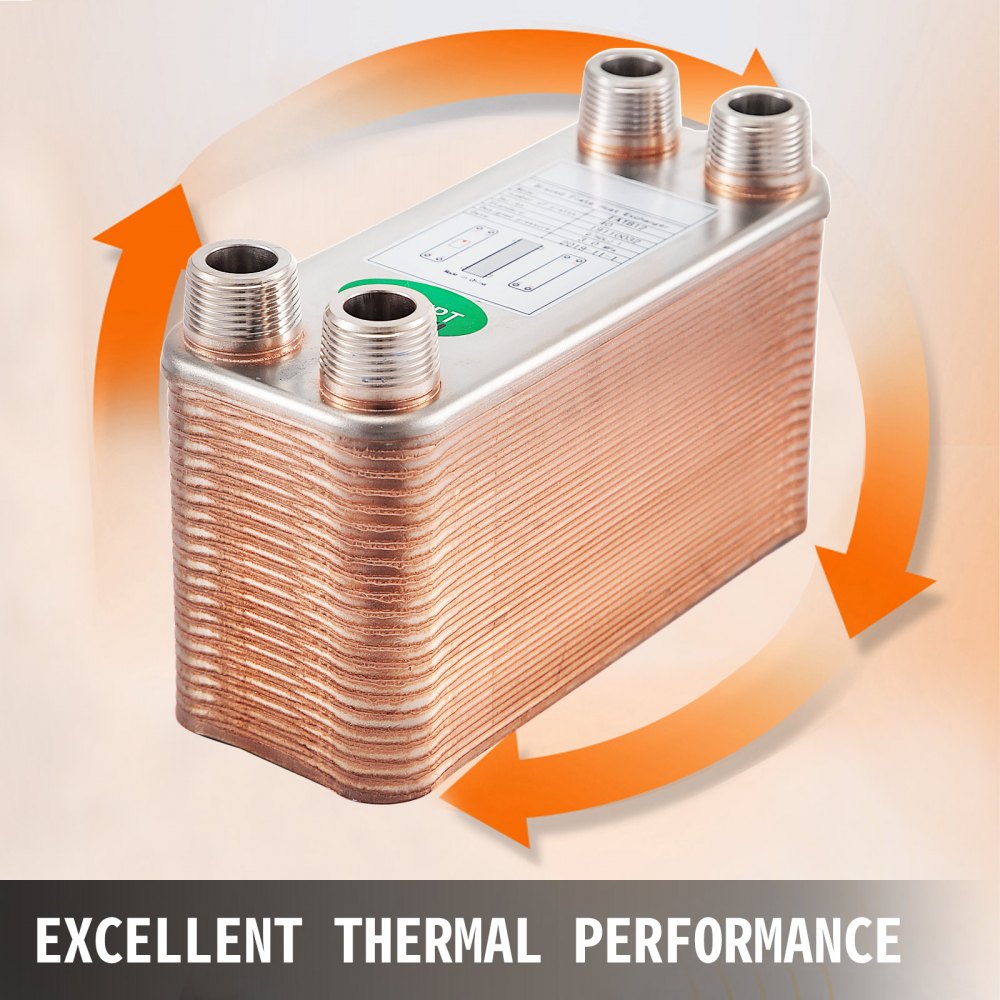

- HIGH THERMAL EFFICIENCY: - Turbulent-flow design moves the two media in opposite directions and creates strong turbulence for superior heat transfer rates and efficiency. Our heat exchanger series have been certificated by CE. Dimension: 7.6" x 2.7" x 4.6" /19.4 cm x 7.1 cm x 11.8 cm.

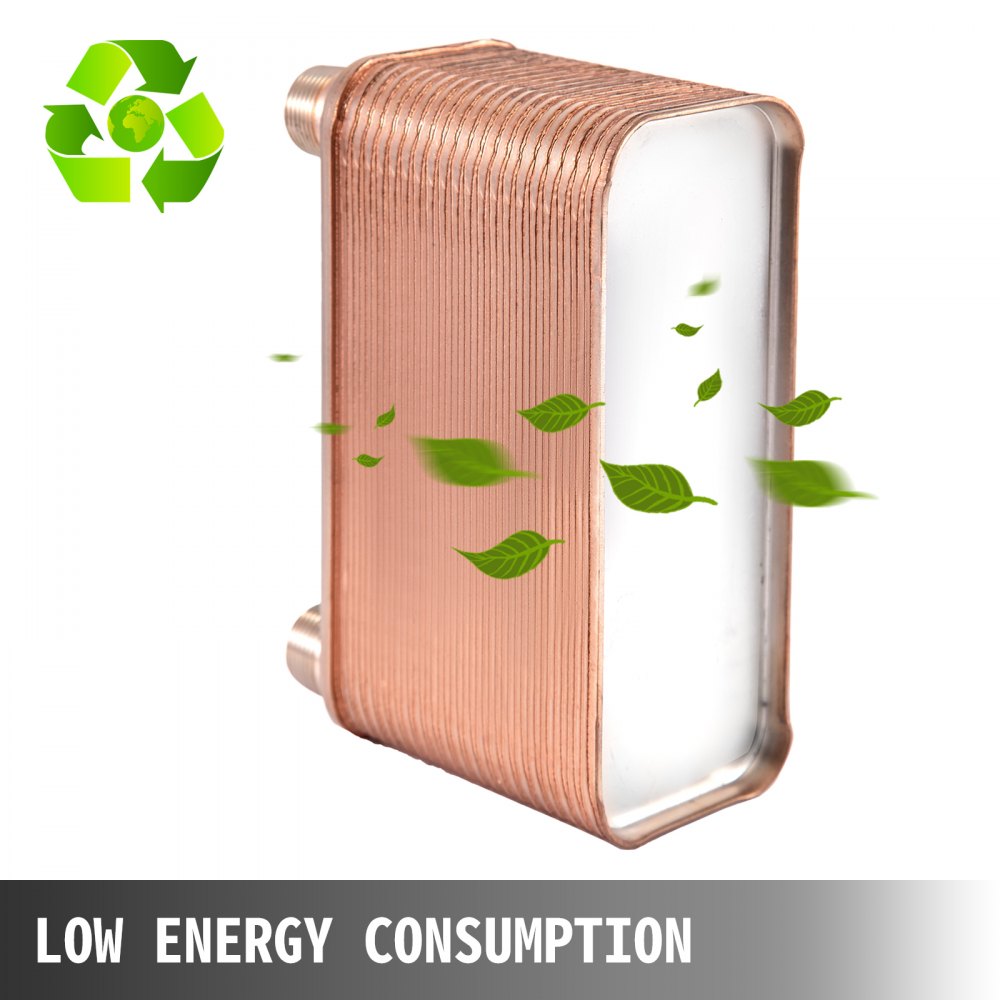

- ENERGY OPTIMIZED: - This heat exchanger stainless can heat water to the preset temperature, which is super energy-saving with no electricity consumption and no oxygen consumption.

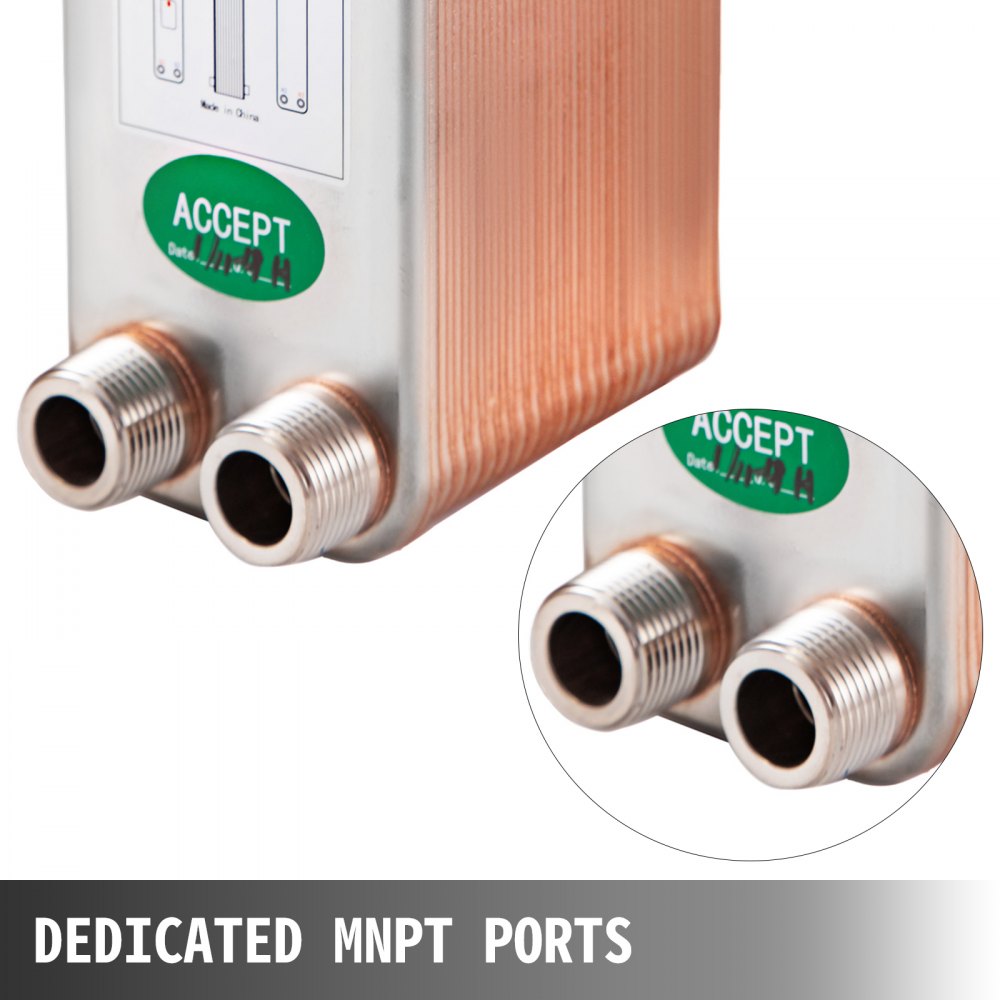

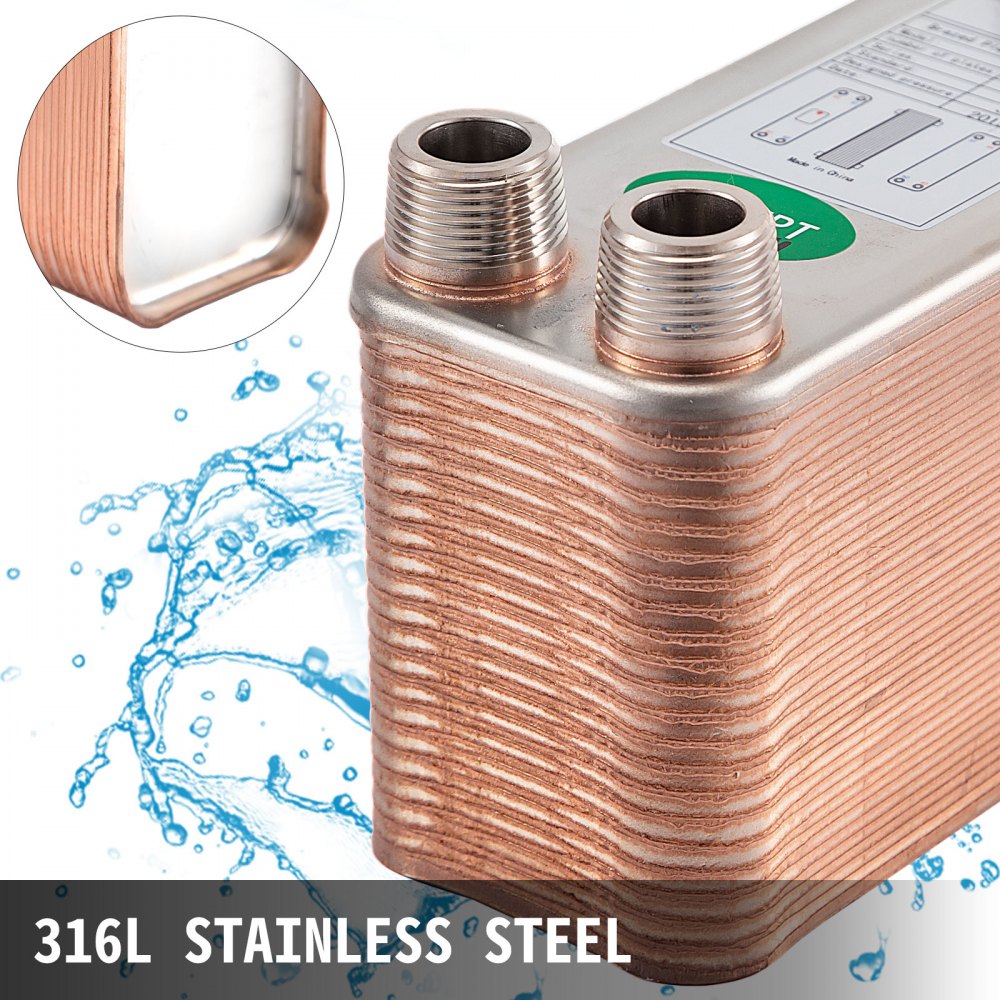

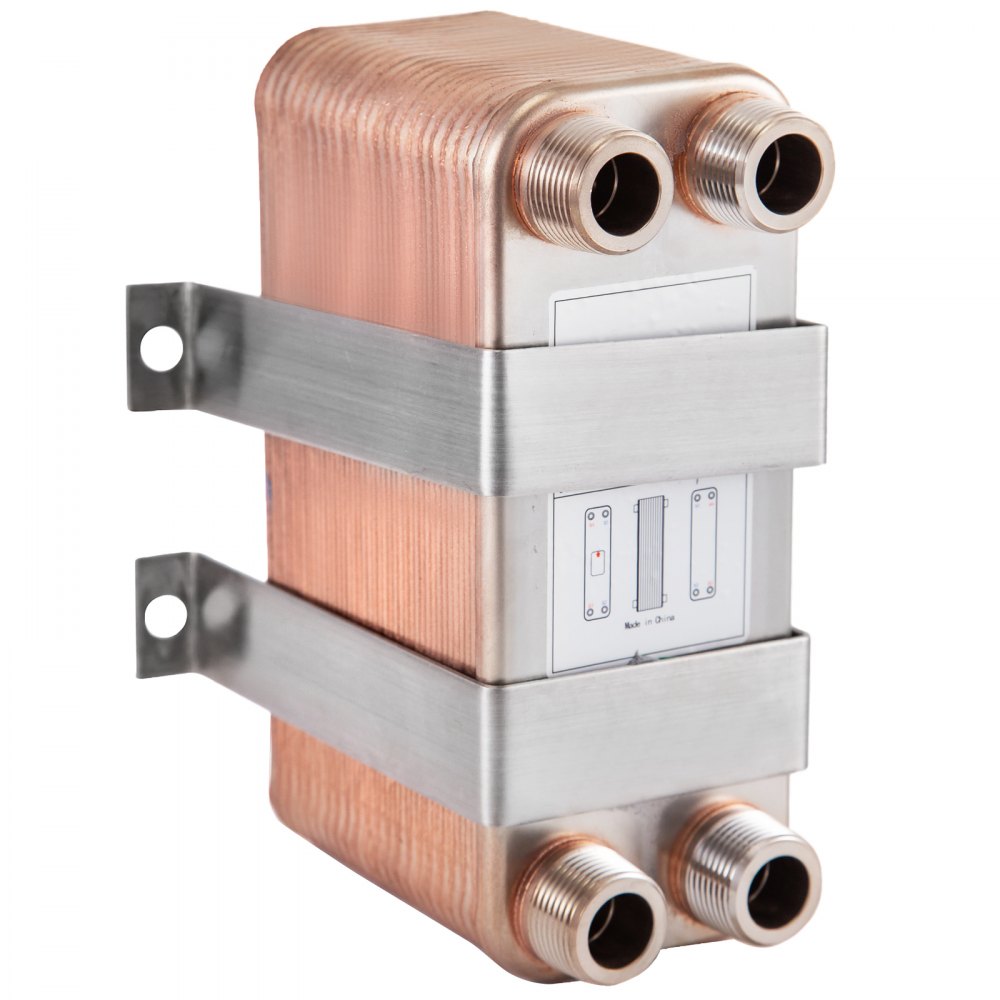

- ROBUST CONSTRUCTION: - This 40 plate heat exchanger features 316L stainless steel sheets, which are brazed together at the edges and the matrix of contact points for a reliable and rugged part to form a durable, integral piece that can withstand high pressure and temperature. Four thickened MNPT ports for your easier installation.
- COMPACT DESIGN: - Corrugated plate design of this plate chiller wort allows for substantially smaller build and footprint at an equivalent or better performance compared to other heat transfer devices – resulting in significant space savings.
- HIGHLY VERSATILE: - This heat exchanger beer offers the highest level of thermal efficiency and durability in a compact & lightweight unit, ideal for industrial oil cooling, refrigerant evaporators, and condensers, residential and light commercial HVAC hydronic systems.
Specifications
| Model | EATB12 |
| Material | 316L Stainless Steel + 99.9% Copper |
| Ports | 3/4" MNPT |
| Plate Quantity | 40 |
| Design Pressure Max | 3.0 Mpa |
| Test Pressure Min | 4.5 Mpa |
| Design Temperature Max | +225 ℃ |
| Design Temperature Min | -196 ℃ |

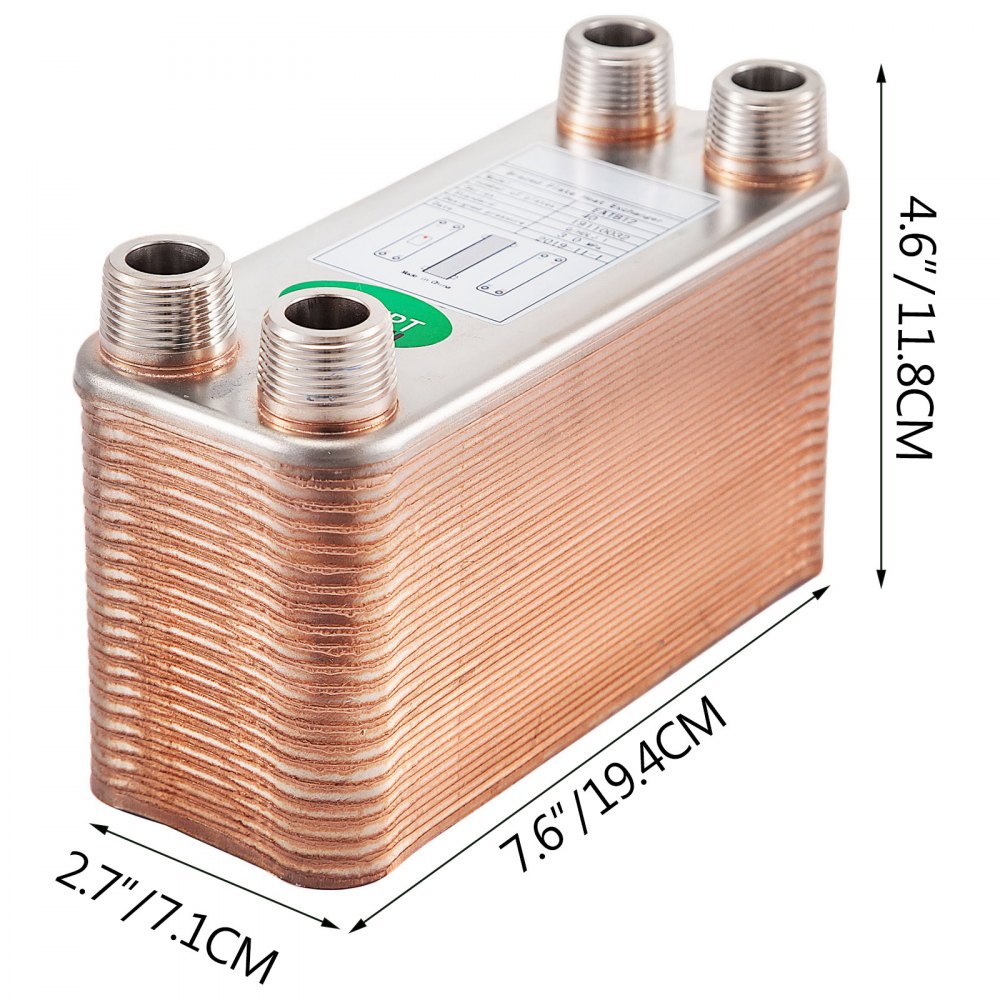

| Dimensions | 7.6" x 2.7" x 4.6" |
| Maximum Flow Rate | 8 m³/h |
| Minimum Flow Rate | 700 L/h |

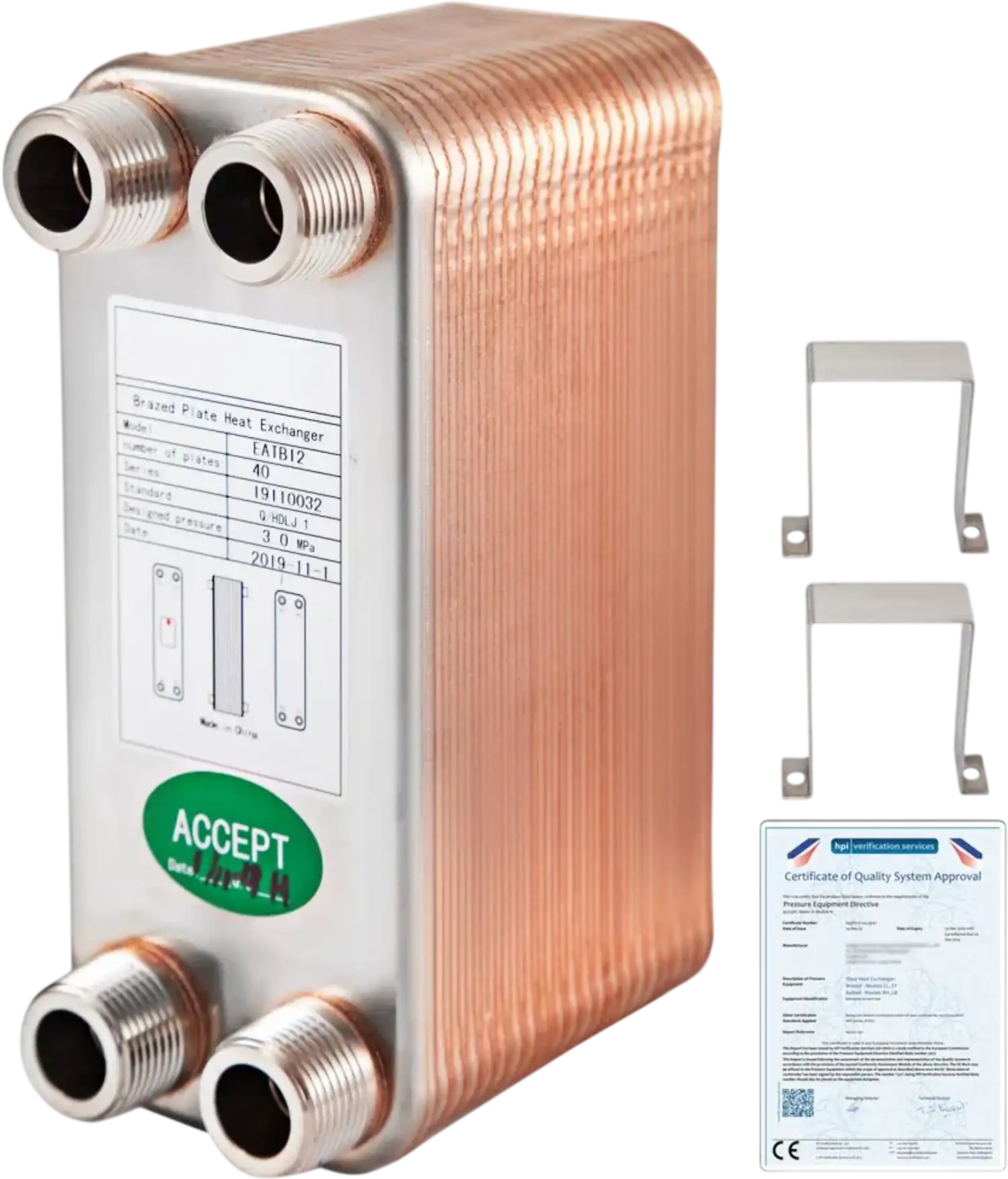

Package Contents
1 x Heat Exchanger

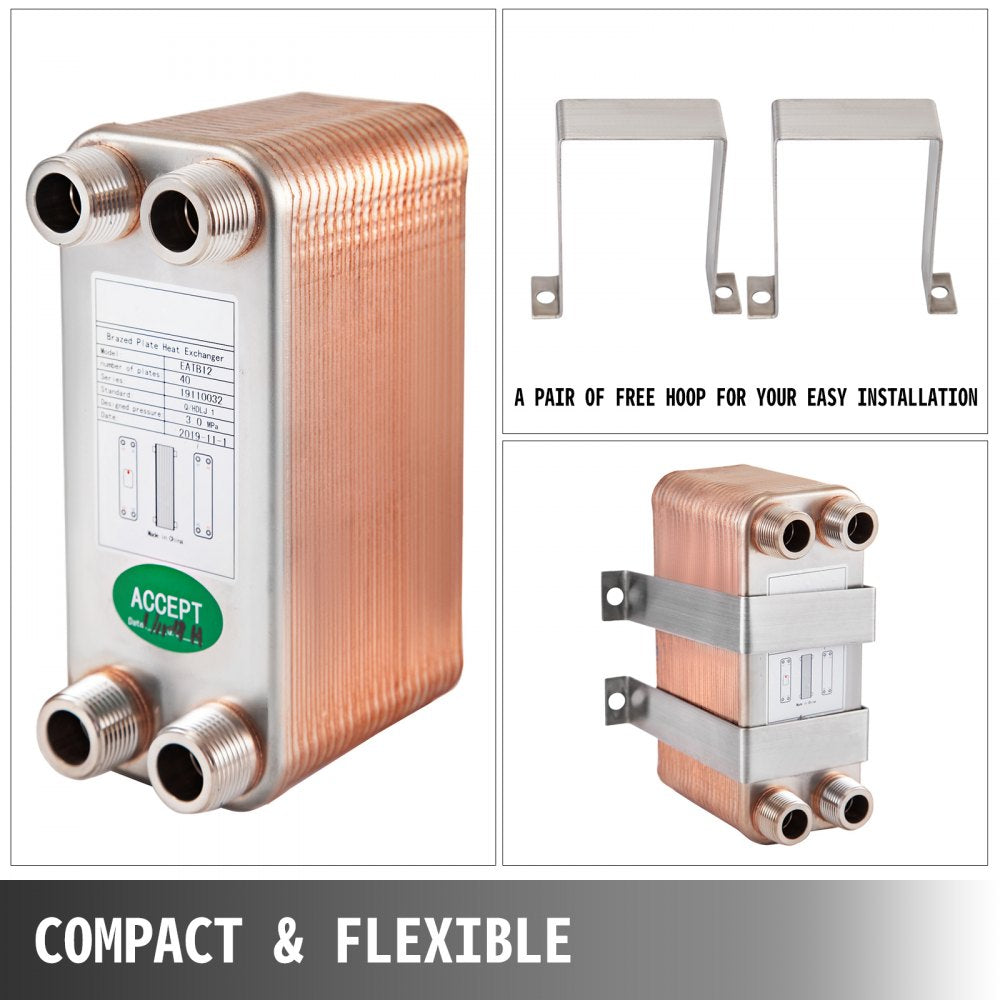

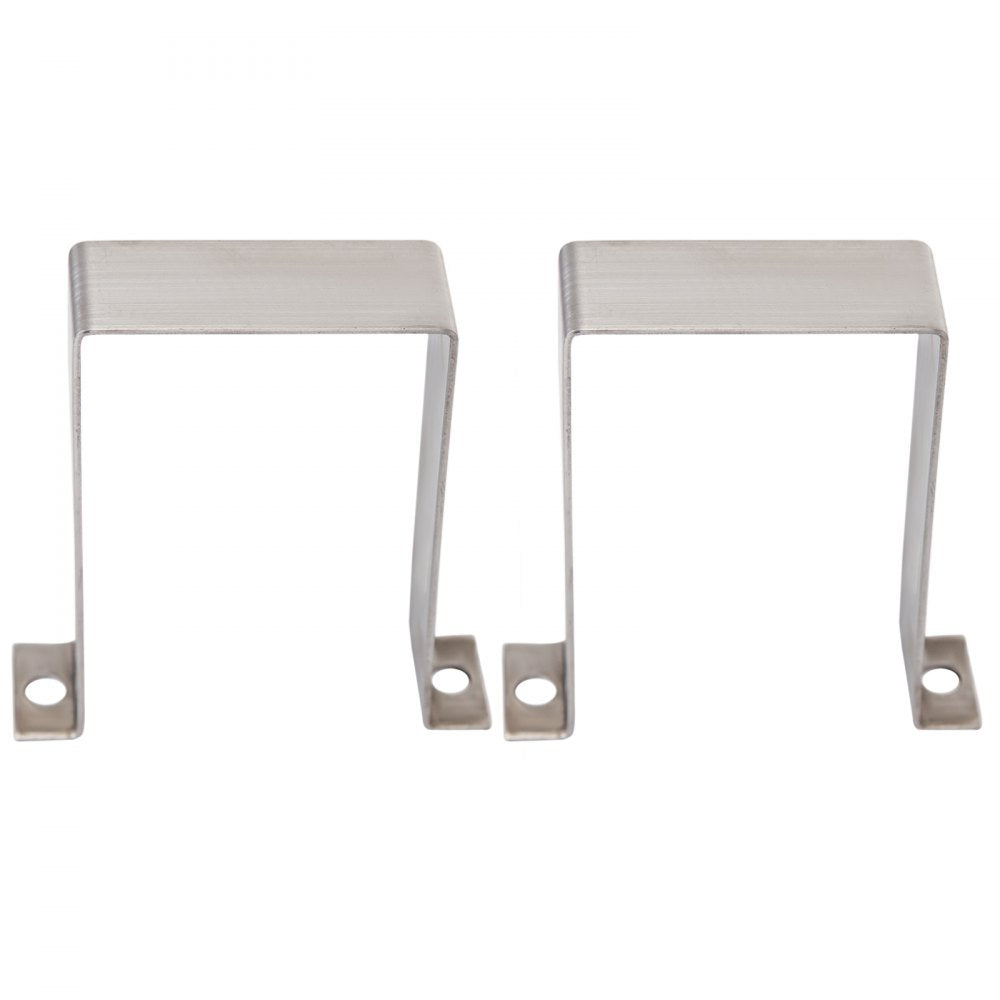

1 x A Pair of Hoops
Warranty
This item comes with a 1 year factory warranty.
