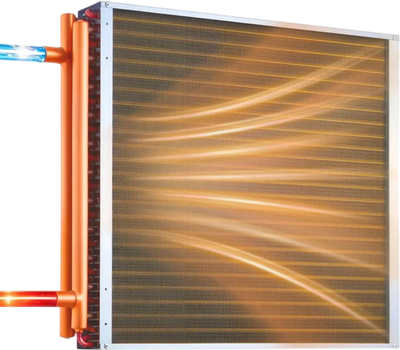

Vevor Heat Exchanger 24 x 24" Water to Air HVAC Coil 225K BTU New
Manufacturer: Vevor
SKU: CPGSHRQ24INCX5EY7001V0
QTY
or
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$507.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor Storage Bins Wall-Mounted 30-Bin Parts Rack Organizer New
-
Vevor Push Floor Sweeper Walk-Behind 25.6" Manual Non-Electric Floor Sweeper New
-
Vevor Pool Sand Filter Pump 16 in. for Above Ground 1 HP 4,400 GPH with Timer New
-
Vevor Diesel Heater Glow Plug Kit with Removal Fitting Tool for 2KW 5KW 8KW Heaters New
-
Vevor Exhaust Hose 118.1" Stainless Steel Flexible Exhaust Pipe with 2 Clamps New
-
Vevor Baseboard Heater Cover Basic Series 4' White New
-
Vevor Baseboard Heater Cover Premium Series 3' White New
-
Vevor Diesel Air Heater Controller LCD Remote Thermostat Switch New
-
Vevor Diesel Heater Pipe Duct Vent Kit 3" Warm Air Outlet Set New
-
Vevor Fuel Line Kit 196.9" Diesel Heater Replacement Hose Set New
-
Vevor Diesel Heater Muffler 0.94" Noise Reducer with Clamps and Screws New
-
Vevor Mechanics Tool Set 1/4", 3/8", 1/2" Drive 450-Pc SAE and Metric Socket Set with Storage Cas...
-
Vevor Baseboard Heater Cover Premium Series 5' White New
-
Vevor Baseboard Heater Cover Basic Series 3' White New
-
Vevor Exhaust Pipe Kit Diesel Heater Pipe Ducting Set New
Vevor Heat Exchanger 24 x 24" Water to Air HVAC Coil 225K BTU New
Product Overview

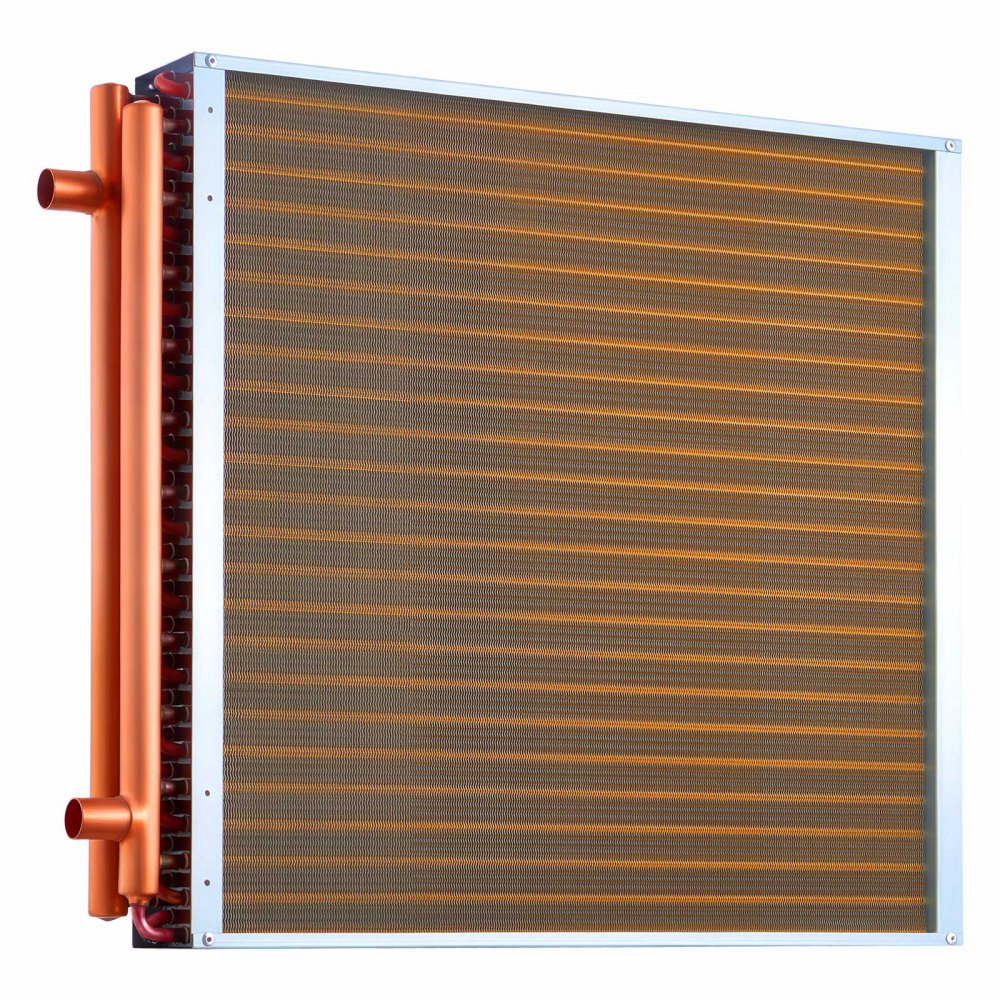

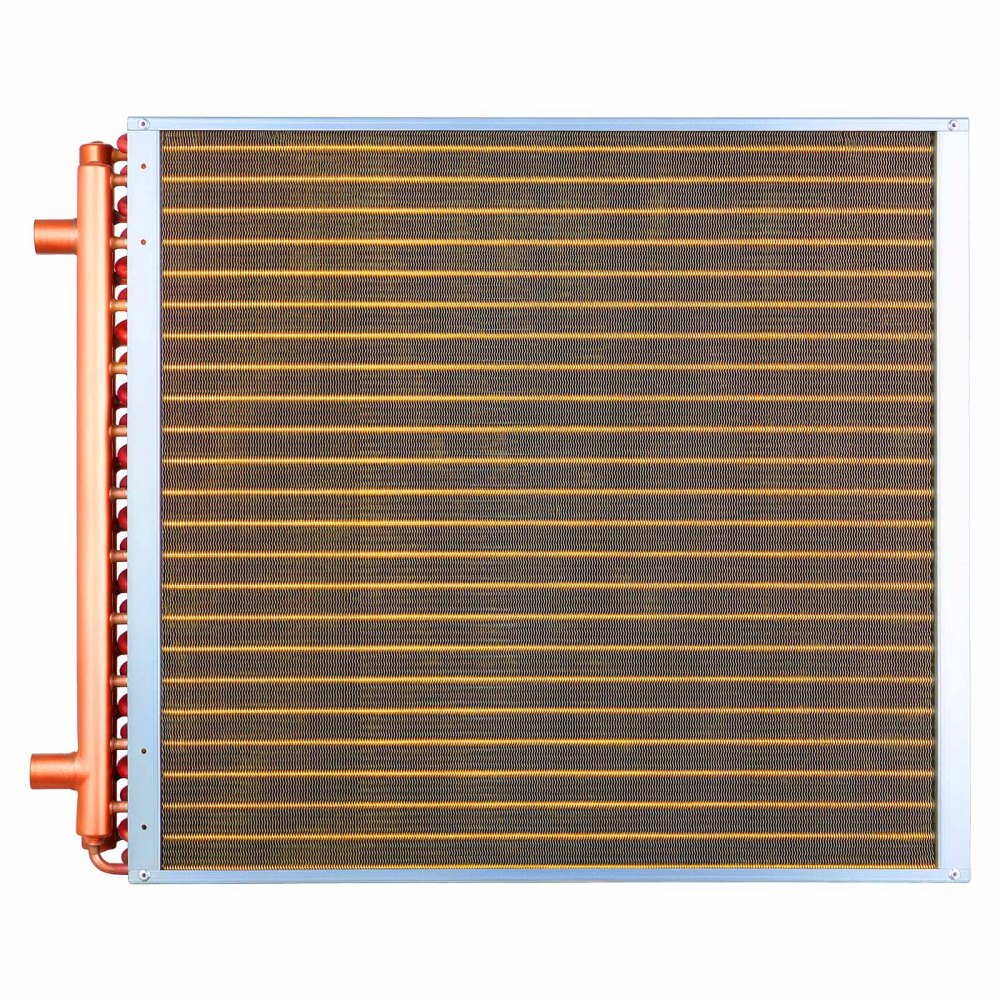

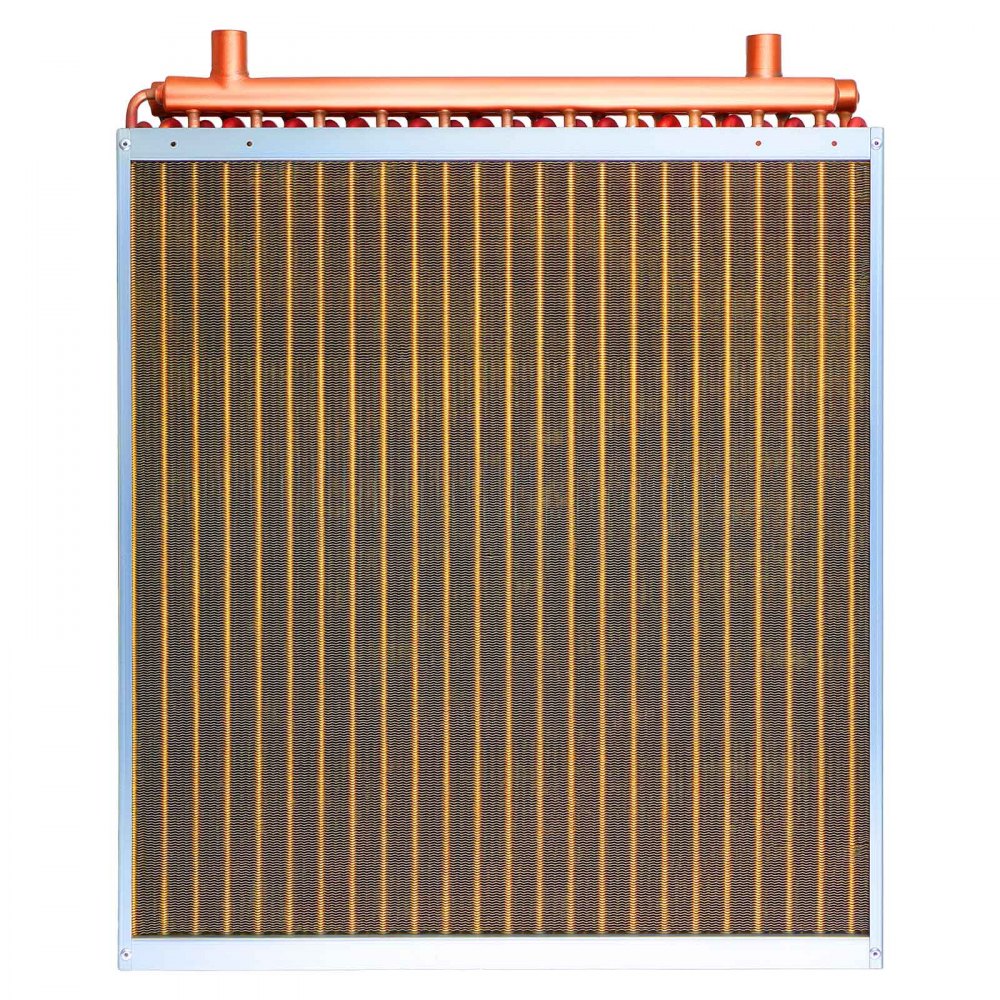

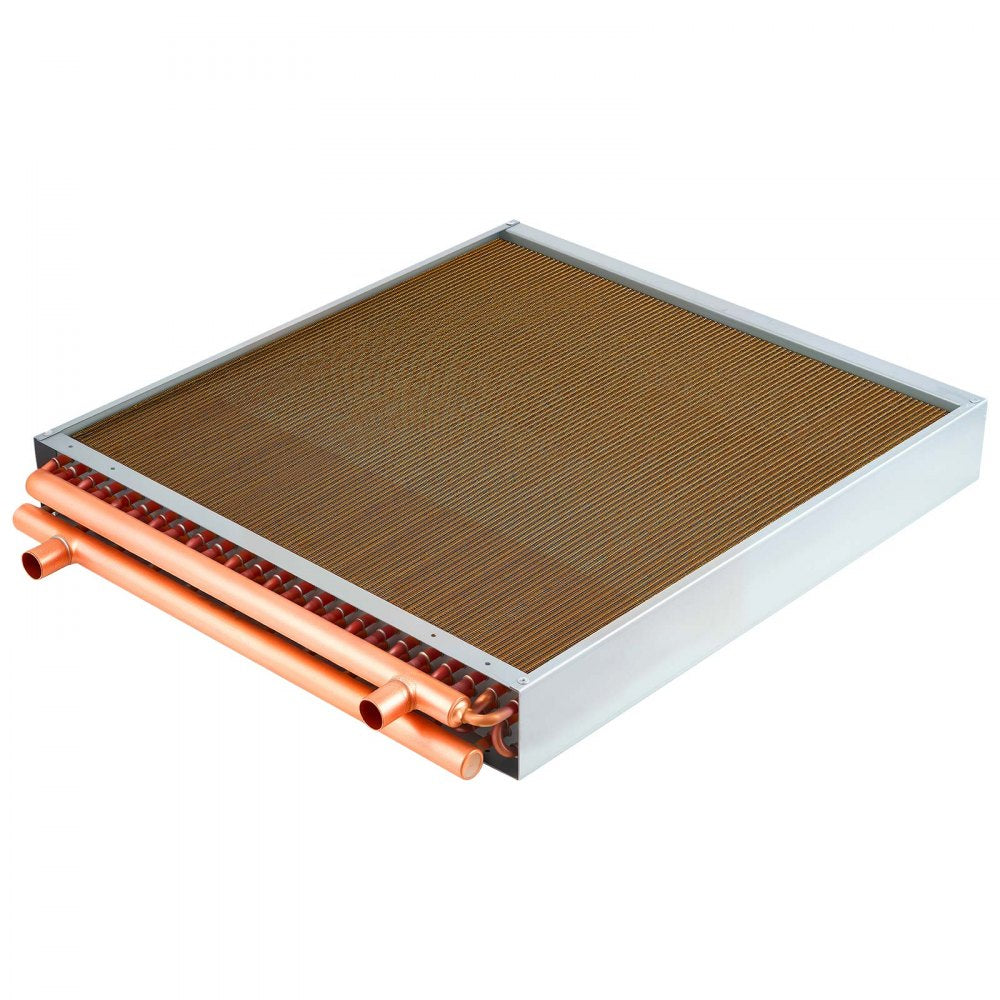

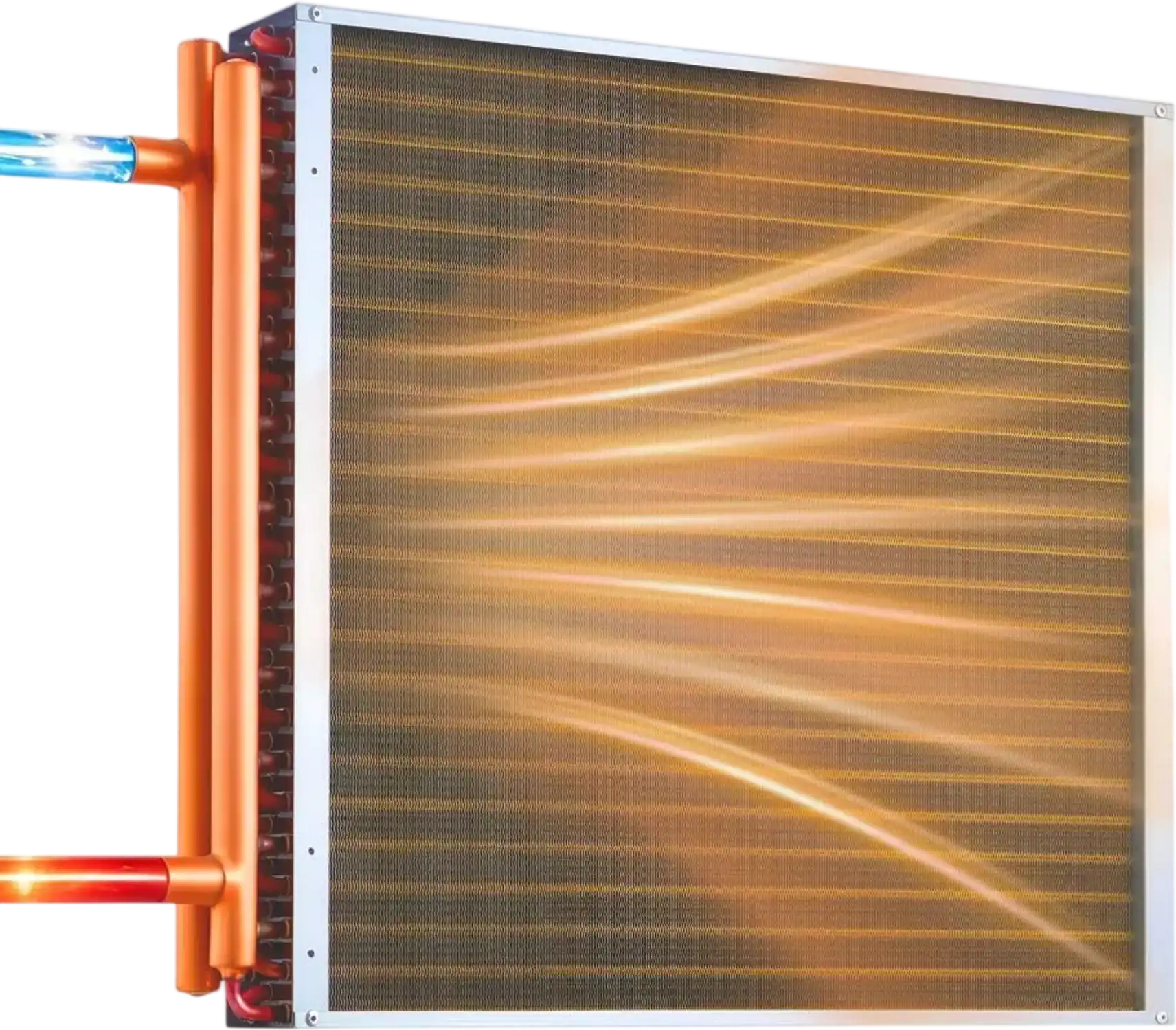

This Vevor water to air heat exchanger is designed for hydronic heating and cooling applications, including outdoor wood furnaces, residential systems, garages, and grow rooms. It features copper tubes and aluminum fins to promote efficient heat transfer with a rated heat capacity of up to 225k BTU/h. The unit uses a finned tube coil design with a large 24 x 24" plate area and durable construction for long-term performance. Its sealed, leak-resistant build is intended to support dependable operation in demanding HVAC environments.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

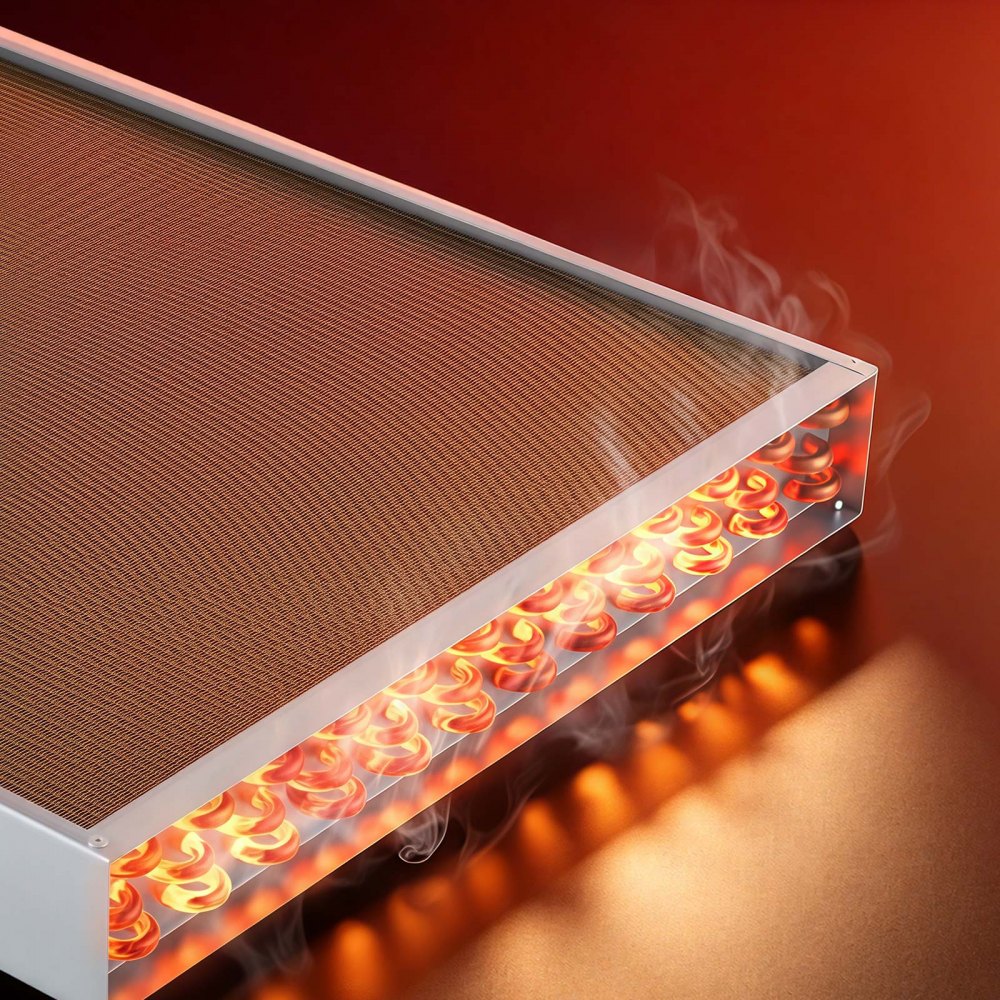

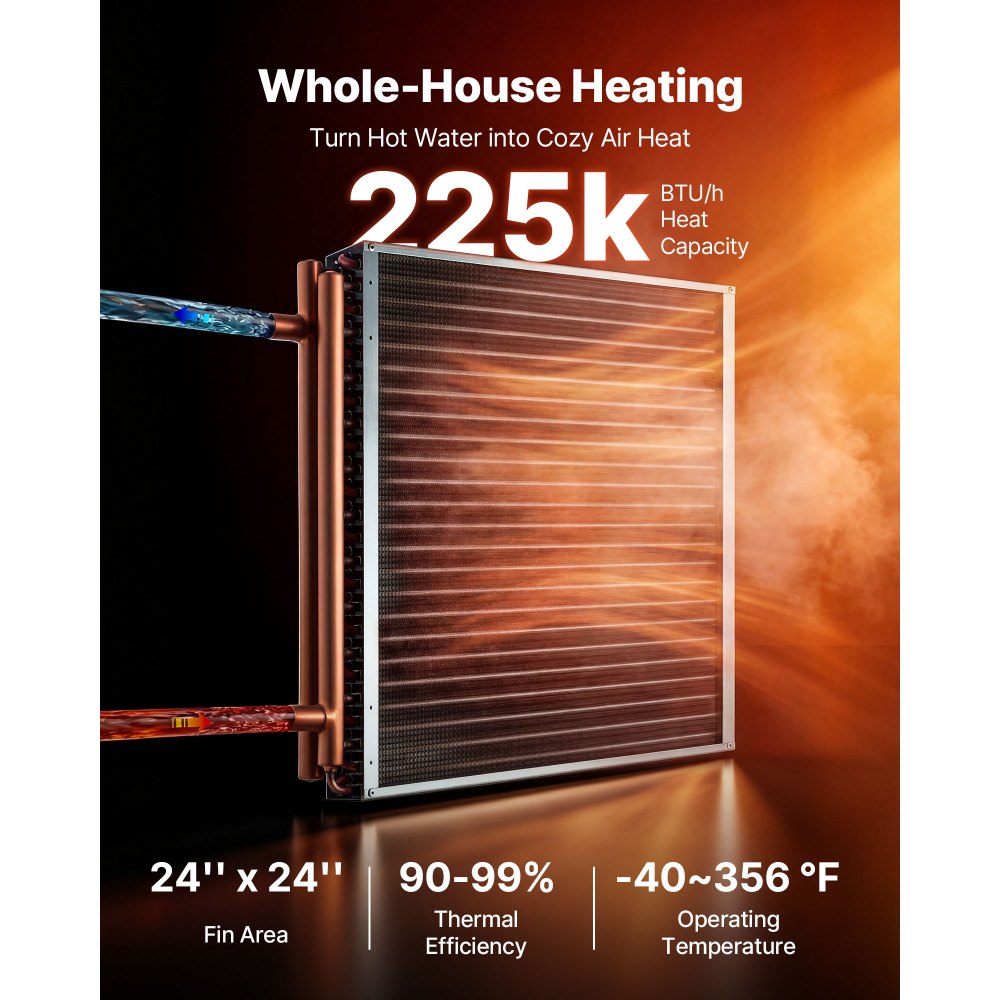

- High Efficiency: this heat exchanger is constructed with copper tubes and aluminum fins to maximize thermal conductivity, delivering efficient heat transfer efficiency and a heating capacity of up to 225k BTU/h
- Large Heat Transfer Area: This heat exchanger coil features a 24 x 24 in effective heat transfer area with 290 fins and 3 rows of 3/8 in seamless copper tubes, delivering outstanding performance across a wide range of applications
- Solid and Long-lasting: Designed as a sturdy air to water heat exchanger, high-hardness epoxy-coated aluminum fins help reduce scale buildup, paired with pure copper tubing for efficient heat transfer, with an operating temperature range of -40–356 °F

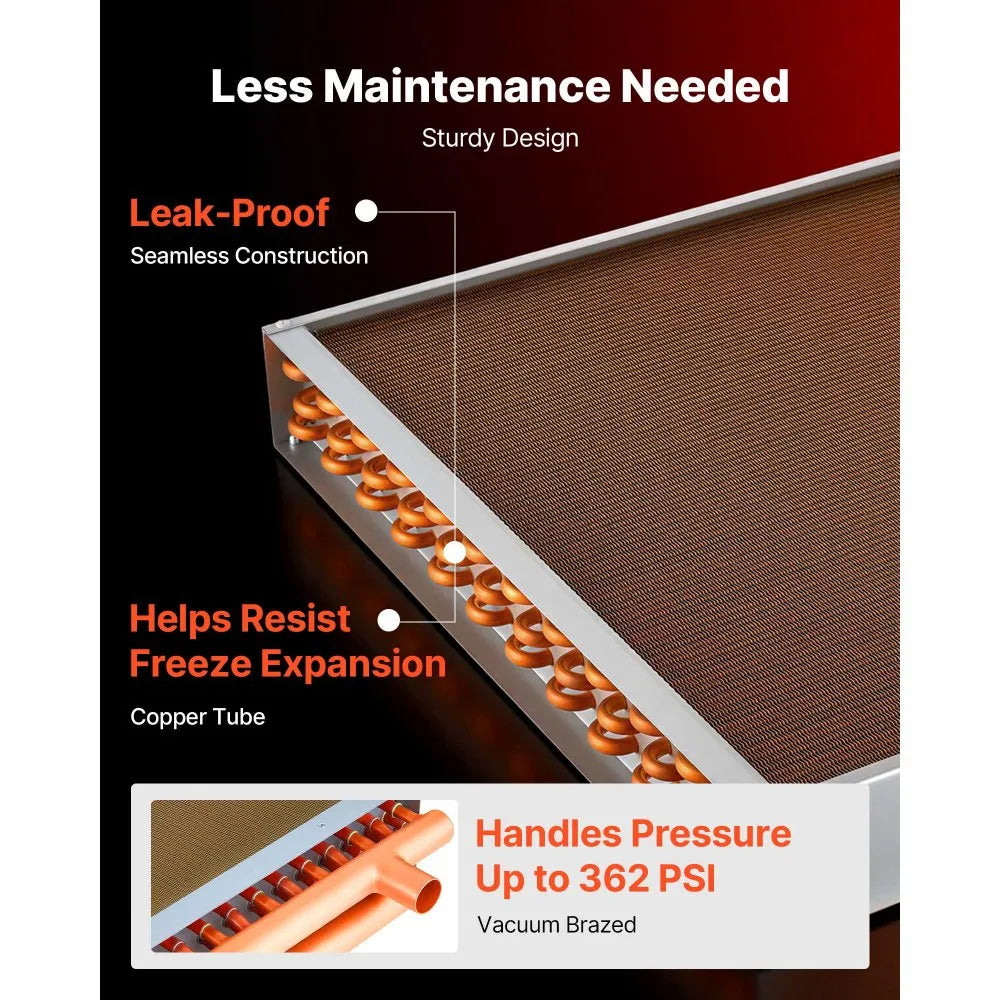

- Sealed and Leakproof: Built to perform as a reliable HVAC heat exchanger, it uses high-pressure vacuum brazing technology and undergoes rigorous leak testing for extended service life and dependable operation
- Wide Application: This water to air heat exchanger is an excellent solution for residential use, outdoor wood furnaces, large farm shops, hydroponic grow rooms, commercial heating and cooling, forced-air heating, and hybrid systems
Specifications

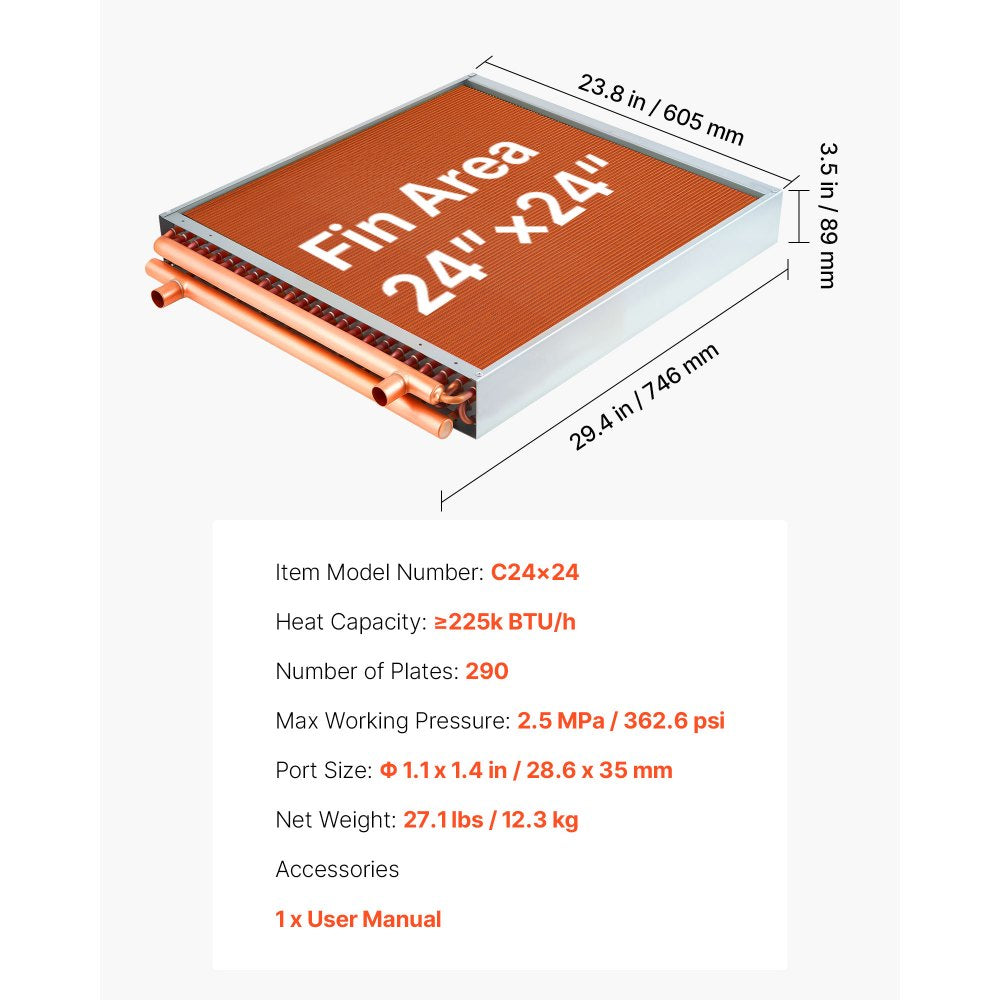

| Item Model Number | C24×24 |
| Heat Capacity | ≥225k BTU/h |
| Plate Area | 24 x 24 in / 610 x 610 mm |
| Number of Fins | 290 |
| Max Working Pressure | 2.5 MPa / 362.6 psi |
| Port Size | 1.1 x 1.4 in / 28.6 x 35 mm |
| Net Weight | 27.1 lbs / 12.3 kg |
| Product Dimensions | 29.4 x 23.8 x 3.5 in / 746 x 605 x 89 mm |
Warranty
This item comes with a 1 year factory warranty.
