Vevor Heat Exchanger 18" x 18" Water to Air HVAC Coil New
Product Overview

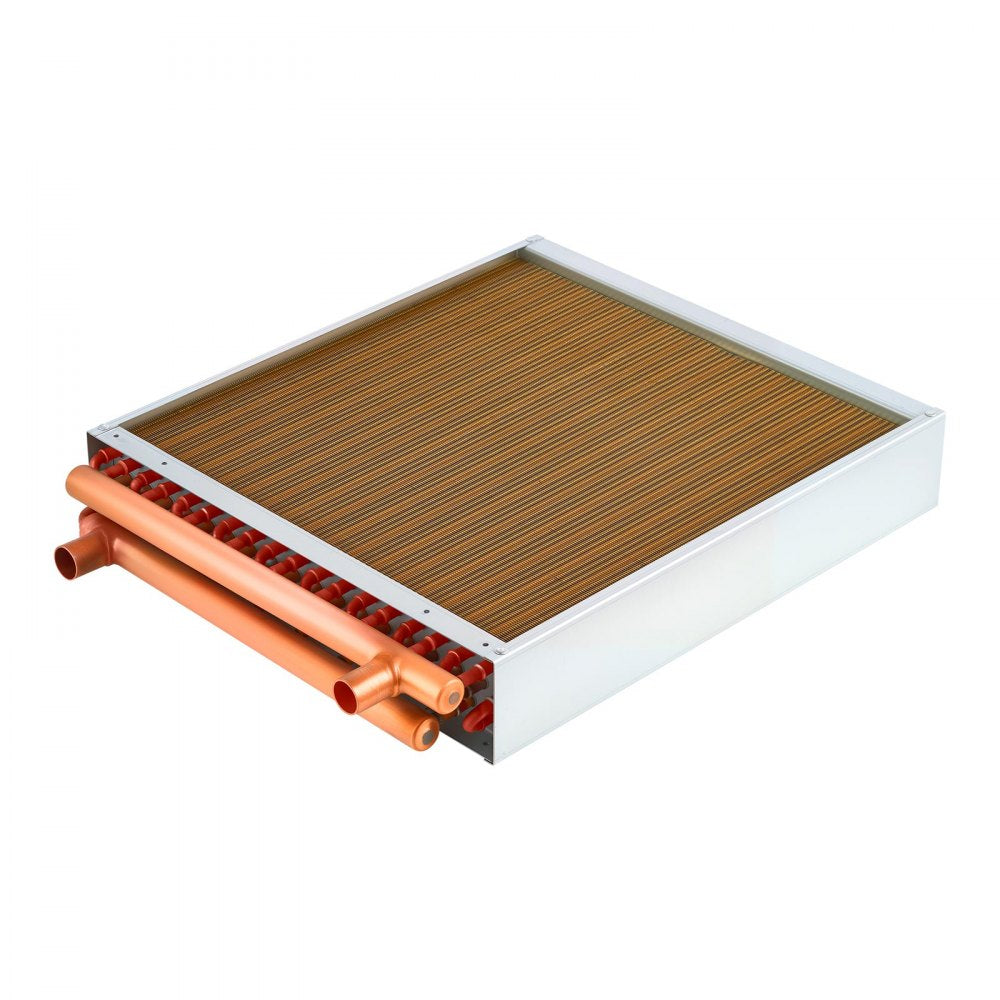

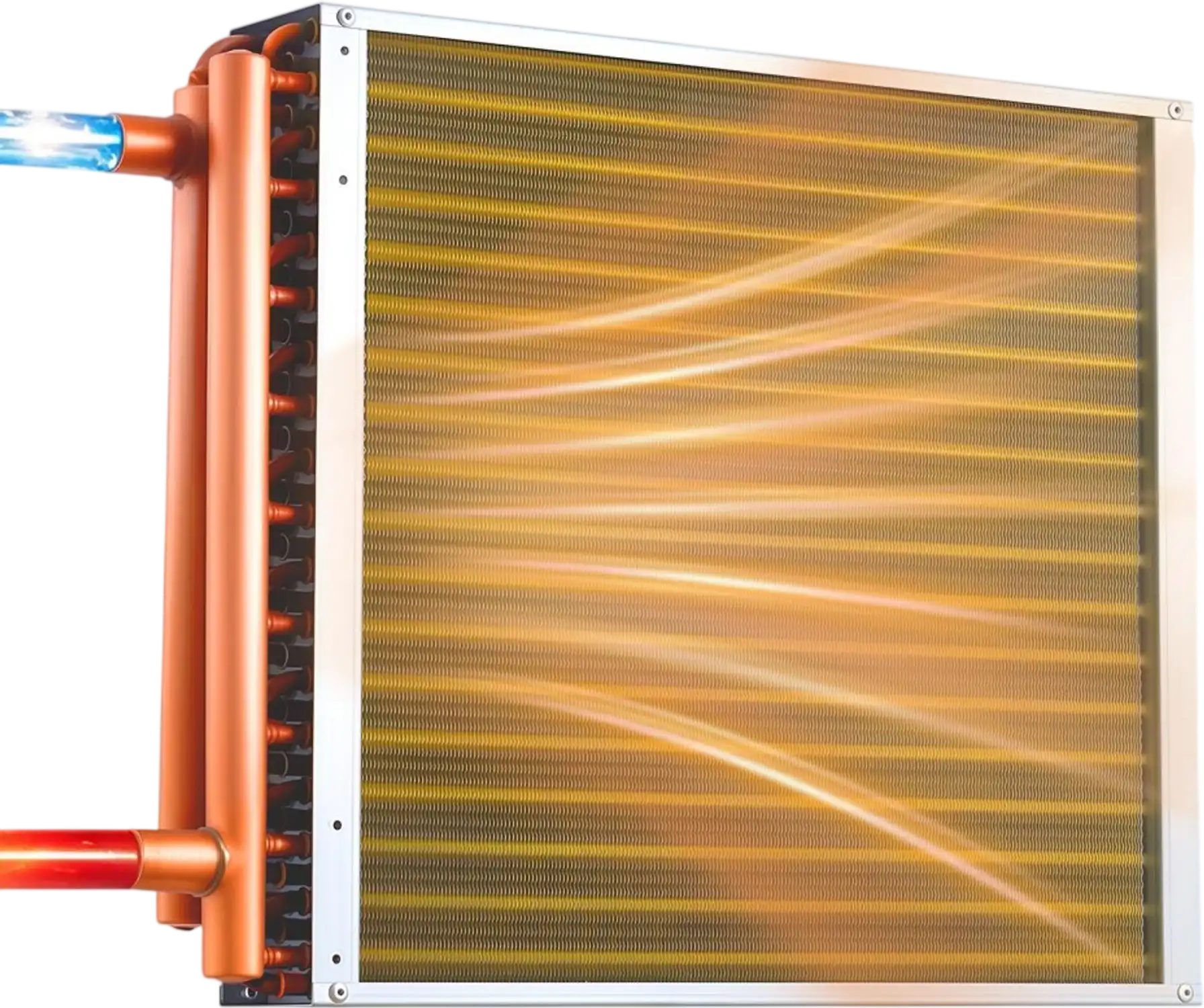

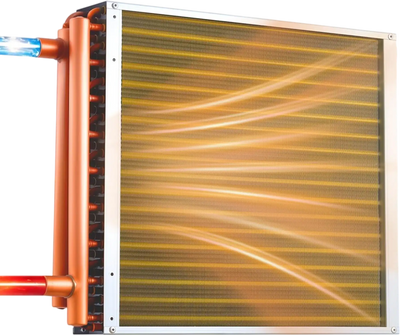

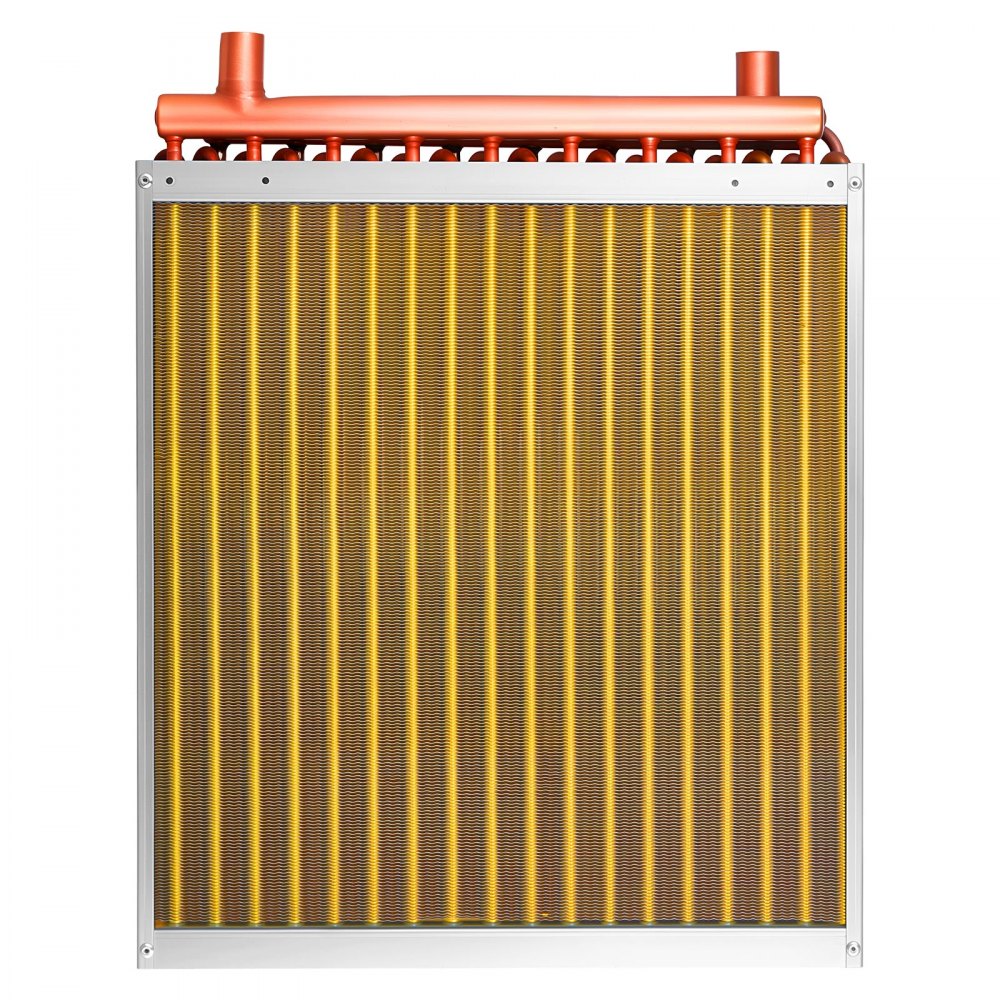

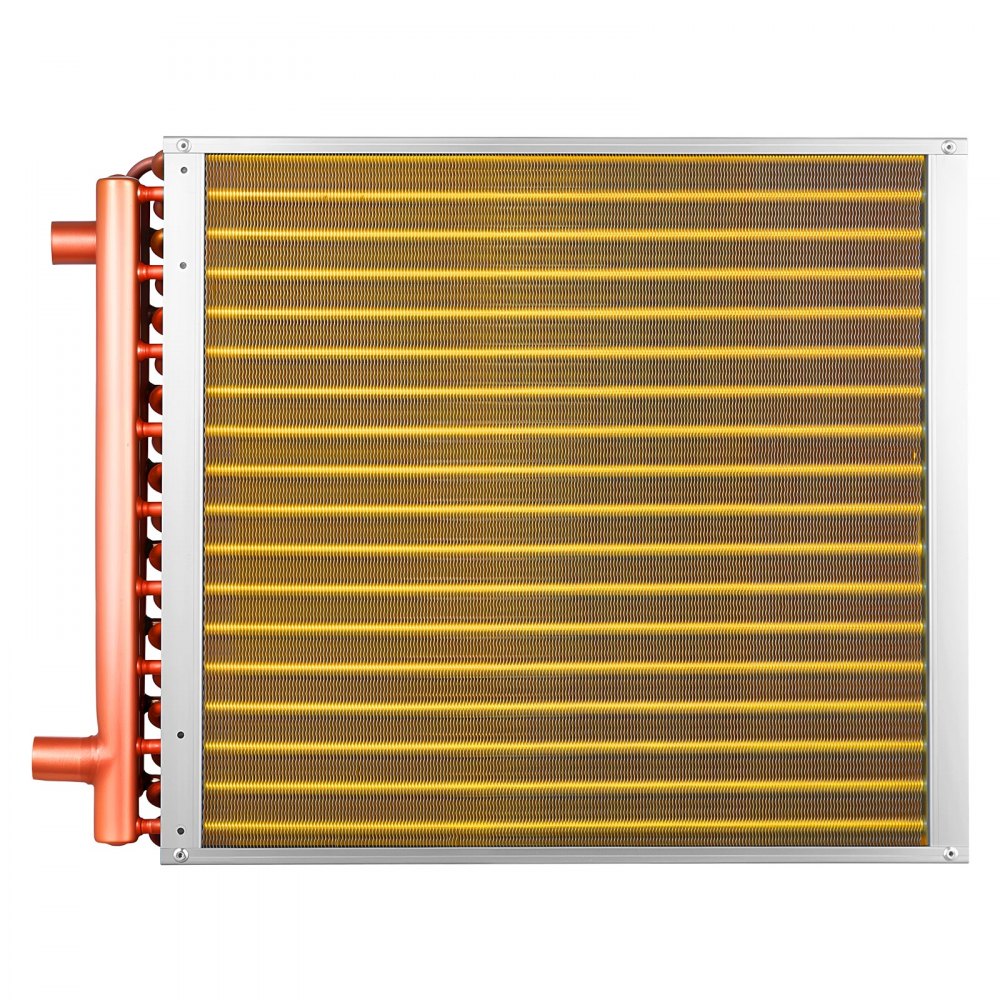

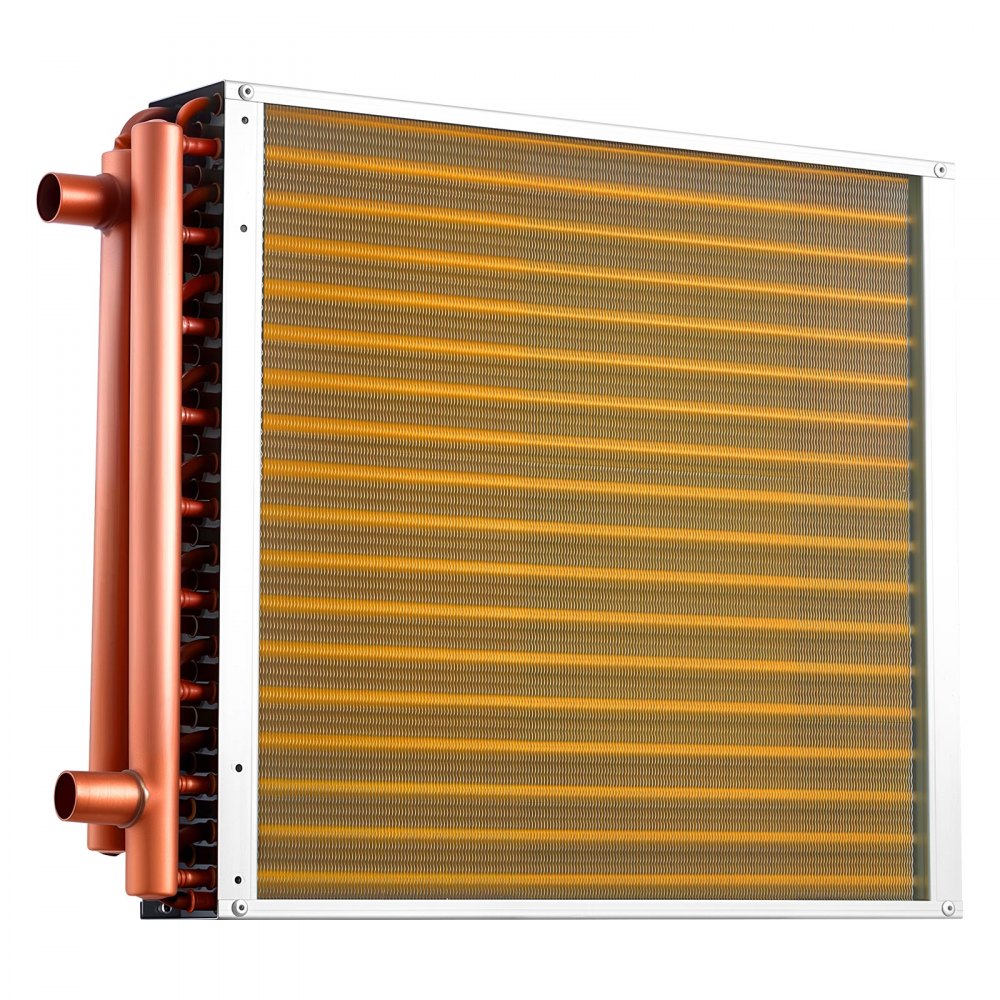

This Vevor water-to-air heat exchanger is designed for hydronic heating and cooling applications, including outdoor wood furnaces, garages, greenhouses, and residential systems. It uses copper tubes and aluminum fins to promote efficient heat transfer with an output of up to 120K BTU/h. The coil features a large 18" x 18" plate area with 217 fins and durable construction built for long-term operation. Its leak-tested, vacuum-brazed design helps provide reliable performance under high pressure and a wide operating temperature range.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

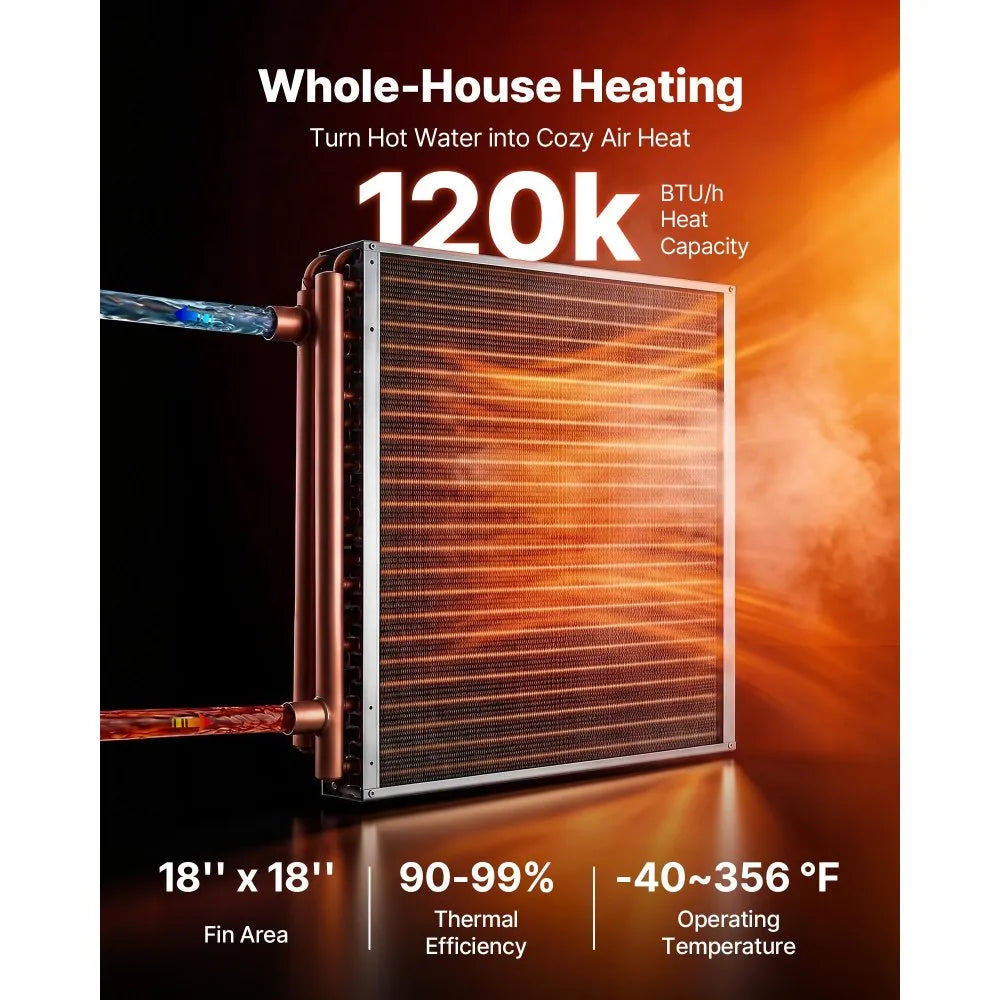

- High Efficiency: this heat exchanger is constructed with copper tubes and aluminum fins to maximize thermal conductivity, delivering efficient heat transfer efficiency and a heating capacity of up to 120k BTU/h

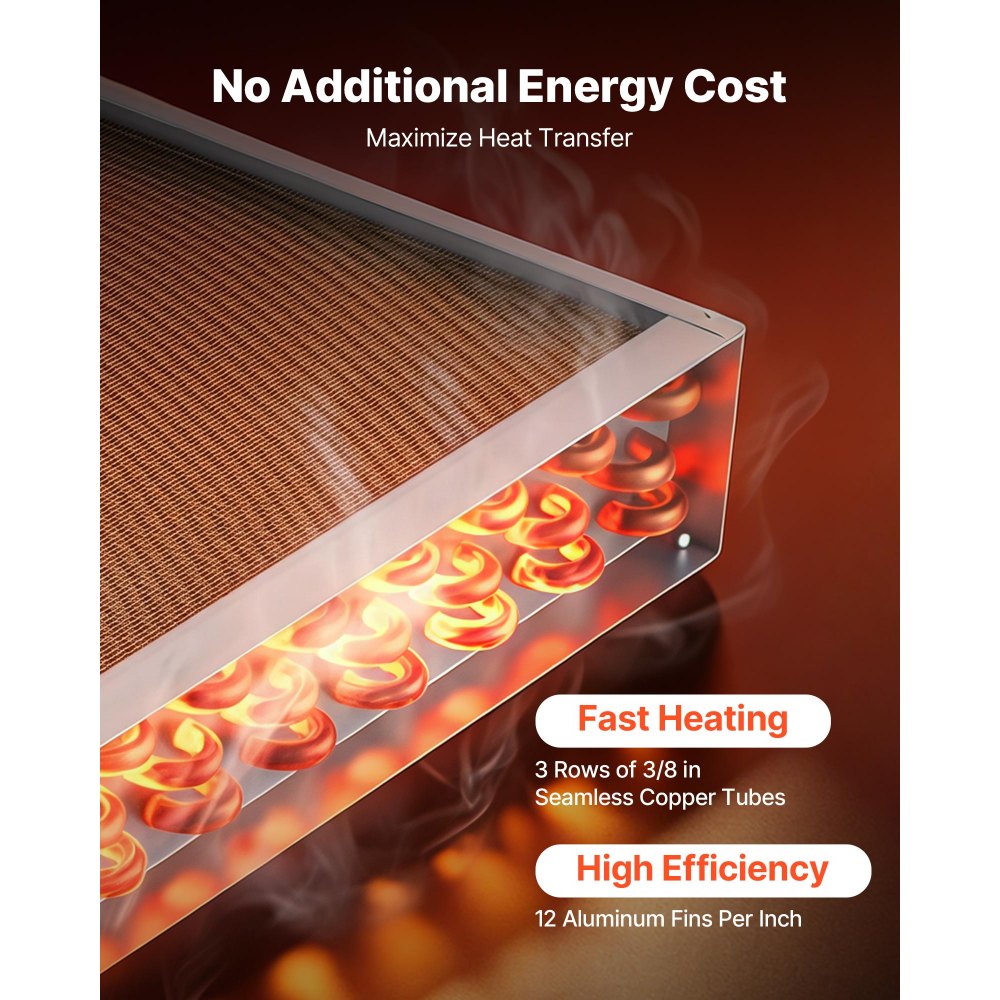

- Large Heat Transfer Area: This heat exchanger coil features a 18 x 18 in effective heat transfer area with 217 fins and 3 rows of 3/8 in seamless copper tubes, delivering outstanding performance across a wide range of applications
- Solid and Long-Lasting: Designed as a sturdy air to water heat exchanger, high-hardness epoxy-coated aluminum fins help reduce scale buildup, paired with pure copper tubing for efficient heat transfer, with an operating temperature range of -40–356 °F

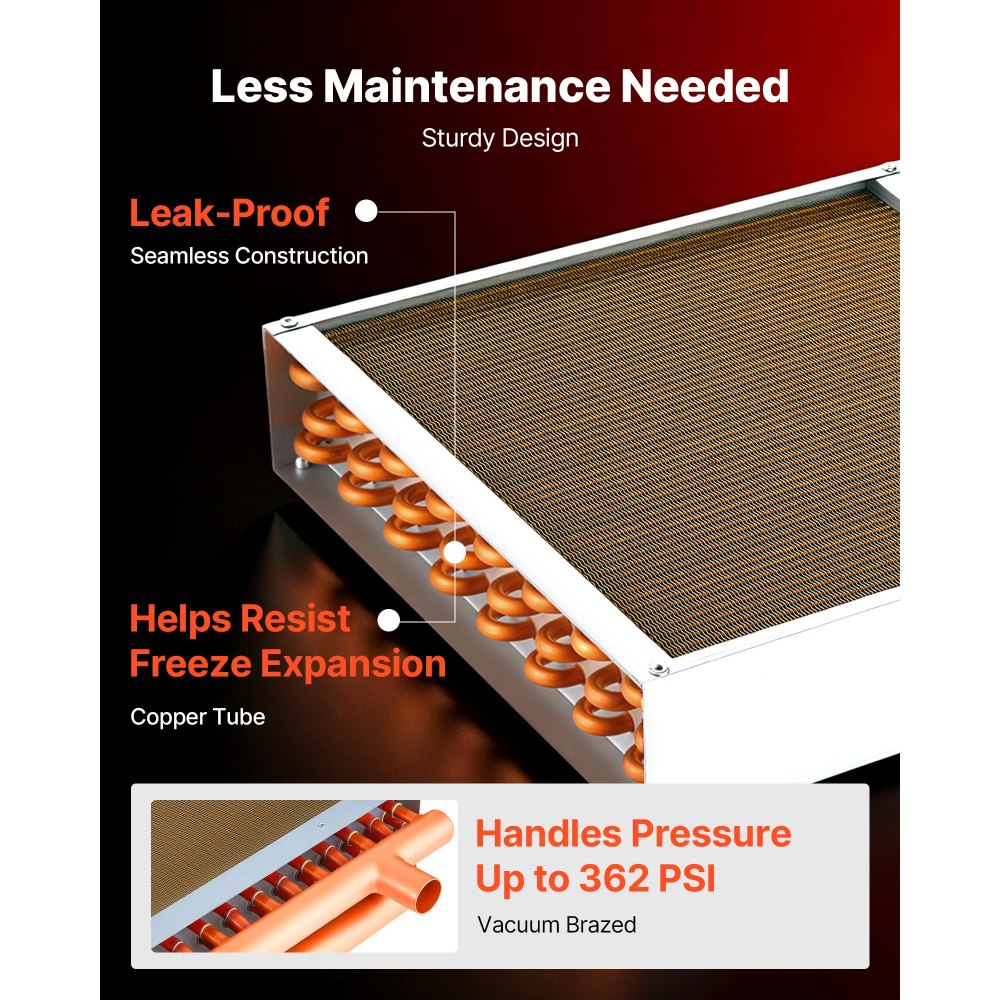

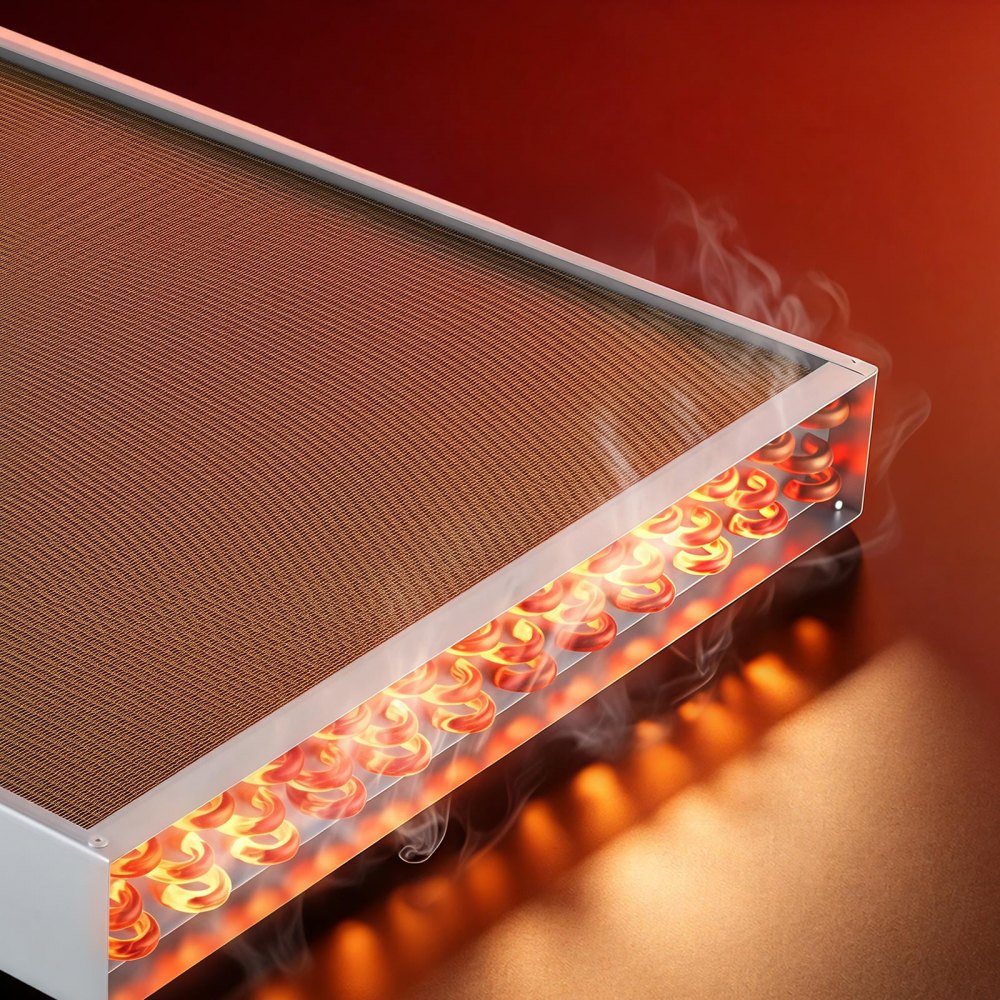

- Sealed and Leakproof: Built to perform as a reliable HVAC heat exchanger, it uses high-pressure vacuum brazing technology and undergoes rigorous leak testing for extended service life and dependable operation
- Wide Application: This water to air heat exchanger is an excellent solution for residential use, outdoor wood furnaces, large farm shops, hydroponic grow rooms, commercial heating and cooling, forced-air heating, and hybrid systems
Specifications

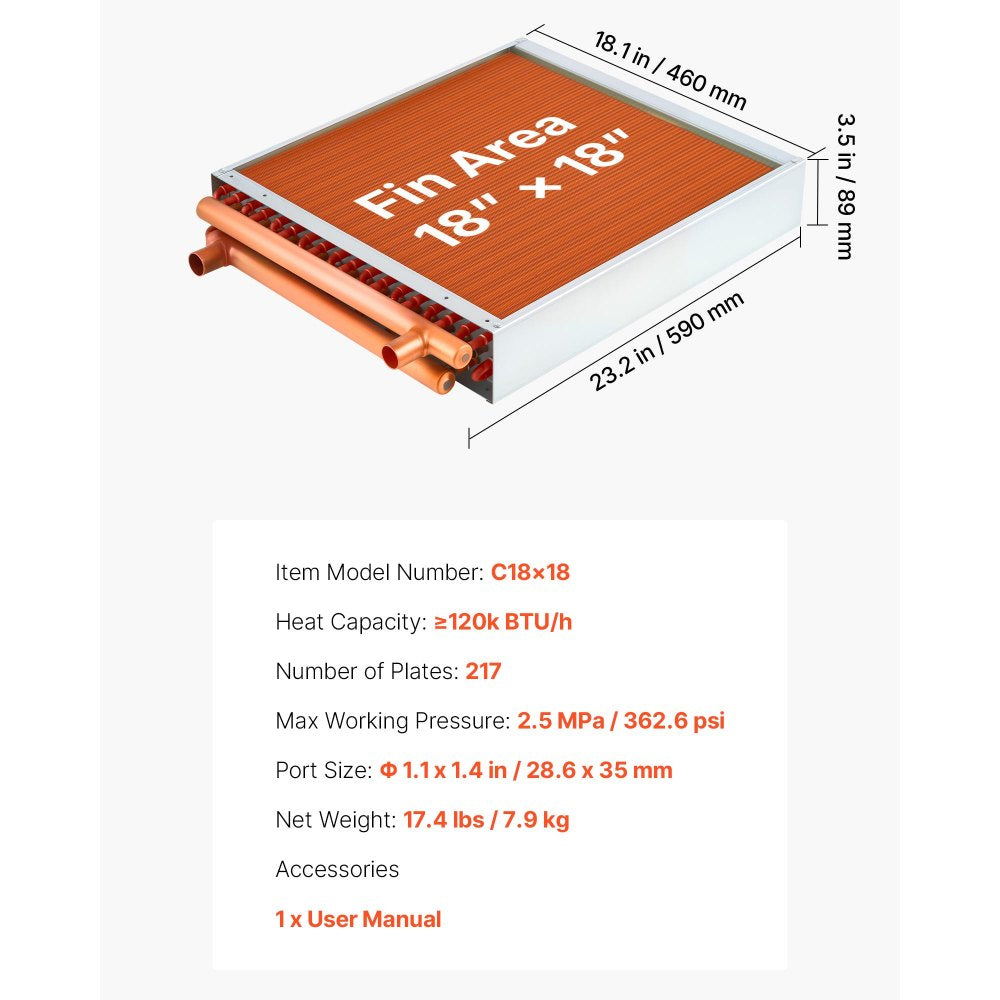

| Item Model Number | C18×18 |
|---|---|
| Product Type | Water to Air Heat Exchanger |
| Heat Capacity | ≥120k BTU/h |
| Plate Area | 18 x 18 in / 457 x 457 mm |
| Number of Fins | 217 |
| Tube Rows | 3 |
| Tube Size | 3/8 in |
| Max Working Pressure | 2.5 MPa / 362.6 psi |
| Port Size | 1.1 x 1.4 in / 28.6 x 35 mm |
| Operating Temperature Range | -40–356 °F |
|---|---|
| Net Weight | 17.4 lbs / 7.9 kg |
| Product Dimensions | 23.2 x 18.1 x 3.5 in / 590 x 460 x 89 mm |
| Materials | Copper tubes and aluminum fins |
Package Contents
Heat exchanger coil
Warranty
This item comes with a 1 year factory warranty.
