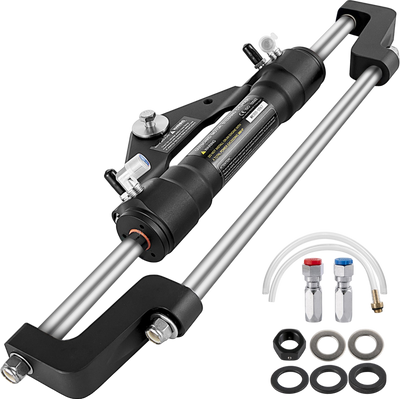

Vevor HC5358-3 Hydraulic Steering Cylinder Front Mount Outboard for Max 300HP Marine Boats New

Manufacturer: Vevor

SKU: YYDJHC5358-3ZXYG1V0

Featured image for product 7908719526077
Vevor HC5358-3 Hydraulic Steering Cylinder Front Mount Outboard for Max 300HP Marine Boats New
Vevor HC5358-3 Hydraulic Steering Cylinder Front Mount Outboard for Max 300HP Marine Boats New
Vevor HC5358-3 Hydraulic Steering Cylinder Front Mount Outboard for Max 300HP Marine Boats New
Vevor HC5358-3 Hydraulic Steering Cylinder Front Mount Outboard for Max 300HP Marine Boats New
Vevor HC5358-3 Hydraulic Steering Cylinder Front Mount Outboard for Max 300HP Marine Boats New
Vevor HC5358-3 Hydraulic Steering Cylinder Front Mount Outboard for Max 300HP Marine Boats New
Featured image for product 7908719526077
Vevor HC5358-3 Hydraulic Steering Cylinder Front Mount Outboard for Max 300HP Marine Boats New
Vevor HC5358-3 Hydraulic Steering Cylinder Front Mount Outboard for Max 300HP Marine Boats New
Vevor HC5358-3 Hydraulic Steering Cylinder Front Mount Outboard for Max 300HP Marine Boats New
Vevor HC5358-3 Hydraulic Steering Cylinder Front Mount Outboard for Max 300HP Marine Boats New
Vevor HC5358-3 Hydraulic Steering Cylinder Front Mount Outboard for Max 300HP Marine Boats New
Vevor HC5358-3 Hydraulic Steering Cylinder Front Mount Outboard for Max 300HP Marine Boats New

QTY

(888) 999-1522

C

$375.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


in stock checkmark

In Stock

delivery truck icon

Ships in (est) 1-3 business days

Manufacturer Direct Shipping

Extended Warranty

×

Factory Warranty

  • This item comes with a 1 year factory warranty.

Extended Warranties

  • Brand New

    Extends factory warranty to 2, 3, or 5 total years

  • Brand New

    Covers functionality issues for 2, 3, or 5 years

  • Brand New

    Local repair options always available

  • Brand New

    Free replacement if repair is not possible

  • Brand New

    No deductibles or hidden fees

  • Brand New

    Full parts and labor coverage

$0

(Included)

  • This item comes with a 1 year factory warranty.

$56.00

(Details)

  • Brand NewExtends factory warranty to 2 total years
  • Brand NewCovers functionality issues for 2 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees
  • Brand NewFull parts and labor warranty

$85.00

(Details)

  • WarrantyExtends factory warranty to 3 total years
  • WarrantyCovers functionality issues for 3 years
  • WarrantyLocal repair options always available
  • WarrantyFree replacement if repair is not possible
  • WarrantyNo deductibles or hidden fees
  • WarrantyFull parts and labor warranty

$128.00

(Details)

  • WarrantyExtends factory warranty to 5 total years
  • WarrantyCovers functionality issues for 5 years
  • WarrantyLocal repair options always available
  • WarrantyFree replacement if repair is not possible
  • WarrantyNo deductibles or hidden fees
  • WarrantyFull parts and labor warranty

Warranty has been added in! Please click add to cart.

headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+
Vevor HC5358-3 Hydraulic Steering Cylinder Front Mount Outboard for Max 300HP Marine Boats New

Vevor HC5358-3 Hydraulic Steering Cylinder Front Mount Outboard for Max 300HP Marine Boats New

Product Overview

The front mount steering cylinder is designed for single and twin non-power assisted outboard engines up to 300HP. It offers excellent resistance to repeated compression and is designed to better withstand the harsh marine environment. It is ideal for outboard-powered boats like the center console, offshore fishing, bass boats, flats boats, and many more. The working pressure of this hydraulic steering for outboards can reach up to 10.3Mpa, about 1500psi.

vendor logo
divider
authorized dealer
checkmark

Brand new in box

checkmark

1 year factory warranty

checkmark

Manufacturer direct shipping from CA & TX

checkmark

Authorized Vevor dealer

Features

  • HC5358-3 Front Mount Cylinder: HC5358-3 steering cylinder is ideal for outboard powered boats like center console, offshore fishing, bass boats, flats boats and many more. For use with Yamaha applications where it is necessary to mount the steering cylinder underneath the steering arm.
  • Advanced Crush Resistance: This hydraulic outboard steering cylinder provides excellent resistance to repeated compression set and is designed to better withstand the harsh marine environment.
  • Built-in Two-Way Lock: The hydraulic steering cylinder is equipped with a built-in two-way locking valve which eliminates rebound torque during torsion. It also features independent engine tilt for twin/triple engine installations and varying lock-to-lock turn ration dependent on helm selection.
  • ORB Fitting: The new end gland sealing system has been redesigned with an 8-hole design for improved serviceability and updated with positionable stainless steel O-Ring (ORB) fittings for easy hose routing.
  • Sturdy Aluminum Alloy: The hydraulic steering cylinder is made from a high-strength aluminum alloy material, which is corrosion-resistant, and high-density to effectively prevent seawater erosion. Enjoy the steering helm for years to come.

Specifications

Item Model # HC5358-3
Replaces Teleflex Marine HC5358-3
Applicable Up to 300HP engines
Max Working Pressure 10.3 MPa / 1500 PSI
Product Dimensions 16.5" x 22" x 8.2"
Weight 8.6 lbs (3.9 kg)

Package Contents

Vevor Hydraulic Outboard Steering Cylinder

User Manual

Warranty
