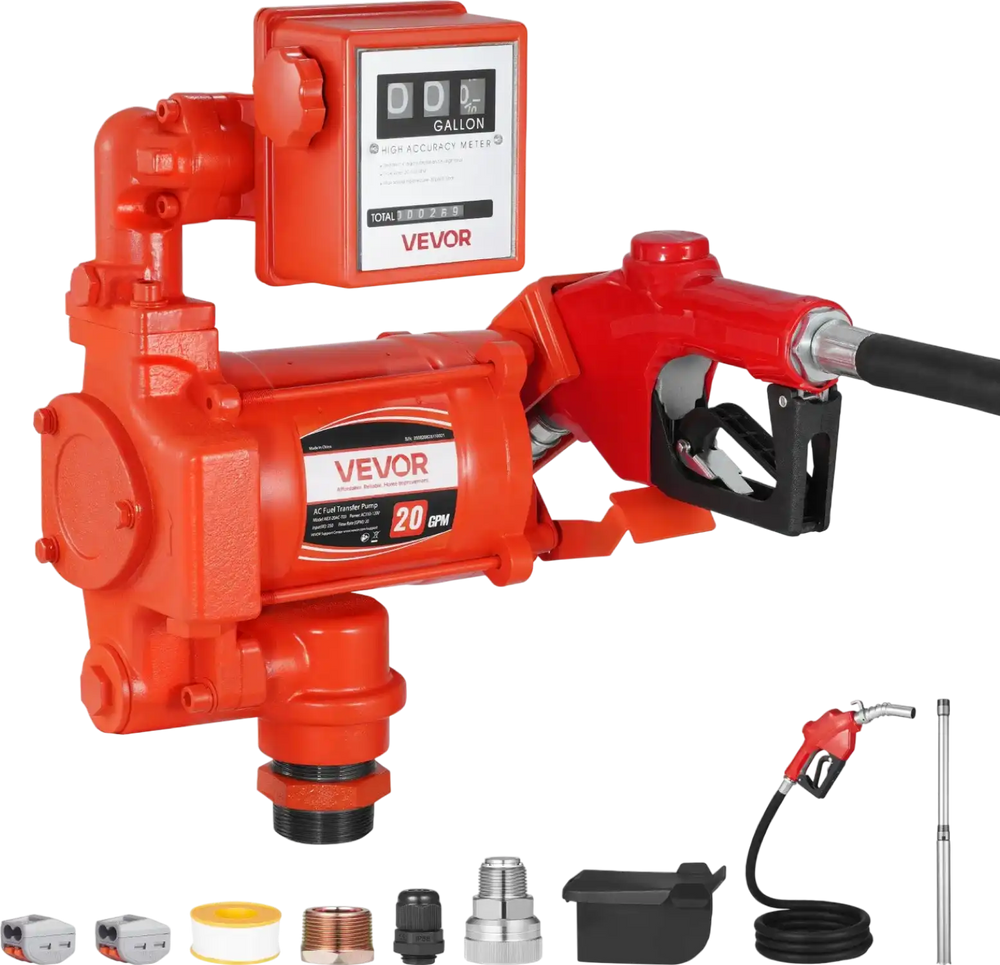

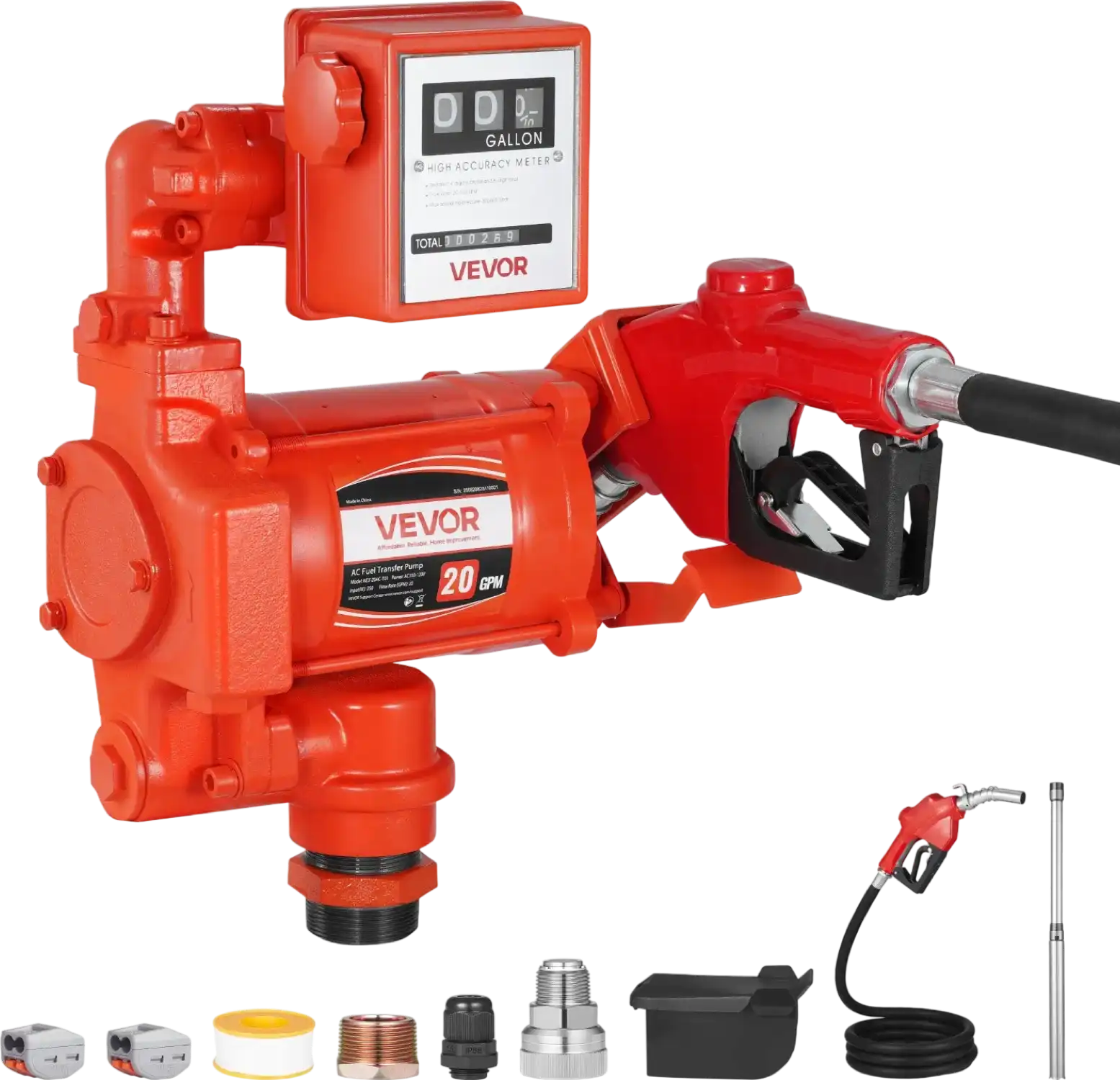

Vevor Fuel Transfer Pump with Meter 20 GPM Auto Shut-Off Nozzle New
Manufacturer: Vevor
SKU: JLFBB20GPMLLRR5N2001V1
Type of Set Options
Flow Rate Options
QTY
(888) 999-1522
C
$470.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Vevor Creeper Seat 2-in-1 Rolling Folding Mechanic Stool New
-
Vevor Garage Creeper 40" Foldable Z Mechanic Creeper Stool New
-
Vevor Trailer Jack A-Frame Bolt-On 5,000 lbs 15" Travel New
-
Vevor Floor Jack 2.5 Ton Low Profile Heavy-Duty Steel Racing Jack New
-
Vevor Car Ramp 20,000 lbs 5.5" Plastic Service Ramp New
-
Vevor Electric Hoist 3-in-1 Portable Power Winch Crane 1100 lbs 1500W 22.9' Lift New
-
Vevor Trailer Jack 8000 lbs Weld-On Pipe-Mount Swivel Jack New
-
Vevor Mechanic Stool Rolling Seat with 4" Wheels, 3 Tool Trays and Drawer, 300 lbs Capacity New
-
Vevor Electric Trailer Jack 5000 lbs Power Tongue Jack for RV Trailer Camper Black New
-
Vevor Electric Car Jack 5-Ton 12V Hydraulic with Built-In Tire Inflator Pump New
-
Vevor Trailer Jack Weld-On Swivel 5,000 lbs 15" Travel New
-
Vevor Transmission Fluid Pump 10L ATF Refill System Dispenser New
-
Vevor Fluid Extractor 1.74 Gal 6.5 L Manual Hand-Operated Oil Changer Vacuum Pump New
-
Vevor Automotive Top Creeper Adjustable Height 48" to 76" 400 Lbs Capacity New
-
Vevor Trailer Jack 5000 lb A-Frame 15" Travel Manual Lift New
-
Vevor Hydraulic Motorcycle Lift Table 350 Lbs Capacity Foot-Operated Jack Stand New
-
Vevor Motorcycle Lift Scissor Jack 1100 lbs Wide Deck New
-
Vevor Electric Hoist 3-in-1 Portable Winch Crane 1550 lbs 1500W 25' Lift New
-
Vevor Aluminum Trailer Ramp 84" x 14" Pair With Hook End 6000 lbs Total Capacity New
Vevor Fuel Transfer Pump with Meter 20 GPM Auto Shut-Off Nozzle New
Product Overview

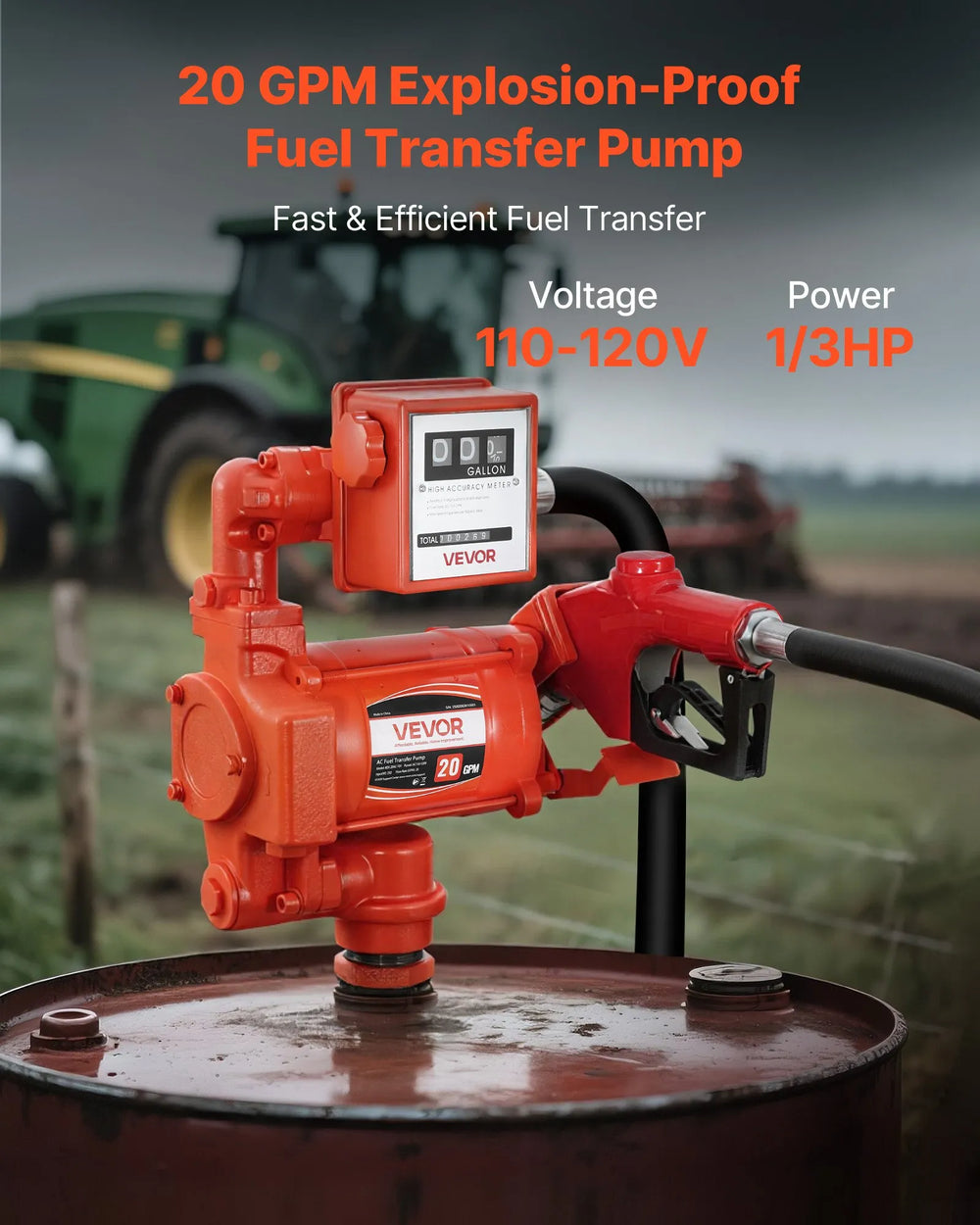

Transfer fuel fast with a 20 GPM max flow rate, a 10 ft. suction lift, and a 53 ft. max lift. With a pure copper motor, cast iron pump head, and built-in overheat protection, this pump delivers reliable performance and secure operation for diesel, kerosene, and biodiesel. It comes with a standard 1" inlet and outlet size, allowing for quick setup with various fuel hoses and equipment. Includes a 13 ft. rubber outlet hose, inlet hose, and an auto shut-off fuel nozzle.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

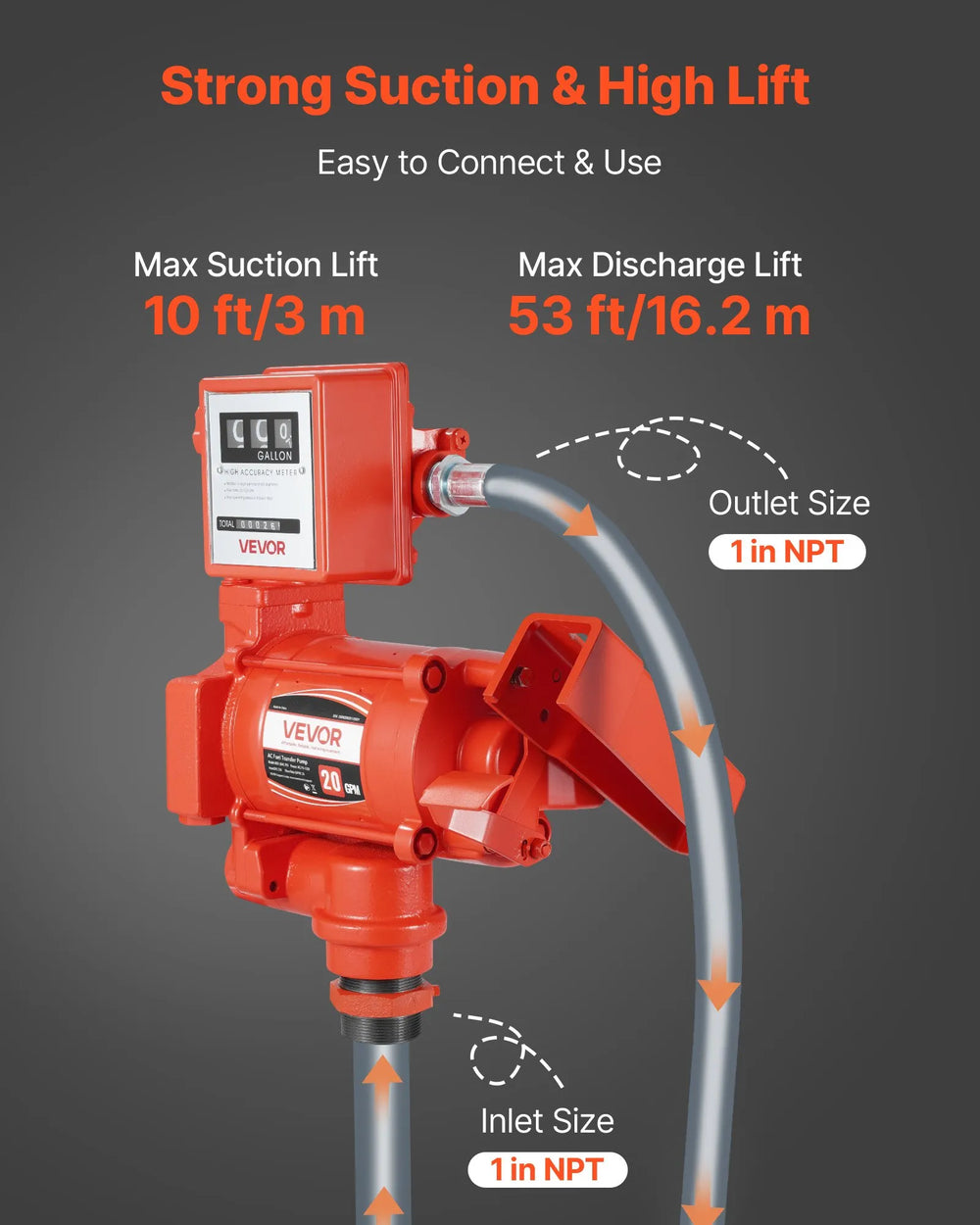

- 20 GPM Fast Fuel Transfer: This fuel transfer pump delivers 20 GPM (76 L/min) max flow rate, 10 ft (3 m) max suction lift, and 53 ft (16.15 m) max lift. Ideal for fueling heavy machinery, large fuel tanks, and equipment at construction sites
- Heavy-Duty Cast Iron Build: Crafted from durable cast iron for exceptional resistance to pressure, wear, and corrosion. Features a waterproof power switch, this oil transfer pump keeps out water for outdoor and damp conditions
- Wide Diesel Compatibility: Designed for gasoline, diesel, kerosene, and biodiesel. This diesel fuel transfer pump supports various diesel-powered equipment such as trucks, excavators, tractors, farm machinery, generators, and more

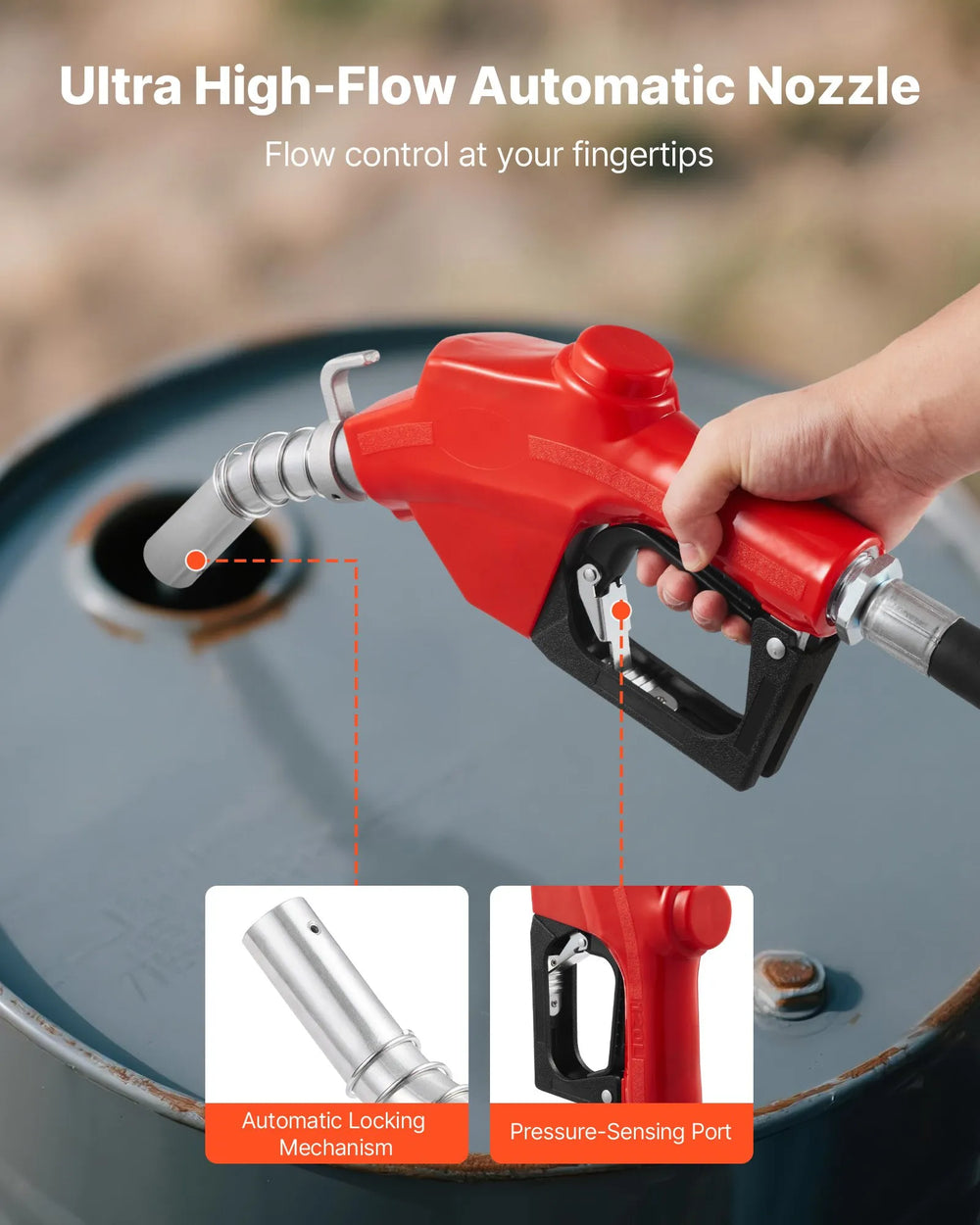

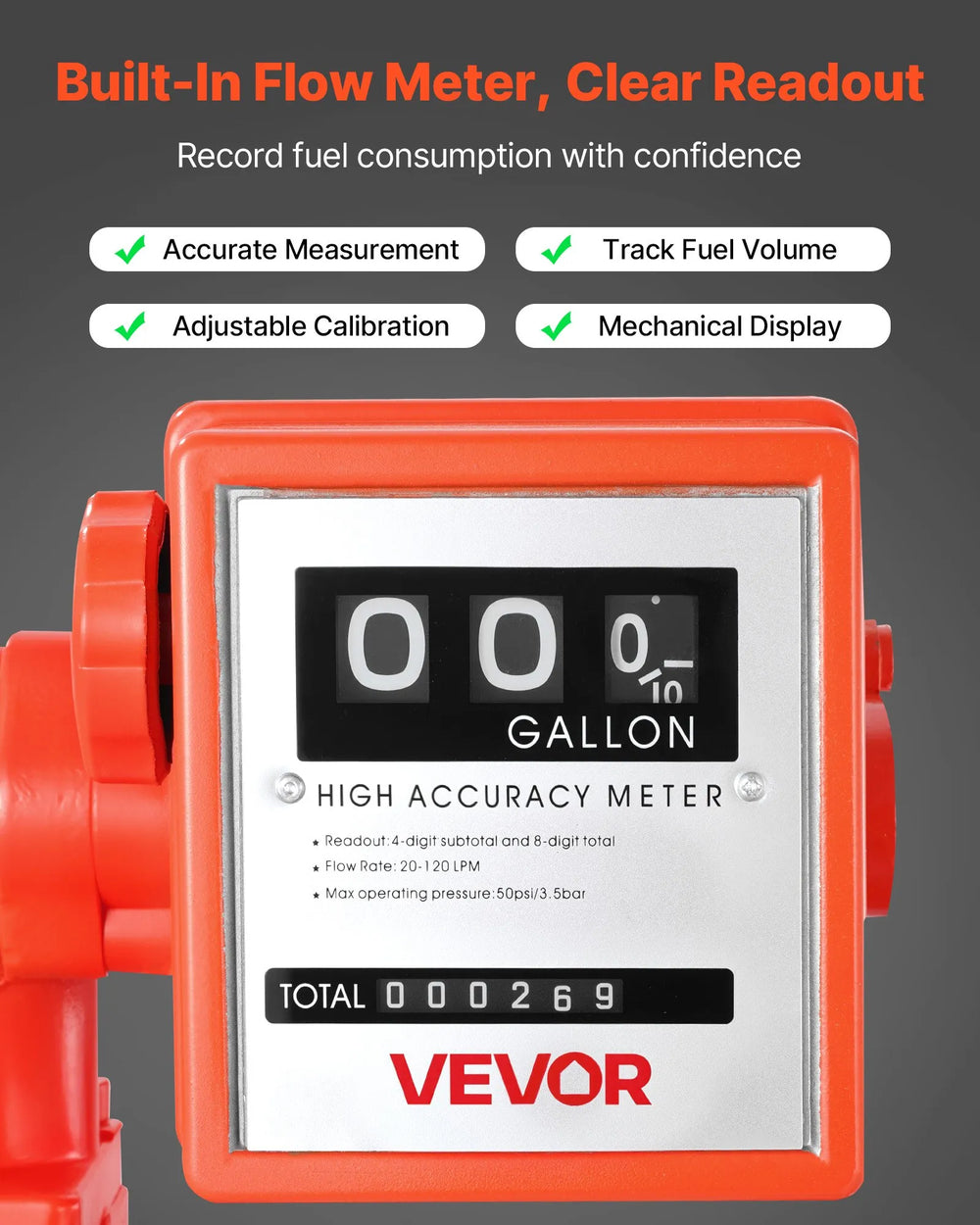

- Complete All-Inclusive Kit: Includes a 13 ft (4 m) rubber outlet hose, 1-3 ft (530-960 mm) PVC inlet hose, and an auto shut-off fuel nozzle. The flow meter ensures easy-to-read fuel measurements. Built-in overheat protection provides secure operation
- Standard Inlet & Outlet Size: Features a standard inlet and outlet size, this electric diesel transfer pump allows easy installation and broad compatibility with motorcycles, cars, trucks, and other machinery. Makes refueling a breeze

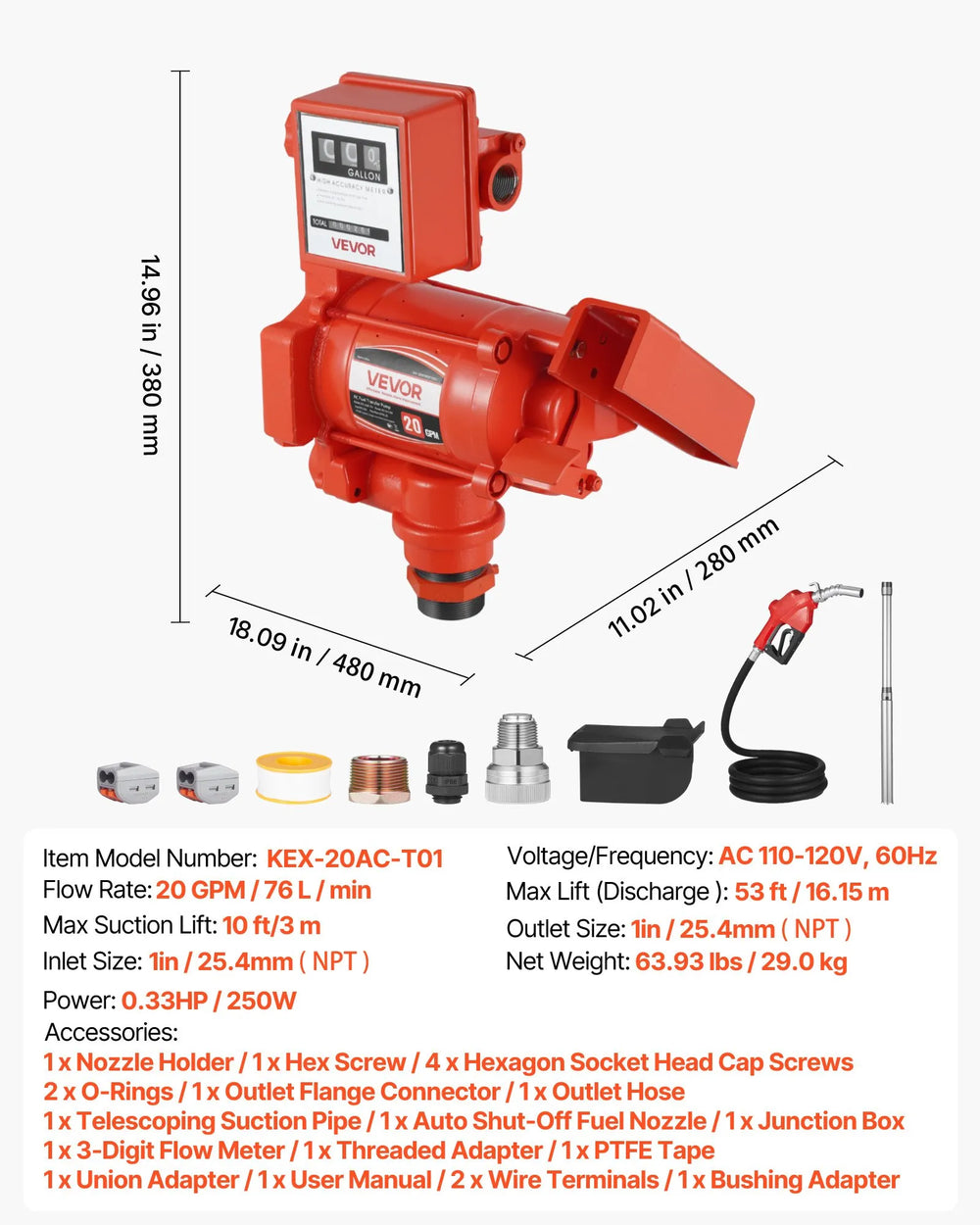

Specifications
| Item Model Number | KEX-20AC-T01 |
| Power | 0.33HP/250W |
| Flow Rate | 20 GPM |
| Voltage/Frequency | AC 110-120V, 60Hz |
| Max Suction Lift | 10 ft |
| Max Lift (Discharge) | 53 ft |
| Product Dimensions | 16.73 x 17.13 x 9.65 in. |
| Net Weight | 66.14 lbs |
Package Contents
Vevor Fuel Transfer Pump
Auto Shut-Off Fuel Nozzle
PTFE Tape
Union Adapter
(2) Wire Terminals
White Inlet Hose
(2) Hose Clamps
Mesh Filter
User Manual
Warranty
This item comes with a 1 year factory warranty.
