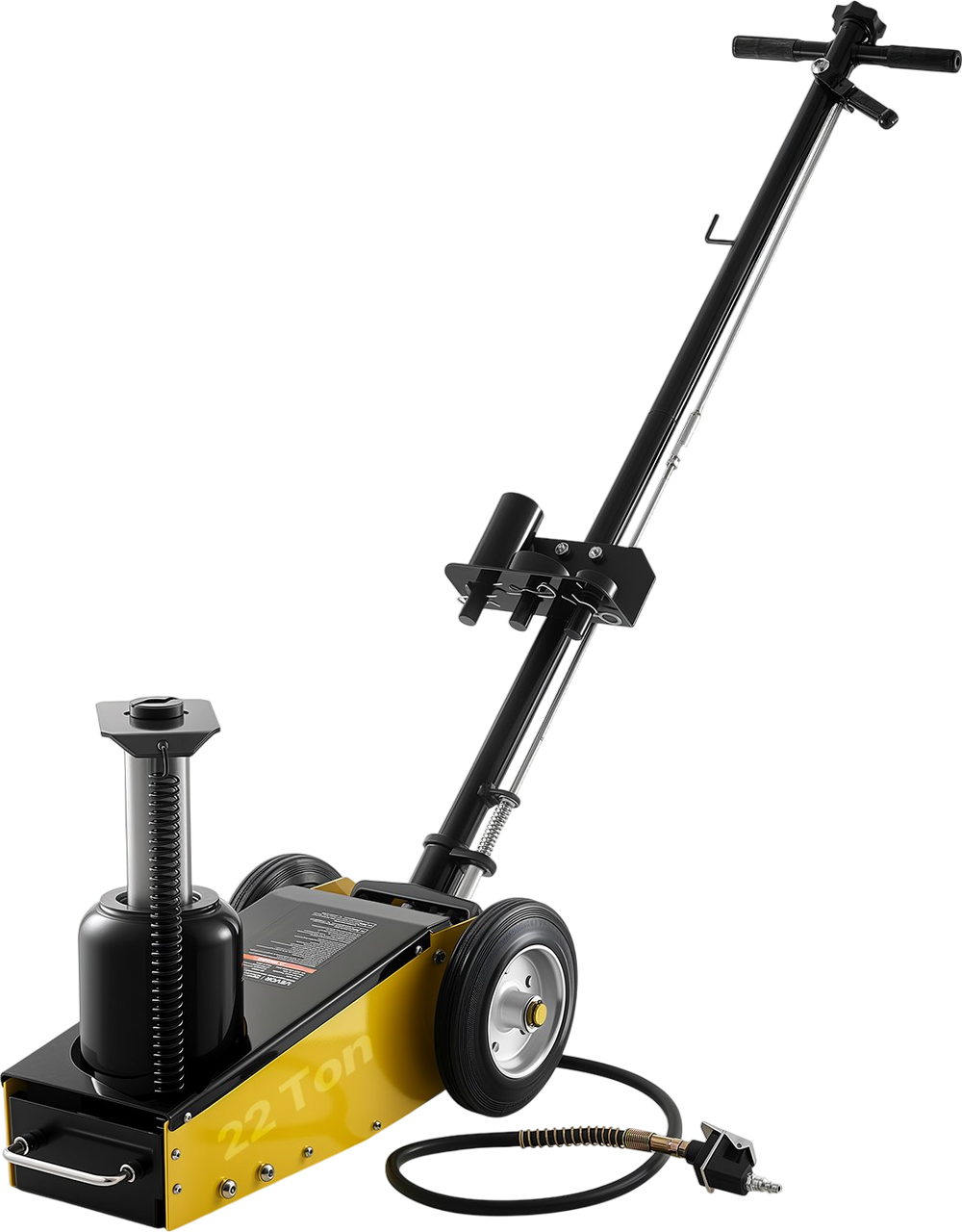

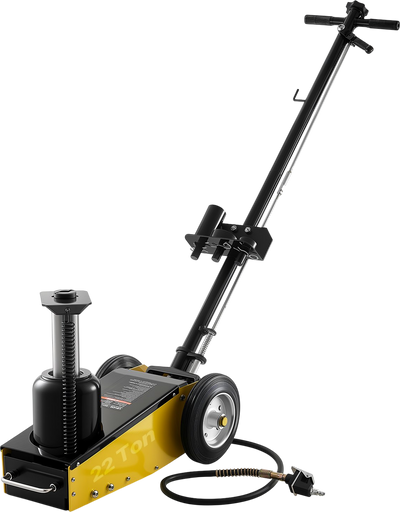

Vevor Floor Jack 22 Ton Air Hydraulic Lift 10.4-21.3 in. Range with Extension Posts New
Product Overview
This VEVOR 22-ton air hydraulic floor jack is built for heavy lifting in vehicle service, industrial work, and construction applications. It delivers up to 48,501 lbs of capacity with pneumatic operation and a rugged steel body for stable support. The jack offers a wide lift range and includes extension posts to reach higher lift points for SUVs, pickups, RVs, and off-road vehicles. A long adjustable-angle handle and large casters help with positioning and smooth movement. This floor jack connects to a 145 PSI air compressor (not included) for controlled lifting and lowering.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

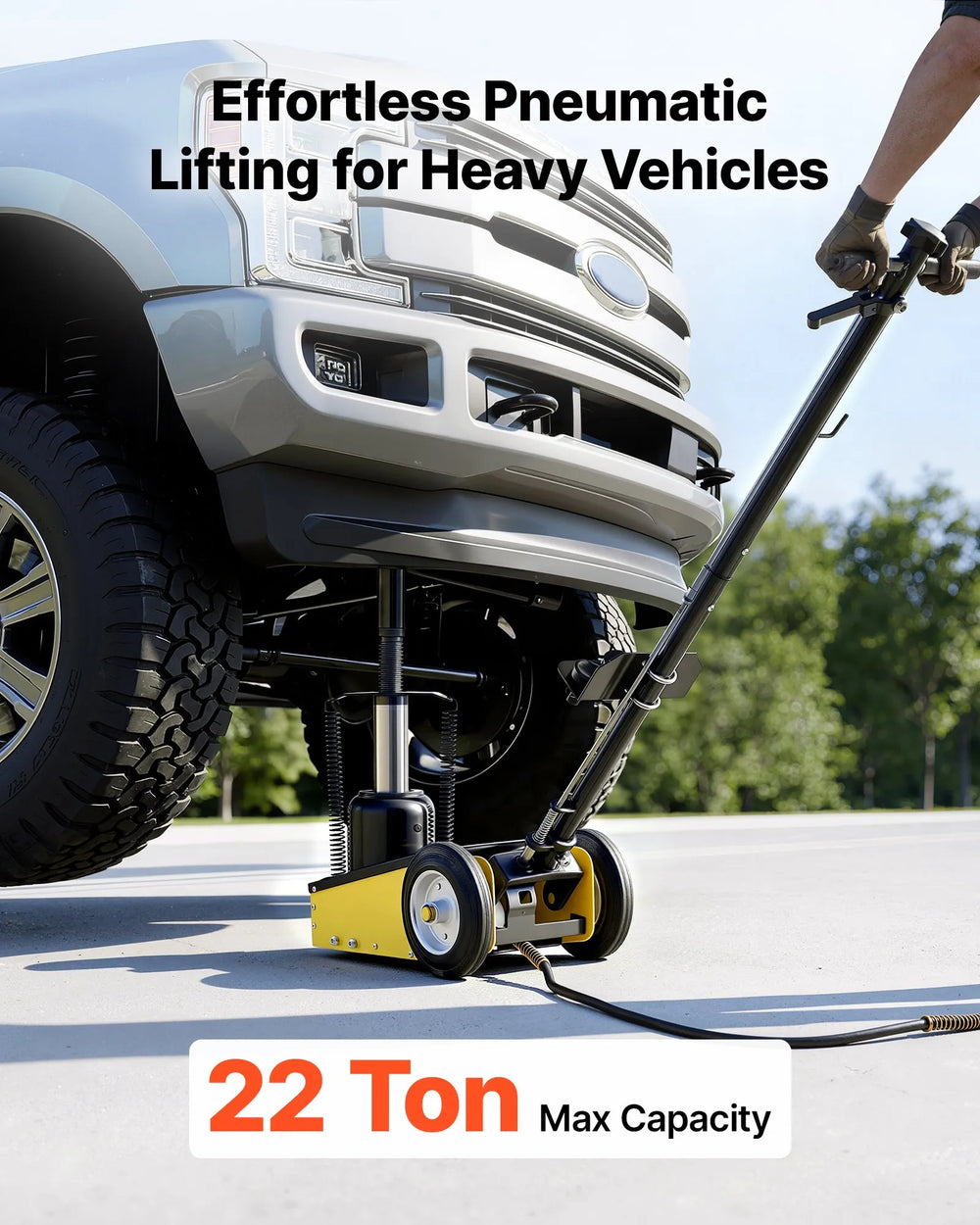

- 22-Ton Air Lift: Air-powered floor jack delivers effortless heavy lifting. Built from rugged steel, this air hydraulic floor jack supports up to 22 tons (48,501 lbs). It is ideal for vehicle service, industrial work, and construction lifting

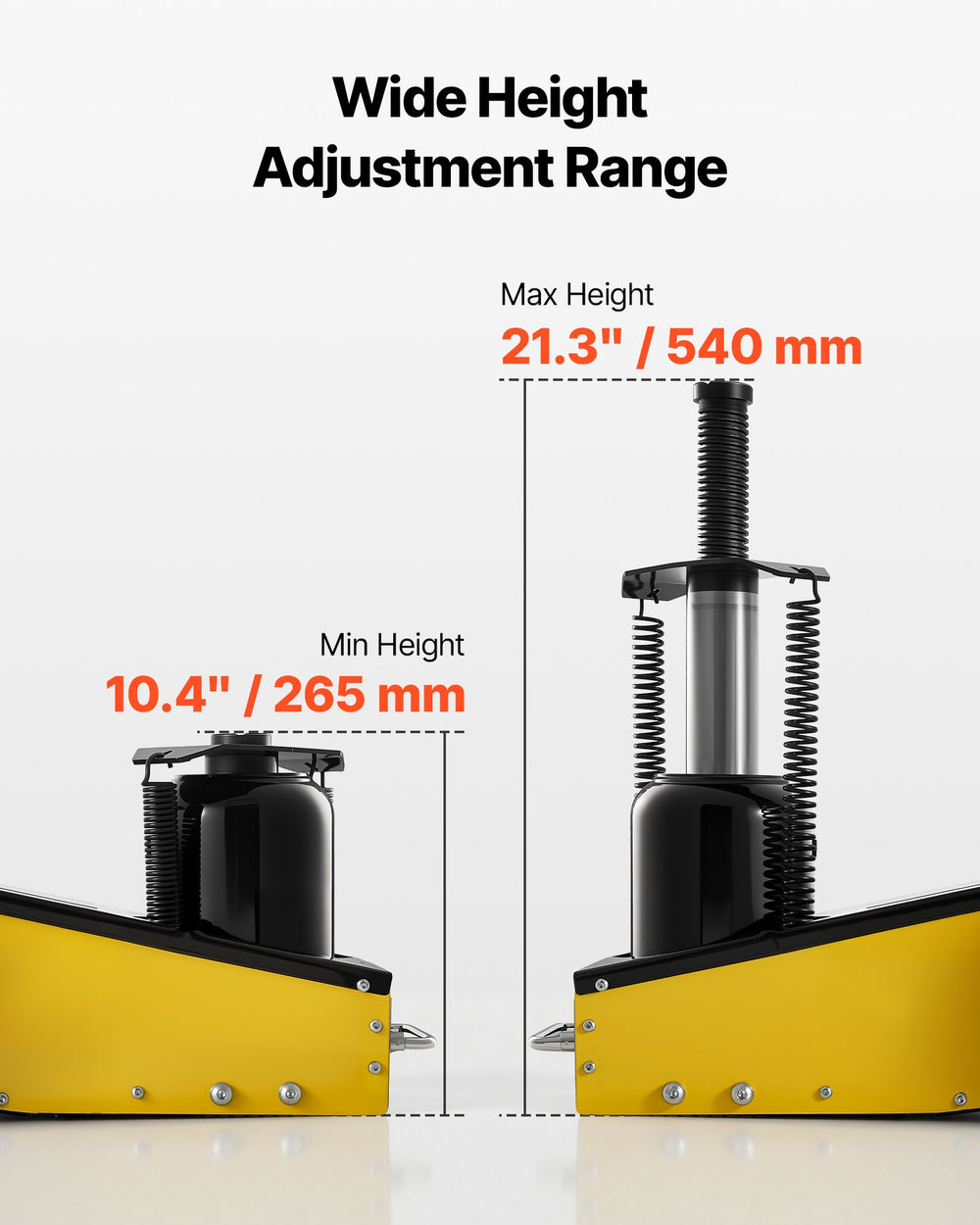

- Wide Lift Range: This pneumatic floor jack lifts from 10.4–16.1 in (265–410 mm). An adjustable screw extension increases max height to 21.3 in (540 mm). It fits SUVs, pickups, RVs, and off-road vehicles

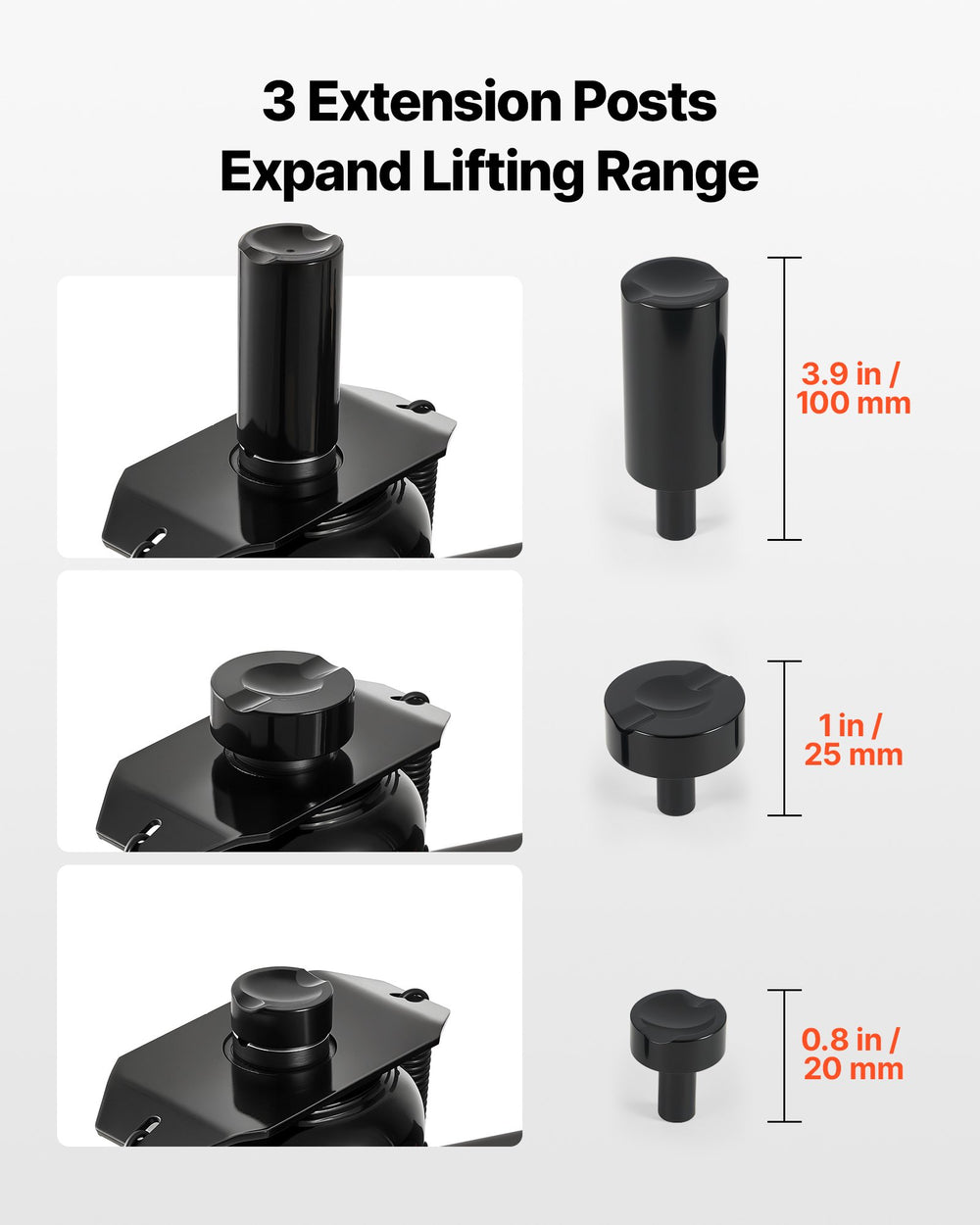

- 3 Extension Posts: Our high lift floor jack includes 3 metal extension posts. Sizes: 0.8 in (20 mm), 1 in (25 mm), and 3.9 in (100 mm). These extensions help the floor jack reach higher lift points for flexible applications

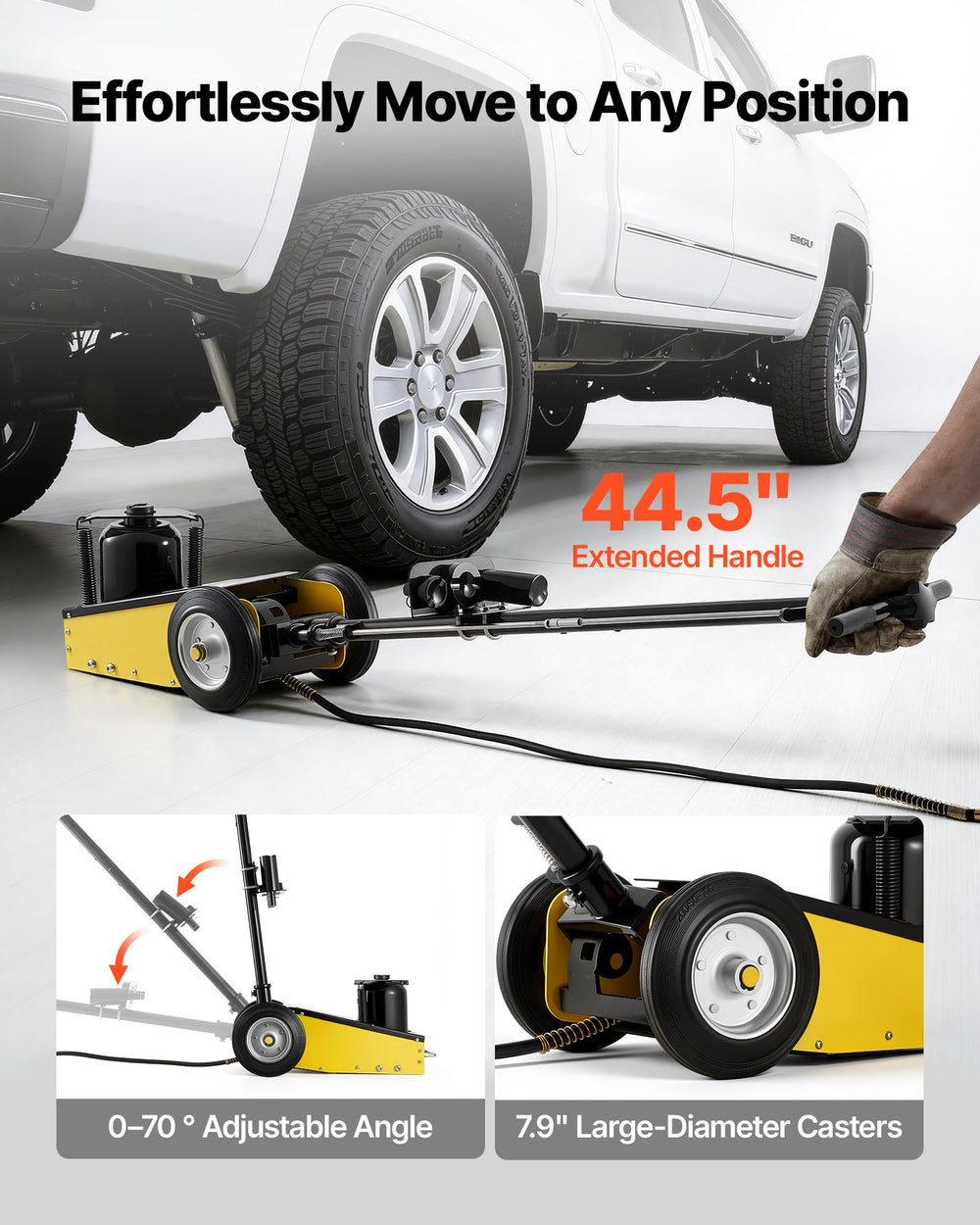

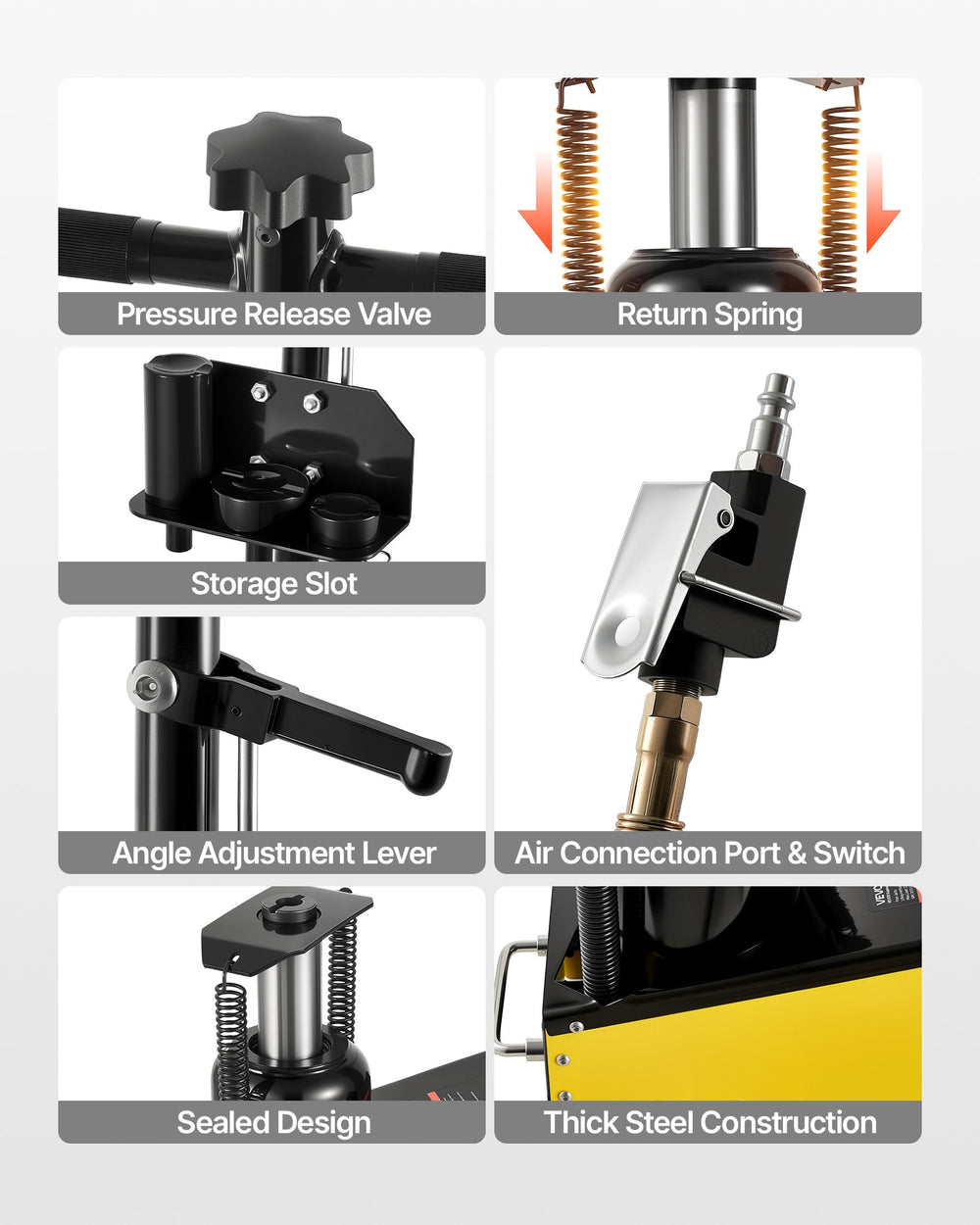

- Easy Mobility: The high lift jack comes with a 44.5 in (1,130 mm) extended handle. The 0–70° adjustable angle helps position the floor jack deeper under vehicles. Two 7.9 in (200 mm) large casters allow smooth rolling on asphalt without strain
- Pneumatic Operation: This pneumatic high lift car jack connects to a 145 psi air compressor. Control the oil return valve and air switch for smooth lifting and lowering. The sealed system keeps the floor jack performing reliably during long-term use
Specifications
| Item Model Number | QD-FWD01 |
|---|---|
| Capacity | 22 Ton (48,501 lbs) |
| Lifting Range (Without Screw Extension) | 10.4–16.1 in (265–410 mm) |
| Max Height (With Screw Extension) | 21.3 in (540 mm) |
| Handle Length | 44.5 in (1,130 mm) |
| Handle Angle Adjustment | 0–70° |
| Caster Size | 7.9 in (200 mm) |
| Net Weight | 87.2 lbs (39.55 kg) |
| Product Dimensions | 22.4 x 9.3 x 51.6 in (570 x 330 x 1310 mm) |
| Extension Posts Included | 0.8 in (20 mm), 1 in (25 mm), 3.9 in (100 mm) |
|---|
Package Contents
Floor Jack 22 Ton
(3) Extension Posts
(3) R-Type Pins
User Manual
Warranty
This item comes with a 1 year factory warranty.
