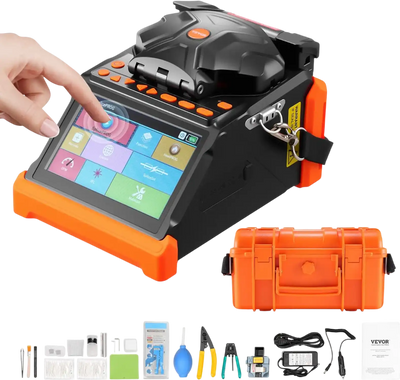

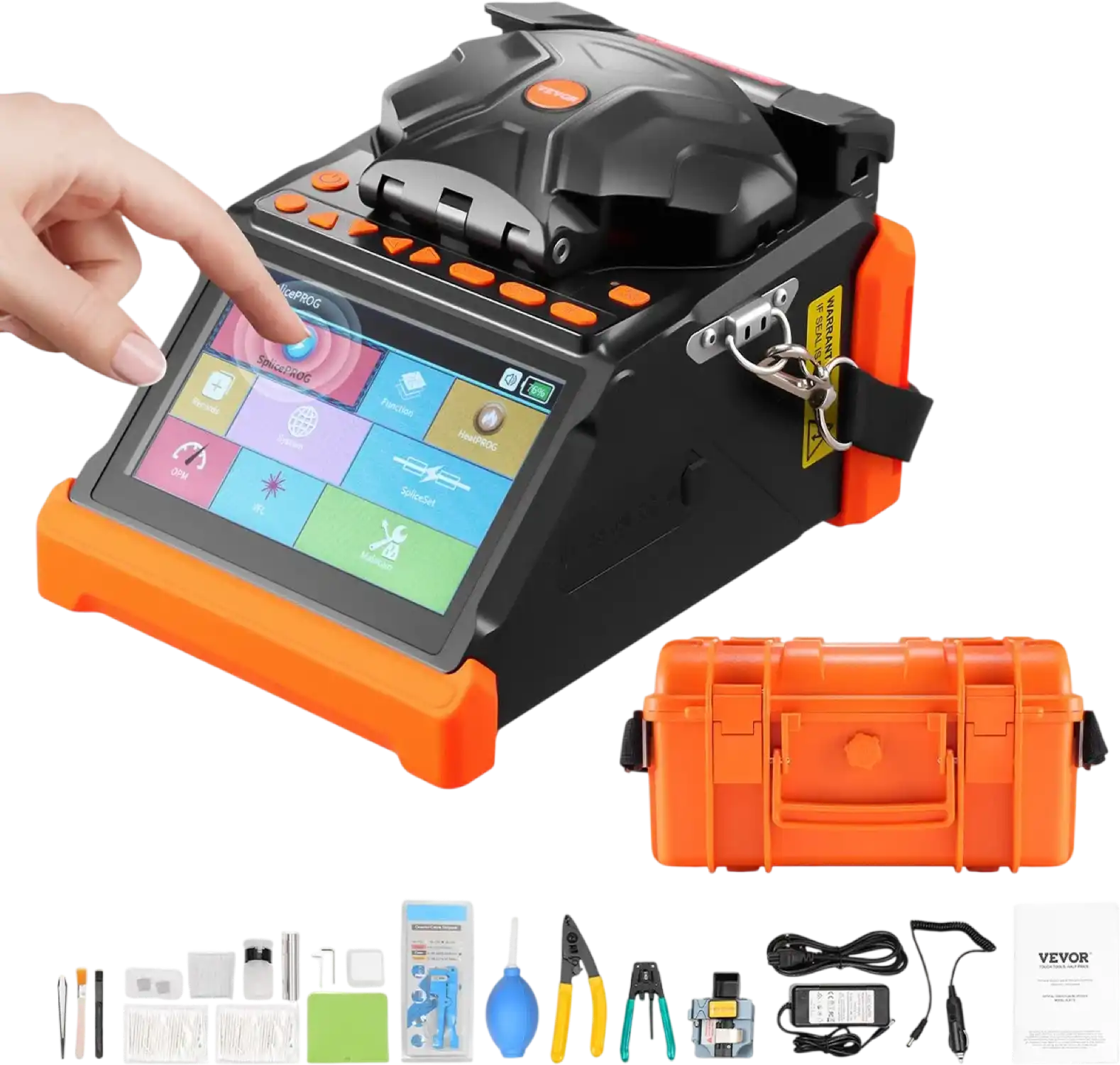

Vevor Fiber Fusion Splicer Core & Clad Alignment 6 Motors with 5" Touchscreen New
Product Overview
This fiber fusion splicer is equipped with 6 high-precision motors, ensuring highly accurate fiber positioning and stable fusion quality. Compared to standard 4-motor designs, this 6 motor delivers enhanced alignment accuracy, faster splicing needs, and lower loss rates. Featuring a 5-inch touchscreen with a user-friendly interface, this splicer offers clear and intuitive display to meet various needs, making it easy to monitor every detail throughout the process.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

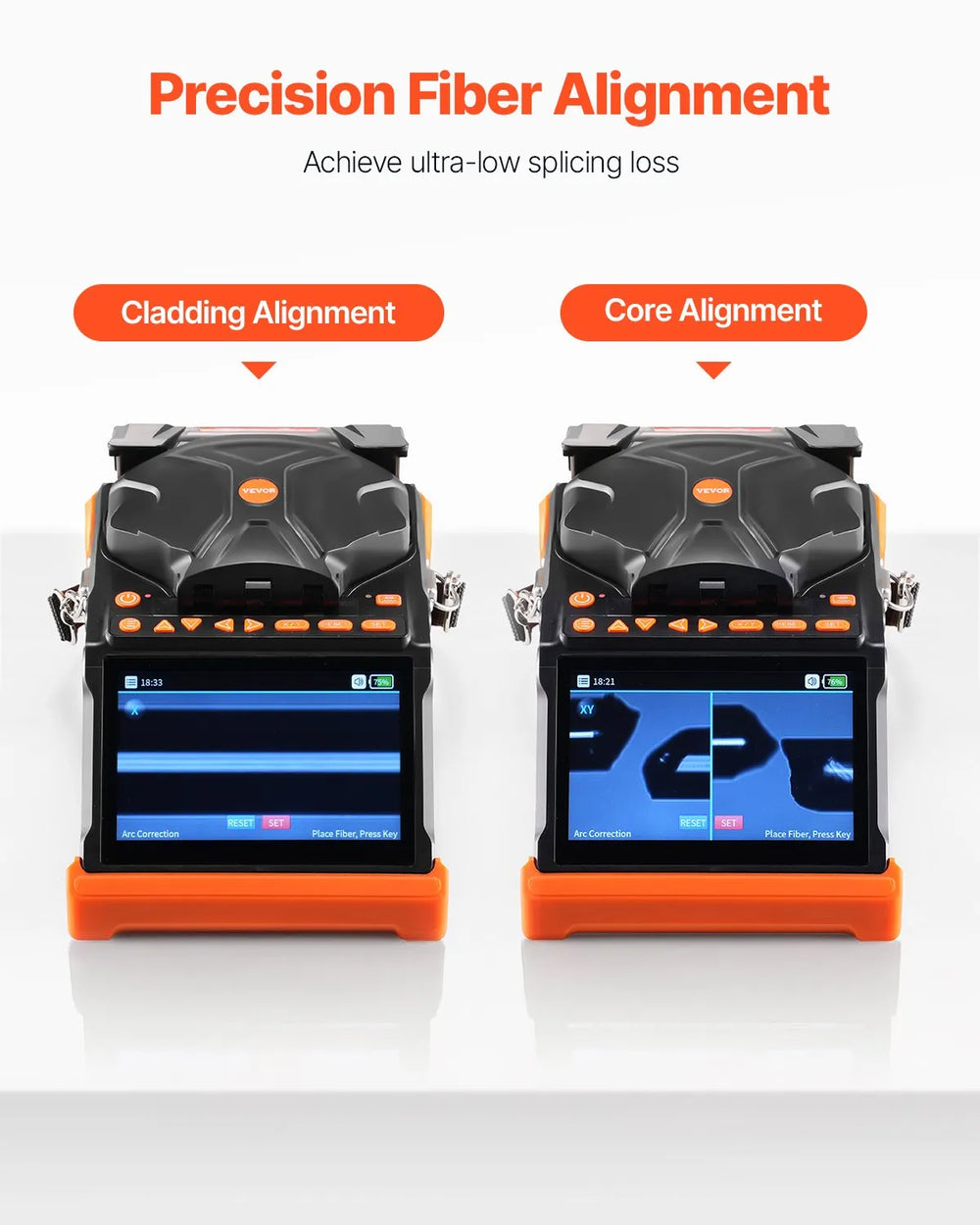

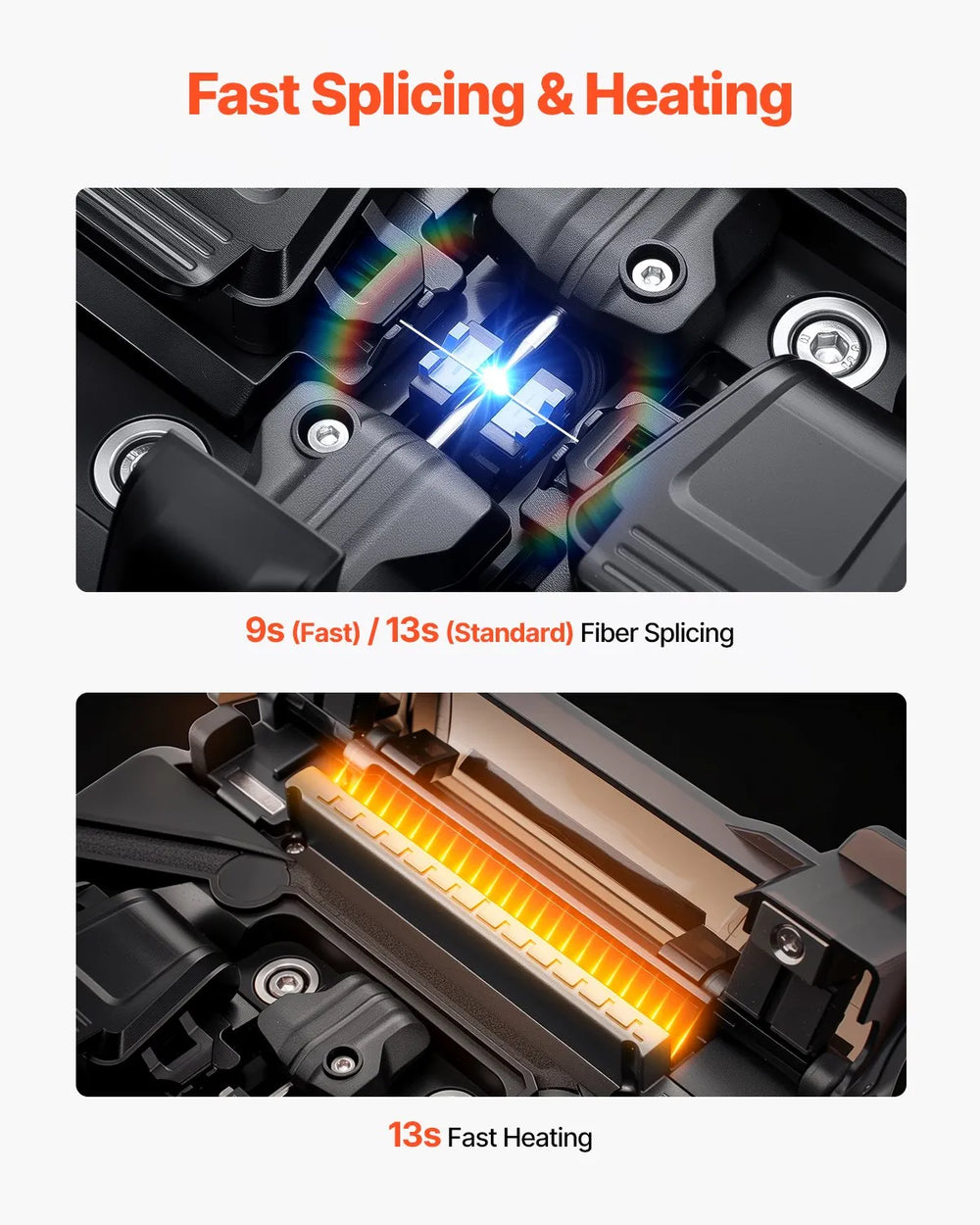

- Fast Splicing & Heating: VEVOR fiber fusion splicer features 6 high-precision motors, advanced core and cladding alignment technology, enabling rapid 6s splicing, 13s standard splicing, and 13s fast heating, with a fusion loss as low as 0.01 dB (MM).

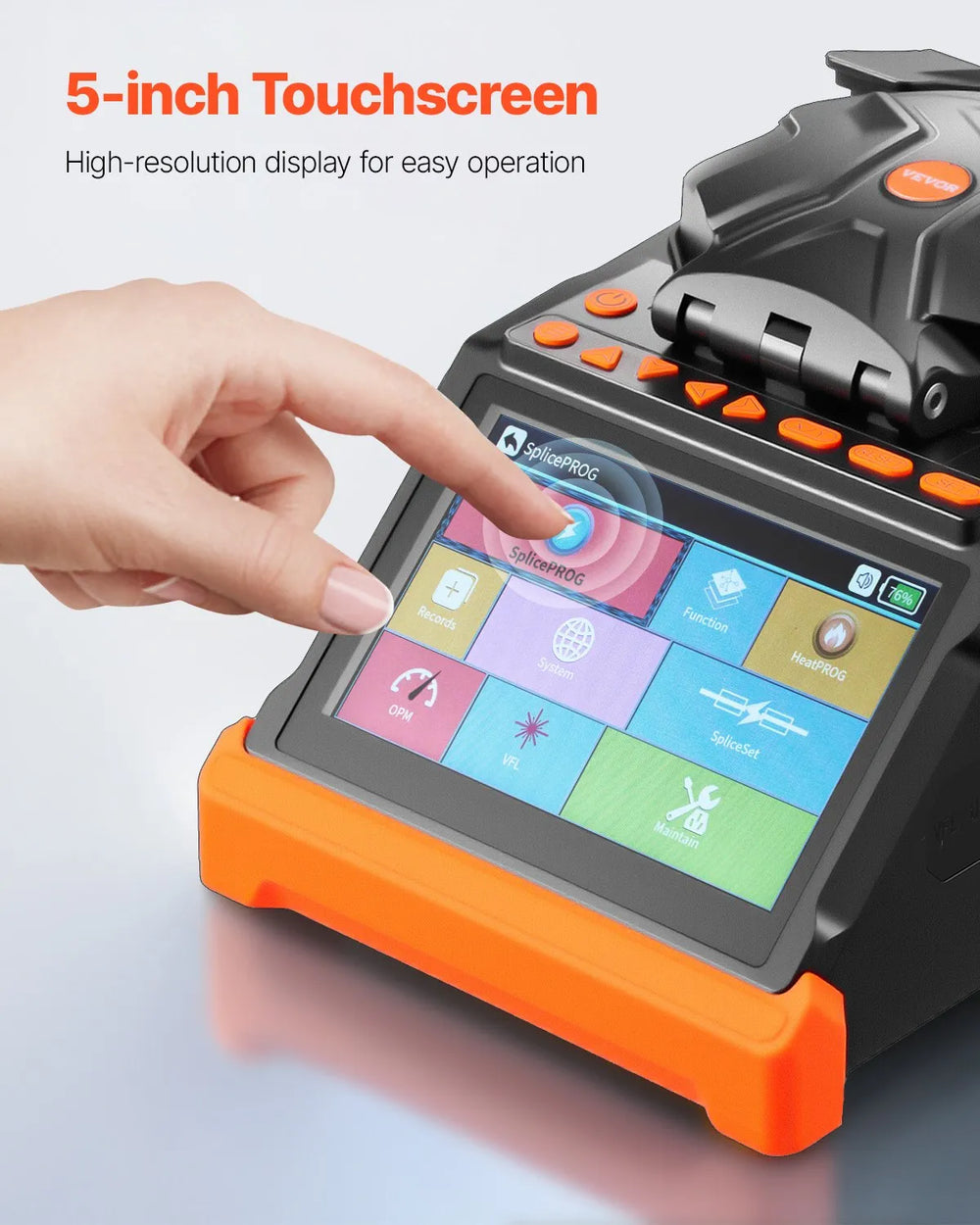

- High-Definition Display: 5-inch color touch screen offers intuitive display and real-time monitoring of the splicing process. It offers an independent 320x X or Y display or simultaneous 200x X/Y display—ensuring clear and visible fiber cores.

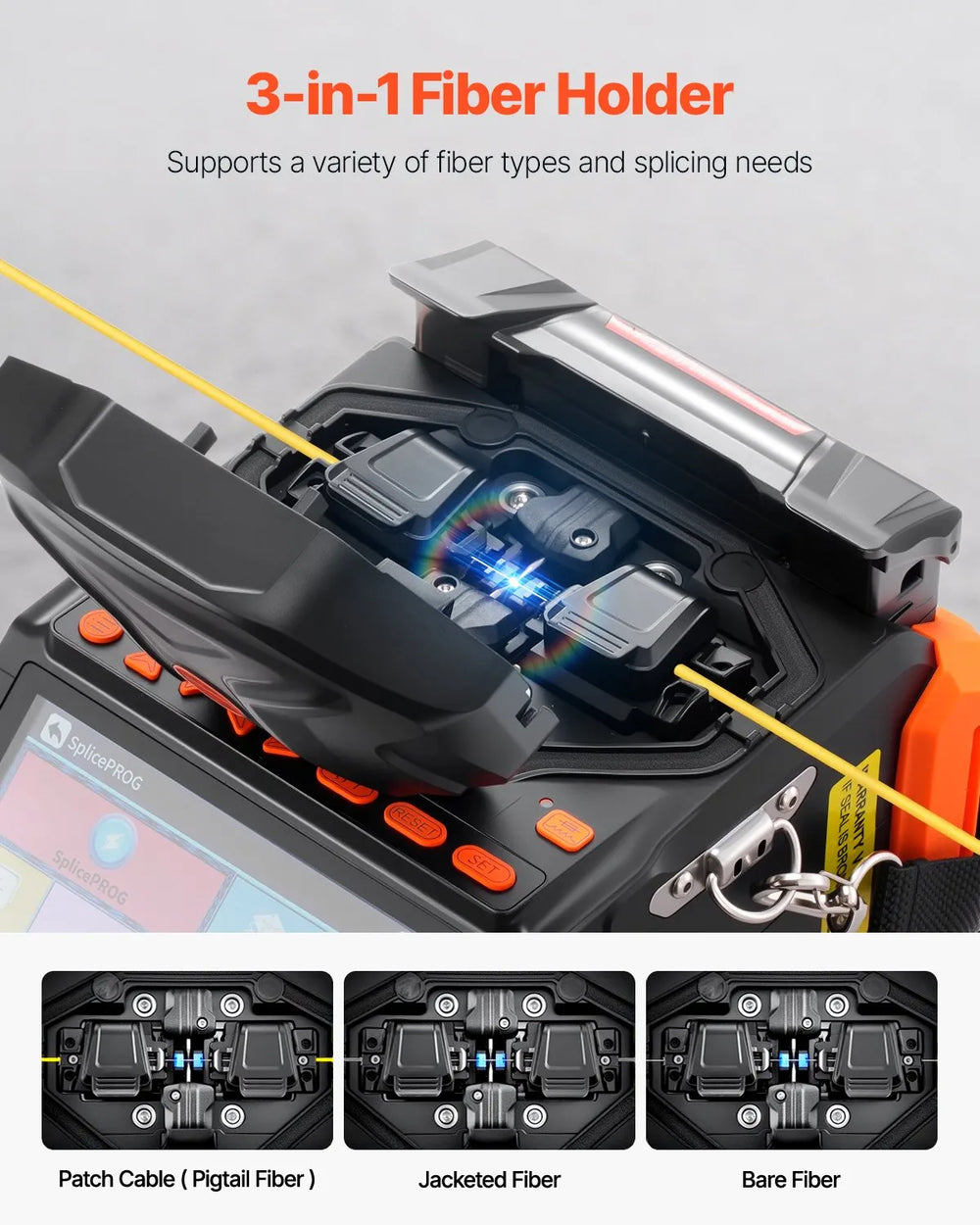

- User-Friendly Designs: Our fiber optic fusion splicer features a 3-in-1 fiber holder, compatible with SM, MM, DS, NZDS, pigtail fiber, bare fiber, patch cable, etc. And it also includes built-in VFL and OPM Function, effectively measuring connection losses, verifying continuity, and helping evaluate fiber link transmission quality.

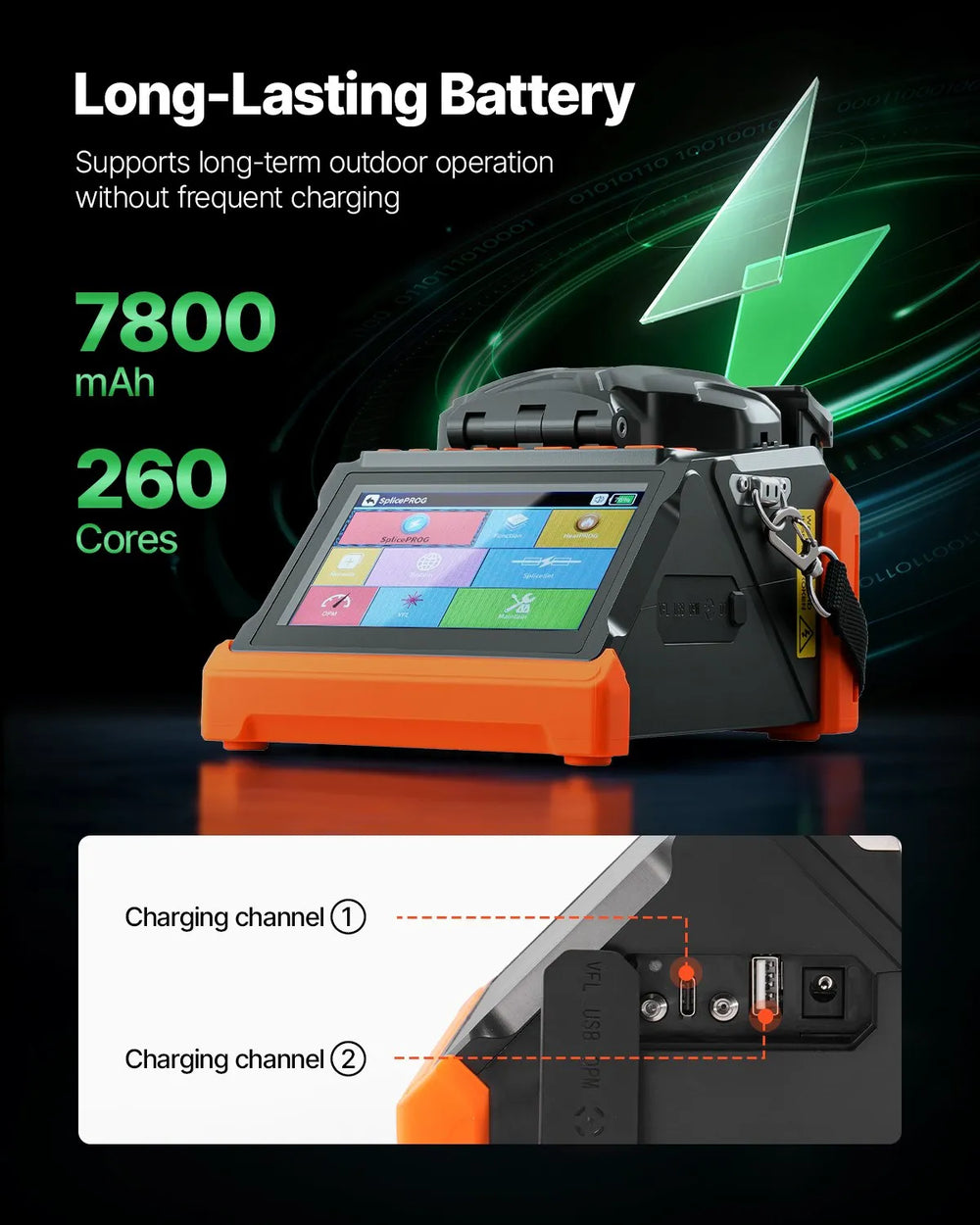

- Extended Operation Time: 7800mAh high-capacity rechargeable battery allows up to 260 continuous fusion splicing and heating cycles on a full charge, reducing the need for frequent recharging. Built with durable yet lightweight materials, it is compact, dustproof and shockproof, making it ideal for various working environments.
- All-in-One Kit: Keep your accessories neatly organized with the portable case. The optical fusion splicer kit includes a fiber fusion splicer, fiber cleaver, fiber stripper, 3-hole miller pliers, alcohol bottle, air blower, cooling tray, 100pcs heat shrink tubes, brush, 50 pcs cotton swabs, 2pcs spare electrodes and other essential tools.

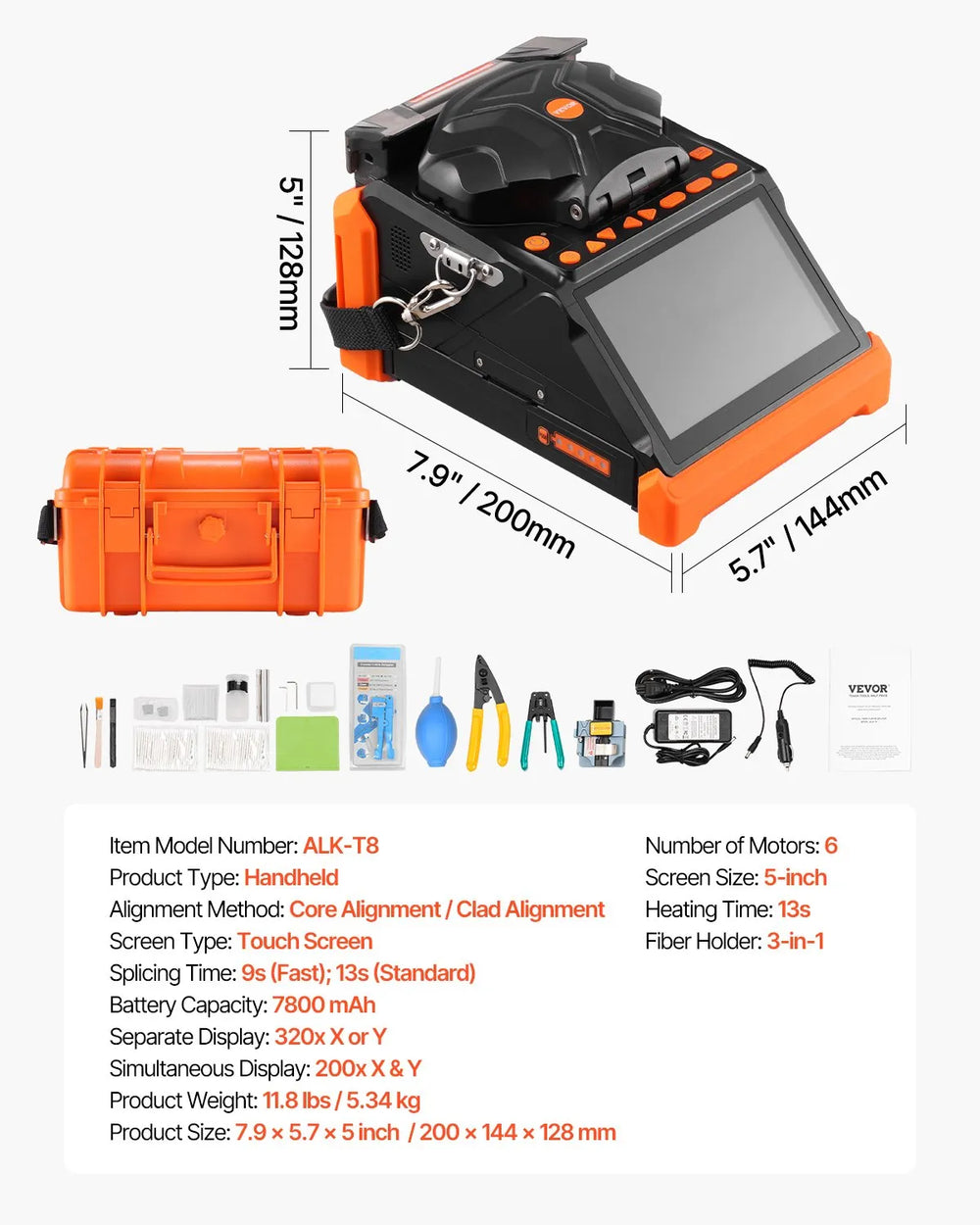

Specifications
| Item Model Number | ALK-T8 |
| Alignment Method | Core Alignment / Clad Alignment |
| Number of Motors | 6 |
| Screen Type | Touch Screen |
| Screen Size | 5-inch |
| Splicing Time | 9s (Fast); 13s (Standard) |
| Heating Time | 13s |
| Battery Capacity | 7800 mAh |
| Separate Display | 320x X or Y |
| Simultaneous Display | 200x X & Y |
| Fiber Holder | 3-in-1 |
| Net Weight | 11.8 lbs |
| Product Size | 7.9 x 5.7 x 5 inch |
Package Contents
Vevor Fiber Fusion Splicer
Fiber Cleaver
Fiber Stripper
Pliers
Alcohol Bottle
Air Blower
Brush
(100) Heat Shrink Tubes
(50) Cotton Swabs
(50) Wipes
Wire Stripper
Tweezers
(2) Spare Electrodes
Portable Case
User Manual
Warranty
This item comes with a 1 year factory warranty.
