Vevor Fiber Fusion Splicer 6 Motors Core Alignment 6s Splicing 13s Heating New
Product Overview
Equipped with core alignment tech, 6 high-precision motors, and 3-in-1 fiber holder, this fiber fusion splicer ensures fast splicing in just 6 seconds and quick heating in 13 seconds. With fusion loss as low as 0.01dB, it delivers clear and stable connections, suitable for a wide range of fiber optic projects. Featuring a 5" LCD screen with a user-friendly interface, this unit offers multiple display modes for various needs, making it easy to monitor every detail throughout the splicing process.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

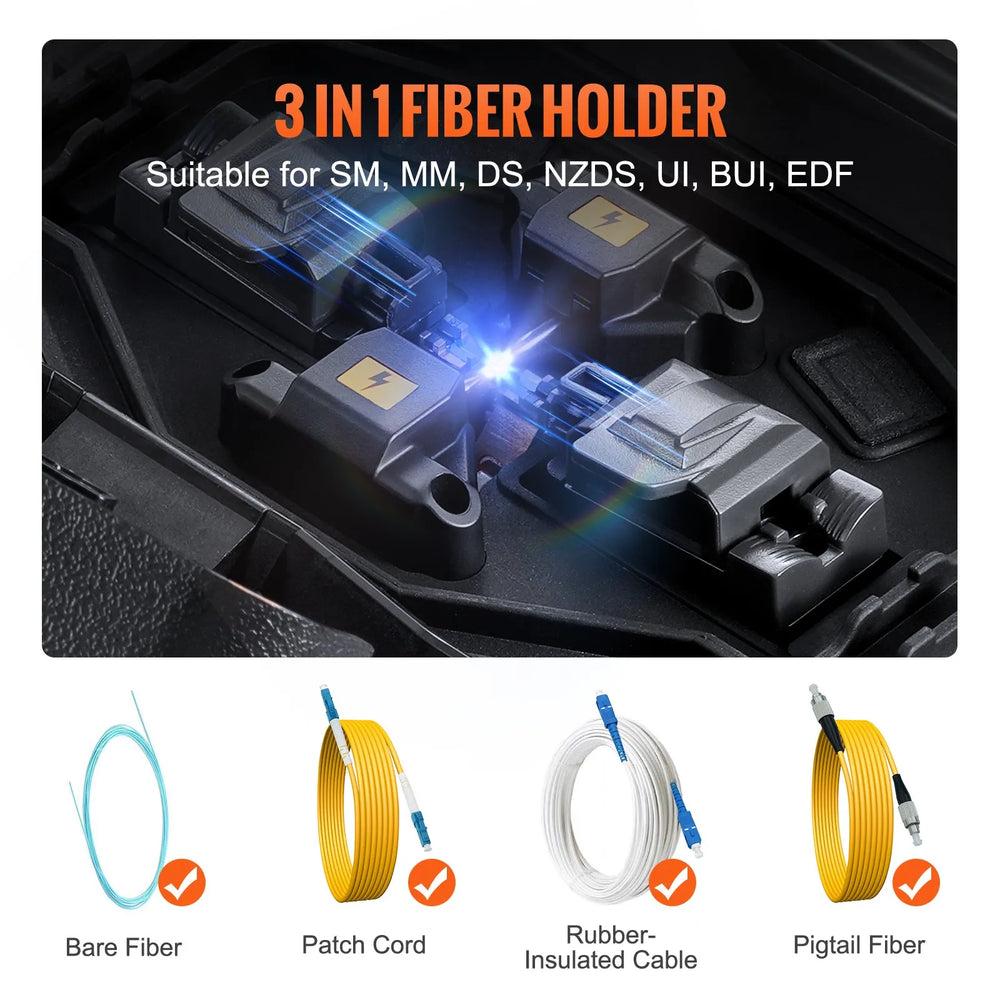

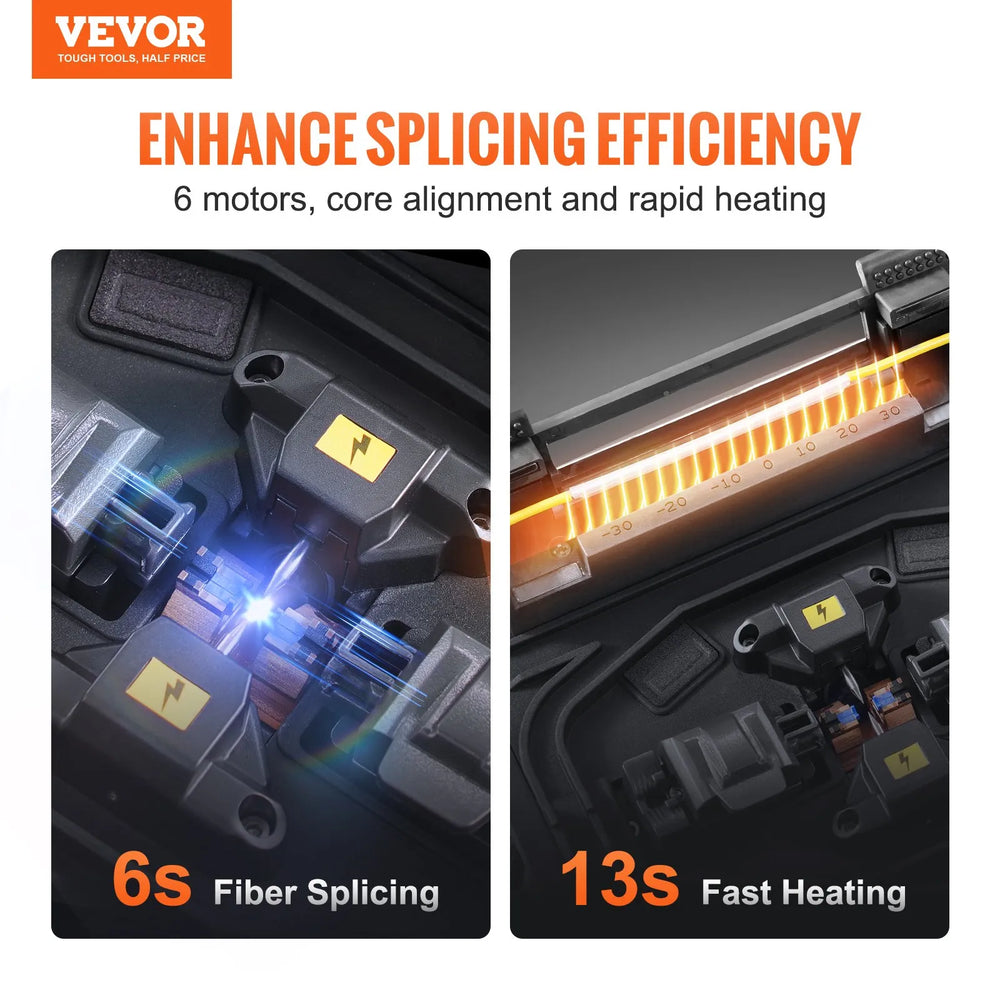

- High Splicing Efficiency: Our fiber fusion splicer features 6 high-precision motors and core alignment, enabling rapid splicing in just 6s and quick heating in 13s, with a fusion loss as low as 0.01 dB (MM). It features a 3-in-1 fiber holder, compatible with SM, MM, DS, NZDS, UI, BUI, and EDF fibers.

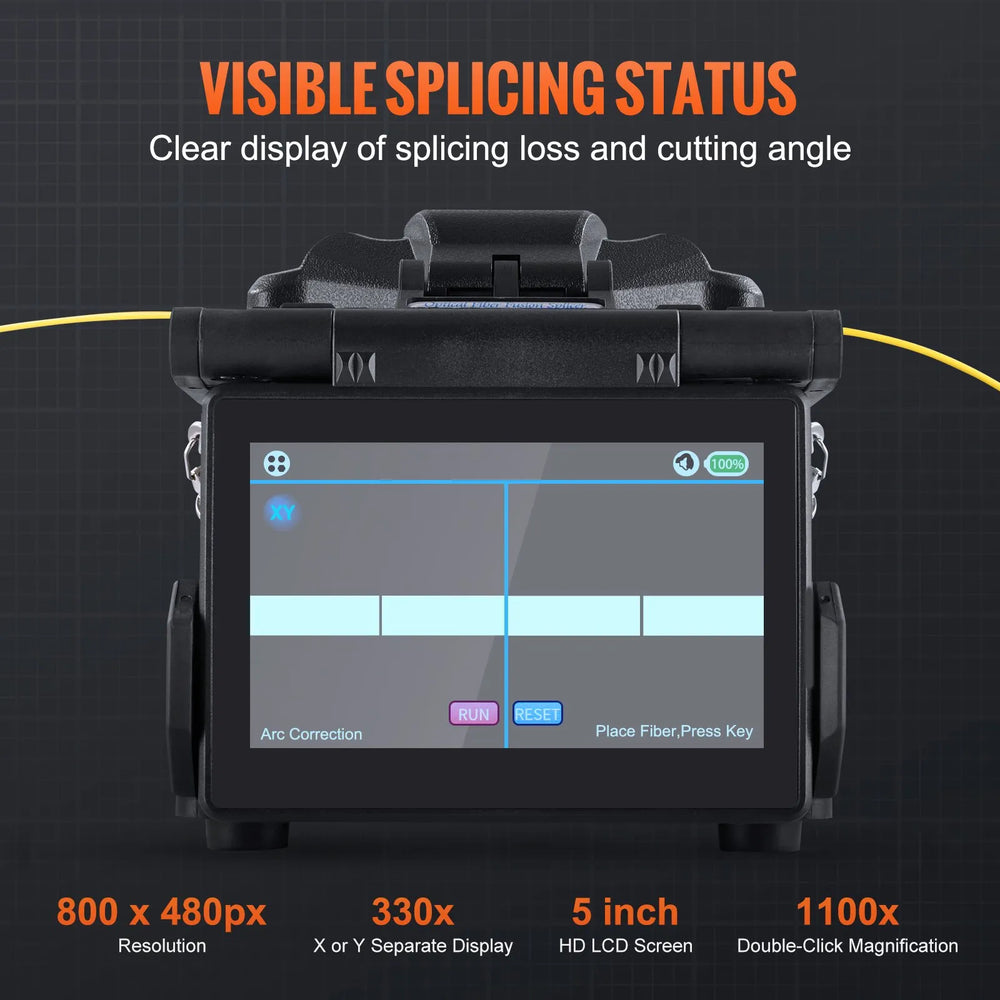

- High-Definition Display: 5-inch HD LCD screen offers multiple display modes and clear viewing. It offers an independent 330x X or Y magnification display, double-click to zoom up to 1100x ; and simultaneous 210x X/Y display—ensuring clear and visible fiber cores.

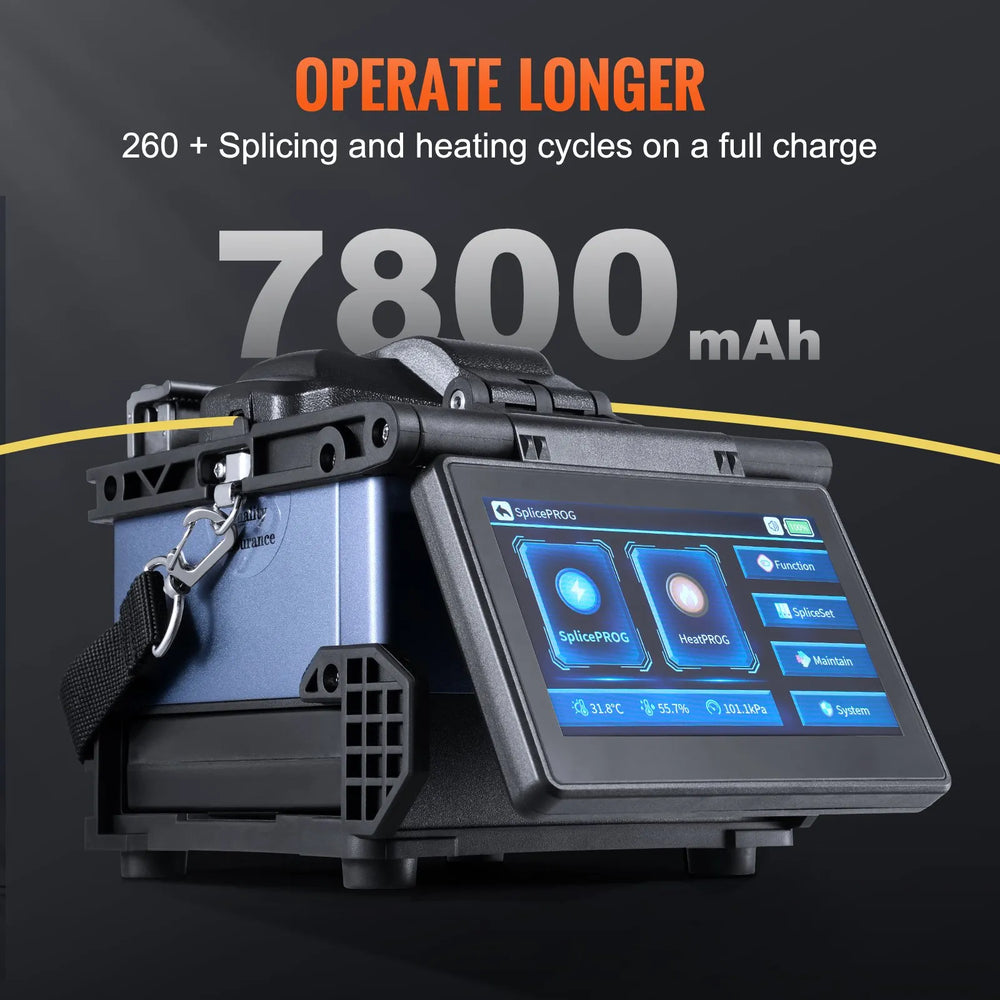

- Extended Operation Time: 7800mAh high-capacity rechargeable battery allows for over 260 continuous fusion splicing and heating cycles on a full charge. The side USB port enables convenient data transfer and charging. Don't worry about running out of power during critical tasks anymore!
- Sturdy and Durable: Our fiber optic fusion splicer surface is made of sturdy ABS and PC material - lightweight, compact and durable. It is dustproof, shatterproof, and shockproof, suitable for dry climates, snowstorms, high altitudes, and high-temperature environments.

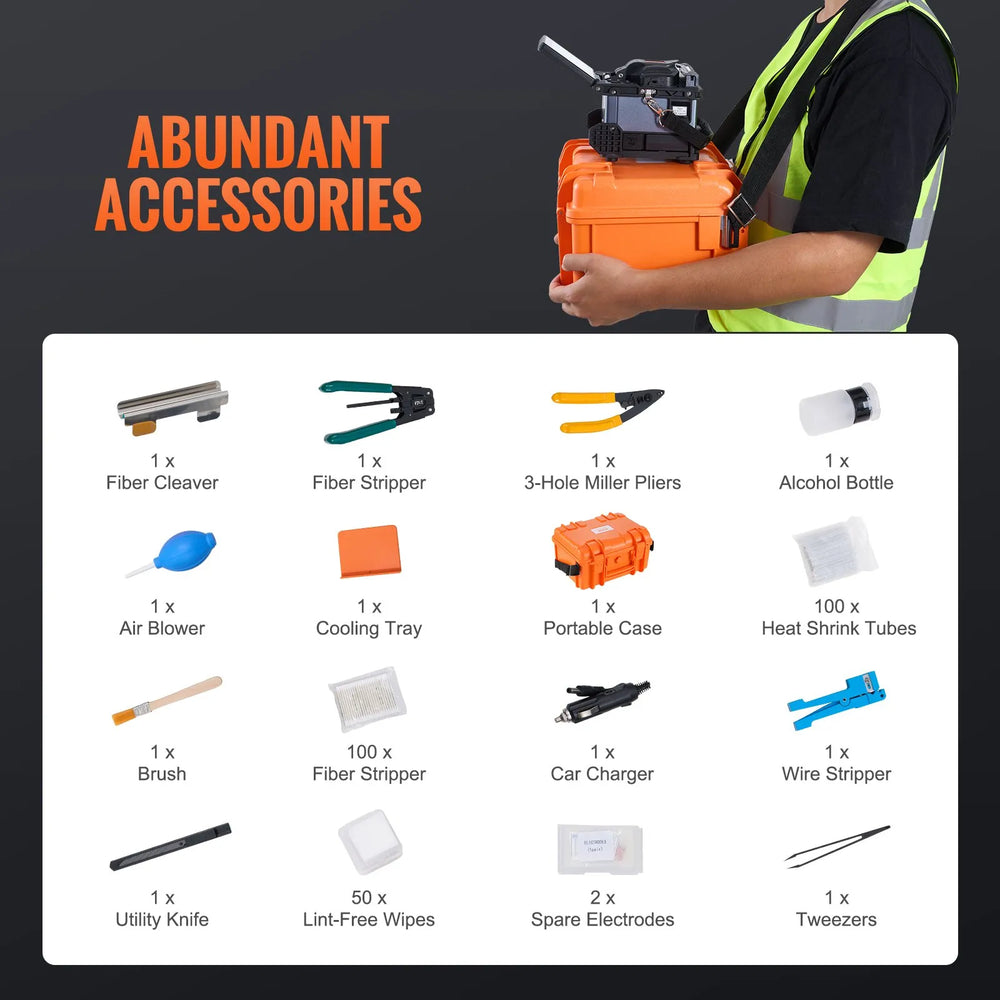

- Professional All-in-One Kit: Keep your accessories neatly organized with the portable case. The optical fusion splicer kit includes a fiber fusion splicer, fiber cleaver, fiber stripper, 3-hole miller pliers, alcohol bottle, air blower, cooling tray, heat shrink tubes, brush, cotton swabs, and other essential tools.

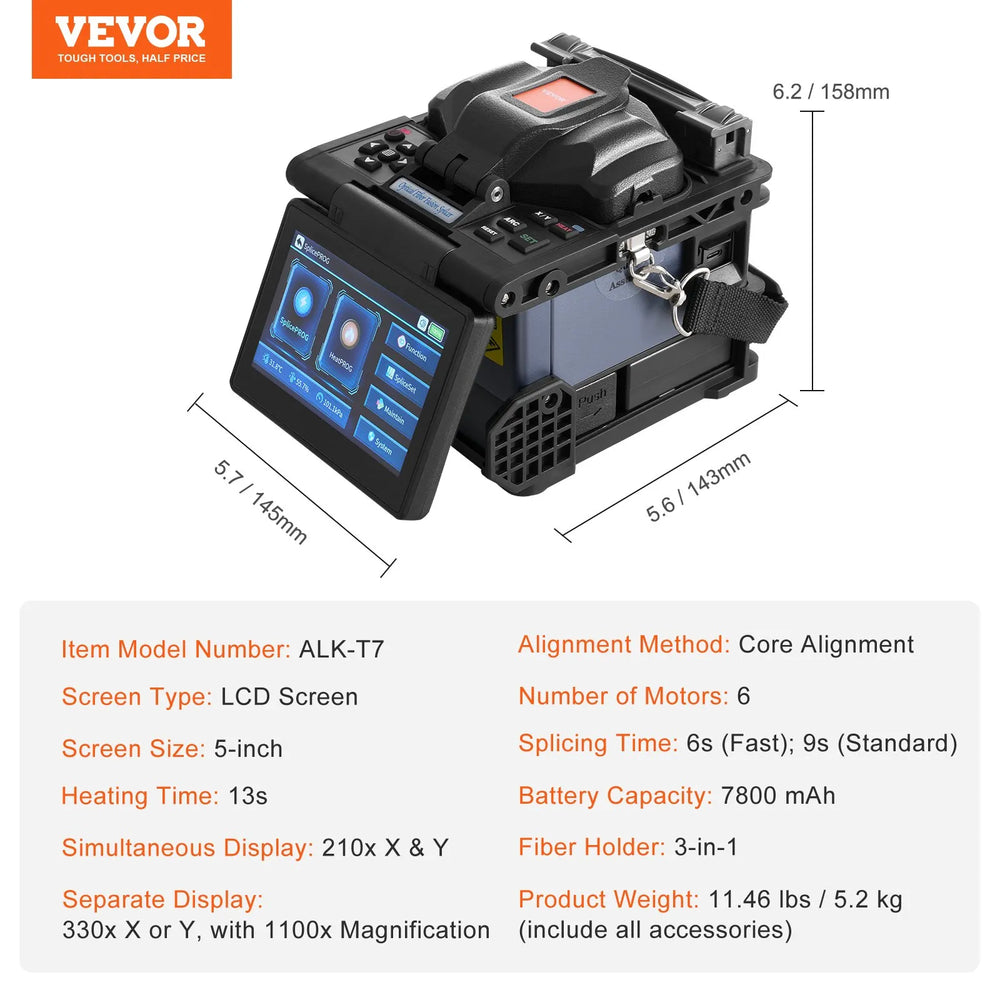

Specifications
| Item Model # | ALK-T7 |
|---|---|
| Alignment Method | Core Alignment |
| Screen Type | LCD Screen |
| Number of Motors | 6 |
| Screen Size | 5-inch |
| Splicing Time | 6s (Fast); 9s (Standard) |
| Heating Time | 13s |
| Battery Capacity | 7800 mAh |
| Separate Display | 330x X or Y, with 1100x Magnification |
| Simultaneous Display | 210x X & Y |
| Fiber Holder | 3-in-1 |
| Product Weight | 11.46 lbs / 5.2 kg (include all accessories) |
| Product Size | 5.7 x 5.6 x 6.2 in / 145 x 143 x 158 mm |

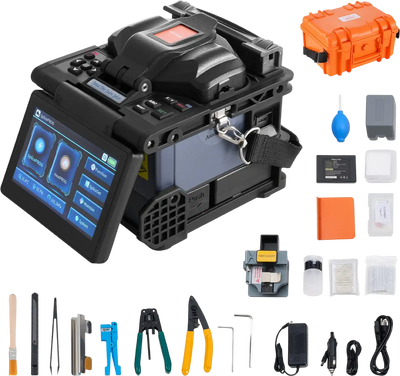

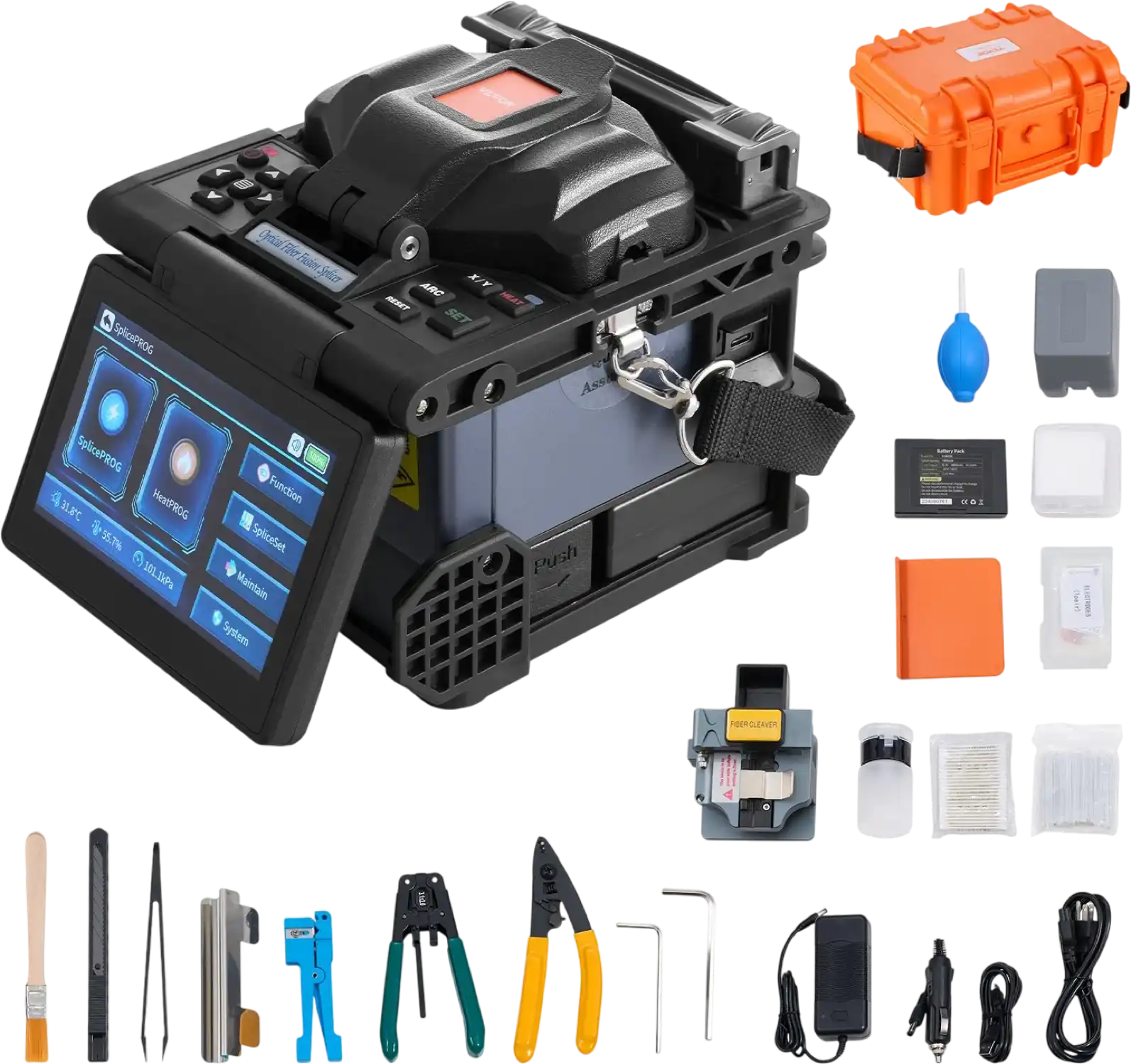

Package Contents
Vevor Fiber Fusion Splicer
Fiber Cleaver
Fiber Stripper
3-Hole Pliers
Alcohol Dispenser
Air Blower
Cooling Tray
Carrying Case
Car Charger
User Manual
Warranty
This item comes with a 1 year factory warranty.
