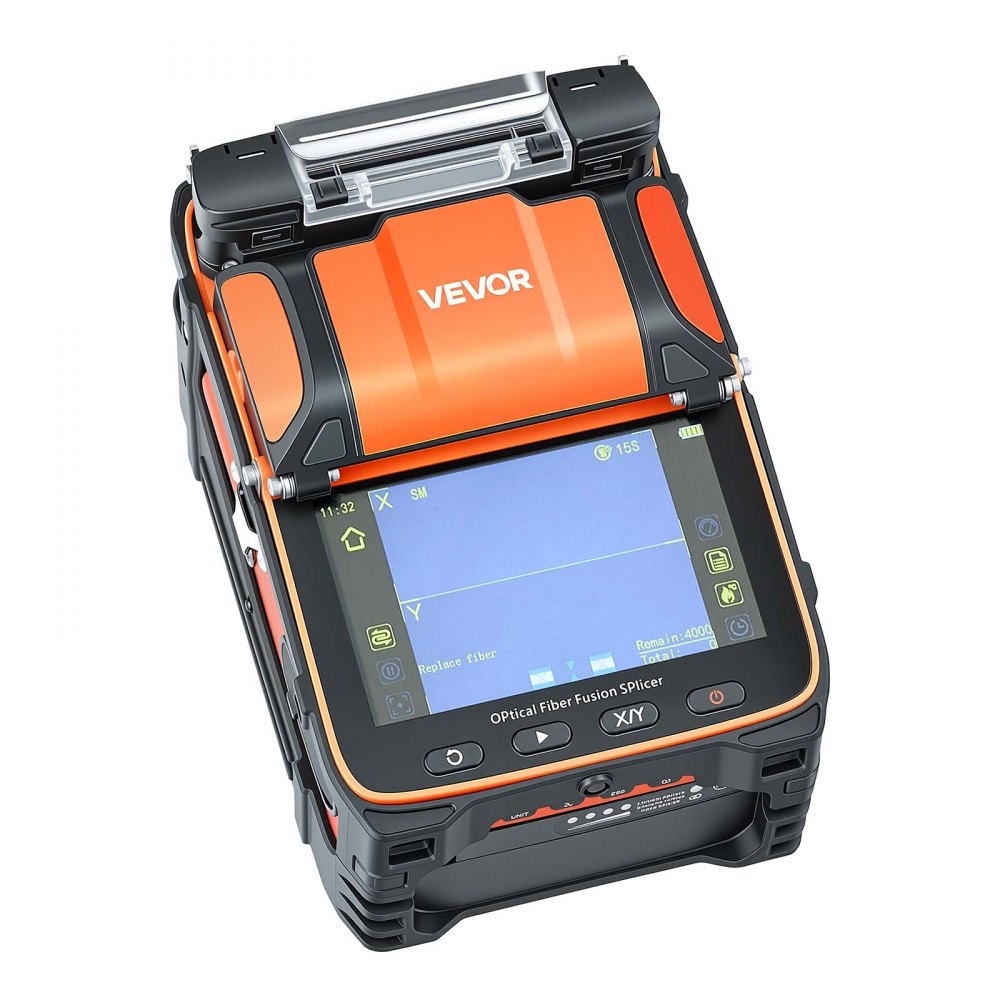

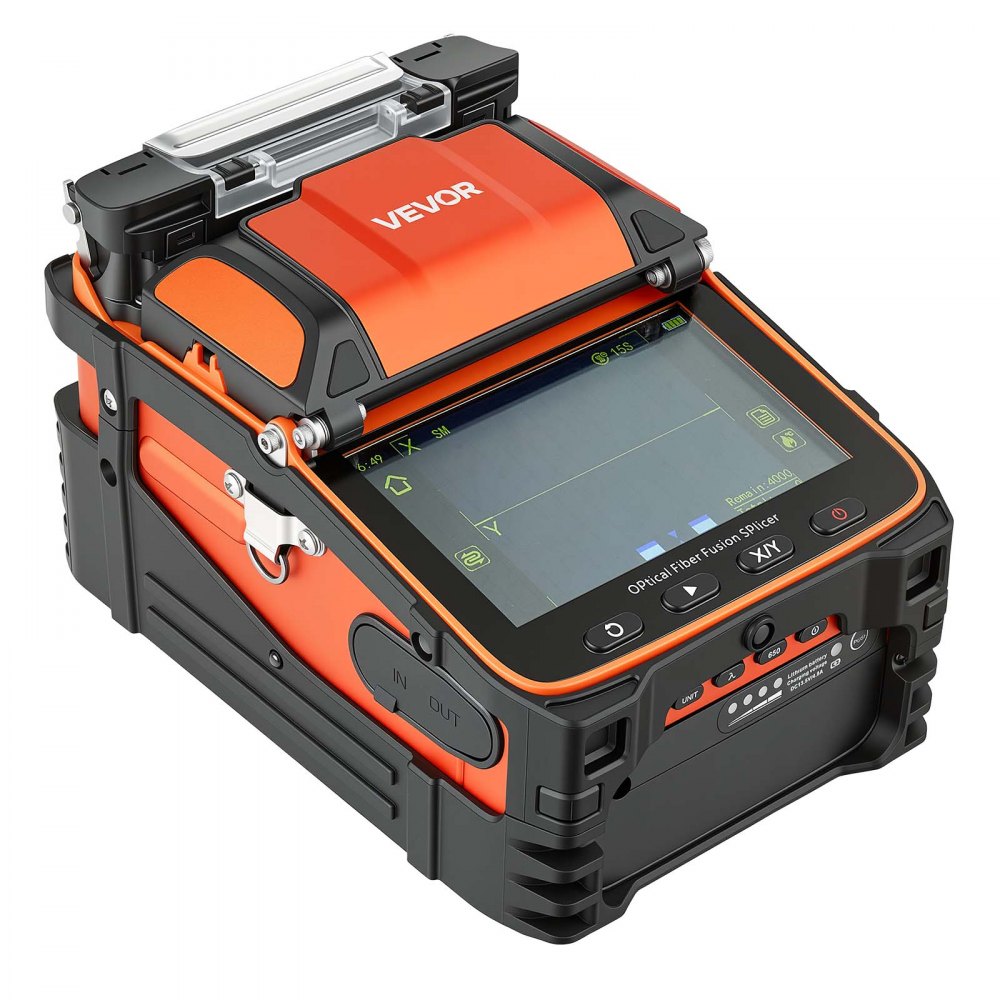

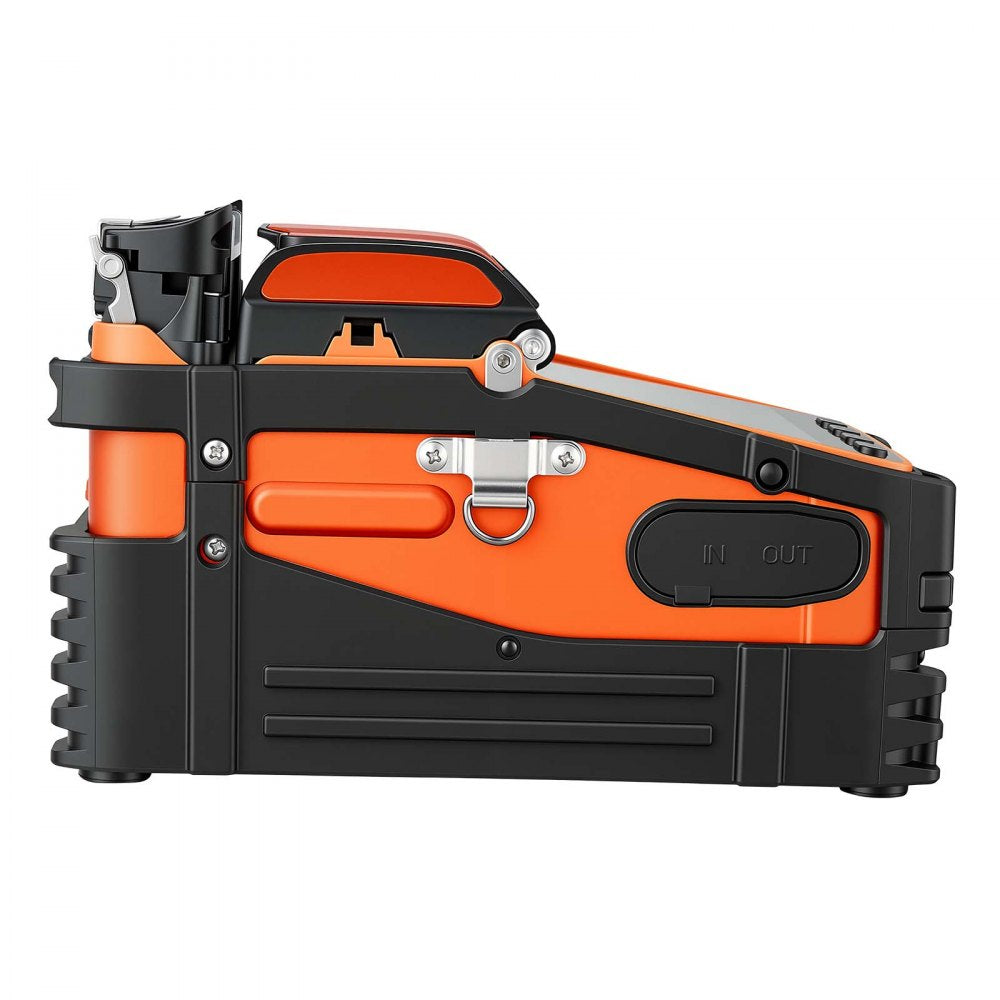

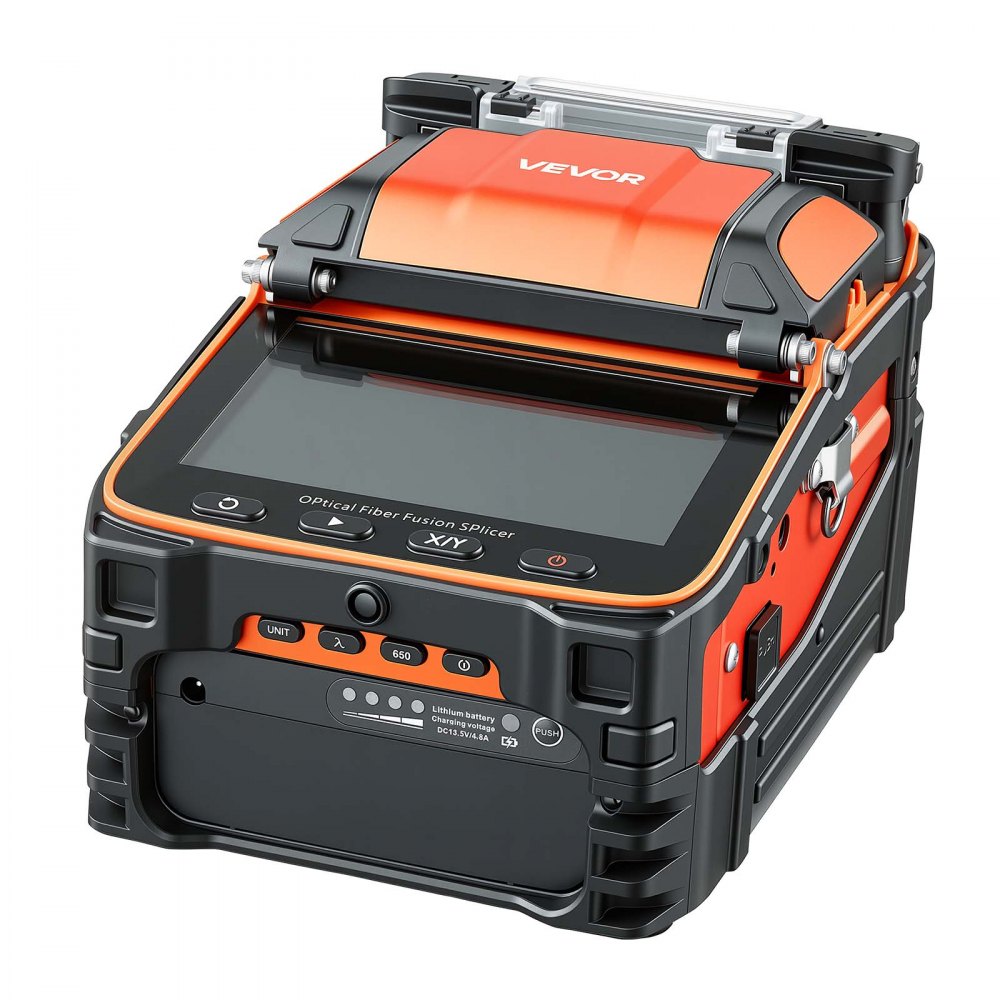

Vevor Fiber Fusion Splicer 5" Touchscreen Core Alignment Optical Splicer New
Product Overview
The Vevor fiber fusion splicer is a professional 6-motor optical splicer designed for fast, precise fiber installation, repair, and maintenance. It delivers 5-second splicing and 15-second heating with 0.1 μm core alignment accuracy for efficient field performance. A 5-inch touchscreen provides clear, real-time monitoring, while Bluetooth connectivity and built-in VFL and OPM functions add convenience and testing capability. Its 7800 mAh rechargeable battery supports extended operation for outdoor jobs. The included carrying case and accessory kit help keep everything organized for transport and use.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

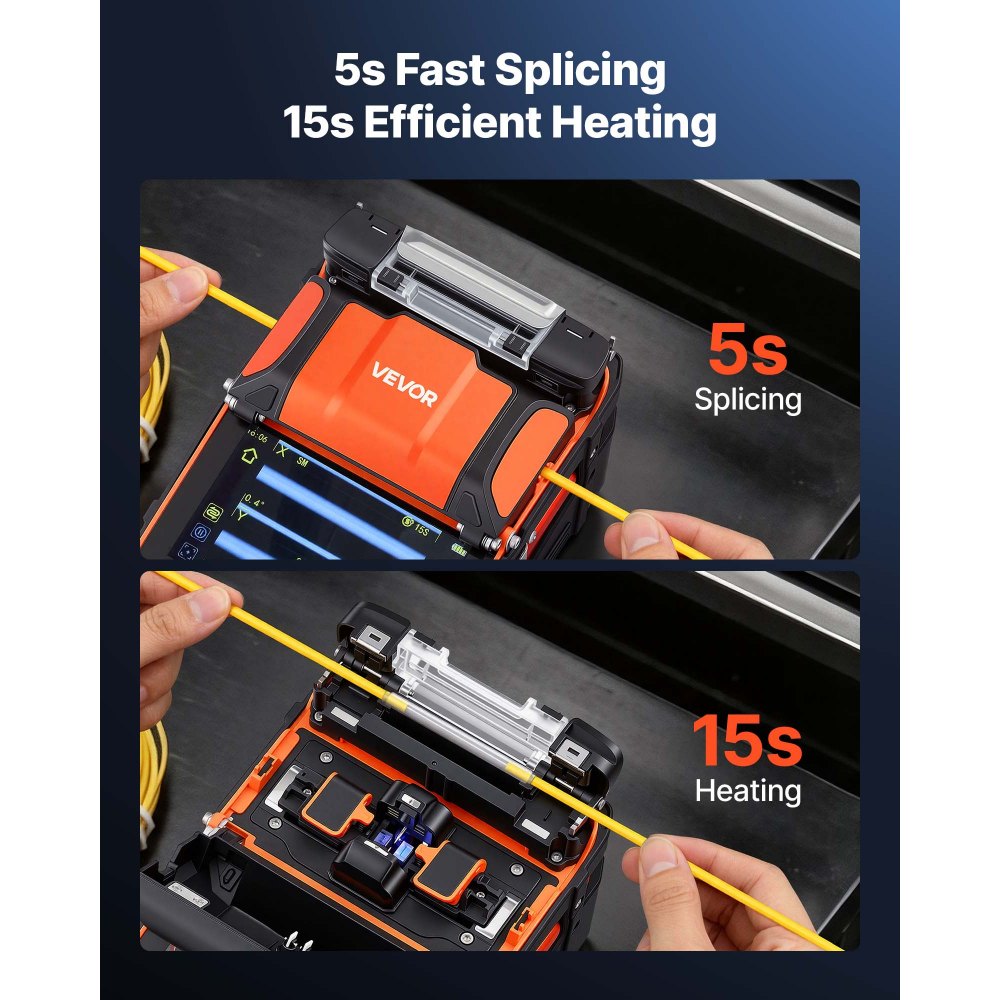

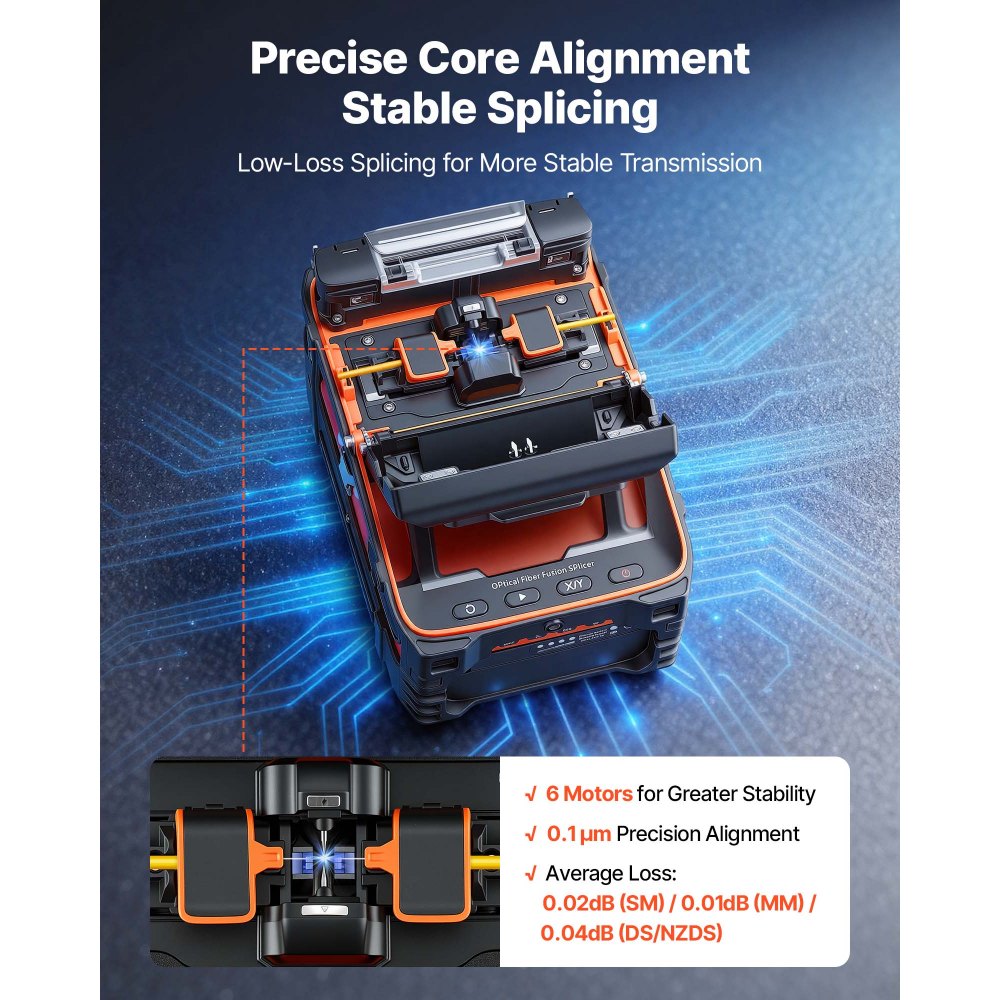

- Efficient Splicing & Heating: Built with 6 high-performance motors and 0.1um precise core alignment, this VEVOR fiber fusion splicer supports 5s fast splicing and 15s fast heating, with a fusion loss as low as 0.01 dB (MM)

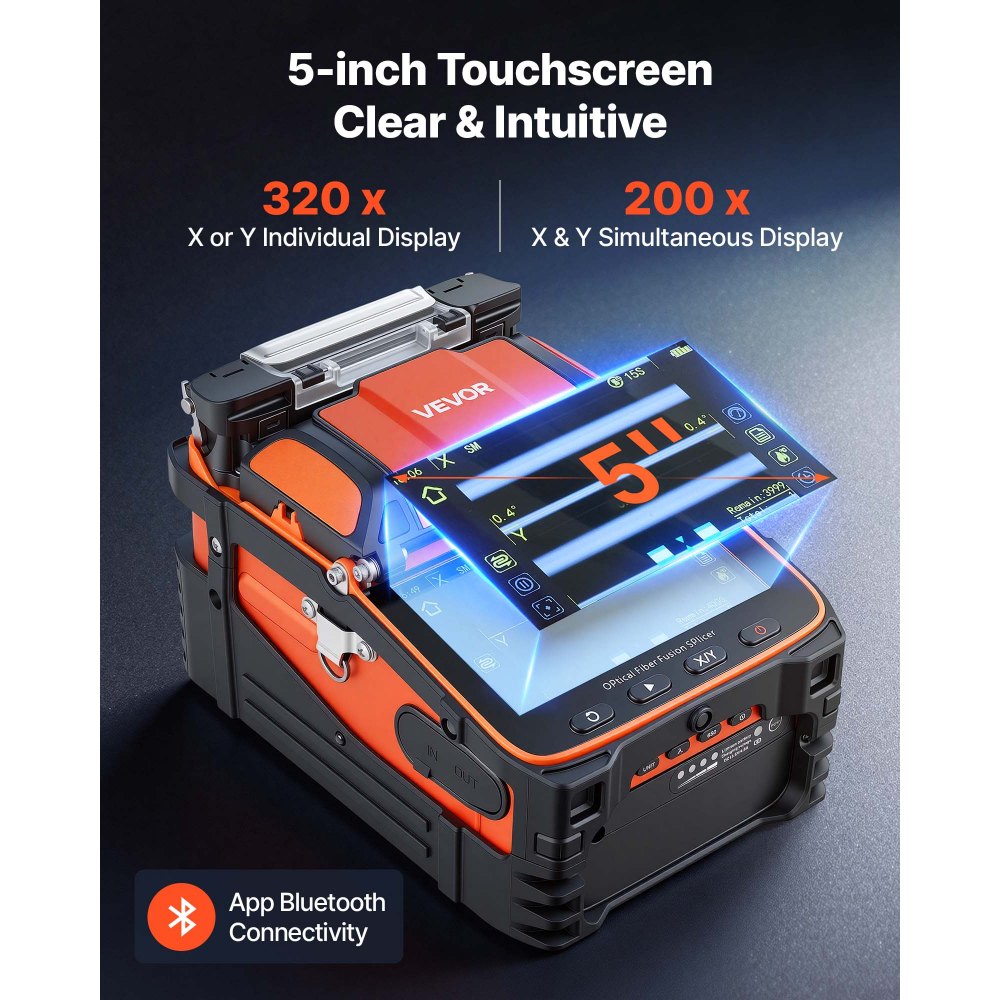

- Clear & Intuitive Display: 5-inch touchscreen provides an intuitive interface and real-time monitoring. Supports 320x X or Y individual display or 200x X & Y simultaneous display, 12 language options, and app Bluetooth connectivity for more convenient use

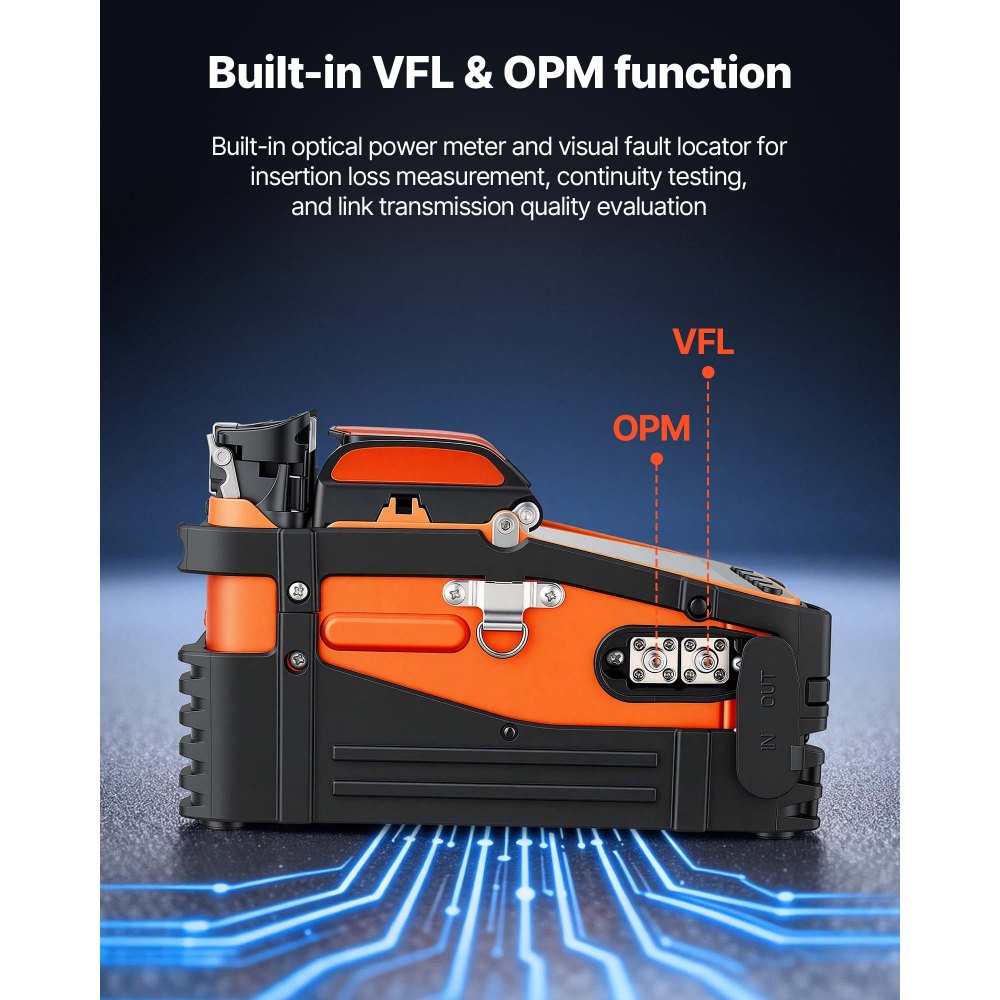

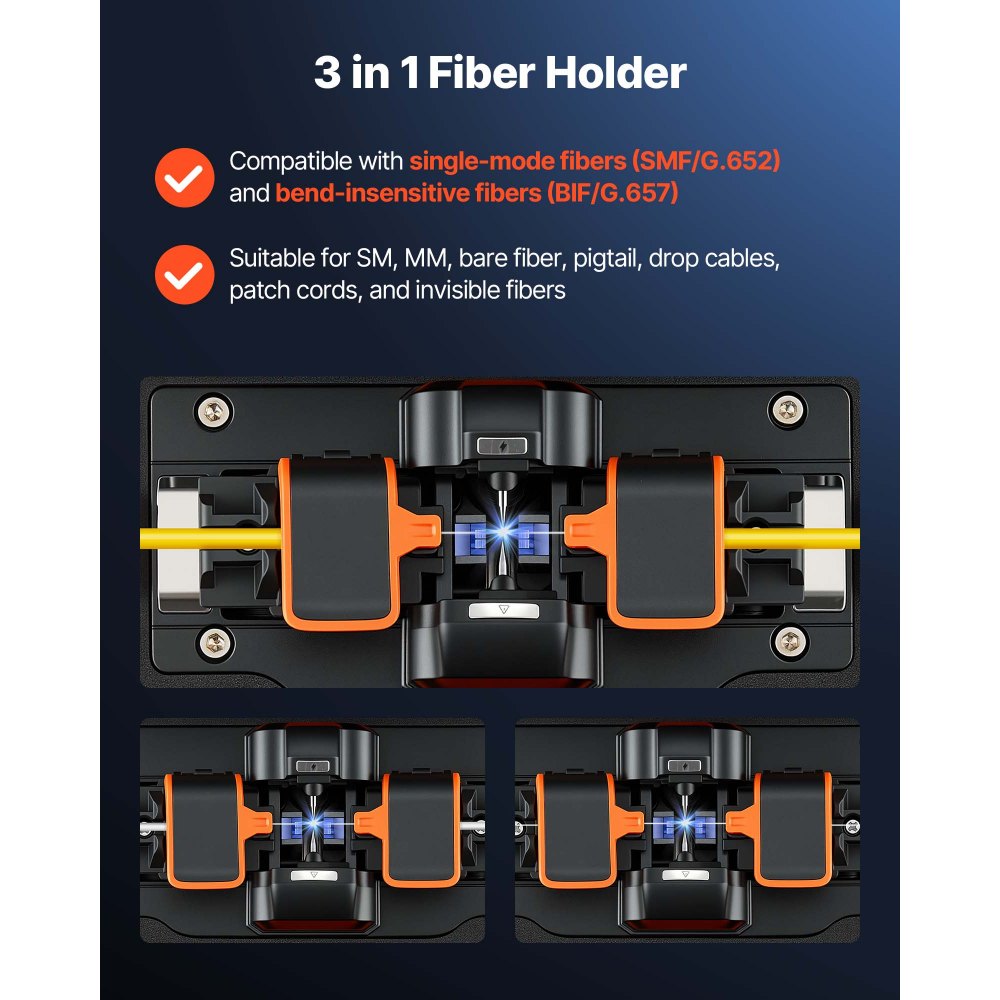

- More Advanced Features: Designed with a 3-in-1 fiber holder, this fiber optic splicer is compatible with SM, MM, DS, NZDS, pigtail fiber, bare fiber and more. Built-in VFL and OPM help measure insertion loss, test continuity, and evaluate link transmission quality

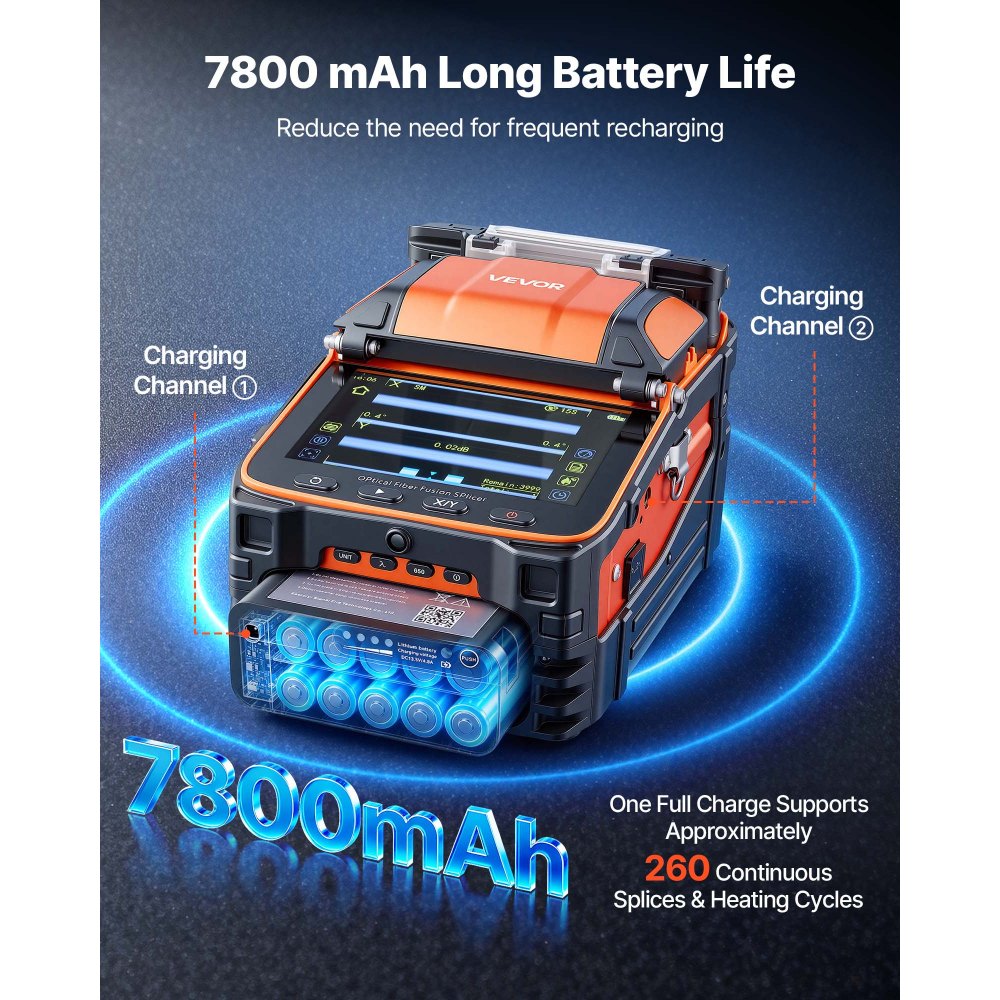

- Extended Power for Field Use: 7800mAh high-capacity rechargeable battery supports approximately 260 continuous splicing and heating cycles on a full charge, reducing the need for frequent recharging for more convenient outdoor operation

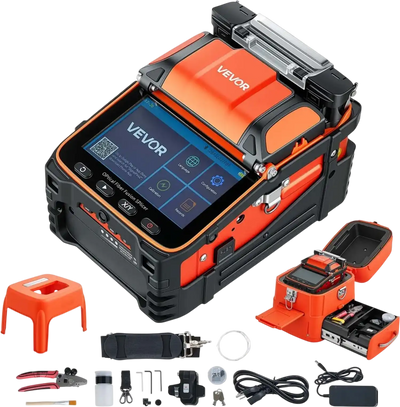

- Professional All-in-One Kit: Keep accessories neatly organized in the portable carrying case. This complete kit includes a fiber fusion splicer, stool, fiber cleaver, fiber stripper, bare fiber for arc calibration, alcohol bottle, straps, wrenches, brush and more
Specifications
| Item Model Number | AI-9 |
|---|---|
| Motor Quantity | 6 |
| Display Screen | 5" Touchscreen |
| Alignment Accuracy | 0.1 μm |
| Splicing Time | 5 s |
| Heating Time | 15 s |
| Fiber Holder | 3-in-1 Fiber Holder |
| X/Y Individual Display | 320x |
| X/Y Simultaneous Display | 200x |
| OPM/VFL Function | Yes, Supported |
| App Bluetooth Connectivity | Yes, Supported |
| Language Options | 12 Languages |
| Battery Capacity | 7800 mAh |
| Net Weight | 15.5 lbs / 7.05 kg |
| Product Dimensions | 5.1 x 7.5 x 5.1" / 130 x 190 x 130 mm |
|---|

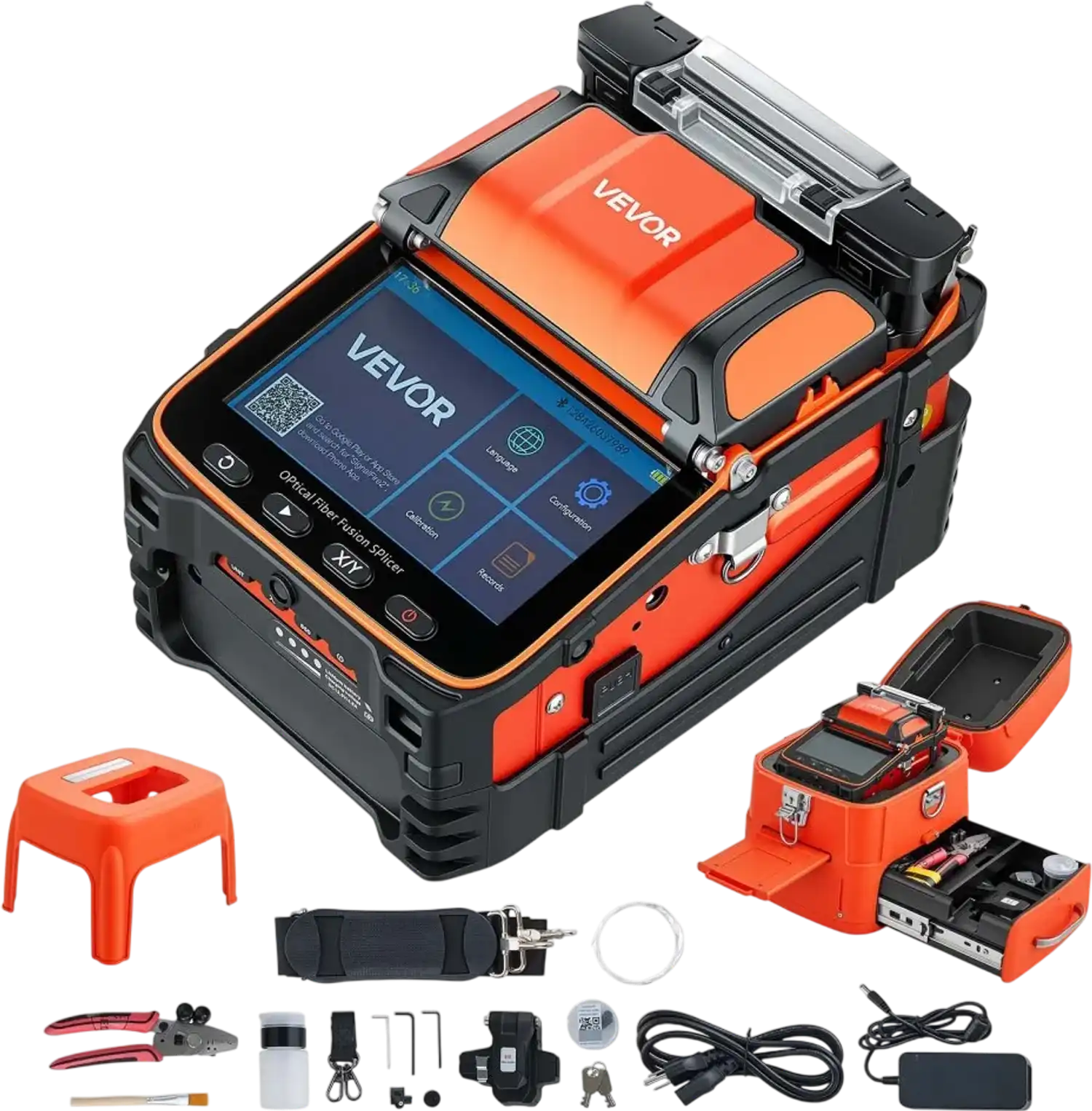

Package Contents
Fiber fusion splicer
Stool
Fiber cleaver
Fiber stripper
Bare fiber for arc calibration
Alcohol bottle
Straps
Wrenches
Brush
Portable carrying case
Warranty
This item comes with a 1 year factory warranty.
