Vevor Electric Trailer Brake Kit 12.25 x 3.4 in Self-Adjusting for 10,000 lb. Trailer Axle New
Manufacturer: Vevor
SKU: TCDZCC122533Y9XHQ001V9
Applicable Pound Rating Options
QTY
(888) 999-1522
C
$392.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Vevor Electric Trailer Brake Kit 12.25 x 3.4 in Self-Adjusting for 10,000 lb. Trailer Axle New
Product Overview

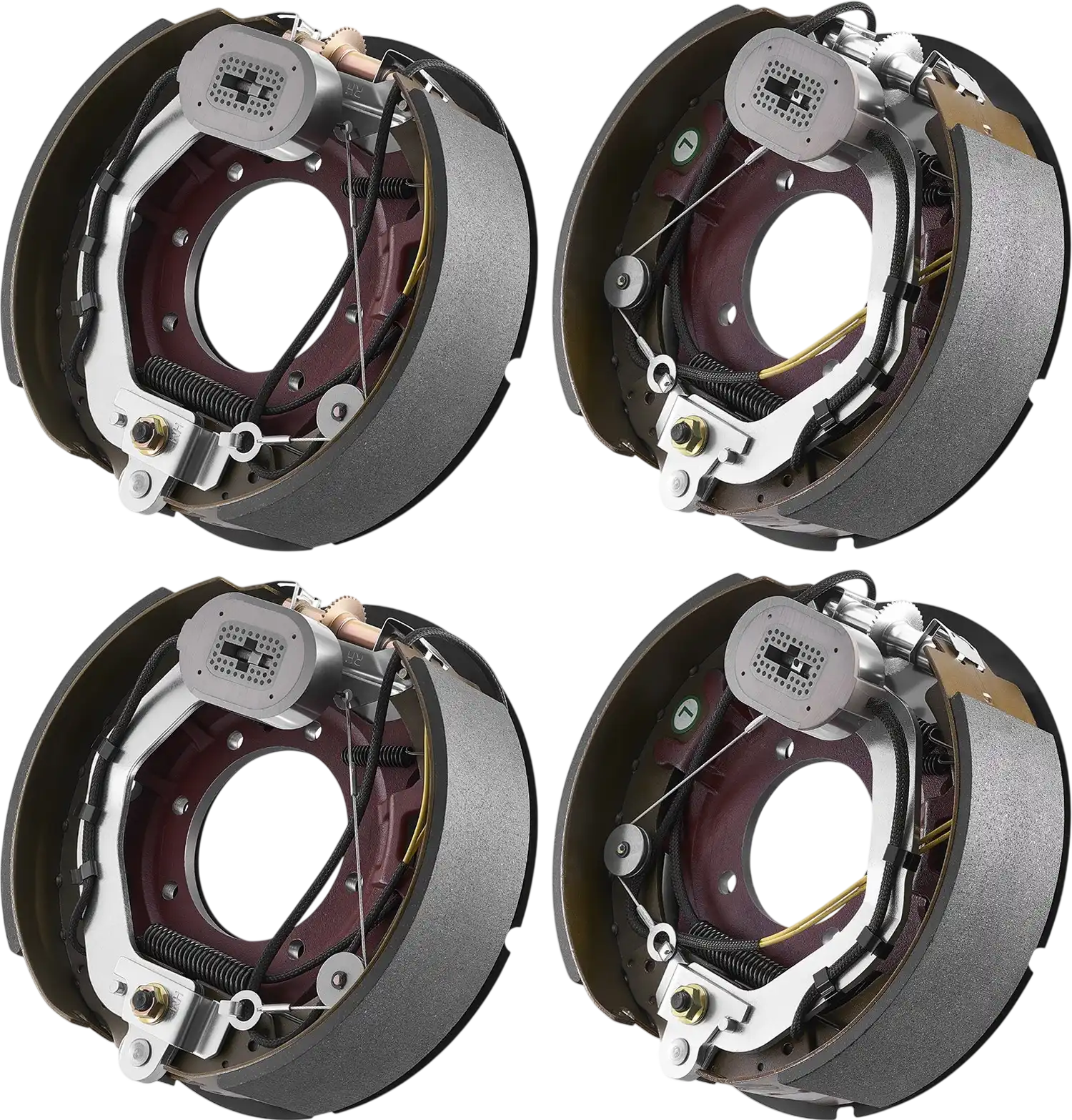

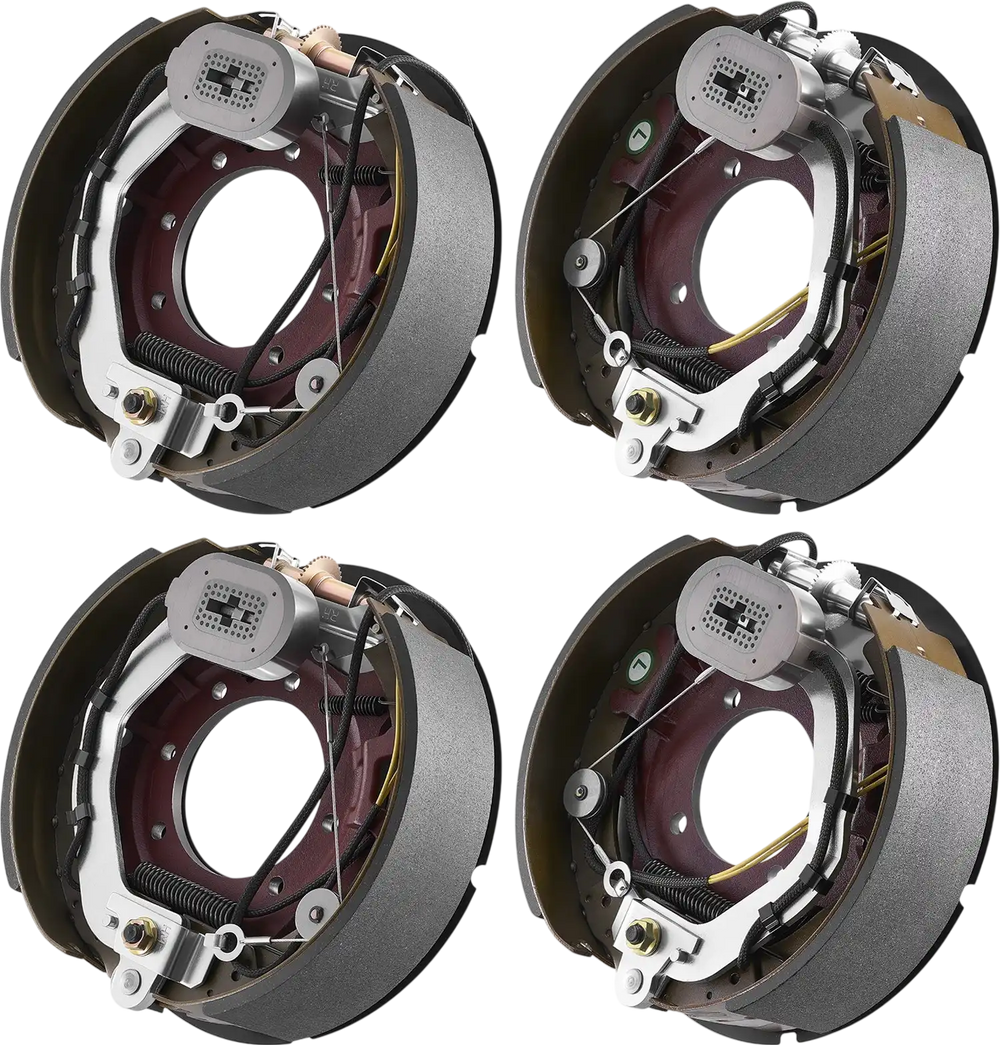

This electric trailer brake kit includes four brake assemblies designed for trailers and RVs with tapered axles up to 10,000 lbs. The 12.25 x 3.375 in brakes automatically maintain proper adjustment to reduce wear and help keep braking consistent. It comes pre-assembled for easier installation and uses semi-metallic brake pads engineered for stable braking under heavy loads. Built with durable steel components and a protective shield, it’s intended for long service life and dependable stopping power.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

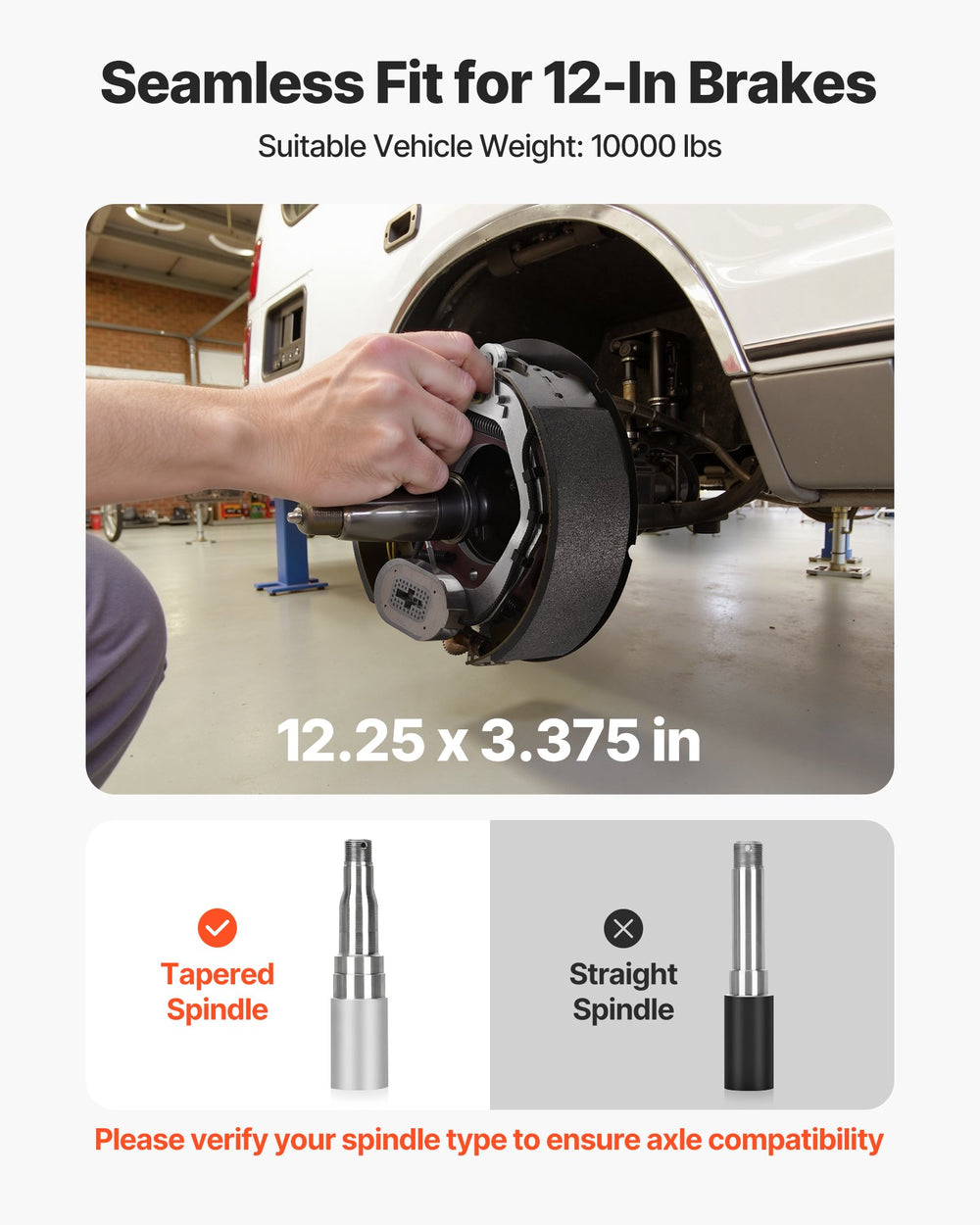

- Upgrade Your Brake System: Our electric trailer brake kit includes 4 brake assemblies, designed for trailers and RVs with tapered axles up to 10000 lbs. 12.25 x 3.375 inch brakes, with 7 holes on a 5.5 inch bolt circle, fit most vehicle installations

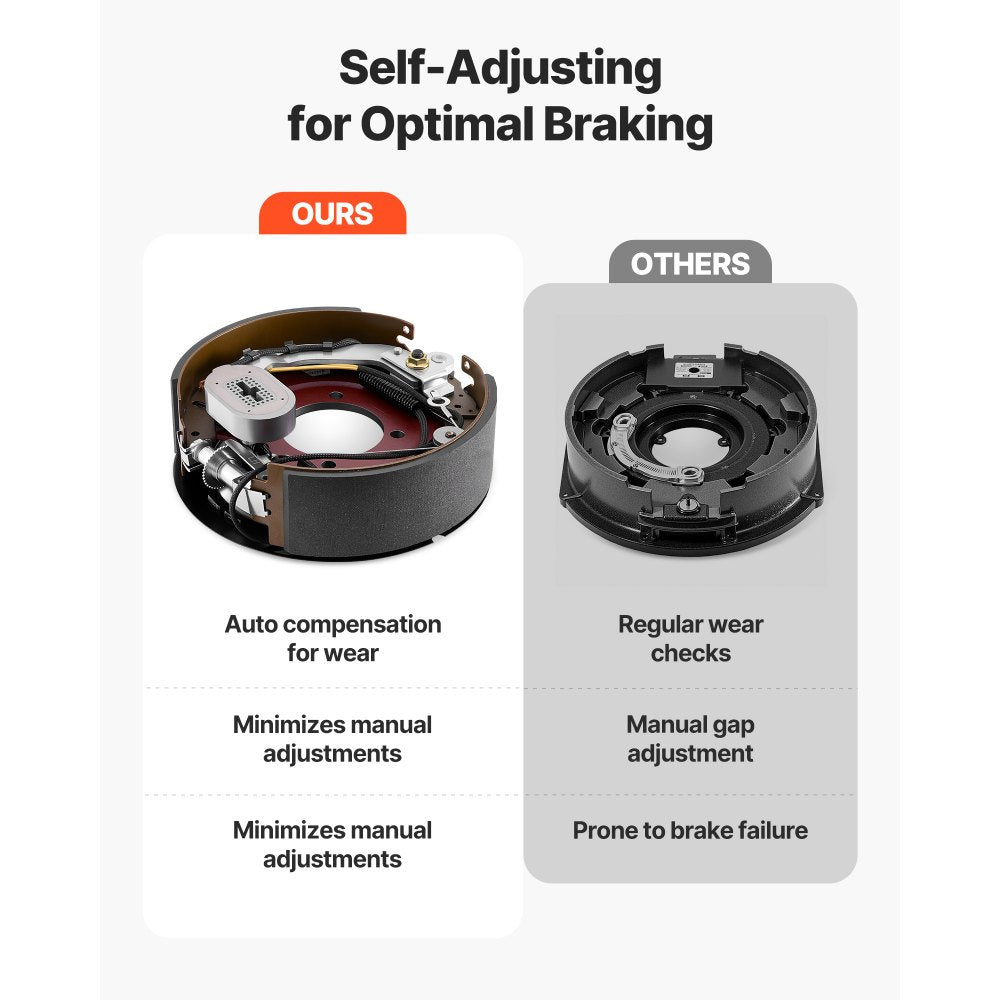

- Automatic Brake Adjustment: Forget constant brake checks! The trailer brake kit adjusts automatically to maintain the perfect brake gap, avoiding wear and keeping your system responsive for long-term use. Ideal for frequent braking and long trips

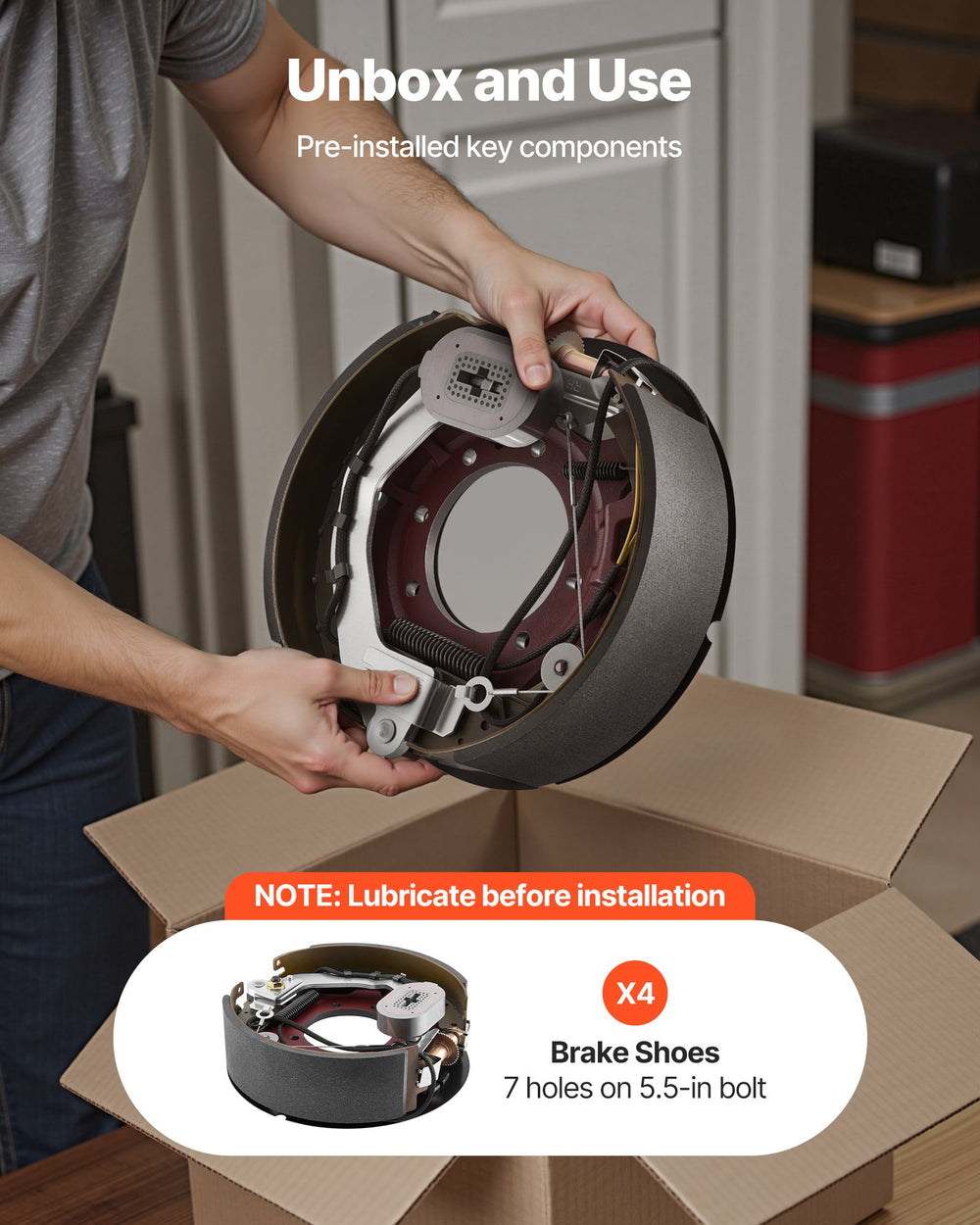

- Easy Installation: Installing your new brakes is a breeze! Our self-adjusting electric brakes it comes pre-assembled with core parts installed. Just add oil, follow the easy steps in the manual, and you're good to go
- Stable Braking Under Heavy Load: Upgrade to semi-metallic brake pads with a 0.48 friction coefficient (GG level). Our trailer brake are heat-resistant, durable, and reduce noise—fit for heavy-load, downhill, and frequent braking
- ≥30000km Lifespan: These steel brake assemblies of the self-adjusting electric brakes kit are shock-resistant and built to last. The protective shield keeps debris out, securing your system and ensuring it lasts longer, even on bumpy roads

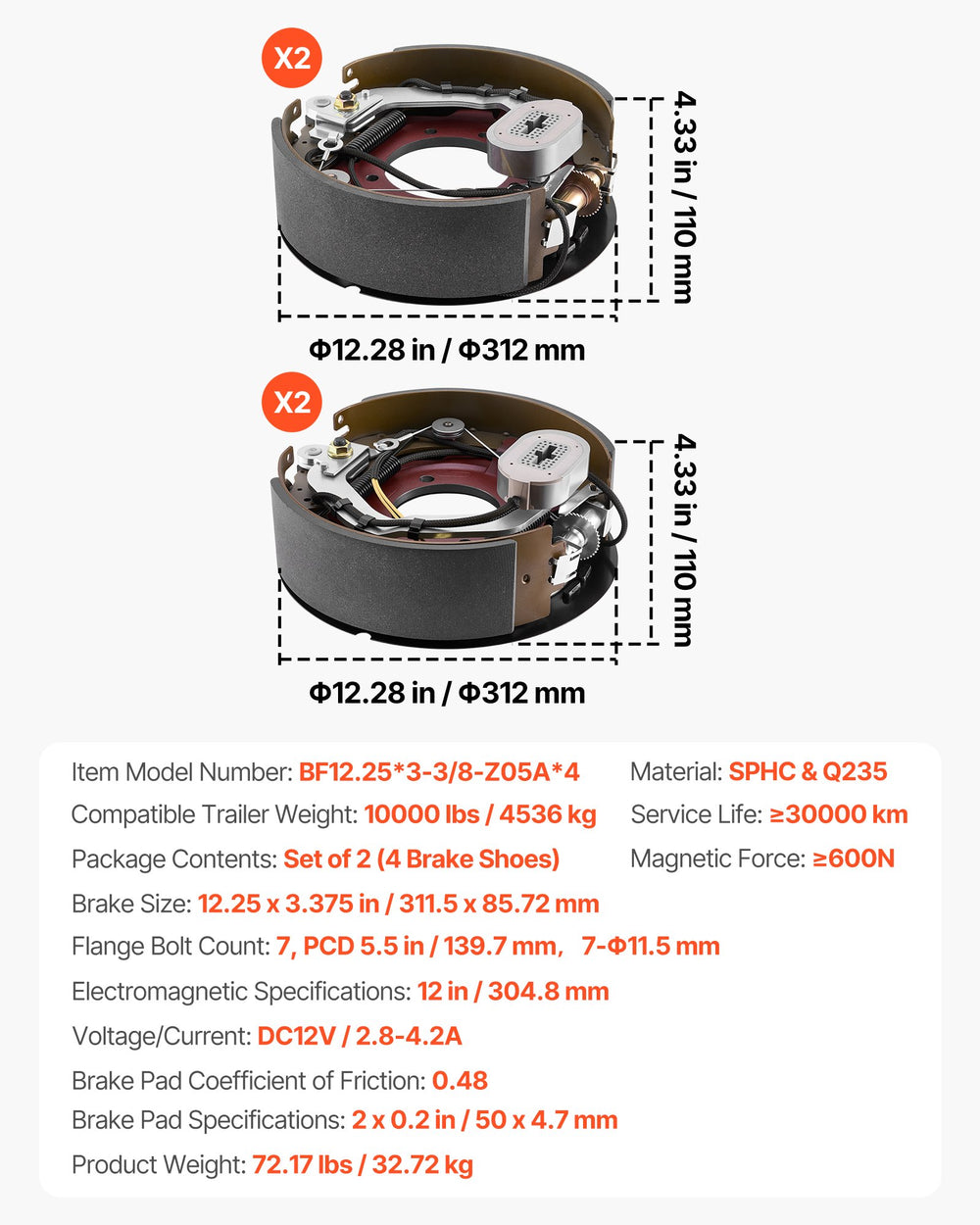

Specifications
| Item Model Number | BF12.25*3-3/8-Z05A*4 |
| Compatible Trailer Weight | 10,000 lbs |
| Brake Size | 12.25 x 3.375 in |
| Flange Bolt Count | 7, PCD 5.5 in |
| Electromagnetic Specifications | 12 in |
| Voltage/Current | DC12V / 2.8-4.2A |
| Magnetic Force | ≥600 N |
| Material | SPHC & Q235 |
| Brake Pad Coefficient of Friction | 0.48 |
| Brake Pad Specifications | 2 x 0.2 in |
| Service Life | ≥30000 km |
| Product Weight | 72.17 lbs |
Package Contents
Vevor Electric Trailer Brake Kit (4 Brakes)
User Manual
Warranty
This item comes with a 1 year factory warranty.
