Vevor Electric Trailer Brake Assembly 10" x 2.25" Self-Adjusting Kit 3500 Lbs. Set of 4 New

Manufacturer: Vevor

SKU: TCDZCC10225YF83OC001V9

Featured image for product 8198297944253
Vevor Electric Trailer Brake Assembly 10" x 2.25" Self-Adjusting Kit 3500 Lbs. Set of 4 New
Vevor Electric Trailer Brake Assembly 10" x 2.25" Self-Adjusting Kit 3500 Lbs. Set of 4 New
Vevor Electric Trailer Brake Assembly 10" x 2.25" Self-Adjusting Kit 3500 Lbs. Set of 4 New
Vevor Electric Trailer Brake Assembly 10" x 2.25" Self-Adjusting Kit 3500 Lbs. Set of 4 New
Vevor Electric Trailer Brake Assembly 10" x 2.25" Self-Adjusting Kit 3500 Lbs. Set of 4 New
Vevor Electric Trailer Brake Assembly 10" x 2.25" Self-Adjusting Kit 3500 Lbs. Set of 4 New
Featured image for product 8198297944253
Vevor Electric Trailer Brake Assembly 10" x 2.25" Self-Adjusting Kit 3500 Lbs. Set of 4 New
Vevor Electric Trailer Brake Assembly 10" x 2.25" Self-Adjusting Kit 3500 Lbs. Set of 4 New
Vevor Electric Trailer Brake Assembly 10" x 2.25" Self-Adjusting Kit 3500 Lbs. Set of 4 New
Vevor Electric Trailer Brake Assembly 10" x 2.25" Self-Adjusting Kit 3500 Lbs. Set of 4 New
Vevor Electric Trailer Brake Assembly 10" x 2.25" Self-Adjusting Kit 3500 Lbs. Set of 4 New
Vevor Electric Trailer Brake Assembly 10" x 2.25" Self-Adjusting Kit 3500 Lbs. Set of 4 New

Applicable Pound Rating Options





QTY

or

(888) 999-1522

Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions will be validated and approved before shipping.

C

$585.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+
Vevor Electric Trailer Brake Assembly 10

Vevor Electric Trailer Brake Assembly 10" x 2.25" Self-Adjusting Kit 3500 Lbs. Set of 4 New

Product Overview

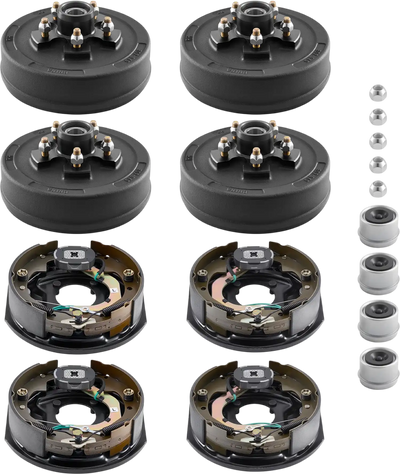

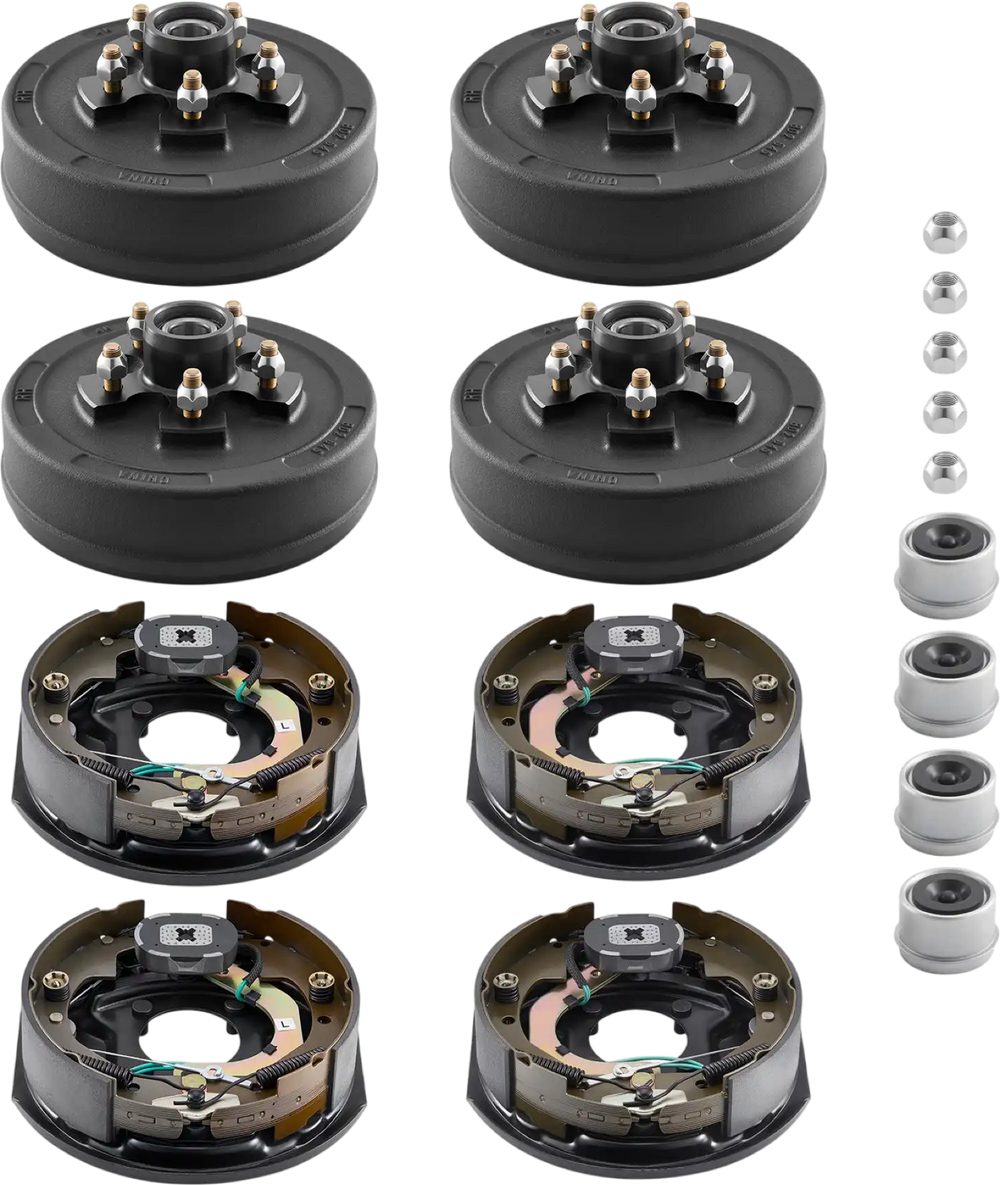

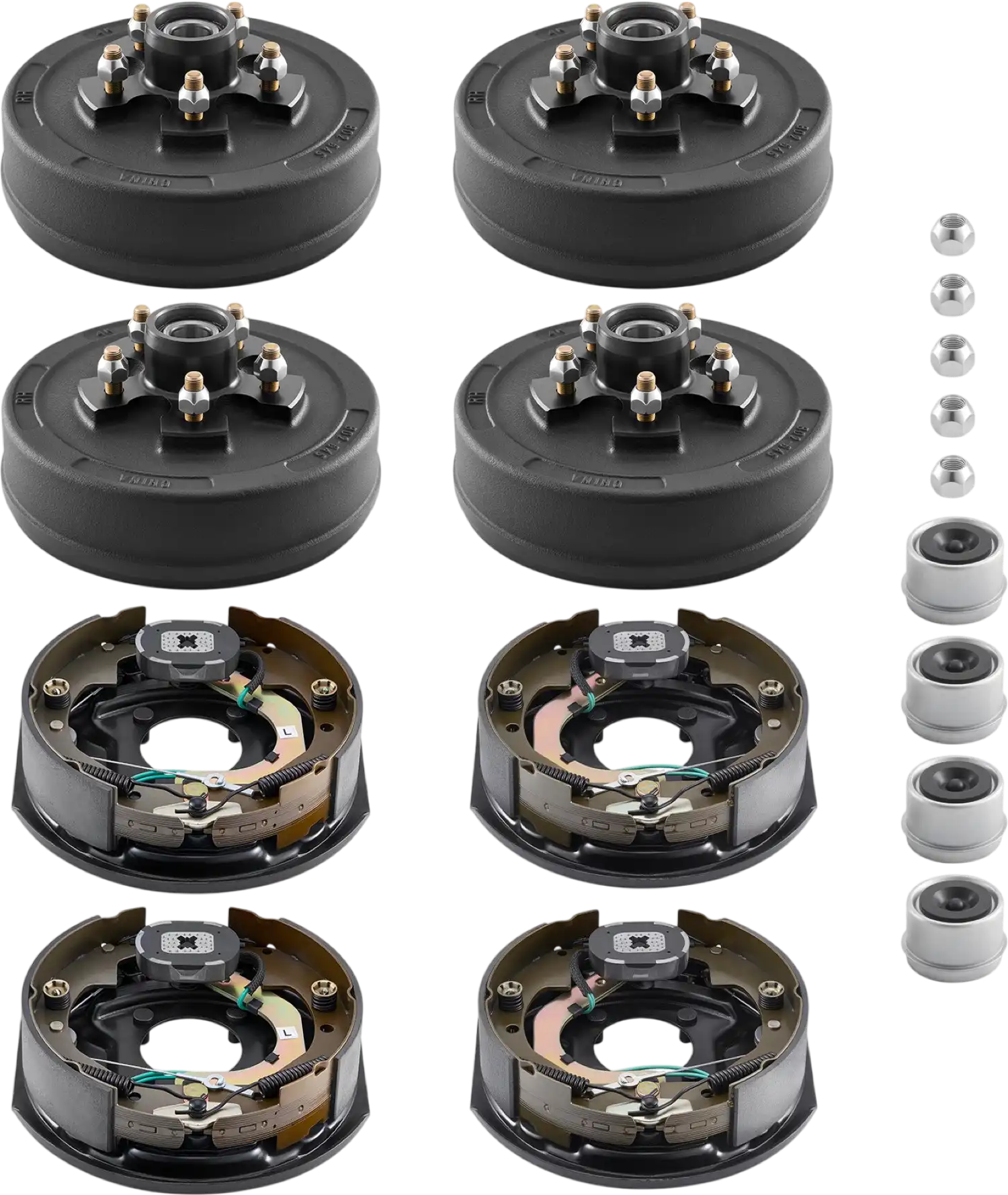

This trailer brake kit includes 4 brake assemblies and 4 brake drums, fit for 3,500 lb. trailers. The auto-adjust feature compensates for wear, making it an ideal upgrade for enhanced braking performance. These brake assemblies are compatible with top brands like Al-Ko, Dexter, and Lippert; pre-assembled core components make installation easy. Crafted with GG-rated brake pads, steel assemblies, and cast iron drums, they resist wear, heat, and impact, ideal for long road trips.

vendor logo
divider
authorized dealer
checkmark

Brand new

checkmark

1 year factory warranty

checkmark

Manufacturer direct shipping from CA, NJ, & TX

checkmark

Authorized Vevor Dealer

Features

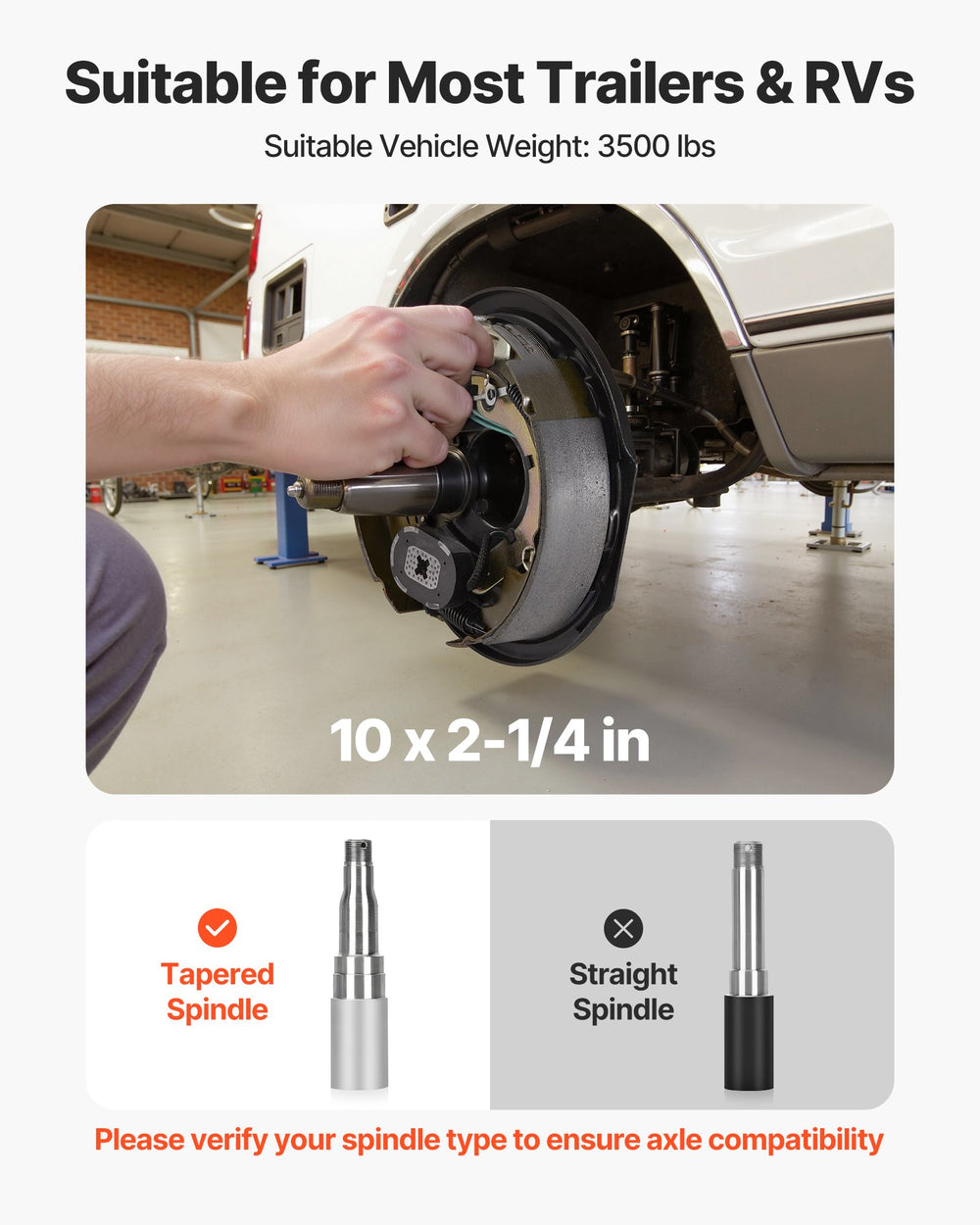

  • Upgrade Your Brake System: Our electric trailer brake kit includes 4 brake assemblies and 4 brake drums, designed for trailers and RVs with tapered axles up to 3500 lbs. With a 10 x 2-1/4 inch brake and a 10 inch drum, it's the ultimate upgrade

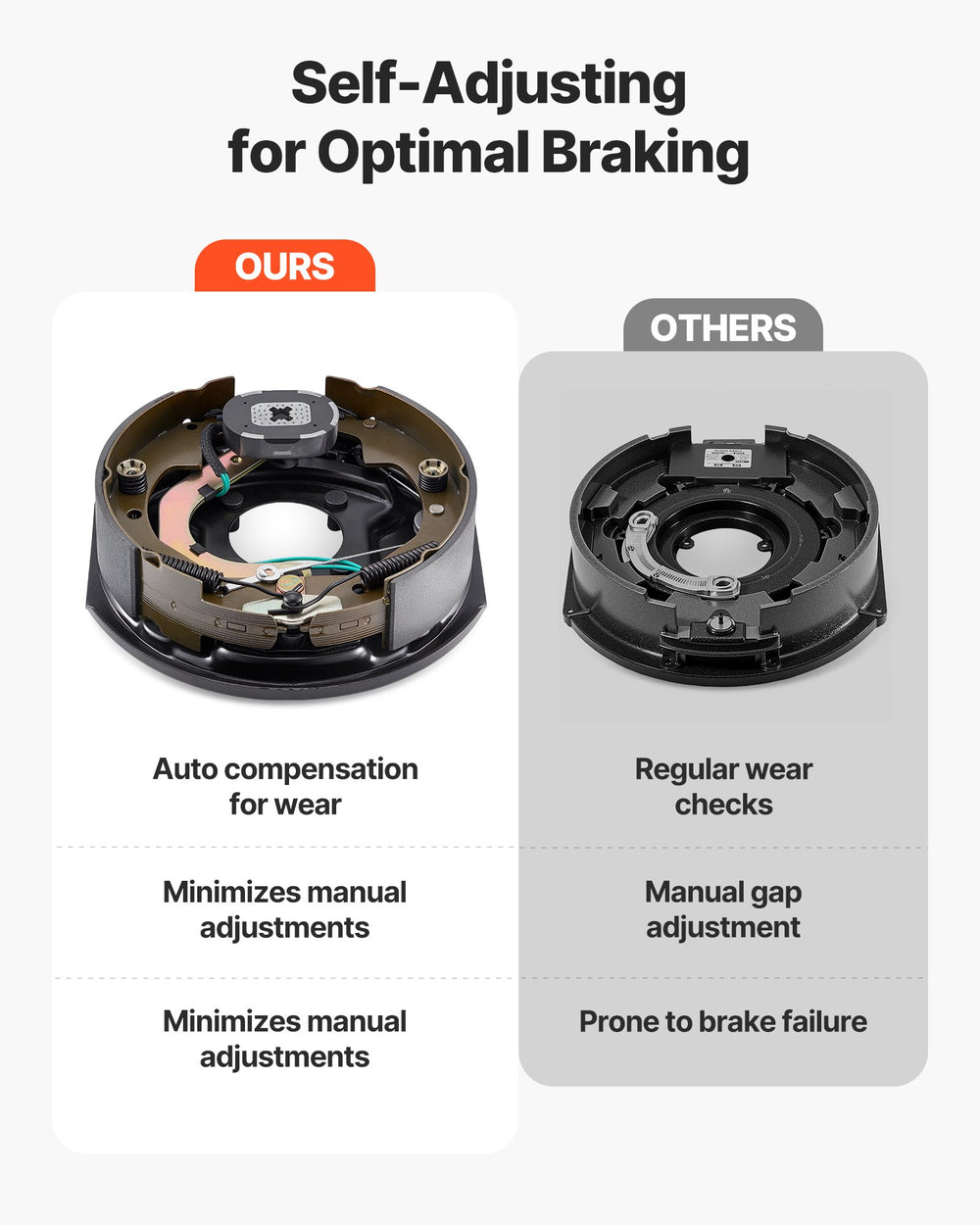

  • Automatic Brake Adjustment: Forget constant brake checks! The trailer brake kit adjusts automatically to maintain the perfect brake gap, avoiding wear and keeping your system responsive for long-term use. Ideal for frequent braking and long trips

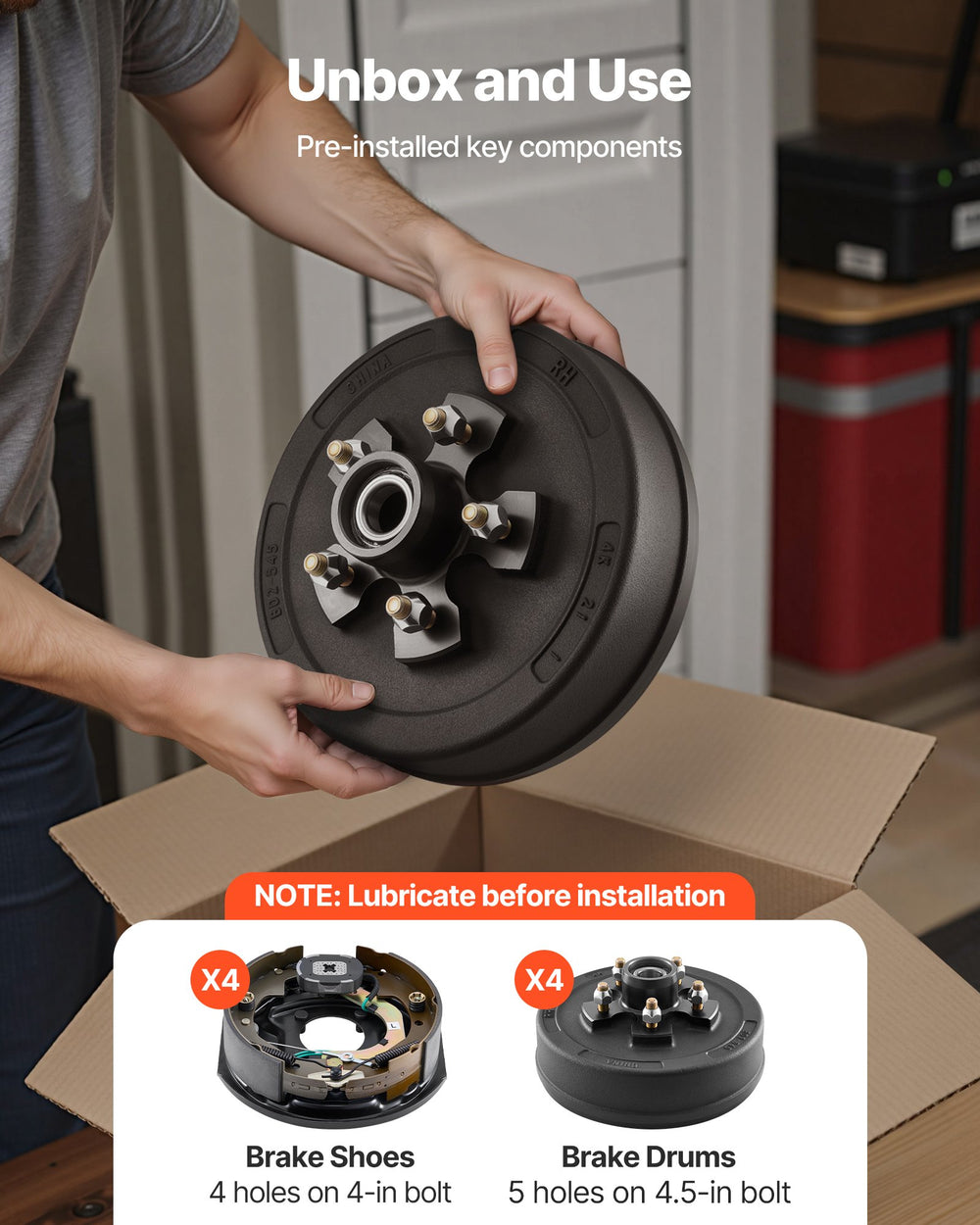

  • Easy Installation: Installing your new brakes is a breeze! Our electric trailer brake assembly comes pre-assembled with core parts installed. Just add oil, follow the easy steps in the manual, and you're good to go
  • Stable Braking Under Heavy Load: Upgrade to semi-metallic brake pads with a 0.48 friction coefficient (GG level). Our trailer brake are heat-resistant, durable, and reduce noise—fit for heavy-load, downhill, and frequent braking
  • ≥30000km Lifespan: These steel brake assemblies and cast iron drums of the self-adjusting electric brakes kit are shock-resistant and built to last. The dust shield keeps debris out, securing your system and ensuring it lasts longer, even on bumpy roads

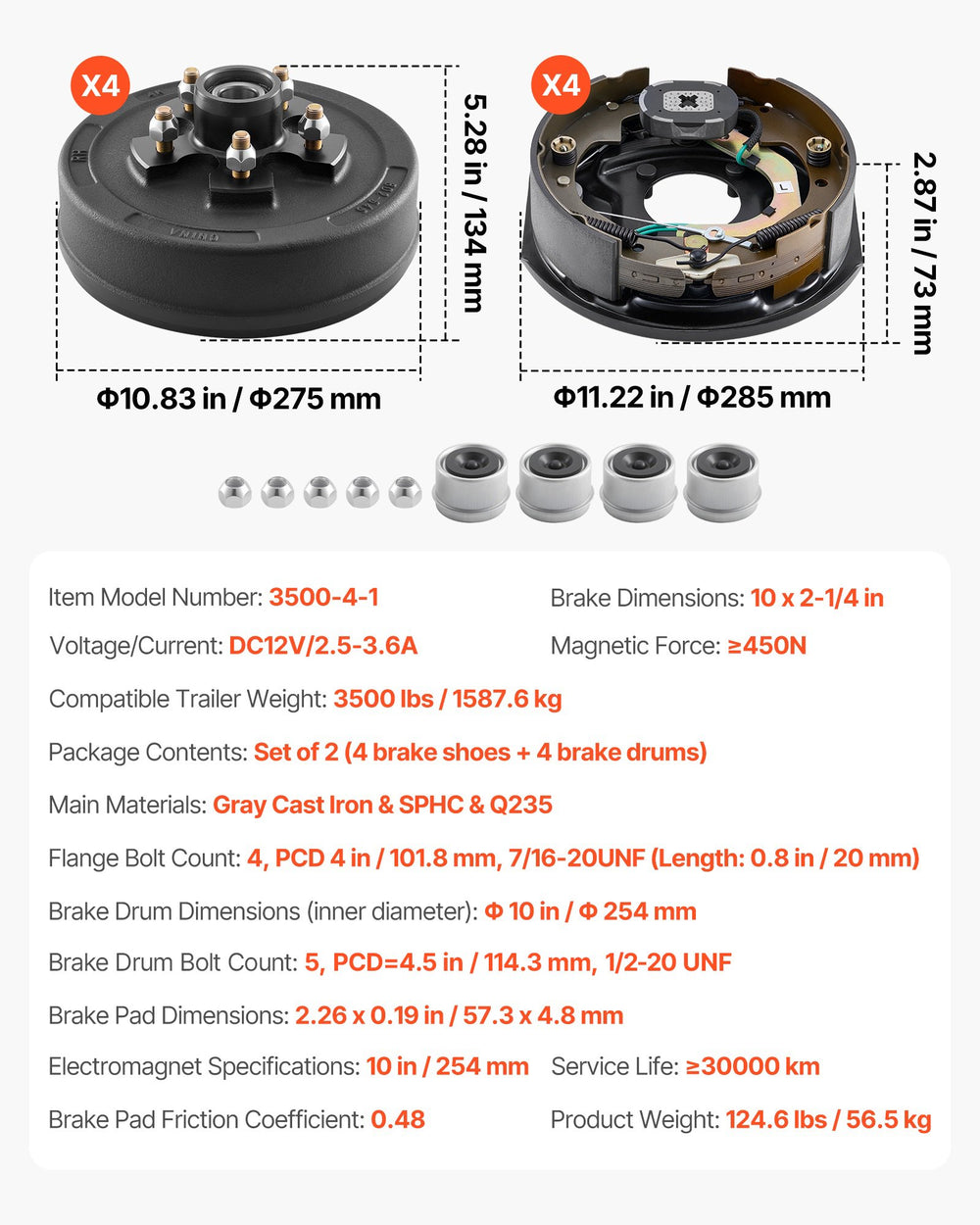

Specifications

Item Model Number 3500-4-1
Compatible Trailer Weight 3500 lbs
Package Contents Set of 2 (4 brake shoes + 4 brake drums)
Main Materials Gray Cast Iron & SPHC & Q235
Brake Dimensions 10 x 2-1/4 inch
Flange Bolt Count 4, PCD 4 in / 101.8 mm, 7/16-20UNF (Length
Brake Drum Dimensions (inner diameter) Φ 10 in
Brake Shoe Φ11.22 x 2.87 in
Brake Drum Φ10.83 x 5.28 in
Voltage/Current DC12V/2.5-3.6A
Magnetic Force ≥450N
Service Life ≥30000 km
Brake Pad Friction Coefficient 0.48
Brake Pad Dimensions 2.26 x 0.19 in
Product Weight 124.6 lbs

Package Contents

Vevor Electric Trailer Brake Assembly 10" x 2.25" (Set of 4)

User Manual

Warranty

vendor logo
divider
authorized dealer

This item comes with a 1 year factory warranty.
