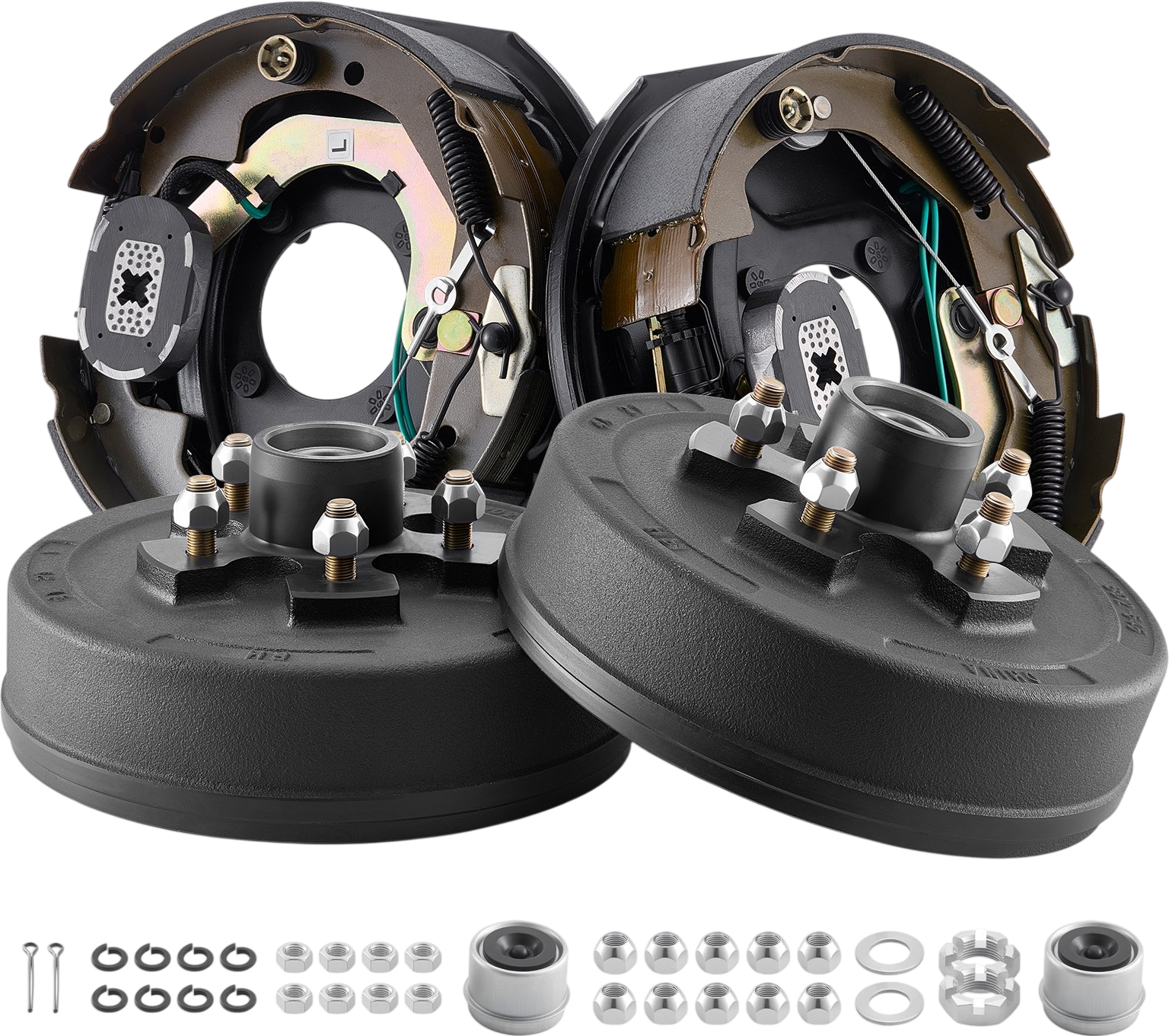

Vevor Electric Trailer Brake Assembly 10 x 2.25 in. Self-Adjusting for 3500 lb. Axle New

Manufacturer: Vevor

SKU: TCDZCC10225YA7XPV001V9

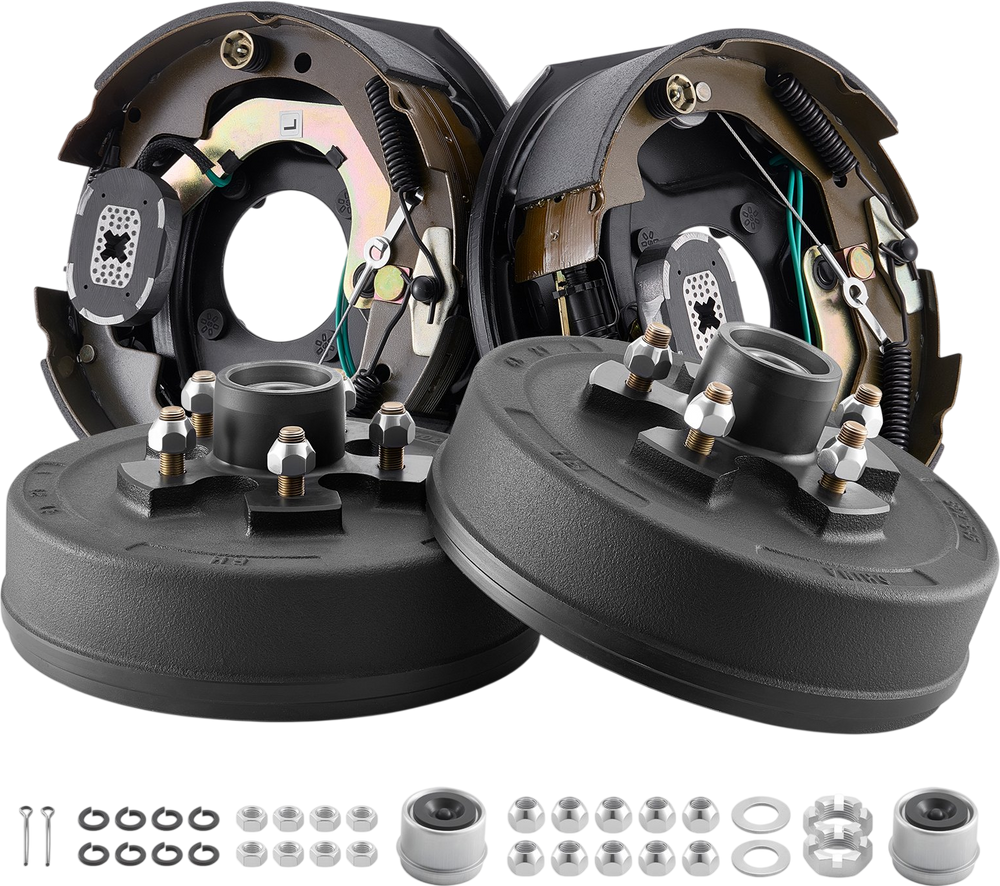

VEVOR Electric Trailer Brake Assembly, 10 x 2-1/4 Inch, 1 Pair Self-Adjusting Electric Brakes Kit for 3500 lbs Trailer Axle, Backing Plates for Braking System Part Replacement, Fit for Trailers, RVs
VEVOR Electric Trailer Brake Assembly, 10 x 2-1/4 Inch, 1 Pair Self-Adjusting Electric Brakes Kit for 3500 lbs Trailer Axle, Backing Plates for Braking System Part Replacement, Fit for Trailers, RVs
VEVOR Electric Trailer Brake Assembly, 10 x 2-1/4 Inch, 1 Pair Self-Adjusting Electric Brakes Kit for 3500 lbs Trailer Axle, Backing Plates for Braking System Part Replacement, Fit for Trailers, RVs
VEVOR Electric Trailer Brake Assembly, 10 x 2-1/4 Inch, 1 Pair Self-Adjusting Electric Brakes Kit for 3500 lbs Trailer Axle, Backing Plates for Braking System Part Replacement, Fit for Trailers, RVs
VEVOR Electric Trailer Brake Assembly, 10 x 2-1/4 Inch, 1 Pair Self-Adjusting Electric Brakes Kit for 3500 lbs Trailer Axle, Backing Plates for Braking System Part Replacement, Fit for Trailers, RVs
VEVOR Electric Trailer Brake Assembly, 10 x 2-1/4 Inch, 1 Pair Self-Adjusting Electric Brakes Kit for 3500 lbs Trailer Axle, Backing Plates for Braking System Part Replacement, Fit for Trailers, RVs
VEVOR Electric Trailer Brake Assembly, 10 x 2-1/4 Inch, 1 Pair Self-Adjusting Electric Brakes Kit for 3500 lbs Trailer Axle, Backing Plates for Braking System Part Replacement, Fit for Trailers, RVs
VEVOR Electric Trailer Brake Assembly, 10 x 2-1/4 Inch, 1 Pair Self-Adjusting Electric Brakes Kit for 3500 lbs Trailer Axle, Backing Plates for Braking System Part Replacement, Fit for Trailers, RVs
VEVOR Electric Trailer Brake Assembly, 10 x 2-1/4 Inch, 1 Pair Self-Adjusting Electric Brakes Kit for 3500 lbs Trailer Axle, Backing Plates for Braking System Part Replacement, Fit for Trailers, RVs
VEVOR Electric Trailer Brake Assembly, 10 x 2-1/4 Inch, 1 Pair Self-Adjusting Electric Brakes Kit for 3500 lbs Trailer Axle, Backing Plates for Braking System Part Replacement, Fit for Trailers, RVs
VEVOR Electric Trailer Brake Assembly, 10 x 2-1/4 Inch, 1 Pair Self-Adjusting Electric Brakes Kit for 3500 lbs Trailer Axle, Backing Plates for Braking System Part Replacement, Fit for Trailers, RVs
VEVOR Electric Trailer Brake Assembly, 10 x 2-1/4 Inch, 1 Pair Self-Adjusting Electric Brakes Kit for 3500 lbs Trailer Axle, Backing Plates for Braking System Part Replacement, Fit for Trailers, RVs
VEVOR Electric Trailer Brake Assembly, 10 x 2-1/4 Inch, 1 Pair Self-Adjusting Electric Brakes Kit for 3500 lbs Trailer Axle, Backing Plates for Braking System Part Replacement, Fit for Trailers, RVs
VEVOR Electric Trailer Brake Assembly, 10 x 2-1/4 Inch, 1 Pair Self-Adjusting Electric Brakes Kit for 3500 lbs Trailer Axle, Backing Plates for Braking System Part Replacement, Fit for Trailers, RVs

Applicable Pound Rating Options





QTY

(888) 999-1522

Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions will be validated and approved before shipping.

C

$273.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+
Vevor Electric Trailer Brake Assembly 10 x 2.25 in. Self-Adjusting for 3500 lb. Axle New

Vevor Electric Trailer Brake Assembly 10 x 2.25 in. Self-Adjusting for 3500 lb. Axle New

Product Overview

This electric trailer brake kit is designed for 3500 lb trailer axles and includes 2 brake assemblies with 2 brake drums. It features a self-adjusting brake mechanism that helps maintain consistent braking performance with less manual adjustment. The pre-assembled design supports easier installation, while the semi-metallic brake pads and cast iron drums are built for durability under frequent use. It is suitable for trailers, caravans, and RVs needing reliable replacement braking components.

vendor logo
divider
authorized dealer
checkmark

Brand new

checkmark

1 year factory warranty

checkmark

Manufacturer direct shipping from CA, NJ, & TX

checkmark

Authorized Vevor Dealer

Features

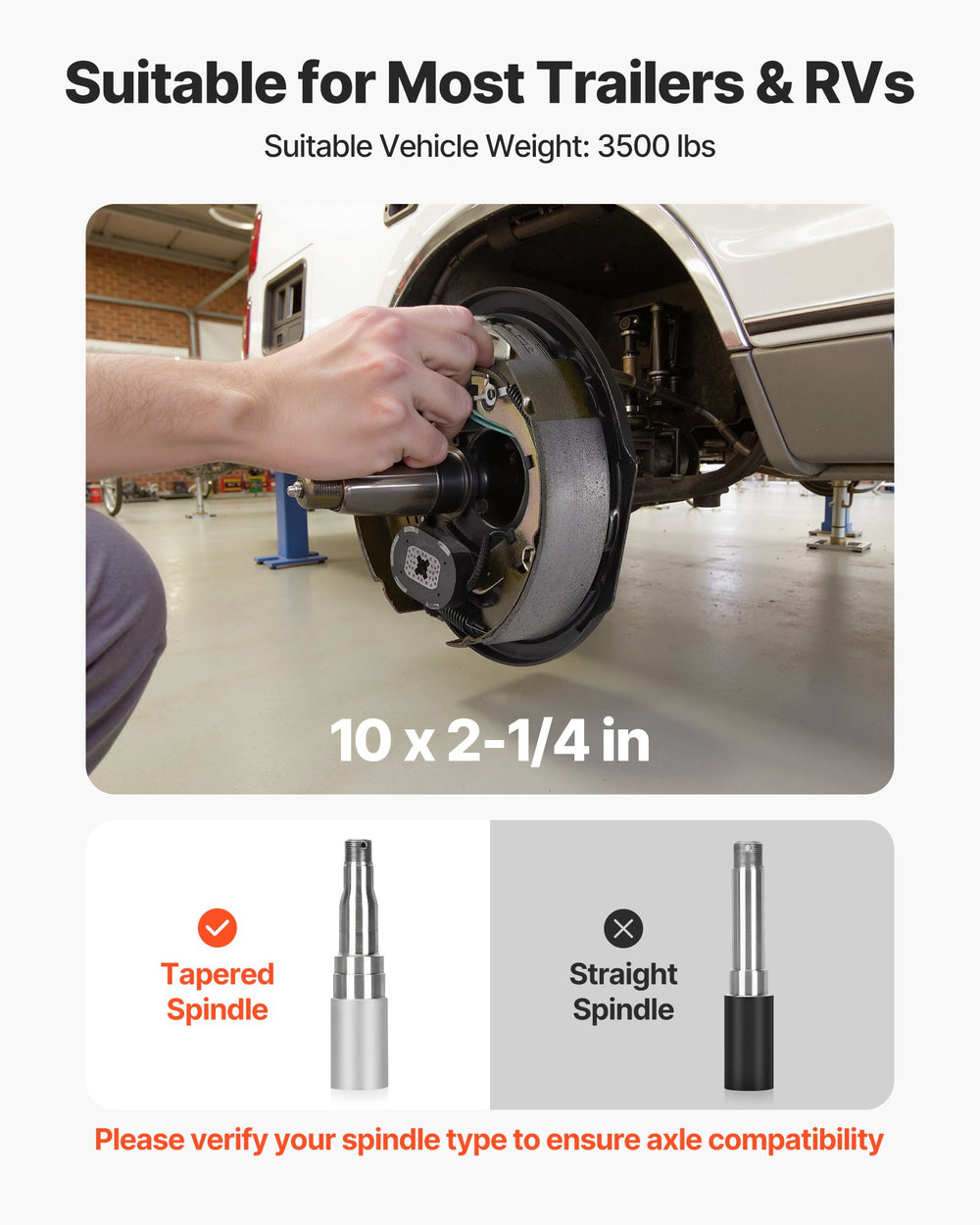

  • Upgrade Your Brake System: Our electric trailer brake kit includes 2 brake assemblies and 2 brake drums, designed for trailers and RVs with tapered axles up to 3500 lbs. With a 10 x 2-1/4 inch brake and a 10 inch drum, it's the ultimate upgrade

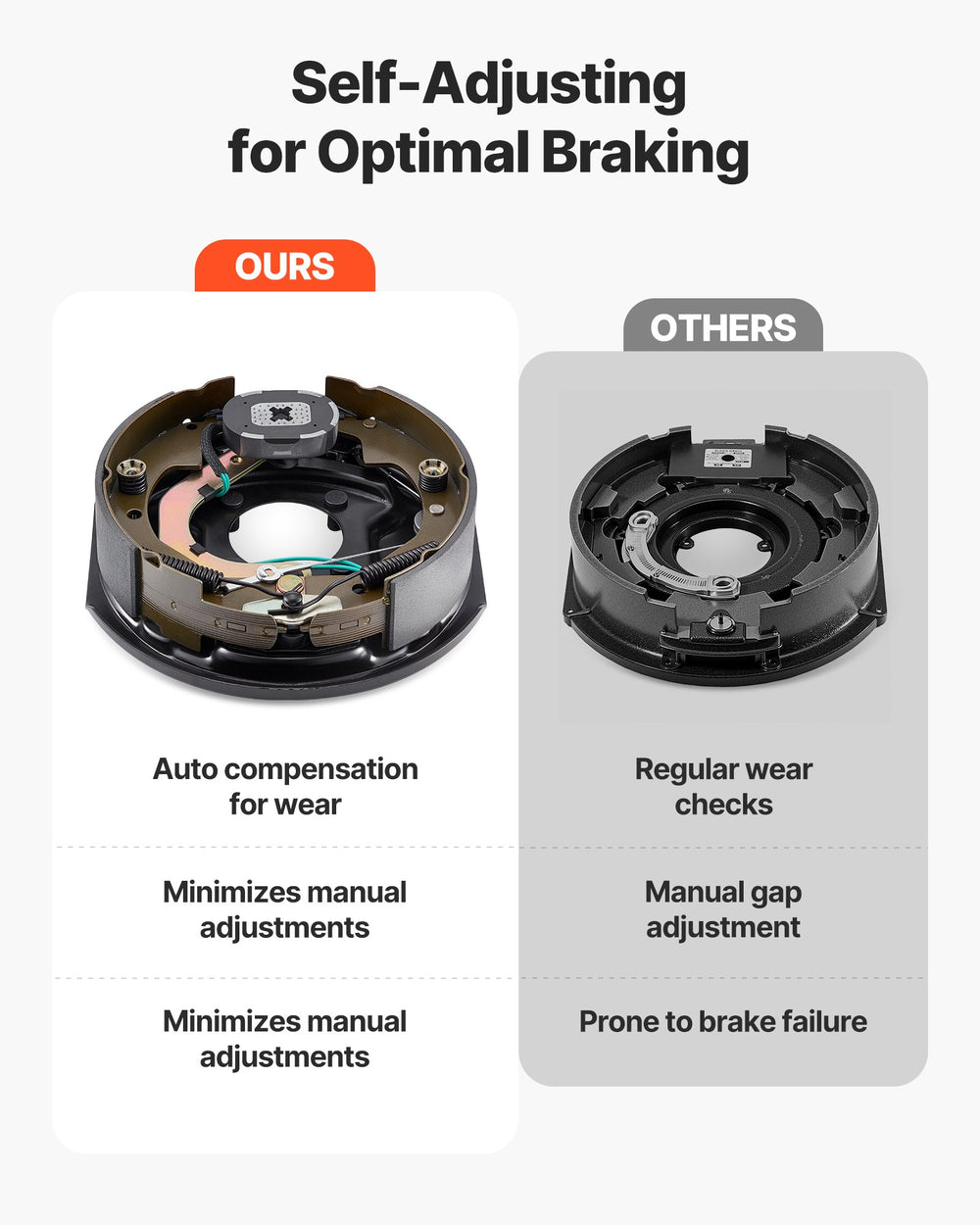

  • Automatic Brake Adjustment: Forget constant brake checks! The trailer brake kit adjusts automatically to maintain the perfect brake gap, avoiding wear and keeping your system responsive for long-term use. Ideal for frequent braking and long trips

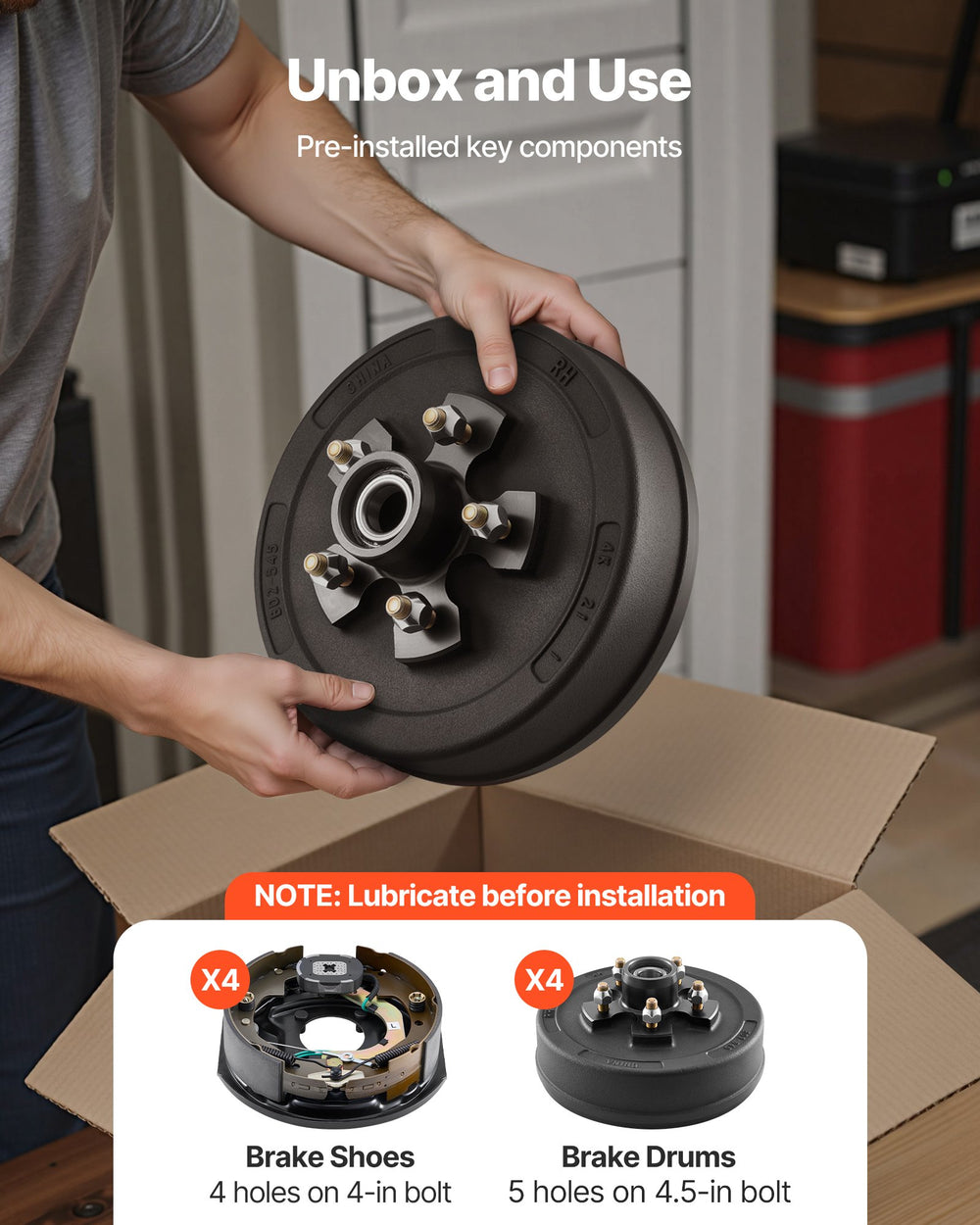

  • Easy Installation: Installing your new brakes is a breeze! Our electric trailer brake assembly comes pre-assembled with core parts installed. Just add oil, follow the easy steps in the manual, and you're good to go
  • Stable Braking Under Heavy Load: Upgrade to semi-metallic brake pads with a 0.48 friction coefficient (GG level). Our trailer brake are heat-resistant, durable, and reduce noise—fit for heavy-load, downhill, and frequent braking
  • ≥30000km Lifespan: These steel brake assemblies and cast iron drums of the self-adjusting electric brakes kit are shock-resistant and built to last. The dust shield keeps debris out, securing your system and ensuring it lasts longer, even on bumpy roads

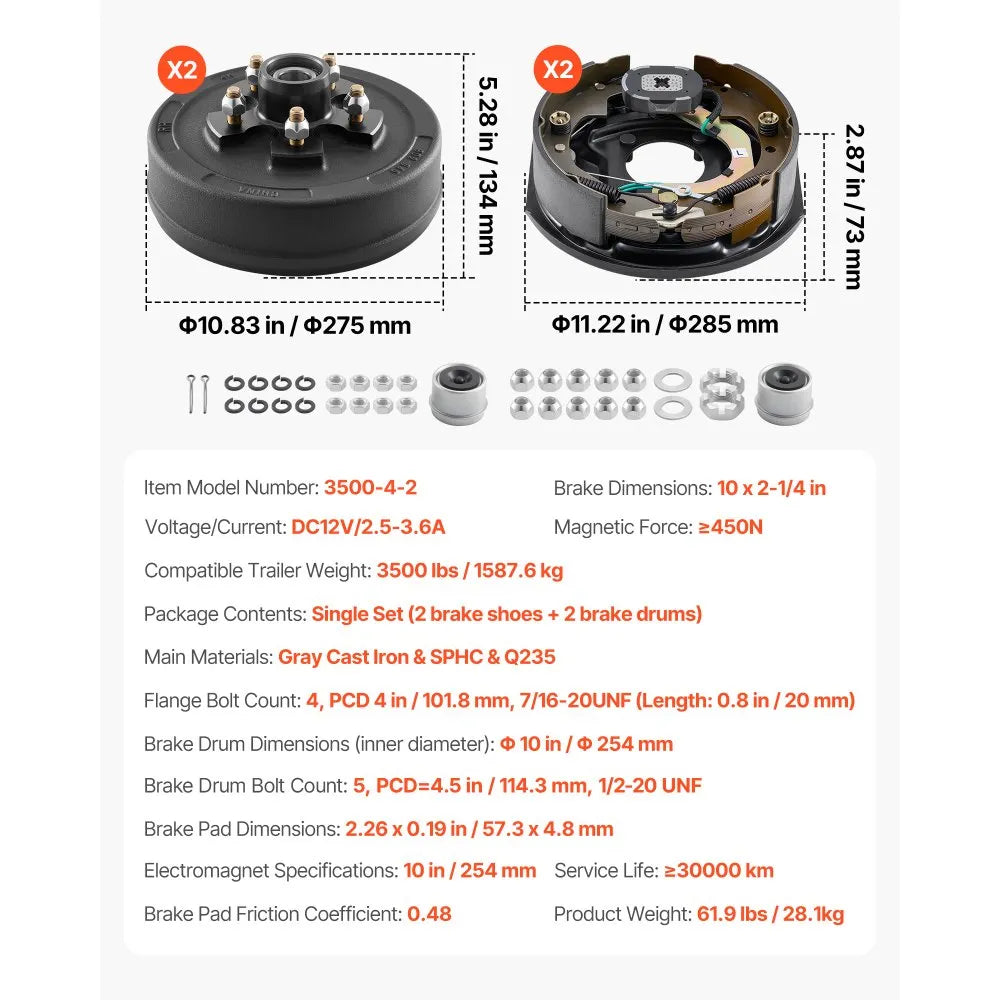

Specifications

Item Model Number 3500-4-2
Compatible Trailer Weight 3500 lbs / 1587.6 kg
Package Contents Single Set (2 brake shoes + 2 brake drums)
Main Materials Gray Cast Iron & SPHC & Q235
Brake Dimensions 10 x 2-1/4 inch
Flange Bolt Count 4, PCD 4 in / 101.8 mm, 7/16-20UNF
Brake Drum Dimensions Inner Diameter 10 in / 254 mm
Brake Drum Bolt Count 5, PCD 4.5 in / 114.3 mm, 1/2-20 UNF
Brake Shoe Dimensions 11.22 x 2.87 in / 285 x 73 mm
Brake Drum Dimensions 10.83 x 5.28 in / 275 x 134 mm
Electromagnet Specifications 10 in / 254 mm
Voltage Current DC12V / 2.5-3.6A
Magnetic Force ≥450N
Service Life ≥30000 km
Brake Pad Friction Coefficient 0.48
Brake Pad Dimensions 2.26 x 0.19 in / 57.3 x 4.8 mm
Product Weight 61.9 lbs / 28.1 kg

Package Contents

Electric Trailer Brake Assembly (1 Pair)

(2) Brake Shoes

(2) Brake Drums

Installation Hardware

User Manual
