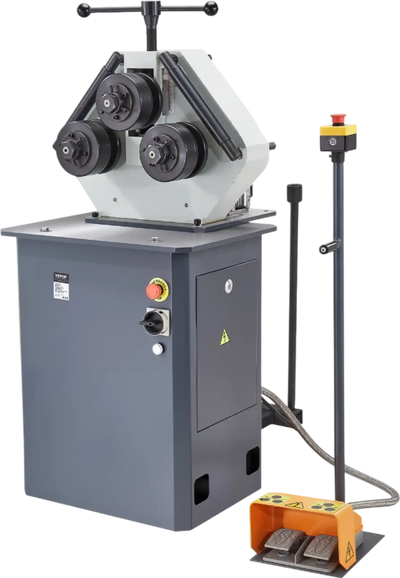

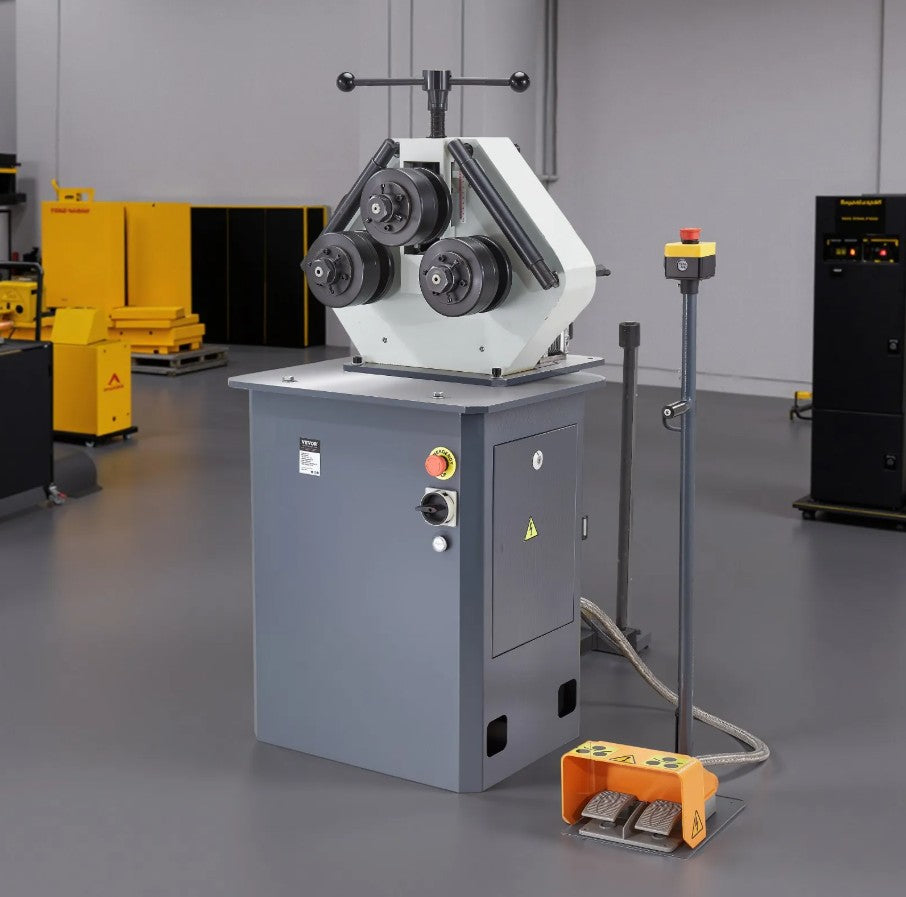

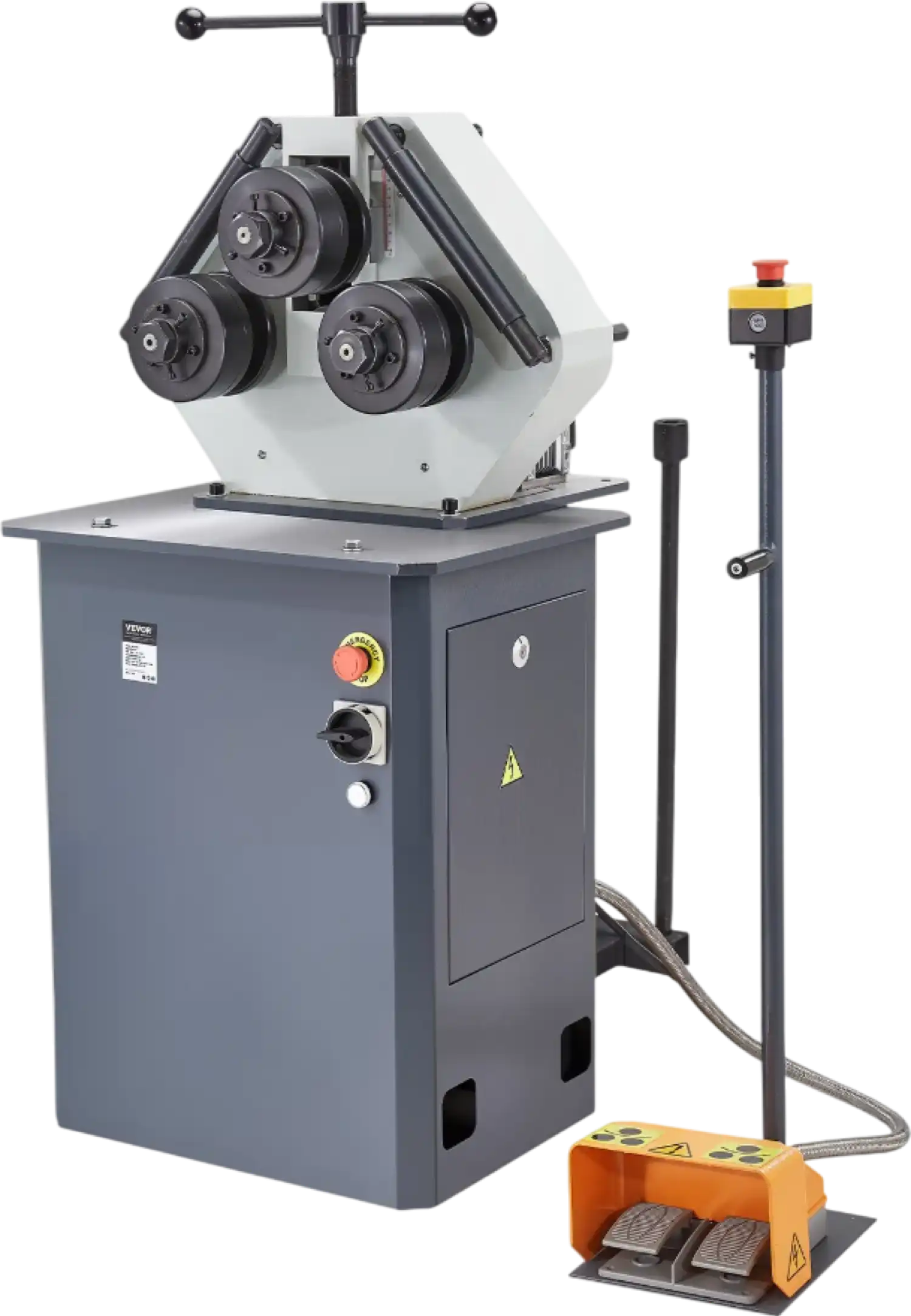

Vevor Electric Pipe and Tube Bender 3-Roller 750W 180° Max Bend 220V 3-Phase New
Product Overview
The Vevor 750W Electric Roll Bending Machine delivers efficient 180° pipe bending for square tubes, steel strips, and square steel up to 5mm thick. Its 3-roller electric drive ensures smooth, consistent bends, while dual-axis adjustment and horizontal/vertical operation provide flexibility for various tasks. Designed for 220V 3-phase wiring (plug not included), it includes a reversible foot switch for hands-free control. Ideal for metal fabrication, automotive, and construction applications.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Efficient Pipe Bending: Our electric roll bending machine is equipped with a 750W powerful motor and supports up to 5mm bending wall thickness. (NOTE: The machine does not come with a plug and needs to be wired for use.) (Compatible Voltage: 220V 60Hz 3-Phase)

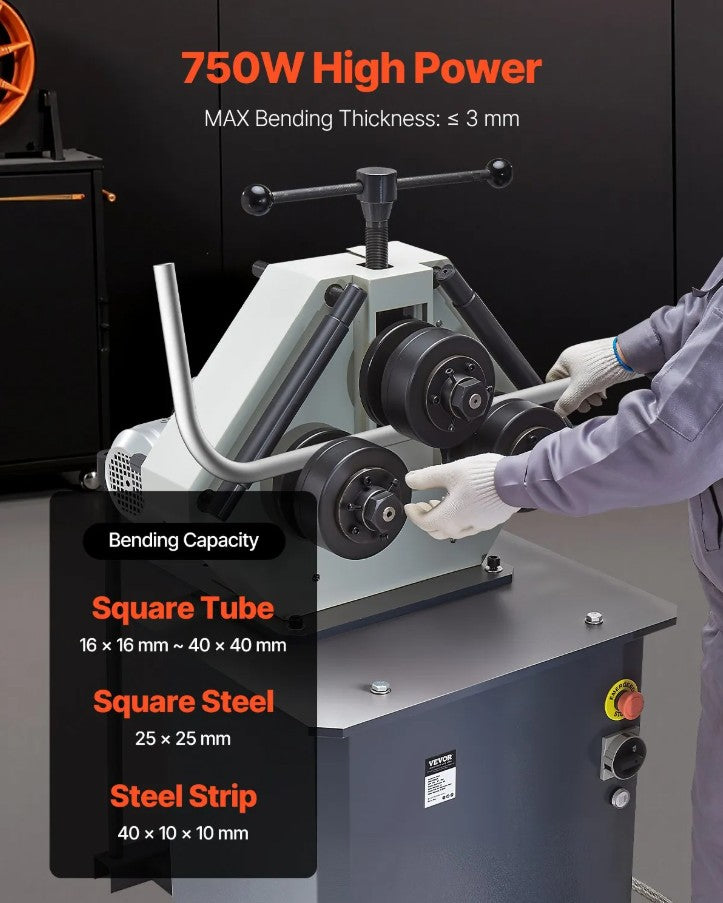

- Bending Capacity: This roll tube bending machine supports bending operations for various sizes, including square tubes ranging from 16 x 16 mm to 40 x 40 mm, square steel of 25 x 25 mm, and steel strips of 40 x 10 x 10 mm.

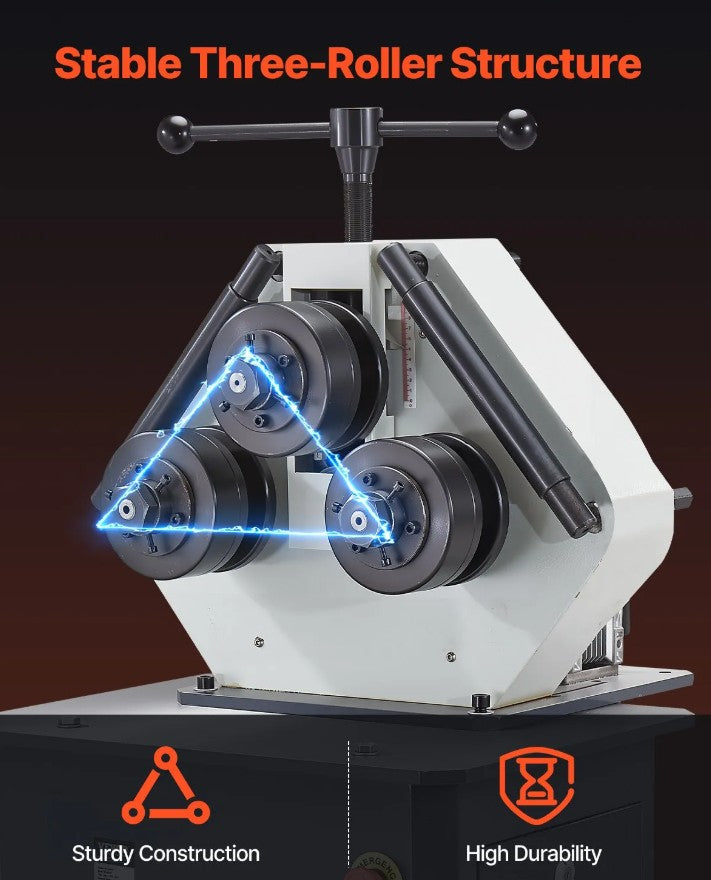

- Electric 3-Roller Structure: Featuring an electric three-roller wheel mechanism, the pipe tube roll bending machine offers robust construction and high durability. It contributes to a smooth and consistent bending action, which is crucial for maintaining the integrity of the materials being processed.

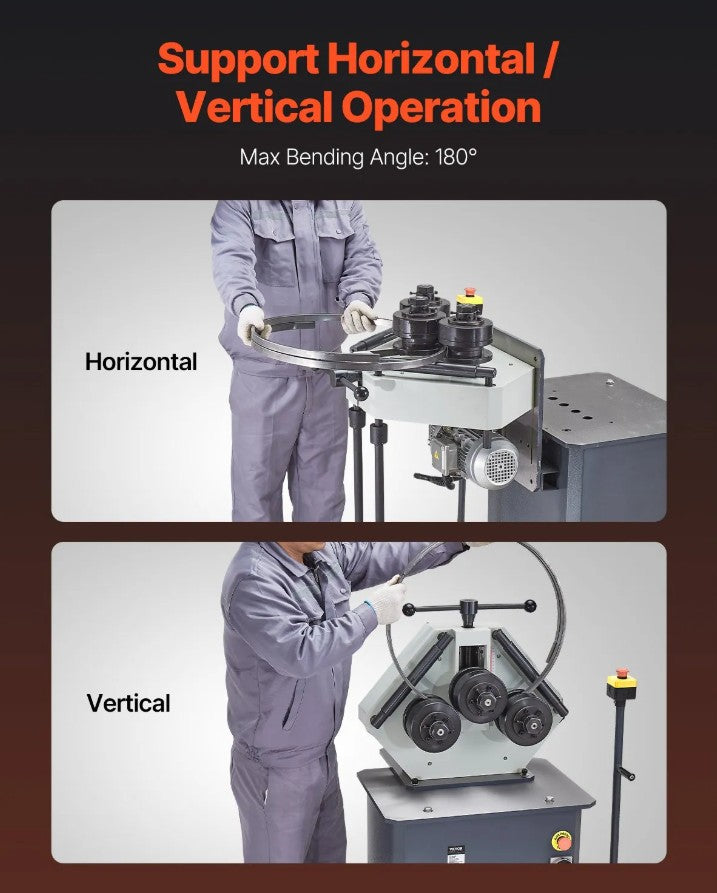

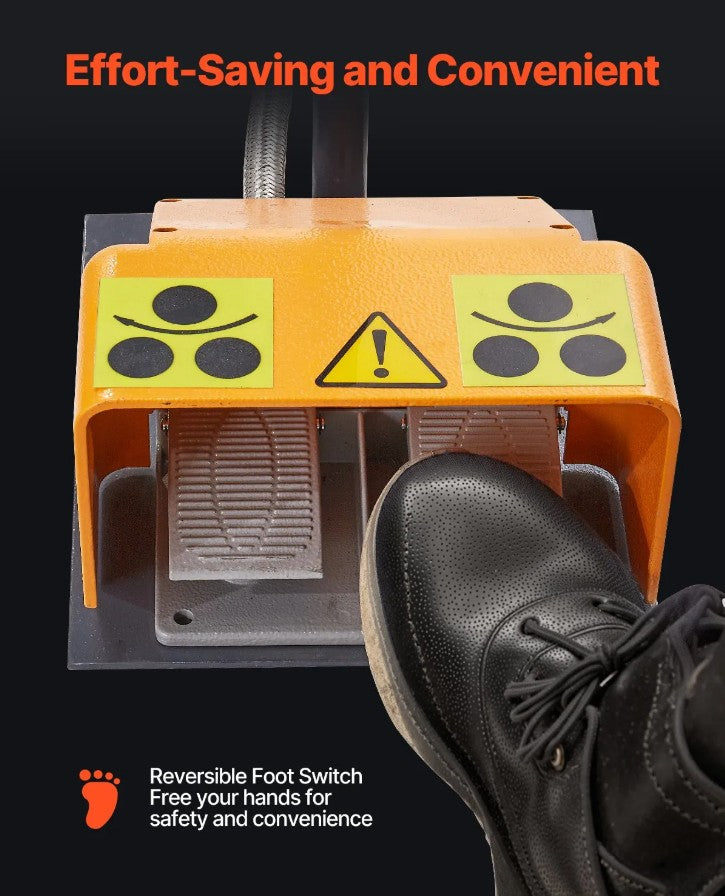

- Flexible Operation: Our tube bending machine supports operation in both horizontal and vertical directions, allowing for flexible adjustments based on specific task requirements. It features a reversible foot switch to free your hands, enhancing convenience and safety.

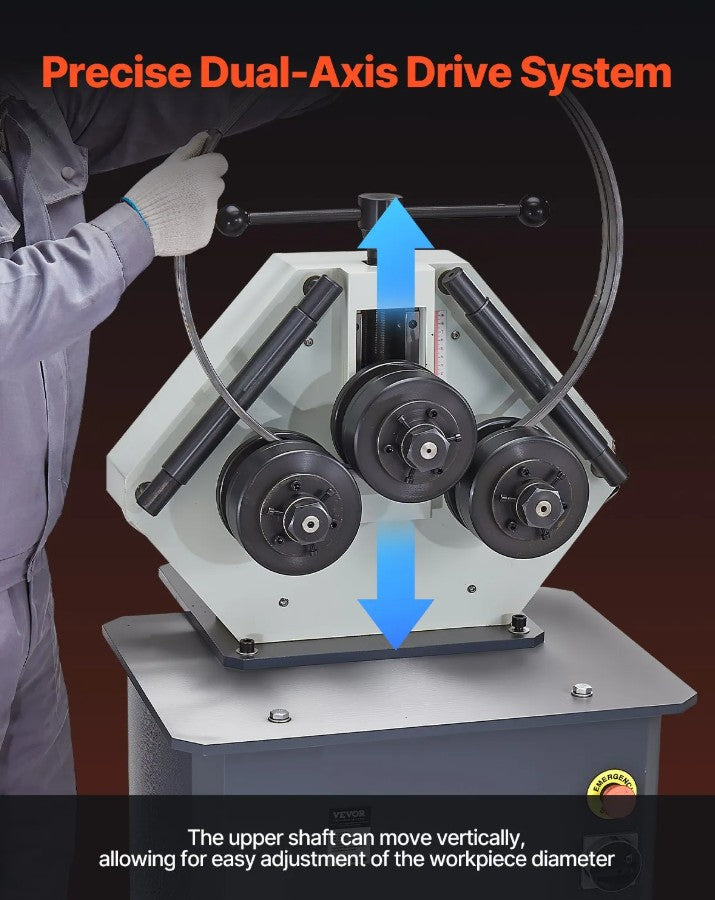

- Dual-Axis Drive System: The upper shaft can move vertically, allowing for easy adjustment of the processed workpiece diameter. This pipe tube bender is widely used in steel processing, automotive maintenance, and construction sites, ensuring efficient and effortless pipe bending.
Specifications
| Item Model # | RBM30HV |
| Voltage | 220V 60Hz 3-Phase |
| Power | 1HP / 750W |
| Applicable Wall Thickness | ≤ 5mm |
| Maximum Bending Angle | 180° |
| Main Material | Q235, 45#, 40Cr |
| Net Weight | 496 lbs / 225 kg |
| Product Dimensions | 25.8 x 24.4 x 53.9 in / 655 x 620 x 1370 mm |
Package Contents
Vevor Electric Pipe and Tube Bender 3-Roller 750W 180° Max Bend 220V 3-Phase
User Manual
Warranty
This item comes with a 1 year factory warranty.
