Vevor Electric Motor 750W 48V Brushless DC Motor Kit with Upgraded Speed Controller New
Product Overview

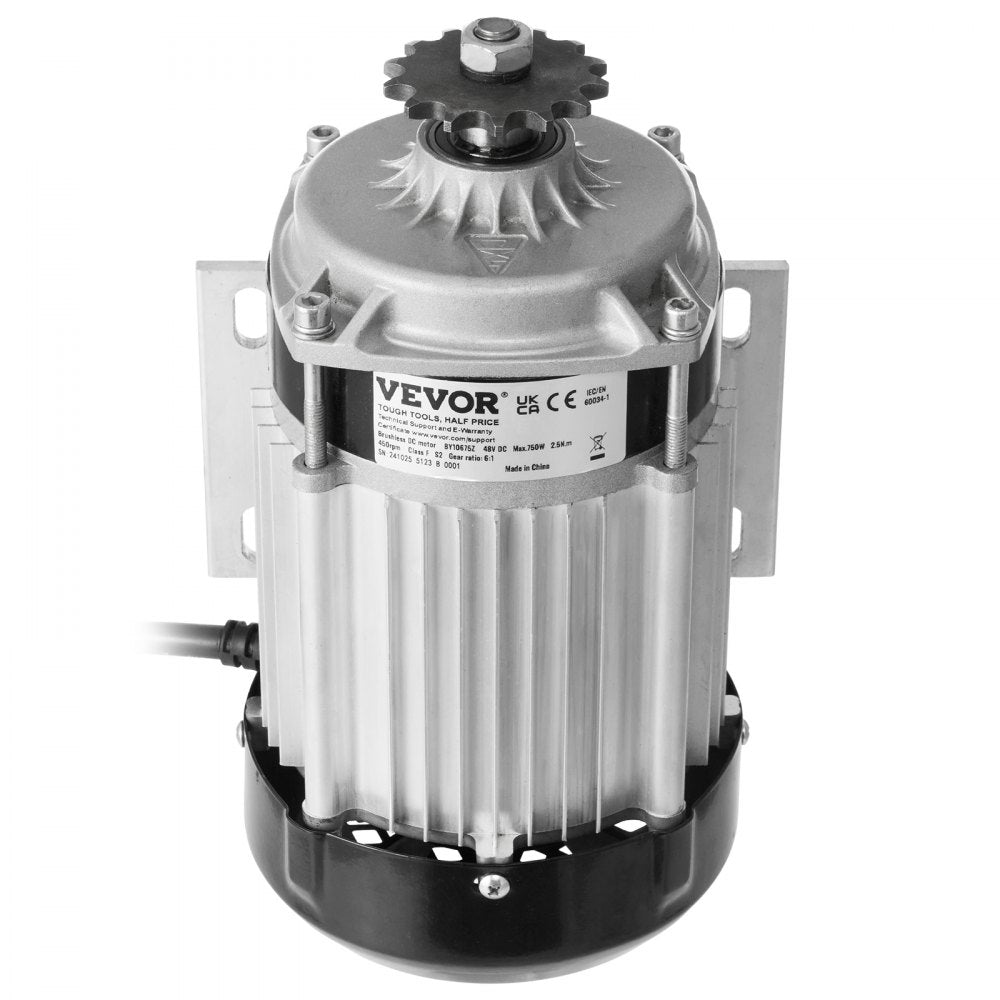

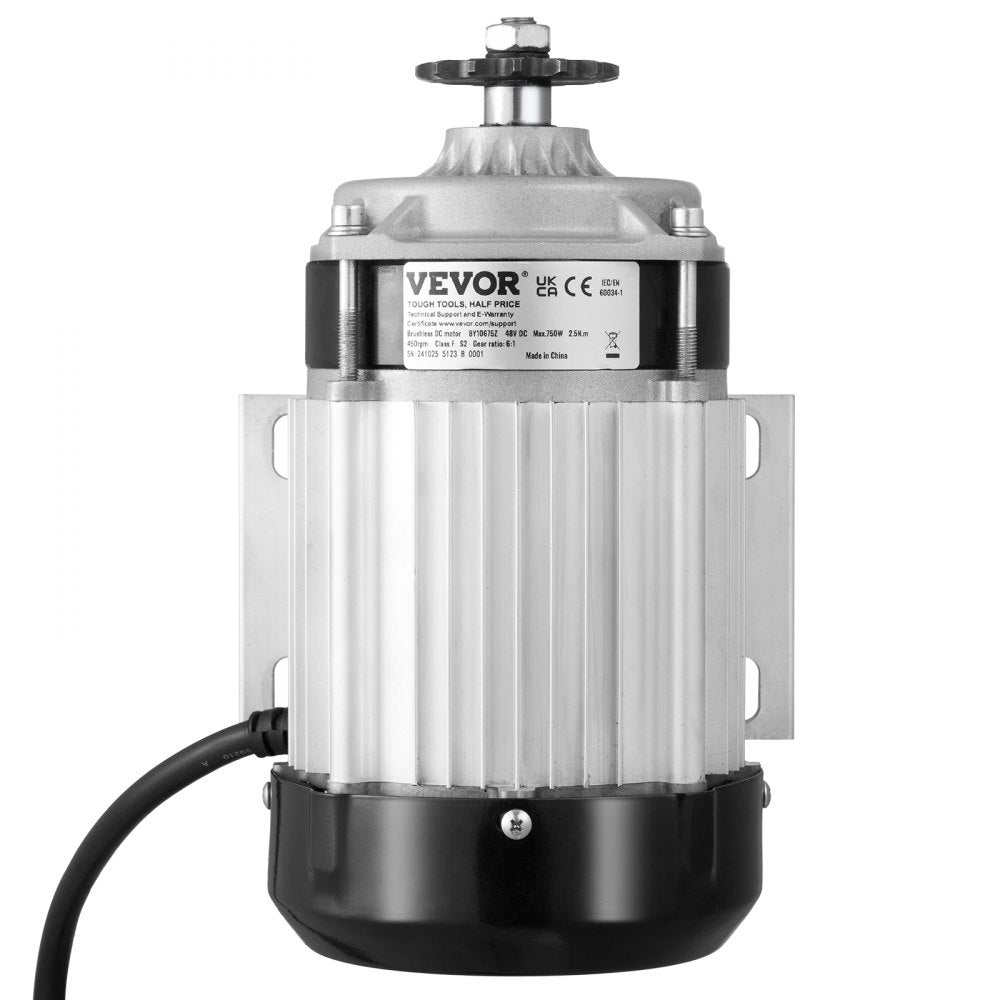

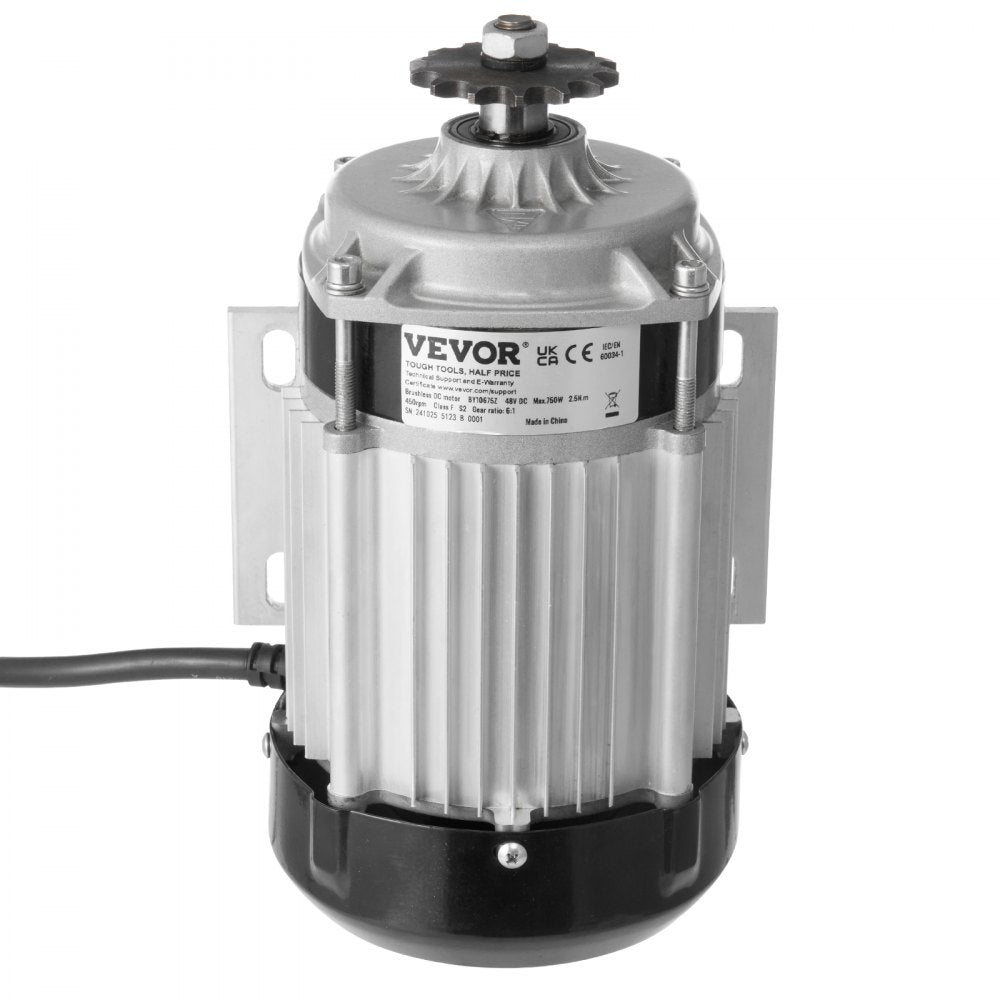

The Vevor electric motor kit is a 48V brushless DC setup designed for go-karts, e-bikes, motorcycles, and scooters. It delivers 750W of power with efficient performance, strong torque, and quiet operation for DIY electric vehicle projects. The included upgraded controller adds speed control, braking support, and multiple safety protections. Its copper core motor is built for reliable use in demanding conditions. The kit also includes assembly hardware and a user manual for easier installation.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- High-Power, Efficient Performance: Our brushless DC motor delivers 750W of output power and operates efficiently with 85% conversion efficiency, ensuring reliable speed even on challenging terrains and less energy consumption. Perfect for electric bikes, scooters, and other DIY electric vehicle projects that require high performance.
- Impressive Torque and Speed: Achieve up to 21.1 MPH at rated speed, and a no-load speed of 23 MPH with a 16-inch wheel, ensuring a fast and smooth ride for commuting or recreational use. The rated torque of 2.5 N·m ensures reliable performance even on steep inclines and rough terrains.

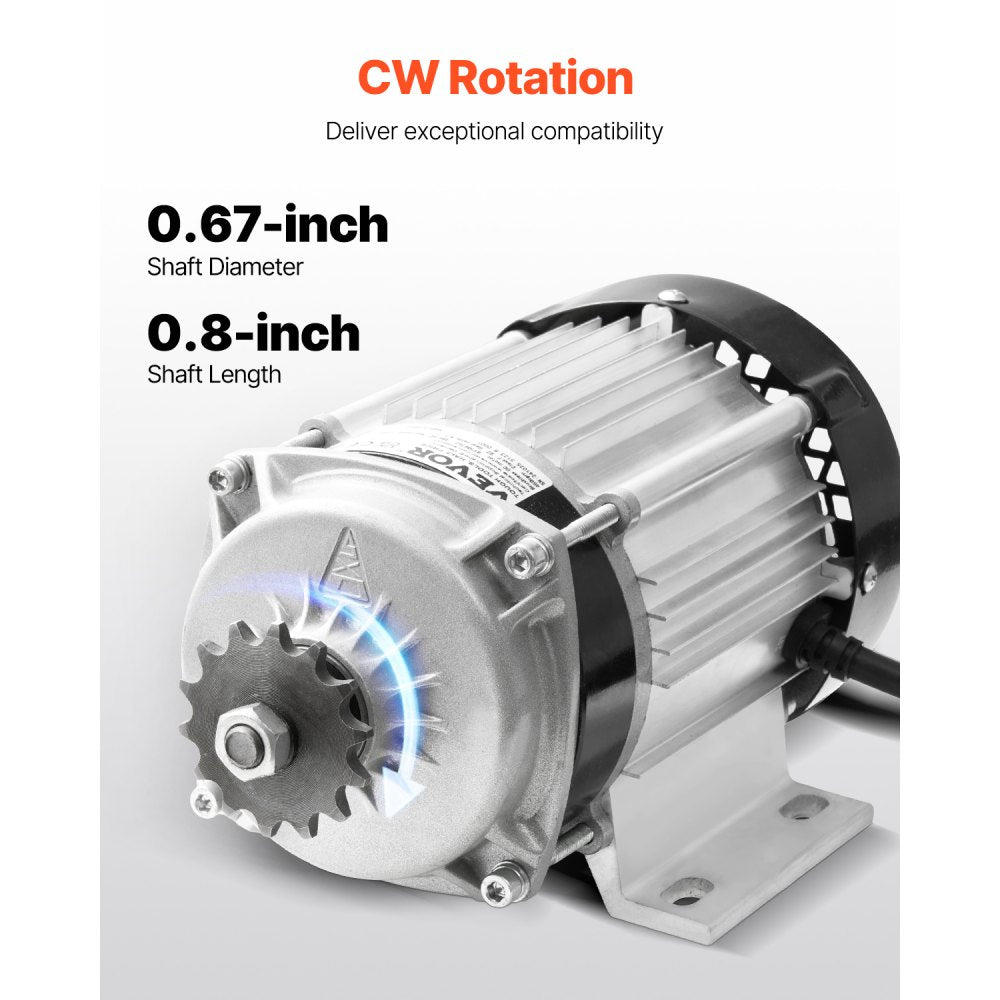

- Quiet, Reliable, and Versatile Operation: 100% Copper Core Motor for excellent heat and cold resistance, ensuring stable performance in extreme weather conditions. With a low noise level of 70 dB, this motor offers quiet operation. Designed with CW rotation, it ensures smooth and efficient compatibility with a wide range of electric vehicles.
- Advanced Safety and Control Features: The upgraded controller integrates multiple safety protections including overload, undervoltage, short circuit. It also offers essential user functions such as speed control and braking for smooth and reliable performance. The controller ensures optimal performance while maintaining safety and flexibility in various conditions.

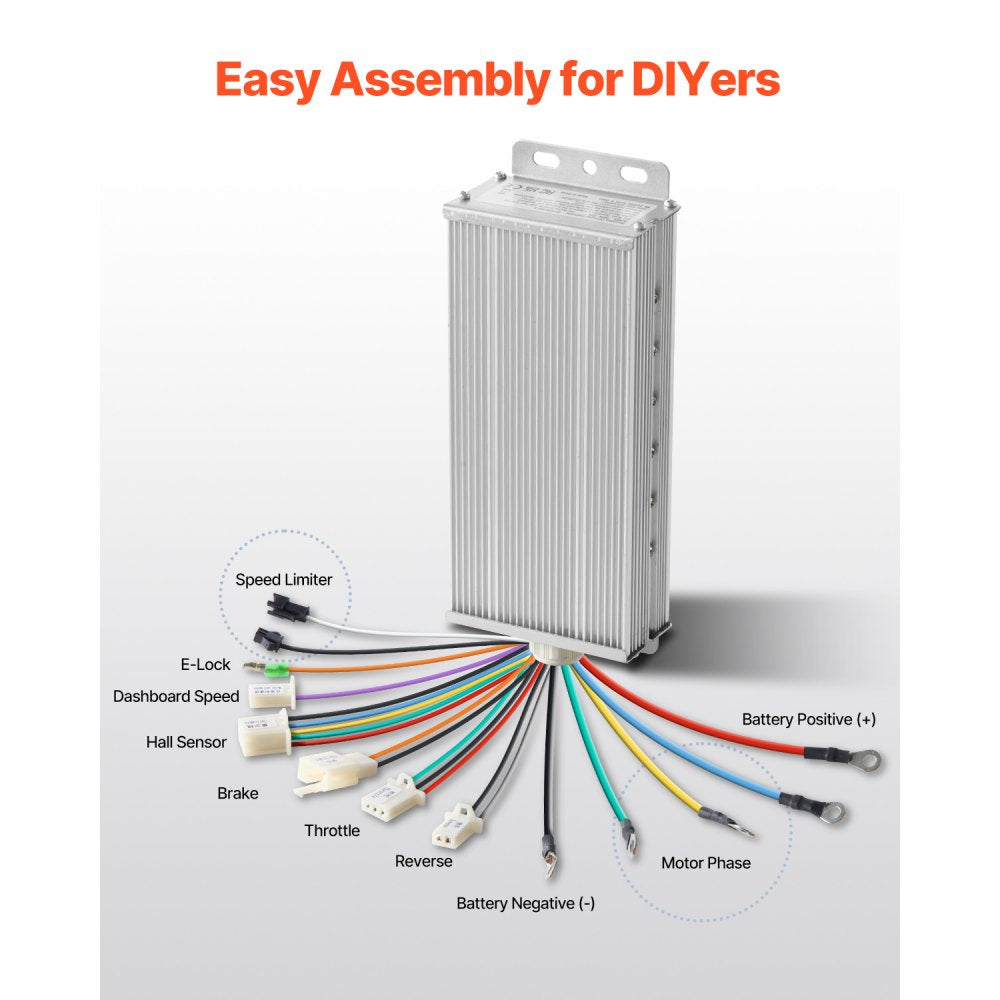

- Easy DIY Installation: Package includes: 1 x 48V 750W Brushless Motor, 1 x Motor Controller, 1 x Set of Assembly Hardware, and 1 x User Manual. This motor kit comes with detailed wiring diagram instruction, ideal for DIY enthusiasts and hobbyists looking to upgrade or build custom electric vehicles.

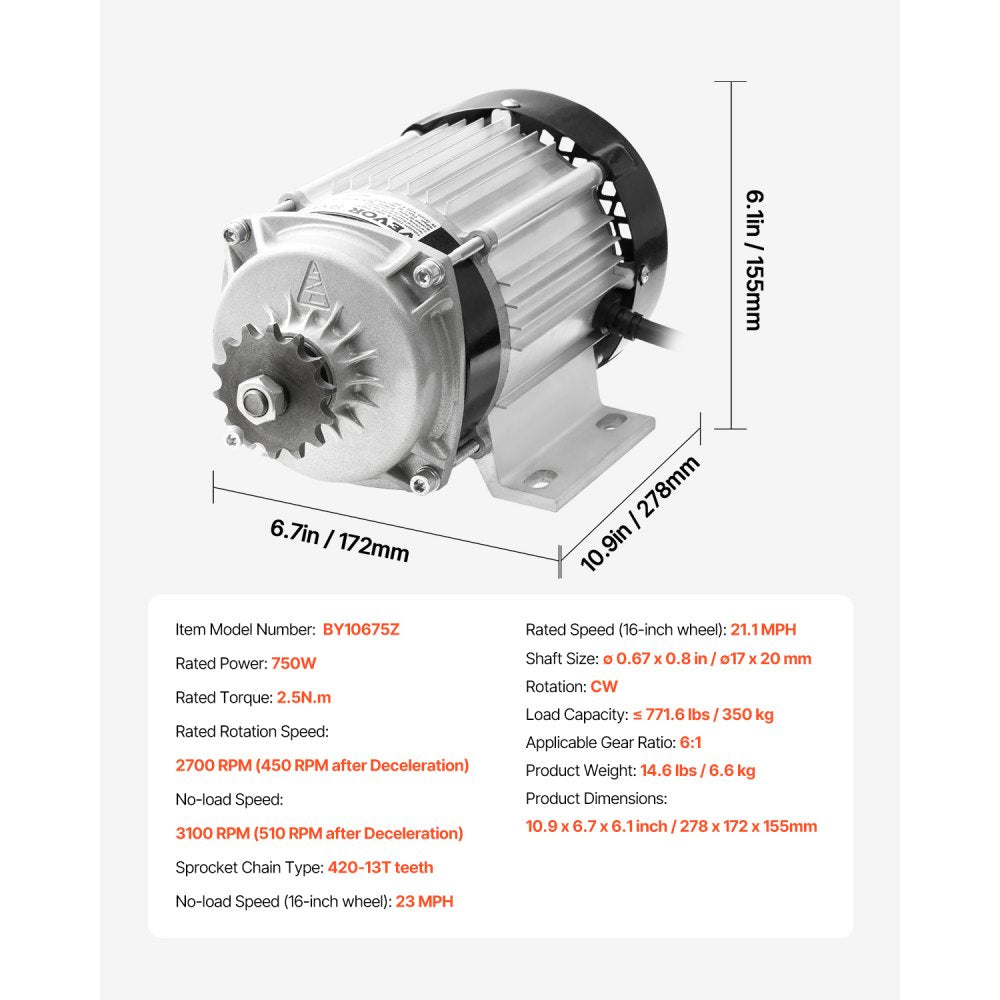

Specifications
| Model Number | BY10650Z |
| Rated Power | 750W |
| Voltage | 48V |
| Rated Torque | 2.5 N·m |
| Rated Rotation Speed | 2700 RPM 450 RPM after deceleration |
| No-load Rotation Speed | 2900 RPM 480 RPM after deceleration |
| Rotation | CW |
| Load Capacity | 771.6 lbs |
| Noise | 70 dB |
| Applicable Gear Ratio | 6 |
| Product Weight | 14.6 lbs |
| Dimensions | 10.95 x 6.77 x 6.1 in |

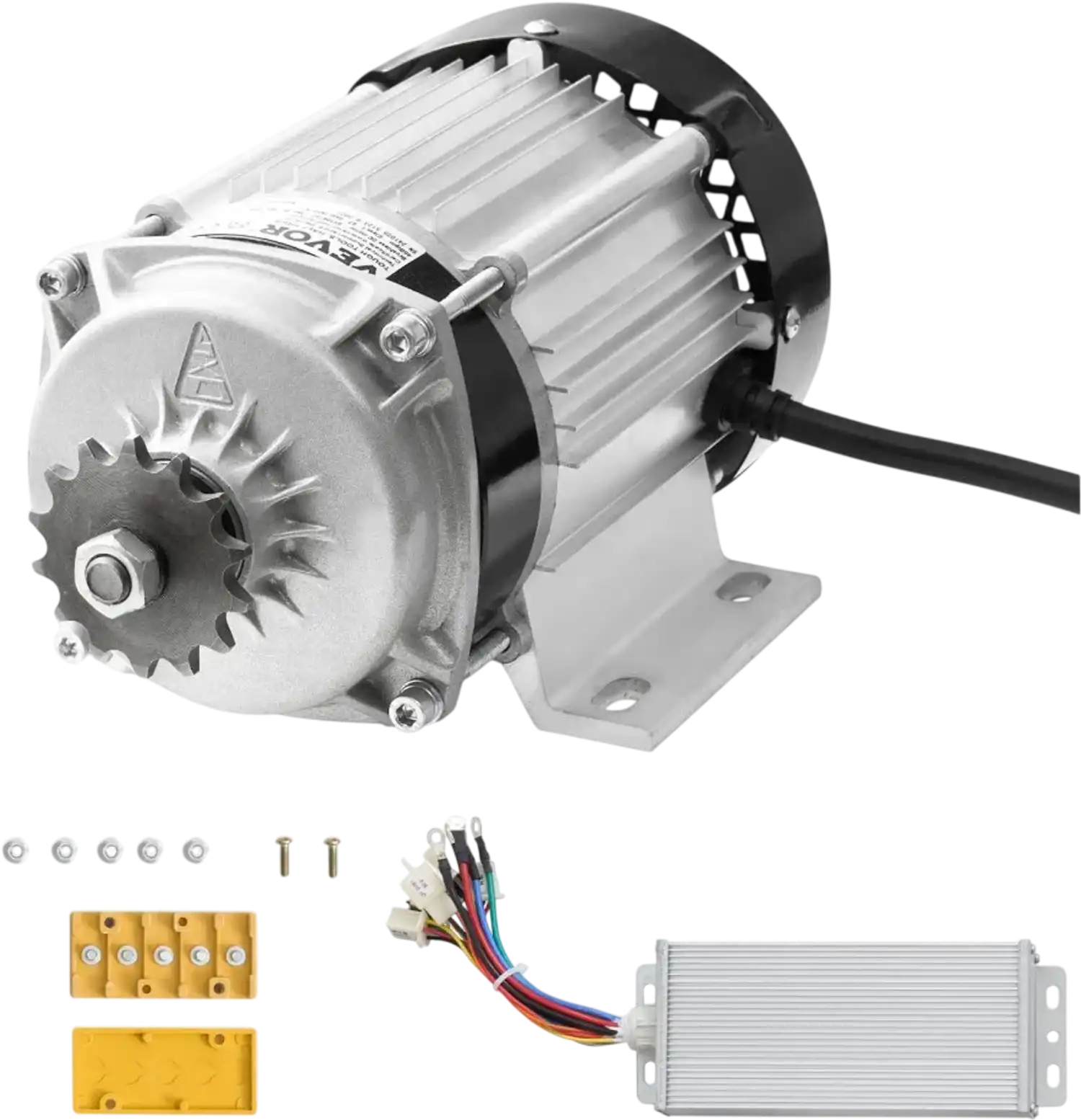

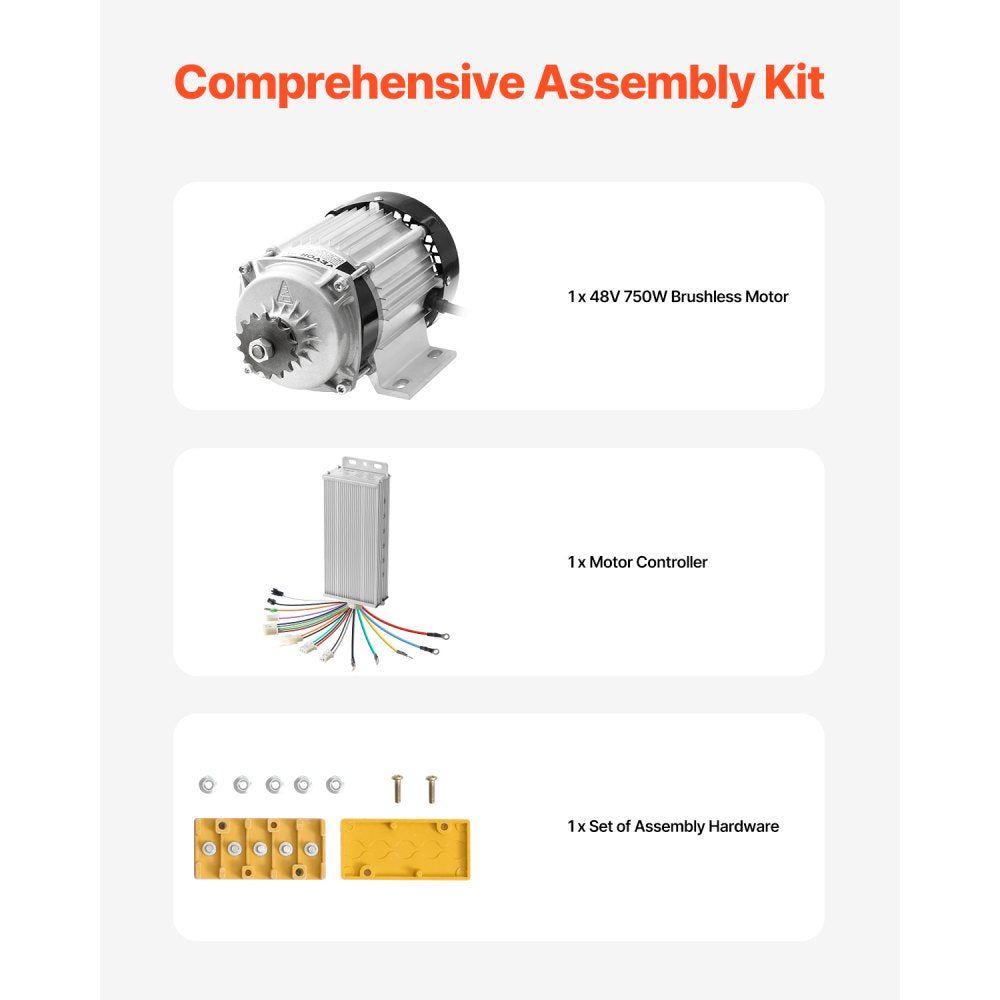

Package Contents
1 x 48V 750W Brushless Motor
1 x Motor Controller
1 x Set of Assembly Hardware
1 x User Manual
Warranty
This item comes with a 1 year factory warranty.
