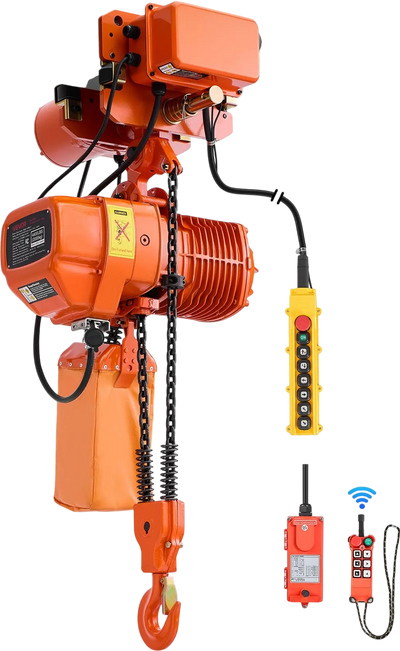

Vevor Electric Chain Hoist 4,400 lb. Capacity 20 ft. Lift Height Double Chain Remote Control 3-Phase 480V New
Product Overview
The VEVOR HHBB-2T electric chain hoist with power trolley is built for heavy lifting up to 4400 lbs with a dual-chain design for stable, balanced load handling. It offers a 20 ft lifting height and dual-speed operation for fast lifting and precise positioning. Control it with either a 16 ft wired pendant or a wireless remote with up to 328 ft range. Safety features include limit switches, automatic braking on power loss, and an emergency stop. A durable aluminum housing, G100 alloy steel chain, and IP55-rated motor support reliable day-to-day use.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

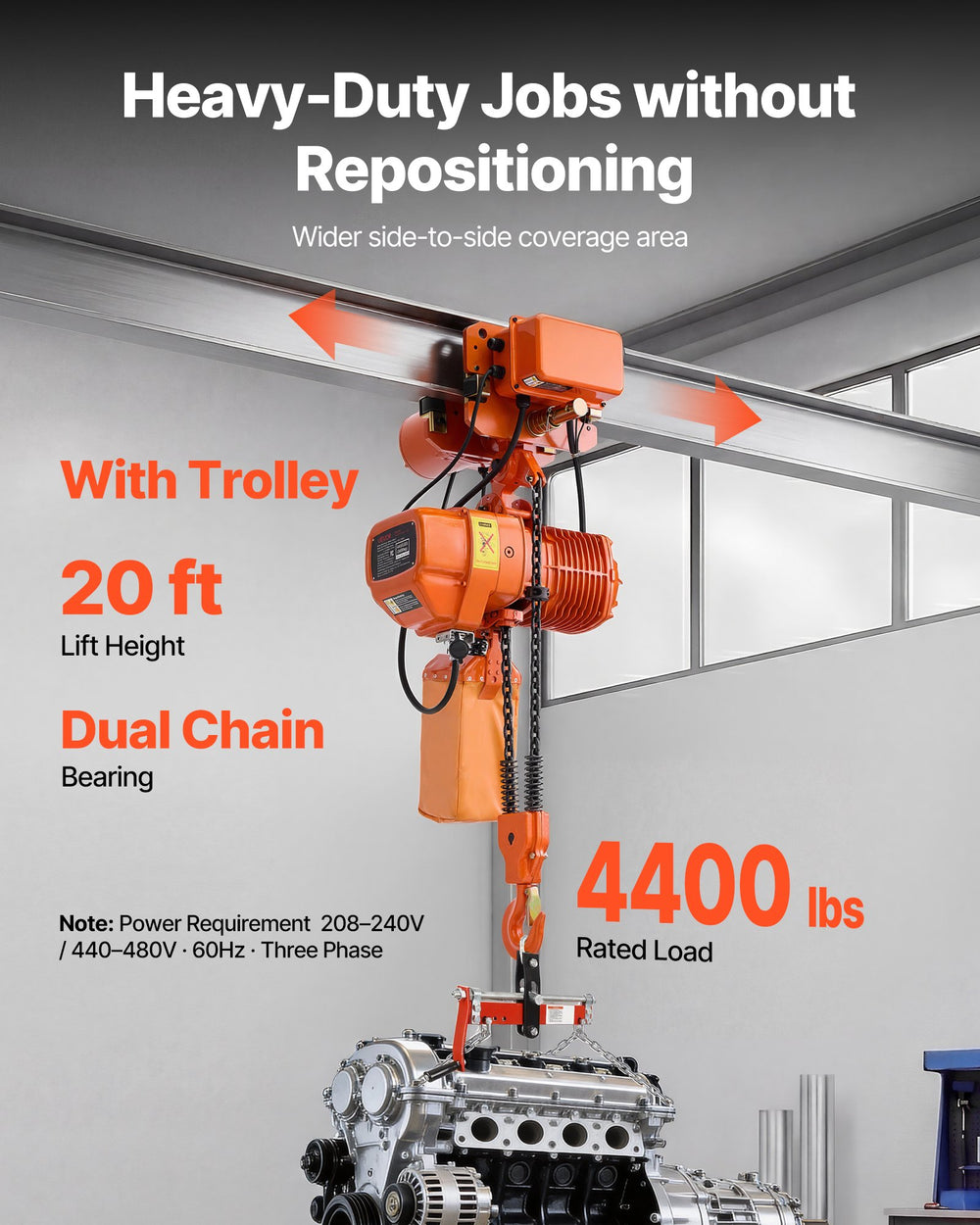

- Overhead Trolley Heavy Lifting: This electric chain hoist lifts up to 4400 lbs (2000 kg) with a dual-chain design for balanced strength and a 20 ft lift height. The hoist moves smoothly along beams or I-beams on 3-phase 208–240V/440–480V, 60Hz power

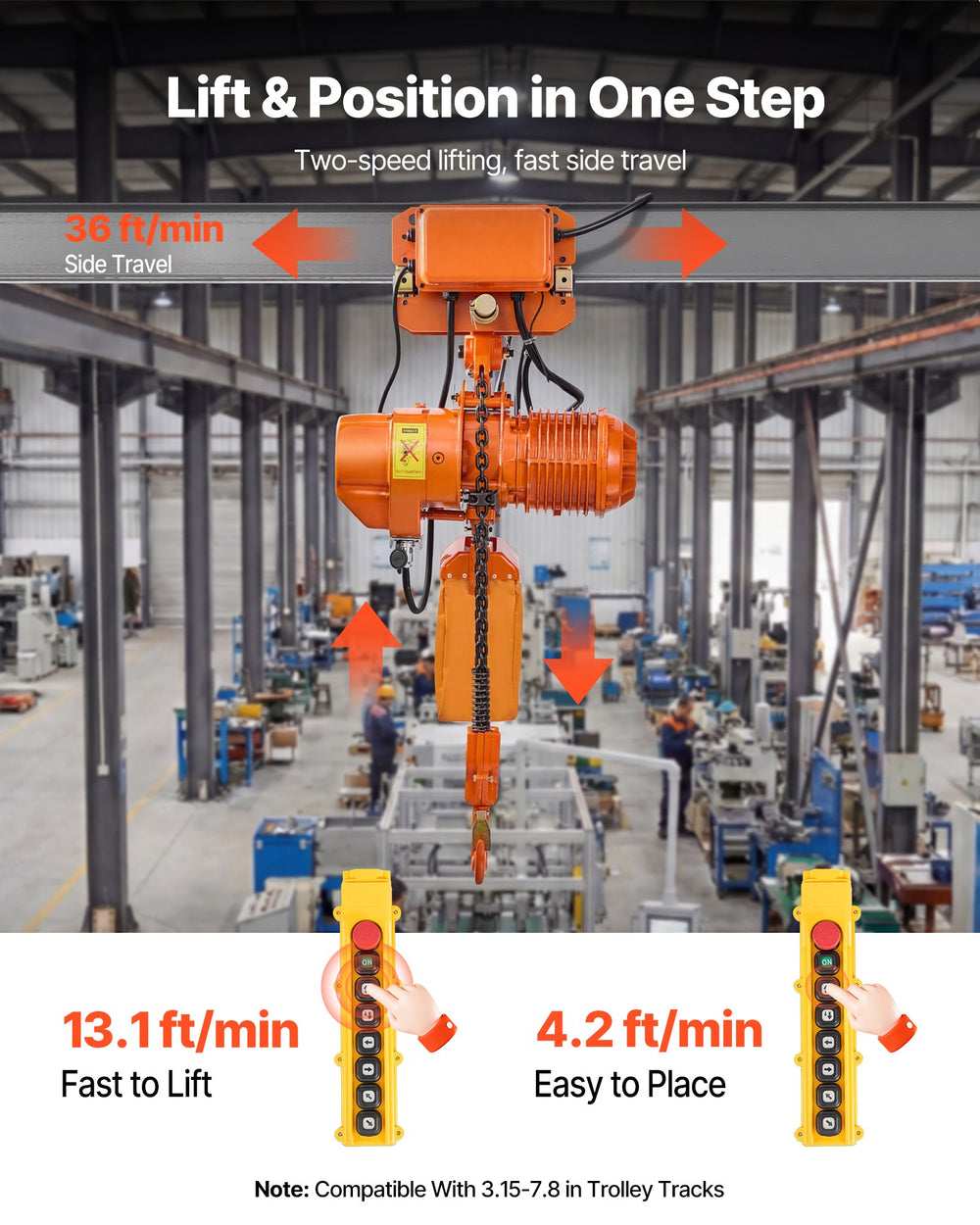

- Easy Travel & Smooth Lifting: This overhead crane hoist combines trolley movement with dual-speed lifting for quick positioning and steady lifting. The smart design helps heavy loads move, lift, and land accurately in one smooth workflow

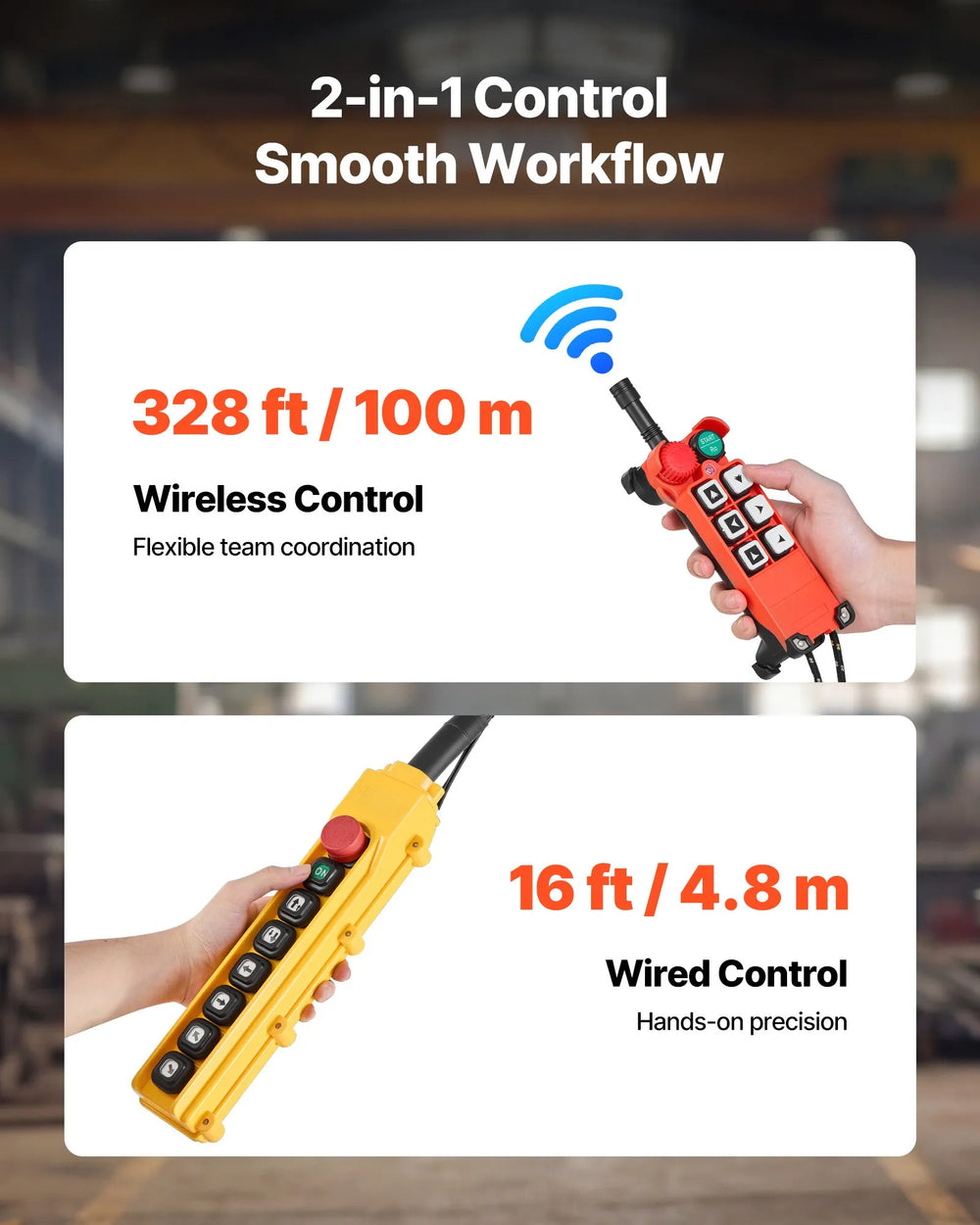

- Wired & Wireless Freedom: This chain electric lift hoist offers a wired pendant for close work and a wireless remote up to 328 ft (100 m). The flexible control options help you stay comfortable and confident on every lift

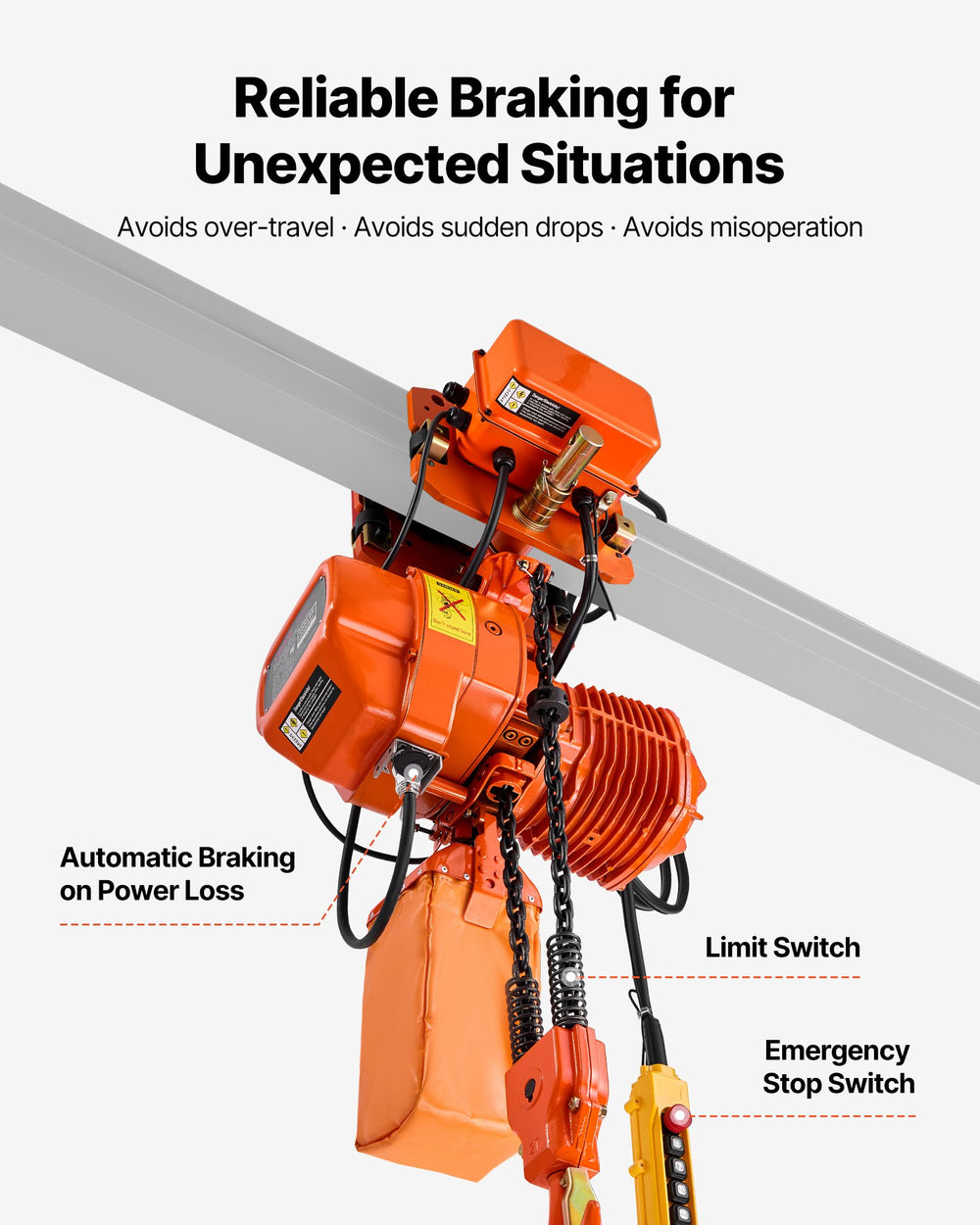

- Multiple Security Protections: This electric chain fall hoist includes upper and lower limit switches, auto braking on power loss, and an emergency stop. The built-in safeguards help every lift feel more secure and controlled

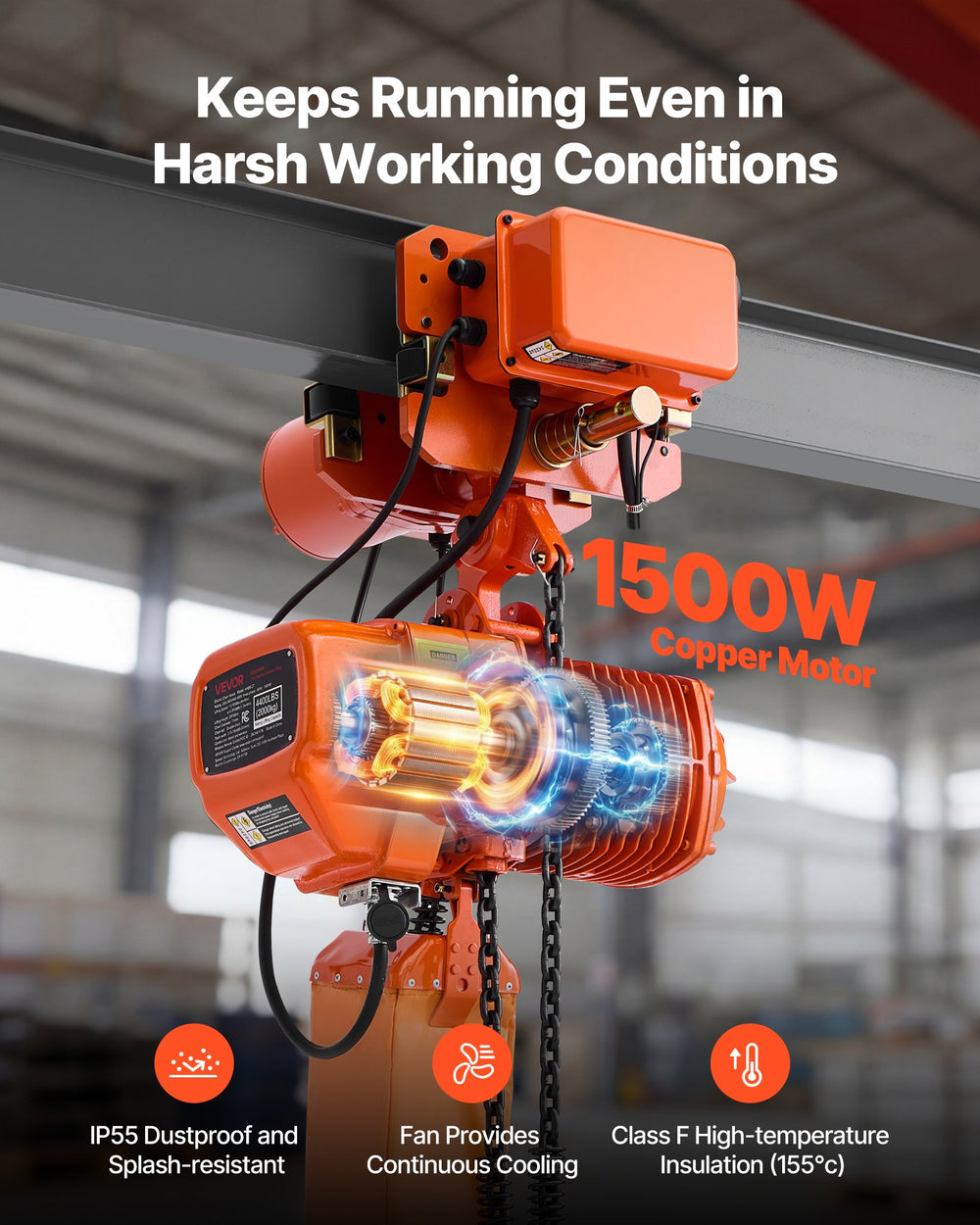

- Strong Build, Built to Last: This power electric hoist features the G100 alloy steel chains, a 360° rotating forged hook, and an aluminum housing. The IP55 motor, cooling fan, and F-class insulation support reliable daily use
Specifications
| Item Model Number | HHBB-2T |
|---|---|
| Lifting Capacity | 4400 lbs / 2000 kg |
| Lifting Height | 20 ft / 6.1 m |
| Control Type | Wired & Wireless Remote |
| Wireless Control Range | 328 ft / 100 m |
| Wired Control Cable Length | 16 ft / 4.8 m |
| Power (Motor) | 1500 W |
| Motor Type | Three-phase (Dual Voltage 208–240V / 440–480V) |
| Frequency | 60 Hz |
| Lifting Speed (Fast) | 13.1 ft/min (4 m/min) |
| Lifting Speed (Slow) | 4.2 ft/min (1.3 m/min) |
| Trolley Travel Speed | 36 ft/min (11 m/min) |
| Compatible Beam Width | 3.15–7.8 in (80–200 mm) |
| Chain Grade | G100 Alloy Steel |
| Chain Thickness | 7.1 mm |
|---|---|
| Motor Protection | IP55 |
| Insulation Class | Class F |
| Net Weight | 253.5 lbs / 115 kg |

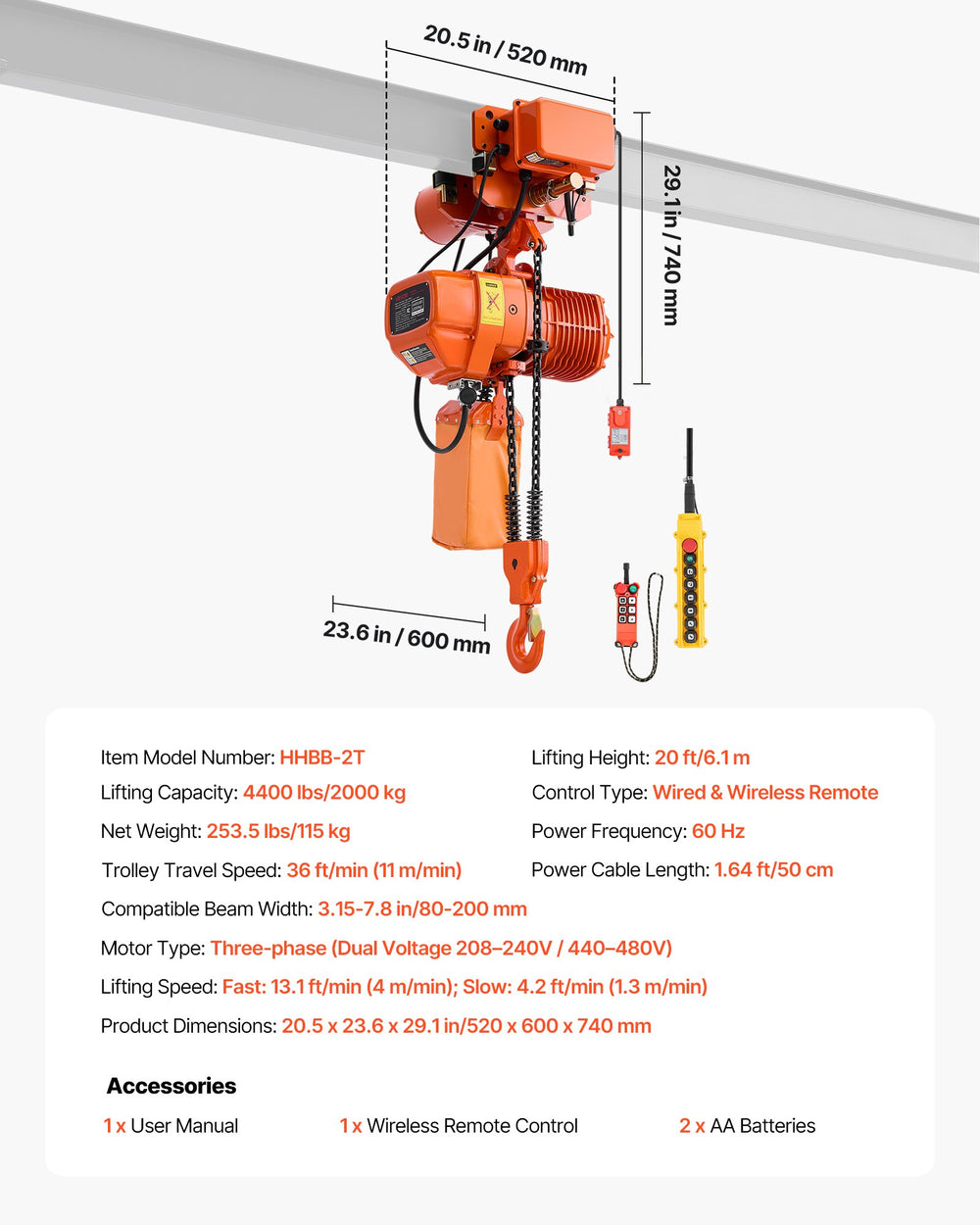

| Product Dimensions (L x W x H) | 20.5 x 23.6 x 29.1 in (520 x 600 x 740 mm) |
Package Contents
Electric Chain Hoist with Trolley (HHBB-2T)
Wired Pendant Control
Wireless Remote Control
AA Batteries (2)
User Manual
Warranty
This item comes with a 1 year factory warranty.
