Vevor Electric Chain Hoist 1100 lbs. 20 ft. Lift Height Wired/Wireless Remote Control 3-Phase 480V New
Manufacturer: Vevor
SKU: GDSDDHLHLJCKVDE51001V8
Size Options
Speed Mode Options
Control Options
QTY
or
(888) 999-1522
C
$820.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
Vevor Electric Chain Hoist 1100 lbs. 20 ft. Lift Height Wired/Wireless Remote Control 3-Phase 480V New
Product Overview
This VEVOR electric chain hoist is built for industrial overhead lifting up to 1100 lbs (500 kg) with a 20 ft lifting height. It runs on three-phase 480V, 60Hz power and offers dual-speed lifting for fast hoisting and precise placement. Control the hoist with either a wired pendant for close operation or a long-range wireless remote for safer distance control. Safety features include limit switches, automatic braking on power loss, and an emergency stop, while the durable chain and rotating hook support frequent daily use.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

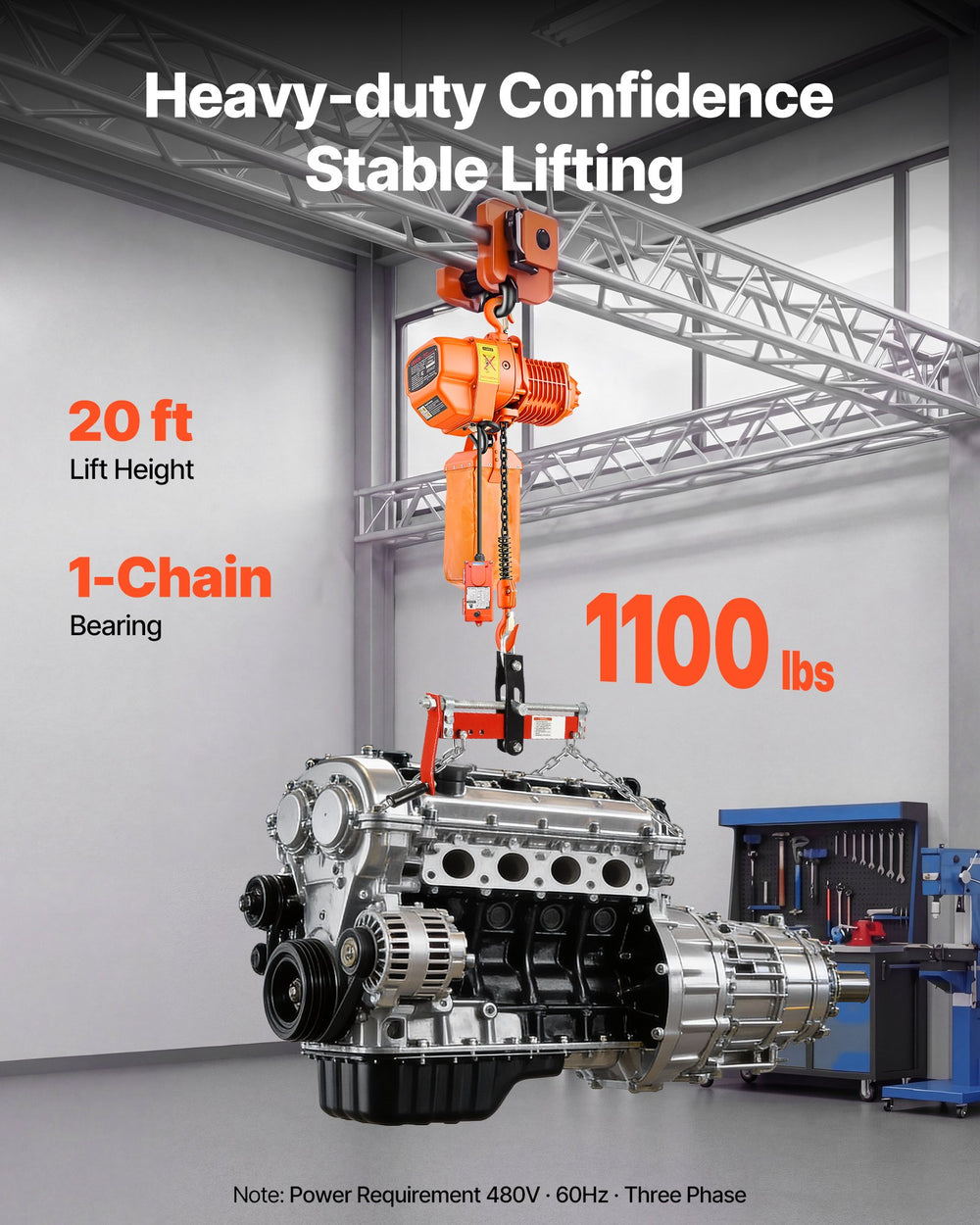

- Powerful Lifting Performance: This electric chain hoist lifts up to 1100 lbs (500 kg) with an efficient single-chain design and a 20 ft lifting height. The hoist runs on 3-phase 480V, 60Hz power for steady industrial operation

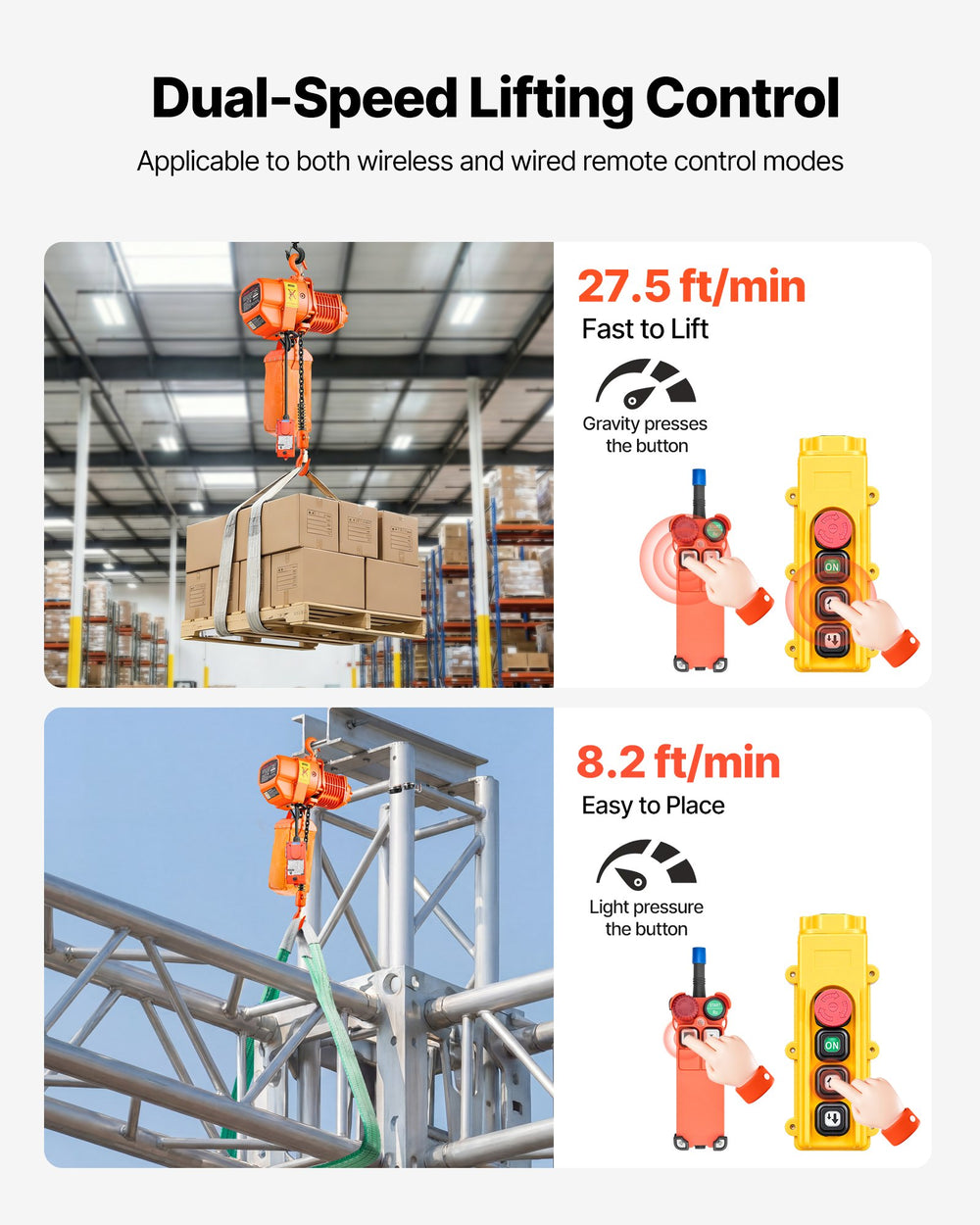

- Dual-Speed Control Fun: This overhead crane hoist runs fast at 27.5 ft/min for quick lifts and slow at 8.2 ft/min for precise positioning. The two-speed design lets you switch smoothly between power and precision

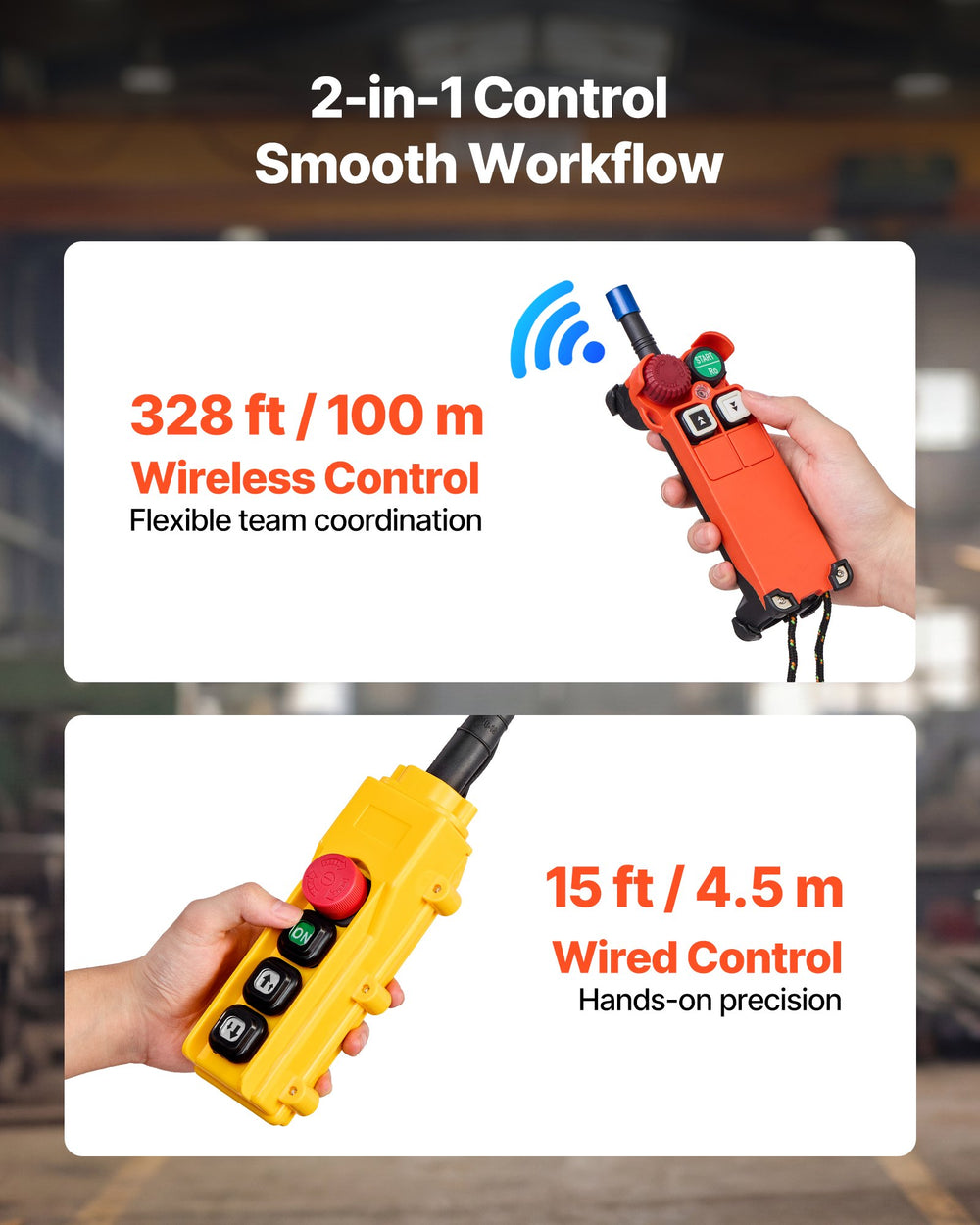

- Wired & Wireless Freedom: This chain electric lift hoist offers a wired pendant for close work and a wireless remote up to 328 ft (100 m). The flexible control options help you stay comfortable and confident on every lift

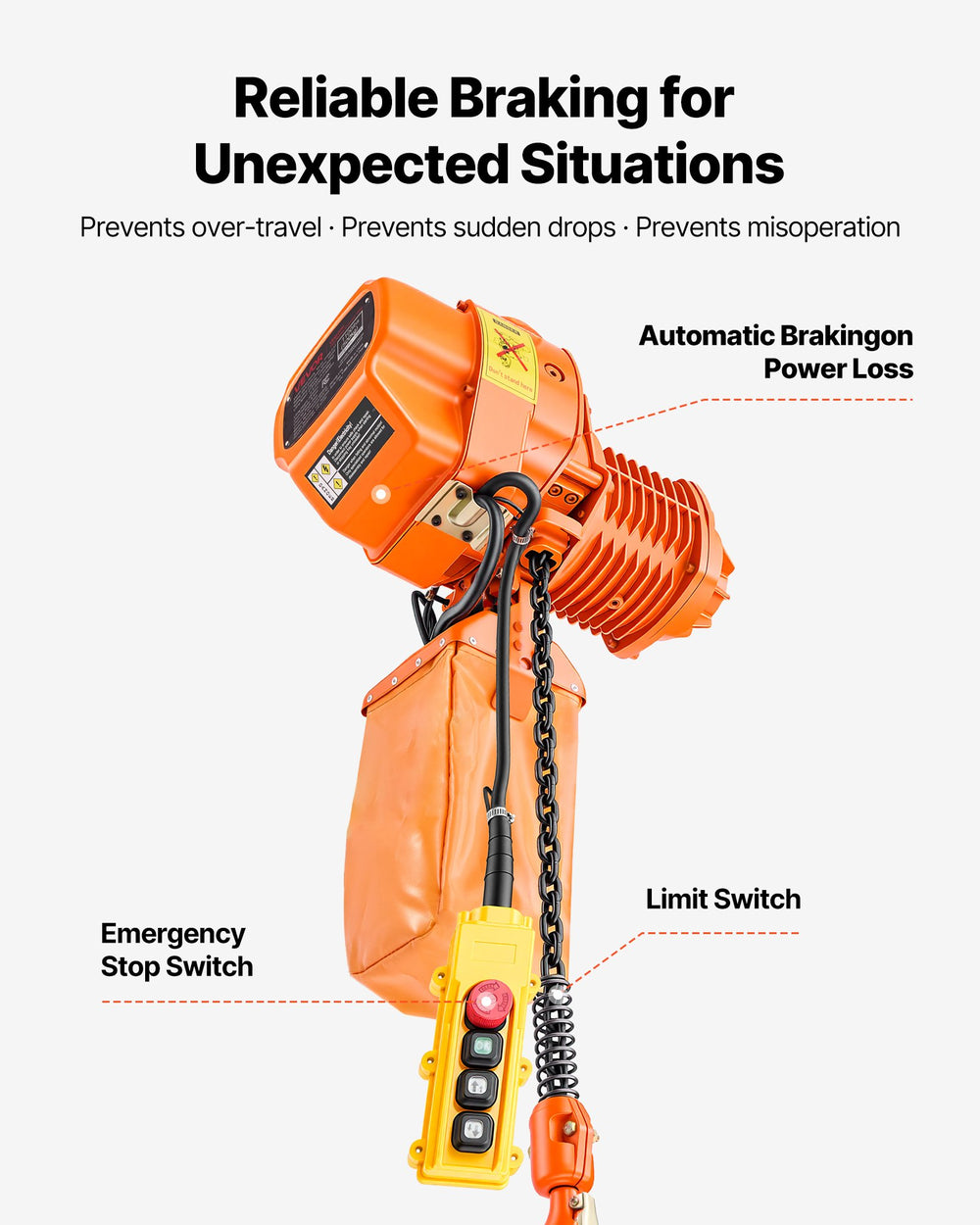

- Multiple Security Protections: This electric chain fall hoist includes upper and lower limit switches, auto braking on power loss, and an emergency stop. The built-in safeguards help every lift feel more secure and controlled

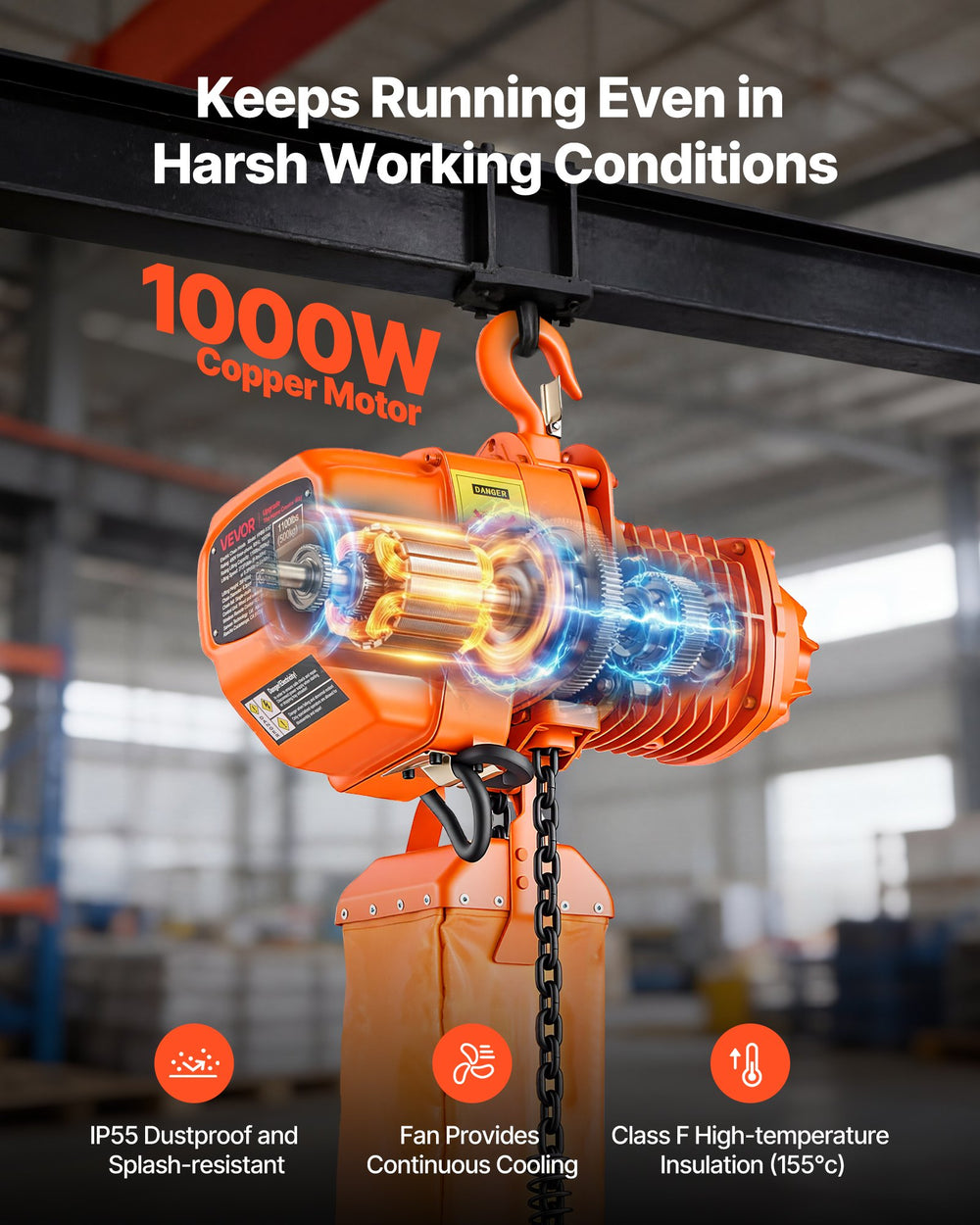

- Strong Build, Built to Last: This power electric hoist features a G80 alloy steel chain, a 360° rotating forged hook, and an aluminum housing. The IP55 motor, cooling fan, and F-class insulation support reliable daily use
Specifications
| Item Model Number | HHBB-0.5T |
|---|---|
| Lifting Capacity | 1100 lbs (500 kg) |
| Lifting Height | 20 ft (6 m) |
| Control Type | Wired & Wireless Remote |
| Wireless Control Range | 328 ft (100 m) |
| Wired Control Length | 15 ft (4.5 m) |
| Lifting Speed (Fast) | 27.5 ft/min (8.4 m/min) |
| Lifting Speed (Slow) | 8.2 ft/min (2.5 m/min) |
| Power Requirement | 3-Phase 480V, 60Hz |
| Motor Power | 1000 W |
| Hook Rotation | 360° rotating hook |
| Net Weight | 82.5 lbs (37.4 kg) |
|---|---|

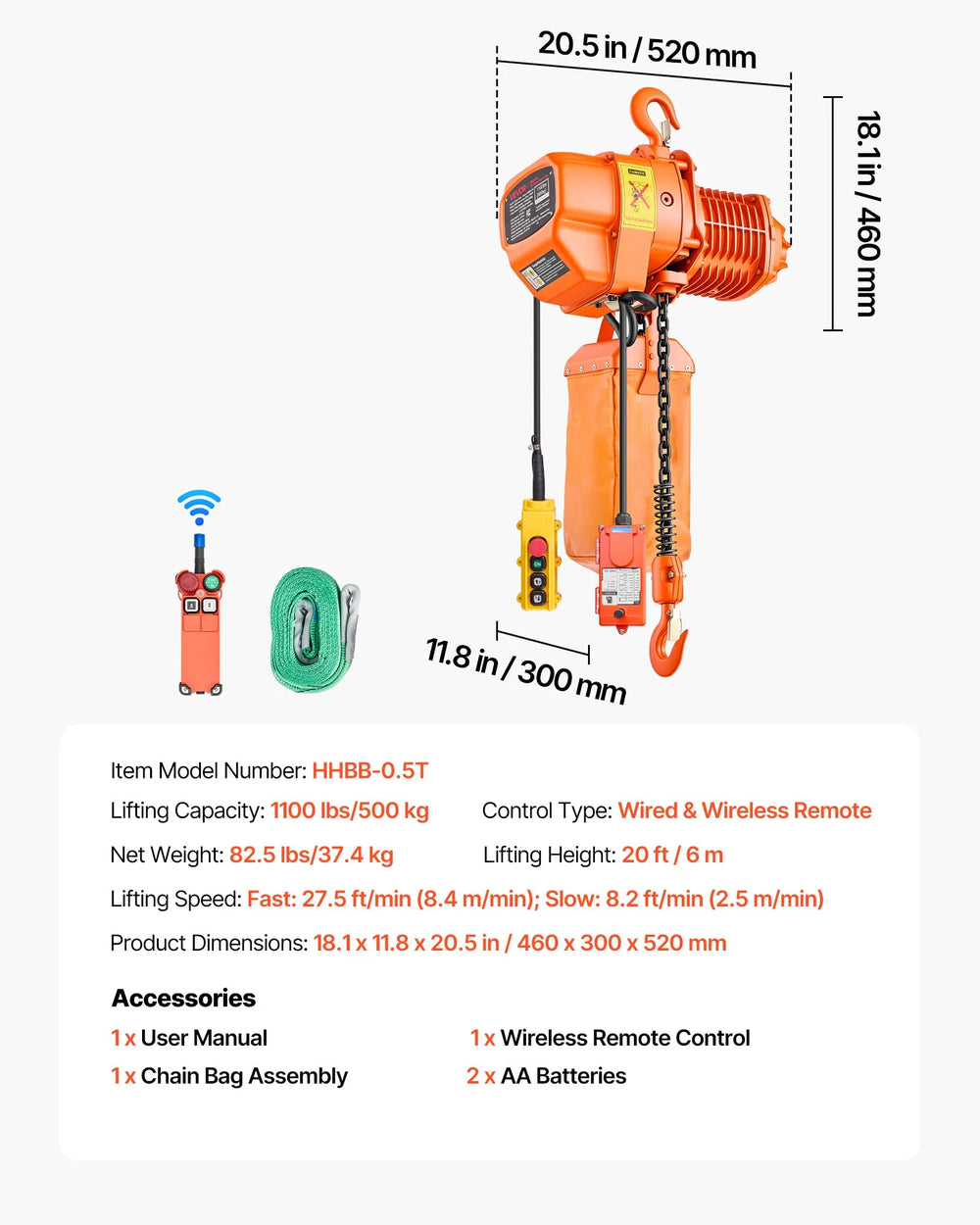

| Product Dimensions | 18.1 x 11.8 x 20.5 in (460 x 300 x 520 mm) |
Package Contents
Electric Chain Hoist
User Manual
Chain Bag Assembly
Wireless Remote Control
(2) AA Batteries
Warranty
This item comes with a 1 year factory warranty.
