Vevor Drum Pump Air-Operated Oil Transfer 4.8 GPM for 15-55 Gallon Drums New
Product Overview

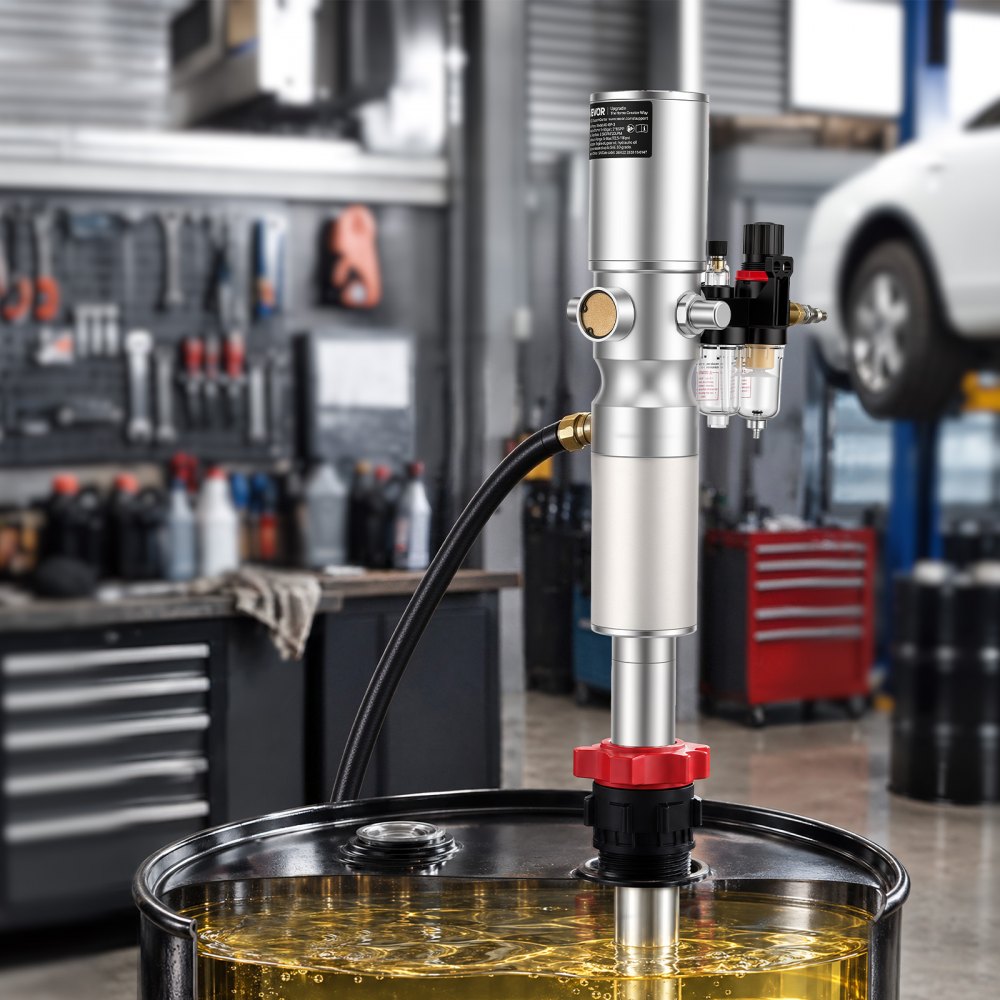

This air-operated drum pump is designed to make high-volume oil transfer easier in auto shops, farms, and workshops. It uses compressed air for dispensing, transfer, and shutoff without requiring external electrical power. The pump is optimized for medium-viscosity oils and features adjustable pressure and airflow control for steady performance. Its cast aluminum pump head and steel suction tube provide durable construction for demanding use. It fits 15-55 gallon drums and open containers for flexible fluid handling.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Air-Powered Operation: This drum pump runs on compressed air with no external electrical power required. A brass ball valve and US-style pneumatic connector provide quick connection, ideal for workshops, farms, and outdoor jobs with an air compressor
- 3:1 Ratio for Medium-Viscosity Oils: Optimized for medium-viscosity oils, this drum pump delivers up to 348 psi / 24 bar and approx. 4.76 GPM / 18 LPM free flow. The included air filter regulator allows adjustable inlet pressure for steady output

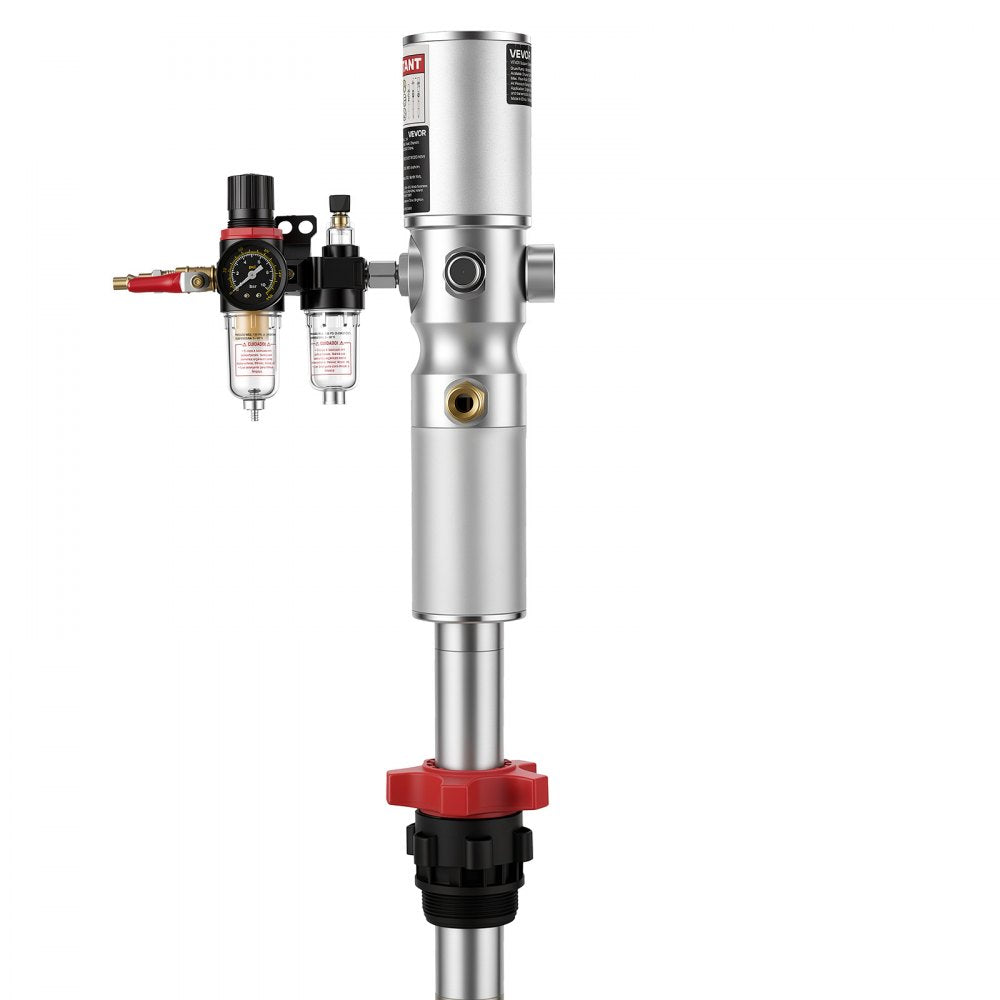

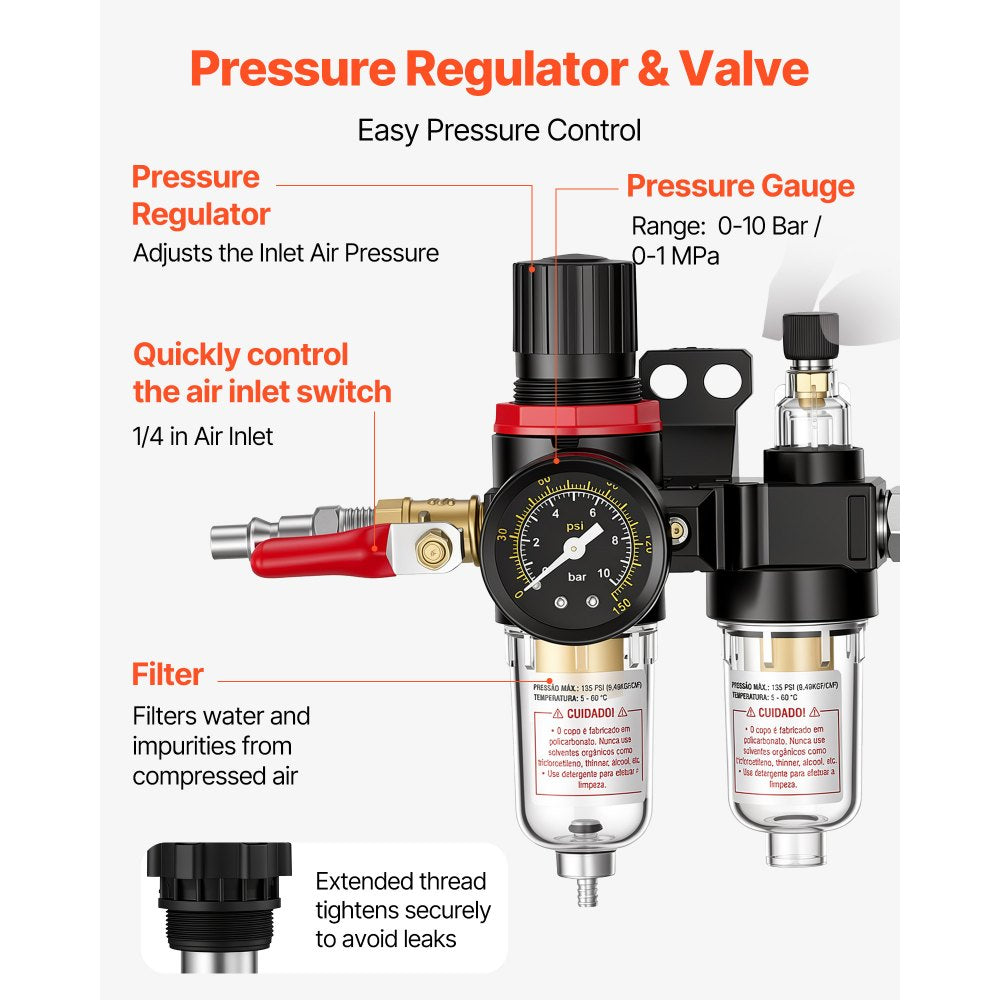

- Easy Pressure & Airflow Control: This air operated oil transfer pump features a 0-10 bar pressure gauge for real-time inlet pressure monitoring and a brass ball valve for quick start/stop, and airflow adjustment, keeping air control right at the work area

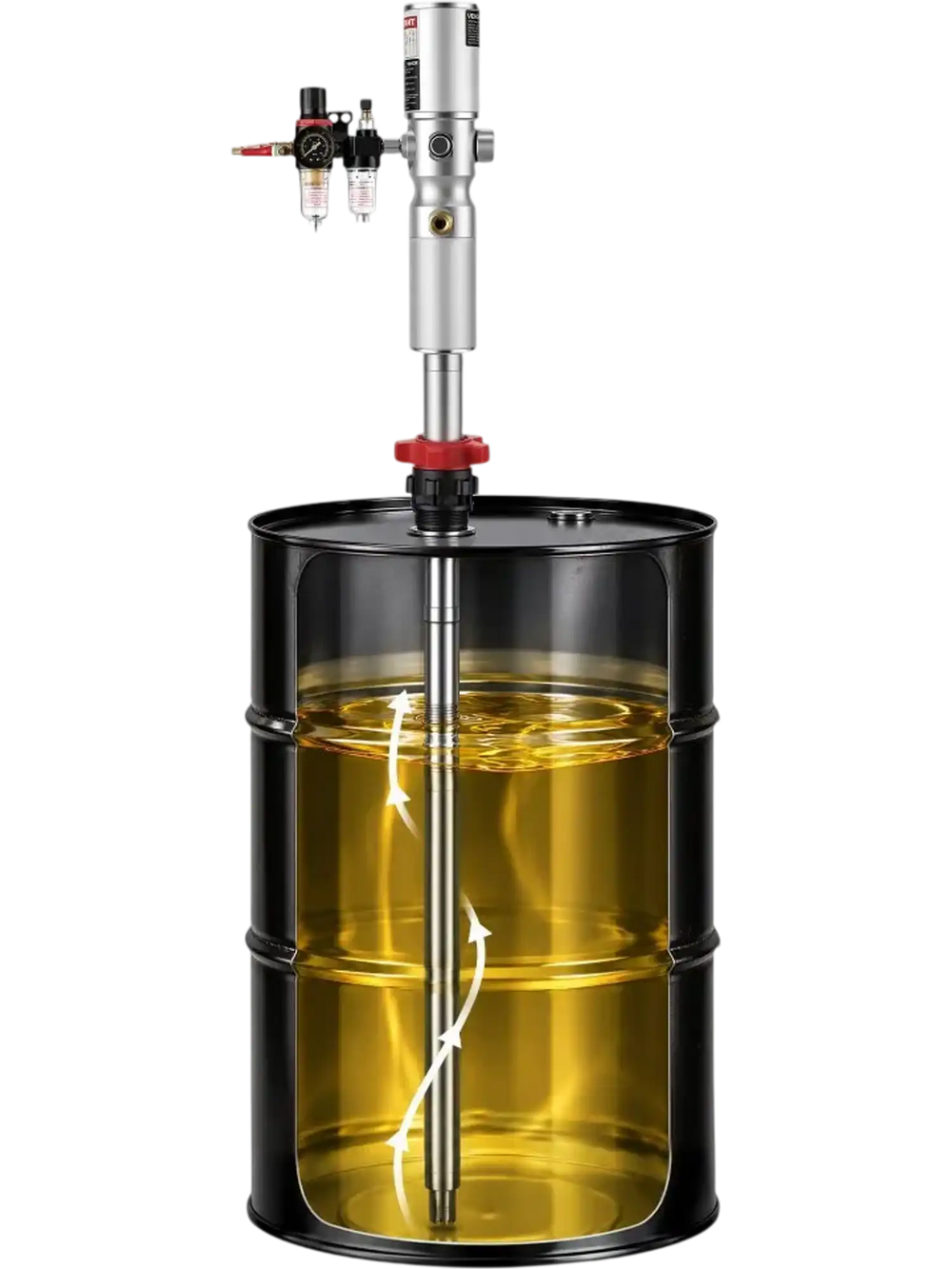

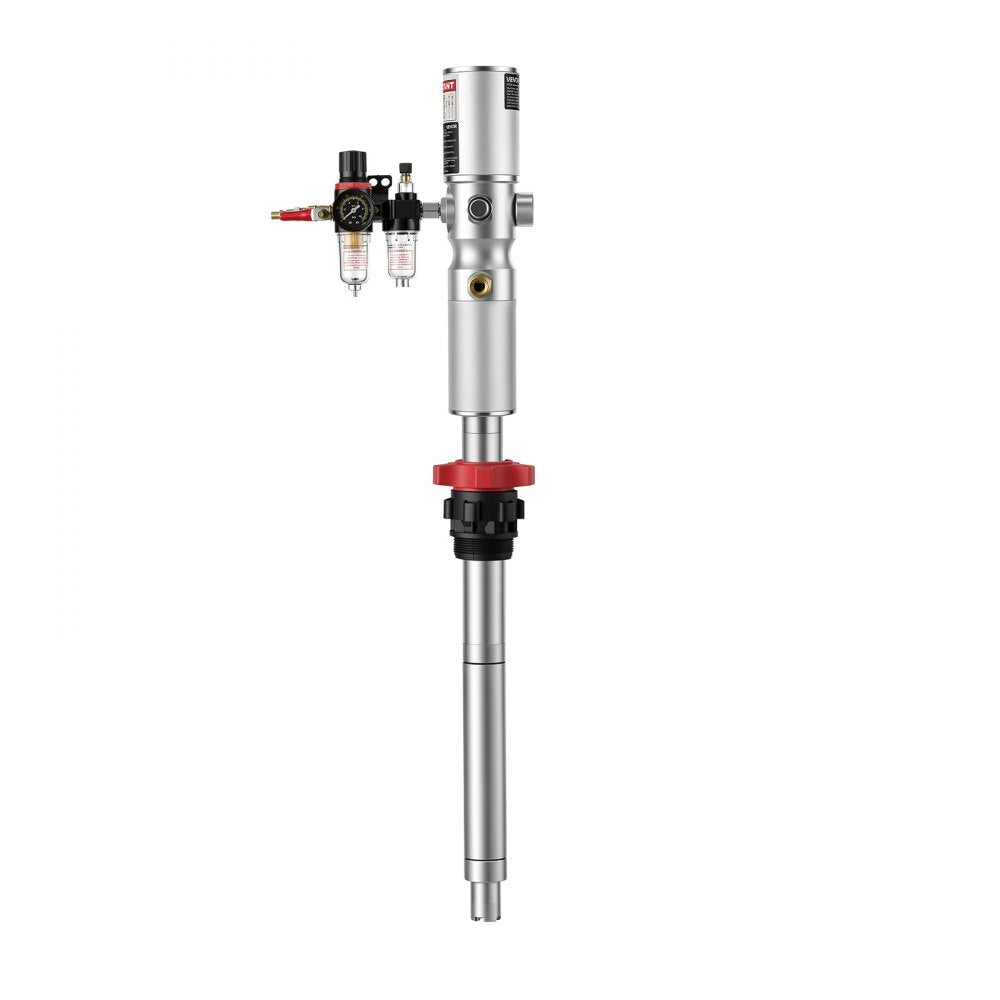

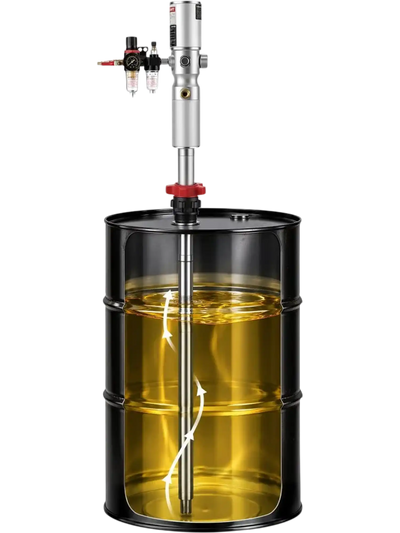

- Fits 15-55 Gal Drums: The 3-section suction tube on this pneumatic drum pump measures 1.7 in / 42 mm OD and 38.58 in / 980 mm overall length assembled. The adjustable 2 in BSPP male thread provides a stable fit on 15-55 gallon drums for deep fluid pickup

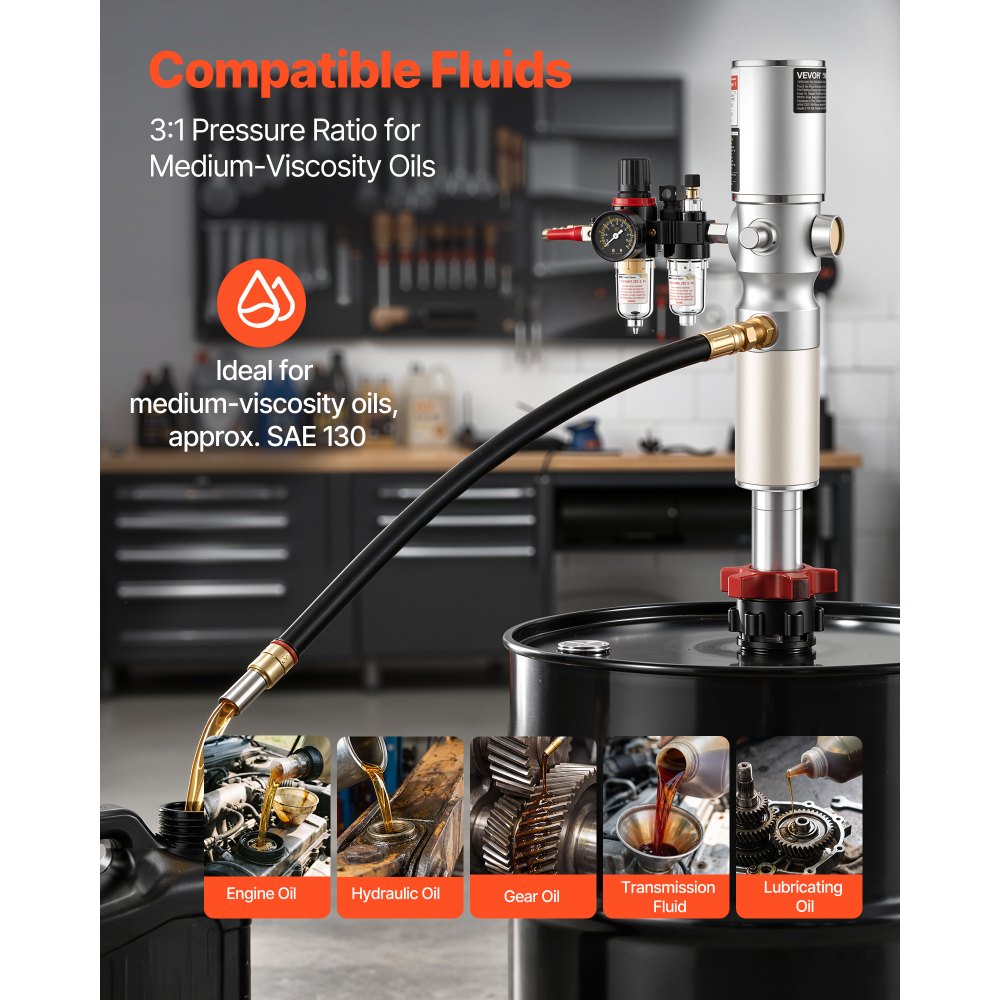

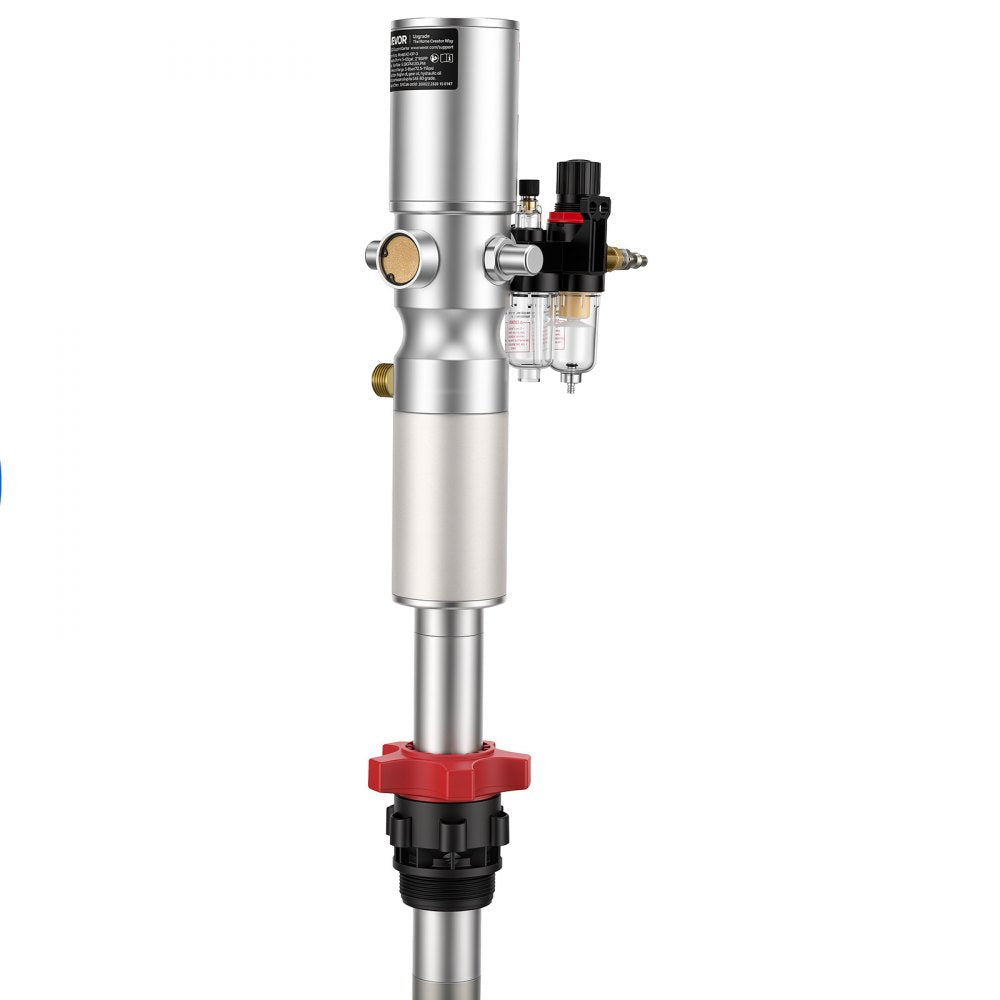

- Cast Aluminum Pump Head: This pneumatic barrel pump combines a solid cast aluminum pump head with a 2 mm thick galvanized steel suction tube. Designed for motor, gear, hydraulic, and transmission oils. Not for water, acids, alkalis, solvents, or gasoline
Specifications
| Item Model Number | AC-OP-1 |
|---|---|
| Pressure Ratio | 3:1 |
| Max Fluid Pressure | 348 PSI / 24 Bar |
| Approx. Flow Rate | 4.8 GPM / 18 LPM |
| Air Inlet Pressure | 72.5-116 PSI / 5-8 Bar |
| Air Consumption | 3.9-16.6 CFM |
| Mounting Thread | 2" BSPP Male Thread |
| Suction Tube Type | 3-Section |
| Suction Tube Size | 1.7" / 42 mm OD, 38.6" / 980 mm overall length |
|---|---|
| Air Inlet Size | 1/4" |
| Fluid Outlet Size | 1/2" FNPT |
| Material | Aluminum pump body + steel suction tube |
| Compatible Drum Size | 15-55 gallon |
Warranty
This item comes with a 1 year factory warranty.
