Vevor Double Diaphragm Pump Air Operated 75 GPM 120 PSI Aluminum Alloy Body 2" Inlet/Outlet New

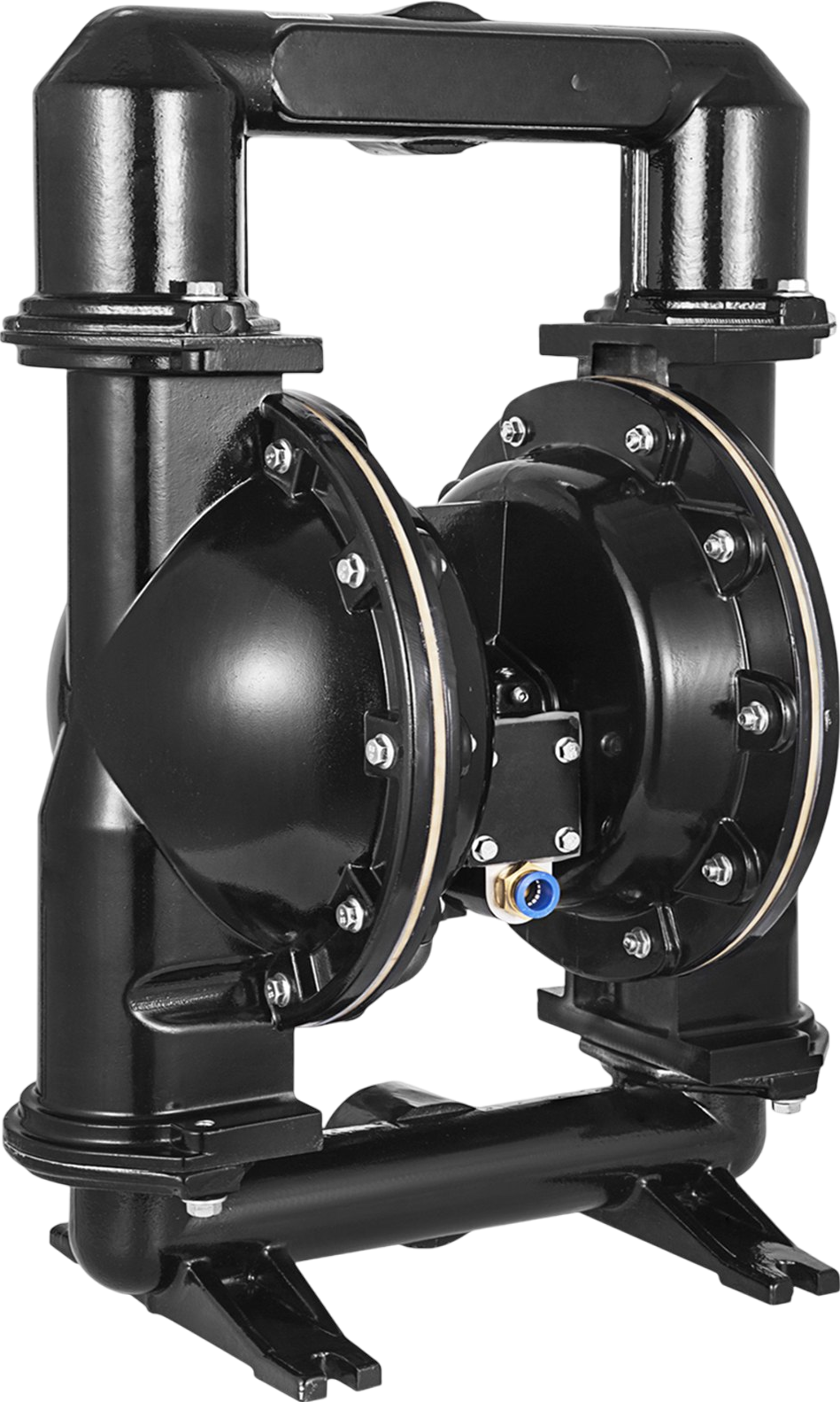

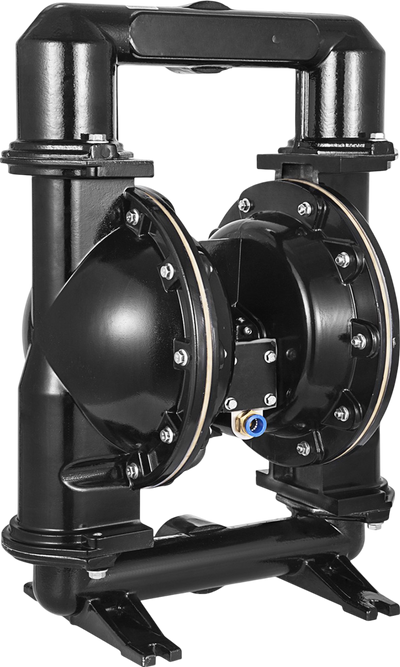

Product Overview
The VEVOR 2-inch diaphragm pump is designed for exceptional performance and durability. It features robust double nitrile diaphragms that resist rust and chemicals, ensuring reliable operation across various liquids. The pump can handle high pressure, up to 120 psi, and can move up to 75 gallons of liquid every minute. It can also lift liquids to 275.6 feet high, so it's great for moving fluids over long distances or to high places.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

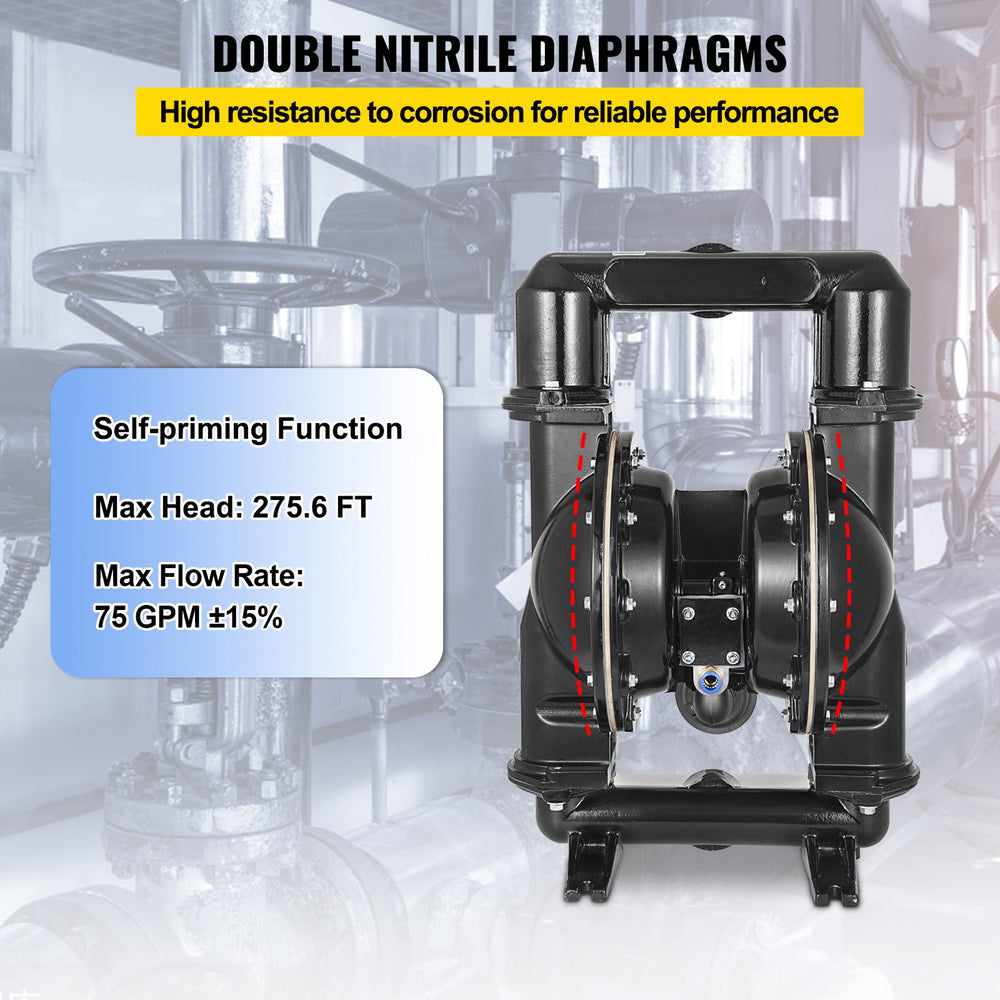

- Premium Double Nitrile Diaphragms: Our air-operated double diaphragm pump adopts nitrile diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 120 psi; Max. Flow Rate：75 GPM; Max Head Lift：275.6 ft/84 m.

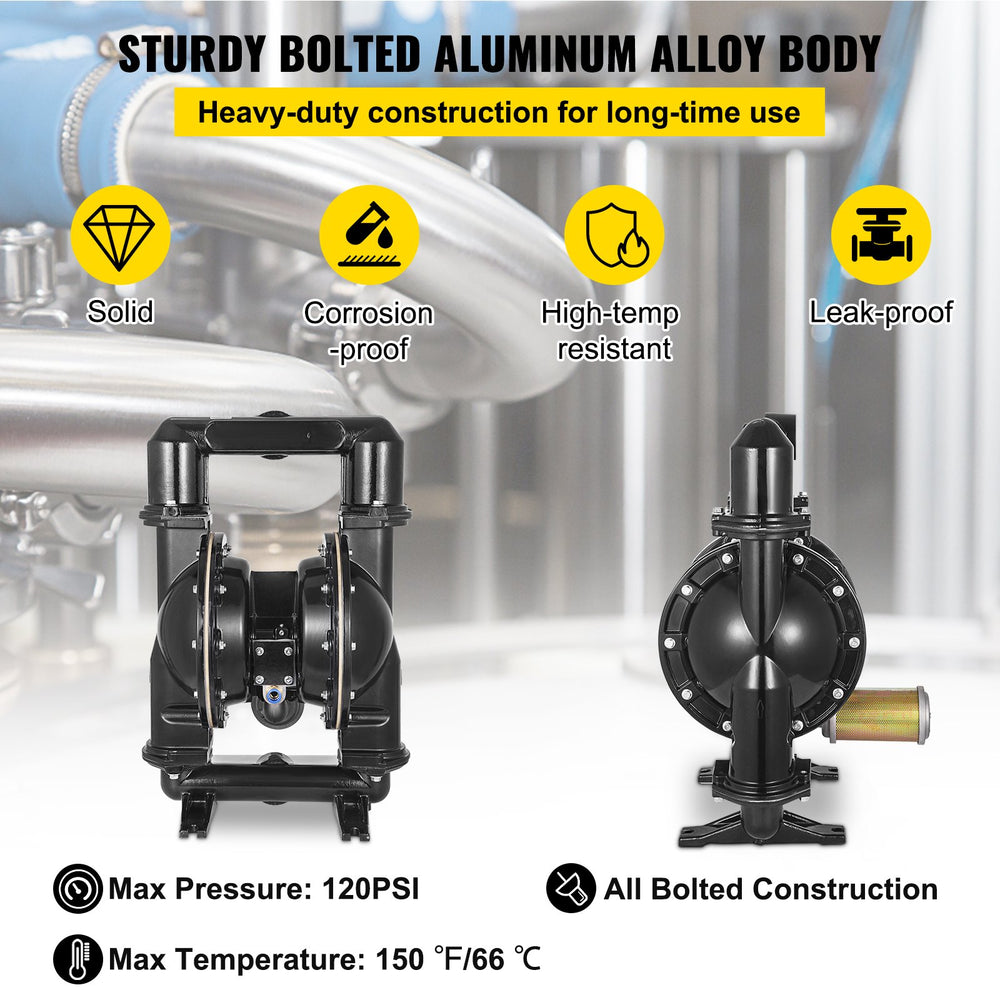

- Sturdy & Leak-proof Construction: The diaphragm pump housing is made of aluminum alloy material, bolted against leakage, sturdy, and corrosion-proof for long-time use.

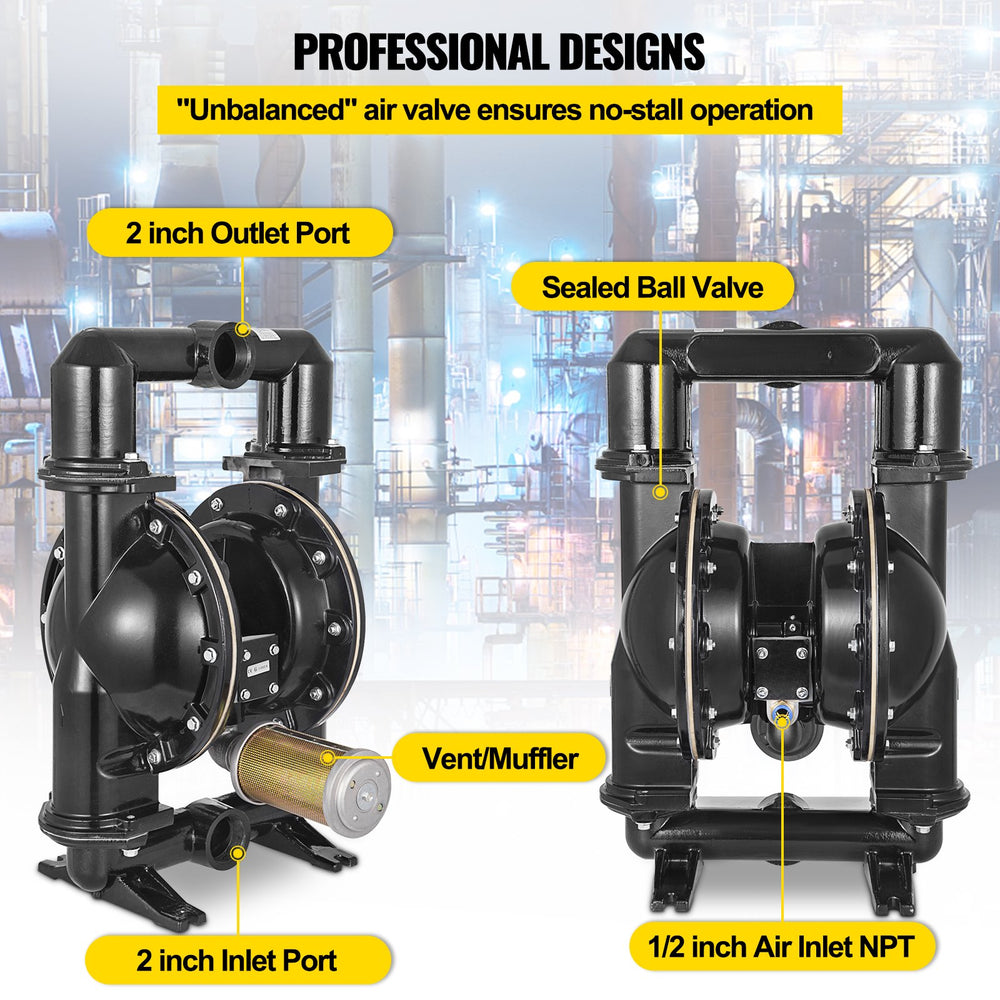

- Excellent Air-operated Performance: Inlet/Outlet Port Size: 2 inch; Air Inlet Size: FNPT 1/2 inch. A high-quality glyd ring, the double-acting sealing, strengthens air performance.
- Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime.
- Wide Applications: This diaphragm pump can handle various fluids, such as waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drink, and so on. It is widely used in many industries, such as petroleum, metallurgy, mining, coating, printing, water treatment, and automobile.

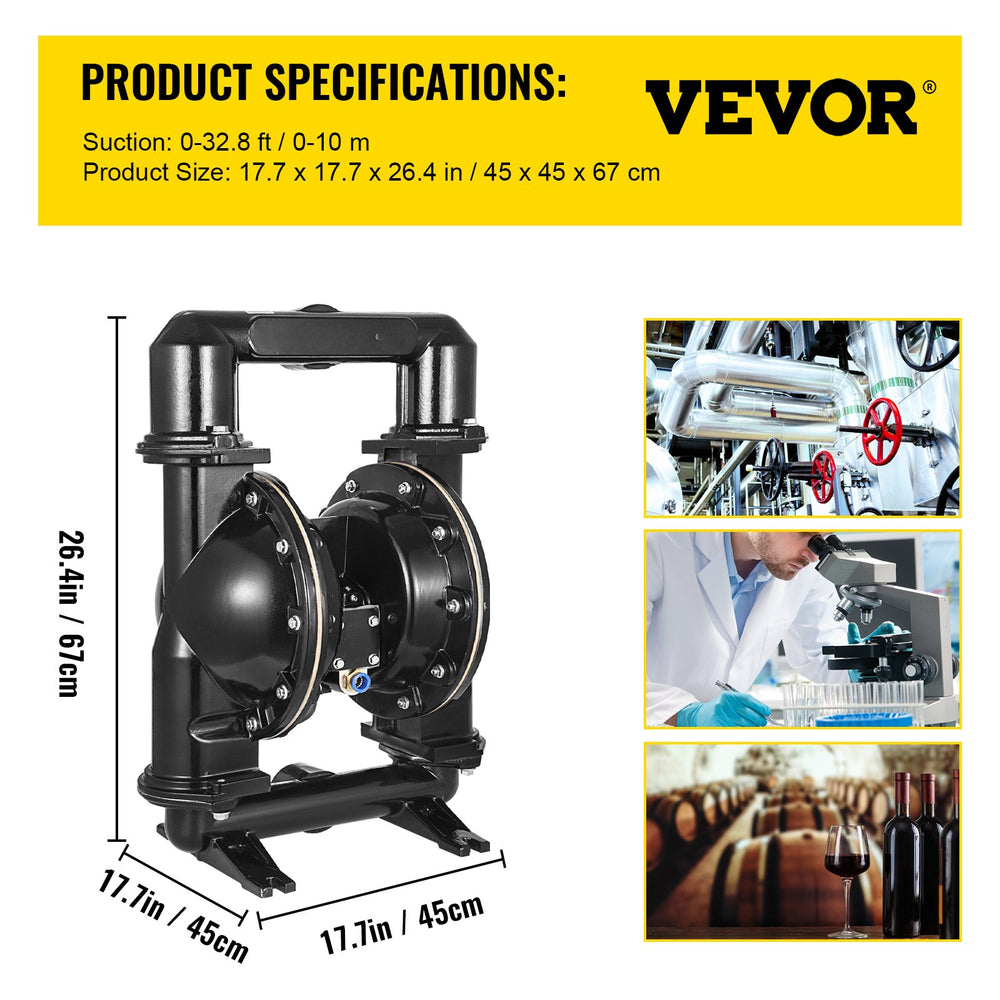

Specifications
| Item Model # | QBY4-50L |
| Type | Air-operated Double diaphragm |
| Diaphragm Material | Nitrile |
| Body Material | Aluminum Alloy |
| Inlet/Outlet Port | 2 inch (50 mm) |
| Air Inlet Size | NPT 1/2 inch (12.7 mm) |
| Max Flow Rate | 75 GPM |
| Max Head | 275.59 ft (84 m) |
| Valve Type | Ball |
| Suction | 0-16.4 ft (0-5 m) |
| Max Suspended Solids | 1/8 inch (3 mm) |
| Average Air Consumption | 38 CFM |
| Self-Priming Dry | 10 ft (3 m) |
| Self-Priming Wet | 15 ft (4.6 m) |
Package Contents
Vevor Double Diaphragm Pump Air Operated 75 GPM
User Manual
Warranty
This item comes with a 1 year factory warranty.
