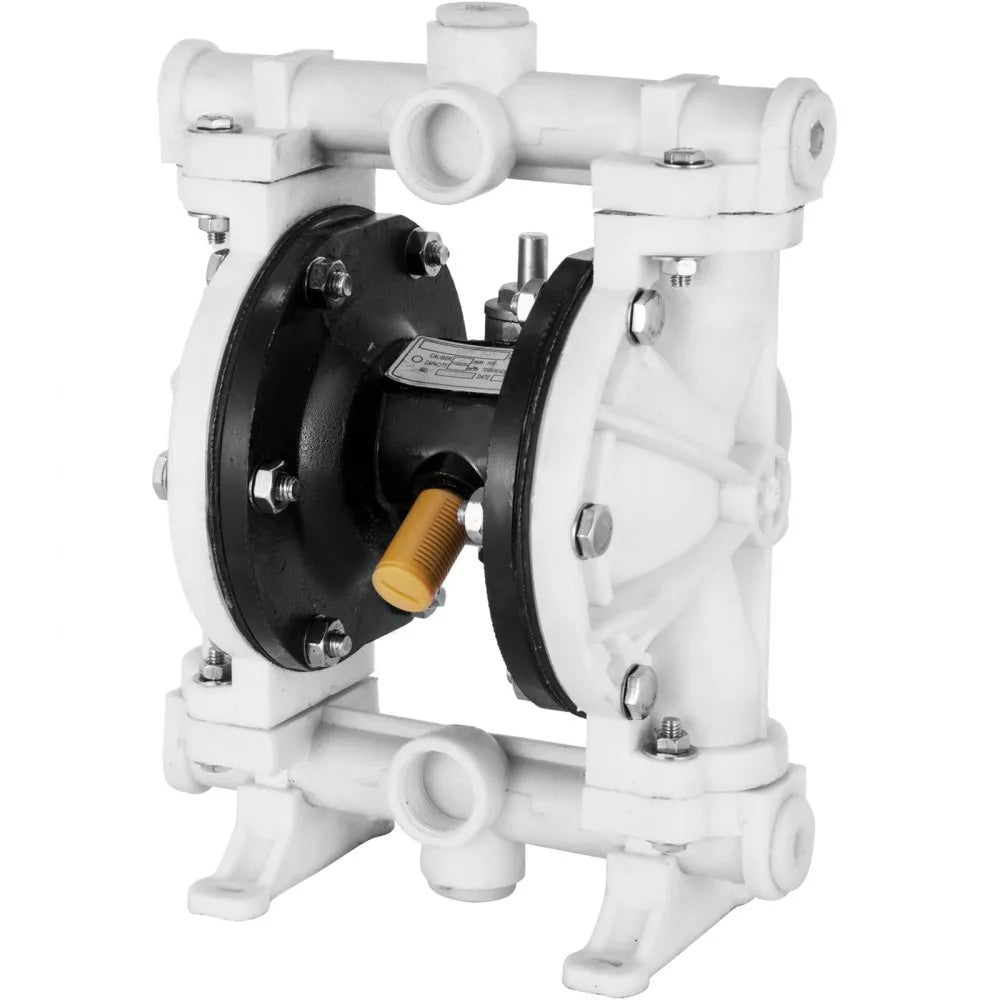

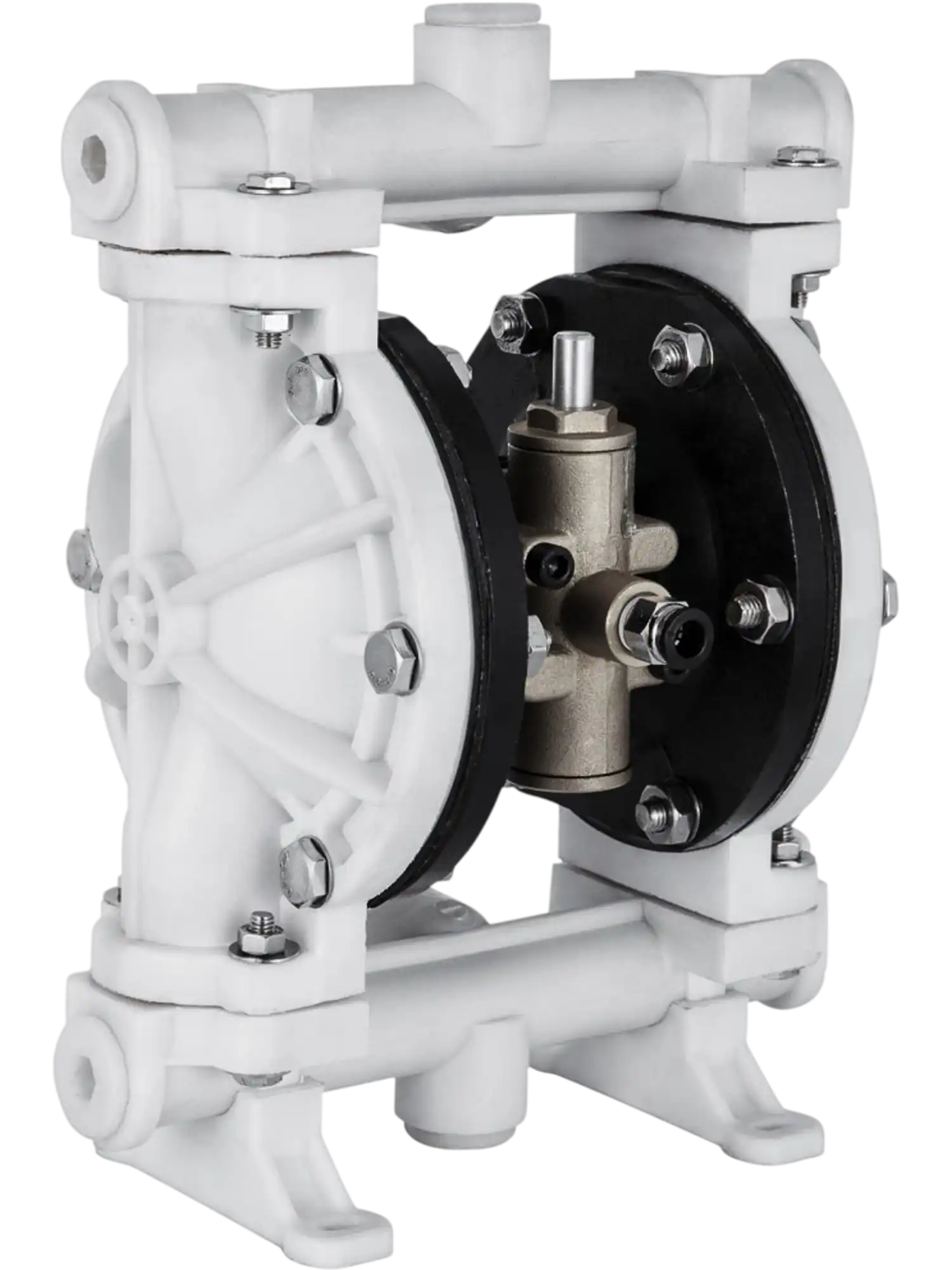

Vevor Diaphragm Pump Air-Operated Double PTFE 1/2" Pneumatic Transfer Pump New
Product Overview
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

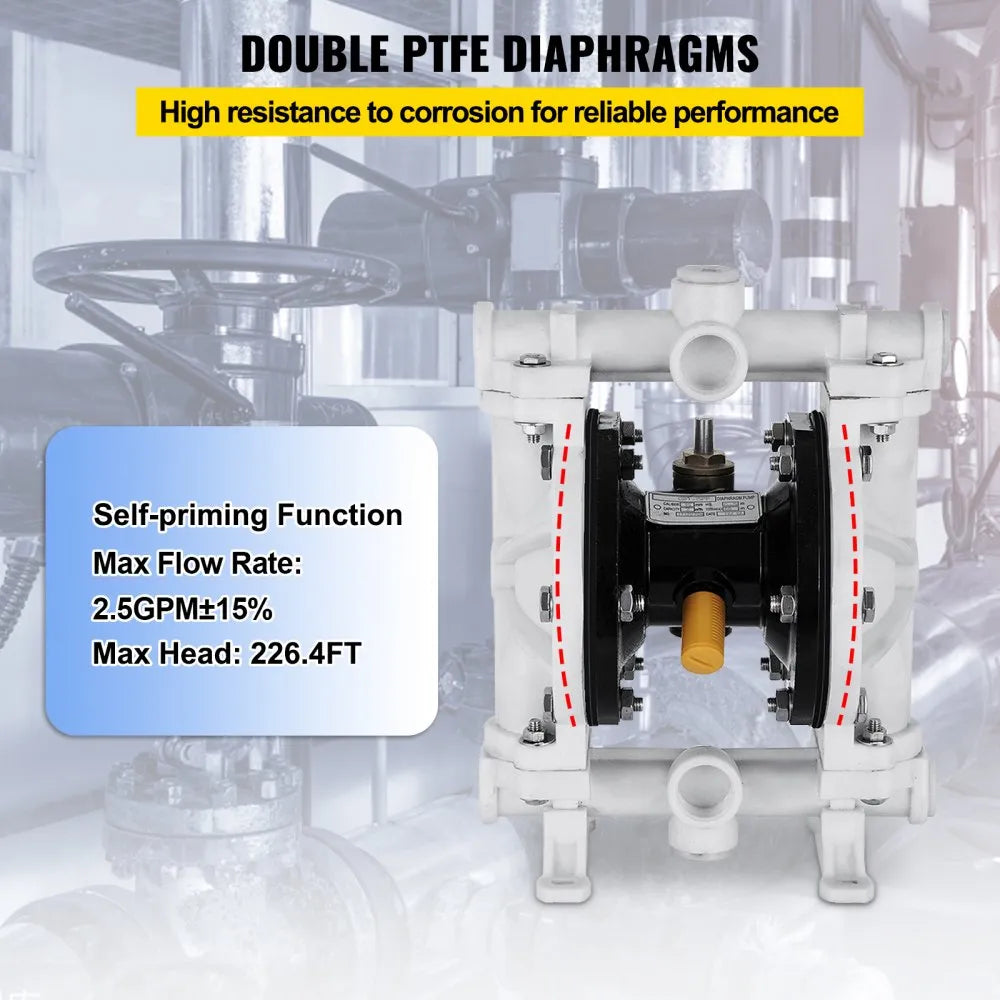

- Premium Double PTFE Diaphragms: Our air-operated double diaphragm pump adopts PTFE diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 80 psi; Max. Flow Rate：2.5 GPM; Max Head Lift：226.4 ft/69 m.

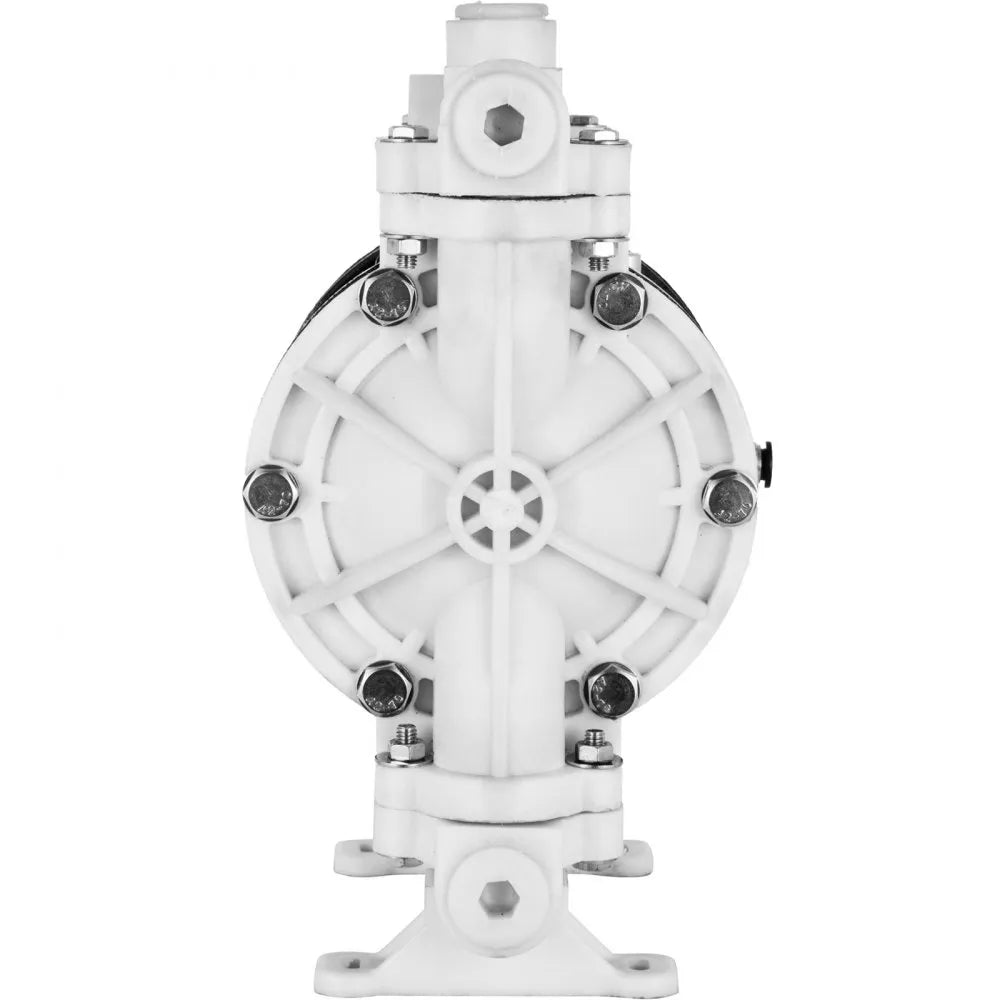

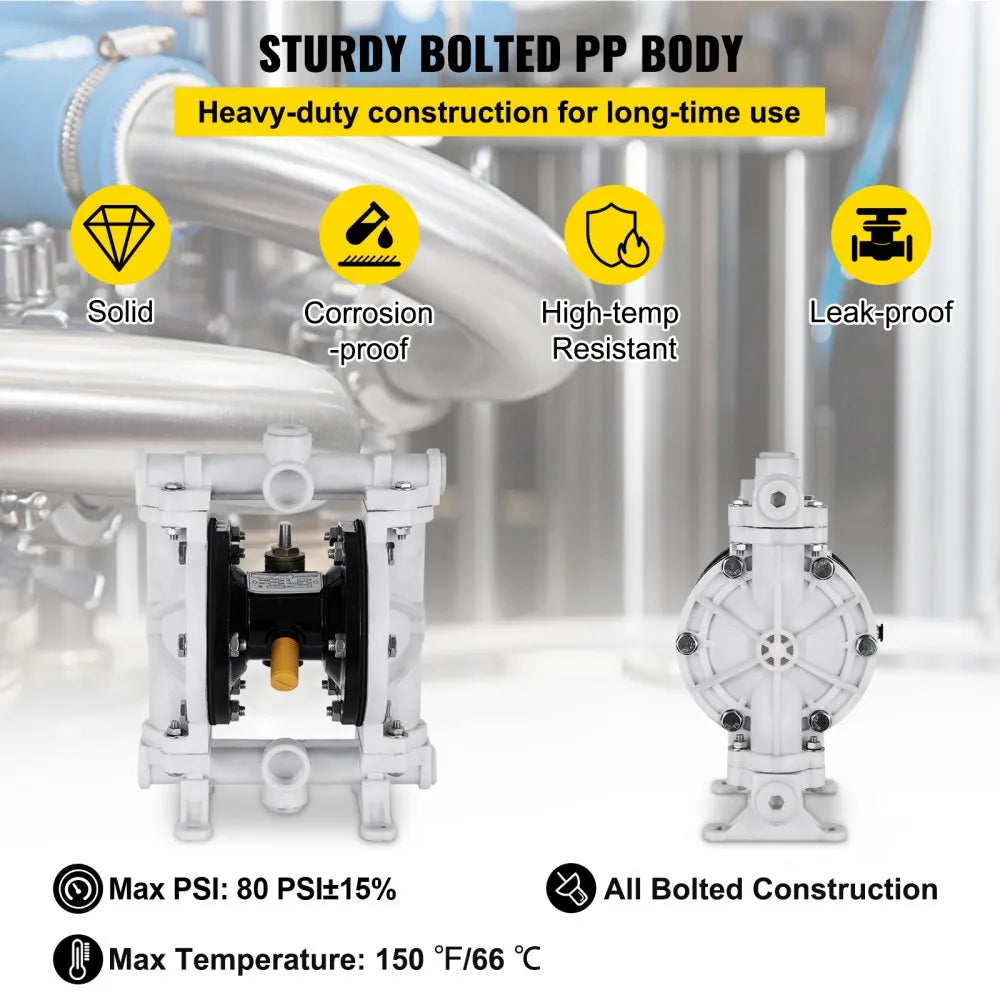

- Sturdy & Leak-proof Construction: The diaphragm pump housing is made of polypropylene material, bolted against leakage, sturdy, and corrosion-proof for long-time use.
- Excellent Air-operated Performance: Inlet/Outlet Port Size: 1/2 inch (12.7 mm); Air Inlet Size: FNPT 1/4 inch (6.35 mm). A high-quality glyd ring, the double-acting sealing, strengthens air performance.

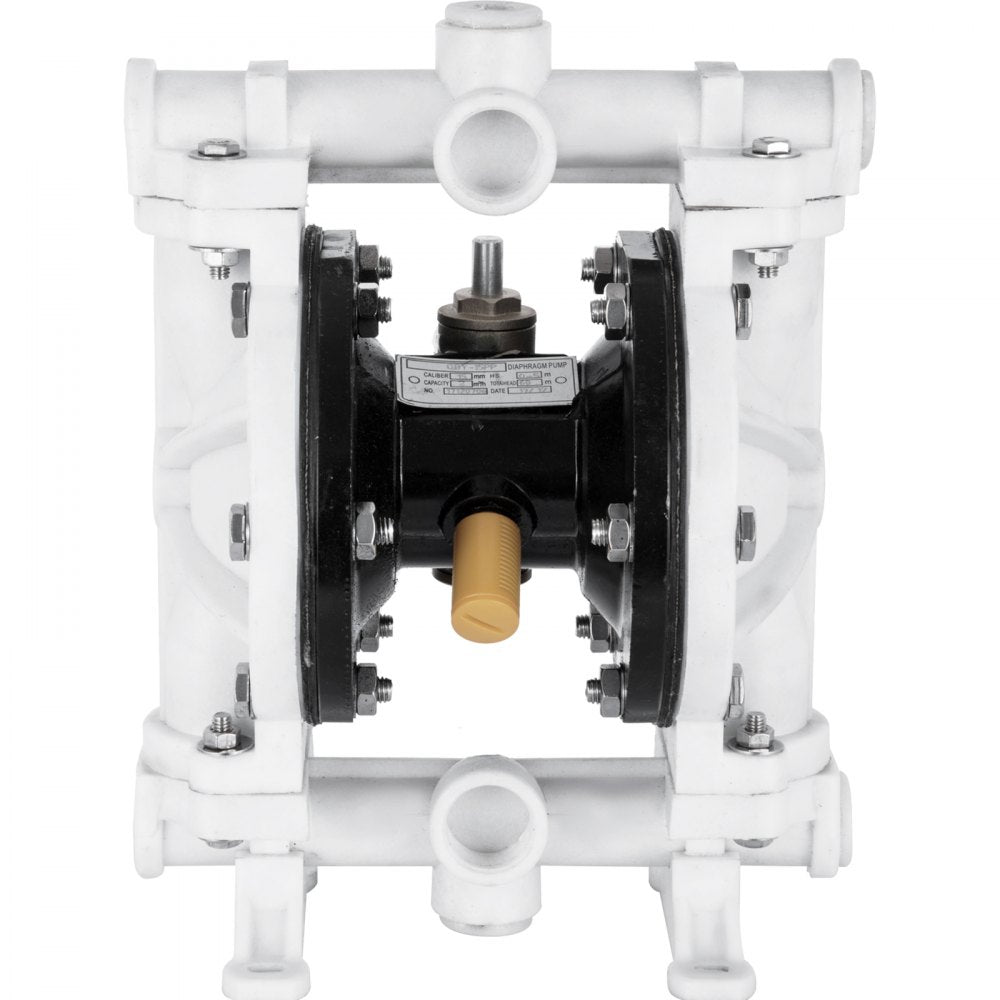

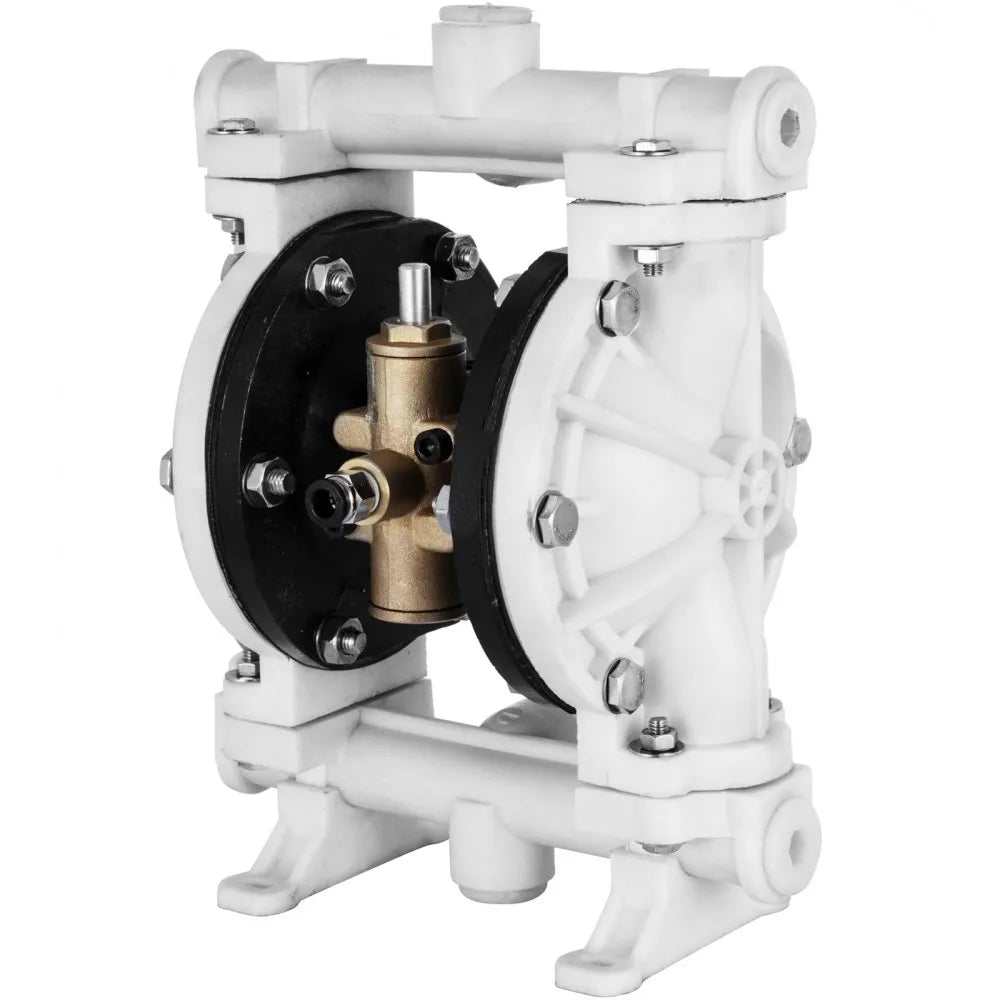

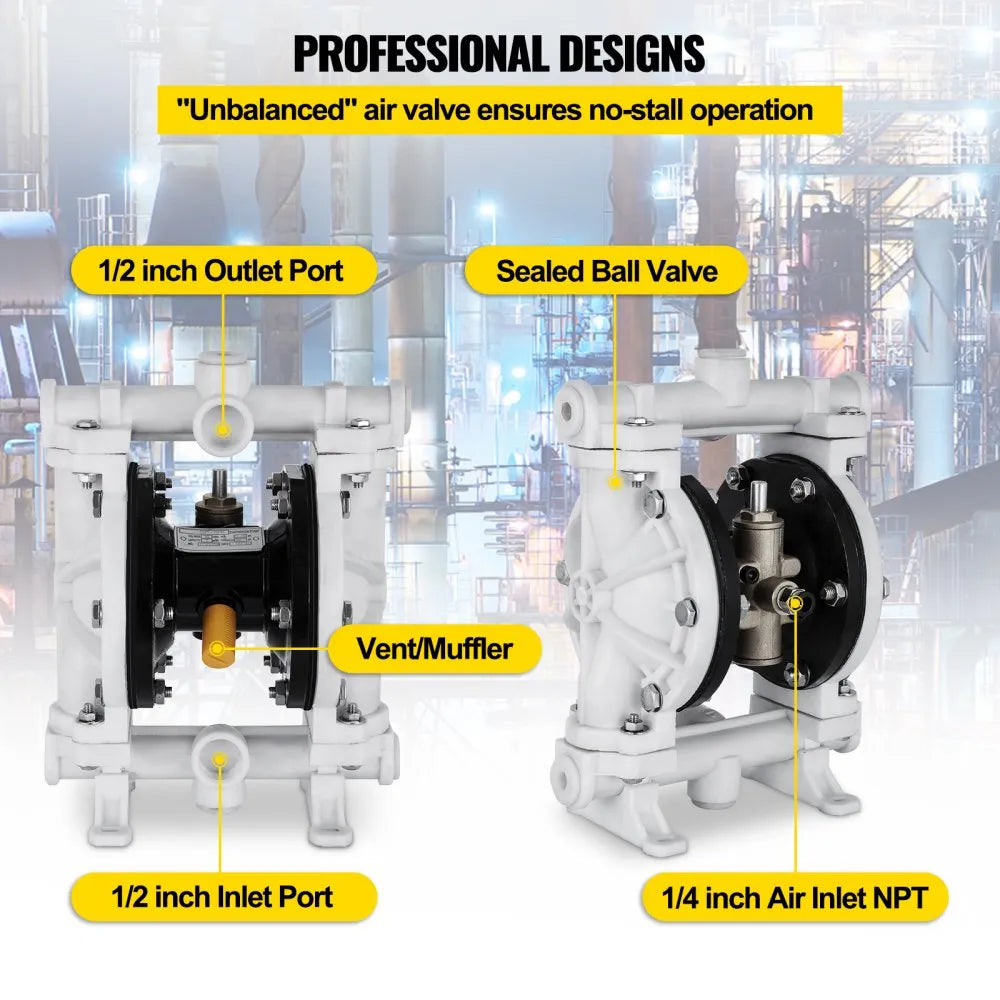

- Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime.

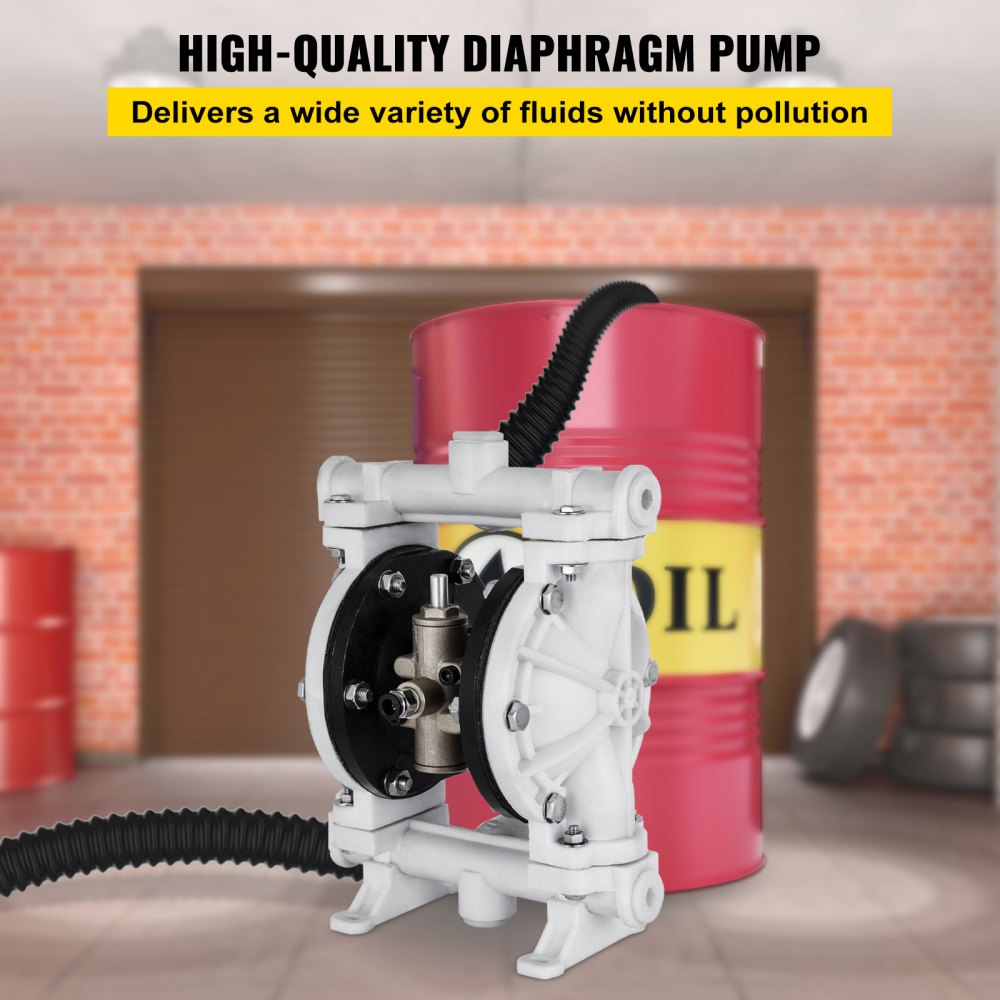

- Wide Applications: This diaphragm pump can handle various fluids, such as waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drink, and so on. It is widely used in many industries, such as petroleum, metallurgy, mining, coating, printing, water treatment, and automobile.
Specifications
| Model | QBY-15PP |
| Body Material | Polypropylene |
| Inlet Port | 1/2" 12.7 mm |
| Outlet Port | 1/2" 12.7 mm |
| Air Inlet Size | FNPT 1/4" 6.35 mm |
| Max Flow Rate | 2.5 GPM |
| Suction | 0-5 m 0-16.4' |
| Max Suspended Solids | 2.38 mm 3/32" |
| Max Head | 69 m 226.4' |
| Max PSI | 80 psi |
| Temperature Rating | -20°F to 150°F |
| Self-Priming Dry | 3 m 10' |
| Self-Priming Wet | 4.6 m 15' |
| Ball Material | Santoprene |

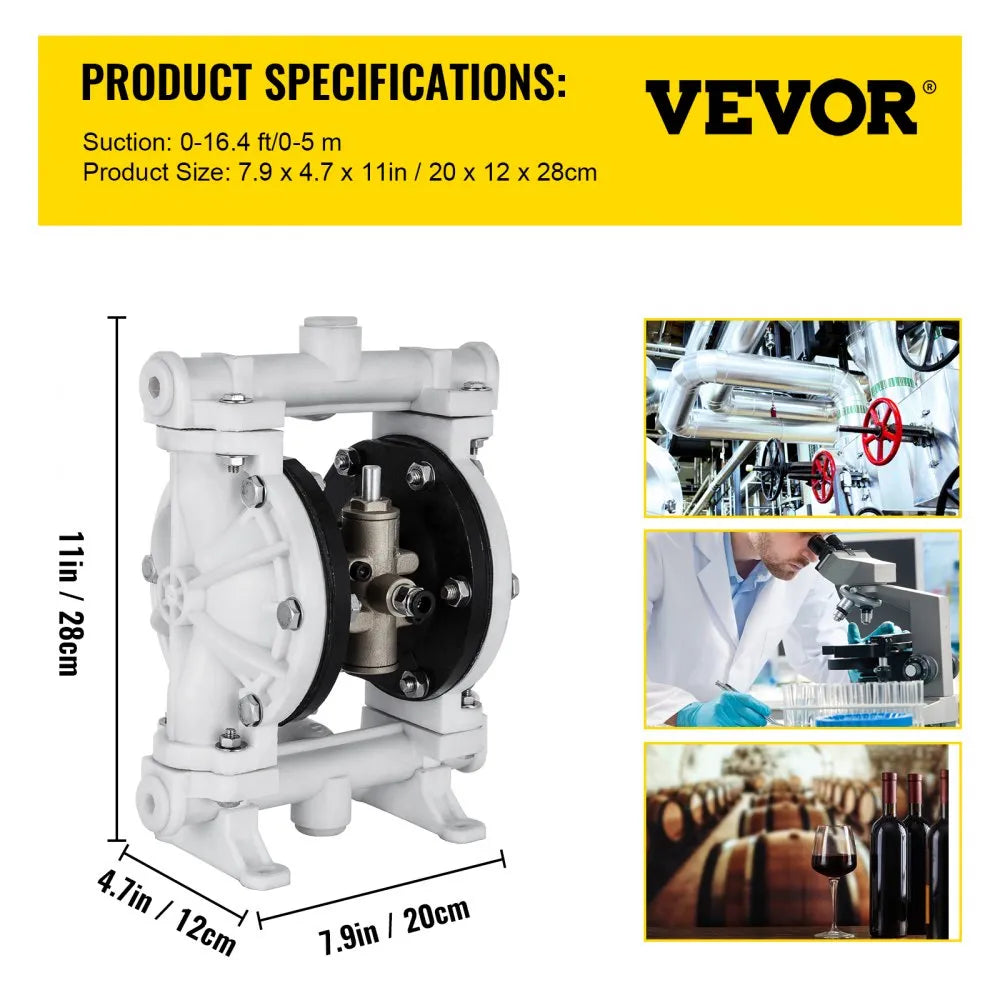

| Dimensions | 11" x 4.7" x 7.9" |
Package Contents
1 x Air-Operated Double Diaphragm Pump
1 x Product Manual
Warranty
This item comes with a 1 year factory warranty.
