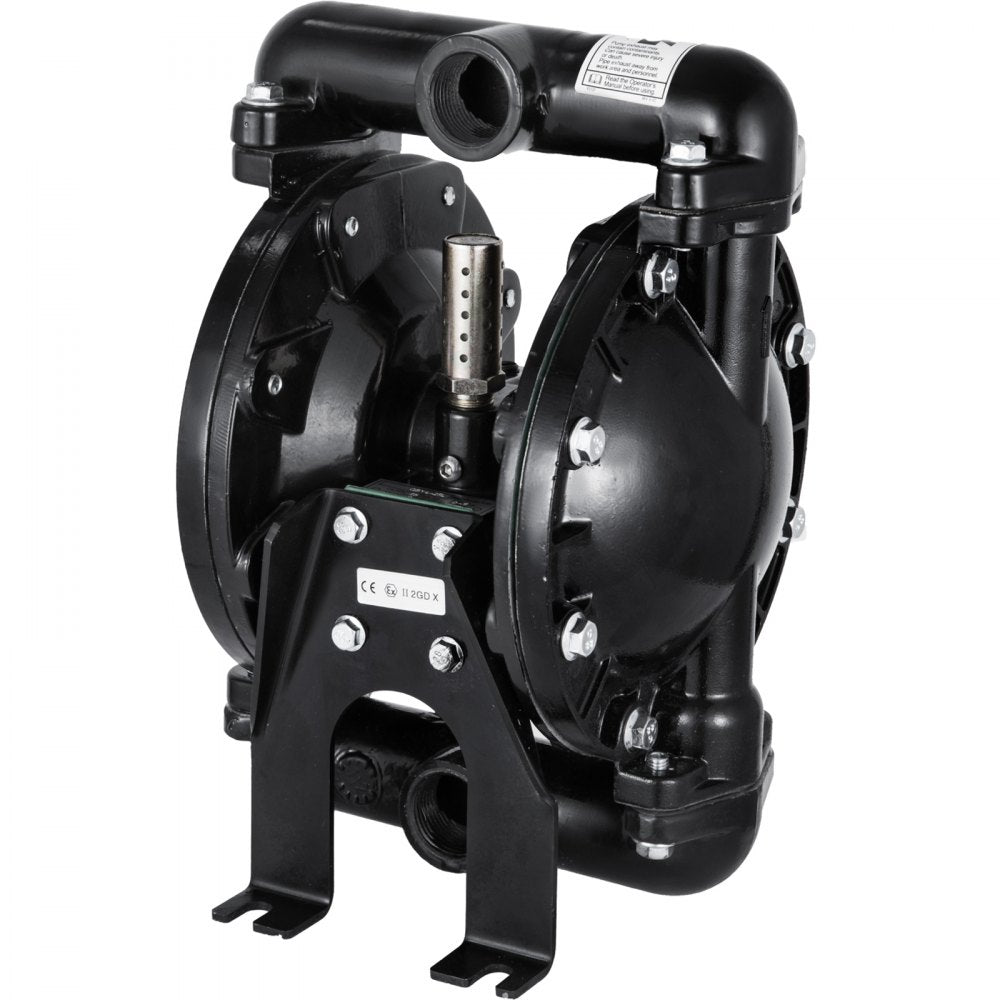

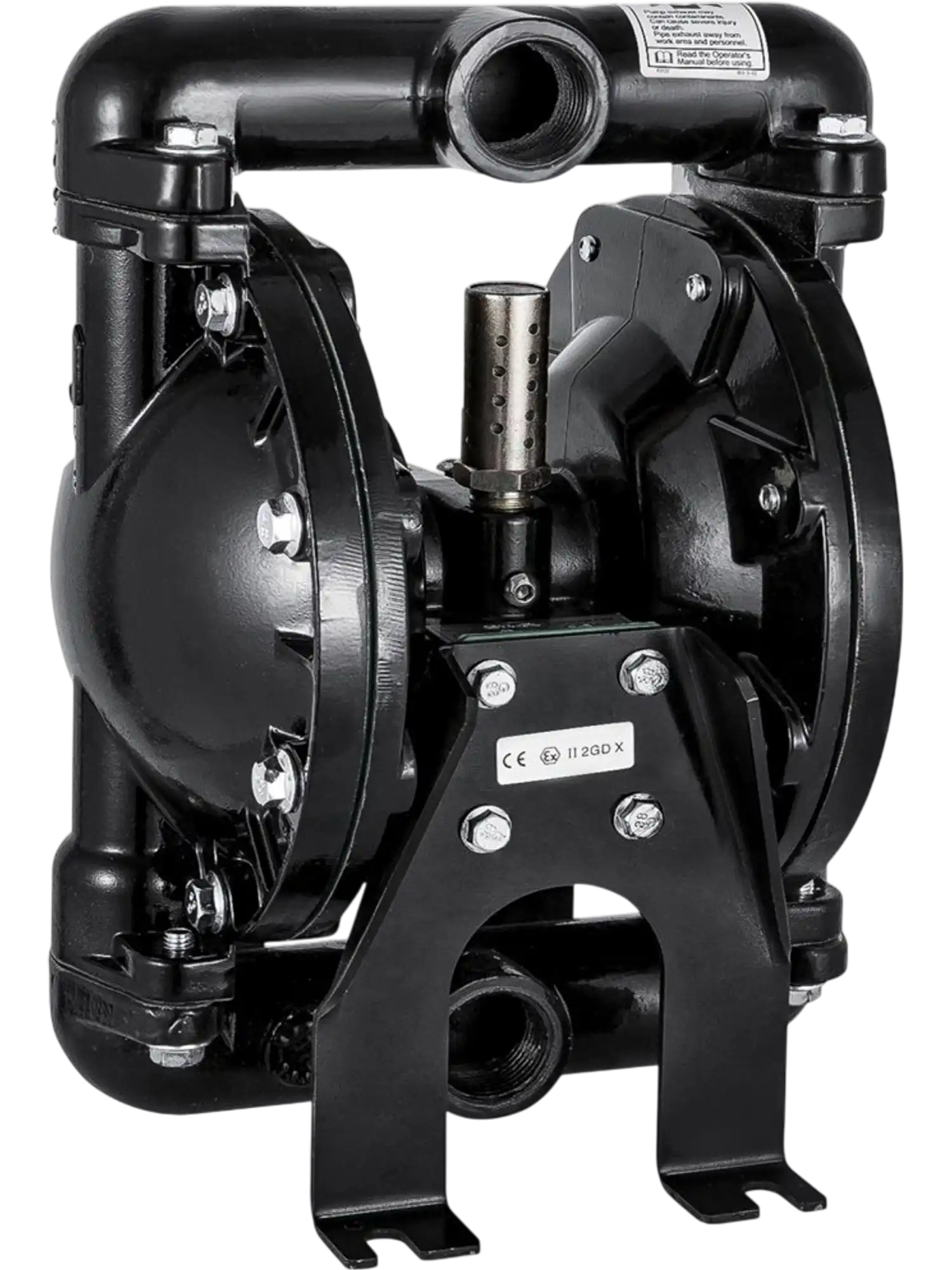

Vevor Diaphragm Pump Air-Operated Double 1" Aluminum 24 GPM New
Manufacturer: Vevor
SKU: YBGMBQBY4-25LF461V0
Diaphragm Material Options
Flow Rate Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$217.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor Fuel Transfer Pump Kit 12V 10 GPM DC with Automatic Shut-Off Nozzle Hose New
-
Vevor Transmission Fluid Pump 10L ATF Refill System Dispenser New
-
Vevor Fuel Transfer Pump 12V 10 GPM Portable Electric Diesel Pump with Auto Shut-Off Nozzle Carry...
-
Vevor Fuel Transfer Pump 20 GPM 1/4 HP with Manual Nozzle 12V DC New
-
Vevor Fluid Extractor 9.5 L Manual Vacuum Oil Pump New
-
Vevor Fuel Nozzle Automatic Shut-Off 1" NPT 21.6 GPM Gas Diesel Kerosene New
-
Vevor Oil Transfer Pump 110V 16 GPM Electric Fuel Transfer for Diesel Kerosene Biodiesel New
-
Vevor Rolling Oil Drain Pan Low Profile 15 Gal. Capacity with Electric Pump New
-
Vevor Fluid Extractor 4 Gallon 15L Pneumatic Manual Oil Changer Vacuum Pump New
-
Vevor Fluid Extractor 1500cc Manual Oil Change Pump New
-
Vevor Fuel Transfer Pump with Fuel Collection Box 20 GPM 12V DC New
-
Vevor Fuel Transfer Pump 12V DC 15 GPM Cast Iron Diesel Transfer Pump Kit New
-
Vevor Air-Operated Double Diaphragm Pump 100 PSI 22 GPM 275.6' Head Lift New
-
Vevor Retractable Hose Reel 1" x 50' 300 PSI 1" NPT Automatic Nozzle New
-
Vevor Fluid Extractor 1.74 Gal 6.5 L Manual Hand-Operated Oil Changer Vacuum Pump New
-
Vevor Fuel Transfer Pump with Automatic Nozzle 16GPM 12V DC New
-
Vevor Retractable Hose Reel 3/4" x 50' 300 PSI 3/4" NPT Automatic Nozzle New
-
Vevor Hose Reel Retractable 1" x 33' 300 PSI 1" NPT Automatic Nozzle New
-
Vevor Oil Drain Tank 20 Gallon Portable Air Operated Waste Oil Drainer New
Vevor Diaphragm Pump Air-Operated Double 1" Aluminum 24 GPM New
Product Overview

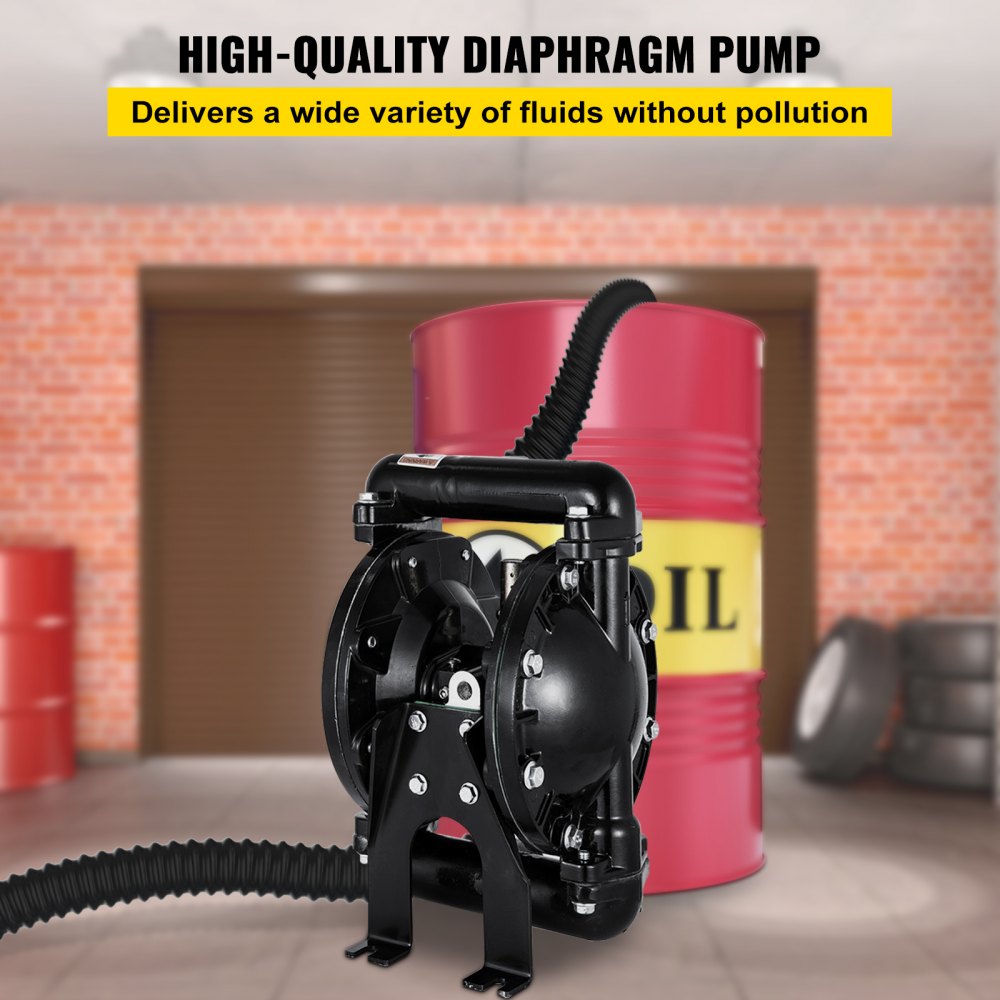

The Vevor air-operated double diaphragm pump is built for industrial fluid transfer with a corrosion-resistant aluminum alloy body and durable PTFE diaphragms. It delivers up to 24 GPM flow and supports applications involving waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, and drinking water. Its bolted leak-resistant construction and sealed ball valve design help provide reliable, continuous operation. The compact air-powered design is suited for petroleum, mining, coating, water treatment, automotive, and other industrial environments.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

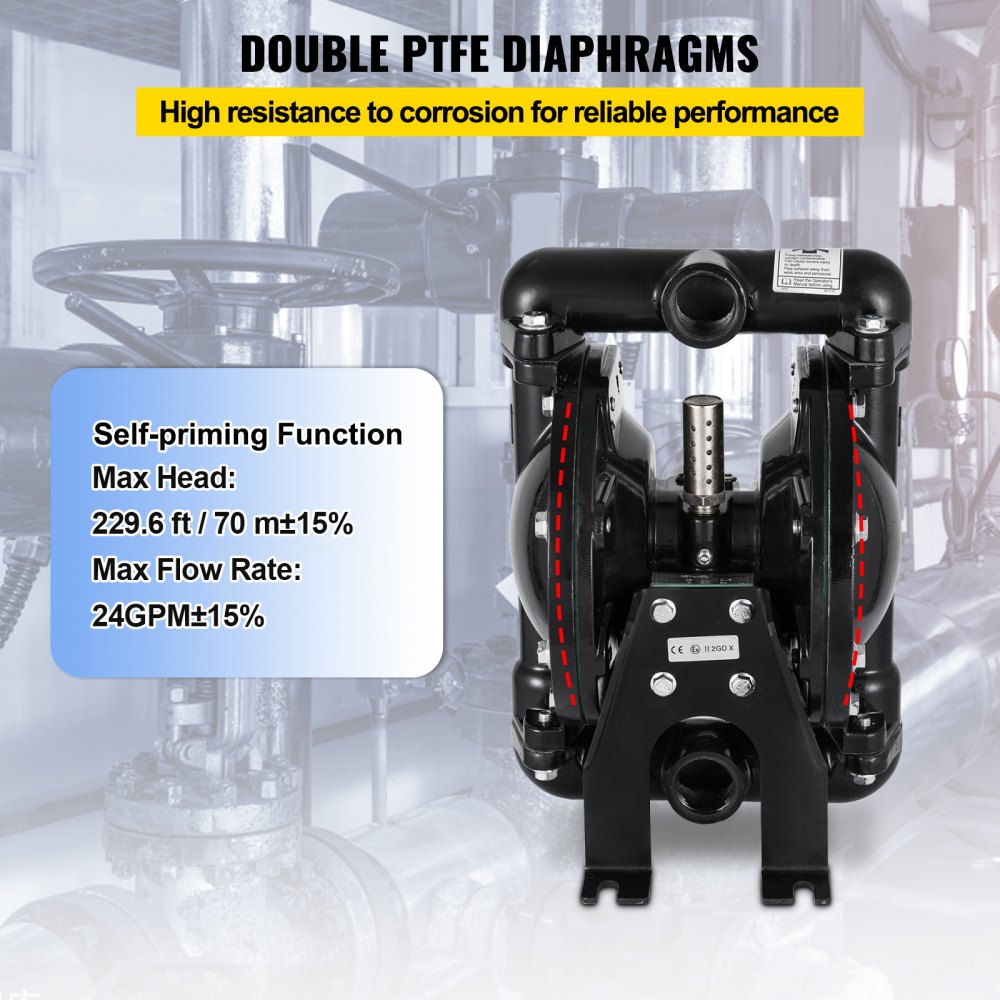

- Premium Double PTFE Diaphragms: Our air-operated double diaphragm pump adopts PTFE diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 100 psi; Max. Flow Rate: 24 GPM; Max Head Lift: 229.6 ft/70 m±15%.

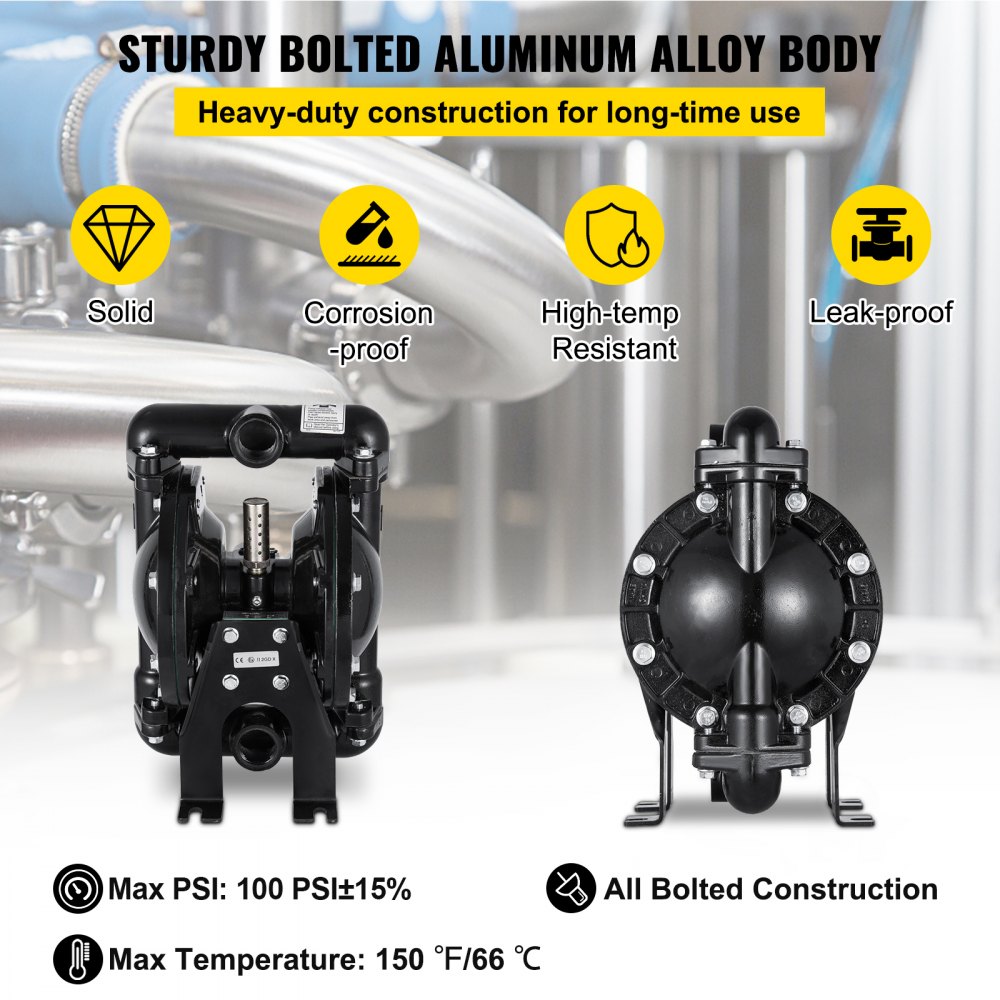

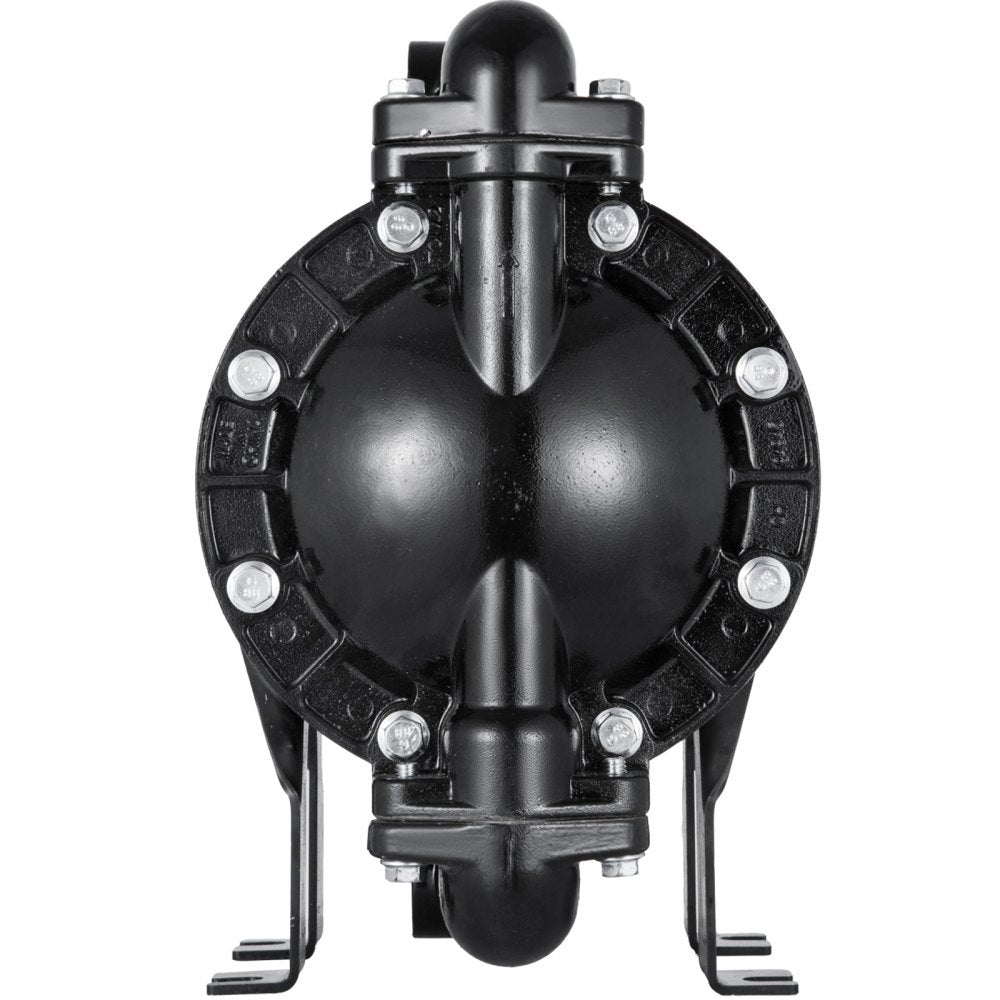

- Sturdy & Leak-proof Construction: The diaphragm pump housing is made of aluminum alloy material, bolted against leakage, sturdy, and corrosion-proof for long-time use.

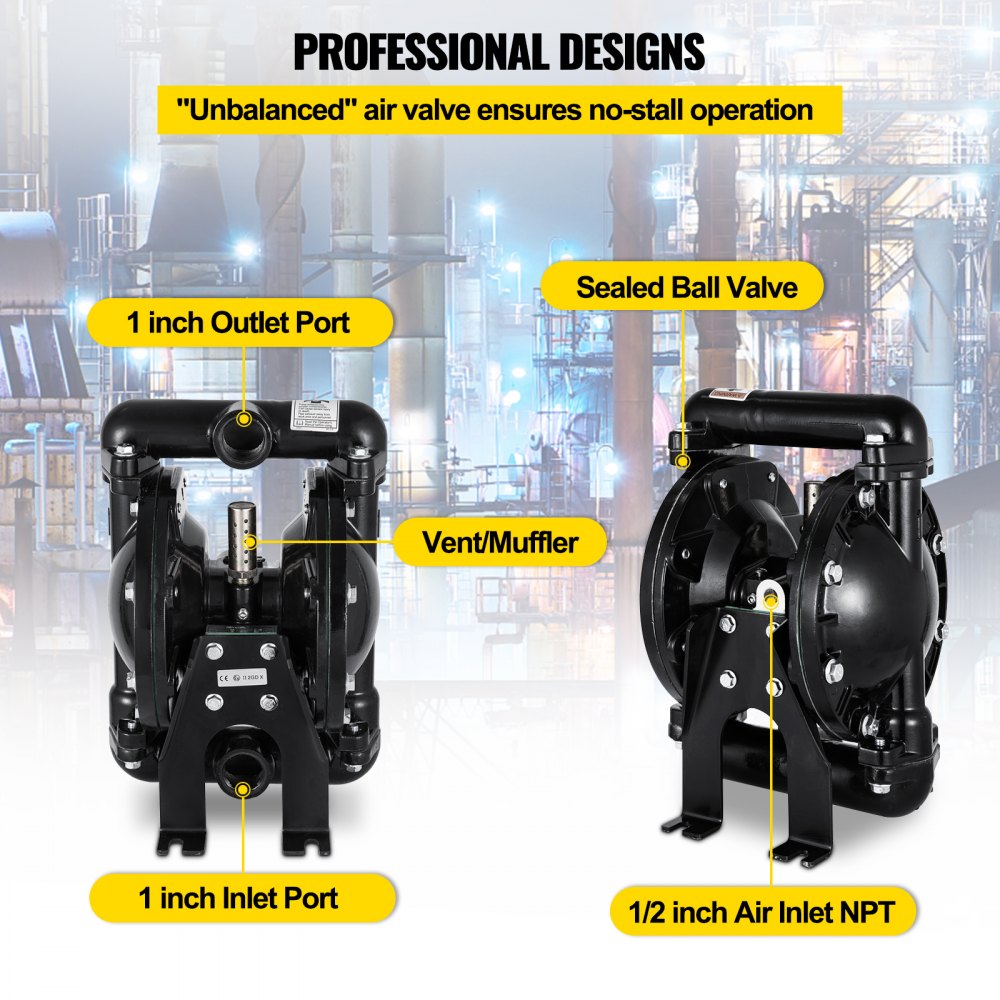

- Excellent Air-operated Performance: Inlet/Outlet Port Size: 1 inch; Air Inlet Size: FNPT 1/2 inch. A high-quality glyd ring, the double-acting sealing, strengthens air performance.
- Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime.
- Wide Applications: This diaphragm pump can handle various fluids, such as waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drink, and so on. It is widely used in many industries, such as petroleum, metallurgy, mining, coating, printing, water treatment, and automobile.

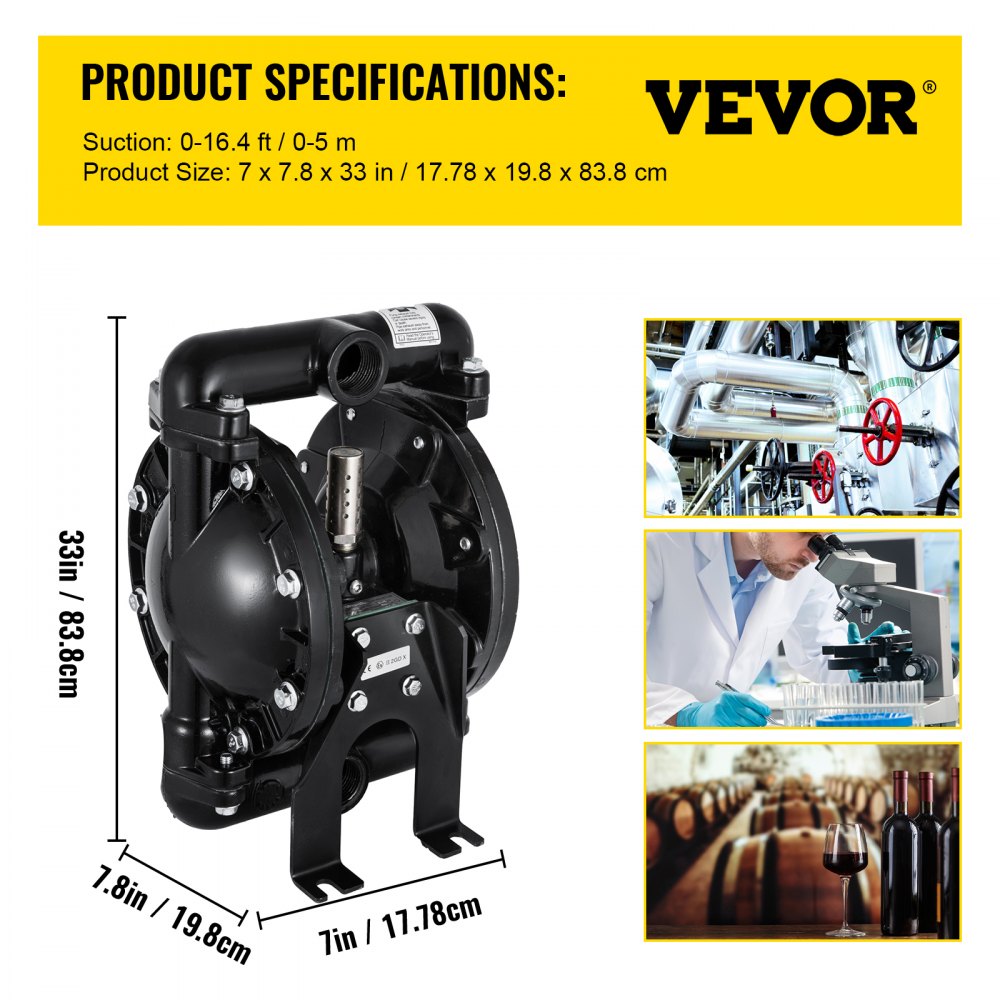

Specifications
| Model | QBY4-25L F46 |
| Type | Air-operated Double diaphragm |
| Diaphragm Material | PTFE |
| Body Material | Aluminum Alloy |
| Inlet/Outlet Port | 1" (25 mm) |
| Air Inlet Size | NPT 1/2" (12.7 mm) |
| Max Flow Rate | 24 GPM |
| Max Head | 229.6' / 70 m ±15% |
| Valve Type | Ball |
| Suction | 0-5 m (0-16.4') |
| Max Suspended Solids | 3 mm (1/8") |
| Average Air Consumption | 38 CFM |
| Self-Priming Dry | 3 m (10') |
| Self-Priming Wet | 4.6 m (15') |
Package Contents
1 x Air-Operated Double Diaphragm Pump
1 x Product Manual
Warranty
This item comes with a 1 year factory warranty.
