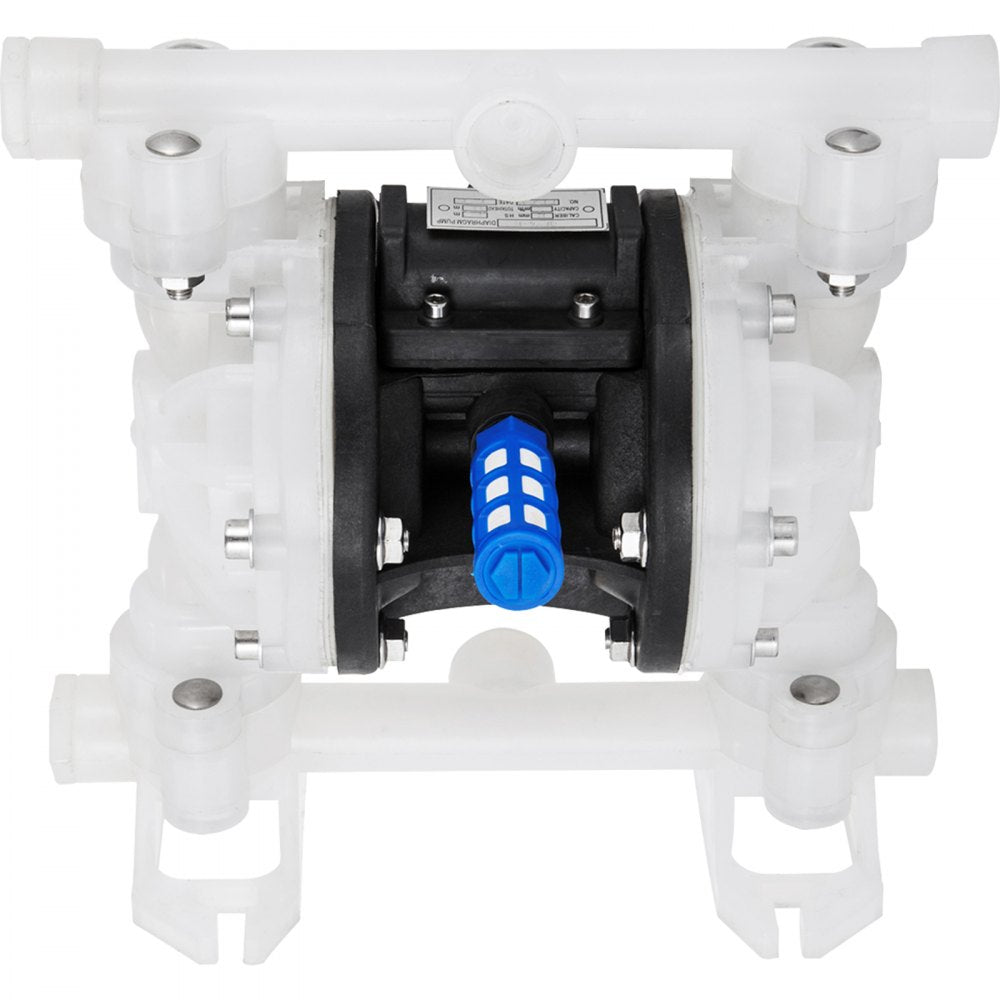

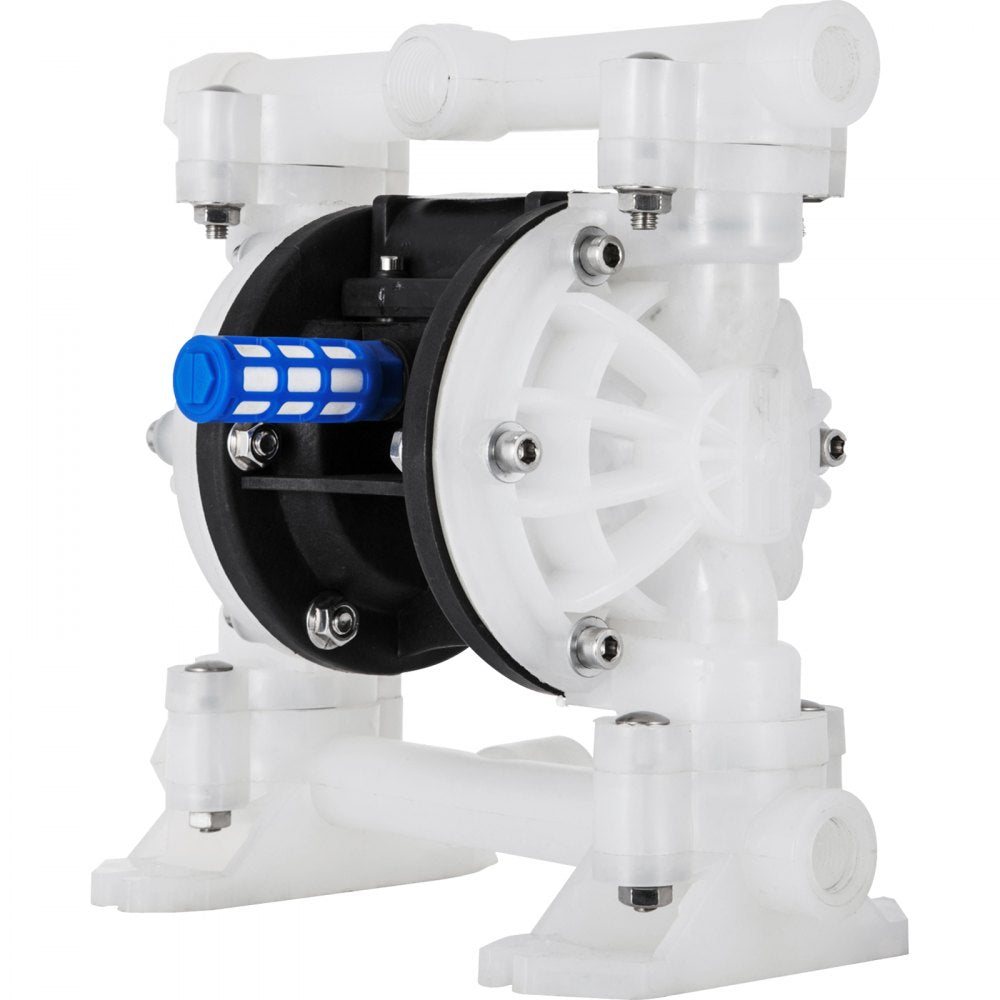

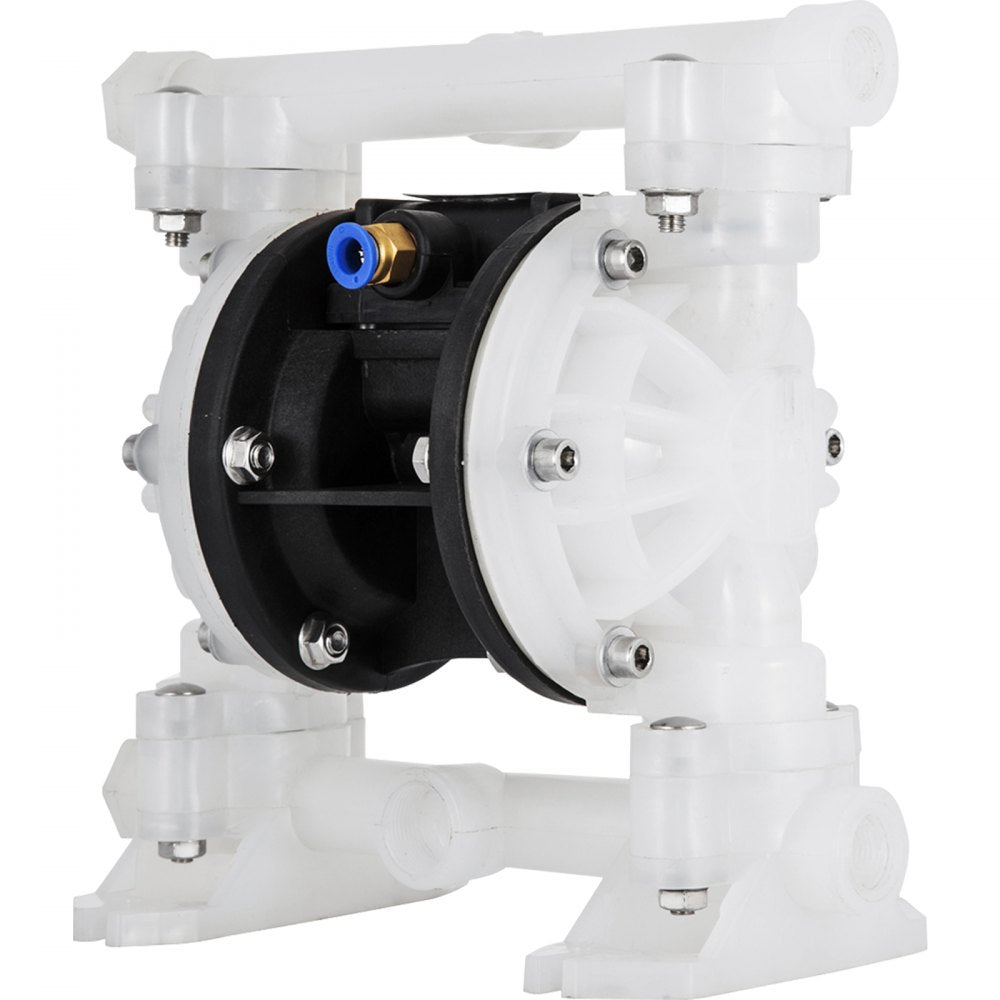

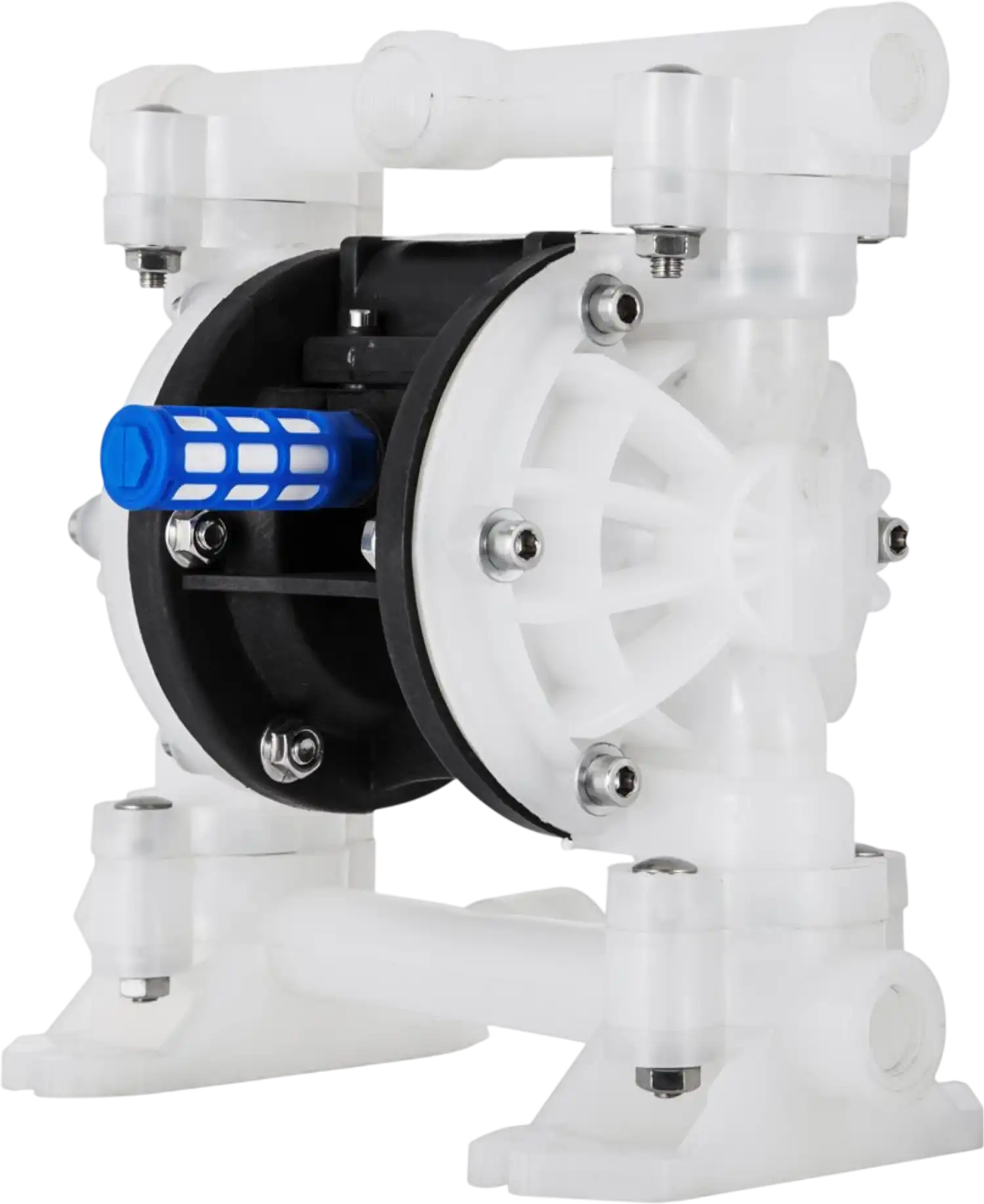

Vevor Diaphragm Pump Air-Operated Double 1/2" Inlet & Outlet Polypropylene Body 8.8 GPM PTFE New
Manufacturer: Vevor
SKU: YBGMBQBY4-1500001V0
Flow Rate Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$181.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor Water Pump 12V Diaphragm 5 GPM 5-Chamber with Pressure Switch New
-
Vevor Air-Operated Double Diaphragm Pump 100 PSI 22 GPM 275.6' Head Lift New
-
Vevor Fluid Extractor 1.74 Gal 6.5 L Manual Hand-Operated Oil Changer Vacuum Pump New
-
Vevor Retractable Hose Reel 1" x 50' 300 PSI 1" NPT Automatic Nozzle New
-
Vevor Fuel Transfer Pump with Automatic Nozzle 20 GPM 12V DC New
-
Vevor Transmission Fluid Pump 3 L Manual Fluid Transfer Pump New
-
Vevor Oil Drain Pan Low Profile 20 Gallon Rolling Oil Drain Pan with Electric Pump 7.2' Hose Whit...
-
Vevor Fluid Extractor 1.74 Gallon Pneumatic Manual Oil Changer Vacuum Pump New
-
Vevor Drum Pump Lever-Action Barrel Pump for 5-55 Gallon Drums New
-
Vevor Fuel Transfer Pump Kit 10 GPM with Auto Shut-Off Nozzle 12V DC New
-
Vevor Transmission Fluid Pump 10L ATF Refill System Dispenser New
-
Vevor Fuel Transfer Pump Kit 12V 10 GPM DC with Automatic Shut-Off Nozzle Hose New
-
Vevor Fluid Extractor 4 Gallon 15L Pneumatic Manual Oil Changer Vacuum Pump New
-
Vevor Hose Reel Retractable 1" x 33' 300 PSI 1" NPT Automatic Nozzle New
-
Vevor Rolling Oil Drain Pan Low Profile 15 Gal. Capacity with Electric Pump New
-
Vevor Retractable Hose Reel 3/4" x 50' 300 PSI 3/4" NPT Automatic Nozzle New
-
Vevor Fuel Transfer Pump 12V DC 15 GPM Cast Iron Diesel Transfer Pump Kit New
-
Vevor Fluid Extractor 9.5 L Manual Vacuum Oil Pump New
-
Vevor Fuel Transfer Pump with Automatic Nozzle 16GPM 12V DC New
-
Vevor Oil Drain Tank 20 Gallon Portable Air Operated Waste Oil Drainer New
Vevor Diaphragm Pump Air-Operated Double 1/2" Inlet & Outlet Polypropylene Body 8.8 GPM PTFE New
Product Overview

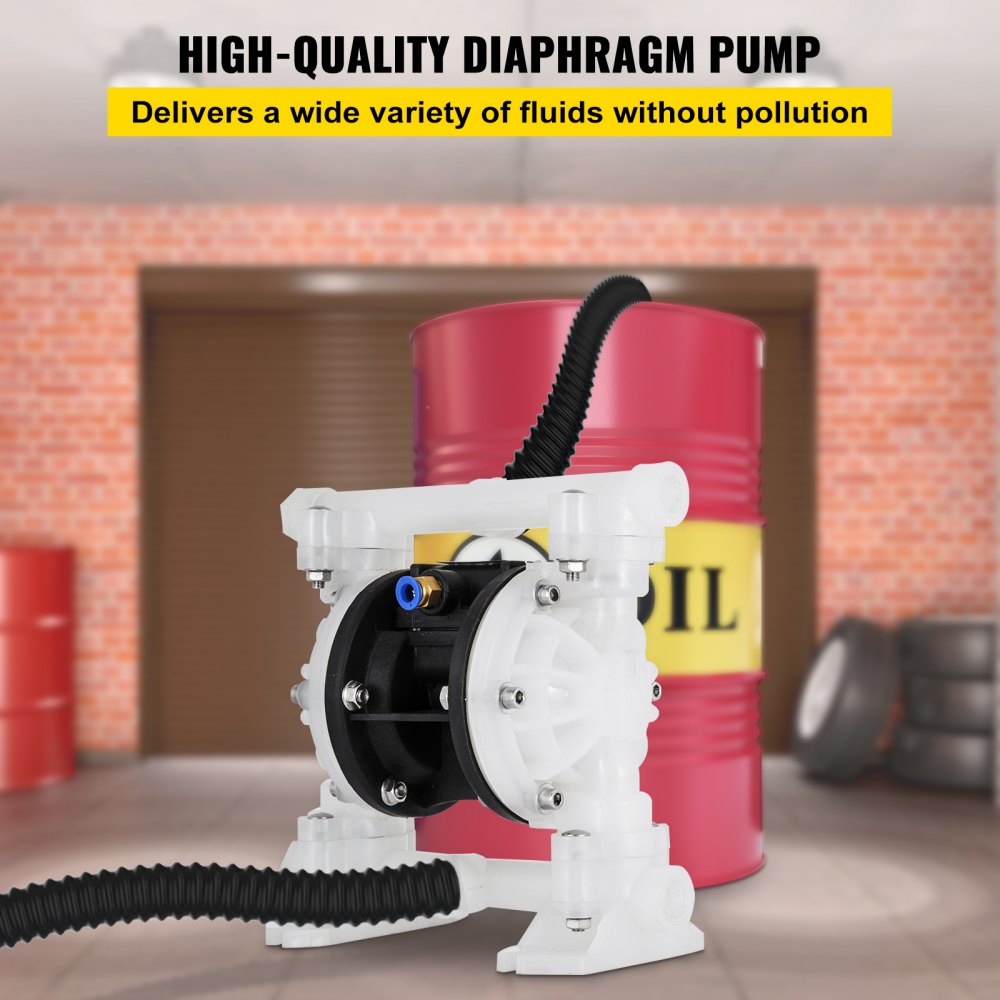

The Vevor air-operated double diaphragm pump is built with a polypropylene body and double PTFE diaphragms for durable, corrosion-resistant fluid transfer. It delivers up to 8.8 GPM and is designed for handling petroleum, diesel, oil, and other low-viscosity or viscous fluids. Its air-operated, self-priming design supports reliable non-stall performance with leak-resistant bolted construction. This pump is suited for use across industries including petroleum, mining, coating, water treatment, and automotive.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

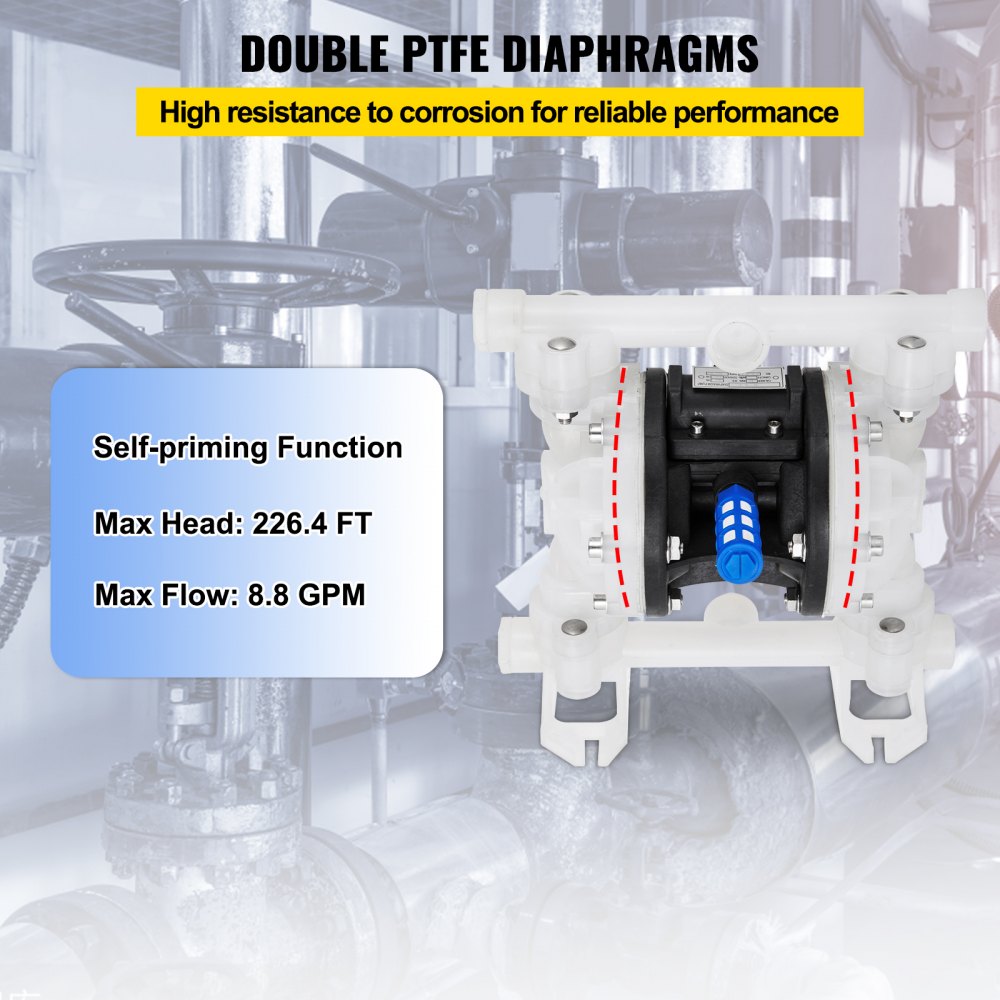

- Premium Double PTFE Diaphragms: Our air-operated double diaphragm pump adopts PTFE diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 100 psi; Max. Flow Rate：8.8 GPM; Max Head Lift：226.4 ft/69 m.

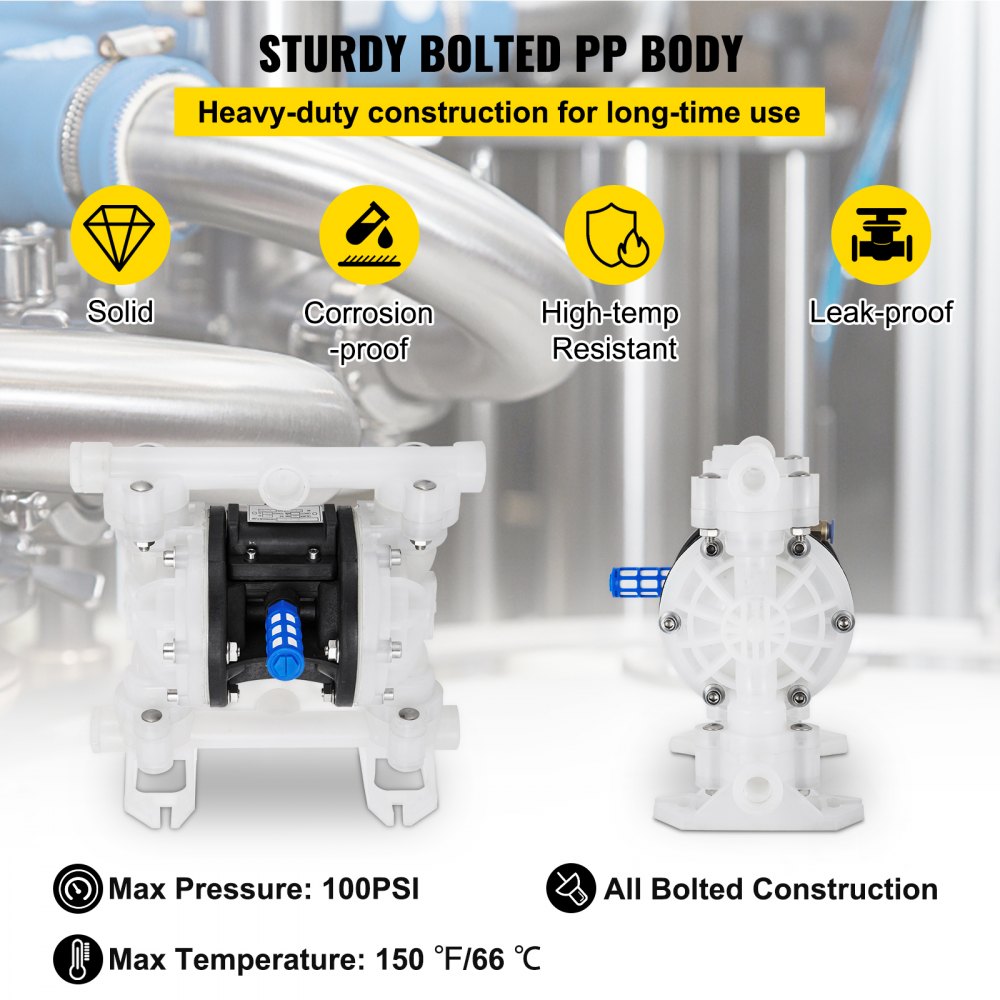

- Sturdy & Leak-proof Construction: The diaphragm pump housing is made of polypropylene material, bolted against leakage, sturdy, and corrosion-proof for long-time use.

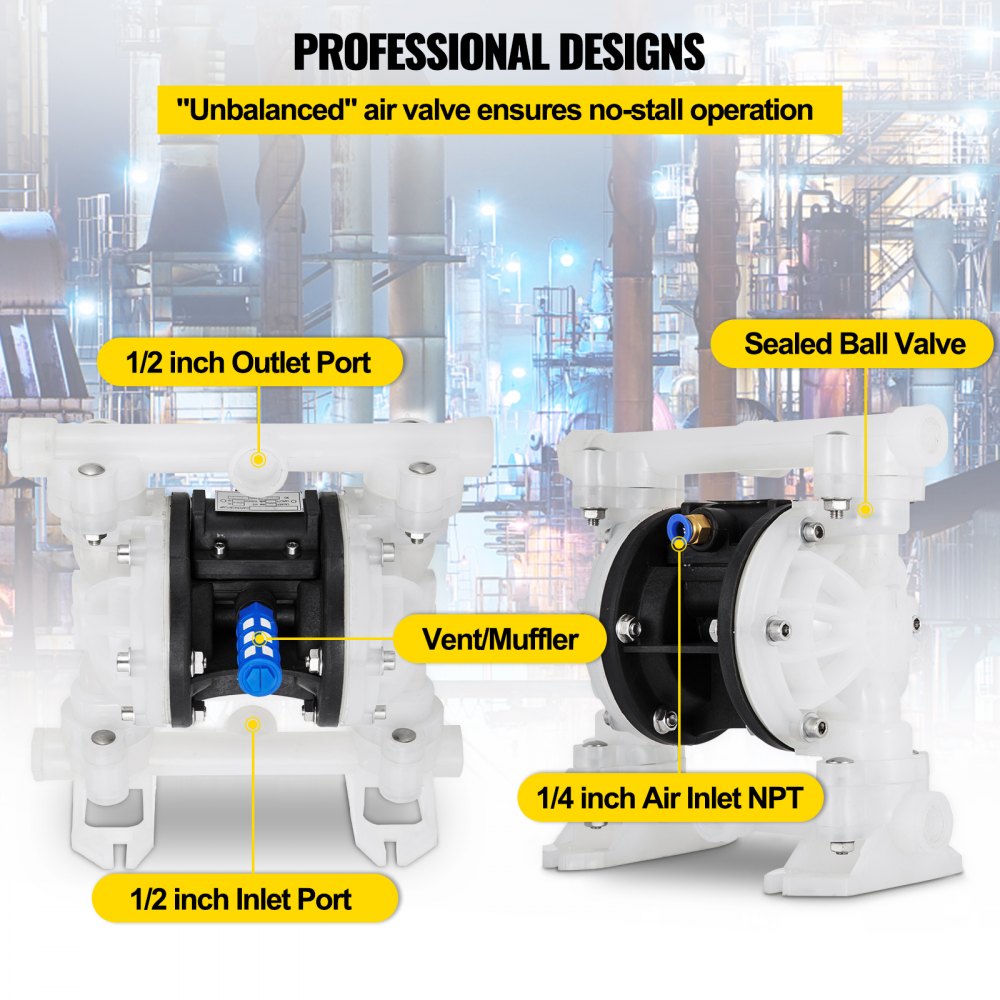

- Excellent Air-operated Performance: Inlet/Outlet Port Size: 1/2 inch; Air Inlet Size: FNPT 1/4 inch. A high-quality glyd ring, the double-acting sealing, strengthens air performance.
- Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime.

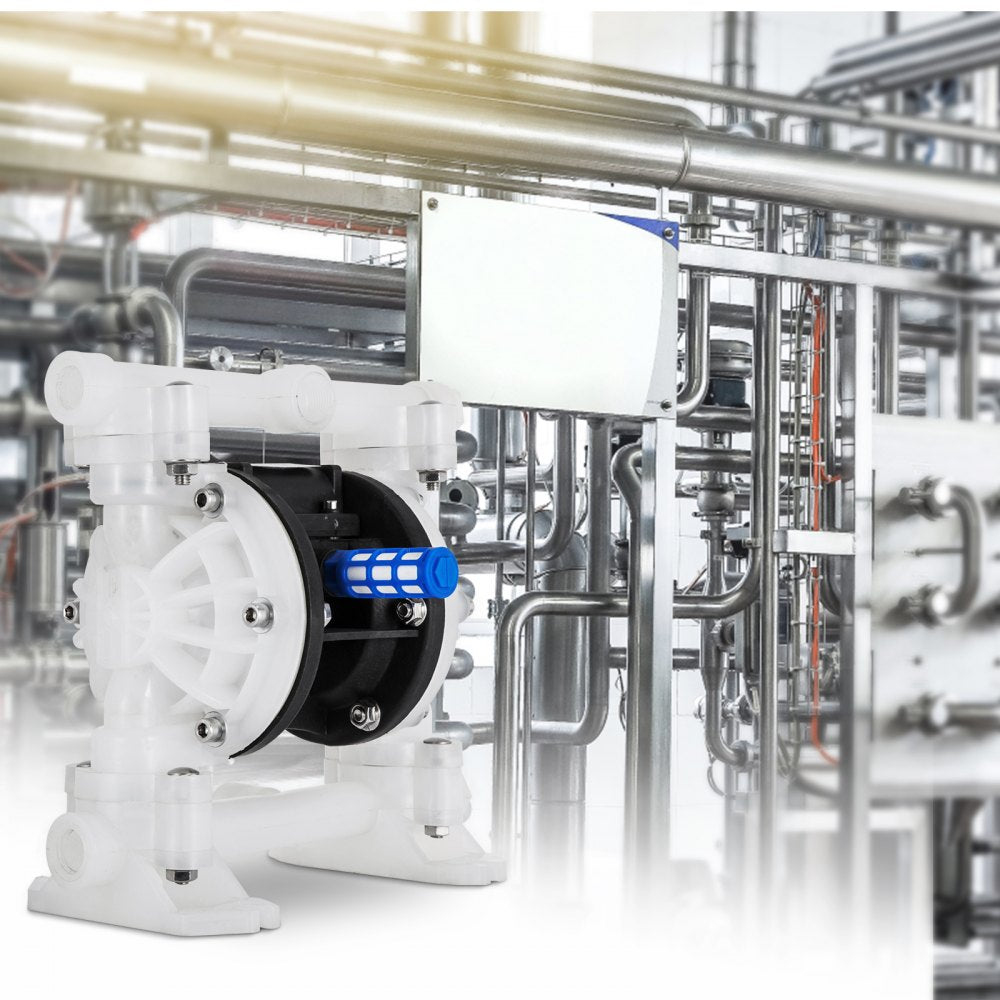

- Wide Applications: This diaphragm pump can handle various fluids, such as waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drink, and so on. It is widely used in many industries, such as petroleum, metallurgy, mining, coating, printing, water treatment, and automobile.
Specifications
| Model | QBY4-15 |
| Body Material | Polypropylene |
| Diaphragm Material | PTFE |
| Inlet Port | 1/2" 12.7 mm |
| Outlet Port | 1/2" 12.7 mm |
| Air Inlet Size | 1/4" 6.35 mm |
| Gas Nozzle | 0.32" 8 mm |
| Max Flow Rate | 8.8 GPM |

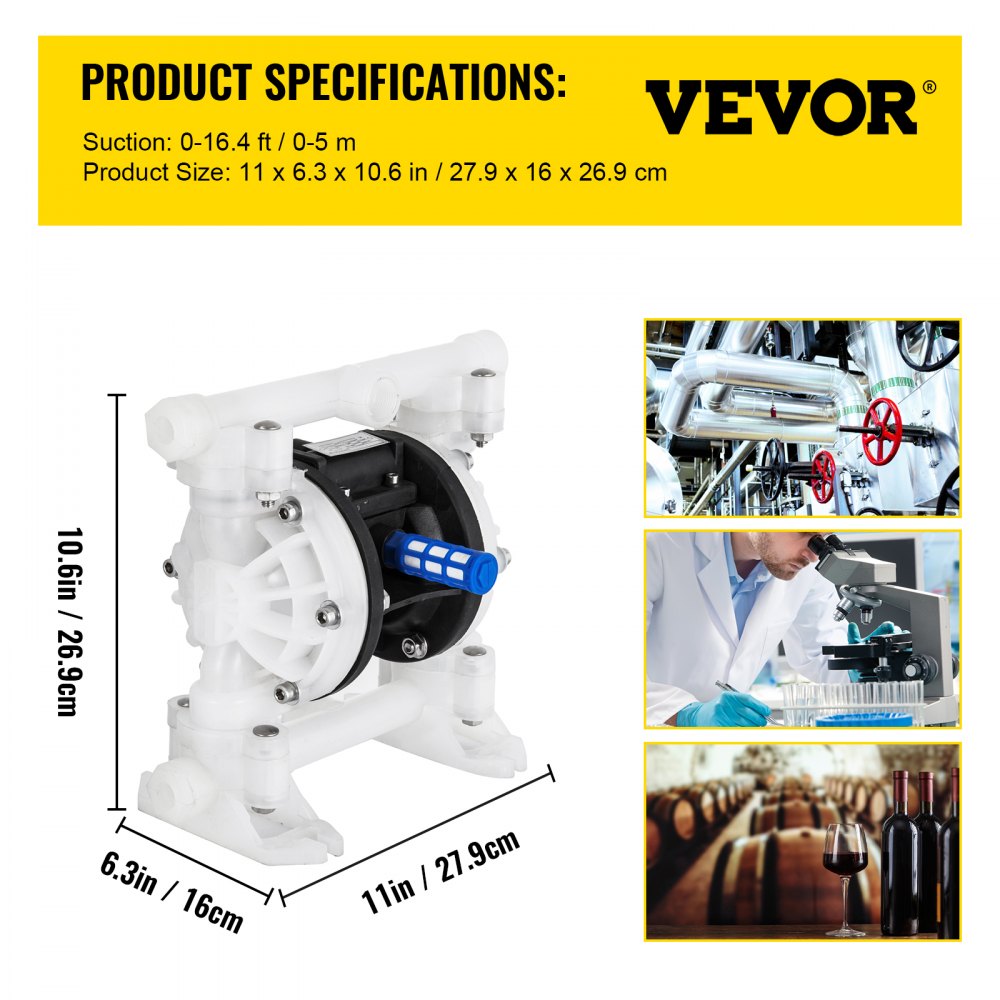

| Suction | 0-5 m 0-16.4' |
| Max Suspended Solids | 2.38 mm 3/32" |
| Max Head | 69 m 226.4' |
| Check Seat Material | Polypropylene |
Package Contents
1 x Air-Operated Double Diaphragm Pump QBY4-15
1 x Product Manual
Warranty
This item comes with a 1 year factory warranty.
