Vevor Diamond Core Drilling Machine Dry/Wet Concrete Core Drill Rig with 5" Wet Drill Bit Tiltable Stand & Wheeled Base New
Product Overview
The Vevor diamond core drilling machine is designed for powerful wet and dry drilling through concrete, brick, stone, ceramic tile, asphalt, and marble. It delivers up to 3200W of load power with two drilling speeds for efficient performance across demanding jobs. The tiltable stand and widened wheeled base help improve control, stability, and mobility on the worksite. An included 5" wet drill bit and extended water hose support convenient wet drilling operation. Its heavy-duty metal construction and built-in mechanical friction clutch enhance durability and operational safety.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- 0.8"-12" Drilling Capacity: This diamond core drilling machine includes one 5 in wet core bit and is compatible with core bits from 0.8 to 12 in. It delivers a maximum load power of 3200W and features two adjustable no-load speeds of 800 and 430 RPM for powerful, efficient drilling
- Wet & Dry Drilling: Features an adjustable faucet and a 2.5 m extended water hose. Wet drilling mode helps cool the bit, reduce dust, and protect the machine, while the dry drilling mode is ready to use for faster, more convenient operation
- Tiltable Stand & Rolling Base: The tilting stand provides flexible angle adjustment for drilling deep into corners, while the widened wheeled base improves stability and enables smoother movement, reducing manual handling and heavy lifting
- Enhanced Security & Stability: A heavy-duty metal body improves durability and drilling stability. The built-in mechanical friction clutch automatically stops operation when excessive resistance occurs, helping reduce operating risks and protect the machine
- Multi-Scenario Use: Designed for wet and dry drilling through a variety of hard materials, this diamond core drill handles concrete walls, stone, ceramic tile, brick, asphalt, marble floors with ease and efficiency

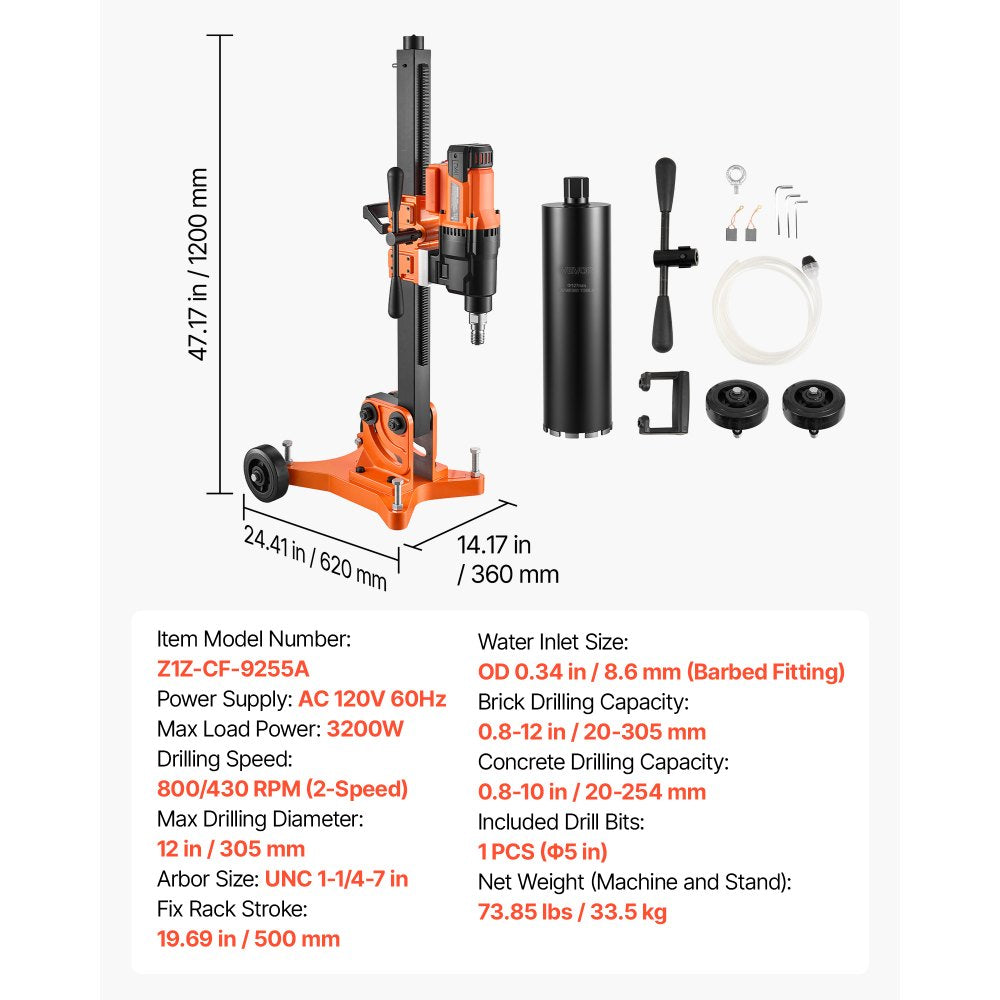

Specifications
| Item Model Number | Z1Z-CF-9255A |
|---|---|
| Power Supply | AC 120V 60Hz |
| Max Load Power | 3200W |
| Drilling Speed | 800/430 RPM (2-Speed) |
| Max Drilling Diameter | 12" / 305 mm |
| Arbor Size | UNC 1-1/4-7" |
| Fix Rack Stroke | 19.69" / 500 mm |
| Water Inlet Size | OD 0.34" / 8.6 mm (Barbed Fitting) |
| Brick Drilling Capacity | 0.8"-12" / 20-305 mm |
| Concrete Drilling Capacity | 0.8"-10" / 20-254 mm |
| Included Drill Bit | 1 pc (5") |
|---|---|
| Net Weight | 73.85 lbs / 33.5 kg |
| Product Dimensions | 24.41 x 14.17 x 47.24" / 620 x 360 x 1200 mm |
Package Contents
Diamond core drilling machine
Stand
5" wet drill bit
2.5 m water hose
Warranty
This item comes with a 1 year factory warranty.
