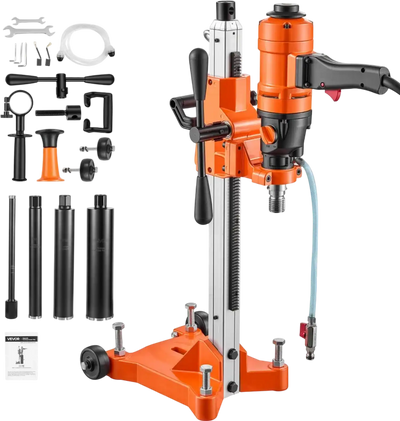

Vevor Diamond Core Drilling Machine 8" Wet & Dry Concrete Core Drill Rig New

Manufacturer: Vevor

SKU: QXZZLZJDLZ4YD18W2001V1

SMS
Messenger
WhatsApp
VEVOR Diamond Core Drilling Machine, Max 8" Drilling Capacity, 2-in-1 Handheld/Stand-Mount Dry and Wet Concrete Core Drill Rig with 4 Drill Bits, Rolling Wheeled Base, 1500W 2-Speed 950RPM/2200RPM
VEVOR Diamond Core Drilling Machine, Max 8" Drilling Capacity, 2-in-1 Handheld/Stand-Mount Dry and Wet Concrete Core Drill Rig with 4 Drill Bits, Rolling Wheeled Base, 1500W 2-Speed 950RPM/2200RPM
VEVOR Diamond Core Drilling Machine, Max 8" Drilling Capacity, 2-in-1 Handheld/Stand-Mount Dry and Wet Concrete Core Drill Rig with 4 Drill Bits, Rolling Wheeled Base, 1500W 2-Speed 950RPM/2200RPM
VEVOR Diamond Core Drilling Machine, Max 8" Drilling Capacity, 2-in-1 Handheld/Stand-Mount Dry and Wet Concrete Core Drill Rig with 4 Drill Bits, Rolling Wheeled Base, 1500W 2-Speed 950RPM/2200RPM
VEVOR Diamond Core Drilling Machine, Max 8" Drilling Capacity, 2-in-1 Handheld/Stand-Mount Dry and Wet Concrete Core Drill Rig with 4 Drill Bits, Rolling Wheeled Base, 1500W 2-Speed 950RPM/2200RPM
VEVOR Diamond Core Drilling Machine, Max 8" Drilling Capacity, 2-in-1 Handheld/Stand-Mount Dry and Wet Concrete Core Drill Rig with 4 Drill Bits, Rolling Wheeled Base, 1500W 2-Speed 950RPM/2200RPM
VEVOR Diamond Core Drilling Machine, Max 8" Drilling Capacity, 2-in-1 Handheld/Stand-Mount Dry and Wet Concrete Core Drill Rig with 4 Drill Bits, Rolling Wheeled Base, 1500W 2-Speed 950RPM/2200RPM
VEVOR Diamond Core Drilling Machine, Max 8" Drilling Capacity, 2-in-1 Handheld/Stand-Mount Dry and Wet Concrete Core Drill Rig with 4 Drill Bits, Rolling Wheeled Base, 1500W 2-Speed 950RPM/2200RPM
VEVOR Diamond Core Drilling Machine, Max 8" Drilling Capacity, 2-in-1 Handheld/Stand-Mount Dry and Wet Concrete Core Drill Rig with 4 Drill Bits, Rolling Wheeled Base, 1500W 2-Speed 950RPM/2200RPM
VEVOR Diamond Core Drilling Machine, Max 8" Drilling Capacity, 2-in-1 Handheld/Stand-Mount Dry and Wet Concrete Core Drill Rig with 4 Drill Bits, Rolling Wheeled Base, 1500W 2-Speed 950RPM/2200RPM
VEVOR Diamond Core Drilling Machine, Max 8" Drilling Capacity, 2-in-1 Handheld/Stand-Mount Dry and Wet Concrete Core Drill Rig with 4 Drill Bits, Rolling Wheeled Base, 1500W 2-Speed 950RPM/2200RPM
VEVOR Diamond Core Drilling Machine, Max 8" Drilling Capacity, 2-in-1 Handheld/Stand-Mount Dry and Wet Concrete Core Drill Rig with 4 Drill Bits, Rolling Wheeled Base, 1500W 2-Speed 950RPM/2200RPM
VEVOR Diamond Core Drilling Machine, Max 8" Drilling Capacity, 2-in-1 Handheld/Stand-Mount Dry and Wet Concrete Core Drill Rig with 4 Drill Bits, Rolling Wheeled Base, 1500W 2-Speed 950RPM/2200RPM
VEVOR Diamond Core Drilling Machine, Max 8" Drilling Capacity, 2-in-1 Handheld/Stand-Mount Dry and Wet Concrete Core Drill Rig with 4 Drill Bits, Rolling Wheeled Base, 1500W 2-Speed 950RPM/2200RPM
VEVOR Diamond Core Drilling Machine, Max 8" Drilling Capacity, 2-in-1 Handheld/Stand-Mount Dry and Wet Concrete Core Drill Rig with 4 Drill Bits, Rolling Wheeled Base, 1500W 2-Speed 950RPM/2200RPM
VEVOR Diamond Core Drilling Machine, Max 8" Drilling Capacity, 2-in-1 Handheld/Stand-Mount Dry and Wet Concrete Core Drill Rig with 4 Drill Bits, Rolling Wheeled Base, 1500W 2-Speed 950RPM/2200RPM
VEVOR Diamond Core Drilling Machine, Max 8" Drilling Capacity, 2-in-1 Handheld/Stand-Mount Dry and Wet Concrete Core Drill Rig with 4 Drill Bits, Rolling Wheeled Base, 1500W 2-Speed 950RPM/2200RPM
VEVOR Diamond Core Drilling Machine, Max 8" Drilling Capacity, 2-in-1 Handheld/Stand-Mount Dry and Wet Concrete Core Drill Rig with 4 Drill Bits, Rolling Wheeled Base, 1500W 2-Speed 950RPM/2200RPM
VEVOR Diamond Core Drilling Machine, Max 8" Drilling Capacity, 2-in-1 Handheld/Stand-Mount Dry and Wet Concrete Core Drill Rig with 4 Drill Bits, Rolling Wheeled Base, 1500W 2-Speed 950RPM/2200RPM
VEVOR Diamond Core Drilling Machine, Max 8" Drilling Capacity, 2-in-1 Handheld/Stand-Mount Dry and Wet Concrete Core Drill Rig with 4 Drill Bits, Rolling Wheeled Base, 1500W 2-Speed 950RPM/2200RPM
VEVOR Diamond Core Drilling Machine, Max 8" Drilling Capacity, 2-in-1 Handheld/Stand-Mount Dry and Wet Concrete Core Drill Rig with 4 Drill Bits, Rolling Wheeled Base, 1500W 2-Speed 950RPM/2200RPM
VEVOR Diamond Core Drilling Machine, Max 8" Drilling Capacity, 2-in-1 Handheld/Stand-Mount Dry and Wet Concrete Core Drill Rig with 4 Drill Bits, Rolling Wheeled Base, 1500W 2-Speed 950RPM/2200RPM
VEVOR Diamond Core Drilling Machine, Max 8" Drilling Capacity, 2-in-1 Handheld/Stand-Mount Dry and Wet Concrete Core Drill Rig with 4 Drill Bits, Rolling Wheeled Base, 1500W 2-Speed 950RPM/2200RPM
VEVOR Diamond Core Drilling Machine, Max 8" Drilling Capacity, 2-in-1 Handheld/Stand-Mount Dry and Wet Concrete Core Drill Rig with 4 Drill Bits, Rolling Wheeled Base, 1500W 2-Speed 950RPM/2200RPM

QTY

Product successfully added to your wishlist.
View wishlist

or

(888) 999-1522

Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions will be validated and approved before shipping.

C

$629.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+

Similar Products

COMPARE SIMILAR ITEMS
0 items match these filters.

Customers Also Purchased

Featured image for product 7639591551165 Vevor Electric Concrete Saw 16" Circular Wet Disk 6" Adjustable Cutting Depth 3200W 15A Motor New

$299.00

Featured image for product 8044822266045 Vevor Pipe Crimping Kit Pro Press Tool Cordless with 3 Jaw Sizes New

$805.00

VEVOR 3/8 Vevor Electric Ratchet Wrench 3/8" Cordless 12V 33 ft-lbs Tool Kit New

$80.00

VEVOR Cordless Impact Wrench, 958.8 ft-lbs / 1300 N·m High Torque, 1/2 inch, 20V Electric Impact Wrench with Brushless Motor, 2 x 4Ah Batteries, Charger, 5 Sockets and Belt Clip, for Car Tire Truck Vevor Impact Wrench Cordless 1/2" 20V High Torque with 2 x 4Ah Batteries New

$234.00

VEVOR Two-Way Articulating Borescope with Light, Inspection Camera with 0.25 Vevor Borescope Two-Way Articulating 5" IPS 6.4 mm Lens Inspection Camera New

$139.00

VEVOR Handheld Concrete Vibrator, 800W Electric Vibrator 13000 VPM, Electric Concrete Vibrating Tool With 6.6ft / 2m Shaft Rod, Portable Pencil Cement Vibrator Remove Air Bubble and Mix Concrete Vevor Concrete Vibrator Handheld 800W 13000 VPM with 6.6' Shaft Rod New

$83.00

CLZTJJT1140MMA10VV1 (1) Vevor Magnetic Drill 1450W Electric 1.57" Boring Diameter 12500N 850 RPM New

$377.00

Featured image for product 7640828051645 Vevor Demolition Jack Hammer Concrete Breaker 3500W Electric 2 Chisel Bits New

$209.00

Featured image for product 7911911227581 Vevor Belt Grinder Sander 30" x 1" Variable Speed with VFD 5500RPM 550W New

$270.00

VEVOR Framing Nailer, 2 Vevor Framing Nailer 21 Degree Pneumatic Air Nail Gun 2"-3-1/2" New

$175.00

VEVOR Linear Motion Set, SBR20 2200mm, Comes with Two 86.6-inch SBR20 Rails & Four SBR20UU Blocks, Ideal for DIY CNC & Automated Projects Vevor Linear Guide Rail Set 86.6" w/ 4 Slide Blocks New

$185.00

VEVOR Cordless Mini Press Tool, 18V Electric Pipe Crimping Tool for 1/2 Vevor Press Tool Cordless Mini 18V Electric Pipe Crimping Kit New

$778.00

VEVOR Endoscope Camera with Light, Dual Lens Industrial Borescope, 4.3 Vevor Borescope Dual Lens Endoscope Camera with 4.3" Screen 1080P 16.4' Cable New

$52.00

VEVOR 1-9/16 Inch SDS-Max Rotary Hammer Drill, 13Amp Corded Drills, Heavy Duty Chipping Hammers with Vibration Control & Safety Clutch, Electric Demolition Hammers Variable Speed, Power Tool For Concr Vevor Rotary Hammer Drill 1-9/16" SDS-Max Corded 13A New

$178.00

VEVOR Magnetic Drill, 1450W Motor 2 in Coring Diameter, 2922 lbf Magnetic Force, Portable Electric Mag Drill Press with 6 Coring Bits, Variable Speed, Drilling Machine for Metal Surface, Industrial Vevor Magnetic Drill Press Portable 1450W 2" Coring Diameter New

$333.00

VEVOR Articulating Borescope with 3.9mm Ultra Slim Lens, 4-Way 360° Articulated Endoscope with Light, 4.5 Vevor Borescope Articulating Endoscope Inspection Camera with 4.5" HD IPS Screen and 4.9' Cable New

$203.00

VEVOR Coil Siding Nailer CN65, 1-1/4 Vevor Coil Siding Nailer Pneumatic 1-1/4" to 2-1/2" 15 Degree New

$185.00

Featured image for product 7932196880573 Vevor Box and Pan Brake 48" 0-135° Sheet Metal Bender for 20-Gauge Low Carbon Steel and 14-Gauge ...

$196.00

VEVOR Die Grinder, 1/4 Vevor Die Grinder Variable Speed Heavy Duty Electric 1/4" Collet New

$71.00

Vevor Diamond Core Drilling Machine 8

Vevor Diamond Core Drilling Machine 8" Wet & Dry Concrete Core Drill Rig New

SMS
Messenger
WhatsApp
Add To Wishlist
Remove From Wishlist

Product Overview

The Vevor diamond core drilling machine is designed for demanding wet and dry drilling applications in concrete, brick, stone, ceramic tile, asphalt, and marble. It features 1500W power with 2-speed operation at 950 and 2200 RPM for efficient drilling performance. The 2-in-1 design supports both handheld and stand-mounted use, and the wheeled base helps improve stability and mobility. This package includes 4 drill bits and a water hose assembly for flexible jobsite use.
vendor logo
divider
authorized dealer
checkmark

Brand new

checkmark

1 year factory warranty

checkmark

Manufacturer direct shipping from CA, NJ, & TX

checkmark

Authorized Vevor Dealer

Features

  • Powerful & Efficient Drilling: This diamond core drilling machine includes 4 core bits (1",2",3",4") and supports core bits up to 8 in. It delivers 1500W rated power and features two adjustable no-load speeds of 950 and 2200 RPM for powerful, efficient drilling.
  • Wet & Dry Drilling: Features an adjustable faucet and a 2.5 m extended water hose. Wet drilling mode helps cool the bit, reduce dust, and protect the machine, while the dry drilling mode is ready to use for faster, more convenient operation
  • 2-in-1 Flexible Use: Our concrete core drill rig supports both handheld and stand-mounted operation for different drilling needs. The widened wheeled base improves stability and enables smoother movement, reducing manual handling and heavy lifting
  • Enhanced Security & Stability: A heavy-duty metal body improves durability and drilling stability. The built-in mechanical friction clutch automatically stops operation when excessive resistance occurs, helping reduce operating risks and protect the machine
  • Versatile Drilling: Designed for wet and dry drilling through a variety of hard materials, this concrete core drill rig handles concrete walls, stone, ceramic tile, brick, asphalt, marble floors with ease and efficiency

Specifications

Item Model Number Z1Z-CF03-80C
Power Supply AC 120V 60Hz
Rated Power 1500W
Max Load Power 1800W
Drilling Speed 950/2200 RPM 2-speed
Max Drilling Diameter 8" / 202 mm
Arbor Size UNC 1-1/4-7"
Fix Rack Stroke 14.57" / 370 mm
Water Inlet Specification Hose Assembly, OD 0.63" / 16 mm
Brick Drilling Capacity Max 7.87" / 200 mm
Concrete Drilling Capacity Max 3.15" / 80 mm
Included Drill Bits 4 pcs 1" 2" 3" 4"
Net Weight Machine and Stand 35.94 lbs / 16.3 kg
Product Dimensions 19.69 x 10.24 x 36.22" / 500 x 260 x 920 mm

Package Contents

Diamond core drilling machine

Stand

4 drill bits 1"

2"

3"

4"

Water hose assembly

Warranty

vendor logo
divider
authorized dealer

This item comes with a 1 year factory warranty.
